V-Belt A/B/C/D Section Metric Transmission Belt — Reliable Power Transfer for Industrial & DIY Drives

When a worn or incorrectly sized drive belt causes your compressor to slip, your conveyor to stall, or your HVAC fan to underperform, the fix starts with the right replacement. These metric V-belts are designed for mechanics, maintenance technicians, and serious DIYers who need a dependable, correctly sized belt without the guesswork.

Available in four cross-section types — A-type (13mm wide), B-type (17mm wide), C-type (22mm wide), and D-type (32mm wide) — with perimeters ranging from 500mm (≈19.7") to 7000mm (≈275.6"). Each belt is a single-piece wrapped construction, sold individually per unit.

Typical applications include air compressor drives, agricultural equipment, industrial conveyor systems, HVAC blower assemblies, and woodworking machinery — anywhere a metric V-belt drive is specified.

ℹ️ Compatibility Note: These belts follow standard metric V-belt profiles (ISO 4184 / DIN 2215 equivalent). Match the section letter (A/B/C/D) to your pulley groove profile and verify the perimeter before ordering. See the FAQ below for sizing guidance.

✅ Key Features of These Metric V-Belt Transmission Belts

  • 📐Wide Size Range — Perimeters from 500mm to 7000mm in 50mm increments (A/C sections) or specific sizes (B/D sections), covering the majority of standard metric V-belt drive applications.
  • 🔩Four Section Types — A (13mm), B (17mm), C (22mm), and D (32mm) cross-sections match standard metric pulley grooves for correct wedging action and efficient power transfer.
  • ⚙️Wrapped Construction — The outer fabric wrap protects the belt body from abrasion and oil splash, extending service life in typical industrial and workshop environments.
  • 🔄Flexible Tensile Cord — Internal cord construction provides the tensile strength needed for consistent power transmission across varying load cycles without rapid elongation.
  • 🌡️Broad Operating Range — Suitable for general-purpose drives in covered outdoor and indoor environments, including agricultural machinery, HVAC systems, and light-to-heavy industrial equipment.
  • 🔁Direct Replacement Fit — Sized to standard metric V-belt dimensions, making these a straightforward drop-in replacement for OEM and aftermarket metric belt drives.

📐 Technical Specifications — Metric V-Belt Transmission Belt

Belt Standard Metric V-Belt (ISO 4184 / DIN 2215 equivalent)
Section Types A, B, C, D

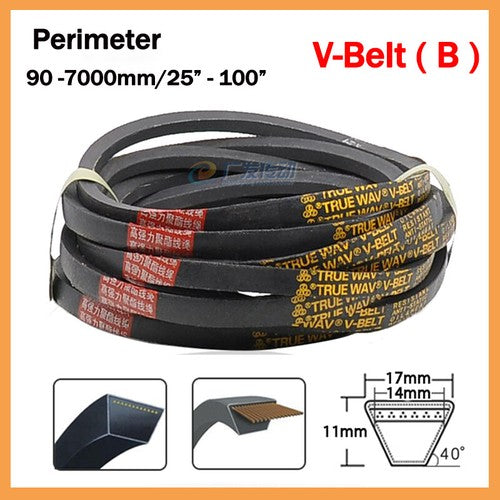

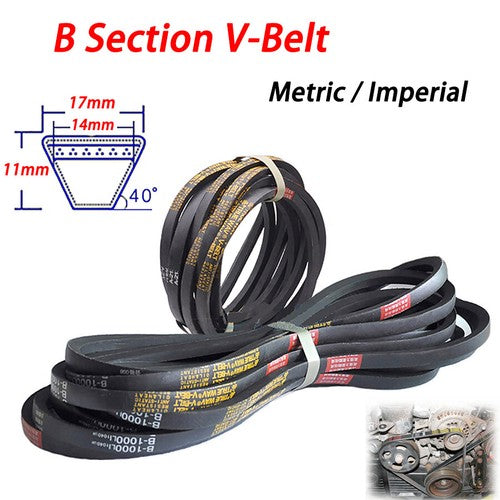

Section Width A: 13mm (≈1/2") | B: 17mm (≈11/16") | C: 22mm (≈7/8") | D: 32mm (≈1-1/4")
Perimeter Range 500mm (≈19.7") – 7000mm (≈275.6")
Construction Wrapped (fabric outer cover)
Tensile Member See variant options
Quantity per Order 1 belt per unit
Suitable Applications Air compressors, conveyors, HVAC blowers, agricultural equipment, woodworking machinery
Operating Environment General-purpose indoor/covered outdoor use
Country of Origin Contact us to confirm
⚠️ Sizing Tip: The perimeter listed is the outer circumference of the belt. Confirm this matches your drive's required belt length specification before purchasing. If unsure, measure your existing belt or consult your equipment manual.

❓ Frequently Asked Questions

How do I choose the right V-belt perimeter size?

Measure the center-to-center distance between your pulleys, then use the standard formula for your drive geometry to calculate the required belt length. As a general rule, the belt perimeter equals roughly 2× the center distance plus the sum of the pulley circumferences. For example, a 1000mm (≈39.4") perimeter belt typically suits drives with a center distance around 350–400mm. When in doubt, consult your equipment manual or contact us to confirm.

What is the difference between A-type, B-type, C-type, and D-type V-belts?

The section letter indicates the belt's cross-sectional width and depth. A-type belts are generally 13mm wide, B-type 17mm, C-type 22mm, and D-type 32mm. Wider sections carry higher loads. Always match the section to your pulley groove profile.

How much load can these V-belts handle?

Load capacity depends on the section type, belt speed, and pulley diameter. In general, A-section belts are suited for light-to-medium duty applications, while C and D sections handle heavier industrial loads. For specific power ratings, refer to your drive design specifications or contact us to confirm suitability.

Can these V-belts be used outdoors or in wet environments?

These belts are generally suitable for covered outdoor equipment such as agricultural machinery and HVAC units. They are not designed for continuous submersion in water. For highly corrosive or chemical-exposure environments, contact us to confirm compatibility.

Are these belts compatible with standard metric pulley grooves?

Yes. These belts follow standard metric V-belt cross-section profiles (ISO 4184 / DIN 2215 equivalent). They are compatible with standard metric pulleys of the corresponding section. Always verify the groove angle and width match your pulley specification.

How do I know if I need to replace my V-belt?

Common signs include visible cracking, fraying, glazing on the belt surface, slipping under load, unusual squealing noise, or reduced drive efficiency. As a general guideline, inspect belts every 6–12 months under normal operating conditions and replace them proactively before failure.

Can I run multiple V-belts in parallel on the same drive?

Yes. Multi-belt drives are common for higher power transmission. When replacing belts in a multi-belt setup, it is generally recommended to replace all belts at the same time to ensure even load sharing and prevent premature wear on the new belt.

🛒 Select your model type and perimeter above, then add to cart — ships from our US warehouse.
