Mini SMD Slide Switch — Reliable Signal Switching for Tight PCB Layouts

When you're routing signals on a compact PCB and need a dependable, low-profile toggle, a full-size switch simply won't fit. Electronics engineers, hobbyists, and repair technicians working on portable devices, IoT modules, wearables, and custom controllers need a mini SMD slide switch that drops into a tight footprint without compromising reliability.

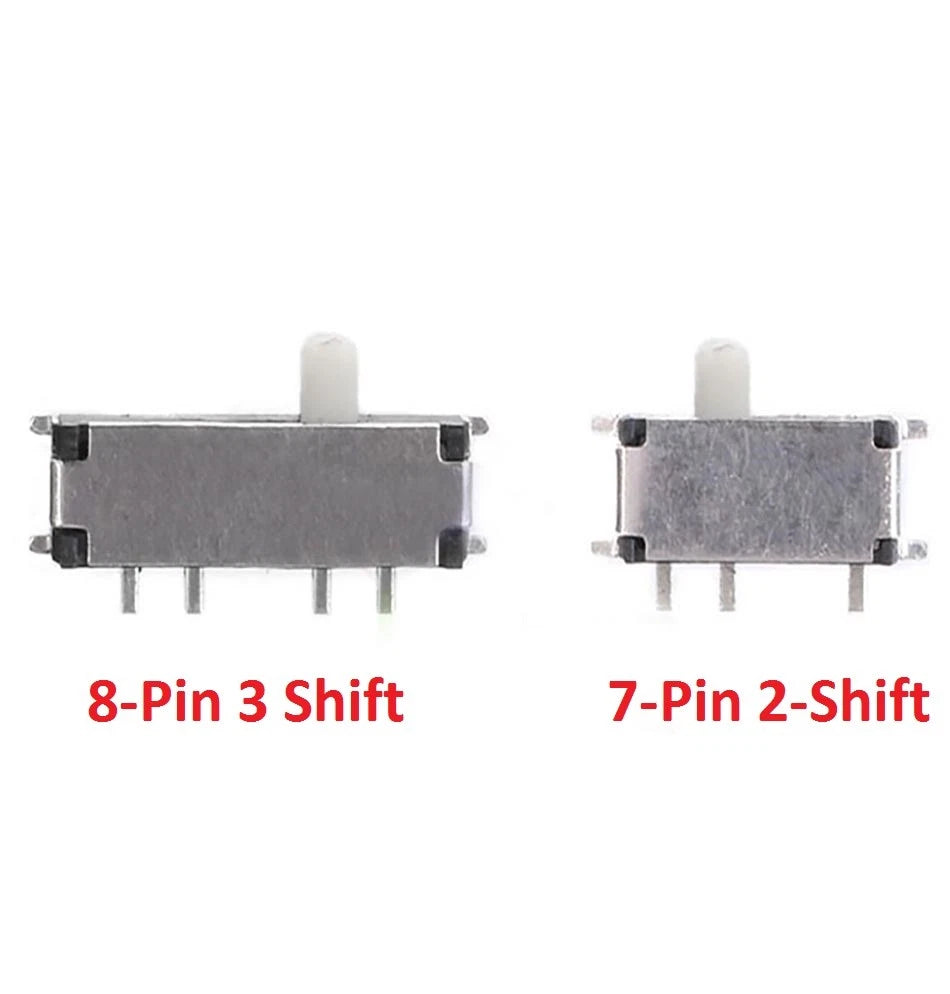

Each unit is a surface-mount slide switch available in two configurations: the 7-Pin 2-Shift (MSK-12C02) for two-position switching, and the 8-Pin 3-Shift (MSK-02) for three-position switching. Both feature a compact SMD body with solder-ready pads, a low-profile actuator, and a contact pitch typically in the 2.54mm (0.1″) range. Available in pack sizes from 10 pcs to 500 pcs to suit prototyping through production.

Typical applications include mode-selection switches on Arduino and ESP32 development boards, power-path switching in battery-powered gadgets, channel selection in audio and RF circuits, and firmware boot-mode toggles on embedded systems — all scenarios where a mini slide switch for PCB is the right call.

🔌 Compatibility: Designed for standard SMD PCB assembly. Footprint compatible with MSK-12C02 and MSK-02 land patterns. Verify your PCB layout against the component datasheet before ordering.

✅ Key Features of These Mini SMD Slide Switches

  • 📐 Ultra-Compact SMD Footprint — Low-profile body fits space-constrained PCB layouts where through-hole switches are not an option, making it ideal for miniature toggle switch SMD applications.
  • 🔀 Two Configurations in One Listing — Choose the 7-pin 2-shift for simple two-position switching or the 8-pin 3-shift for three-state signal routing — both use the same ordering workflow.
  • ⚡ Low-Power Signal Switching — Rated for low-voltage DC circuits (typically up to 12V / 100mA), well-suited for logic-level and signal-path switching in microcontroller and IoT projects.
  • 🛠️ Hand-Solder or Reflow Compatible — Solder-ready SMD pads work with both hand-soldering (with flux) and automated reflow processes, giving flexibility across prototyping and production workflows.
  • 📦 Flexible Pack Quantities — Available in 10, 20, 50, 100, 200, and 500-piece packs so you can order exactly what your project or production run requires without overstocking.
  • 🔁 Consistent Actuation Feel — The slide actuator provides tactile detent feedback at each position, reducing the chance of accidental mid-position stops during assembly or end-user operation.

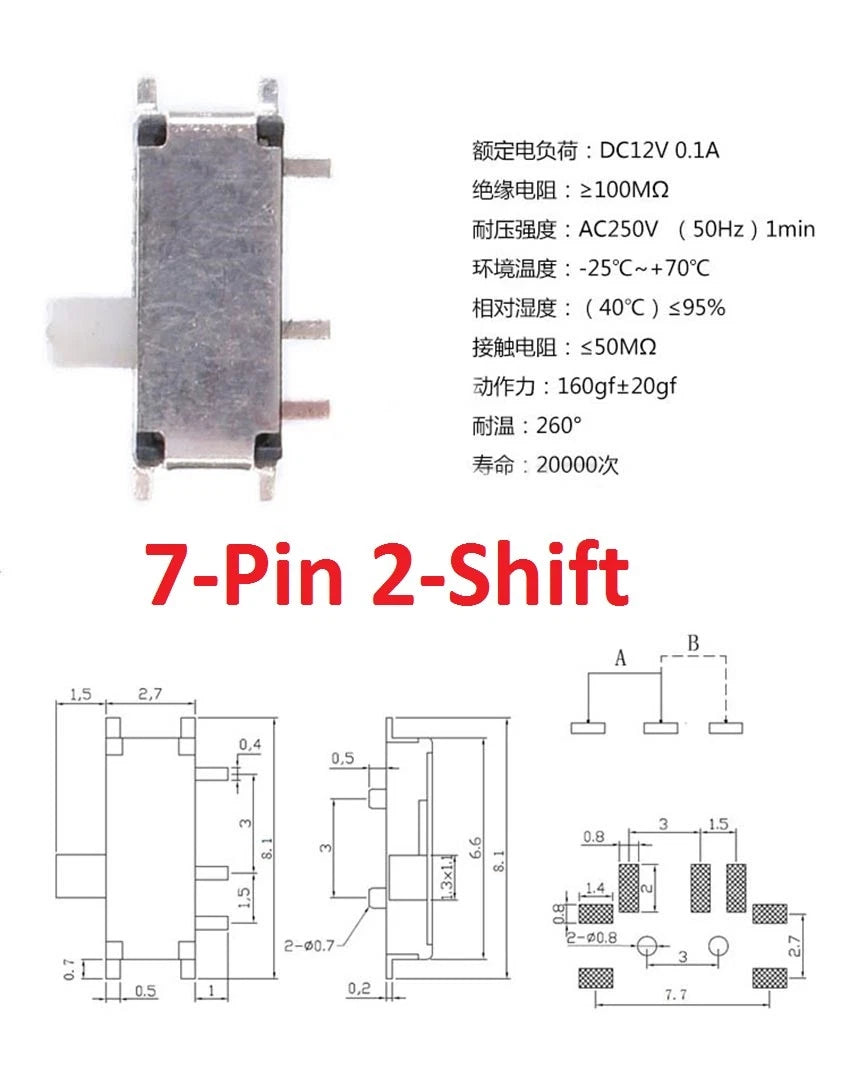

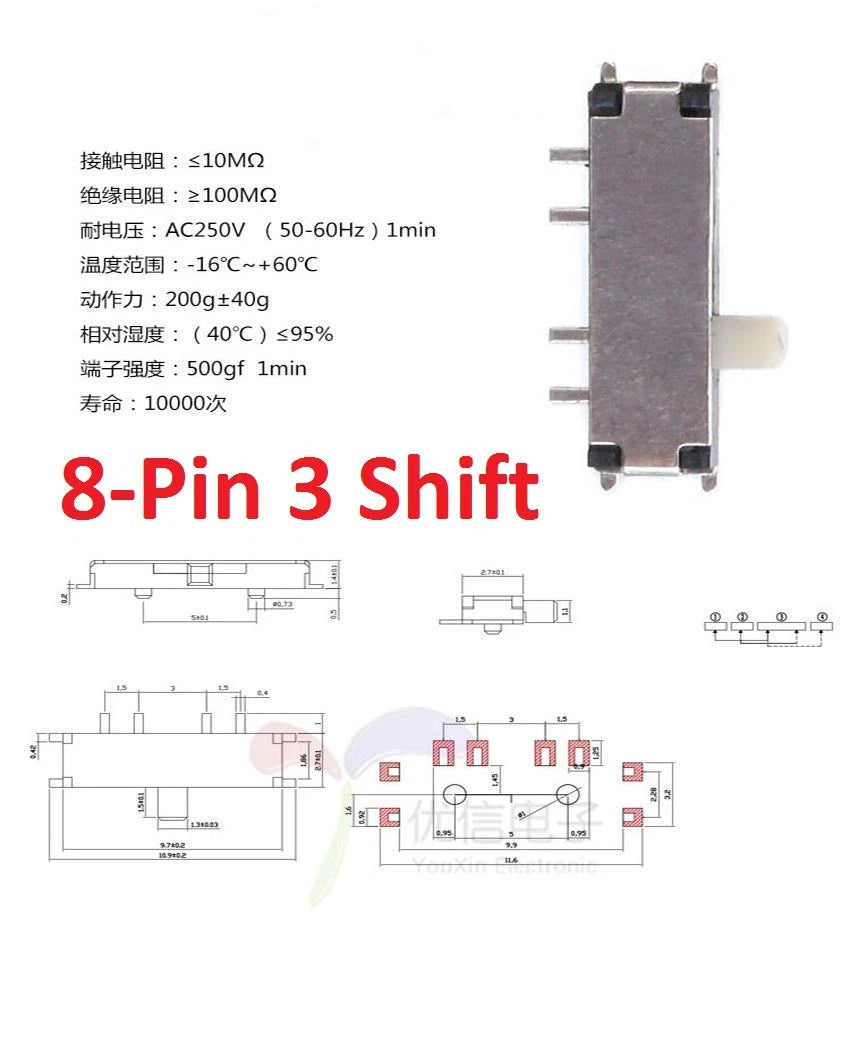

📐 Technical Specifications — Mini SMD Slide Switch

Switch Type SMD Slide Switch (Surface Mount)
Available Configurations 7-Pin 2-Shift (MSK-12C02) / 8-Pin 3-Shift (MSK-02)
Number of Positions 2-Shift: 2 positions  |  3-Shift: 3 positions
Rated Voltage Typically 12V DC (see variant datasheet to confirm)
Rated Current Typically up to 100mA (signal switching only)
Contact Pitch See variant options — typically 2.54mm (0.1″) or 1.27mm
Body Dimensions See variant options — verify against PCB land pattern
Mounting Type Surface Mount (SMD)
Actuator Style Slide with tactile detent
Operating Temperature Contact us to confirm
Material / Finish Plastic actuator body; tin-plated copper alloy contacts
Pack Sizes Available 10 / 20 / 50 / 100 / 200 / 500 pcs
Compatible Models MSK-12C02, MSK-02
⚠️ Spec Note: Exact body dimensions and pitch vary by production lot. Always verify your PCB footprint against a physical sample or the manufacturer datasheet before committing to a full production run.

❓ Frequently Asked Questions

How do I choose between the 7-pin 2-shift and 8-pin 3-shift versions?

Choose the 7-pin 2-shift (MSK-12C02) when your circuit needs a simple ON/OFF or two-position toggle between two signal paths. Choose the 8-pin 3-shift (MSK-02) when you need three switch positions — for example, OFF/Mode1/Mode2 or to route signals across three states. Check your PCB footprint and schematic before ordering.

What are the typical dimensions of these mini slide switches?

These SMD slide switches are generally very compact — typically around 4mm × 1.5mm × 1mm (L×W×H) for the MSK-12C02 footprint, though exact dimensions vary by manufacturer lot. Always verify against your PCB land pattern before mass assembly.

What voltage and current ratings do these switches support?

Mini SMD slide switches in this class typically support rated voltages of 12V DC and currents up to 100mA. They are intended for low-power signal switching, not for mains or high-current power lines. Confirm the datasheet for your specific lot if operating near these limits.

Are these switches suitable for outdoor or high-humidity environments?

These are standard (non-sealed) SMD slide switches and are generally not rated for outdoor or high-humidity use. For moisture-exposed applications, consider a conformal-coated PCB assembly or a sealed switch variant. Indoor electronics and enclosures are the typical use case.

What PCB footprint and pitch do these switches use?

MSK-12C02 and MSK-02 series switches typically use a 2.54mm (0.1″) or 1.27mm pitch SMD footprint depending on the variant. Verify the exact land pattern in the component datasheet or measure a sample before committing to a PCB layout.

Can I hand-solder these SMD switches, or do I need reflow equipment?

Yes — experienced hobbyists and engineers generally hand-solder these with a fine-tip iron and flux. For production runs or consistent results, reflow soldering with solder paste is recommended. The small pad size requires steady hands and appropriate tools.

How many pieces do I need to order, and what pack sizes are available?

Pack sizes range from 10 pcs (ideal for prototyping) up to 500 pcs (for production runs). Select the pack size that matches your project volume — bulk packs offer a lower per-unit cost. All pack sizes ship from our US warehouse.

🛒 Select your type and pack size above, then add to cart — ships from our US warehouse.
