Miniature Slide Switch SPDT 2-Position PCB Mount — SS/SK Series, DC 24V

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

Miniature Slide Switch SPDT 2-Position PCB Mount — SS/SK Series, DC 24V

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Item model: SS-12D00 & DC 24V 0.3A

Qty(pcs): 1 pcs

Preis:

$1.35 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

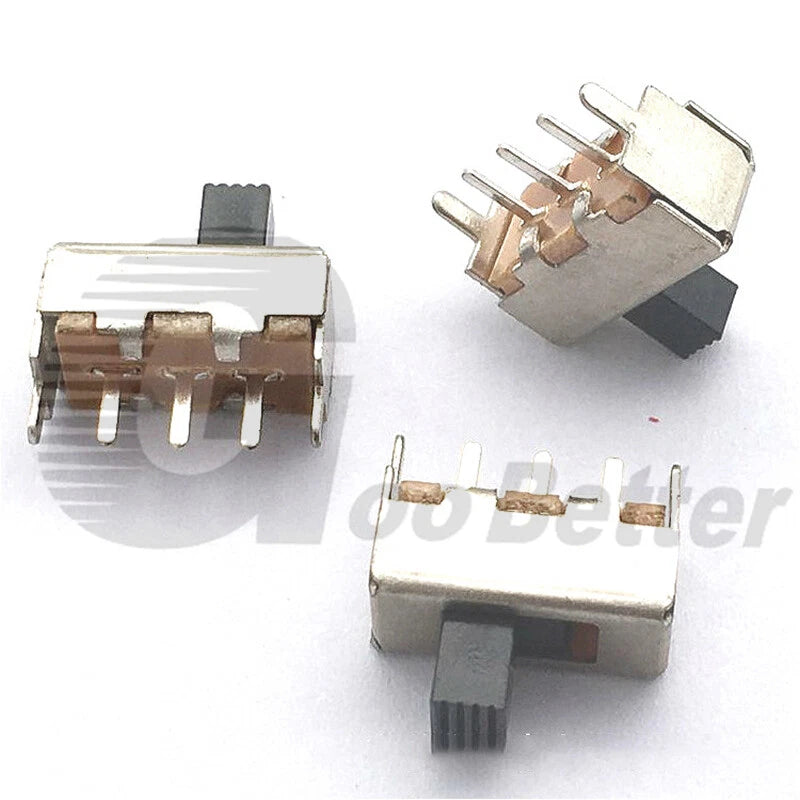

Miniature Slide Switch SPDT 2-Position PCB Mount — Compact Control for Electronics & Model Builds

When you need a reliable on/off or signal-routing switch that fits in tight spaces — inside a model railway car, on a compact PCB, or inside a hobby controller — a full-size toggle simply won't do. These miniature slide switches are designed for engineers, hobbyists, and makers who need precise, repeatable switching in a small footprint without sacrificing electrical reliability.

Each unit is a single-pole double-throw (SPDT) 2-position slide switch from the SS/SK series, rated at DC 24V with current options of 0.3A or 1A depending on the model selected. Available in 14 item models covering different actuator styles (SS and SK), terminal configurations (D and F types), and pin counts. Order in quantities of 1, 2, 4, 5, 10, 20, or 50 pieces — per-unit price decreases with larger packs.

Typical use cases include model railway layout control panels, RC hobby receiver boards, DIY electronics prototyping, and low-voltage signal switching in embedded systems. These PCB-mount miniature slide switches are a go-to component for anyone building compact, low-power switching circuits.

🔌 Compatibility: Designed for PCB through-hole mounting. Rated DC 24V / 0.3A (most models) or DC 24V / 1A (SS-12D06, SS-12D10). Verify your circuit's voltage and current requirements before ordering. Pin pitch varies by model — contact us to confirm footprint dimensions.

⚠️ Note: Model numbers encode actuator style, pole count, and terminal type. If you are unsure which model matches your application, contact us with your schematic or PCB layout for confirmation before purchasing.

✅ Key Features of These Miniature Slide Switches

🎚️SPDT 2-Position Action — Single-pole double-throw design gives you clean on/off or A/B signal routing in one compact actuator stroke, ideal for low-voltage PCB switching circuits.
📐Miniature Footprint — The small body size fits tight PCB layouts and enclosed model railway or RC hobby builds where space is at a premium.
⚡DC 24V Rated — Rated for DC 24V operation with 0.3A or 1A current capacity depending on model, covering a wide range of low-power embedded and hobby electronics applications.
🔩PCB Through-Hole Mount — Straight-pin or formed-pin terminals (D and F types) solder directly into standard PCB footprints for a secure, vibration-resistant connection.
🗂️14 Models in One Listing — SS and SK actuator styles across multiple pin configurations let you find the exact variant for your circuit without sourcing from multiple suppliers.
📦Flexible Pack Sizes — Order from 1 to 50 pieces per model with tiered per-unit pricing, making it practical for both one-off prototypes and small production runs of miniature slide switch assemblies.

📐 Technical Specifications — Miniature SPDT Slide Switch

Switch Type	Slide Switch, SPDT (Single Pole Double Throw)
Positions	2-Position (On-Off)
Rated Voltage	DC 24V
Rated Current	0.3A (most models) / 1A (SS-12D06, SS-12D10)
Series	SS Series / SK Series

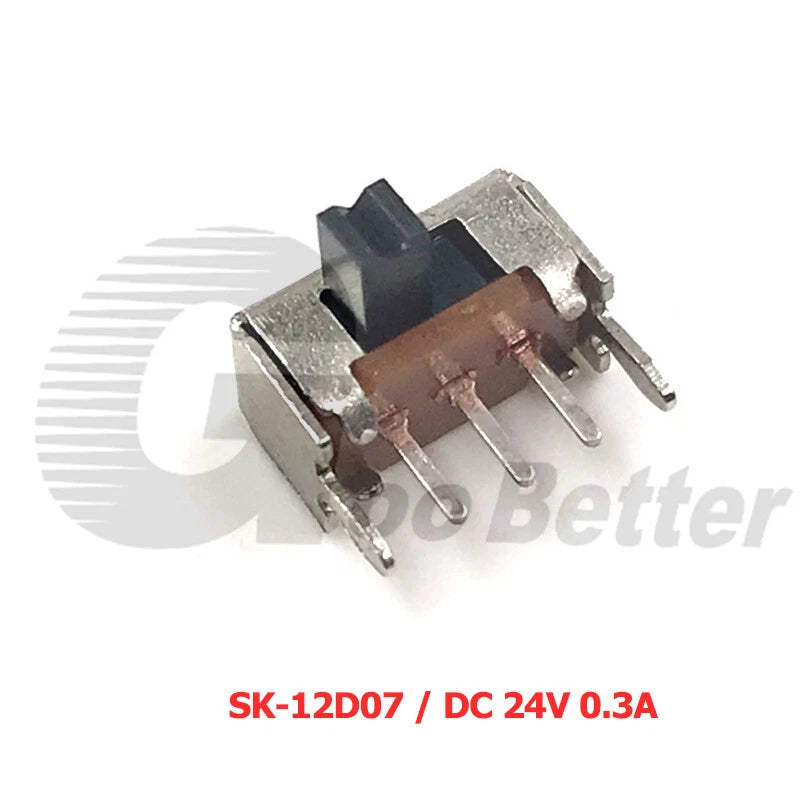

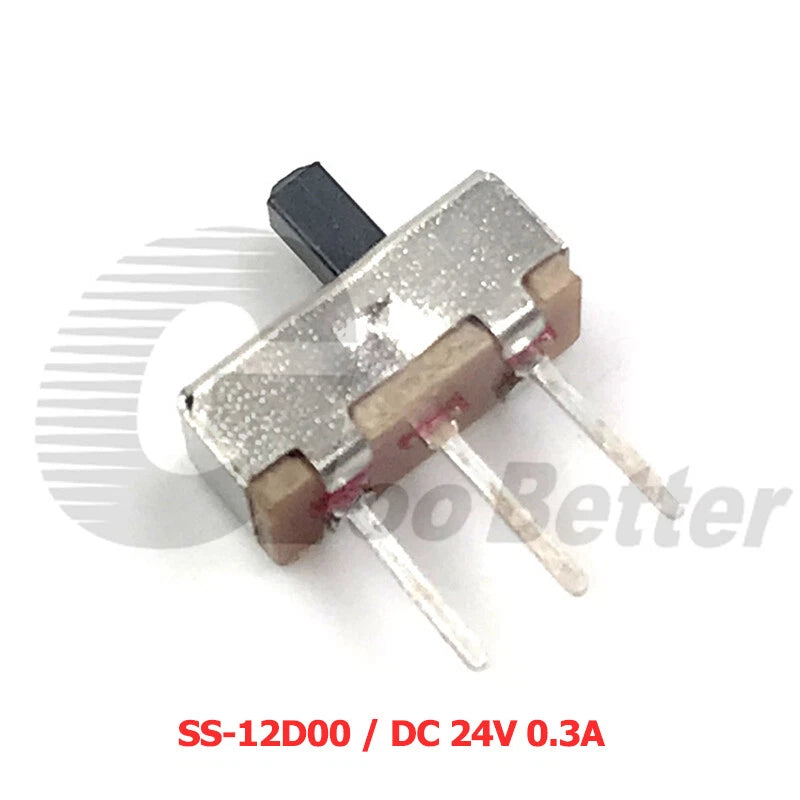

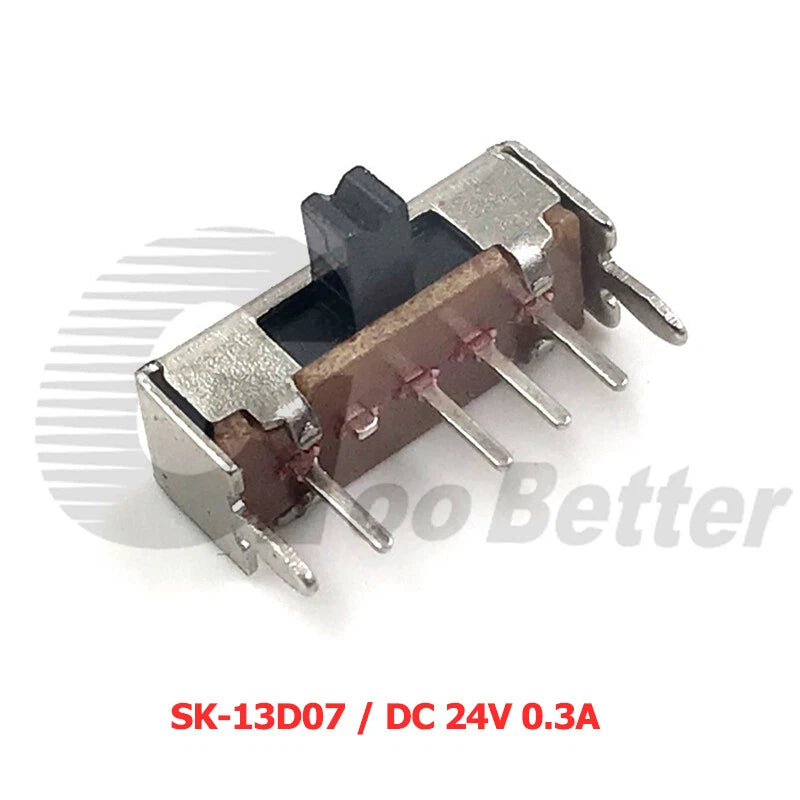

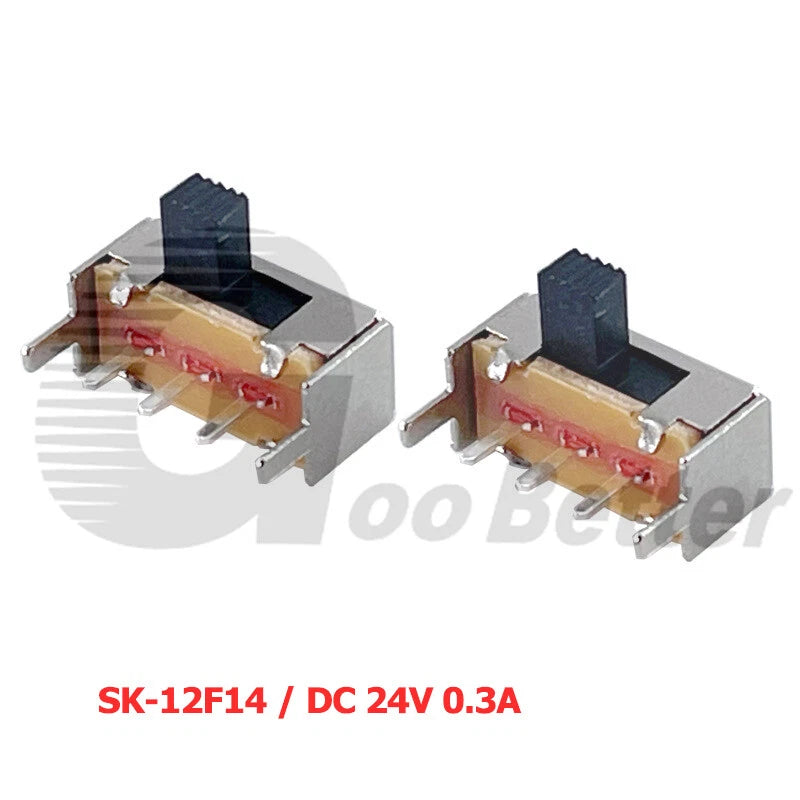

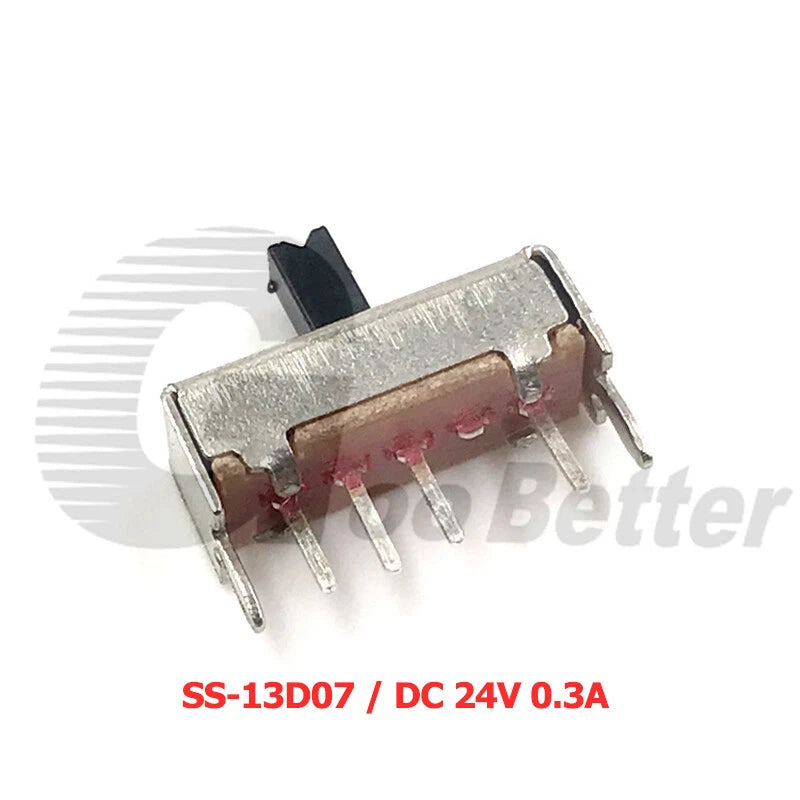

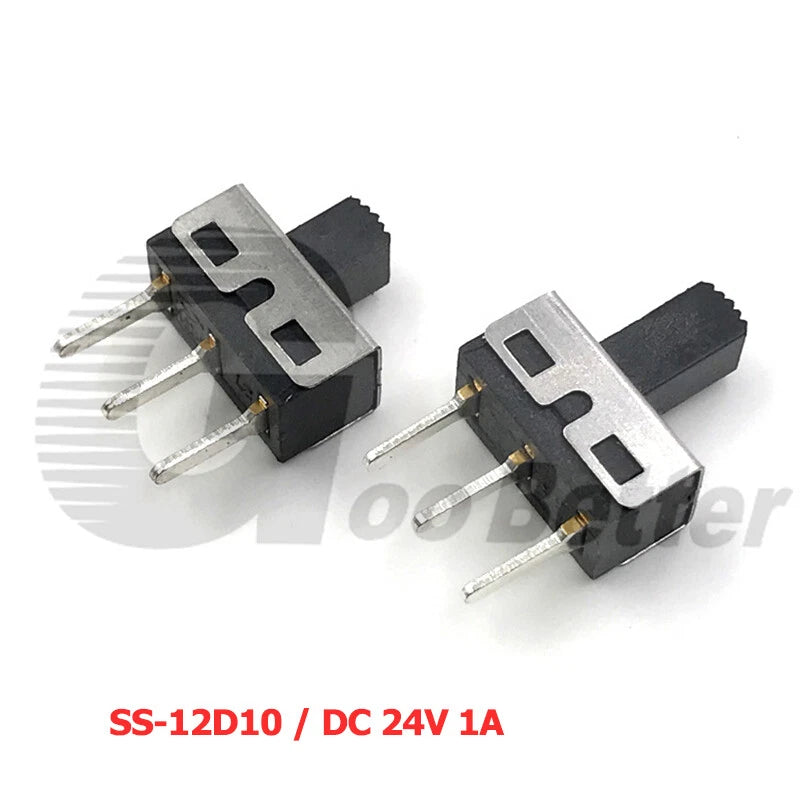

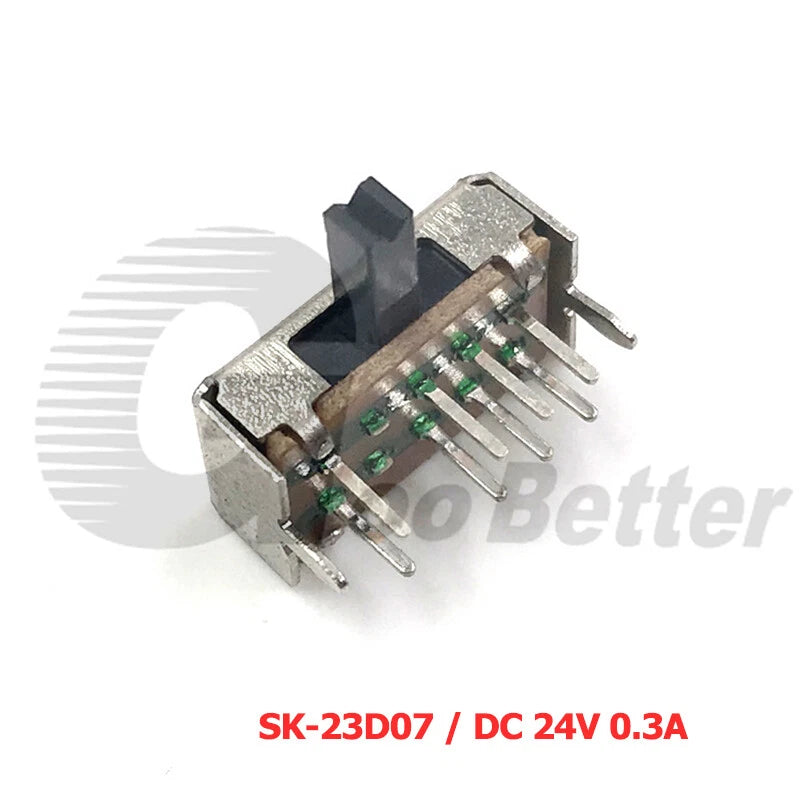

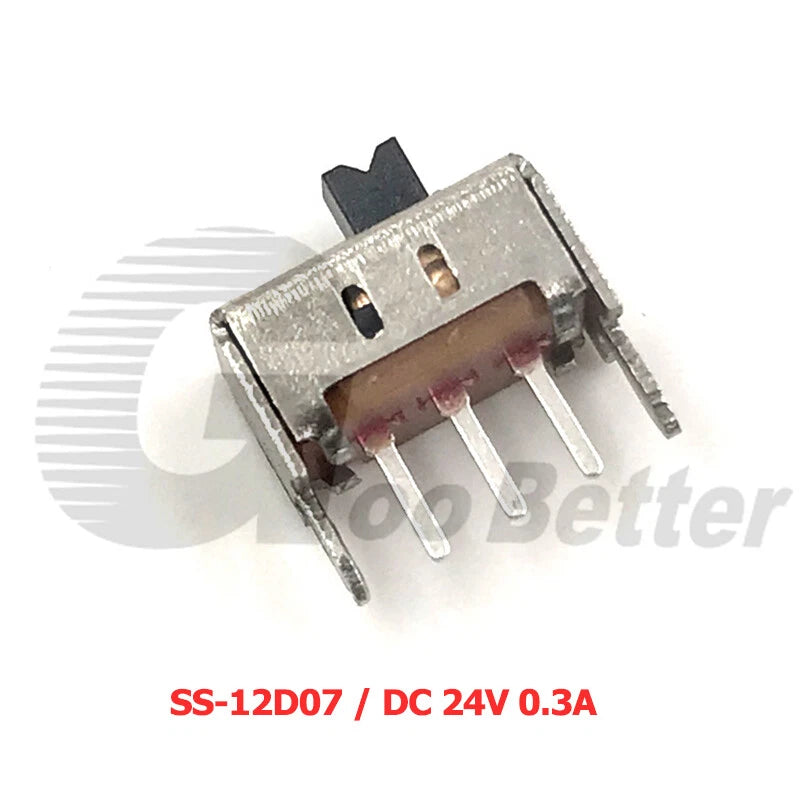

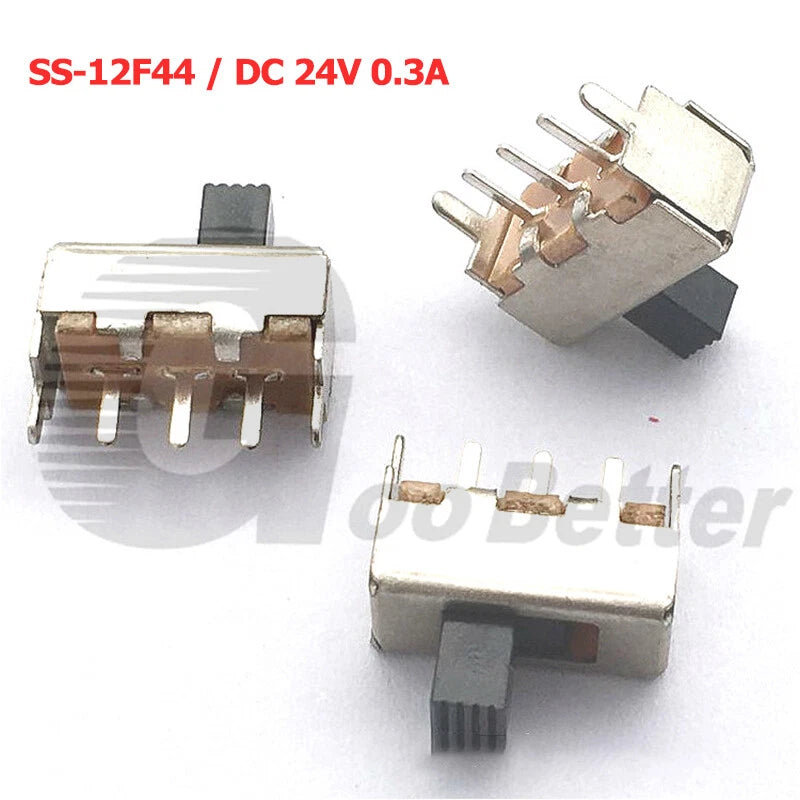

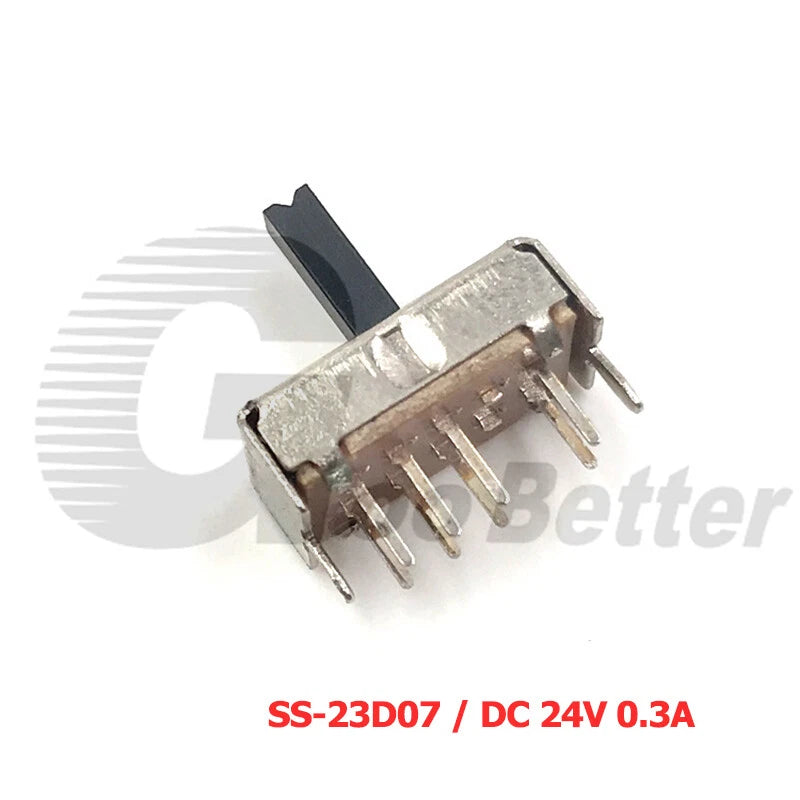

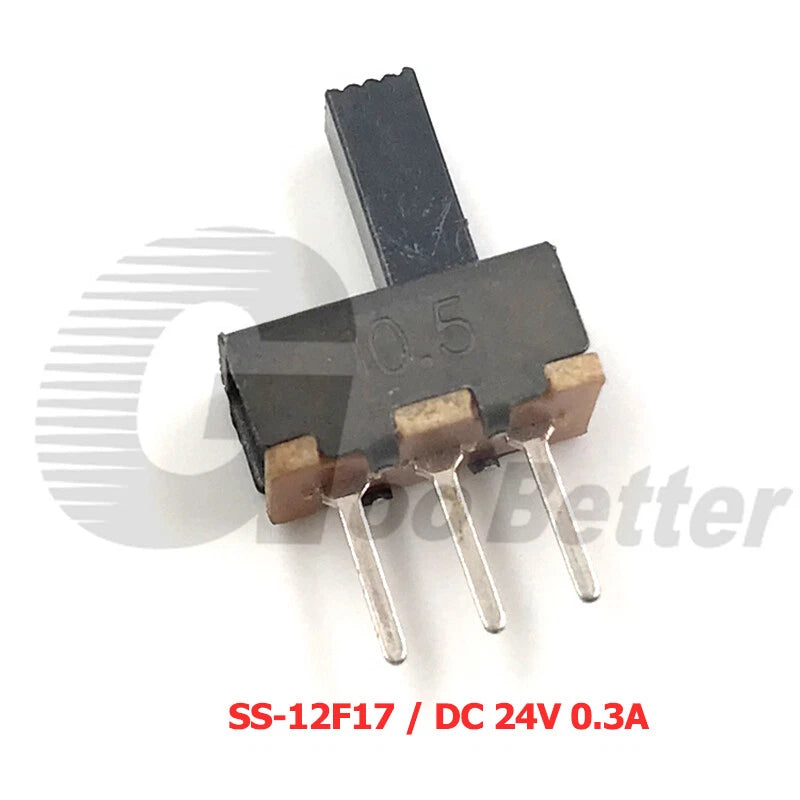

Available Models	SS-12D00, SS-12D03, SS-12D07, SK-12D07, SK-12F14, SS-12F15, SS-12F17, SS-13D07, SK-13D07, SS-23D07, SK-23D07, SS-12F44, SS-12D06, SS-12D10
Terminal Type	D-type (straight pin) or F-type (formed pin) — varies by model
Mounting Style	PCB Through-Hole Mount
Pin Pitch	See variant options (typically 2.0mm or 2.54mm — contact us to confirm)
Body Dimensions	See variant options
Actuator Style	SS: Standard slide actuator / SK: Alternate actuator profile
Pack Quantities	1, 2, 4, 5, 10, 20, 50 pcs
Application	Model railways, RC hobby, PCB prototyping, embedded electronics
Operating Environment	Indoor / enclosed panel use recommended

❓ Frequently Asked Questions

How do I choose the right model number for my project?

The model code encodes key specs: the first two letters (SS or SK) indicate the actuator style, the first number indicates the number of poles, the letter D or F indicates the terminal type, and the trailing digits indicate the pin count or configuration. For example, SS-12D07 is a standard-actuator, single-pole slide switch with a straight-pin PCB terminal. If you are unsure, contact us with your circuit diagram and we can help confirm the right model.

What is the rated current and voltage for these switches?

Most models in this listing are rated at DC 24V, 0.3A. Models SS-12D06 and SS-12D10 are rated at DC 24V, 1A. Always verify the rated current against your circuit load before installation to avoid overloading the switch contacts.

Are these switches suitable for outdoor or high-humidity environments?

These are standard PCB-mount slide switches without an IP-rated enclosure. They are generally intended for indoor or enclosed-panel use. For outdoor or high-humidity applications, we recommend housing them inside a sealed enclosure to protect the contacts from moisture and contamination.

What is the difference between SS and SK series models?

SS and SK designations refer to actuator or body style variations within the same switch family. Both are SPDT 2-position slide switches with PCB-mount terminals. The SK series may have a slightly different actuator height or body width compared to the SS series. Check the variant images or contact us to confirm physical dimensions for your specific model before designing your PCB layout.

Can I use these switches in model railway or RC hobby applications?

Yes. These miniature slide switches are well-suited for model railway layout control panels, RC receivers, and hobby electronics where a compact, reliable on/off or signal-routing switch is needed. Their small footprint makes them easy to mount on tight PCBs or inside model enclosures — a common use case for the SS-12D series in particular.

What quantity options are available and how does bulk pricing work?

This listing offers 1, 2, 4, 5, 10, 20, and 50-piece quantity options. The per-unit price decreases as quantity increases, so buying in larger packs is the most cost-effective option for prototyping runs or restocking. Select your model and quantity from the dropdowns above before adding to cart.

What are the PCB pin dimensions and pitch for these switches?

Pin pitch and terminal layout vary by model. Generally, these miniature slide switches follow standard 2.54mm (0.1") or 2.0mm pitch PCB footprints common in the SS/SK series. Contact us to confirm the exact footprint for your selected model before finalizing your PCB layout, as D-type and F-type terminals have different pin arrangements.

🛒 Select your item model and quantity above, then add to cart — ships from our US warehouse.
