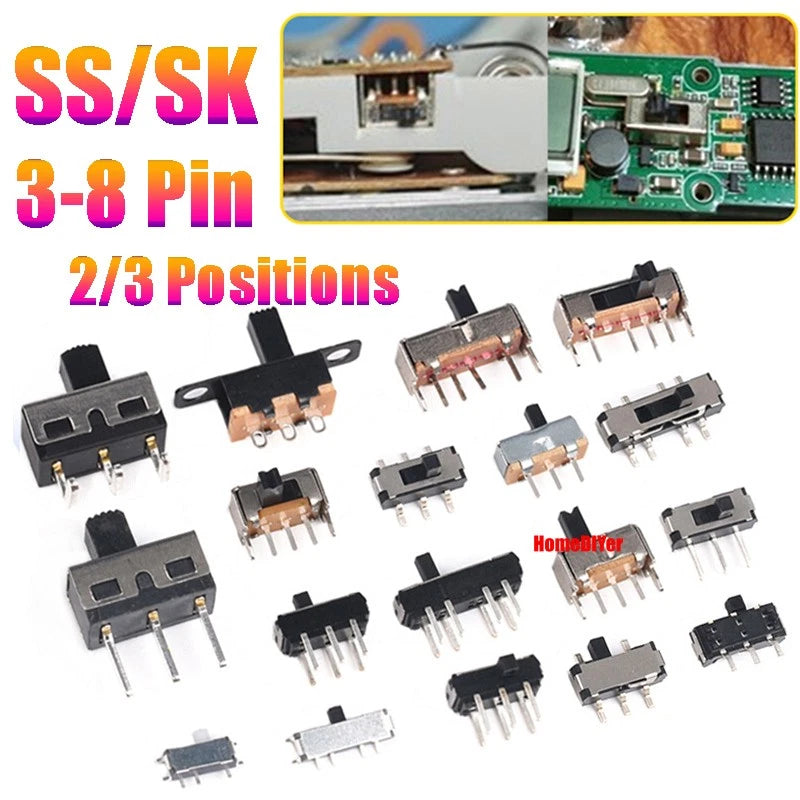

Miniature Slide Switch SS SK Series — 2/3 Position, 3–8 Pin Toggle Switches

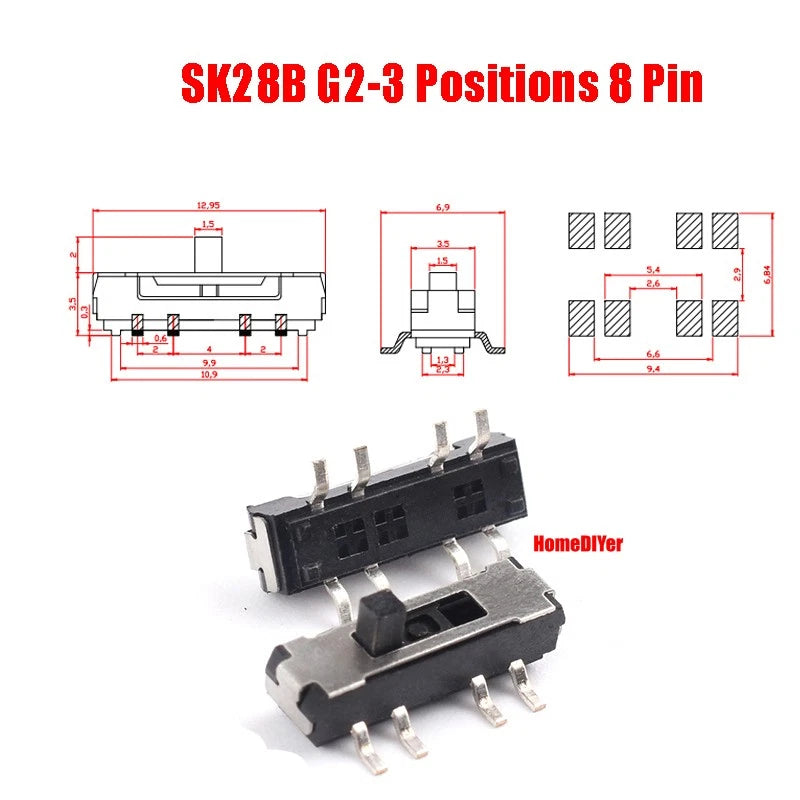

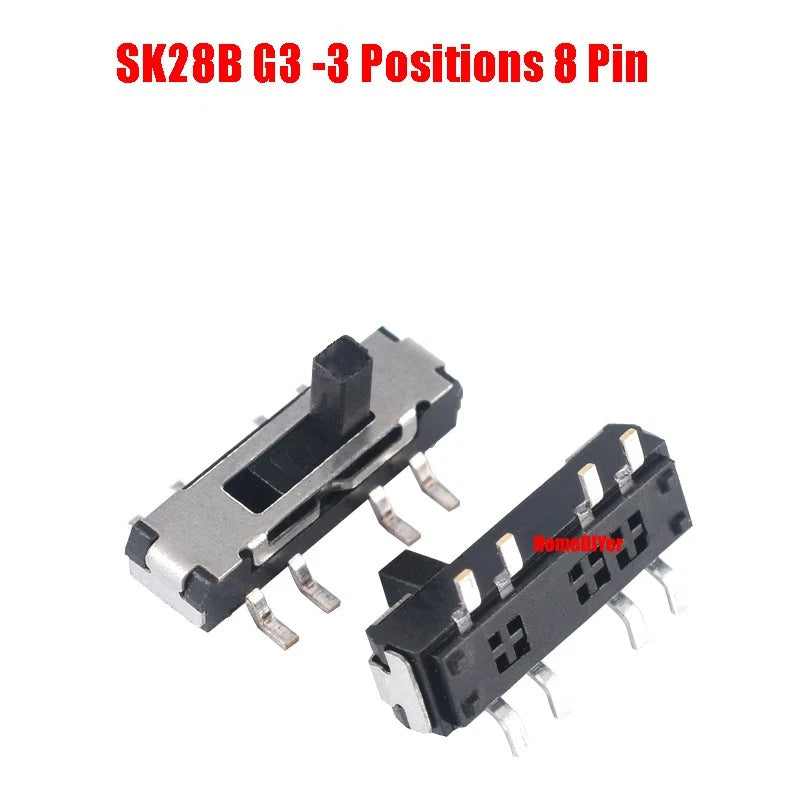

Match the number of positions (2 or 3) to your circuit's switching needs, and select the pin count (3, 4, 6, or 8) based on your wiring configuration. For single-pole applications, a 2-position 3-pin switch is typically sufficient; for more complex signal routing, a 3-position 8-pin switch is generally the right choice. If you're unsure, share your schematic and we can help you identify the correct variant.

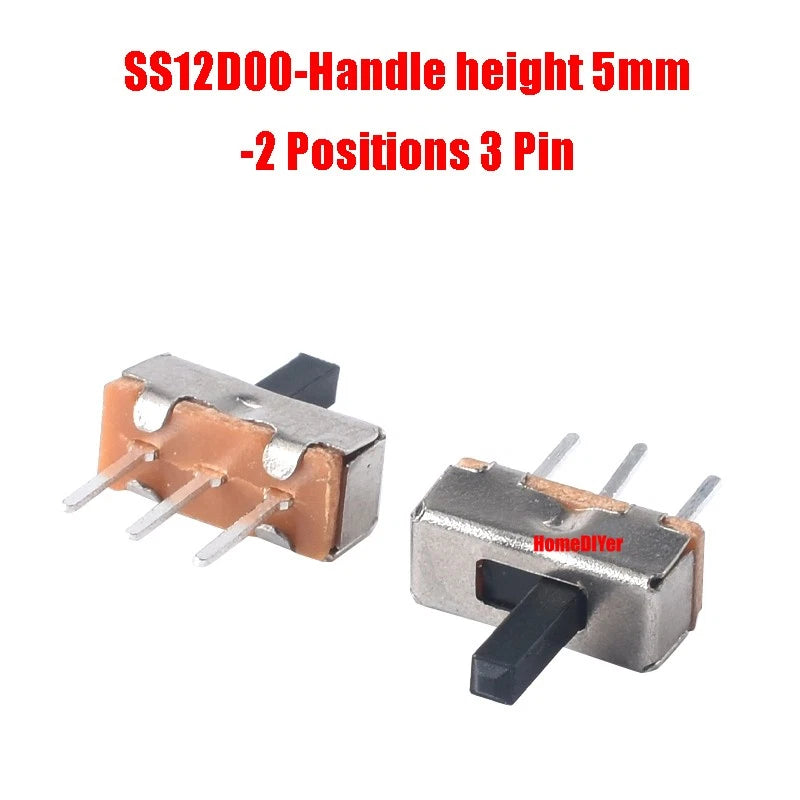

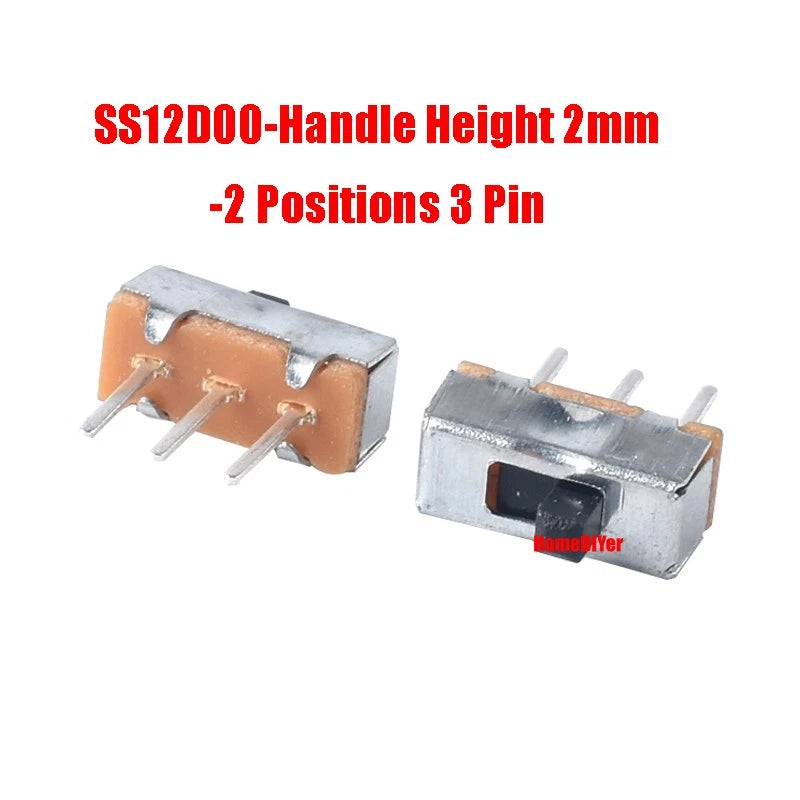

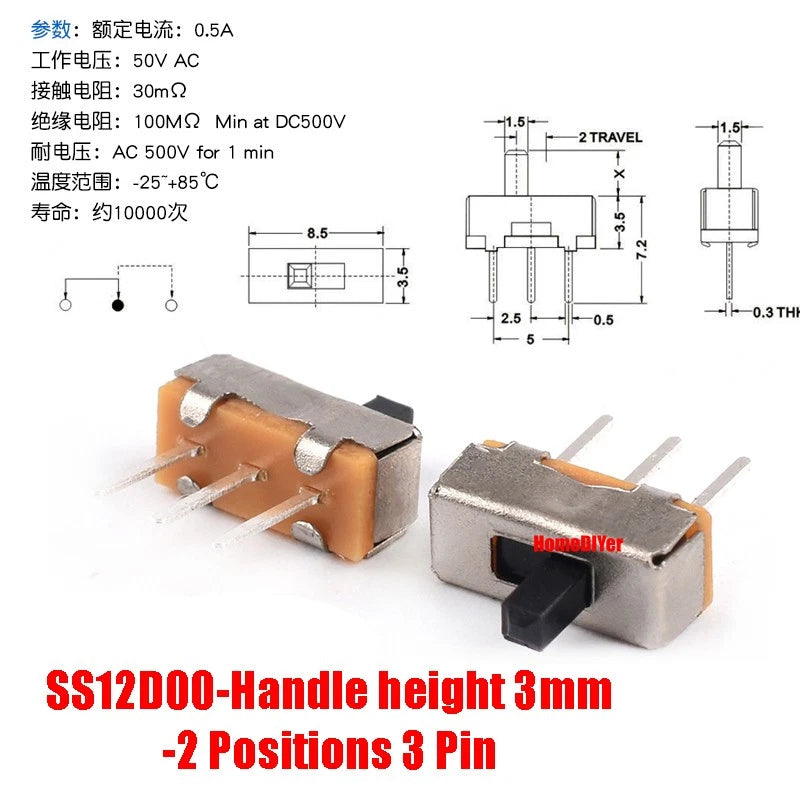

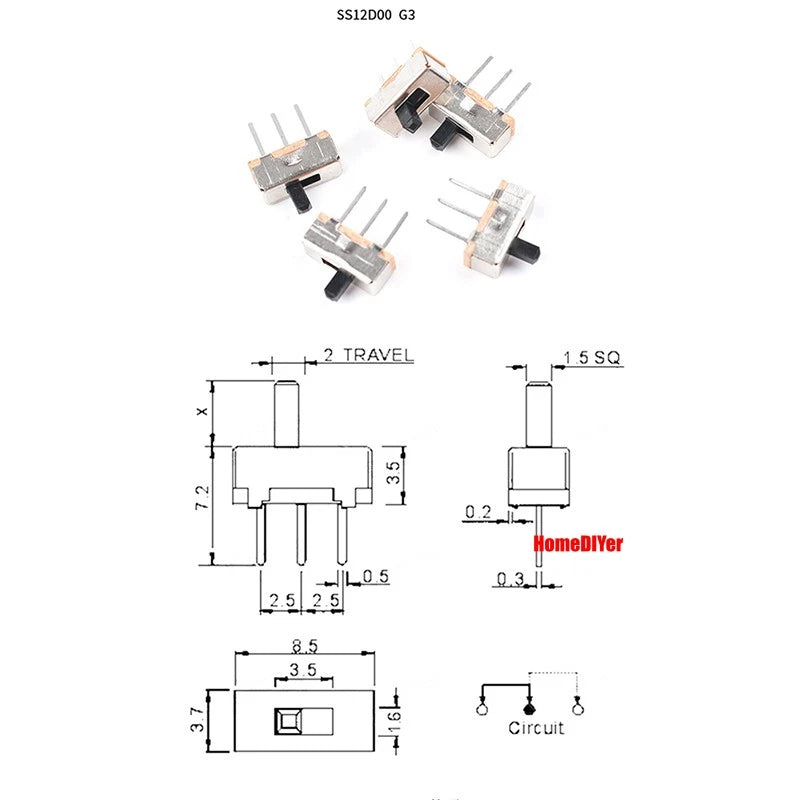

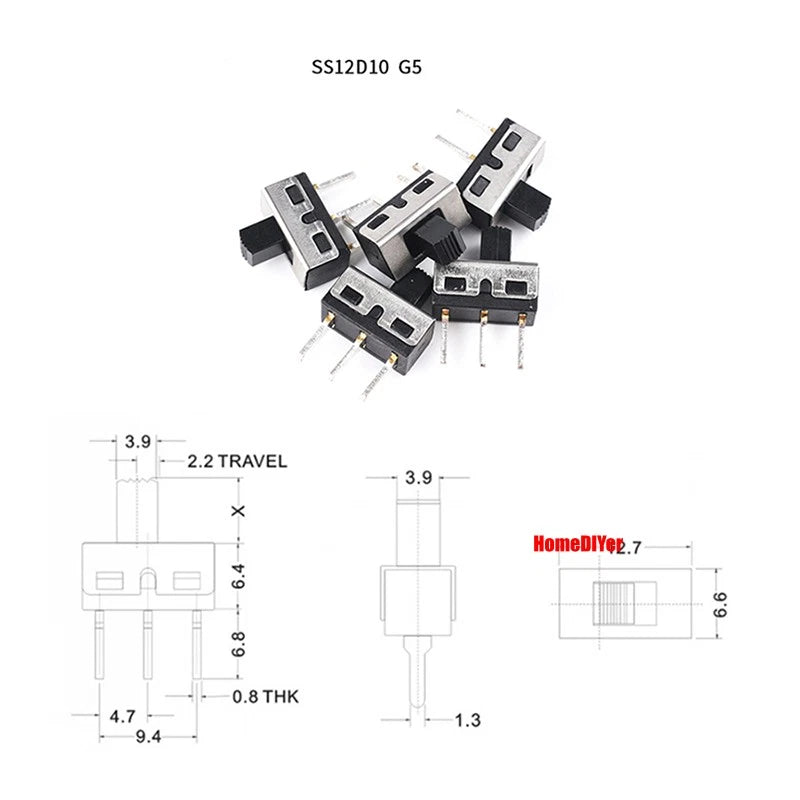

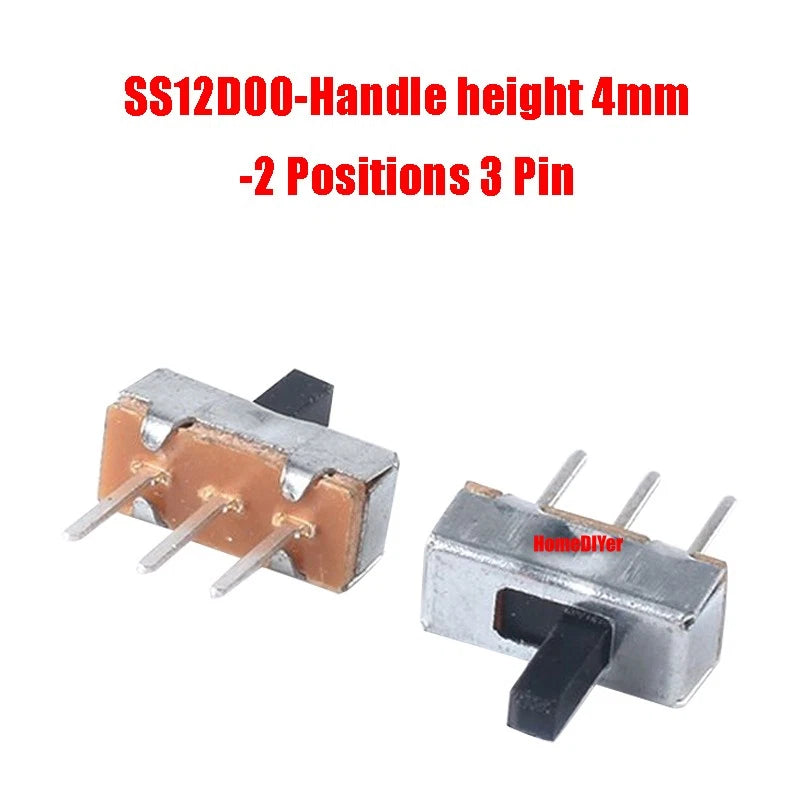

Handle height refers to how far the actuator protrudes above the mounting surface — available in 2 mm, 3 mm, 4 mm, and 5 mm (≈0.08" to ≈0.20") for the SS12D00 sub-series. A taller handle is generally easier to actuate by hand; a shorter handle is better for compact panel layouts where clearance is limited or where an overlay or label will sit close to the switch.

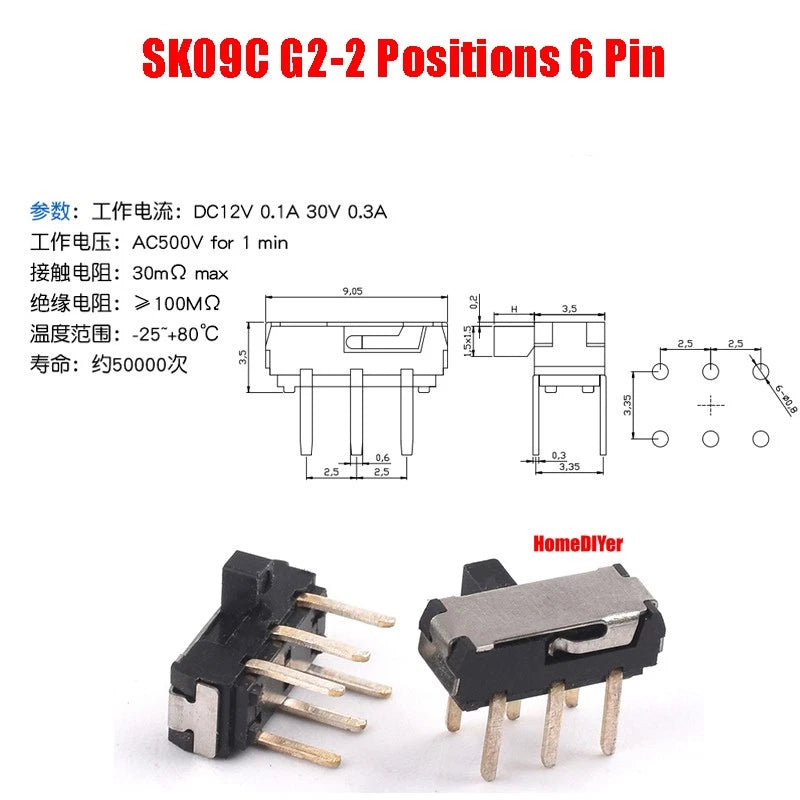

SS and SK series miniature slide switches are generally rated for low-voltage DC applications — typically 0.3 A at 6 V DC or 0.5 A at 12 V DC. These are signal-level and low-power switches, not intended for mains or high-current loads. Always verify the datasheet for your specific model before use in higher-current circuits. Contact us if you need the datasheet for a particular variant.

These miniature slide switches are designed for indoor electronics and PCB applications. They are not sealed or IP-rated for outdoor exposure or high-humidity environments. For applications where moisture ingress is a concern, a sealed or IP-rated switch is generally recommended. These are best suited for enclosed enclosures, control panels, and PCB assemblies in dry indoor settings.

These switches use PCB through-hole solder terminals — they are designed to mount directly onto a PCB. They do not use threaded panel-mount hardware. Some models can be positioned near a panel cutout for the actuator to protrude through, but the switch body is secured via solder joints to the board, not via a threaded bushing. Contact us to confirm exact body and footprint dimensions for your specific model.

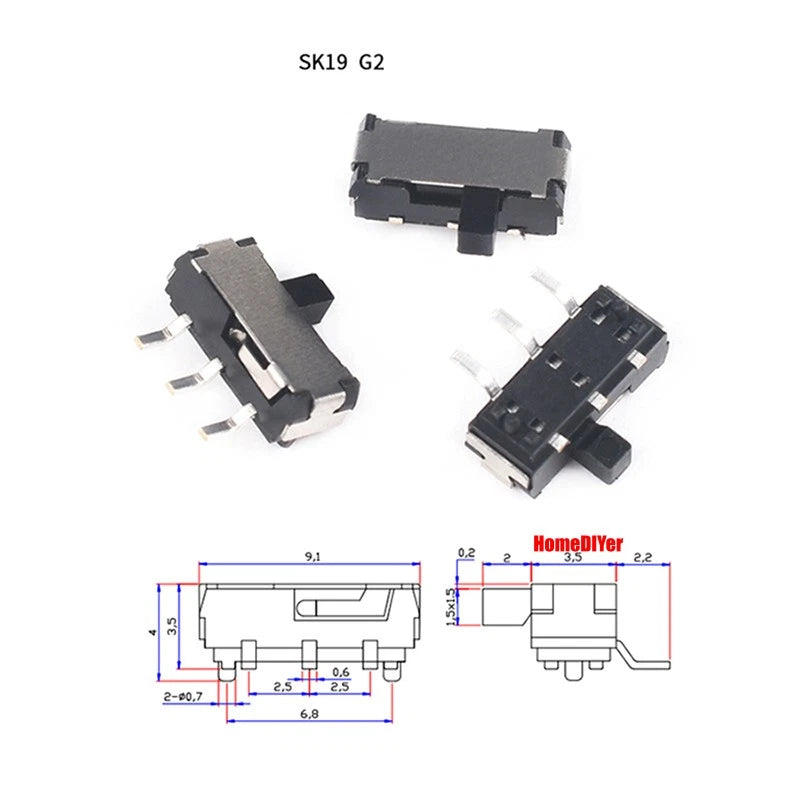

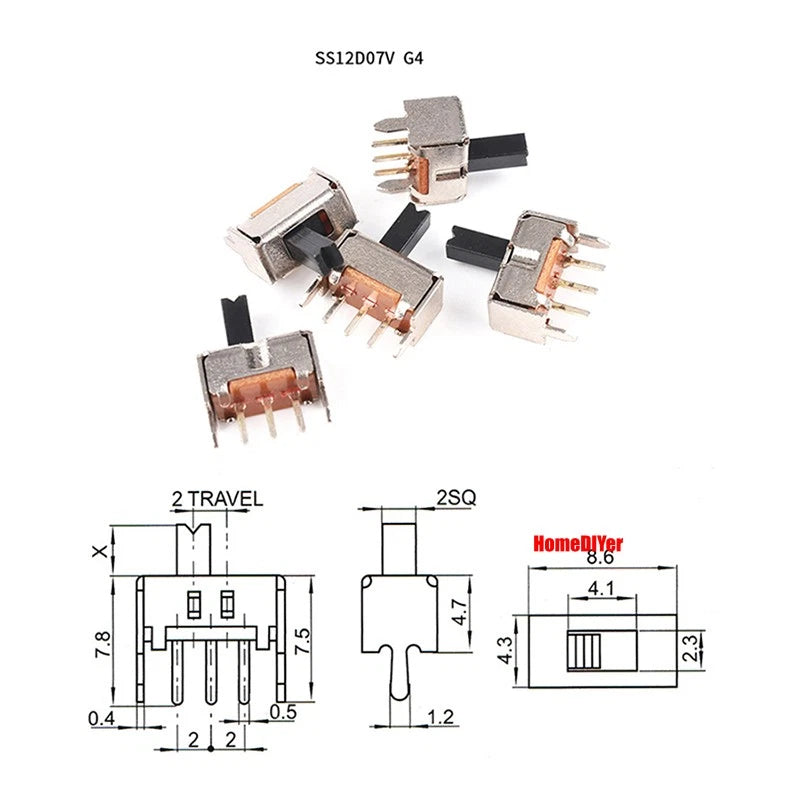

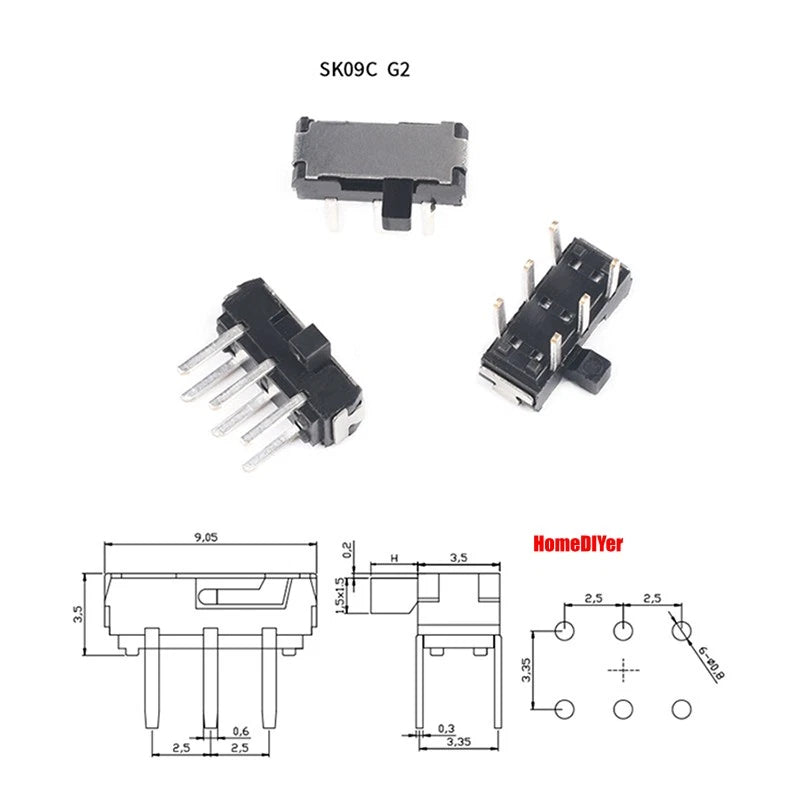

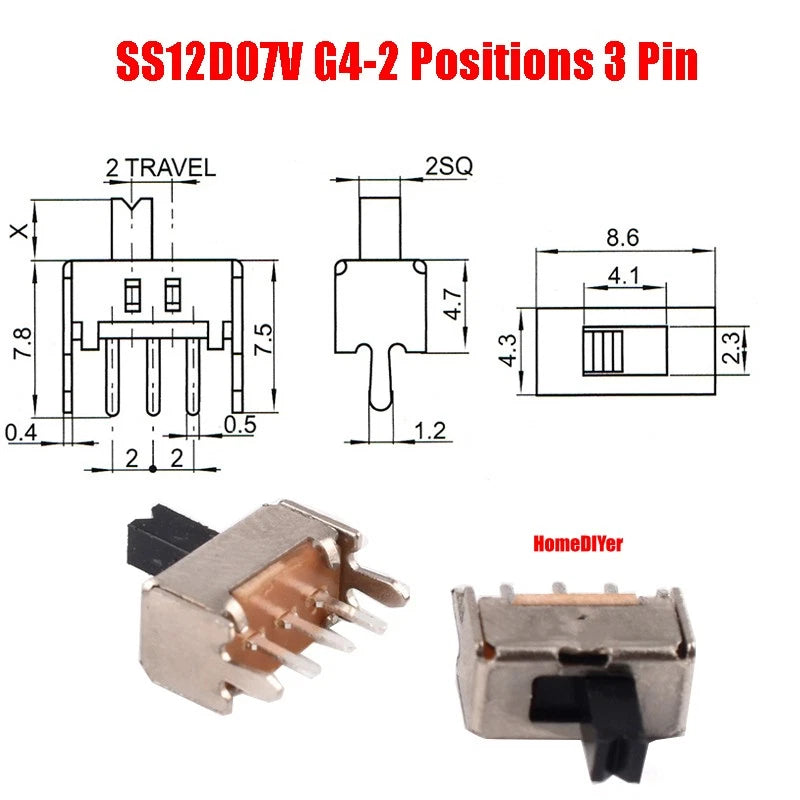

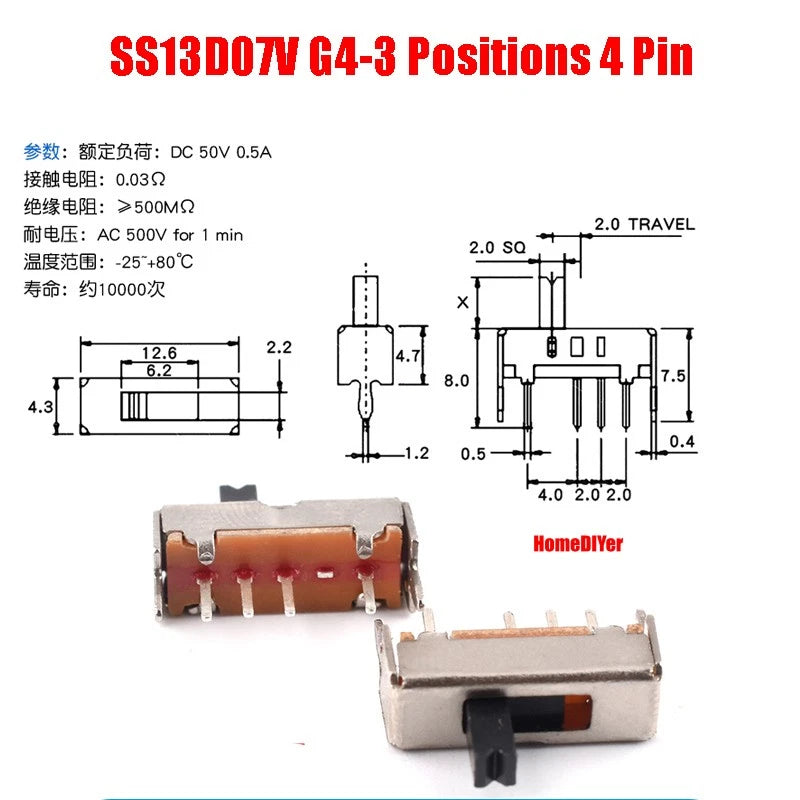

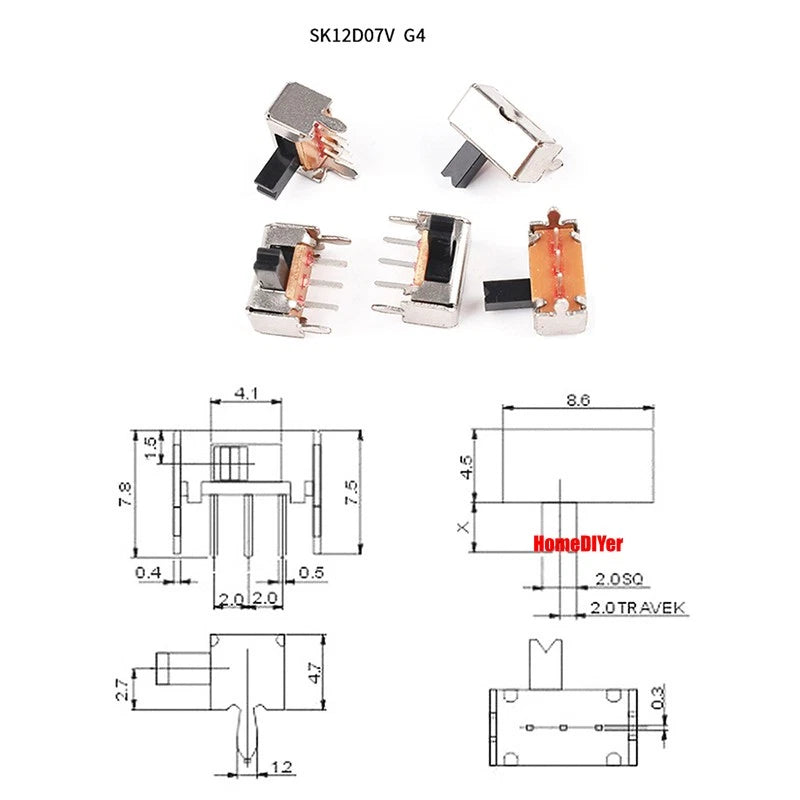

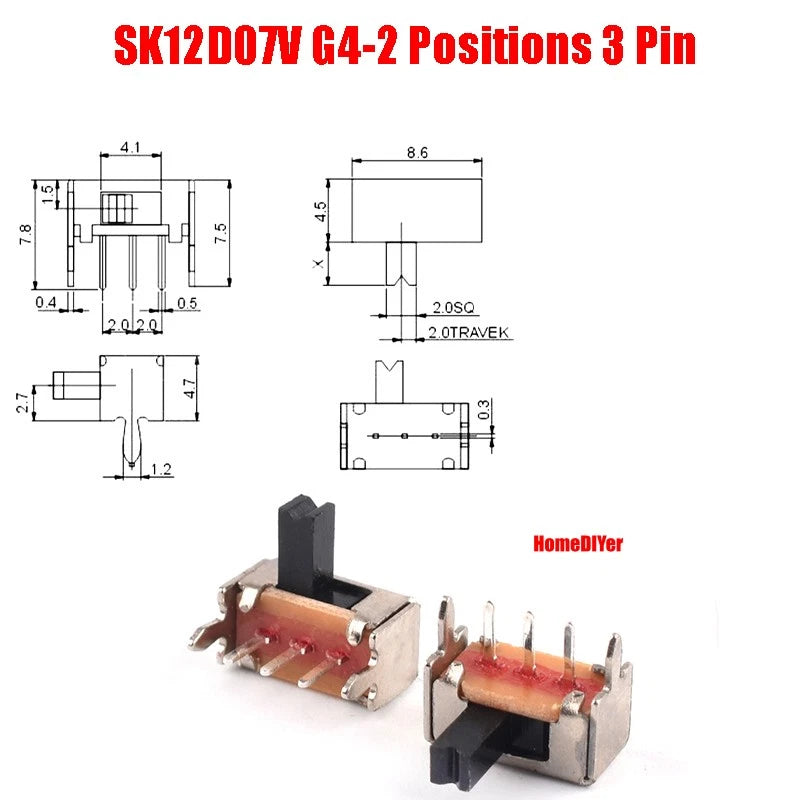

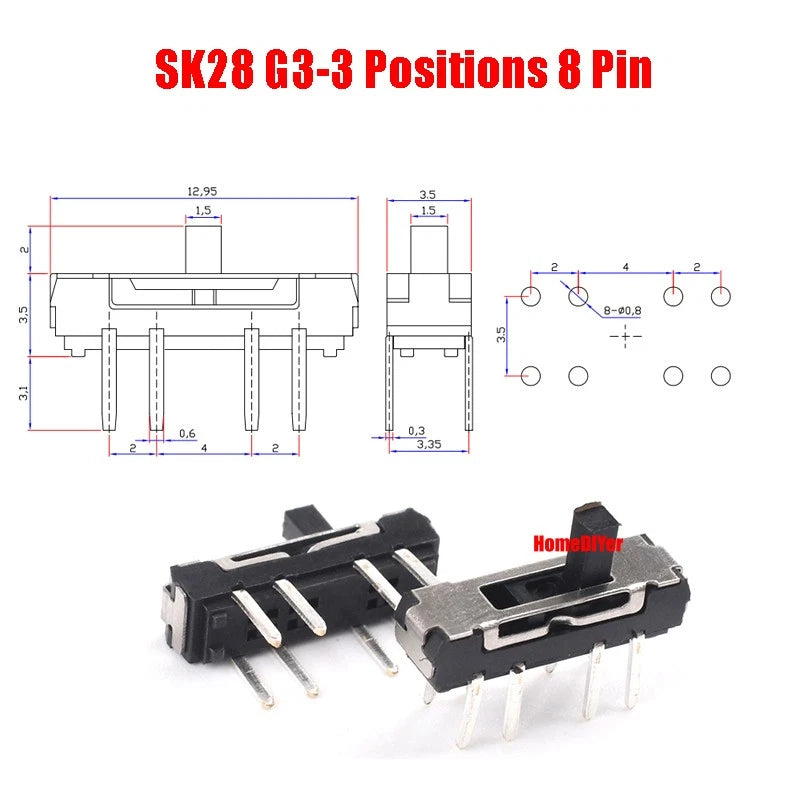

The SS series and SK series share a similar slide-switch form factor but differ in body geometry, terminal arrangement, and in some cases actuator style. Review the variant name carefully — for example, SS12D00 vs. SK12D07V — and compare pin counts and positions to your schematic. In most cases, the choice comes down to PCB footprint compatibility. If you're unsure which series fits your layout, contact us with your footprint dimensions and we'll help you select the right model.

Yes — SS/SK series miniature slide switches are commonly used for audio signal routing, input selection, and mode switching in DIY audio equipment, guitar effects pedals, and consumer electronics. Contact resistance is typically low, making them generally suitable for low-level signal paths. For high-impedance or noise-sensitive audio circuits, verify contact resistance specs for your specific model.

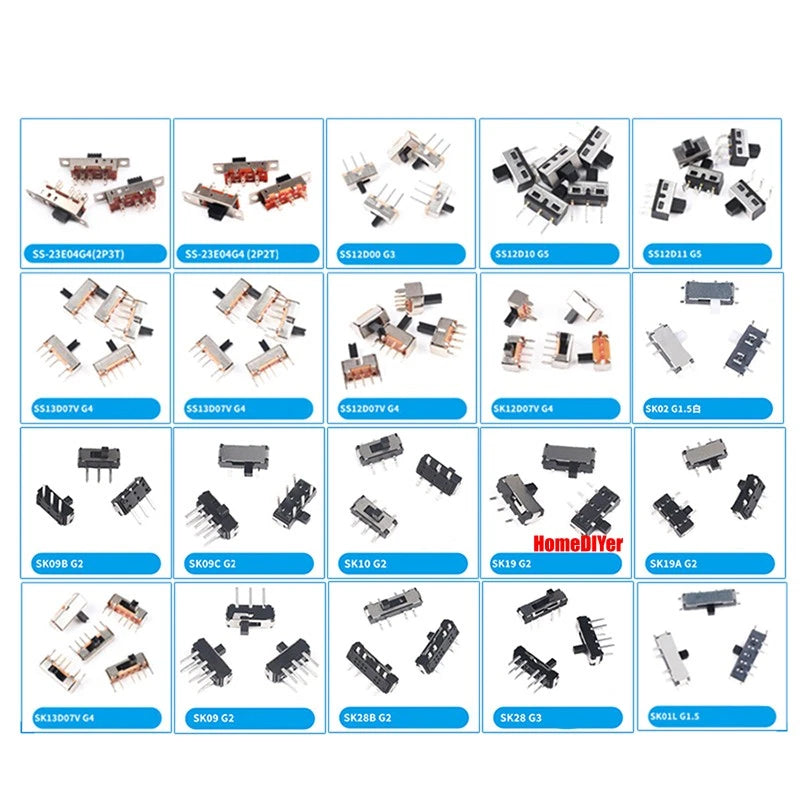

Quantities range from 2 PCS up to 300 PCS depending on the switch type selected. For prototyping or a single repair, a small pack (2–10 PCS) is generally sufficient. For production runs, classroom kits, or stocking a workshop, bulk packs (100–300 PCS) offer a lower per-unit cost. The quantity options available vary by switch type — select your type first, then choose your quantity from the dropdown.
