Miniature Toggle Switch On-Off 2 Position — Reliable Control for Boat, Car & Hobby Builds

Whether you're wiring a custom boat dash panel, retrofitting a car interior switch, or detailing a model railway control board, finding a compact toggle switch that fits tight spaces without sacrificing reliability is a real challenge. Loose, oversized switches ruin the look of a clean build — and undersized contacts that can't handle the load are a safety risk.

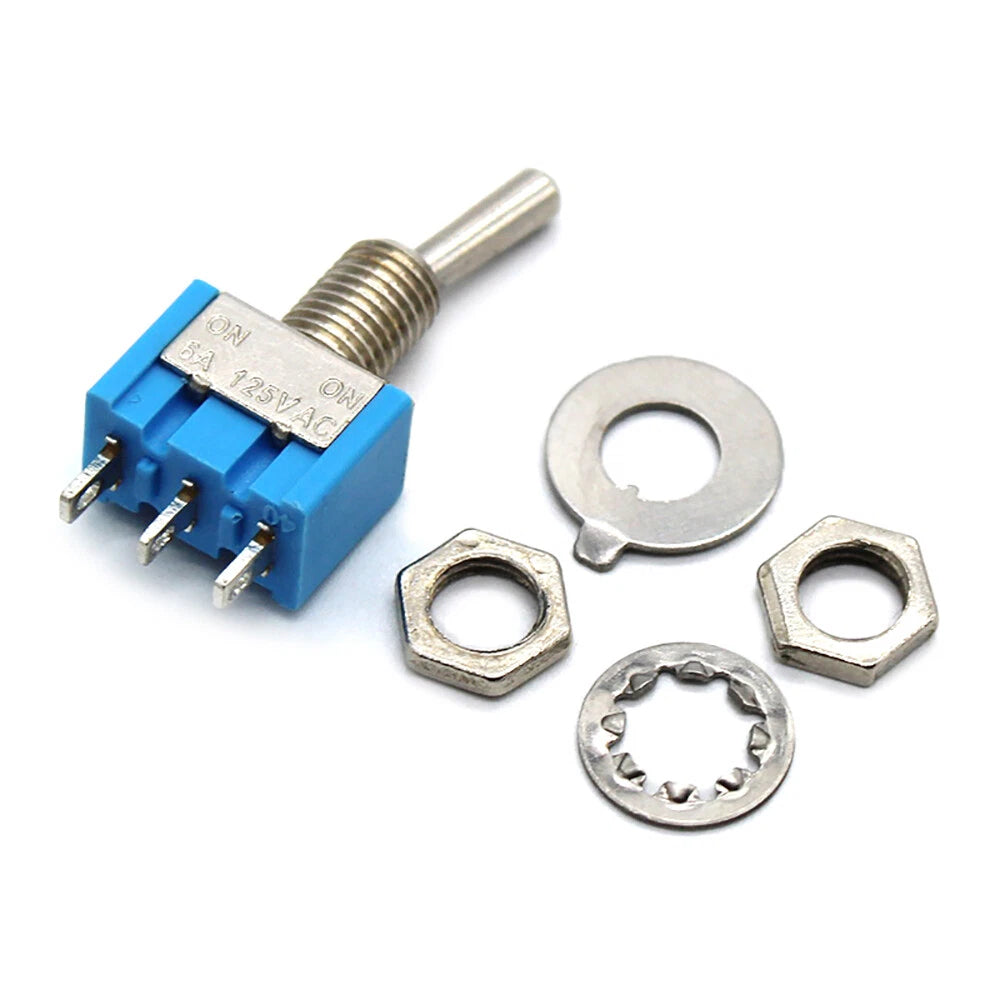

This miniature SPST ON-OFF toggle switch is designed for exactly these applications. Each unit features a compact metal or nylon toggle lever, a threaded bushing for secure panel mounting, and solder or screw terminals for straightforward wiring. Available in quantity packs from 1 pcs to 200 pcs, so you can grab a single switch for a quick fix or stock up for a full project run. Mounting hole size is typically 6mm (15/64"), and the switch body is sized to fit standard miniature panel cutouts.

Typical use cases include marine dash panel wiring for bilge pumps and navigation lights, automotive interior accent lighting and accessory control, and model railway layout power routing — all scenarios where a dependable 2-position miniature toggle switch for boat and car applications is essential.

🔌 Compatibility: Designed for 12V DC automotive & marine circuits, hobby electronics, and low-voltage control panels. Typically rated for standard miniature panel cutouts (~6mm / 15/64"). Confirm your panel thickness and wire gauge before ordering.

✅ Key Features of These Miniature Toggle Switches

  • 🚤Marine & Automotive Ready — Compact form factor fits standard boat dash panels and car interior switch cutouts without modification, making it a go-to miniature toggle switch for boat and car builds.
  • ⚡2-Position SPST ON-OFF Action — Clean, positive switching action with a distinct tactile click; no ambiguous mid-position, so your circuit is either open or closed.
  • 🔩Threaded Bushing Panel Mount — The threaded collar and included nut lock the switch firmly into the panel, eliminating wobble in high-vibration environments like engine bays and moving vehicles.
  • 🛤️Model Railway & Hobby Compatible — Scaled for tight control panel layouts; widely used for track power routing and accessory switching in HO, N, and OO scale model railway setups.
  • 📦Flexible Quantity Options — Order from 1 to 200 pcs in a single SKU; bulk packs reduce per-unit cost for workshops, resellers, and multi-board hobby projects.
  • 🔧Straightforward Wiring Terminals — Solder or screw-type terminals (see variant details) accept common wire gauges used in 12V DC wiring, keeping installation accessible for DIYers and professionals alike.

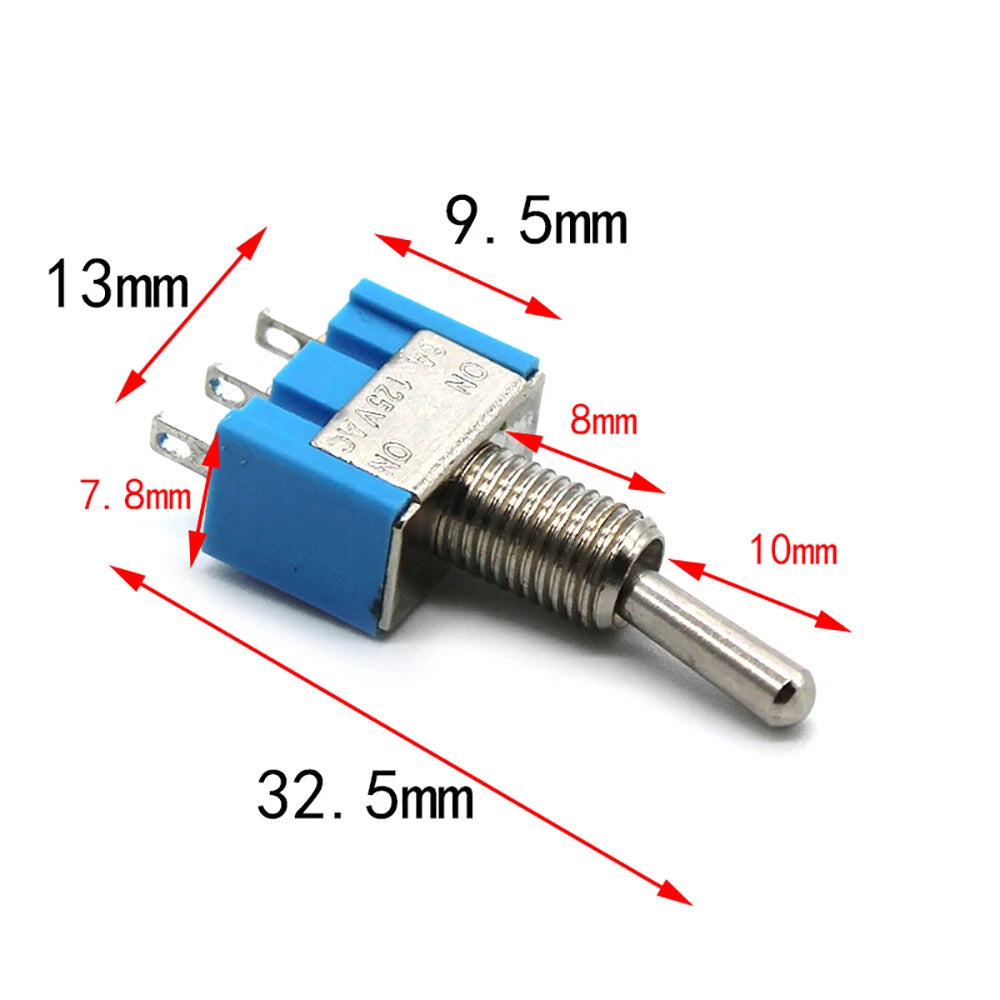

📐 Technical Specifications — Miniature SPST Toggle Switch

Switch Type SPST (Single Pole Single Throw), 2-Position ON-OFF
Actuator Style Miniature toggle lever
Mounting Panel mount, threaded bushing with nut
Mounting Hole Size Typically ~6mm (15/64") — confirm before drilling
Voltage Rating (AC) Typically 125V AC — See variant options
Current Rating (AC) Typically 3A–6A at 125V AC — See variant options
Voltage Rating (DC) Suitable for 12V–24V DC circuits (derate from AC rating)
Terminal Type Contact us to confirm (solder or screw)
Number of Terminals 2 (SPST)
Body Material Contact us to confirm (typically nylon or zinc alloy housing)
Lever Material Contact us to confirm (typically metal)
IP Rating / Sealing Contact us to confirm — not rated for full submersion
Operating Temperature Typically –20°C to +85°C (–4°F to +185°F)
Pack Sizes Available 1, 2, 4, 10, 20, 30, 50, 100, 150, 200 pcs
SKU WZYJSCS01106 (suffix varies by quantity)
⚠️ Spec Note: Electrical ratings and terminal type vary by production batch. If your application requires a confirmed current rating or specific terminal style, please contact us before ordering.

❓ Frequently Asked Questions

What size panel hole does this miniature toggle switch require?

Miniature toggle switches of this type typically require a panel cutout of approximately 6mm (15/64") in diameter. Always verify the exact mounting hole spec against your variant before drilling, as panel thickness can also affect how the bushing seats.

What is the current and voltage rating of this toggle switch?

Miniature SPST toggle switches in this class are generally rated for 3A–6A at 125V AC or 1.5A–3A at 250V AC. For DC circuits (automotive/marine 12V–24V), derate the current rating accordingly per standard electrical practice. Contact us to confirm the exact rating for your specific order batch.

Can this toggle switch be used outdoors or on a boat?

This switch is well-suited for marine dash panel use in protected locations — inside a console, under a dash cover, or in a weatherproof enclosure. For fully exposed outdoor or spray-zone applications, we recommend pairing it with a rubber boot cover or selecting a sealed/IP-rated variant. Contact us to confirm the IP rating for your order.

Is this a SPST or SPDT switch — what's the difference?

This is a 2-position ON-OFF switch, which is SPST (Single Pole Single Throw). It has two terminals and simply opens or closes a single circuit — perfect for controlling one load (a light, pump, or accessory) from one location. SPDT switches have three terminals and can route a circuit to one of two outputs; that is a different product.

What wire gauge is compatible with the terminals?

The terminals on miniature toggle switches of this type are generally compatible with wire gauges from 22 AWG to 18 AWG, which covers most 12V automotive and marine accessory wiring. Contact us to confirm the terminal type (solder lug vs. screw) for your specific order so you can plan your wiring accordingly.

How do I choose the right quantity pack for my project?

Here's a quick guide based on common use cases:

  • 1–2 pcs: Single repair, prototype, or replacement switch.
  • 4–10 pcs: Small car audio build, boat dash panel with multiple circuits, or a model railway control board.
  • 20–50 pcs: Larger hobby layouts, club projects, or keeping spares on hand for a workshop.
  • 100–200 pcs: Resellers, production runs, or large-scale model railway club installations where bulk pricing matters.
Are these switches compatible with 12V DC automotive circuits?

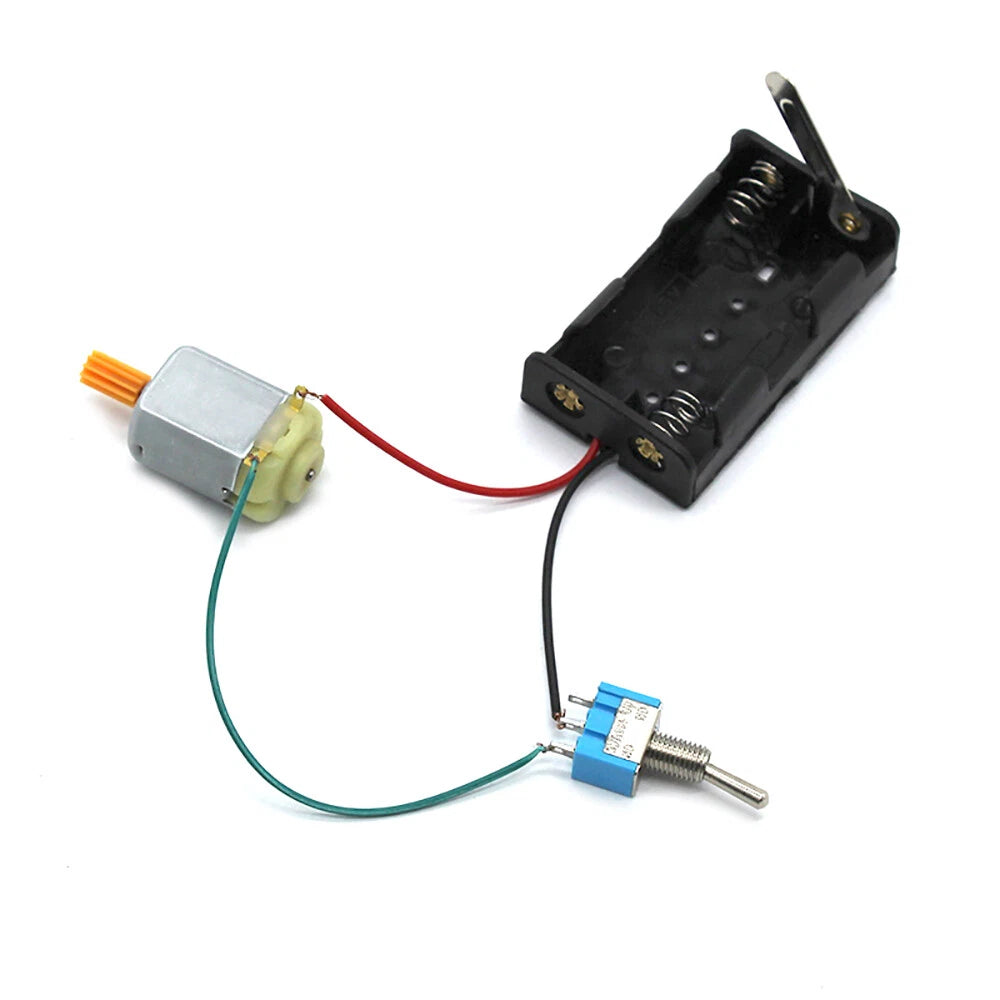

Yes — 12V DC automotive and marine circuits are among the most common applications for miniature toggle switches of this type. They are generally well-suited for controlling accessories such as LED lighting strips, fans, pumps, and audio components at 12V. Always verify that the switch's DC current rating exceeds your load's draw before installation.

🛒 Select your quantity above, then add to cart — ships from our US warehouse.
