Open-End Timing Belt in PU White — Precise Linear Motion for 3D Printers, CNC & Automation
When a standard closed-loop belt simply won't thread through your machine frame, engineers and makers turn to open-end timing belts. Whether you're building a custom CNC router, retrofitting a 3D printer axis, or designing an industrial conveyor, getting the right belt cut to the exact length you need — without waste — is the difference between a clean build and a frustrating workaround.

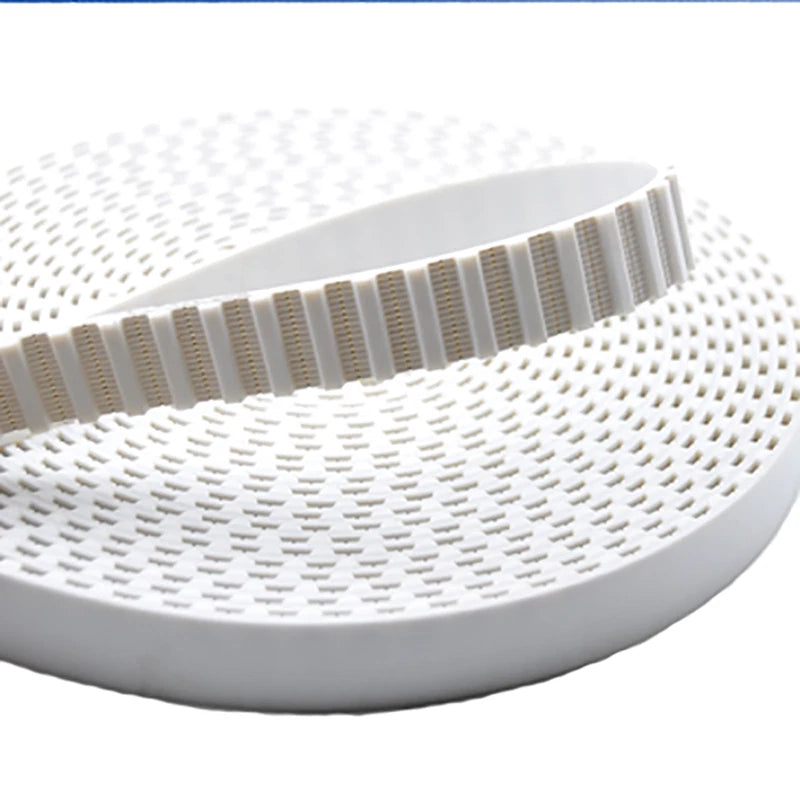

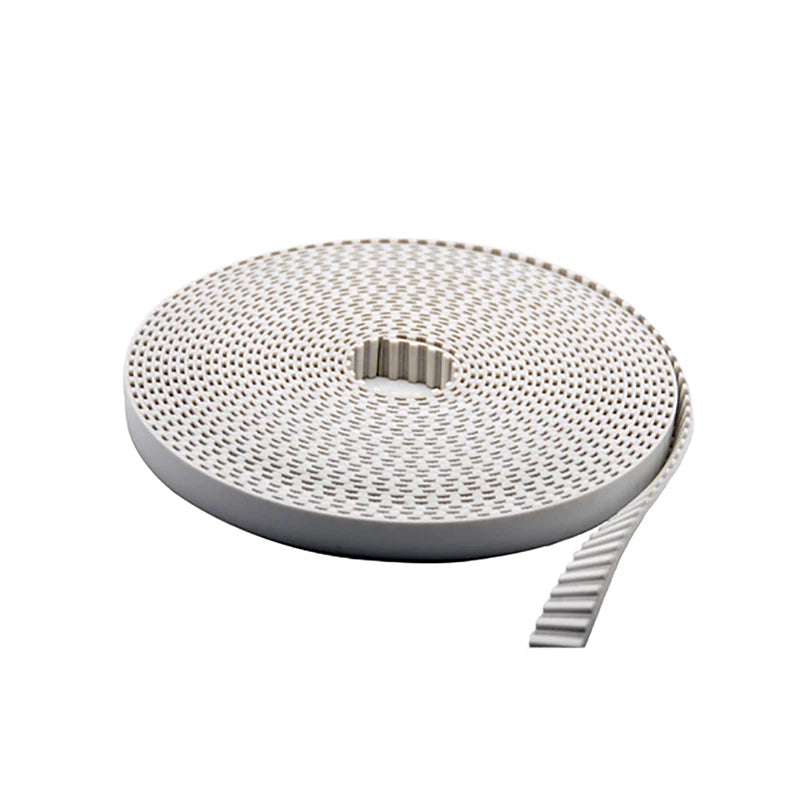

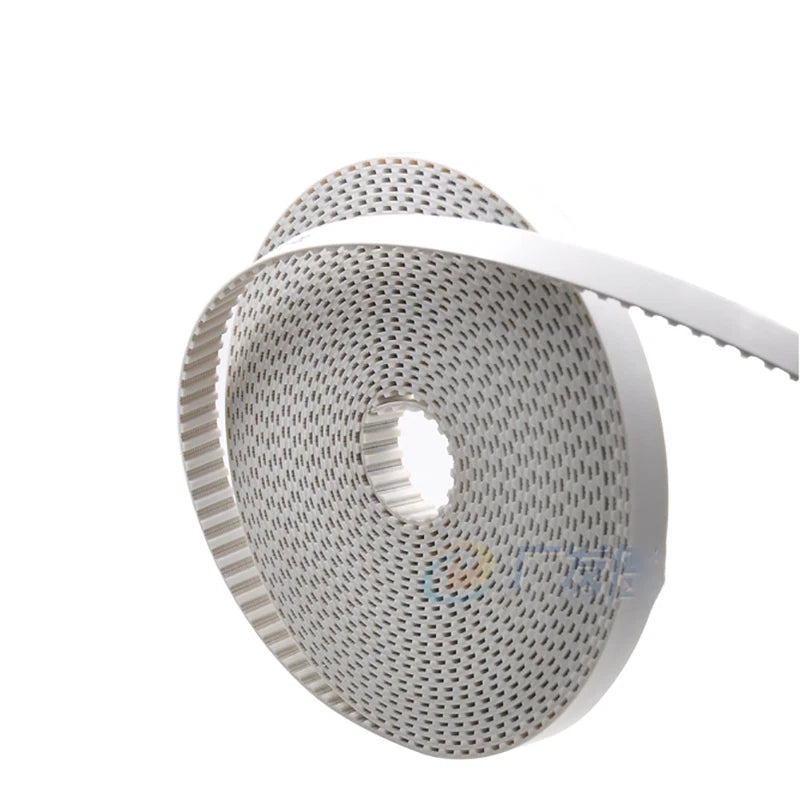

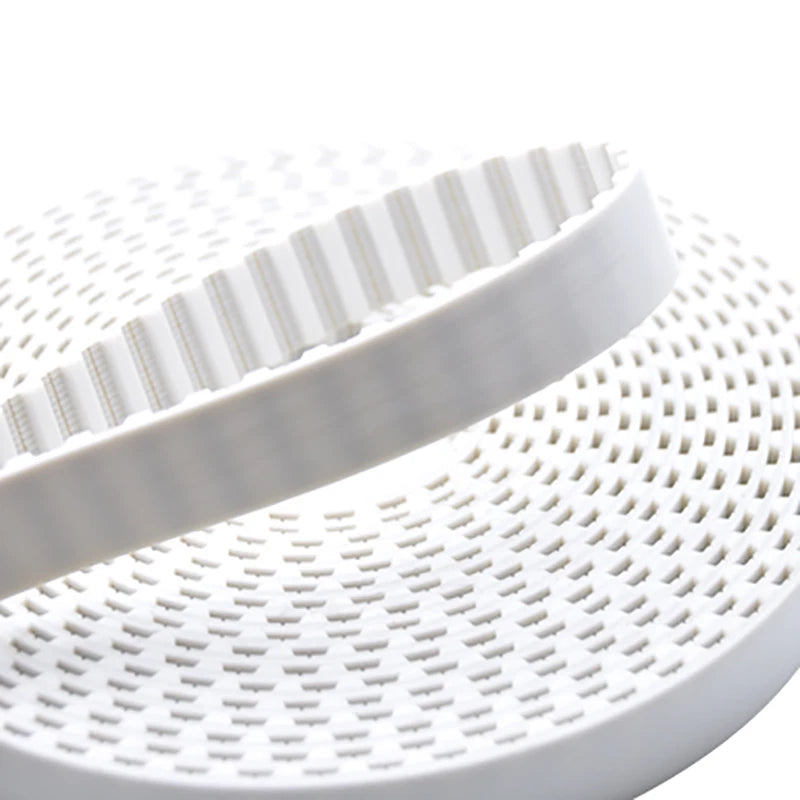

This listing covers white polyurethane (PU) open-end timing belt available in four tooth profiles — L-Type, H-Type, XL-Type, and MXL-Type — with widths from 6mm (≈1/4") to 30mm (≈1-3/16") and lengths from 1m (≈39.4") to 10m (≈393.7"). The PU body is reinforced with steel cord tensile members for low stretch and consistent pitch accuracy across the full run length.
Typical applications include open-end timing belt for 3D printer linear axis replacement, CNC router gantry drives, automated pick-and-place systems, and light industrial conveyor lines where field-cut belt installation is required. The white color also makes it easy to spot contamination in food-adjacent or cleanroom environments.
🔗 Compatibility: Fits standard L, H, XL, and MXL profile pulleys. Verify your pulley tooth profile and pitch before ordering — L = 3/8" pitch, H = 1/2" pitch, XL = 1/5" pitch, MXL = 0.080" pitch.
✅ Key Features of These Open-End PU Timing Belts
-
📐Four Tooth Profiles in One Listing — L, H, XL, and MXL types cover the most common imperial timing belt standards, making this a go-to source for open-end timing belt replacement across multiple machine types.
-
✂️Cut-to-Length Flexibility — Sold in 1m increments up to 10m, so you order exactly what your linear motion system needs without splicing multiple short pieces together.
-
🔩Steel Cord Tensile Reinforcement — Embedded steel cords resist elongation under load, maintaining consistent tooth pitch and reducing backlash in CNC router drives and 3D printer axis systems.
-
🧪Polyurethane Body Construction — PU material offers better abrasion resistance and oil tolerance compared to neoprene, making it suitable for light industrial environments where rubber belts degrade prematurely.
-
📏Wide Width Range: 6mm to 30mm — Narrow 6mm (≈1/4") widths suit compact 3D printer axes; wider 25–30mm (≈1" to 1-3/16") options handle higher torque loads in heavier CNC and automation applications.
-
⚪White Color for Visibility — The white finish makes contamination, wear marks, and misalignment easier to spot during maintenance inspections — a practical advantage in workshop and light cleanroom settings.
📐 Technical Specifications — Open-End PU Timing Belt
| Belt Type |
Open-End (non-looped, field-cut) |
| Material |
Polyurethane (PU) with steel cord tensile reinforcement |
| Color |
White |
| Available Profiles |
L-Type, H-Type, XL-Type, MXL-Type |
| Tooth Pitch — L |
3/8" (9.525mm) |
| Tooth Pitch — H |
1/2" (12.7mm) |
| Tooth Pitch — XL |
1/5" (5.08mm) |
| Tooth Pitch — MXL |
0.080" (2.032mm) |
| Available Widths |
6mm (≈1/4"), 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16") |
| Available Lengths |
1m, 2m, 3m, 4m, 5m, 8m, 10m (≈39" to ≈393") |
| Tooth Profile Shape |
Trapezoidal (standard imperial) |
| Tensile Members |
Steel cord (typically) |
| Recommended Use |
3D printers, CNC routers, linear actuators, light conveyor systems |
| Operating Temperature |
See variant options / Contact us to confirm |
| Joining Method |
Belt clamps or lacing connectors (sold separately) |
⚠️ Before ordering: Confirm your pulley's tooth profile (L / H / XL / MXL) and belt width. Mixing profiles will result in improper meshing. If unsure, measure your existing belt's tooth pitch or contact us with your machine model.
❓ Frequently Asked Questions
How do I choose the right length for my open-end timing belt?
Measure the distance between your drive and driven pulleys, then add enough slack for tensioning — typically 5–10% extra. For example, if your center-to-center distance is 500mm (≈19.7"), order at least 550mm (≈21.7"). This belt is sold by the meter (1–10m), so round up to the nearest available length.
What is the load capacity of these PU timing belts?
Load capacity varies by profile and width. Generally, wider belts (25–30mm) in H or L profiles handle higher torque loads than narrower XL or MXL variants. For precision light-duty applications like 3D printers, 6–10mm widths are typically sufficient. Contact us to confirm suitability for your specific load requirements.
Can these belts be used outdoors or in humid environments?
Polyurethane (PU) offers good resistance to oils, mild chemicals, and moderate moisture. However, prolonged UV exposure or immersion in water is generally not recommended. For outdoor or wet environments, consider adding a protective cover or contact us to confirm suitability.
What pulley standards are compatible with these belts?
These belts follow standard imperial tooth profiles: L (3/8" pitch), H (1/2" pitch), XL (1/5" pitch), and MXL (0.080" pitch). They are compatible with standard off-the-shelf pulleys matching the same profile designation. Always verify pulley tooth count and pitch before ordering.
How do I connect the two ends of an open-end belt?
Open-end timing belts are designed to be cut to length and joined using metal belt clamps or lacing connectors (sold separately). This makes them ideal for linear motion systems where a closed-loop belt cannot be installed. Ensure the connector style matches your belt width and profile.
Which profile should I choose — L, H, XL, or MXL?
MXL and XL are typically used in light-duty precision applications such as 3D printers and small CNC machines. L and H profiles are generally suited for heavier-duty power transmission with higher torque demands. Match the profile to your existing pulley system for direct compatibility.
Is the steel cord reinforcement standard on all variants?
These PU open-end timing belts generally include steel cord tensile reinforcement for dimensional stability and low stretch under load. This is a standard construction for PU timing belts in this class. Contact us to confirm reinforcement specs for your specific variant.
🛒 Select your model, width, and length above, then add to cart — ships from our US warehouse.
