Open Timing Belt for CNC & 3D Printers — Cut to Any Length, Multiple Profiles
When a motion system skips steps, loses position, or wears out belts faster than expected, the culprit is often a belt that doesn't match the drive profile or is cut from a low-quality roll. Makers, CNC machinists, and automation engineers who need a reliable open timing belt in the exact length and profile they specify — without buying a full closed loop — run into this problem constantly.

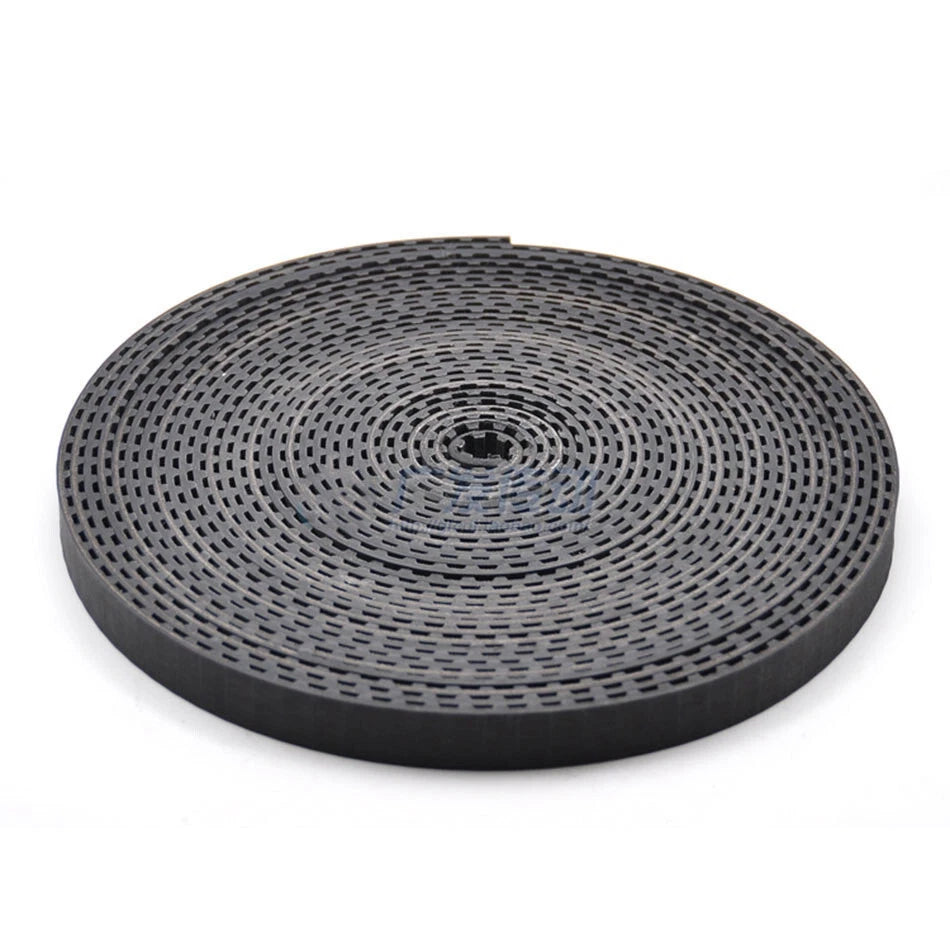

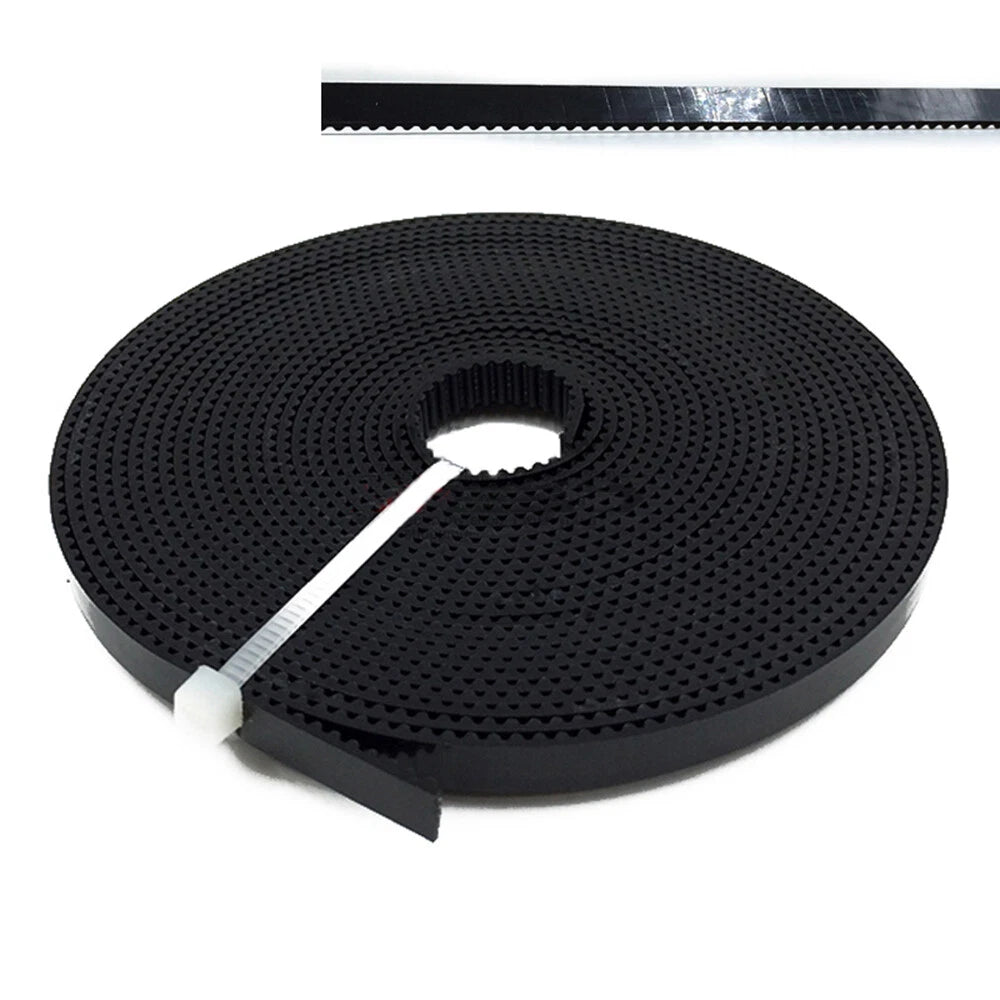

This listing offers open-ended timing belt sold by the meter, available in six industry-standard profiles — 2GT, HTD-3M, HTD-5M, HTD-8M, STPD-S2M, and XL — and seven widths from 6mm (≈1/4") to 40mm (≈1-9/16"). Lengths range from 1 meter (≈39.4") to 10 meters (≈393.7"). The belt body is typically constructed from neoprene rubber with a fiberglass or steel tension cord, giving it the dimensional stability needed for repeatable positioning.
Typical use cases include replacing worn drive belts on Cartesian and CoreXY 3D printers (Ender, Voron, RatRig, and similar), building or upgrading CNC router axis drives, and constructing linear motion and conveyor systems in light industrial or lab automation settings. The open format lets you route the belt around custom pulley arrangements and cut it to the precise span your design requires.
🔗
Compatibility: Designed to mate with standard GT2/2GT, HTD-3M, HTD-5M, HTD-8M, S2M, and XL pulleys. Match your belt profile and width to your pulley's tooth profile and groove width before ordering.
✅ Key Features of These Open Timing Belts
-
📐Six Standard Profiles in One Listing — Choose from 2GT, HTD-3M, HTD-5M, HTD-8M, STPD-S2M, or XL to match your existing pulleys exactly, eliminating the need to source from multiple suppliers.
-
📏Seven Width Options (6–40mm) — From the narrow 6mm (≈1/4") belts used in compact 3D printer drives to the 40mm (≈1-9/16") belts suited for heavier CNC axis loads, each width is available across compatible profiles.
-

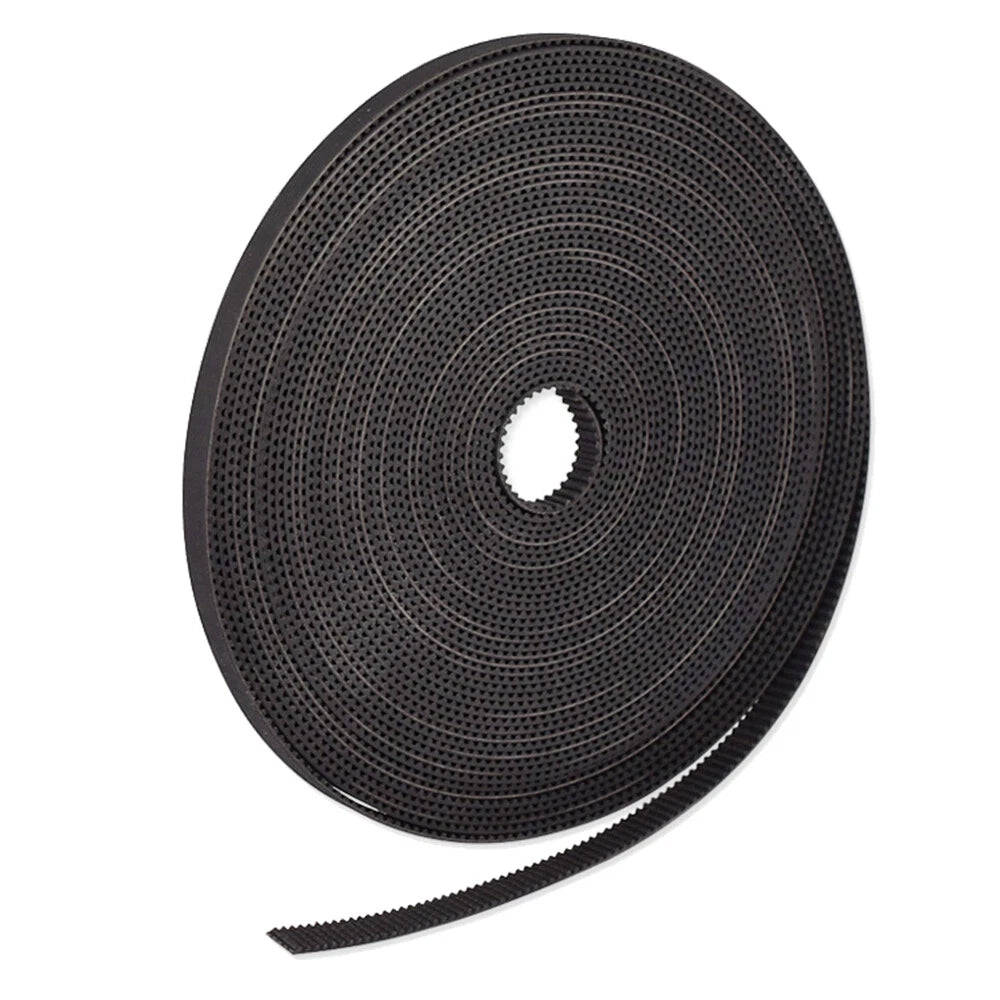

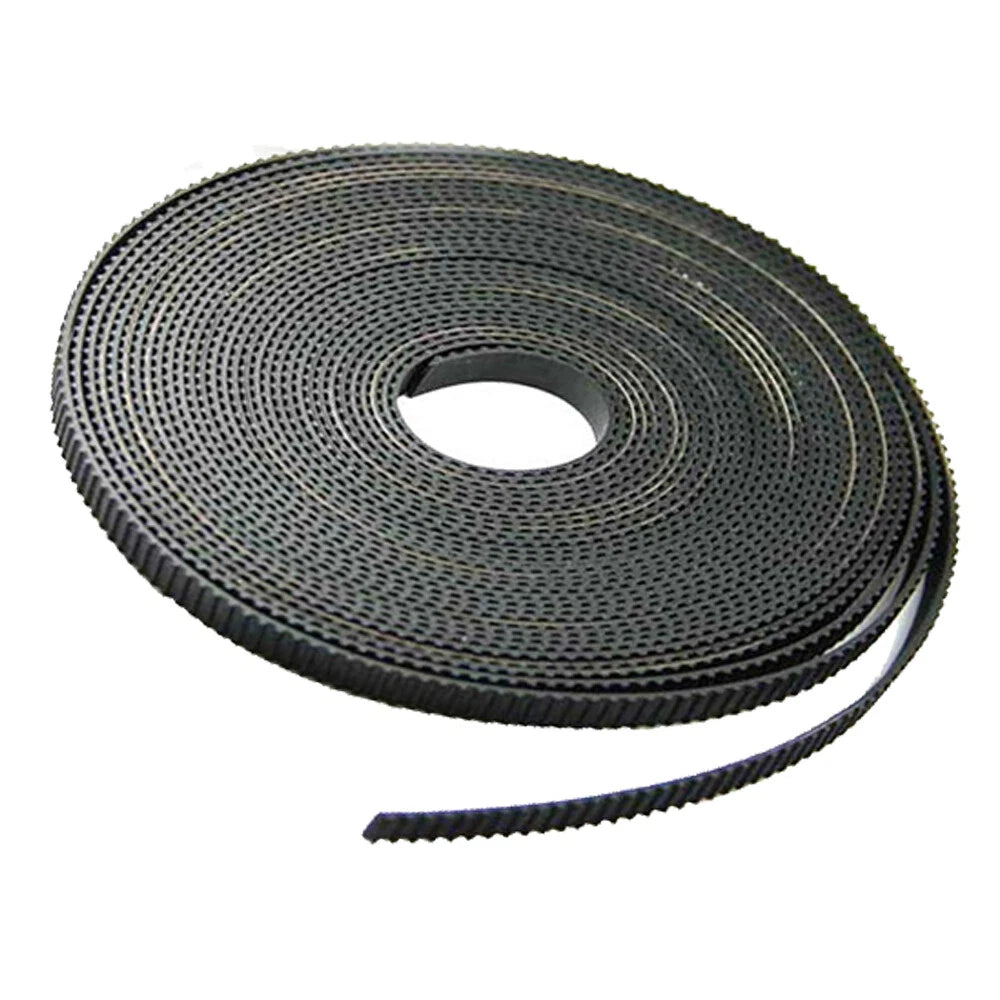

✂️Open-Ended, Cut-to-Length Format — Sold by the meter so you order only what you need. Cut cleanly with scissors or a utility knife — no special tooling required for trimming to your exact span.
-

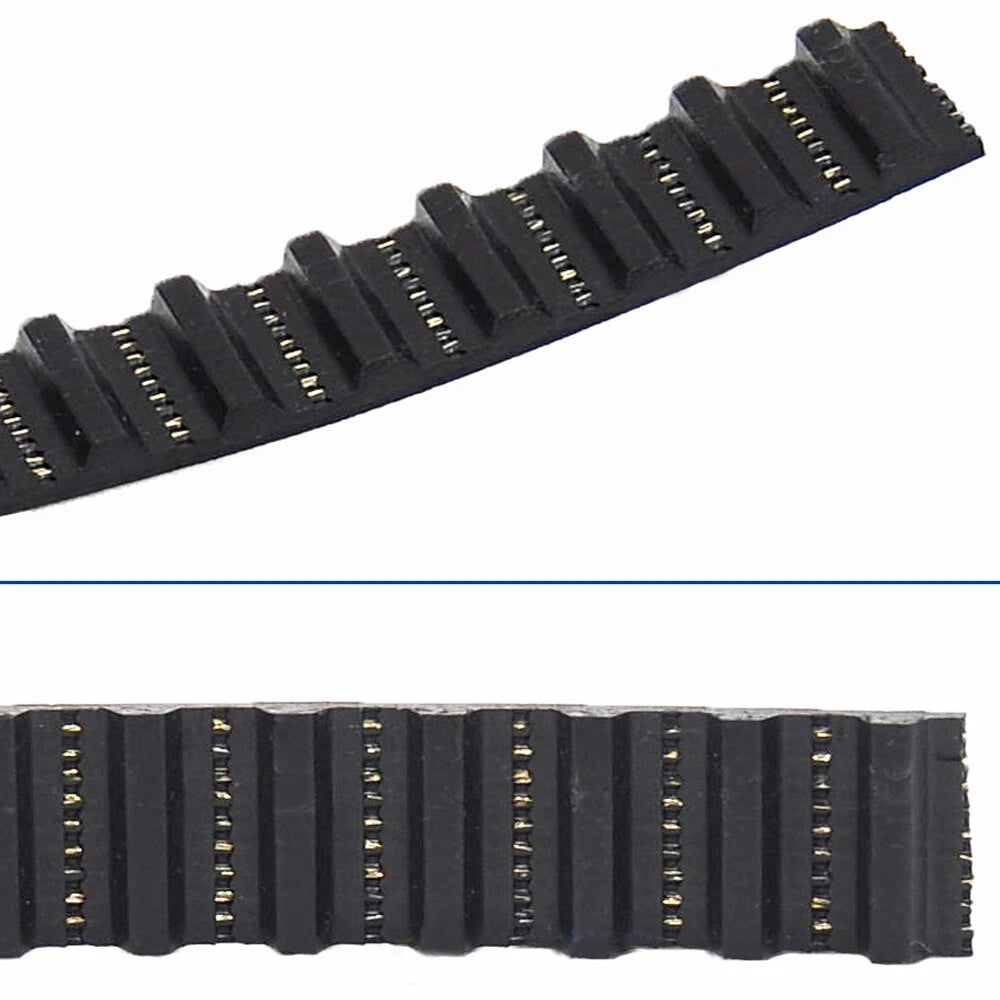

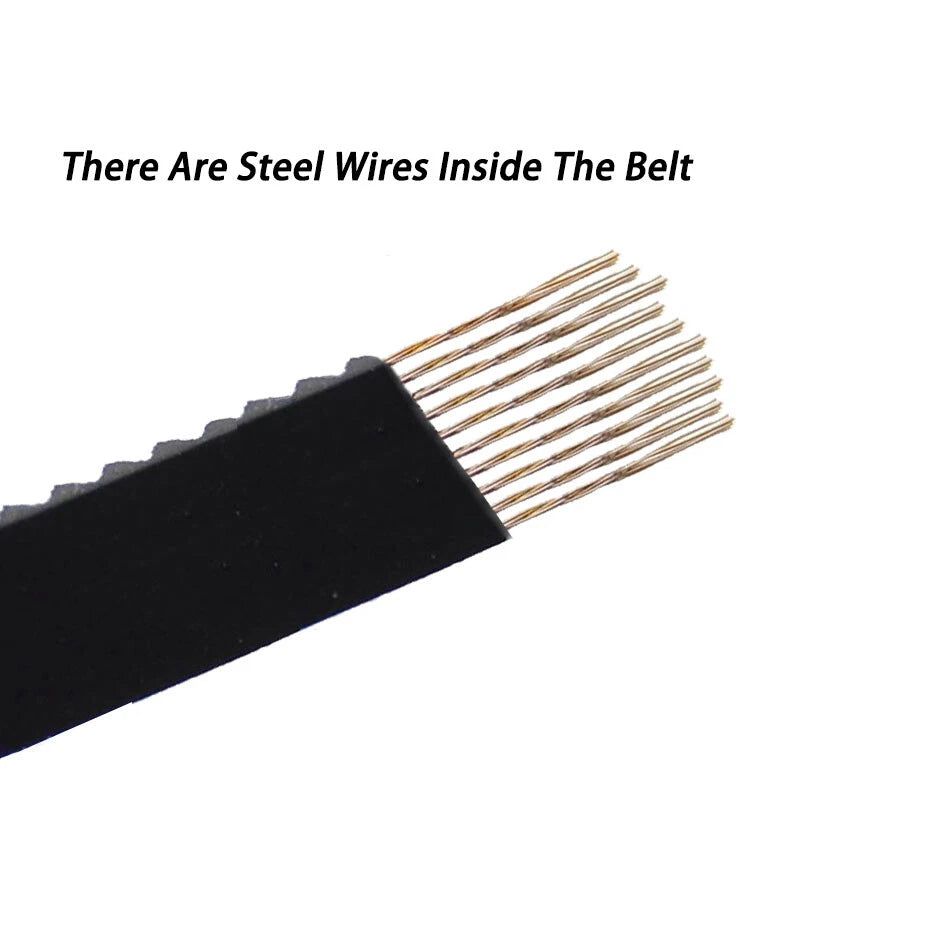

🔩Fiberglass or Steel Tension Cord Construction — The reinforced cord resists stretching under load, helping maintain consistent tooth engagement and repeatable positioning in CNC routing and 3D printing applications.
-
🌧️Neoprene Rubber Body — Neoprene offers moderate resistance to moisture and mild chemicals, making these belts generally suitable for workshop and light outdoor environments where occasional exposure to coolant or humidity is expected.
-

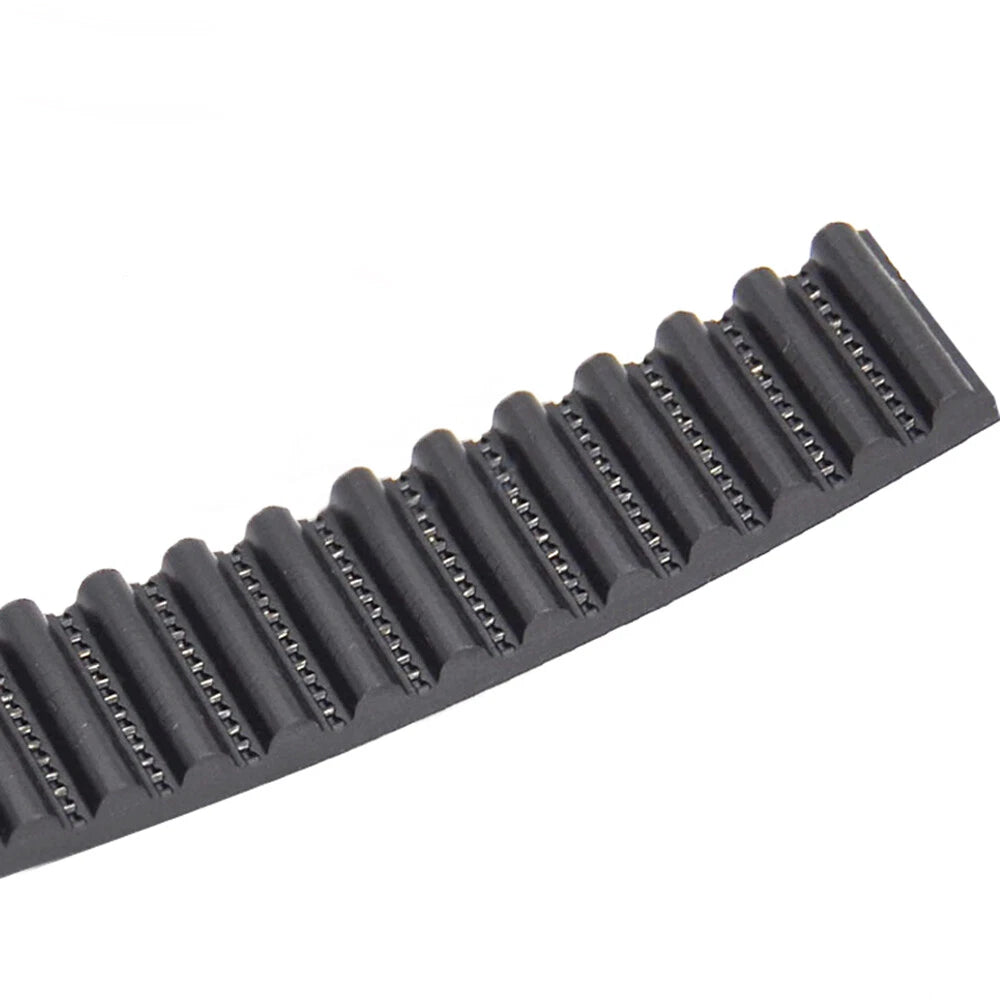

🔄Low Backlash Tooth Profile — Each profile's tooth geometry is designed to seat fully in the pulley groove, reducing the positional error that causes layer shifting in 3D printers and dimensional inaccuracy in CNC routers.
📐 Technical Specifications — Open Timing Belt
| Belt Type |
Open-ended (non-looped), sold by the meter |
| Available Profiles |

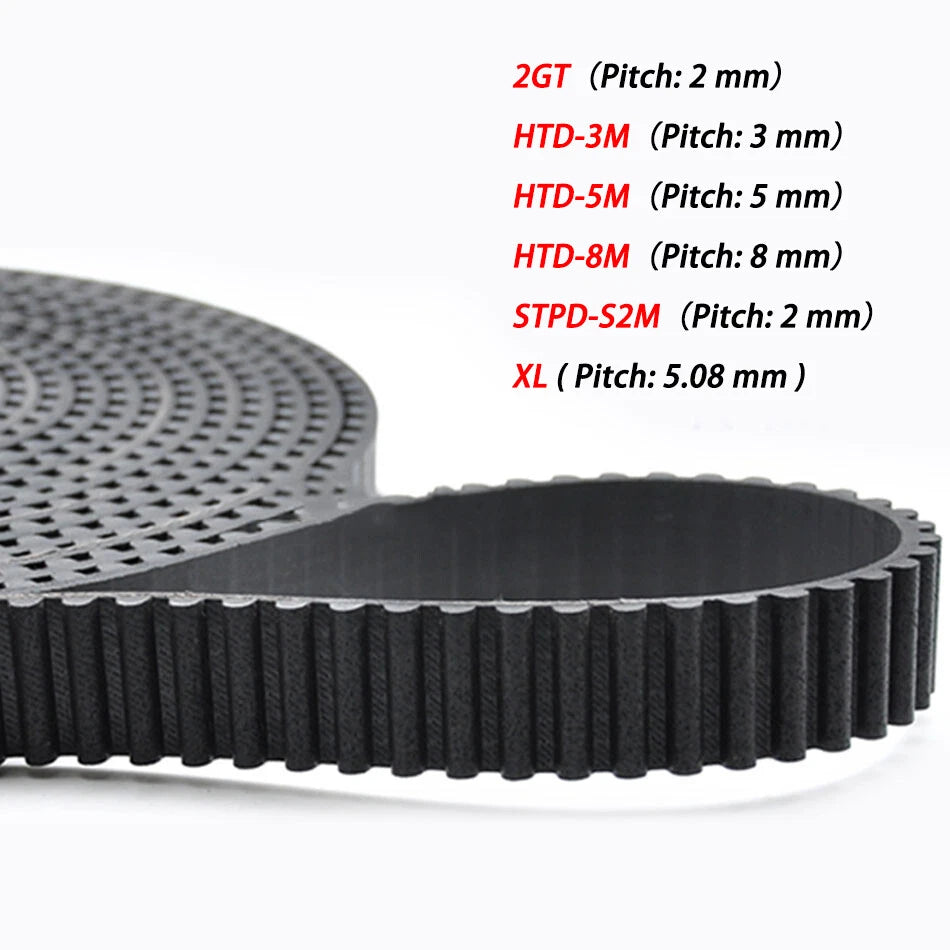

2GT (2mm pitch), HTD-3M (3mm pitch), HTD-5M (5mm pitch), HTD-8M (8mm pitch), STPD-S2M (2mm pitch), XL (5.08mm pitch / Imperial) |
| Available Widths |
6mm (≈1/4"), 10mm (≈3/8"), 15mm (≈19/32"), 20mm (≈25/32"), 25mm (≈1"), 30mm (≈1-3/16"), 40mm (≈1-9/16") |
| Available Lengths |
1m (≈39.4"), 2m (≈78.7"), 3m (≈118.1"), 4m (≈157.5"), 5m (≈196.9"), 8m (≈314.9"), 10m (≈393.7") |
| Belt Material |
Neoprene rubber (typical); fiberglass or steel tension cord reinforcement |
| Tooth Profile Compatibility |
GT2/2GT pulleys (2GT), HTD pulleys (HTD-3M/5M/8M), S2M pulleys (STPD-S2M), XL pulleys (XL) |
| Tensile Load Rating |
See variant options — varies by profile and width |
| Color |
Black |
| Suitable Applications |
3D printers, CNC routers, linear motion systems, light conveyor and automation drives |
| Cutting Method |
Scissors, utility knife, or rotary cutter — no special tooling required |
⚠️
Before ordering: Confirm your pulley's tooth profile, groove width, and pitch match the belt variant you select. Mixing profiles (e.g., GT2 pulley with HTD-3M belt) will cause skipping and premature wear.
❓ Frequently Asked Questions
How do I choose the right belt length?
Measure the total travel distance of your axis and add enough for routing around pulleys. For a closed loop, the general formula is: (2 × center distance) + (π × pulley pitch diameter). For open-ended runs, measure the required span and order the nearest meter increment. As a reference: 1 meter ≈ 39.4 inches; 2 meters ≈ 78.7 inches; 5 meters ≈ 196.9 inches.
Which belt profile should I choose for my 3D printer or CNC router?
2GT and STPD-S2M are the most common choices for desktop 3D printers (Ender, Voron, RatRig, and similar) due to their 2mm pitch and low backlash. HTD-3M typically suits light CNC and robotics. HTD-5M and HTD-8M are generally used for higher-torque CNC routers and industrial automation. XL (Imperial, 5.08mm pitch) is typically found on older or US-designed CNC machines. When in doubt, check your existing pulley's tooth profile marking.
What width should I choose for my application?
Width selection depends on the torque and lateral stiffness required. Desktop 3D printers typically use 6mm or 10mm wide belts. CNC routers and automation systems generally use 15mm–25mm. Heavy-duty industrial drives may require 30mm–40mm. Always match the belt width to your pulley's belt groove width — a belt wider than the groove will not seat correctly.
What is the load capacity of these timing belts?
Load capacity varies by profile and width. Wider belts and larger-pitch profiles (HTD-5M, HTD-8M) generally carry higher tensile loads than narrow, fine-pitch belts (2GT 6mm). For precise tensile load ratings for your specific profile and width combination, contact us to confirm before use in safety-critical applications.
Can these belts be used outdoors or in wet environments?
These belts are typically constructed from neoprene rubber, which offers moderate resistance to moisture and mild chemicals. They are generally suitable for workshop and light outdoor environments where occasional exposure to coolant splash or humidity is expected. Prolonged exposure to UV radiation, petroleum-based oils, or harsh solvents may reduce service life. For demanding outdoor applications, contact us to confirm material suitability.
Are these belts compatible with standard GT2, HTD, and XL pulleys?
Yes. Each profile is designed to mate with its corresponding standard pulley: 2GT belts fit GT2/2GT pulleys; HTD-3M fits HTD 3M pulleys; HTD-5M fits HTD 5M pulleys; HTD-8M fits HTD 8M pulleys; STPD-S2M fits S2M pulleys; XL fits XL-profile pulleys. Always verify the tooth count and bore size of your pulley before ordering.
How do I cut the belt to the exact length I need?
Open timing belts can be cut cleanly with sharp scissors, a utility knife, or a rotary cutter against a straight edge. For the cleanest cut, score the belt on the flat (non-toothed) side first, then cut through. No special tools are required. Cut ends do not fray.
