Plastic Pneumatic Hose Splitter Connector — PY Y-Shape & PW Tee Fittings for Air Lines

Splitting a single compressed air line into two branches — or tapping a reduced branch off a main run — shouldn't require cutting, threading, or special tools. Technicians, workshop owners, and DIY pneumatic builders all need a reliable way to distribute airflow without pressure loss or leaks. These plastic pneumatic hose splitter connectors cover both needs: PY fittings deliver a Y-shaped equal split, while PW fittings provide a reducer tee branch, all with a simple push-fit design.

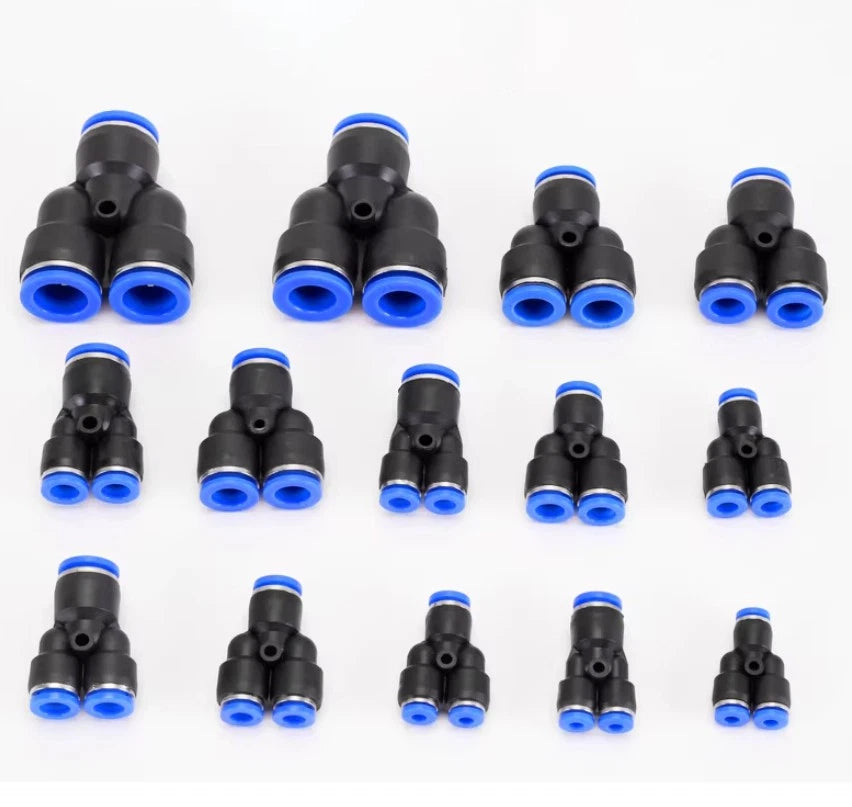

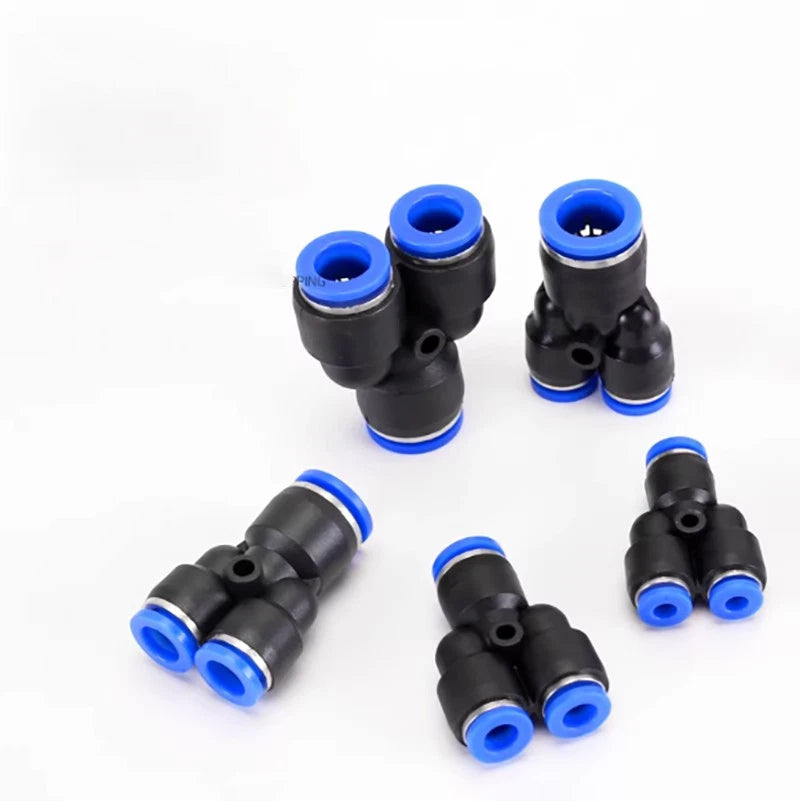

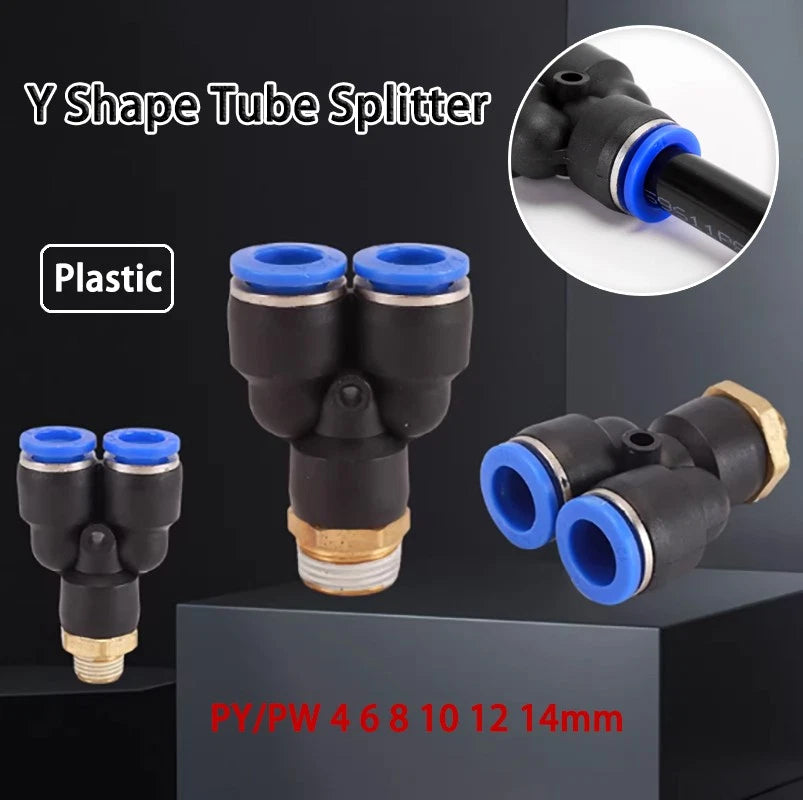

Each pack contains PY or PW fittings in your chosen size and quantity. PY types are equal Y-splitters available in 4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈1/2"), 14mm (≈9/16"), and 16mm (≈5/8") hose outer diameter. PW reducer tee types include sizes from PW6-4 up to PW12-10, covering common pneumatic hose combinations. Packs are available in 5, 10, or 30 pieces.

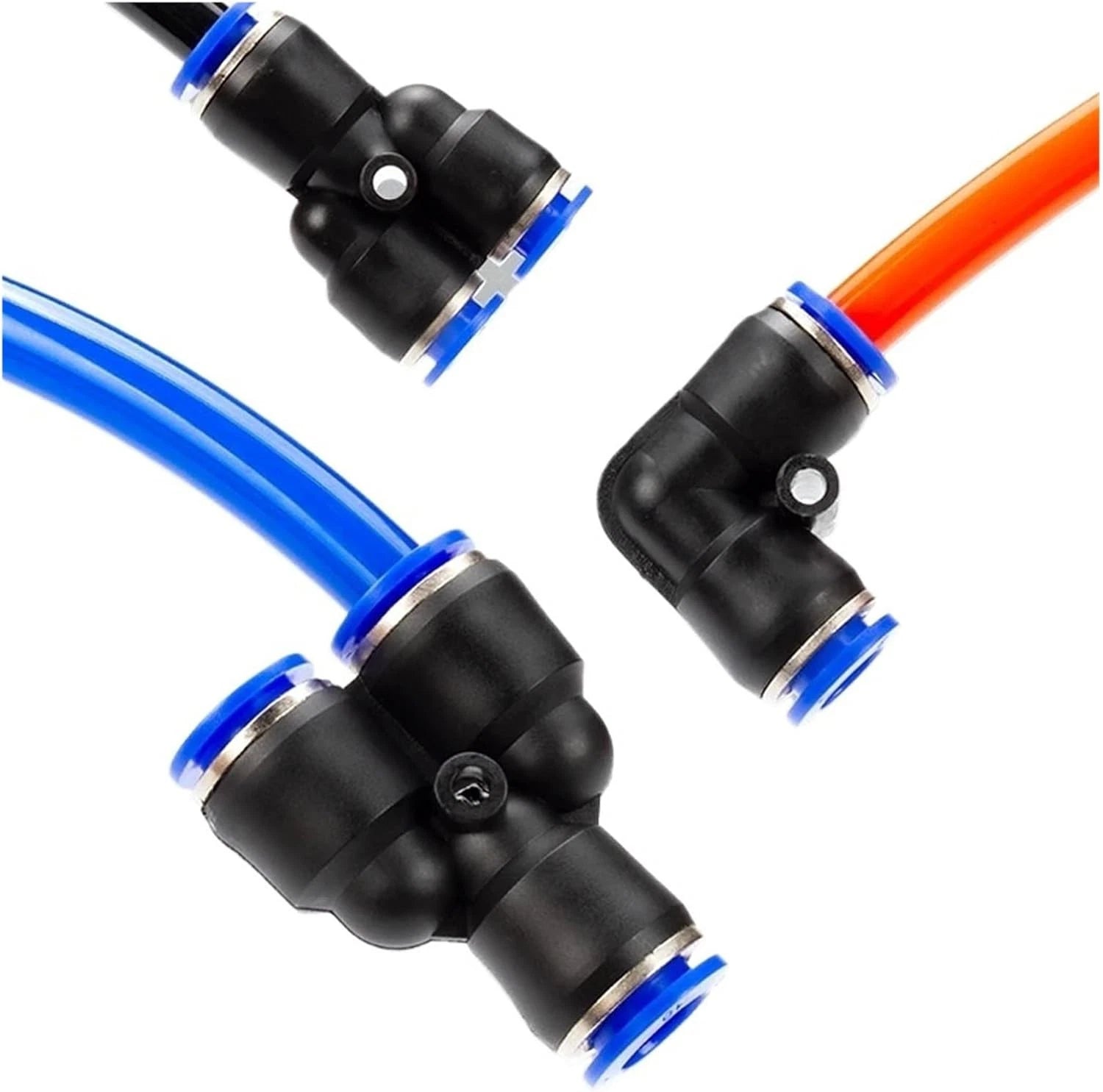

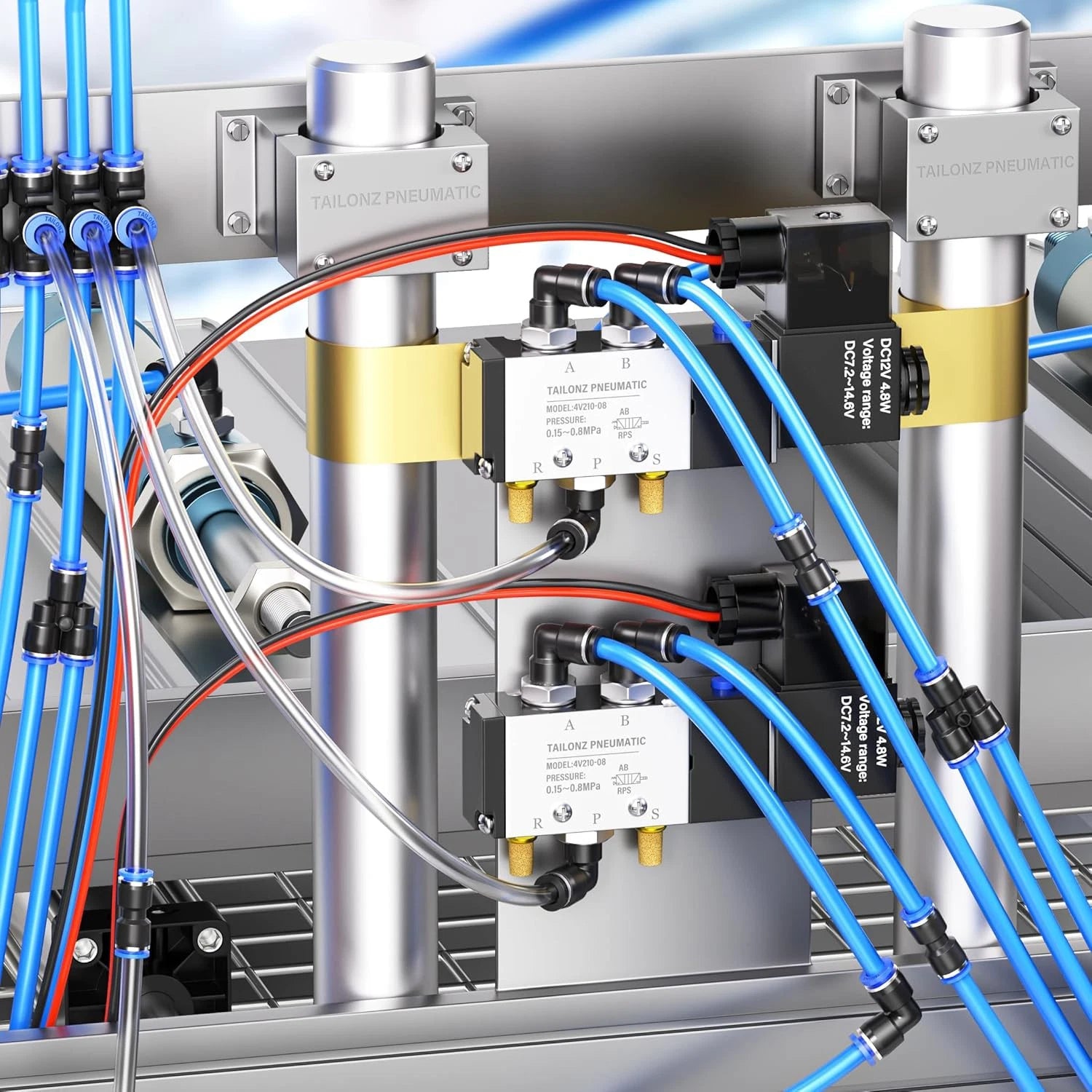

These connectors are widely used in compressed air distribution systems for workshops and garages, pneumatic tool line splitting where two tools share one compressor outlet, and automated machinery air circuits requiring branched flow paths. The PW reducer tee variants are also popular for vacuum line branching in automotive and HVAC applications.

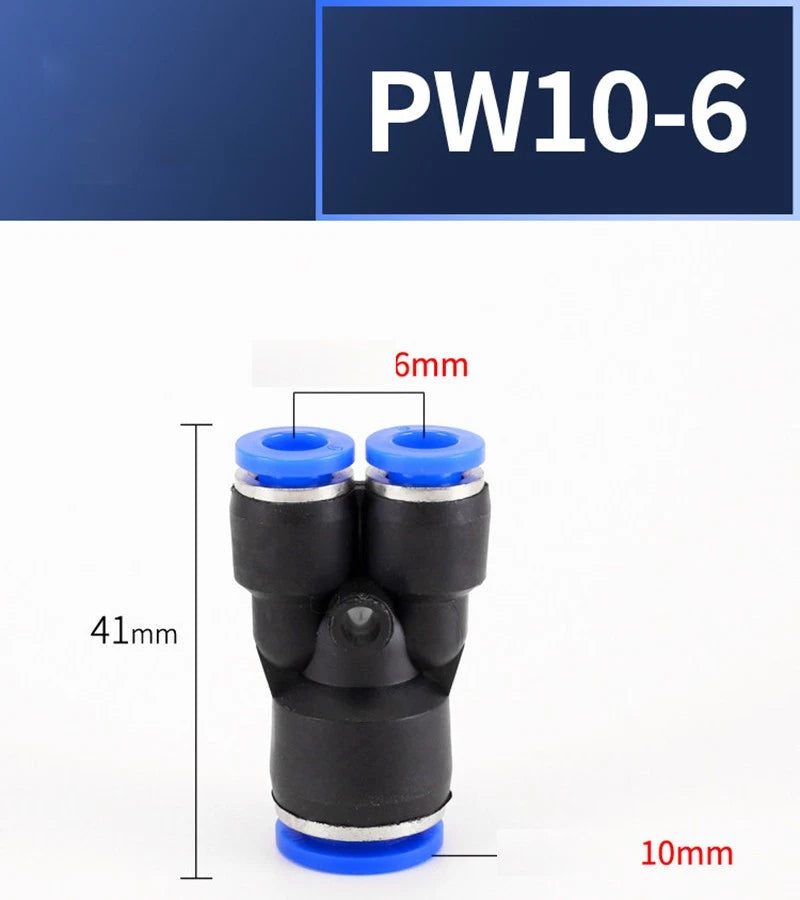

🔗 Compatibility: Fits standard pneumatic hose by outer diameter (OD). PY = equal Y-split (all ports same OD). PW = reducer tee (main ports larger than branch port, e.g., PW10-6 = 10mm main / 6mm branch). Match the fitting code to your hose OD before ordering.

⚠️ Note: Designed for low-to-medium pressure pneumatic applications. Not recommended for high-pressure industrial systems without confirming the pressure rating. For fluid applications (water, oil), verify material compatibility before use.

✅ Key Features of These Plastic Pneumatic Hose Splitter Connectors

🔀Y-Shape & Tee Options — PY fittings split one air line into two equal branches; PW reducer tee fittings tap a smaller branch off a main run — covering both equal and reduced pneumatic hose splitting needs.

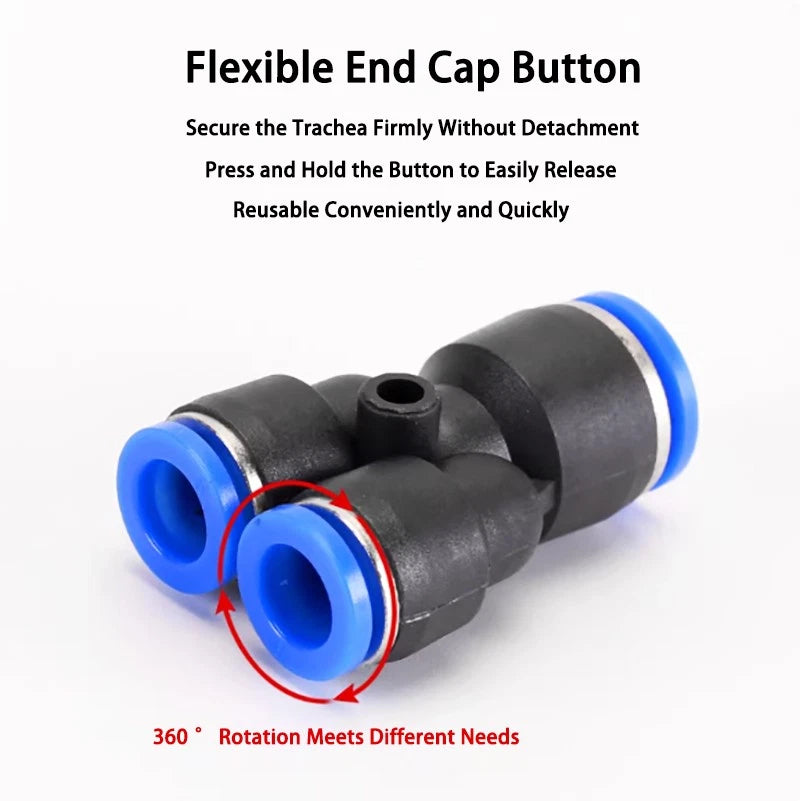

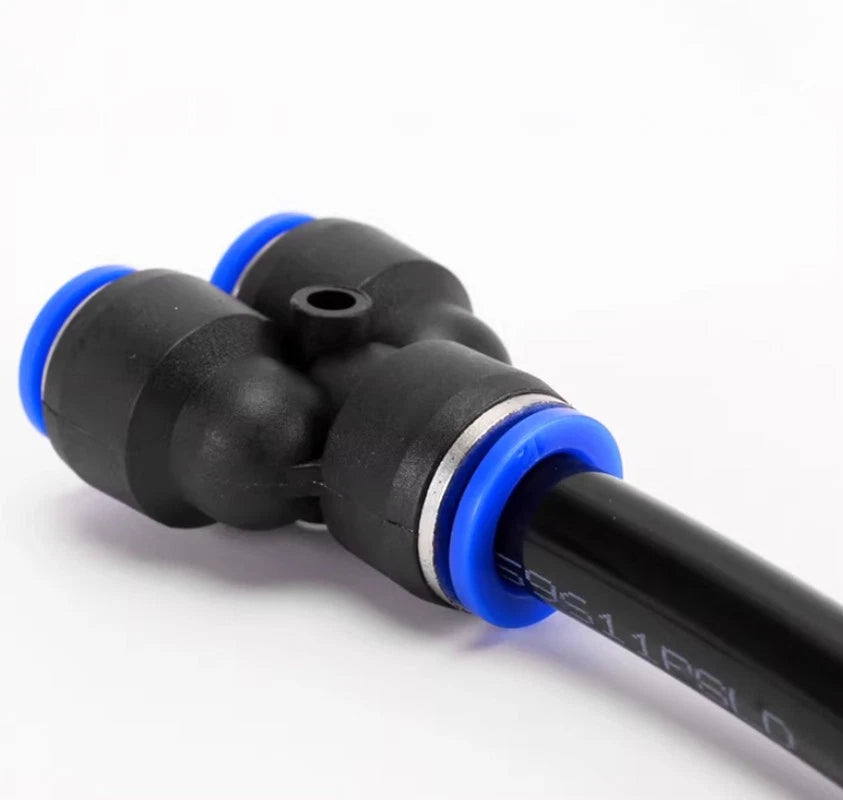

🖐️Push-Fit Installation — No threading, clamps, or adhesive required. Insert the hose OD into the fitting port and it locks in place — making these connectors ideal for quick compressed air line repairs and pneumatic circuit builds.
📐Wide Size Coverage — PY sizes from 4mm to 16mm OD and PW reducer tee sizes from PW6-4 to PW12-10 cover the most common pneumatic hose diameters used in workshops, garages, and light industrial settings.

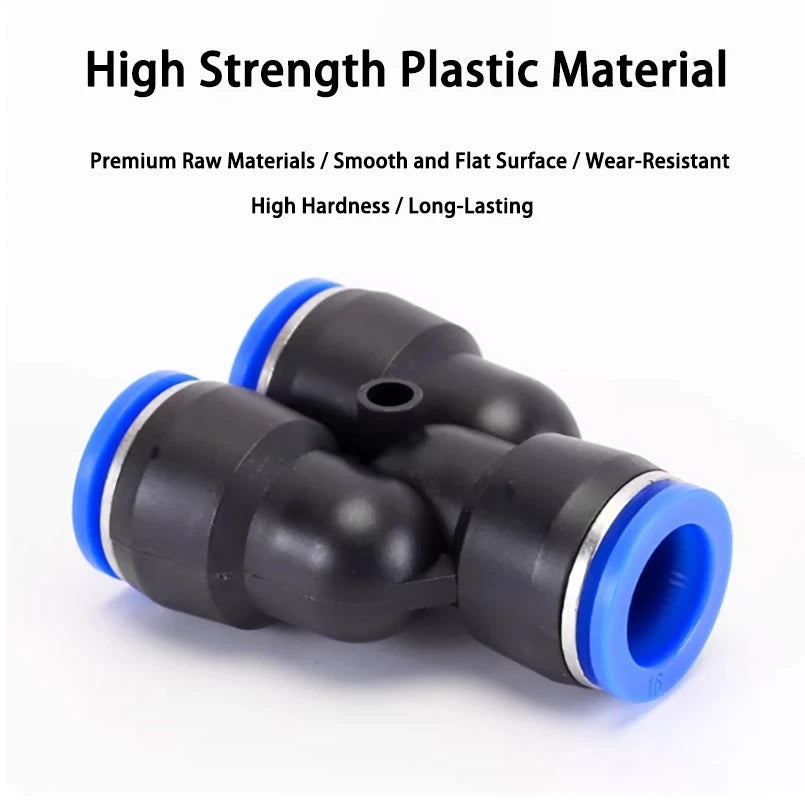

⚖️Lightweight Plastic Body — The plastic construction keeps weight low and resists corrosion from moisture in compressed air lines, making these fittings a practical choice for long-term pneumatic system installations.
📦Flexible Pack Sizes — Available in 5, 10, or 30-piece packs so you can stock exactly what you need — from a single workshop repair to a full pneumatic distribution system build.

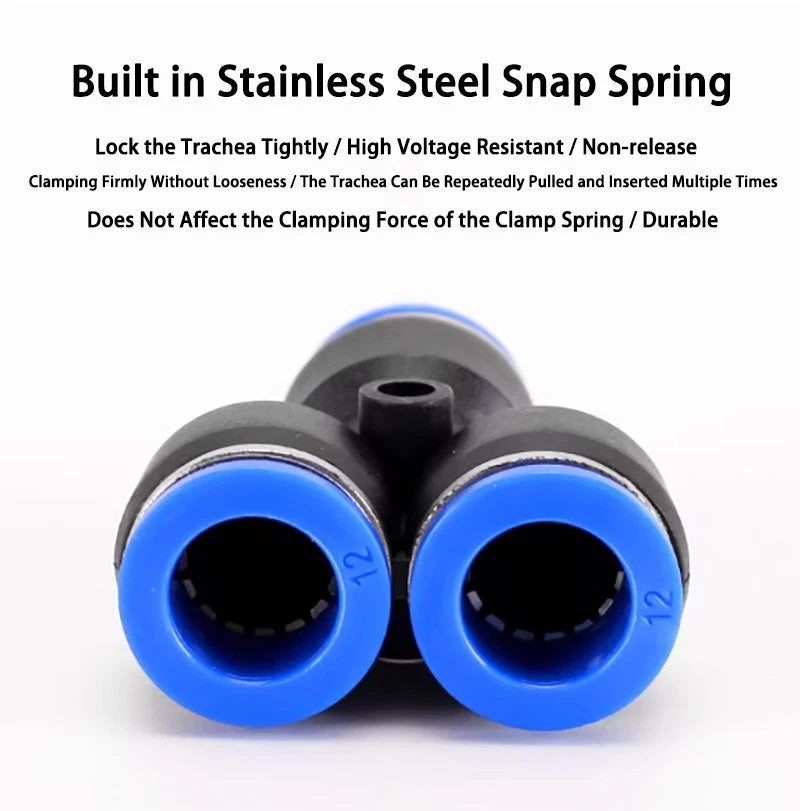

🔧Secure Hose Retention — The internal collet or barb profile grips the hose outer diameter to resist pull-out under normal operating pressure, maintaining a consistent seal in air line branching applications.

📐 Technical Specifications — Plastic Pneumatic Hose Splitter Connectors

Fitting Types	PY (Y-shape equal splitter) & PW (reducer tee / T-shape)
Material	Engineering-grade plastic (typically polypropylene or nylon)

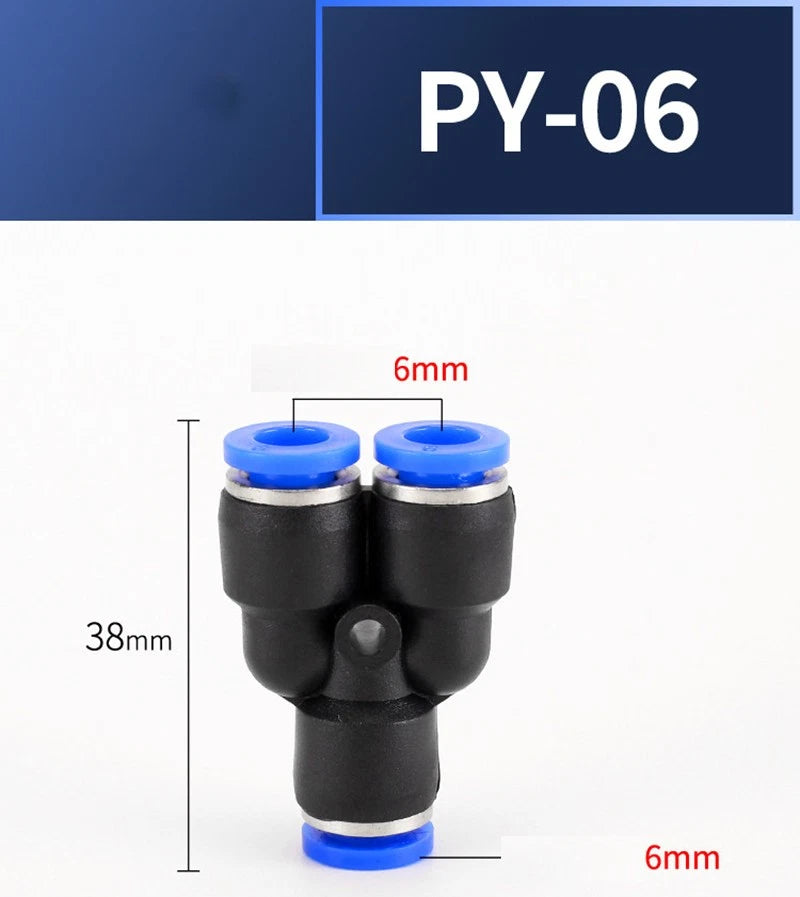

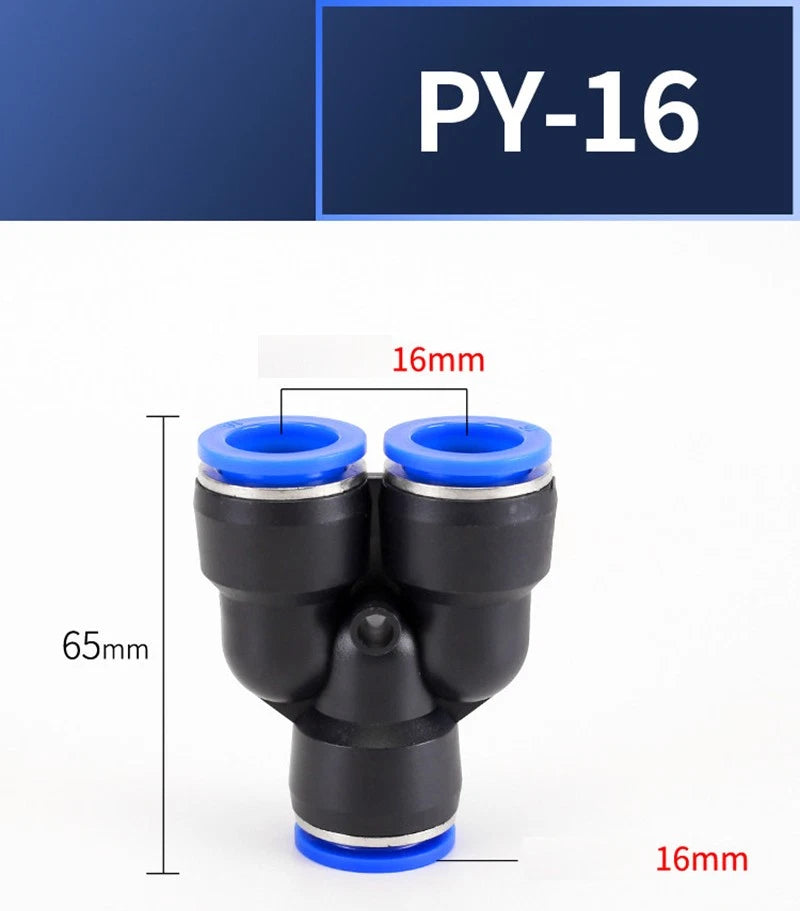

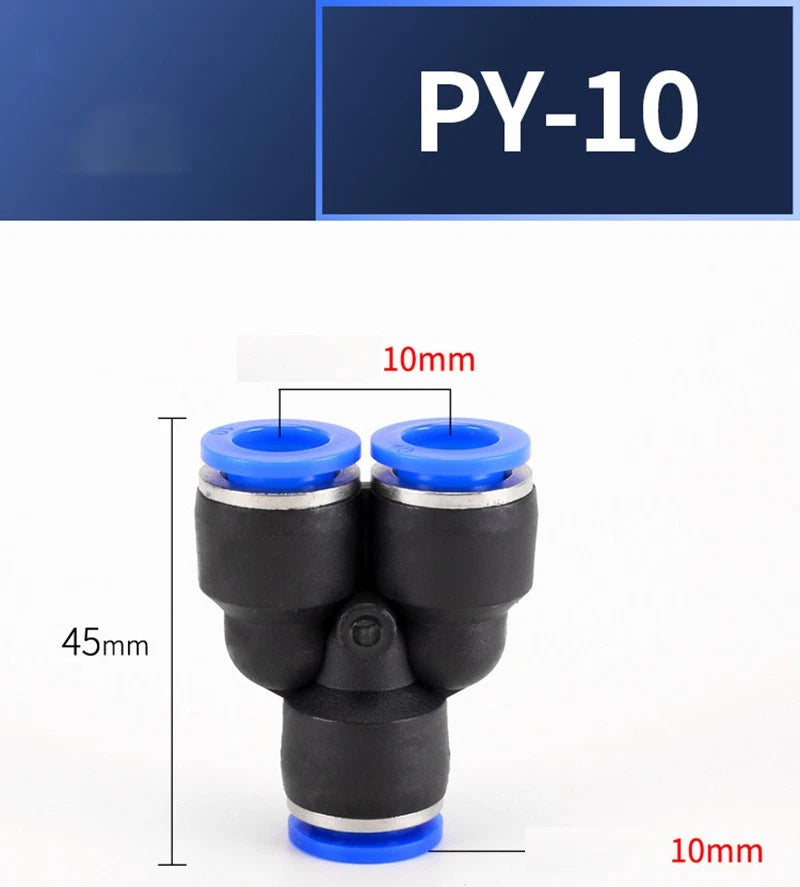

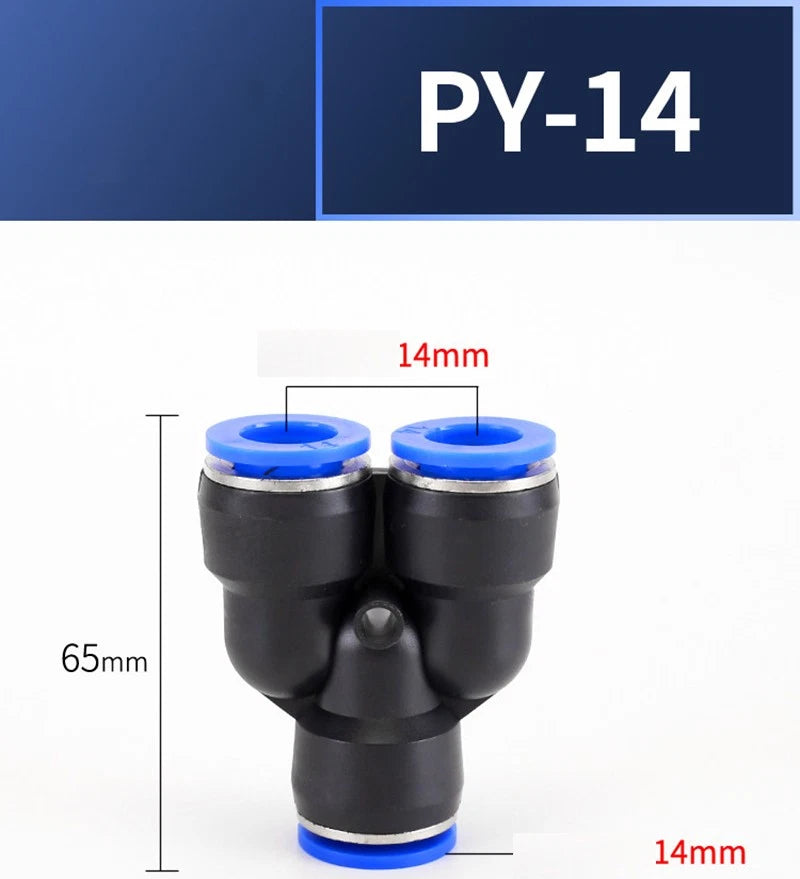

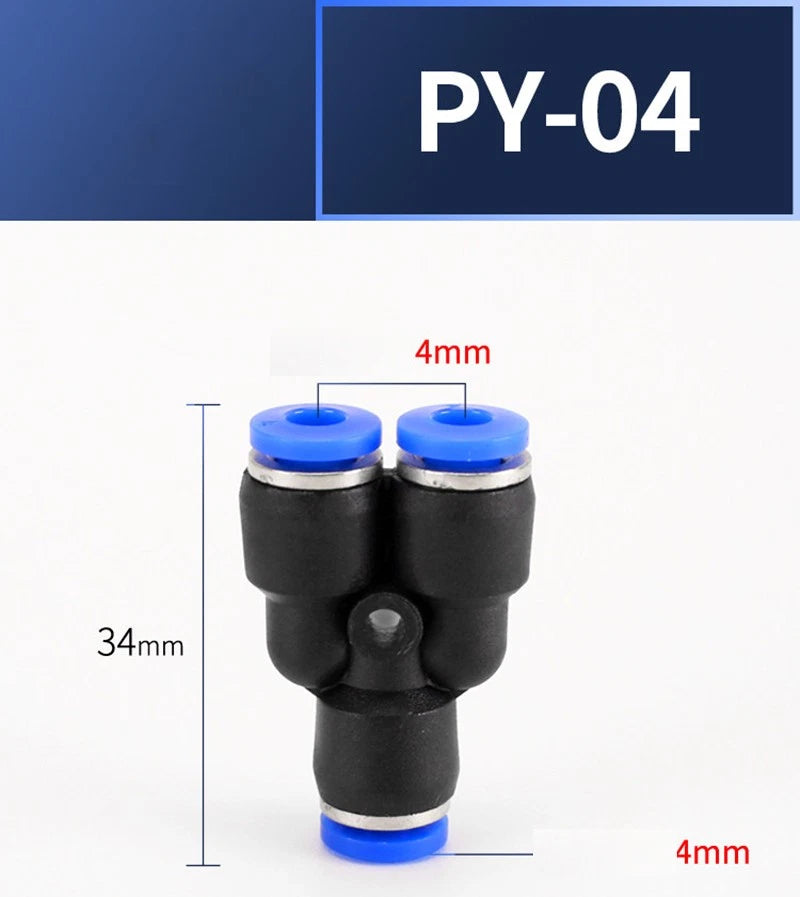

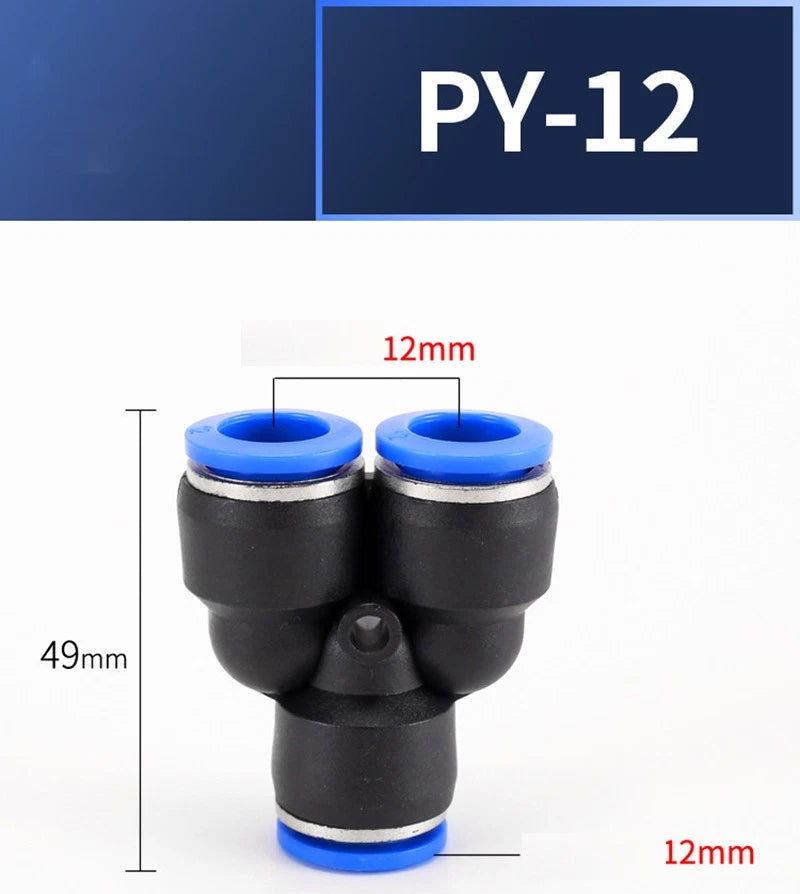

PY Sizes (Hose OD)	PY-04 (4mm ≈5/32"), PY-06 (6mm ≈1/4"), PY-08 (8mm ≈5/16"), PY-10 (10mm ≈3/8"), PY-12 (12mm ≈1/2"), PY-14 (14mm ≈9/16"), PY-16 (16mm ≈5/8")

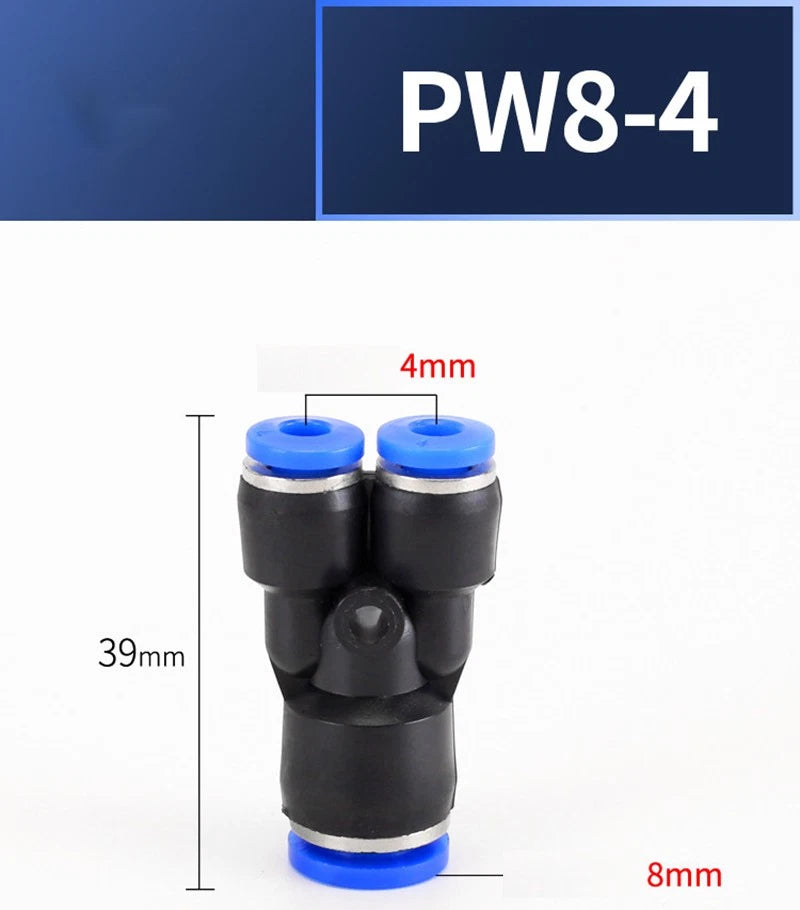

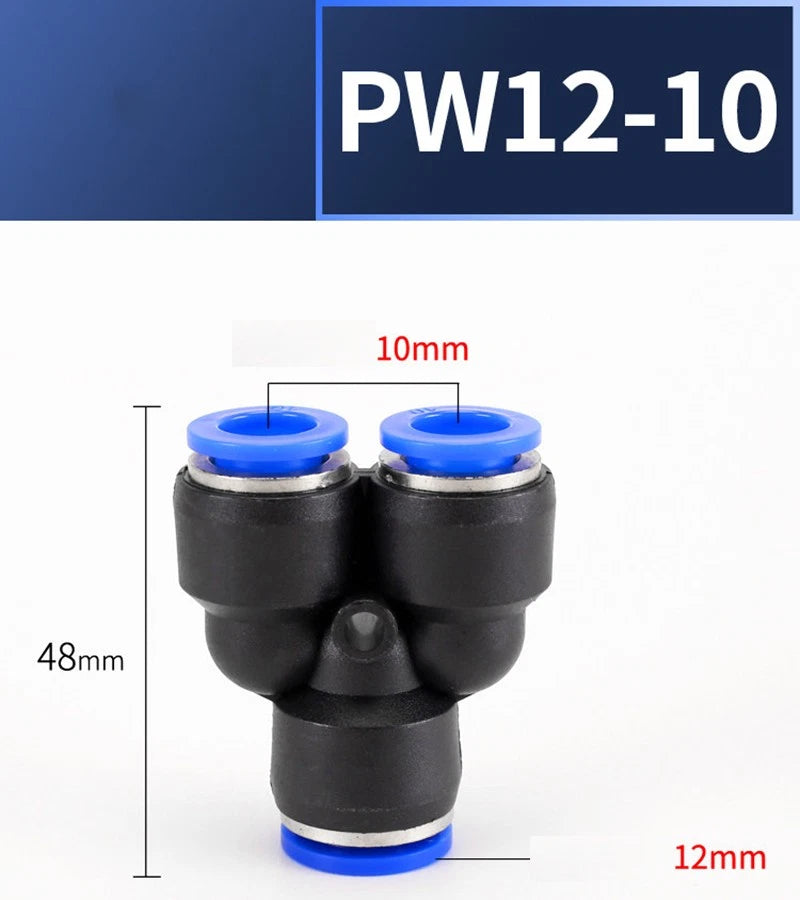

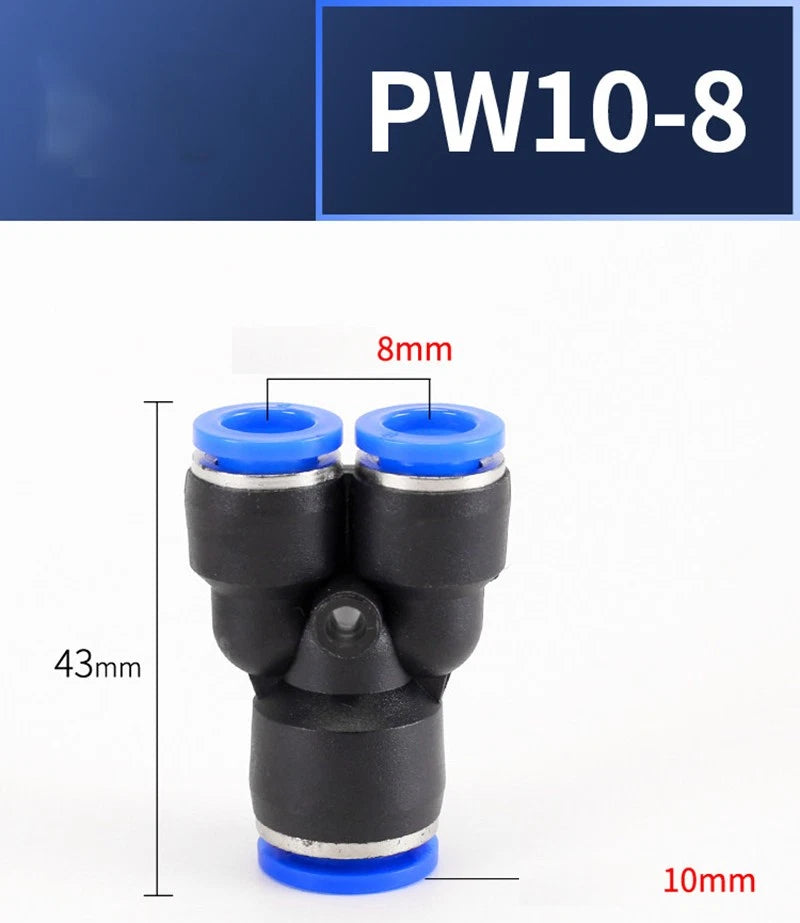

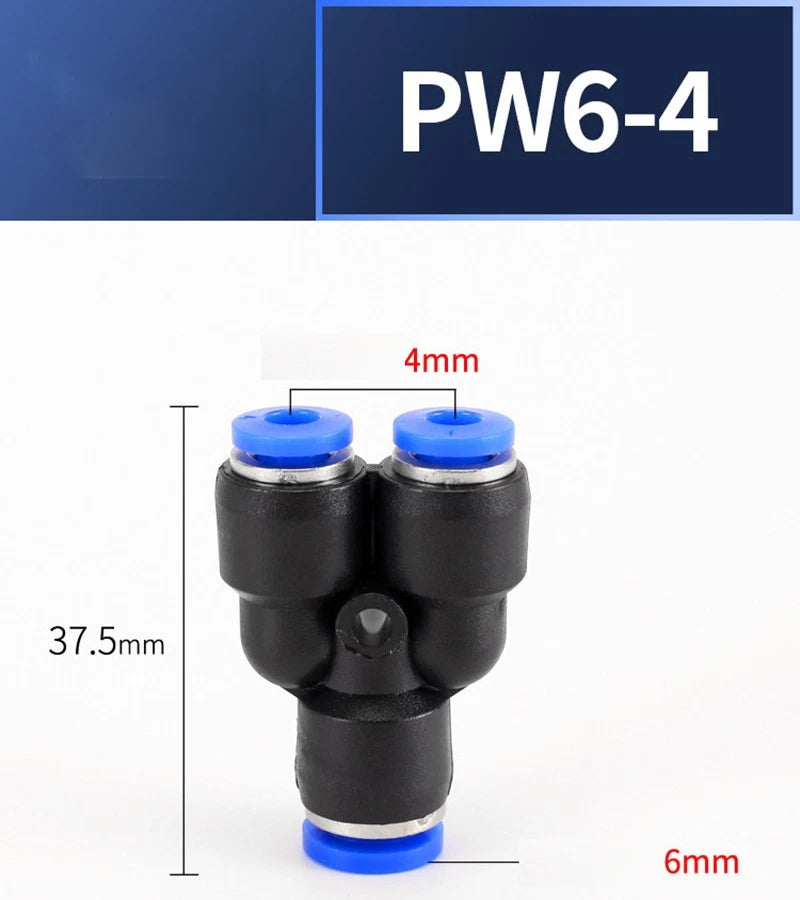

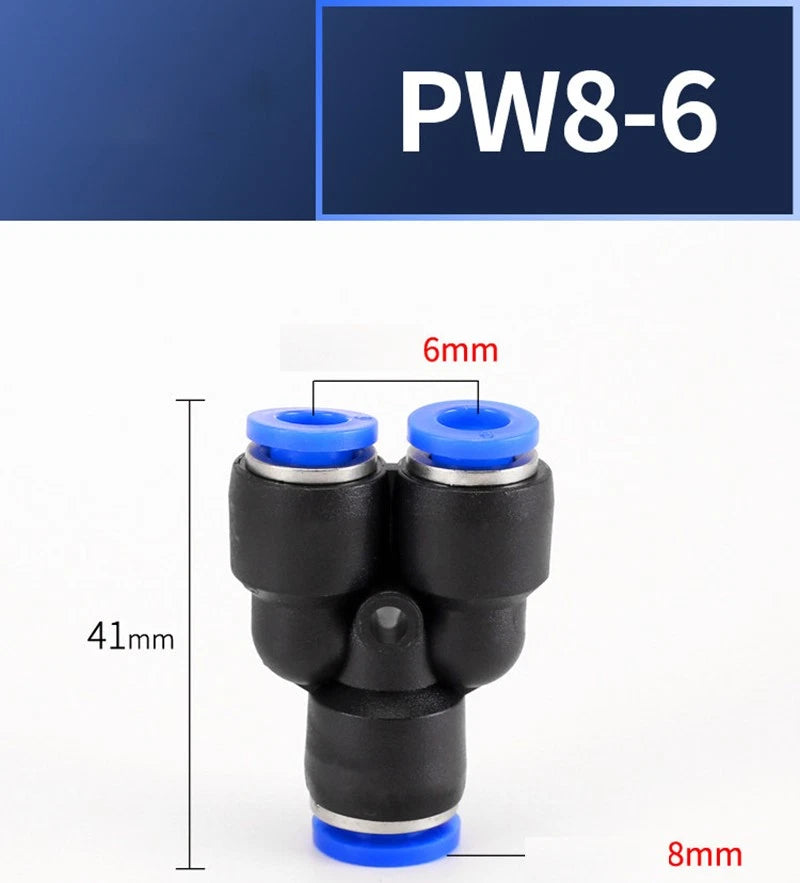

PW Sizes (Main OD – Branch OD)	PW6-4, PW8-4, PW8-6, PW10-6, PW10-8, PW12-8, PW12-10
Connection Method	Push-fit (hose OD insertion, internal collet or barb grip)
Primary Application	Compressed air / pneumatic hose systems
Compatible Hose Types	Standard pneumatic hose (polyurethane, nylon, PVC)
Max Pressure	See variant options / Contact us to confirm
Max Temperature	Generally up to 60°C (140°F) — contact us to confirm
Pack Quantity	5, 10, or 30 pieces (see variant options)
Color / Finish	See variant options

❓ Frequently Asked Questions

What is the difference between PY and PW pneumatic fittings?

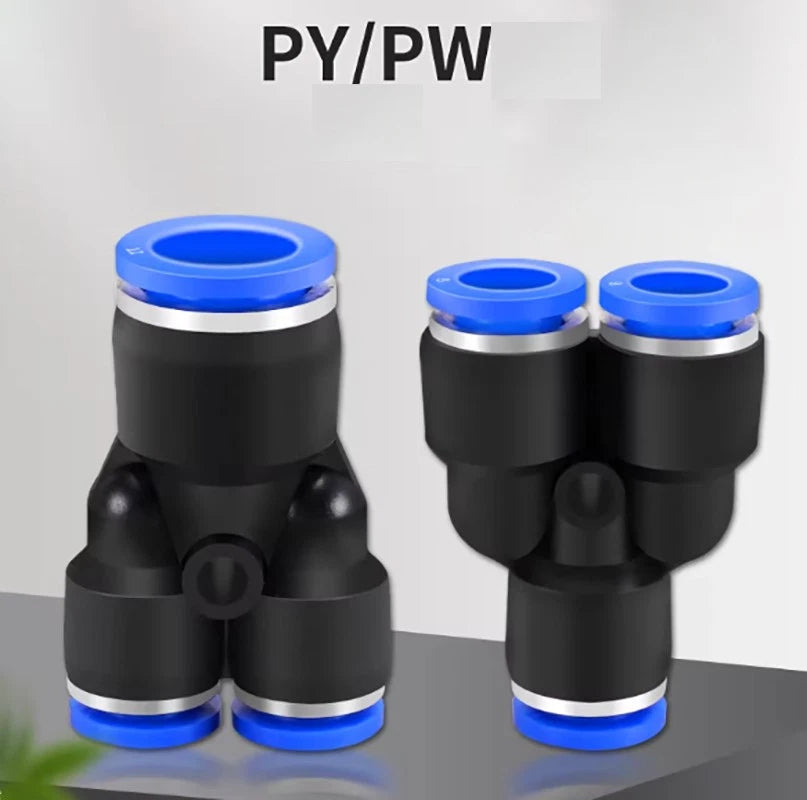

PY fittings are Y-shaped splitters where one inlet splits into two outlets at an angle, distributing airflow in a diverging path. PW fittings are equal tee (T-shape) connectors where the branch exits at 90° to the main run. PY types are typically used for splitting a single air line into two parallel branches, while PW types are used to tap a branch off a straight run.

How do I read the PY and PW size codes?

PY codes indicate the hose outer diameter for all ports (e.g., PY-08 fits 8mm OD hose on all three ports). PW codes follow an Outer-Branch format (e.g., PW8-6 means the two main ports accept 8mm OD hose and the branch port accepts 6mm OD hose). Always match the code to your hose outer diameter, not inner diameter.

What hose sizes do these connectors fit?

PY variants cover 4mm (≈5/32"), 6mm (≈1/4"), 8mm (≈5/16"), 10mm (≈3/8"), 12mm (≈1/2"), 14mm (≈9/16"), and 16mm (≈5/8") hose OD. PW reducer tee variants include PW6-4, PW8-4, PW8-6, PW10-6, PW10-8, PW12-8, and PW12-10.

Are these fittings suitable for compressed air systems?

Yes, PY and PW plastic pneumatic fittings are generally designed for use in compressed air lines and pneumatic systems. They are typically rated for low-to-medium pressure applications. For high-pressure industrial systems, confirm the pressure rating before installation.

Do these connectors require tools or adhesive to install?

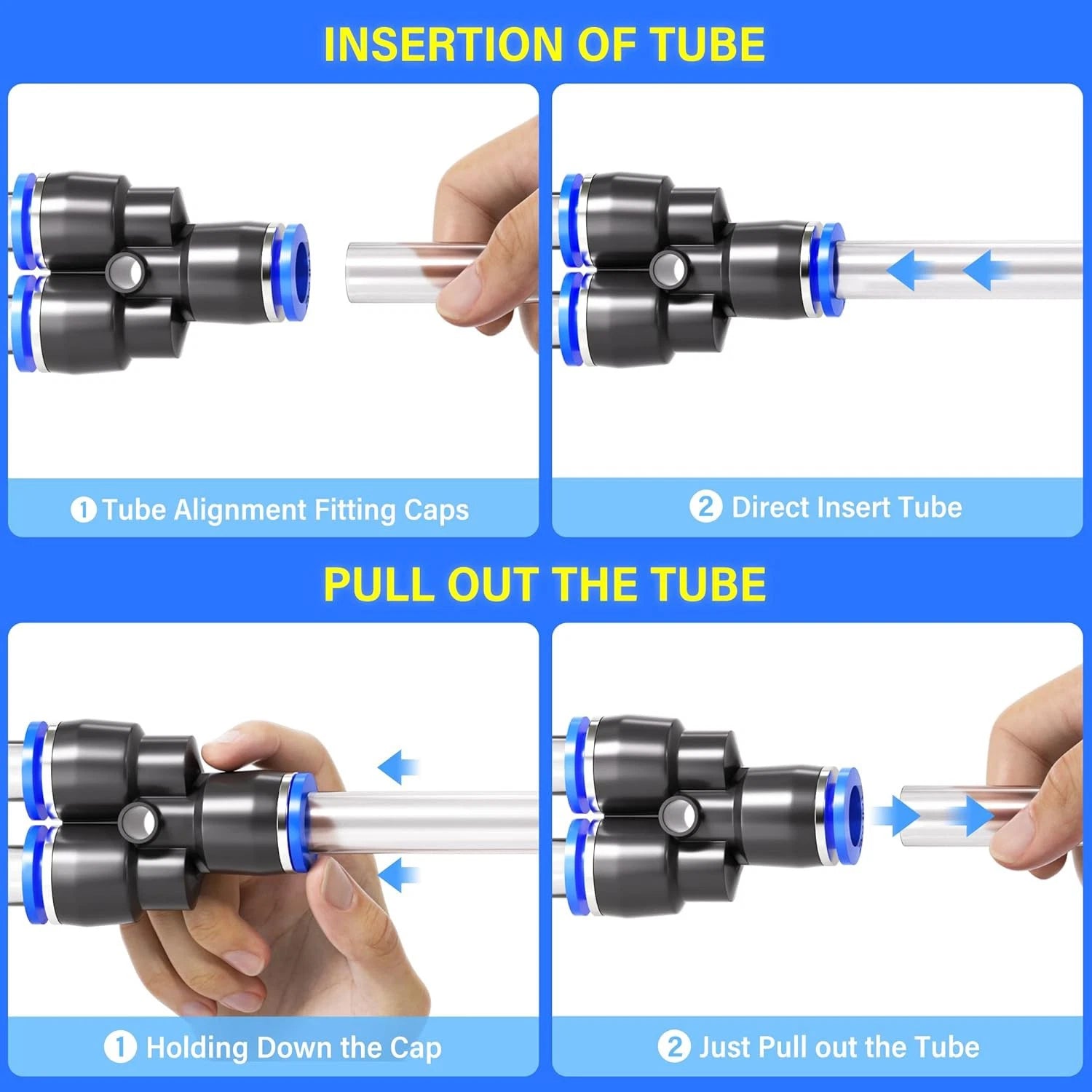

No tools or adhesive are required. These are push-fit pneumatic fittings — insert the hose into the fitting until it clicks or seats securely. The internal collet or barb grips the hose OD to prevent pull-out under normal operating pressure.

Can these fittings be used with fluids like water or oil?

These fittings are primarily designed for pneumatic (air) applications. They may be compatible with light fluids in low-pressure scenarios, but compatibility with water, oil, or other fluids should be confirmed based on the specific plastic material and operating conditions.

How many pieces come in each pack?

Each listing offers packs of 5, 10, or 30 pieces. Choose the pack size that suits your project — a 5-pack for a single repair, or a 30-pack for workshop stock or larger pneumatic installations.

🛒 Select your type and pack quantity above, then add to cart — ships from our US warehouse.
