C Type Pneumatic Quick Release Connectors — Fast, Leak-Free Air Line Connections

Swapping air tools mid-job shouldn't mean fumbling with threaded fittings or losing pressure every time. Whether you're running a spray gun, impact wrench, or nail gun off a compressor, a mismatched or worn connector wastes time and bleeds air. These C type pneumatic quick release connectors are designed for DIYers, auto technicians, and workshop operators who need reliable, one-handed hose changes without downtime.

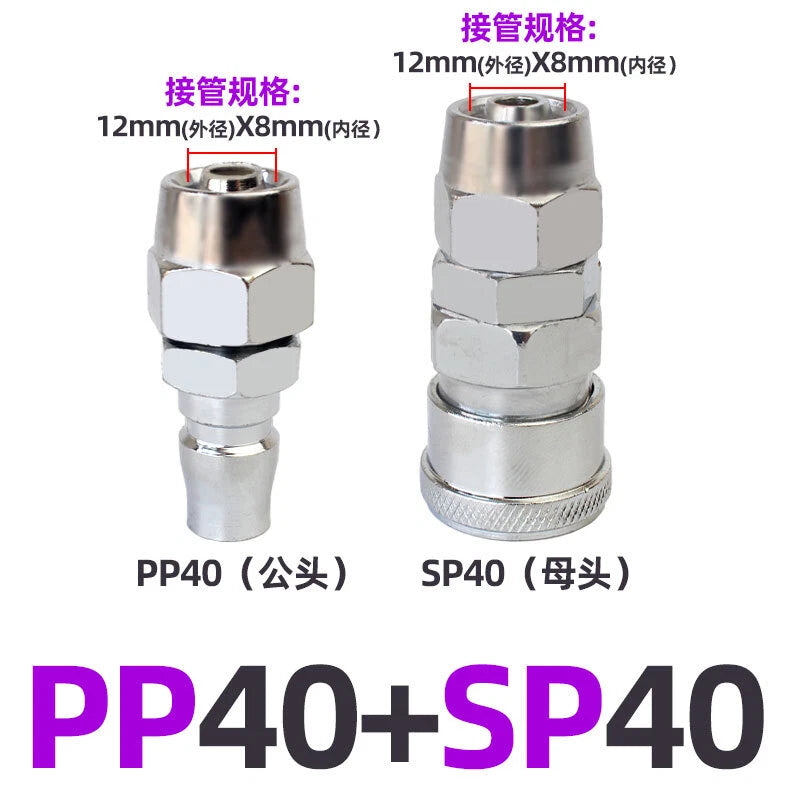

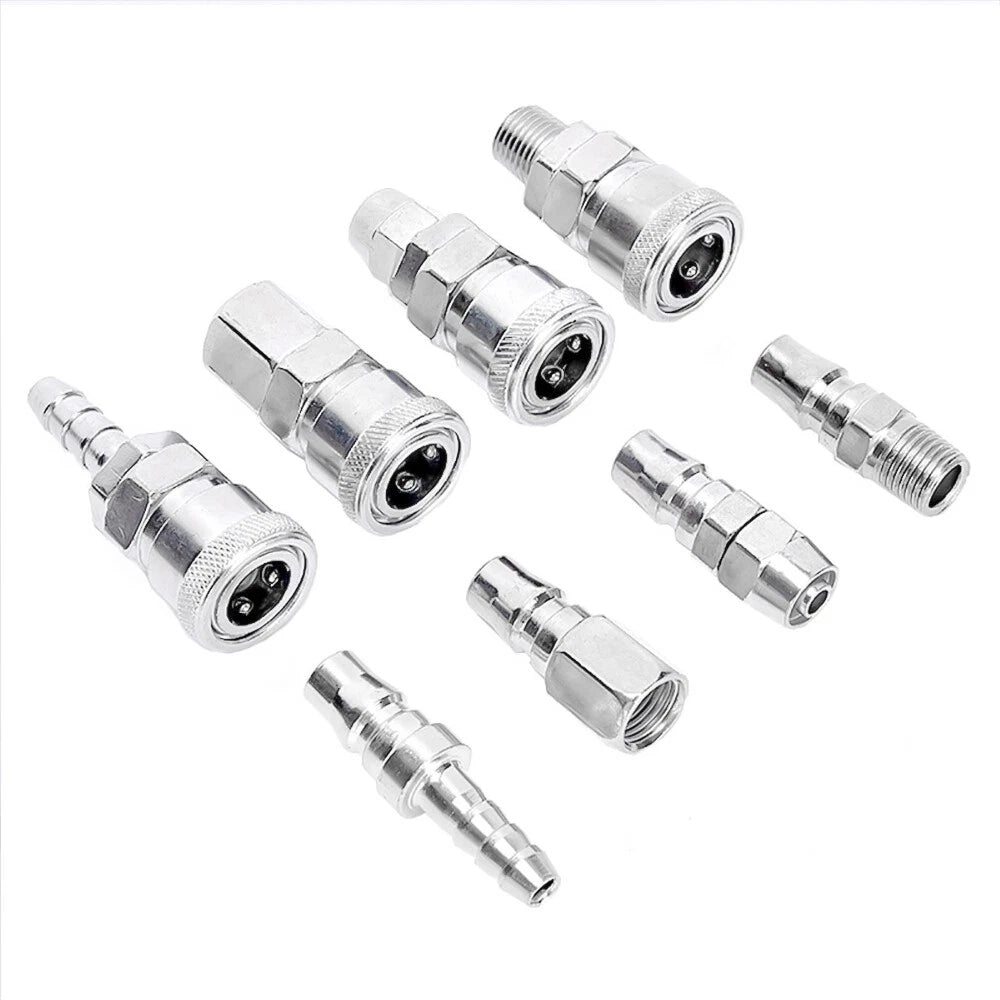

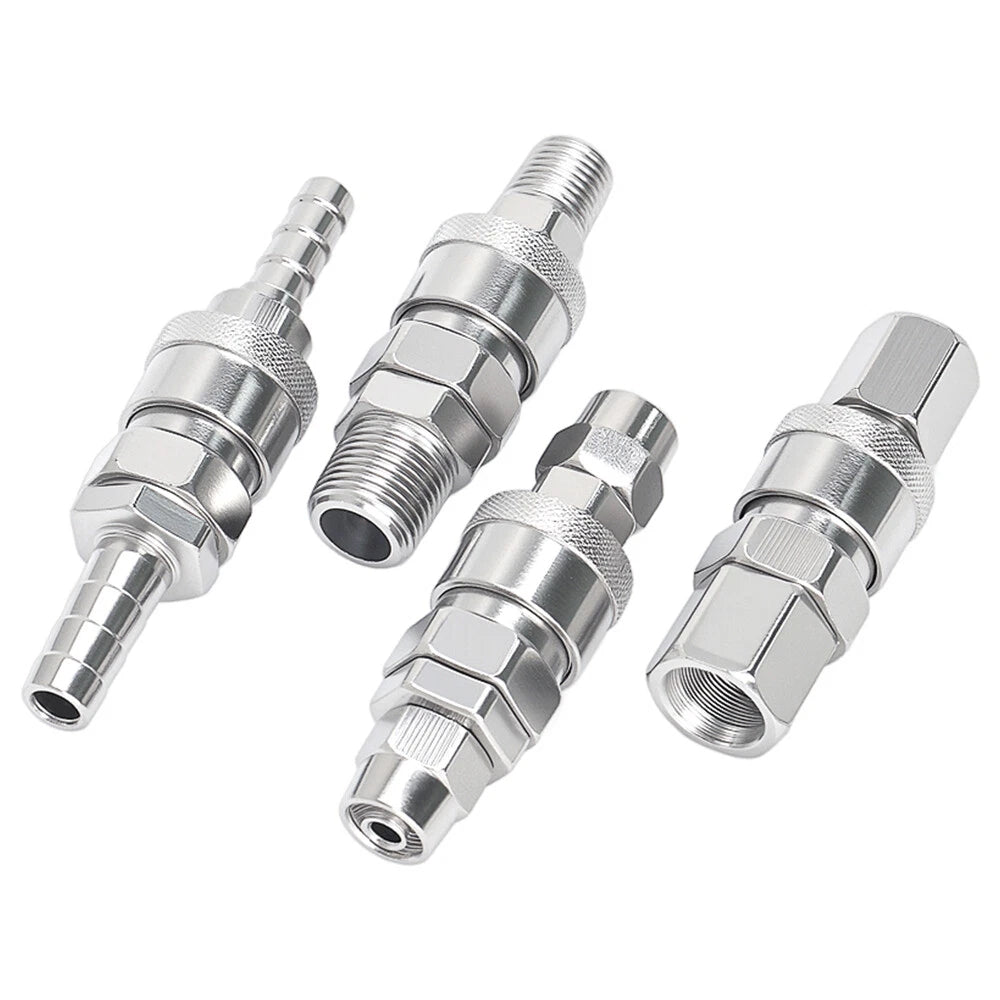

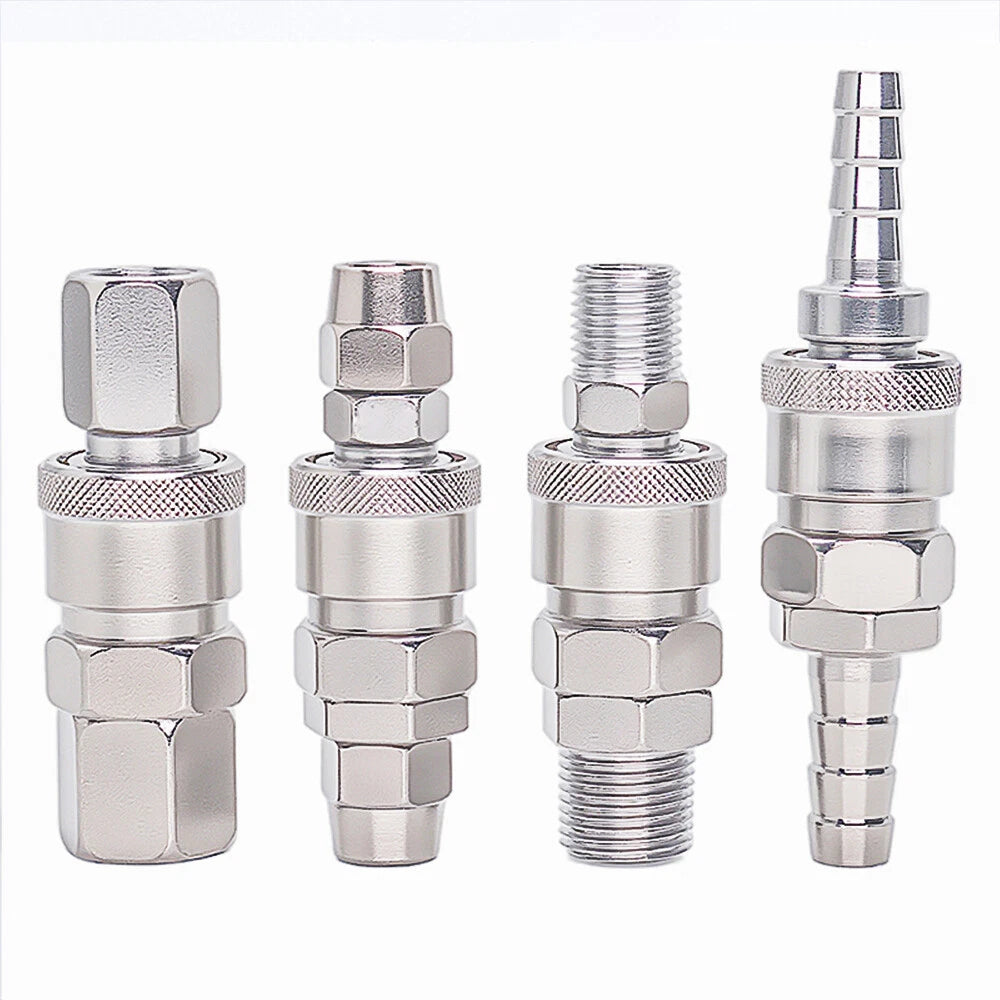

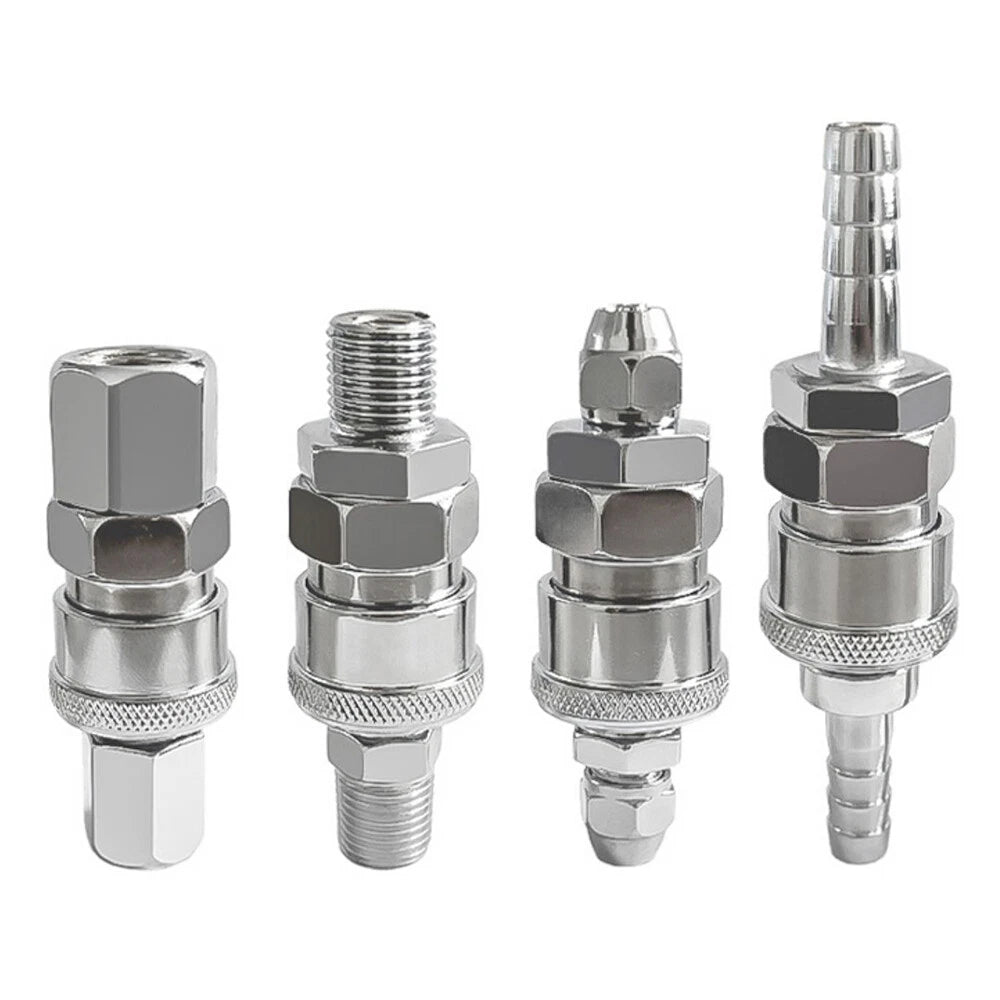

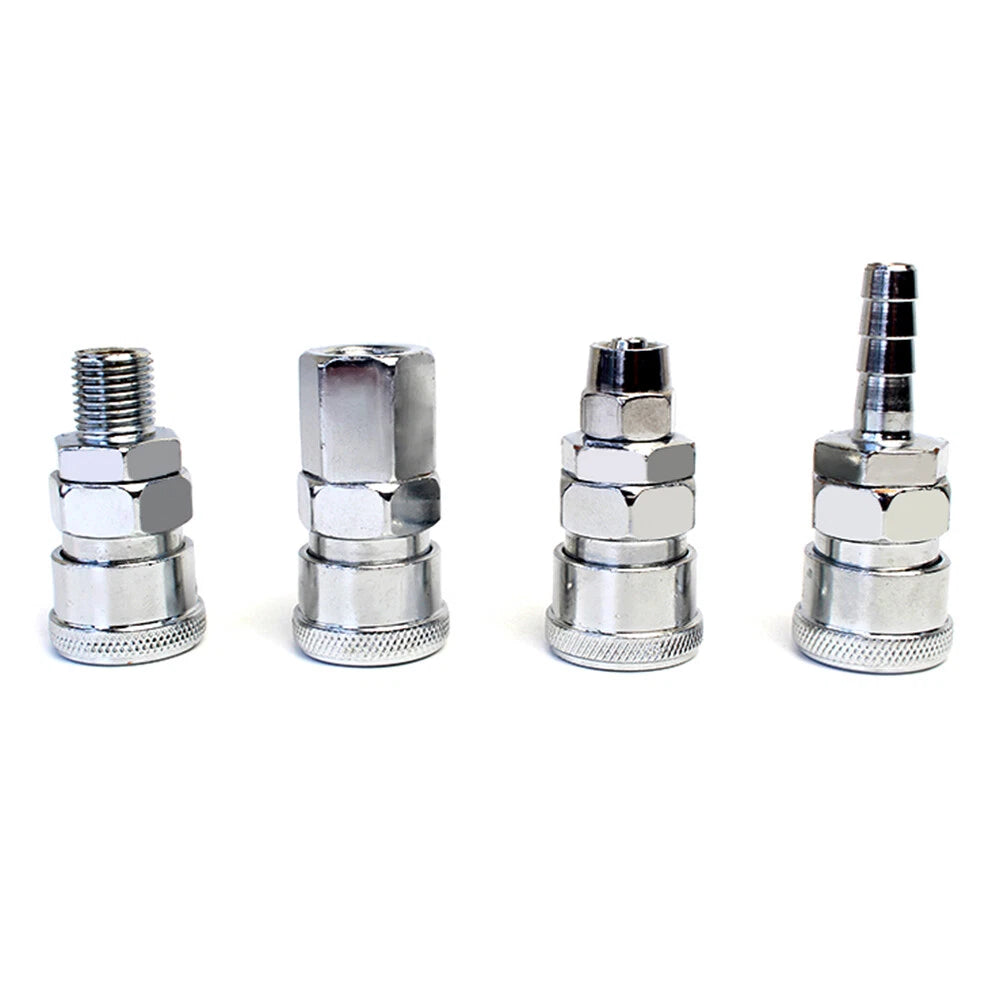

Each set pairs a plug (P) and socket (S) in matching C type profile. Available in four connector styles — push-in (PP/SP), hex body (PH/SH), male thread (PM/SM), and female thread (PF/SF) — and three size classes: 20, 30, and 40. Bodies are constructed from brass and zinc alloy with a corrosion-resistant finish, sized to fit standard BSP and NPT air line ports typically ranging from 1/4" to 1/2" (approximately 6–13 mm).

Typical applications include workshop air compressor lines, automotive spray booths requiring frequent tool swaps, pneumatic nail gun setups on job sites, and HVAC service rigs where multiple hose drops share one compressor. The C type profile is one of the most widely adopted quick-connect standards, making these connectors compatible with a broad range of existing air line infrastructure.

⚙️ Compatibility: C type profile. Fits standard BSP and NPT threaded ports. Match plug model to socket model (e.g., PP20 plug with SP20 socket). Verify thread type and size before ordering.

✅ Key Features of These C Type Quick Release Air Fittings

🔌 One-handed connect/disconnect — Push-to-connect, pull-to-release collar design lets you swap air tools in seconds without shutting off the compressor.

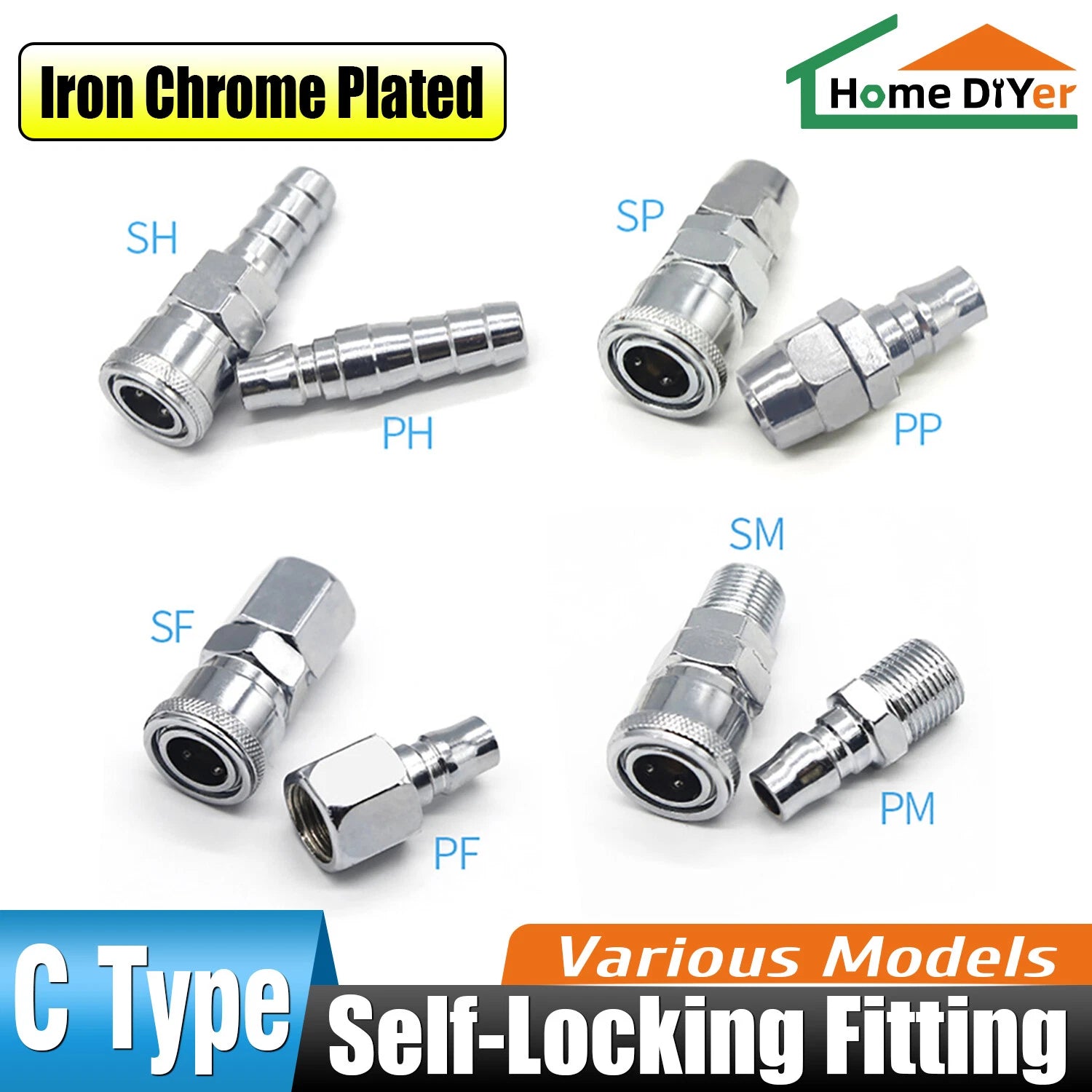

🔩 Four connector body styles — Choose from push-in (PP/SP), hex body (PH/SH), male thread (PM/SM), or female thread (PF/SF) to match your existing port configuration.
📐 Three size classes (20 / 30 / 40) — Sized to cover the most common air line diameters; select the size that matches your hose and tool inlet specifications.
🛡️ Corrosion-resistant finish — Zinc alloy and brass construction with a protective surface treatment resists rust in humid workshop and outdoor environments.
💨 Low pressure drop design — Internal valve geometry maintains consistent airflow, reducing pressure loss at the connection point during high-demand tool use.
📦 Plug and socket sold as a matched set — Each variant includes both the plug (P) and socket (S) in the same C type profile, so you get a complete, ready-to-use connection pair.

📐 Technical Specifications — C Type Pneumatic Quick Release Connectors

Connector Type	C Type Quick Release (Push-to-Connect)
Body Styles	PP/SP (Push-in), PH/SH (Hex body), PM/SM (Male thread), PF/SF (Female thread)
Size Classes	20, 30, 40
Thread Standard	See variant options
Thread Size Range	Typically 1/4" – 1/2" BSP or NPT (approx. 6–13 mm)
Body Material	Zinc alloy / Brass
Surface Finish	Corrosion-resistant coating
Max Working Pressure	See variant options
Operating Temperature	See variant options
Set Contents	1 × Plug (P) + 1 × Socket (S) per set
Available Quantities	1 Pcs / 2 Pcs / 3 Pcs / 5 Pcs / 10 Pcs

❓ Frequently Asked Questions

What does the model code mean — for example, PP20 or PH30?

The first letter indicates the part type: P = Plug, S = Socket. The second letter indicates the body style: P = Push-in, H = Hex body, M = Male thread, F = Female thread. The number (20, 30, 40) indicates the size class, which corresponds to the hose and port diameter range. Always pair a plug and socket of the same style and size (e.g., PP20 plug with SP20 socket).

Are these connectors compatible with my existing air line fittings?

These are C type profile connectors, one of the most widely used quick-connect standards in workshops and automotive settings. They are compatible with other C type fittings of the same size class. They are not cross-compatible with Milton (M type), Industrial (I type), or European (Euro) profile connectors. Check your existing fittings for the C type marking before ordering.

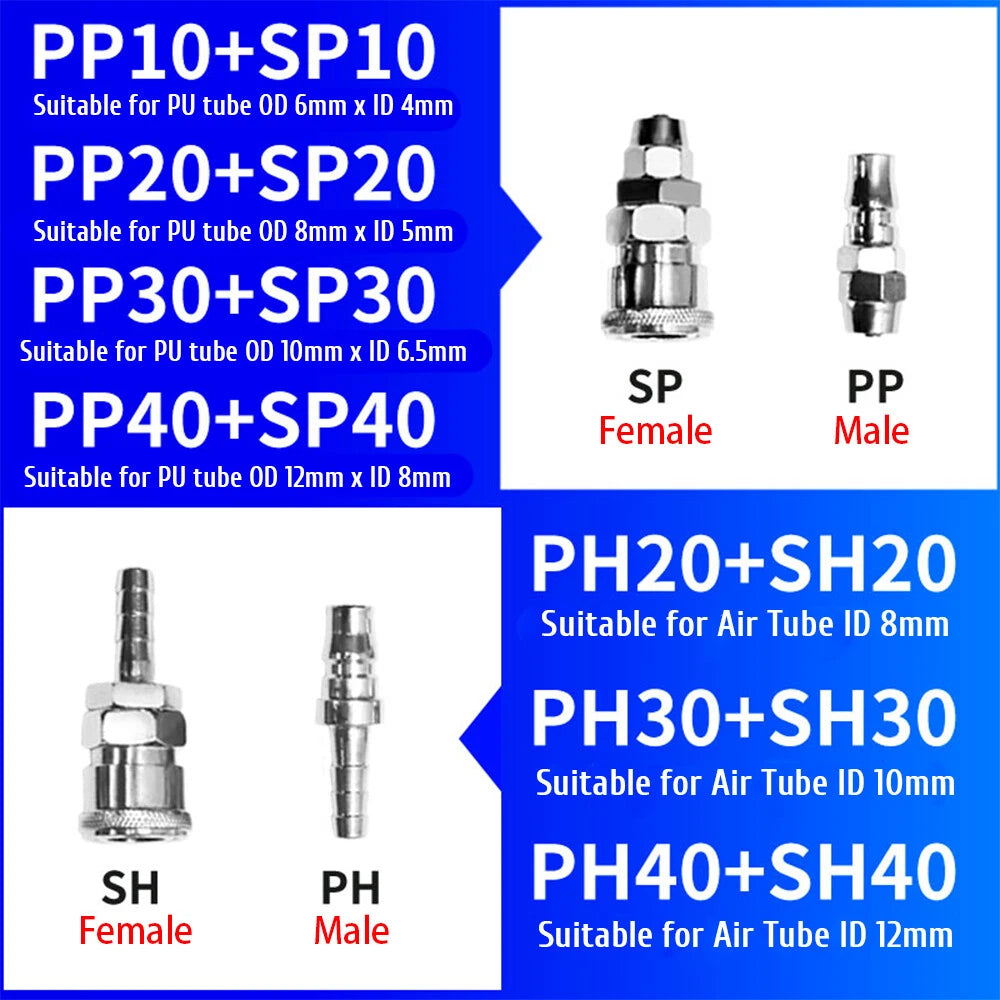

How do I choose between size 20, 30, and 40?

The size number corresponds to the connector's flow capacity and port thread size. Size 20 suits smaller air tools and 1/4" ports; size 30 is a mid-range option for general workshop use; size 40 handles higher flow rates for larger tools and 1/2" ports. Refer to your compressor outlet and tool inlet thread size to confirm the correct match.

Can these connectors be used outdoors or in humid environments?

Yes. The zinc alloy and brass construction with a corrosion-resistant surface treatment makes these connectors suitable for use in humid workshops, garages, and covered outdoor work areas. For prolonged exposure to standing water or salt-spray environments, inspect connectors periodically and apply a light machine oil to the collar mechanism to maintain smooth operation.

Do I need to shut off the compressor to connect or disconnect?

The socket includes an internal check valve that blocks airflow when the plug is removed, so you can disconnect a tool without shutting off the compressor. However, for safety when connecting a new tool, it is good practice to ensure the tool's own valve is closed before inserting the plug to avoid unexpected actuation.

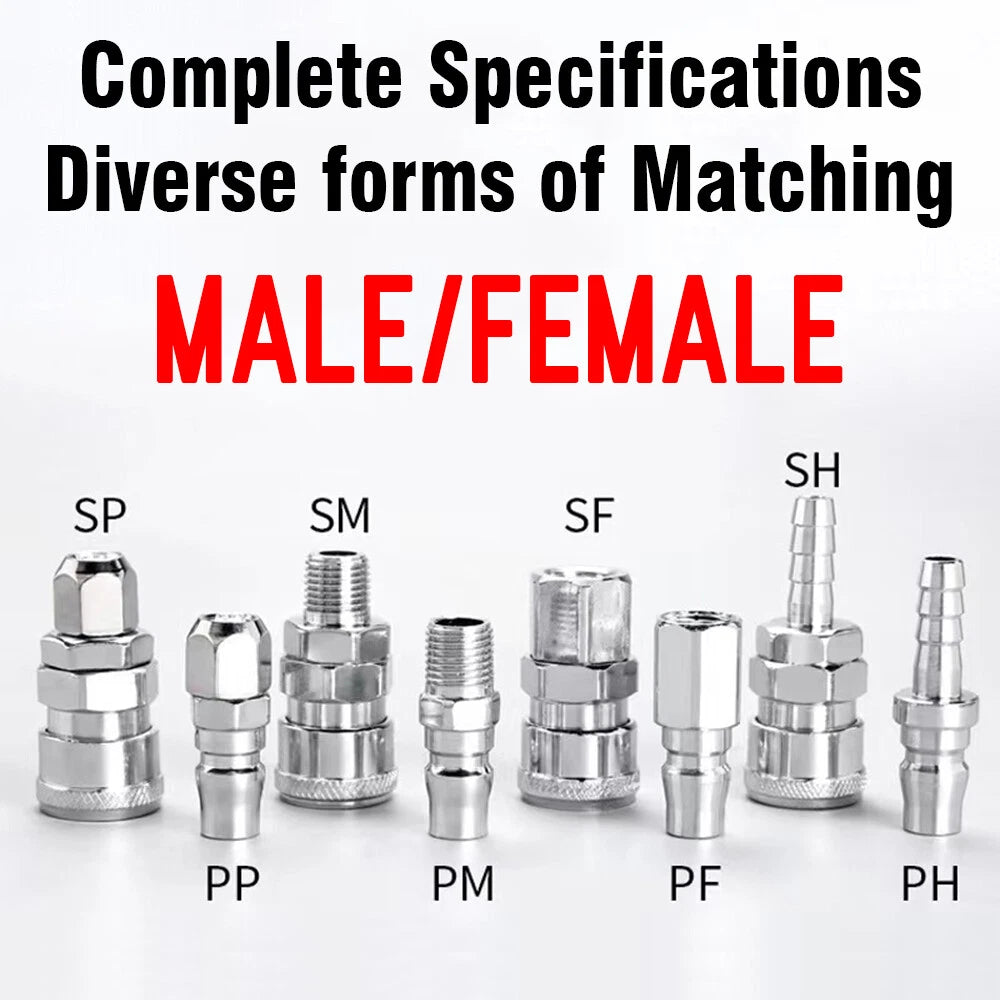

What is the difference between the PP, PH, PM, and PF body styles?

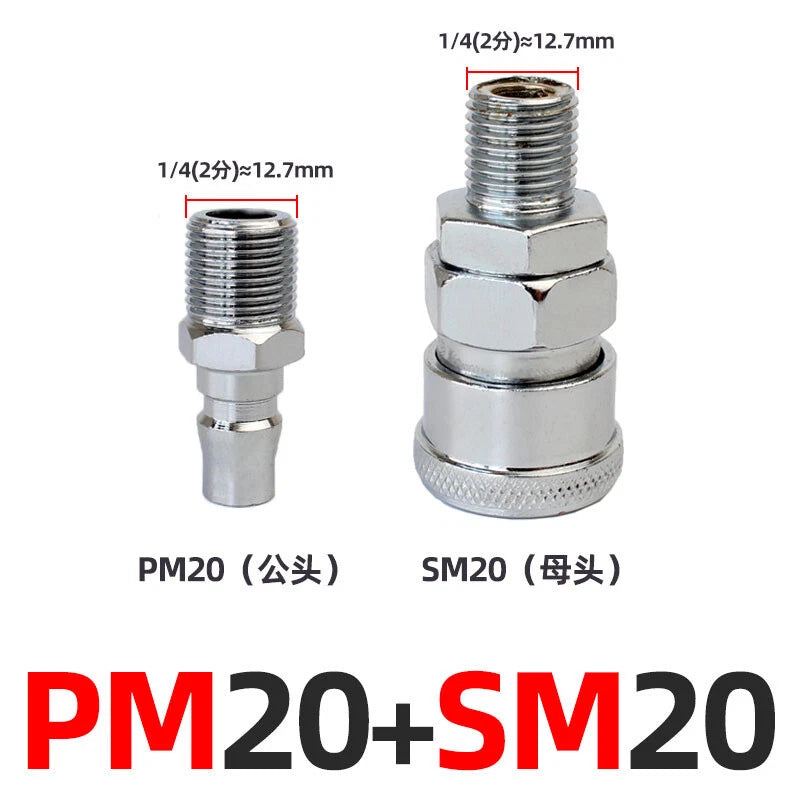

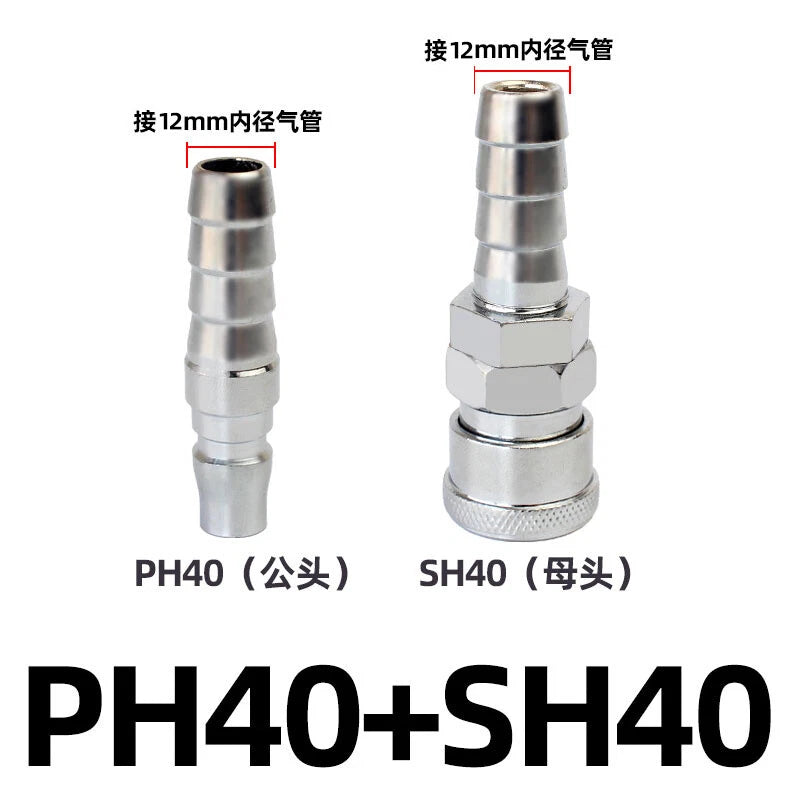

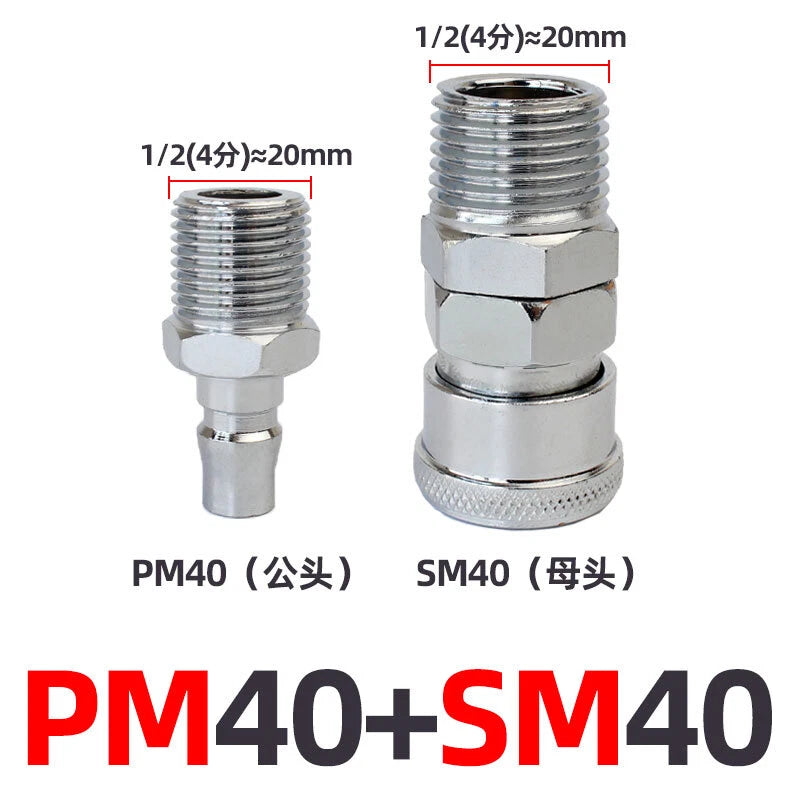

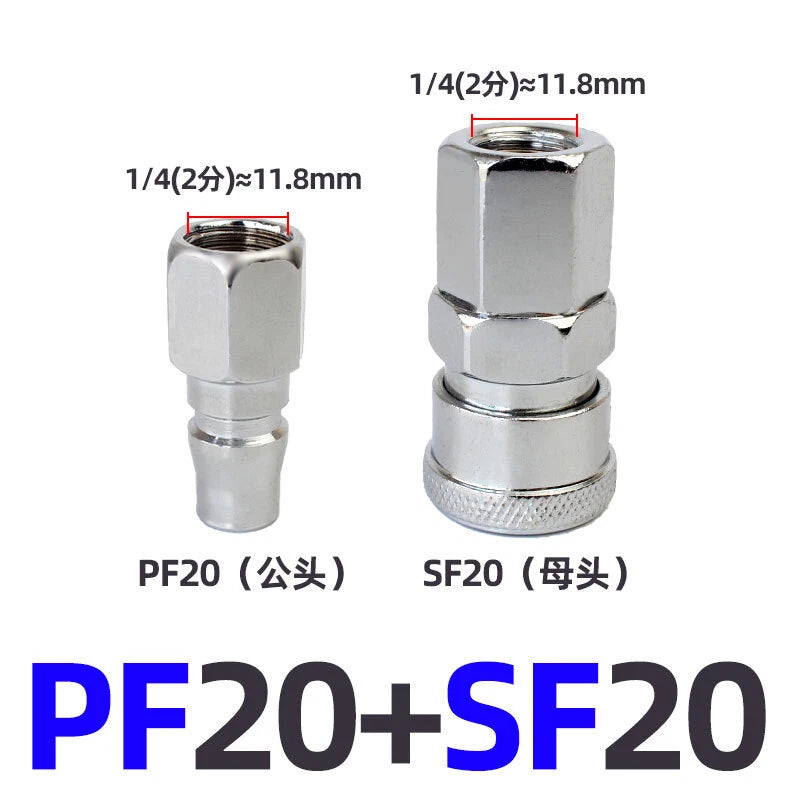

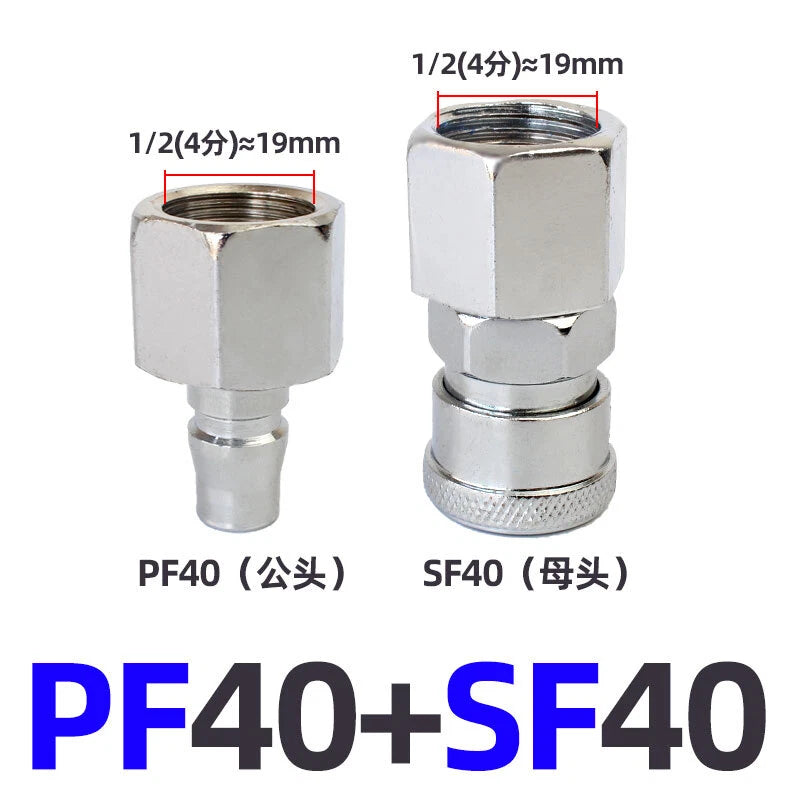

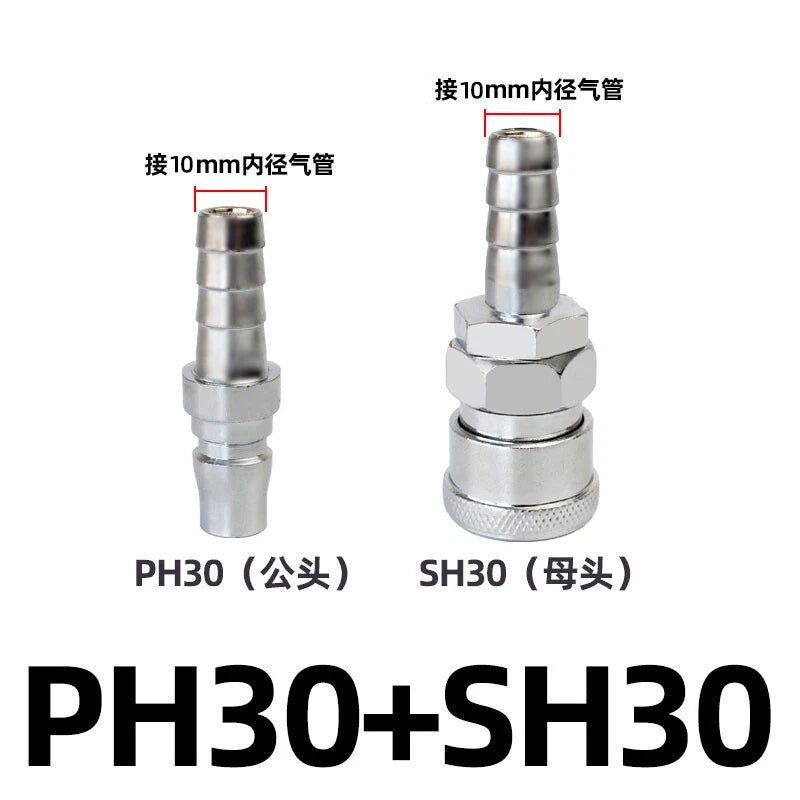

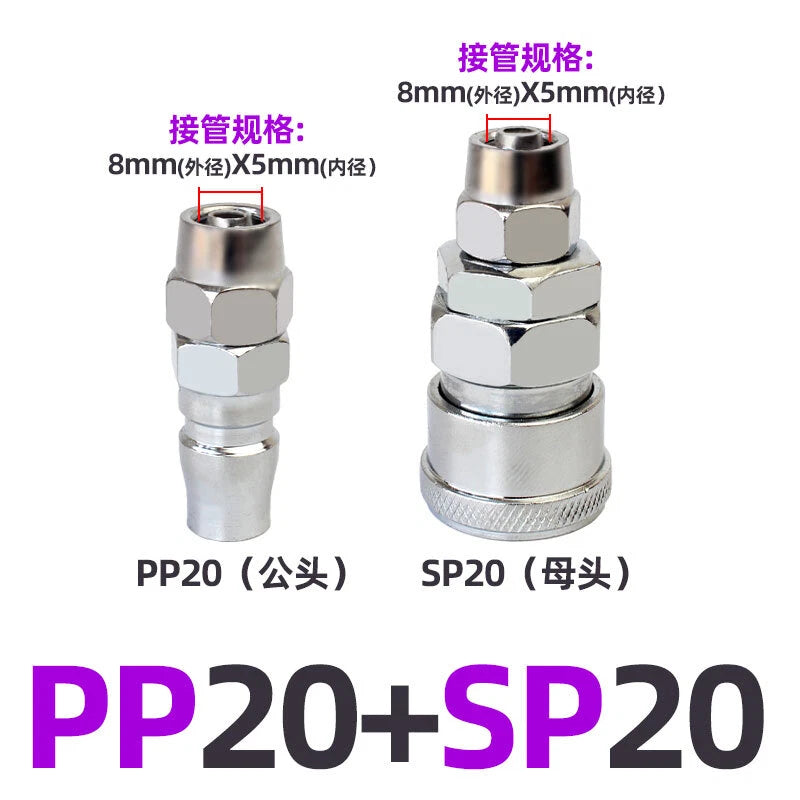

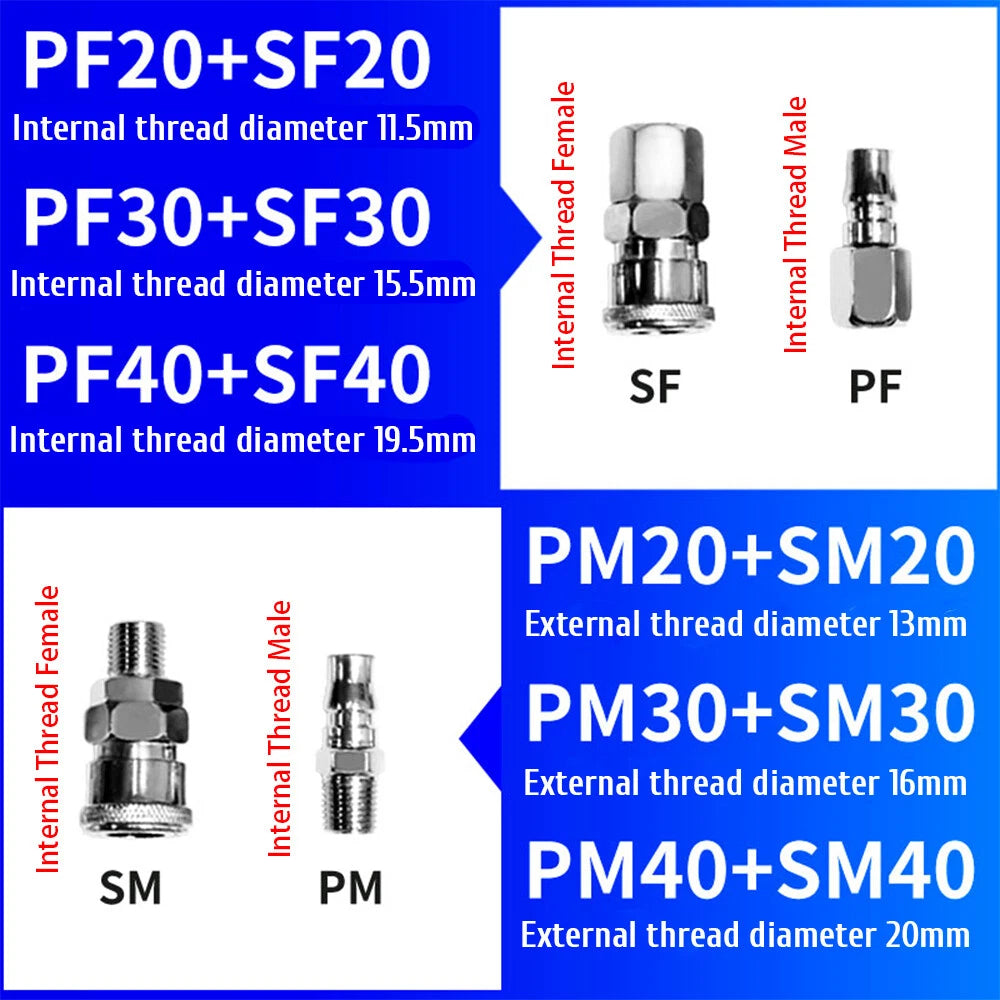

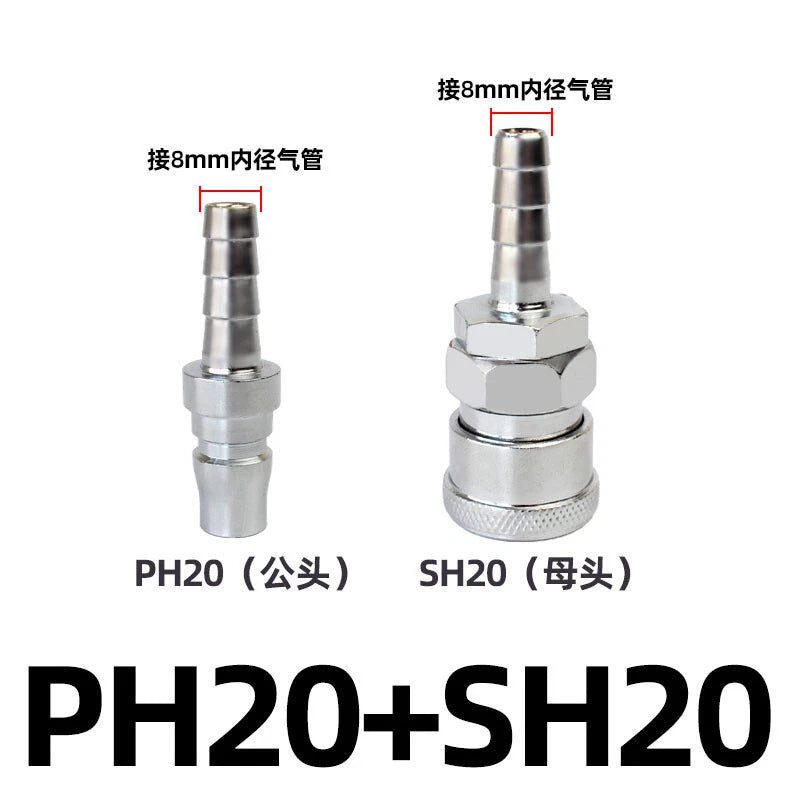

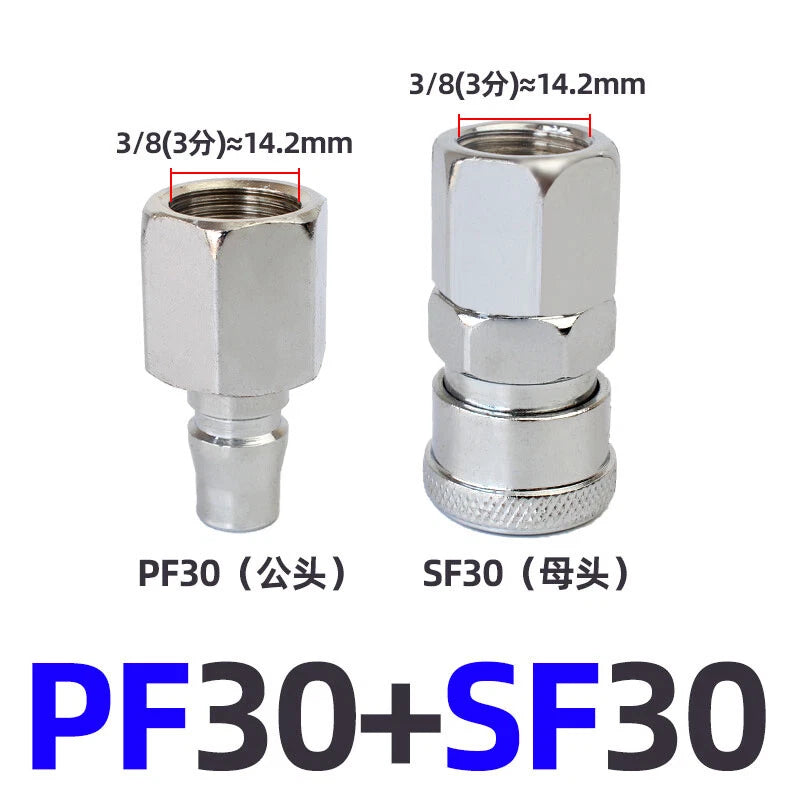

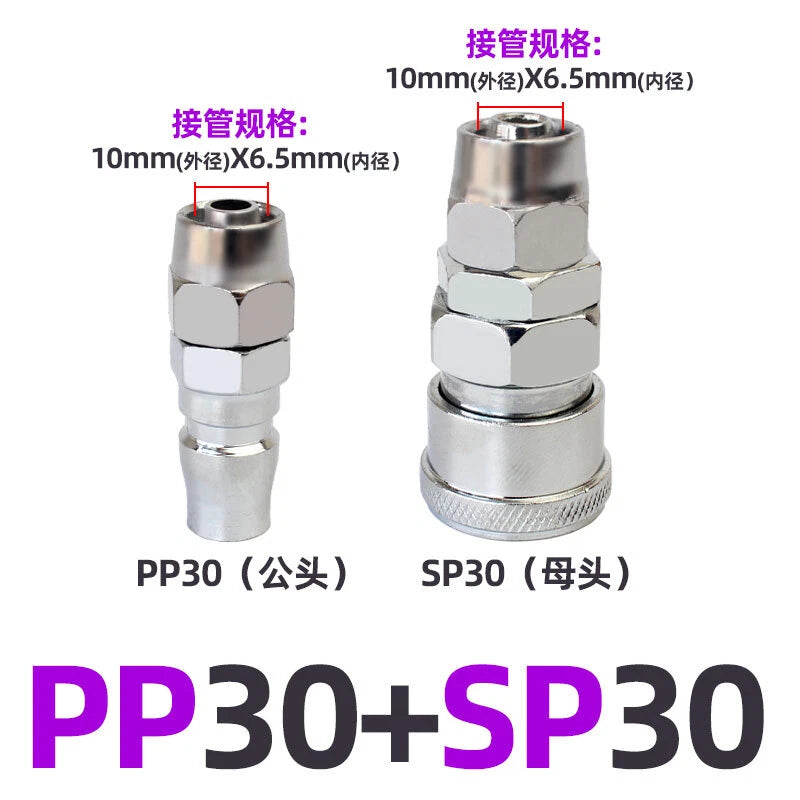

PP (Push-in plug) is designed for push-fit hose connections without additional threading. PH (Hex body plug) features a hex profile for wrench tightening into a threaded port. PM (Male thread plug) has an external thread that screws into a female-threaded port. PF (Female thread plug) has an internal thread that accepts a male-threaded fitting. Choose the style that matches the port type on your compressor, manifold, or tool.

How many pieces do I receive per order?

Each variant is sold as a matched plug-and-socket set. You can select 1, 2, 3, 5, or 10 sets per order using the Amount option. Ordering multiple sets is useful when equipping several drop points on a compressor manifold or stocking spares for a busy workshop.

🛒 Select your Model and Amount above, then add to cart.
