PTFE Heat Shrink Tubing — Reliable Insulation for High-Temperature & Chemical-Exposure Applications
When standard polyolefin sleeving fails under engine heat, chemical splash, or tight-space wiring runs, you need a material that won't compromise. Electricians, automotive technicians, aerospace hobbyists, and industrial maintenance crews all face the same challenge: finding heat shrink tubing that holds up where it matters most. PTFE heat shrink tubing is engineered for exactly those demanding conditions.

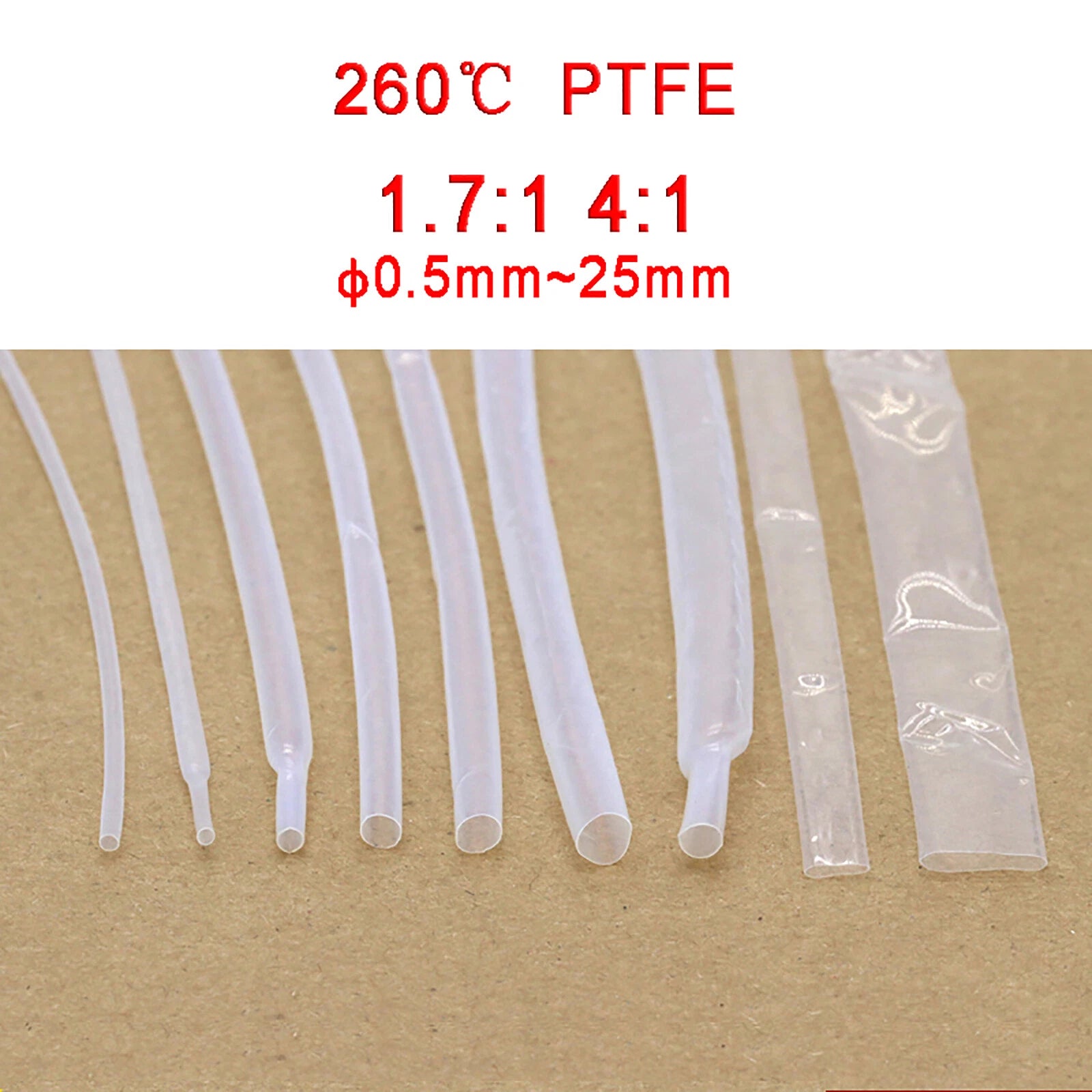

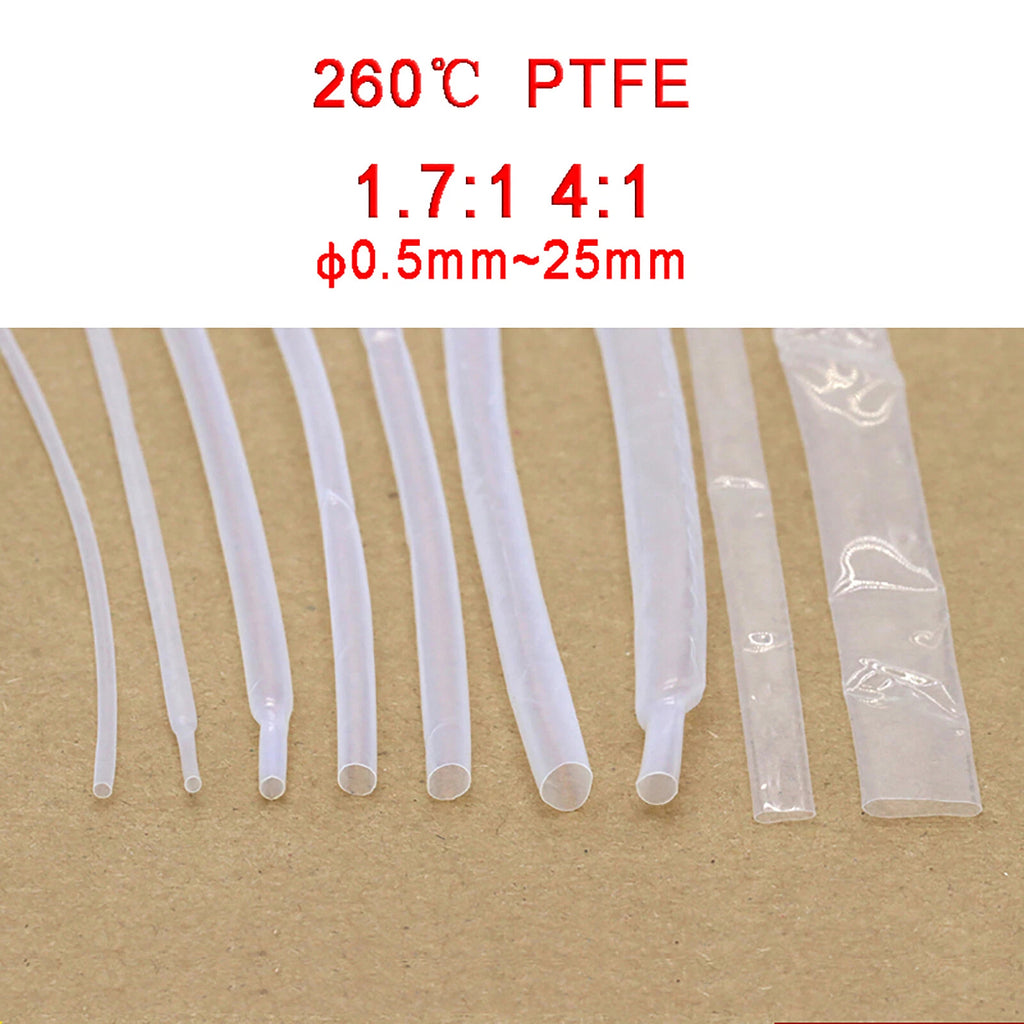

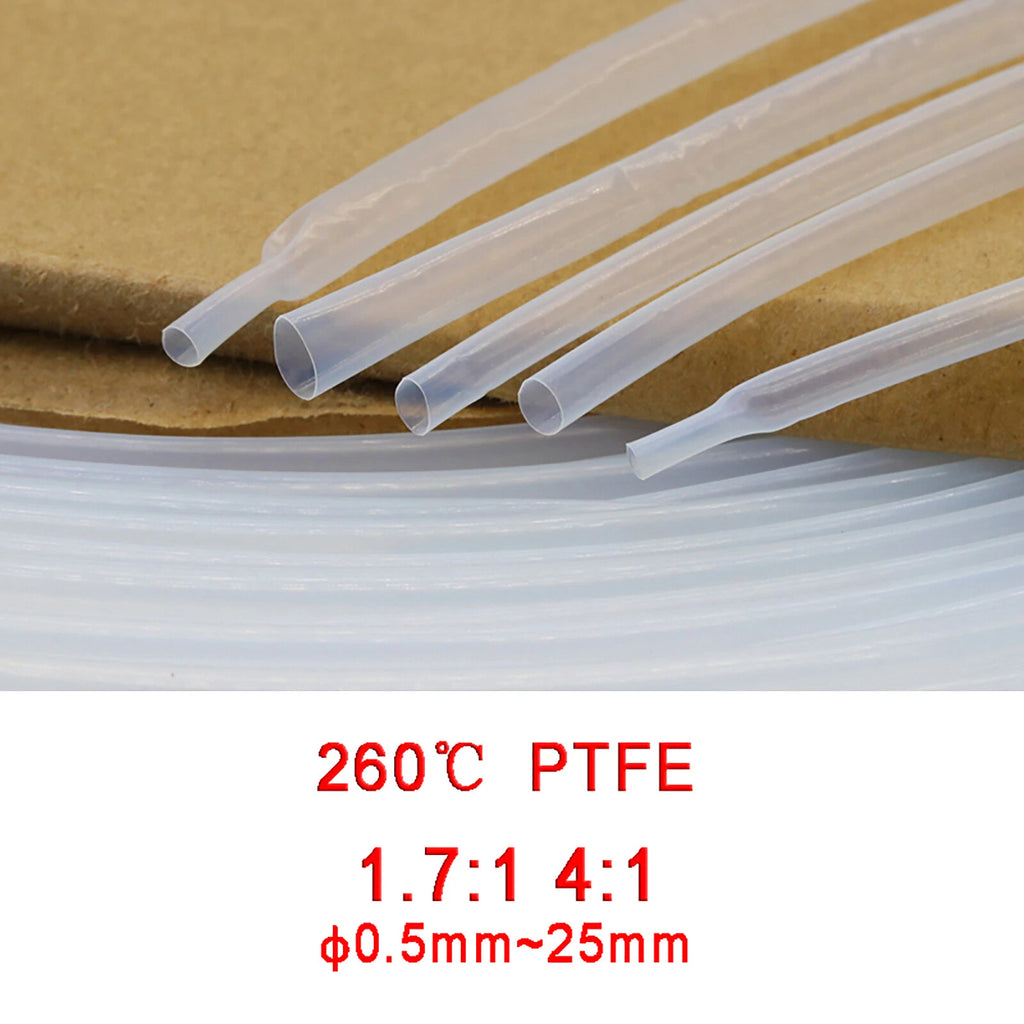

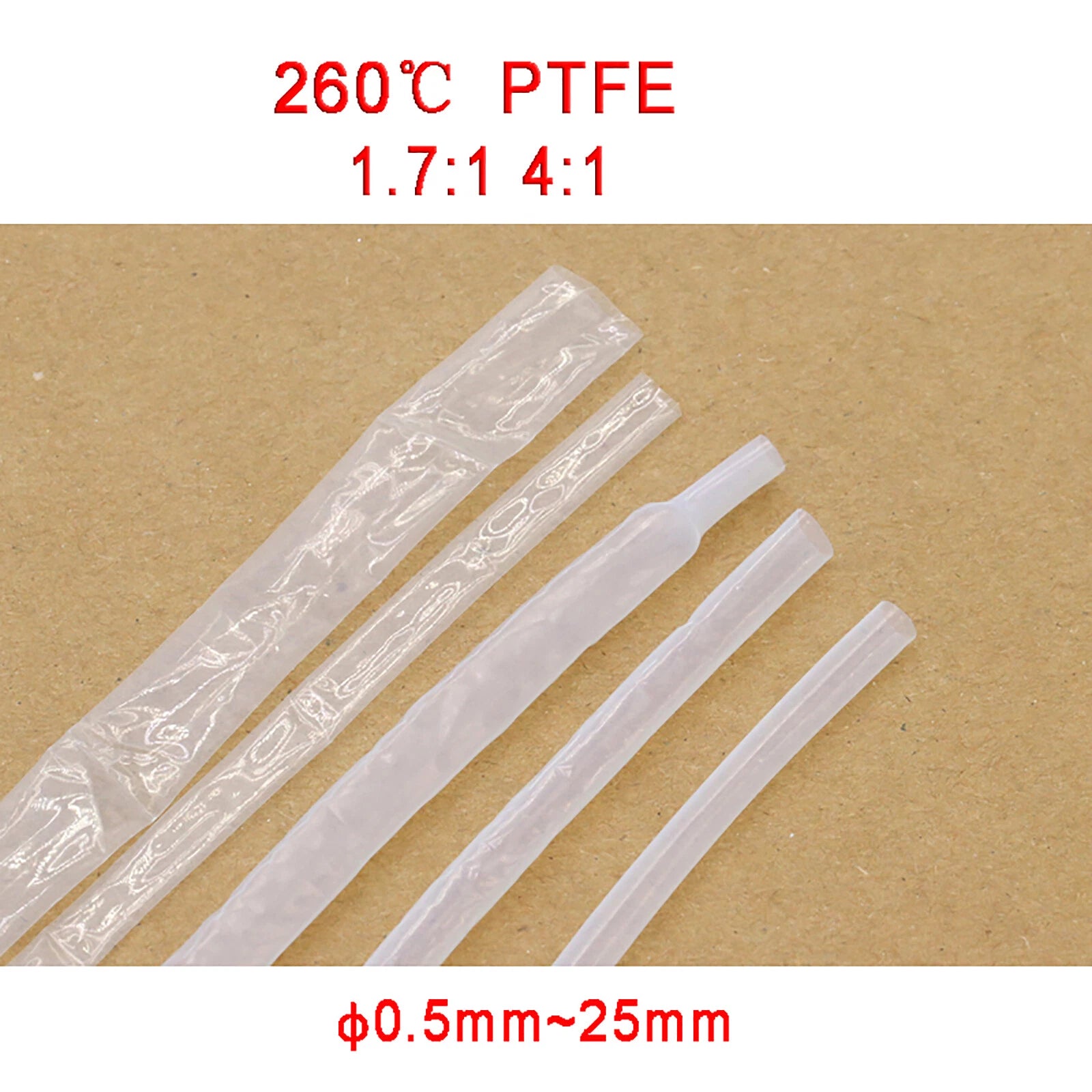

Each listing covers 1 meter (≈39.4") of PTFE heat shrink tubing, available in diameters from Ø0.5mm (≈1/50") up to Ø25mm (≈1"), and in two shrink ratios — 1.7:1 for standard coverage and 4:1 for tight, conforming seals over irregular shapes. The tubing is manufactured from virgin PTFE (polytetrafluoroethylene), offering a continuous operating temperature rating of 300°C (572°F) and broad resistance to oils, fuels, acids, and most industrial solvents.
Typical use cases include insulating and protecting automotive wiring harnesses in engine bays, bundling and sealing aerospace-grade wire runs, covering thermocouple leads and sensor cables in high-heat environments, and providing chemical-resistant sleeving for laboratory or industrial fluid-handling tubing. Whether you're routing wires past an exhaust manifold or protecting a hydraulic line from fuel exposure, this PTFE sleeving tubing delivers consistent, long-term performance.
🔗
Compatibility Note: This tubing is compatible with standard wire gauges, thermocouple leads, sensor cables, and small-diameter tubing within the listed diameter range. Shrink ratio options (1.7:1 and 4:1) suit both cylindrical and irregular profiles. For non-standard applications, please confirm the pre-shrink and post-shrink diameters against your variant selection before ordering.
✅ Key Features of These PTFE Heat Shrink Tubes
-
🌡️300°C Continuous Rating — Withstands sustained operating temperatures up to 300°C (572°F), making it suitable for engine bay wiring, exhaust-adjacent runs, and industrial heating equipment where standard heat shrink tubing would soften or fail.
-
🧪Oil & Chemical Resistant — PTFE's near-universal chemical inertness resists oils, fuels, hydraulic fluids, acids, bases, and most solvents — ideal for automotive, laboratory, and chemical-processing environments where fluid exposure is unavoidable.
-
⚡Excellent Electrical Insulation — PTFE offers outstanding dielectric strength, making this tubing a reliable choice for insulating wire splices, connector boots, and sensor leads in high-voltage or noise-sensitive electrical systems.
-
📐Wide Size Range — Ø0.5mm to Ø25mm — With 24 diameter options from Ø0.5mm (≈1/50") to Ø25mm (≈1"), this PTFE sleeving tubing covers everything from fine thermocouple wires to larger cable bundles and small-bore fluid lines.
-
🔄Two Shrink Ratios: 1.7:1 & 4:1 — The 1.7:1 ratio suits uniform cylindrical objects for a clean, snug fit. The 4:1 ratio shrinks down to 25% of its original diameter, conforming tightly around connectors, irregular shapes, and stepped profiles without gaps.
-
☀️UV & Moisture Resistant — PTFE does not degrade under prolonged UV exposure or moisture, making this heat shrink tubing a dependable choice for outdoor wiring, marine applications, and any installation exposed to weather cycles.

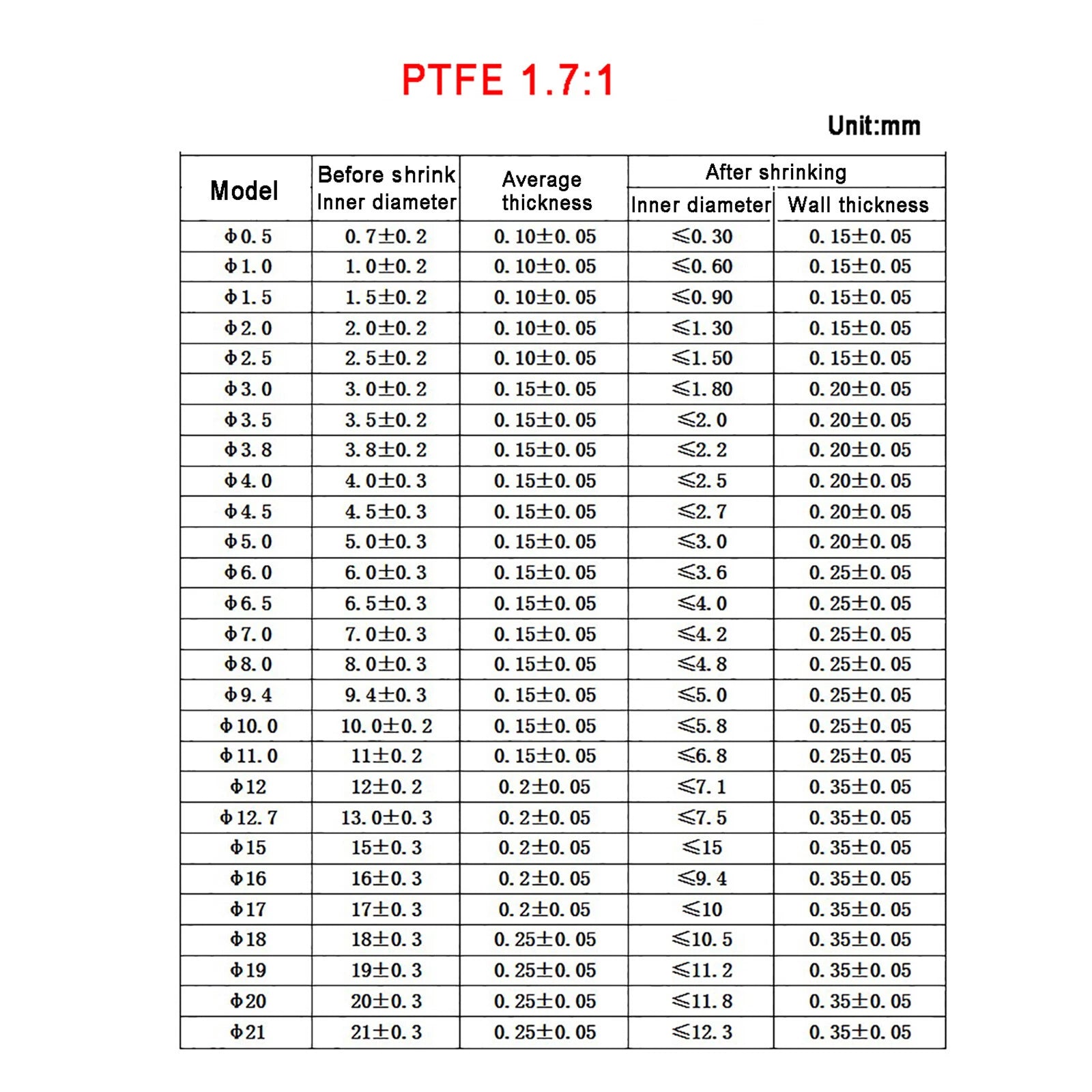

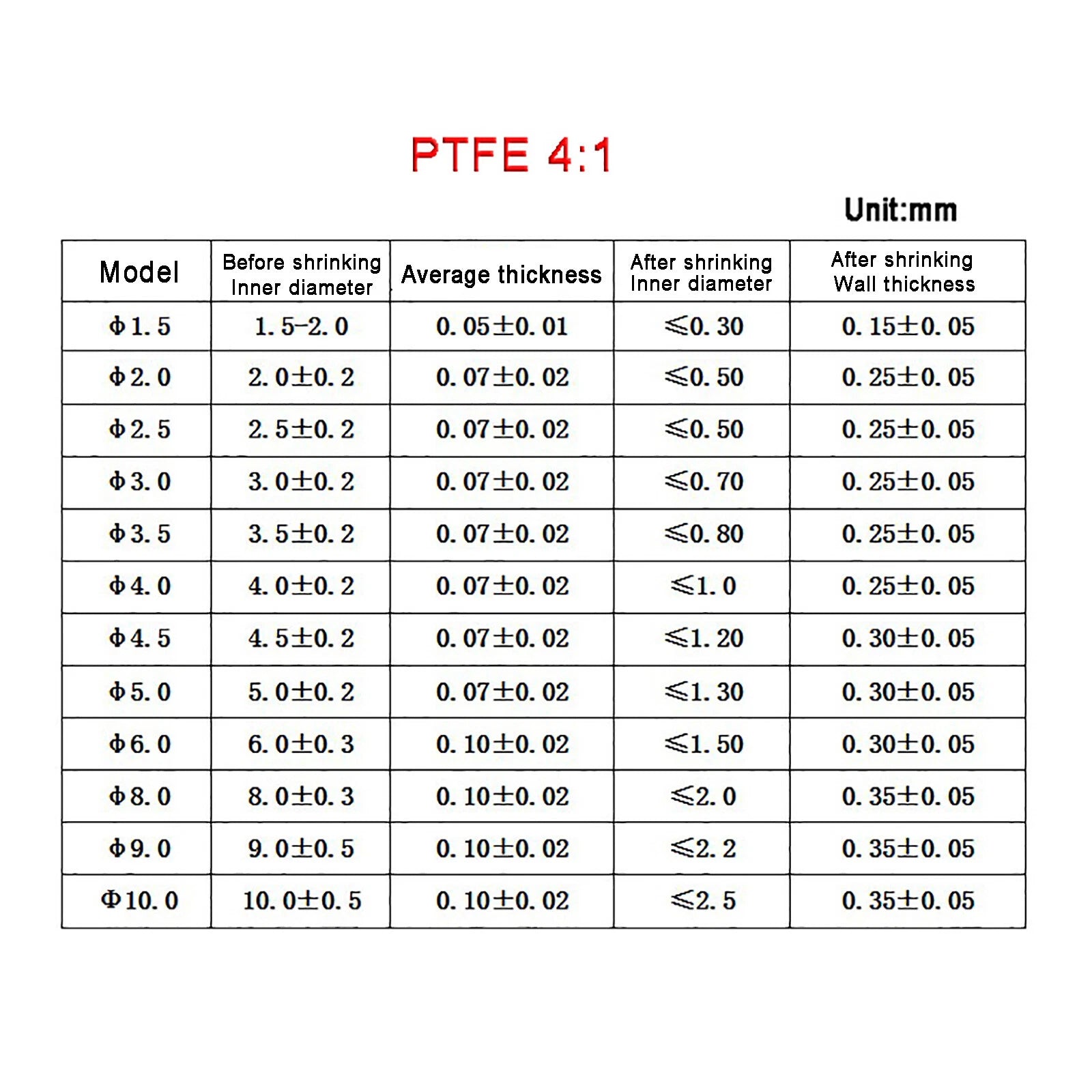

📐 Technical Specifications — PTFE Heat Shrink Tubing
| Material |
Virgin PTFE (Polytetrafluoroethylene) |
| Shrink Ratio Options |
1.7:1 / 4:1 |
| Available Diameters (pre-shrink) |
Ø0.5mm, Ø0.8mm, Ø1mm, Ø1.5mm, Ø2mm, Ø2.5mm, Ø3mm, Ø3.5mm, Ø4mm, Ø4.5mm, Ø5mm, Ø5.5mm, Ø6mm, Ø7mm, Ø8mm, Ø9mm, Ø10mm, Ø11mm, Ø12mm, Ø15mm, Ø16mm, Ø18mm, Ø20mm, Ø25mm |
| Packing Length |
1m (≈39.4") per piece |
| Continuous Operating Temp. |
Up to 300°C (572°F) |
| Shrink Temperature |
Typically 327°C+ (620°F+) — high-output heat gun recommended |
| Color |
See variant options |
| Wall Thickness (post-shrink) |
See variant options / Contact us to confirm |
| Chemical Resistance |
Oils, fuels, acids, bases, most solvents |
| Electrical Insulation |
Yes — high dielectric strength |
| UV Resistance |
Yes |
| Flammability |
Contact us to confirm for your specific application |
⚠️
Sizing Tip: Always measure your wire or component diameter before selecting a variant. Choose a pre-shrink diameter slightly larger than your object. For the 4:1 ratio, the post-shrink diameter will be approximately 25% of the listed pre-shrink size. If you're unsure, contact us before ordering.
❓ Frequently Asked Questions
How do I choose the right diameter for my application?
Select a diameter that is slightly larger than the object you need to cover before shrinking. For example, if your wire bundle measures 3mm, choose the Ø4mm or Ø5mm variant. After applying heat, the tubing will conform tightly. When in doubt, size up — you can always apply more heat, but you cannot reverse over-shrunk tubing.
What is the difference between the 1.7:1 and 4:1 shrink ratio?
The shrink ratio describes how much the tubing reduces in diameter when heat is applied. A 1.7:1 ratio means the tubing shrinks to roughly 59% of its original diameter — suitable for uniform, cylindrical objects. A 4:1 ratio shrinks to approximately 25% of its original diameter, making it ideal for irregular shapes, connectors, or applications where a very tight, conforming seal is needed.
What temperature is needed to shrink this PTFE tubing?
PTFE heat shrink tubing generally requires a higher activation temperature than standard polyolefin tubing — typically in the range of 327°C (620°F) or above for full shrinkage. A heat gun set to its highest setting is recommended. Once shrunk, the tubing is rated to withstand continuous operating temperatures up to 300°C (572°F).
Is this tubing suitable for outdoor or harsh environment use?
Yes. PTFE is inherently resistant to UV exposure, moisture, and most chemicals, making it well-suited for outdoor wiring, automotive engine bays, and industrial environments. It generally does not degrade from prolonged sun or rain exposure. For applications involving physical abrasion, consider additional mechanical protection.
What chemicals and fluids is this tubing resistant to?
PTFE (polytetrafluoroethylene) is resistant to a broad range of chemicals including oils, fuels, hydraulic fluids, acids, bases, and most solvents. It is one of the most chemically inert materials available for heat shrink applications. For highly aggressive or exotic chemicals, we recommend confirming compatibility with a chemical resistance chart before use.
Can I use this tubing for electrical insulation?
Yes. PTFE has excellent dielectric properties and is widely used for electrical insulation in aerospace, automotive, and industrial wiring. It provides reliable insulation across a wide voltage range. For specific voltage ratings relevant to your application, please contact us to confirm suitability.
How do I convert the diameter sizes from mm to inches?
To convert, divide the mm value by 25.4. Quick reference examples:
- Ø2mm ≈ 5/64" (0.079")
- Ø4mm ≈ 5/32" (0.157")
- Ø6mm ≈ 15/64" (0.236")
- Ø8mm ≈ 5/16" (0.315")
- Ø10mm ≈ 25/64" (0.394")
- Ø12mm ≈ 15/32" (0.472")
- Ø25mm ≈ 63/64" (0.984")
