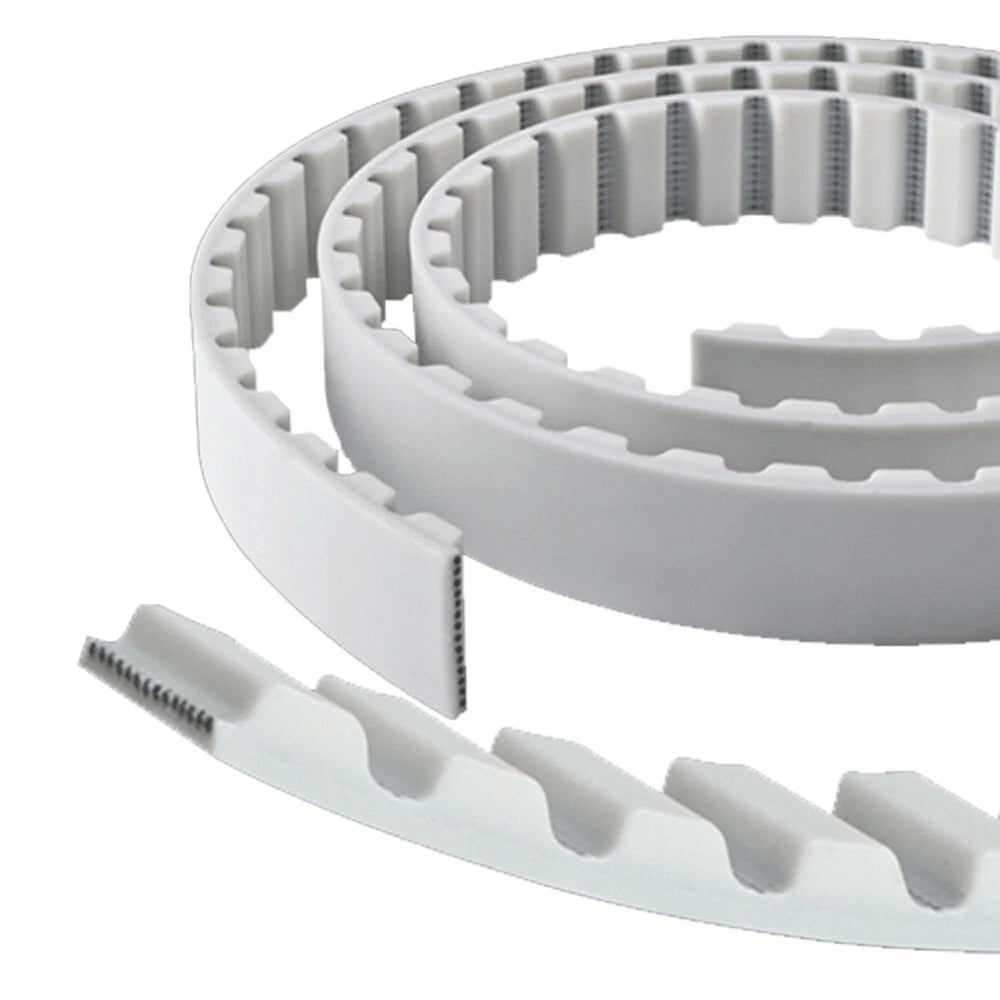

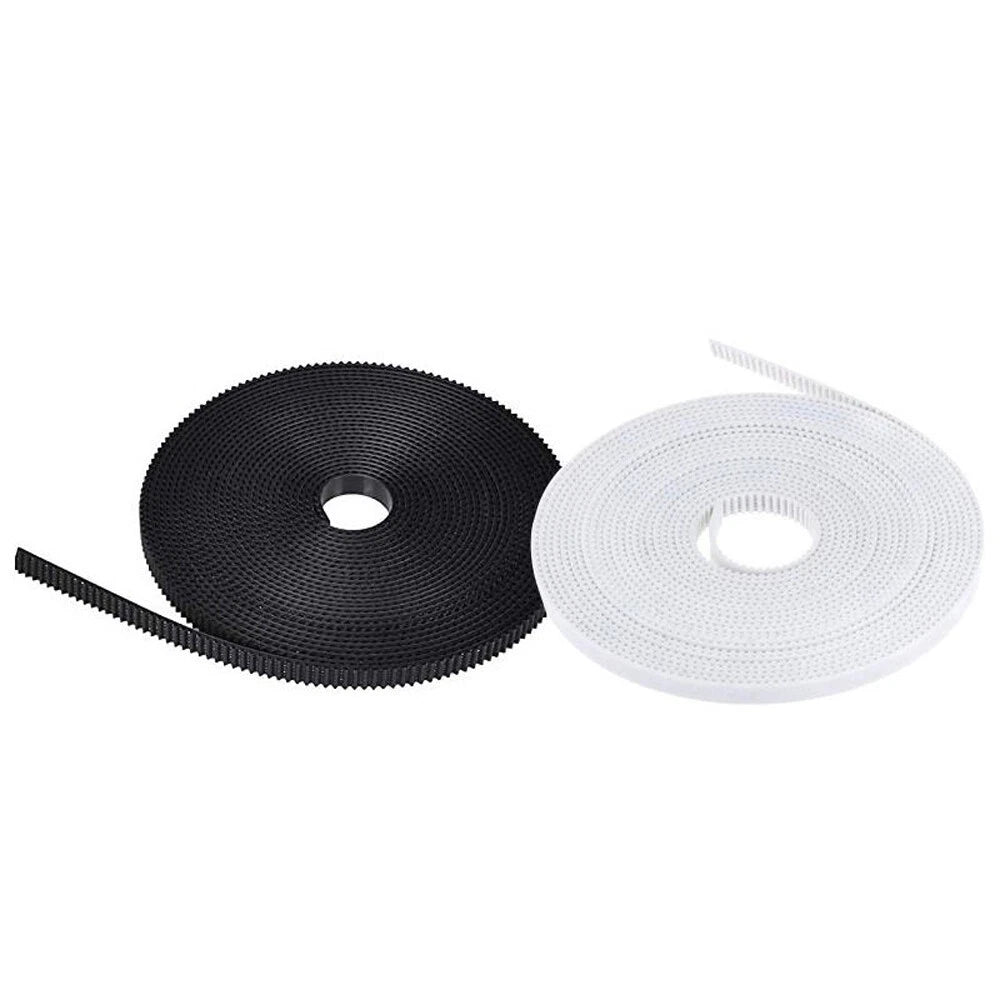

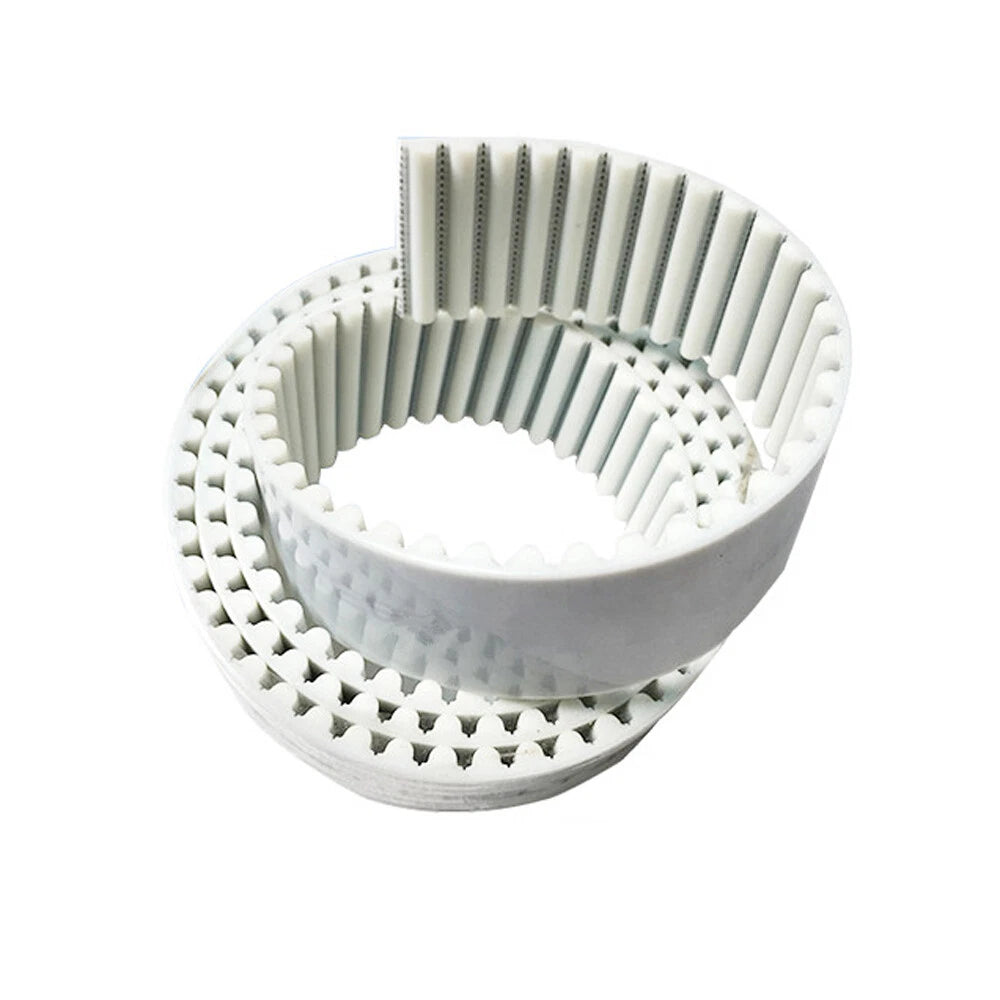

PU Open Timing Belt — 2GT HTD-3M 5M 8M S2M S3M S5M S8M XL L H MXL | CNC & 3D Printer

Match the belt profile (e.g., 2GT, HTD-3M, S5M) to your pulley's tooth profile — they must be the same standard. For width, generally use the widest belt your pulley and frame allow: wider belts carry more load and resist stretch better. Common CNC router setups typically use 10–20mm wide belts, while lighter 3D printer axes often use 6–10mm. If unsure, check your pulley's belt-width rating or contact us to confirm.

Load capacity varies by profile and width. Wider belts and larger pitch profiles (e.g., HTD-8M, S8M) generally handle higher tensile loads than narrow, fine-pitch belts (e.g., 2GT 6mm). Polyurethane construction with steel cord reinforcement typically provides higher tensile strength than neoprene equivalents of the same size. For specific load ratings, refer to your machine's engineering specs or contact us to confirm suitability.

Polyurethane (PU) timing belts generally offer better resistance to oils, mild chemicals, and moisture compared to neoprene rubber belts. They are typically suitable for light-duty outdoor or damp-environment use. However, prolonged submersion or exposure to harsh solvents is not recommended. For outdoor CNC or automation applications, PU is generally the preferred material choice over rubber.

Yes. Each belt profile is designed to mesh with its corresponding pulley standard: 2GT belts fit 2GT pulleys, HTD-3M fits HTD 3M pulleys, S5M fits S5M pulleys, and so on. The belt width must also be less than or equal to the pulley's usable belt width. Always verify the profile designation and width before ordering.

Open (non-loop) timing belts can be cut to any length using sharp scissors, a utility knife, or a belt cutter. Cut cleanly and squarely across the tooth pitch to maintain accurate tooth spacing at the joint. Each order ships as a continuous 1-meter length per unit ordered; order multiple units for longer runs without mid-belt splicing.

HTD (High Torque Drive) profiles feature a curvilinear tooth shape designed to reduce stress concentration and improve torque transmission at higher loads. S-series (S2M, S3M, S5M, S8M) belts use a similar curvilinear tooth geometry and are generally interchangeable with HTD belts of the same pitch in many applications, though pulley compatibility should always be verified. Both outperform trapezoidal profiles (XL, L, H, MXL) in high-torque scenarios.

Polyurethane timing belts typically offer lower stretch under load, better dimensional stability over time, and improved resistance to oils and mild chemicals compared to neoprene rubber belts. This makes them a common choice for precision CNC routers, 3D printing motion systems, and automation applications where positional accuracy and repeatability matter.

Yes. Open timing belts can be joined end-to-end using metal belt clamps or lacing connectors designed for the specific belt pitch and width. For closed-loop applications, steel-core belt lacing is typically used. Ensure the connector pitch matches the belt pitch to avoid tooth skipping. Order enough length to account for the connector overlap.
