Push-to-Connect Pneumatic Fittings — Fast, Tool-Free Air & Water Line Connections

Routing compressed air lines, water tubing, or vacuum circuits in a workshop, automation panel, or DIY pneumatic project often means dealing with a tangle of mismatched connectors, slow threaded joints, and fittings that leak the moment pressure rises. These push-to-connect pneumatic fittings are designed for hobbyists, technicians, and small-shop builders who need reliable, instant tube connections without tools or thread tape.

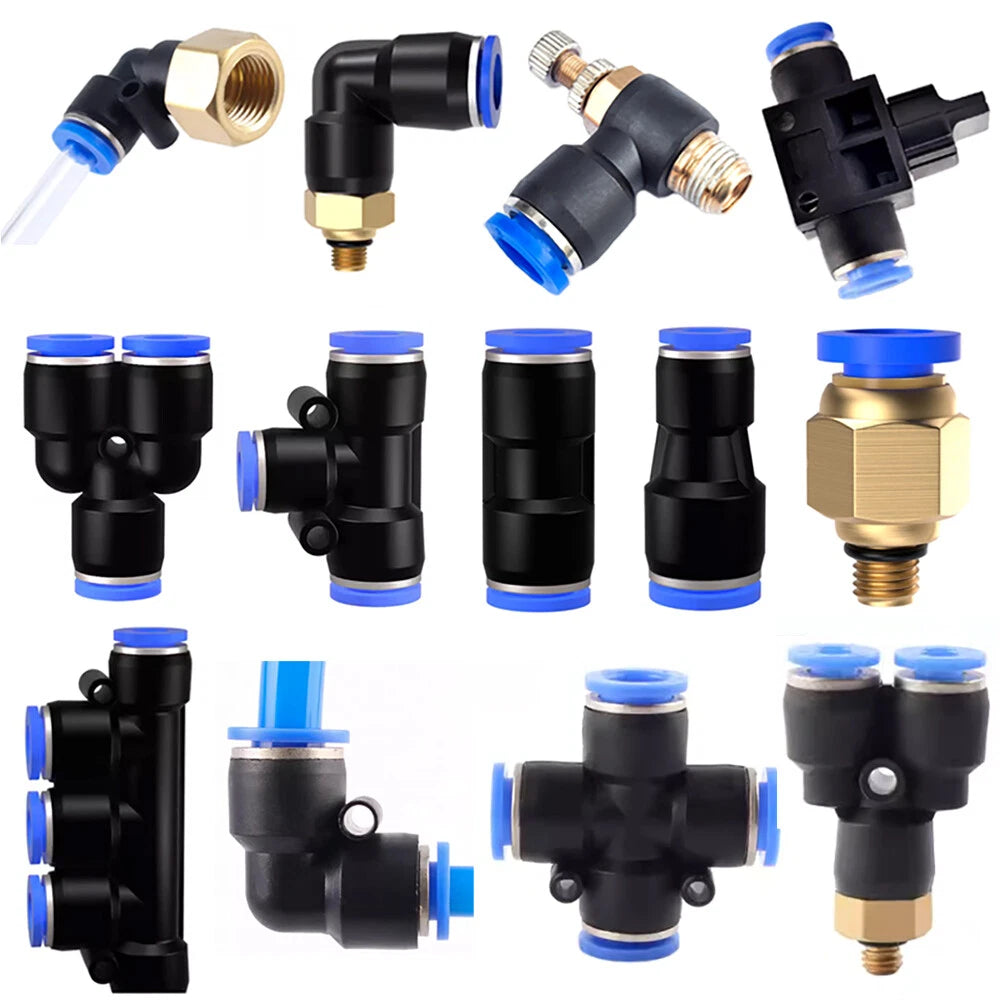

This listing covers a comprehensive set of push-in fitting types in a single place. Each connector accepts semi-rigid tubing by outer diameter — available in sizes from 4mm (≈5/32") to 16mm (≈5/8") — and spans 21 connector configurations including straight connectors, T-pieces, Y-pieces, elbows, cross pieces, 5-way distributors, male and female threaded adapters, ball valves, throttle check valves, stoppers, and end caps. Body material is engineering-grade plastic (typically POM or PA), with an internal stainless collet and elastomeric seal for a secure, repeatable grip.

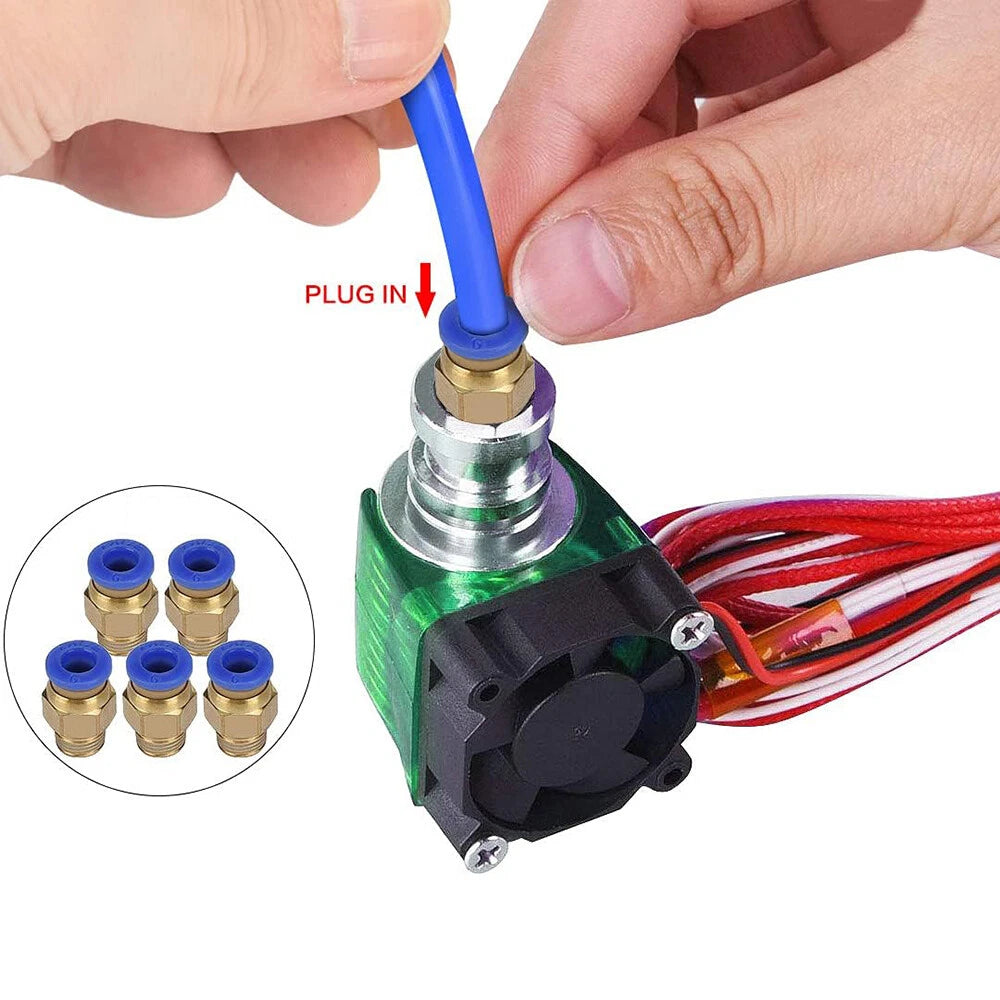

Typical use cases include pneumatic cylinder circuits and solenoid valve manifolds, drip irrigation and garden water distribution lines, laboratory vacuum tubing and fluid transfer setups, and 3D printer or CNC machine air-assist and cooling lines — all situations where a push-to-connect pneumatic fitting saves significant assembly time over compression or barb fittings.

ℹ️ Compatibility Note: Select your tube outer diameter (OD) from the size dropdown — not the inner diameter. These fittings are designed for semi-rigid PU, PA, and PE tubing. Soft silicone tubing is generally not compatible. Threaded variants use metric threads (M3–M16); BSP/NPT threads are not available in this listing.

✅ Key Features of These Push-to-Connect Pneumatic Fittings

⚡Tool-Free Installation — Push the tube straight in until it clicks; the internal stainless collet grips automatically, creating an instant air-tight seal without wrenches, clamps, or thread tape.
🔄21 Connector Configurations — One listing covers straight connectors, T-pieces, Y-pieces, elbows, cross pieces, 5-way distributors, threaded adapters, ball valves, throttle check valves, stoppers, and caps — reducing the need to source from multiple suppliers.
📏Wide Size Range (4mm–16mm OD) — Covers the most common pneumatic and irrigation tube sizes from 4mm (≈5/32") to 16mm (≈5/8"), including reducing variants for mixed-diameter circuits.

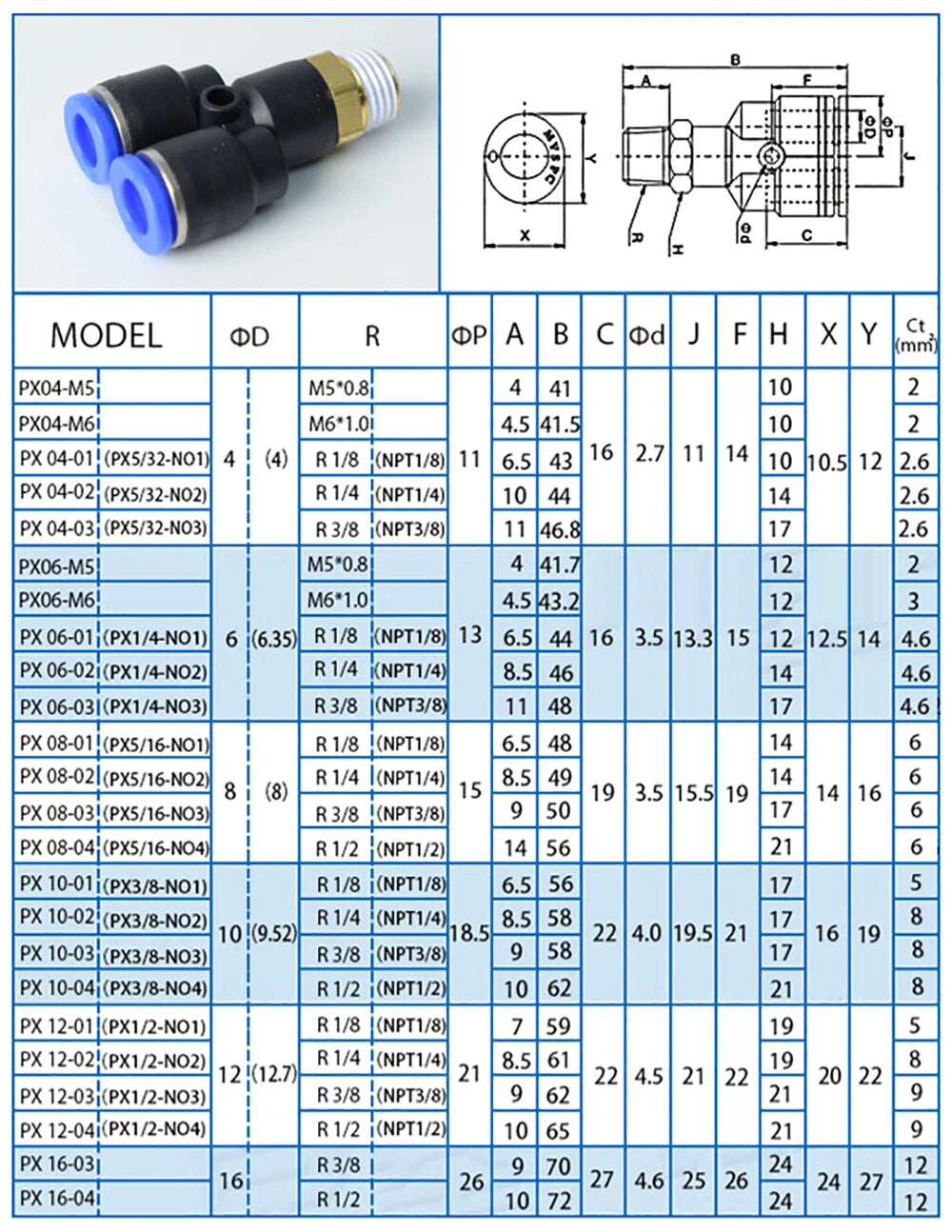

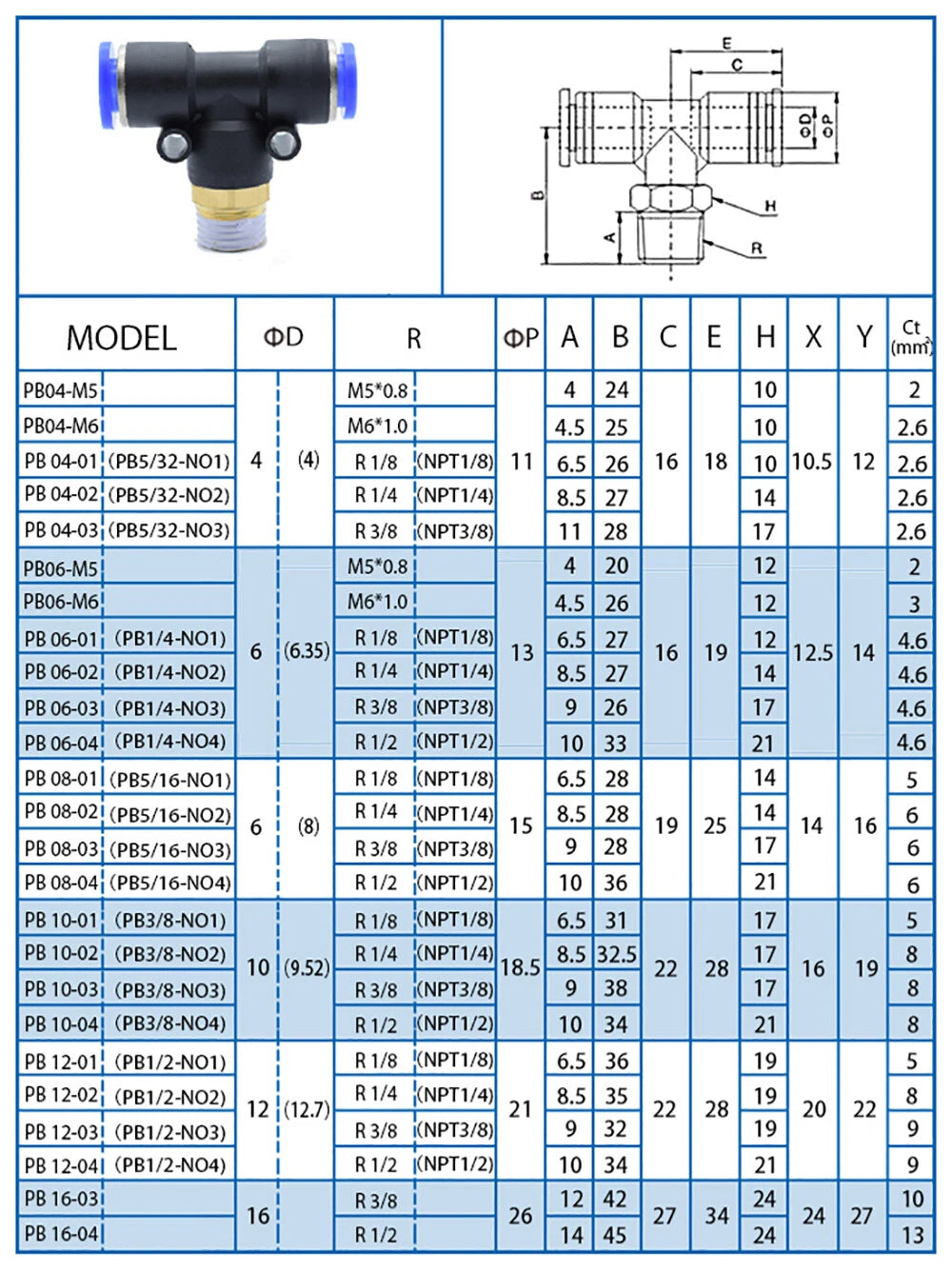

🔩Metric Threaded Adapters Included — Male thread (PC/PL/PB/PX series) and female thread (PCF/PLF series) variants with M3–M16 threads allow direct connection to cylinders, solenoid valves, and manifold ports without additional adapters.
🚰Dual Air & Water Service — Suitable for compressed air lines and low-pressure water or fluid tubing circuits, making these fittings versatile across pneumatic automation, drip irrigation, and laboratory fluid transfer applications.

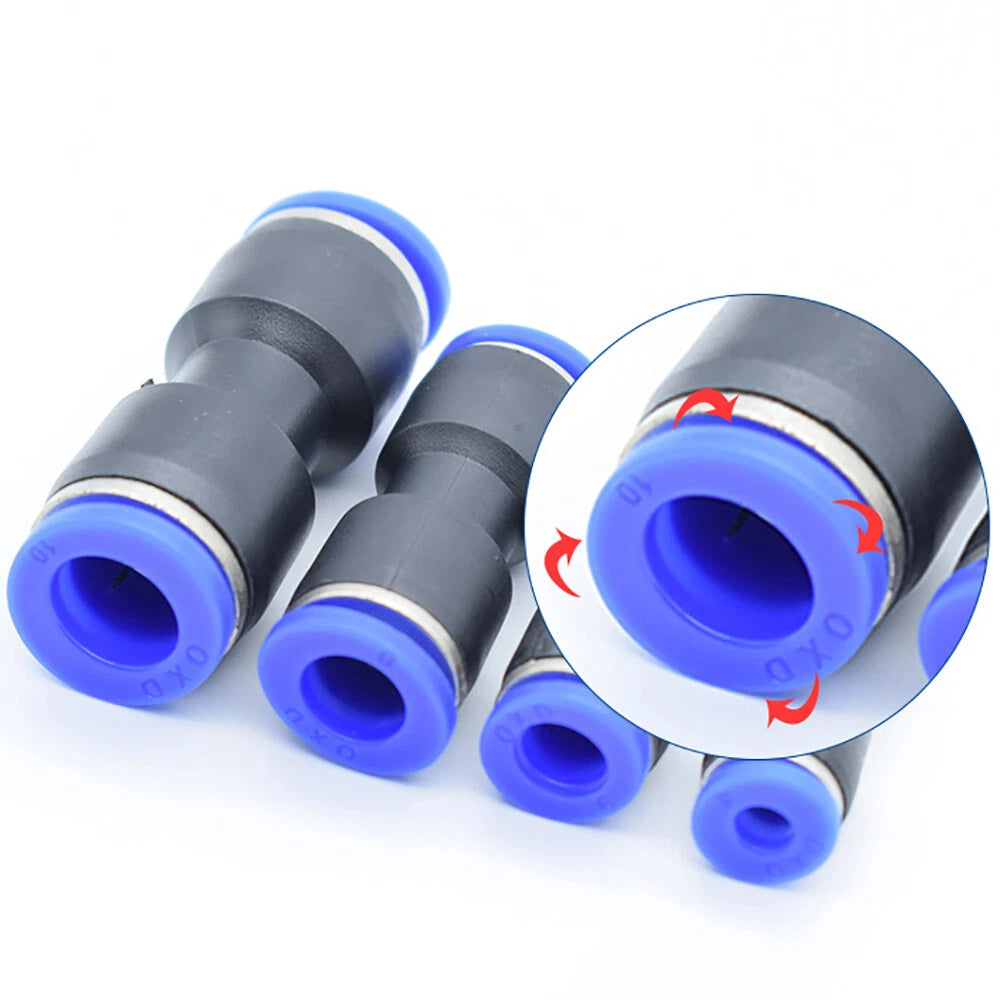

🔁Releasable & Reusable — Depress the collet ring to release the tube cleanly without cutting. Fittings can be reused across multiple installations, reducing waste during prototyping or system reconfiguration.

📐 Technical Specifications — Push-to-Connect Pneumatic Tube Fittings

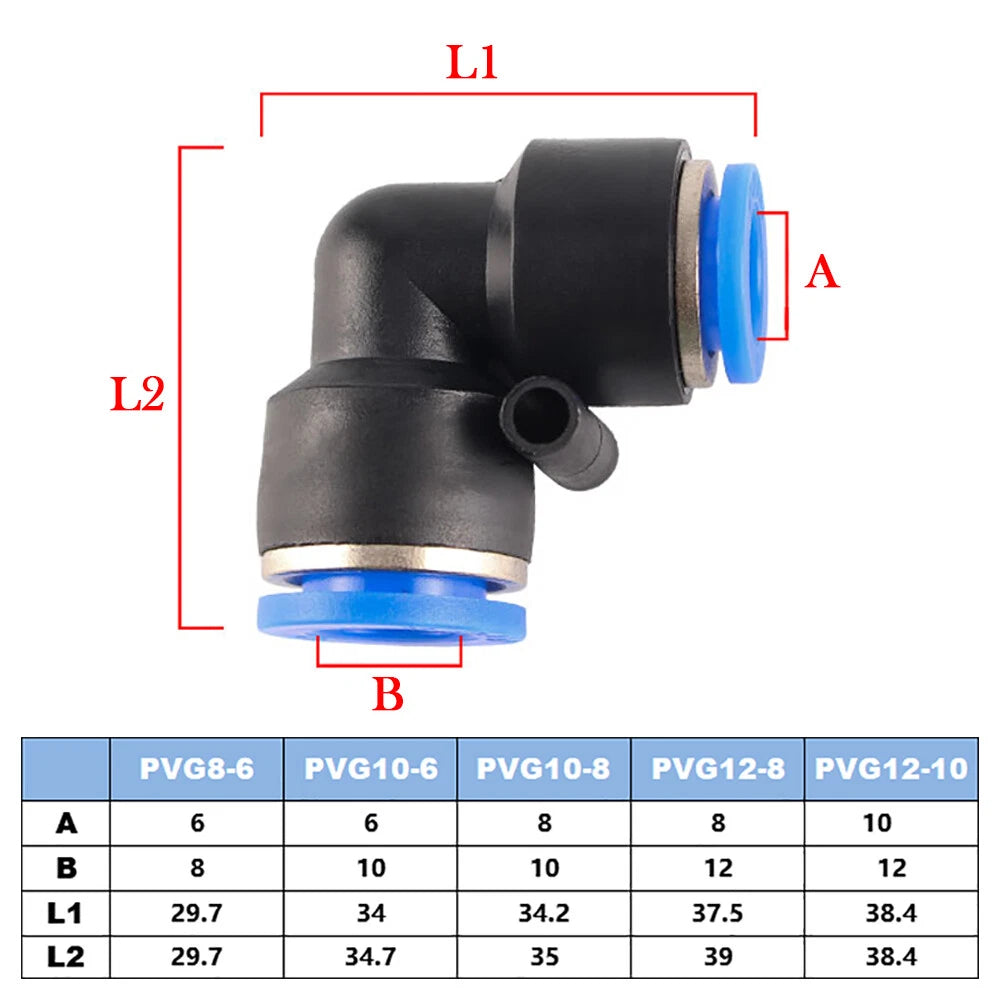

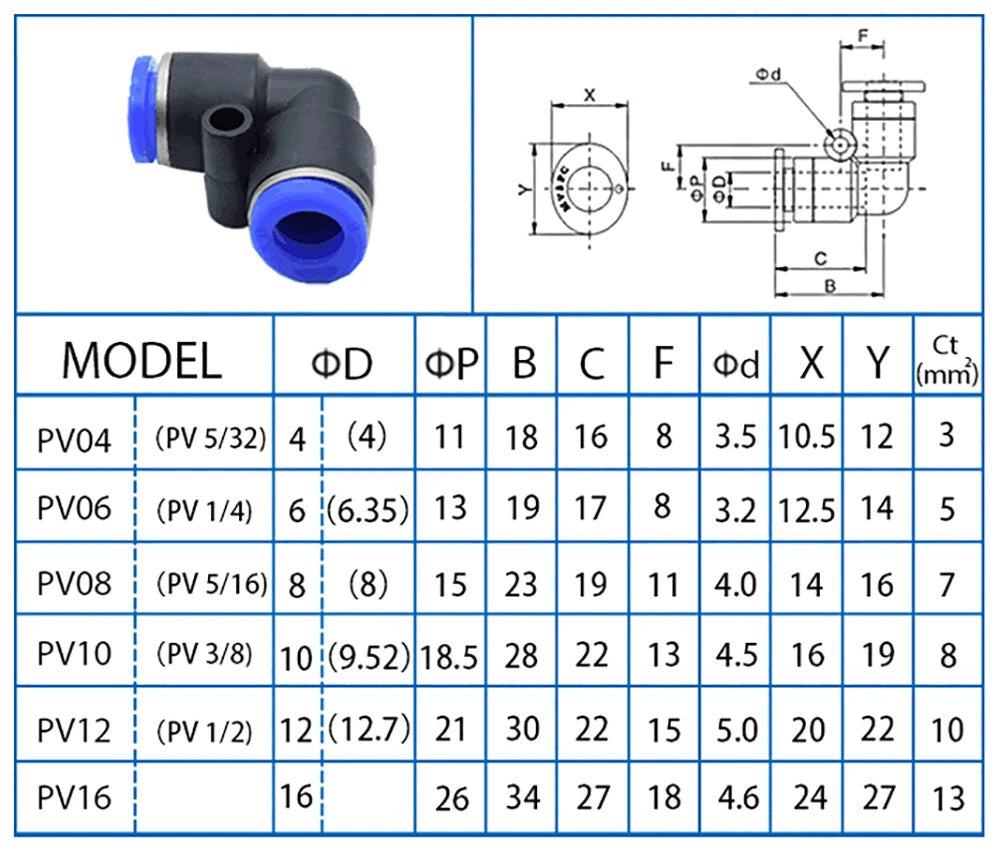

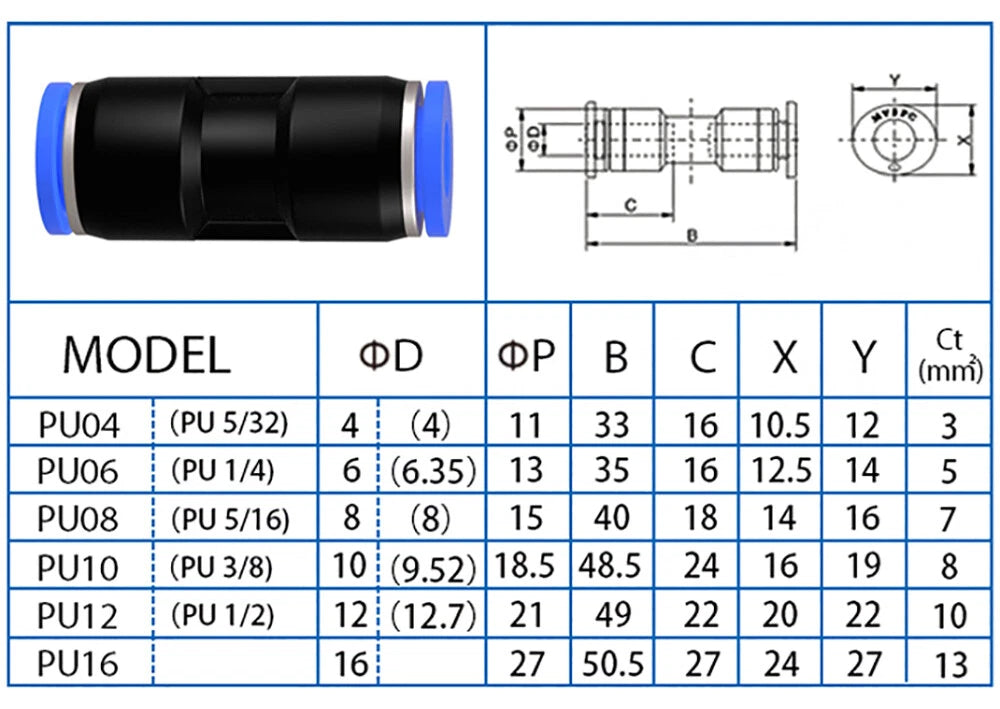

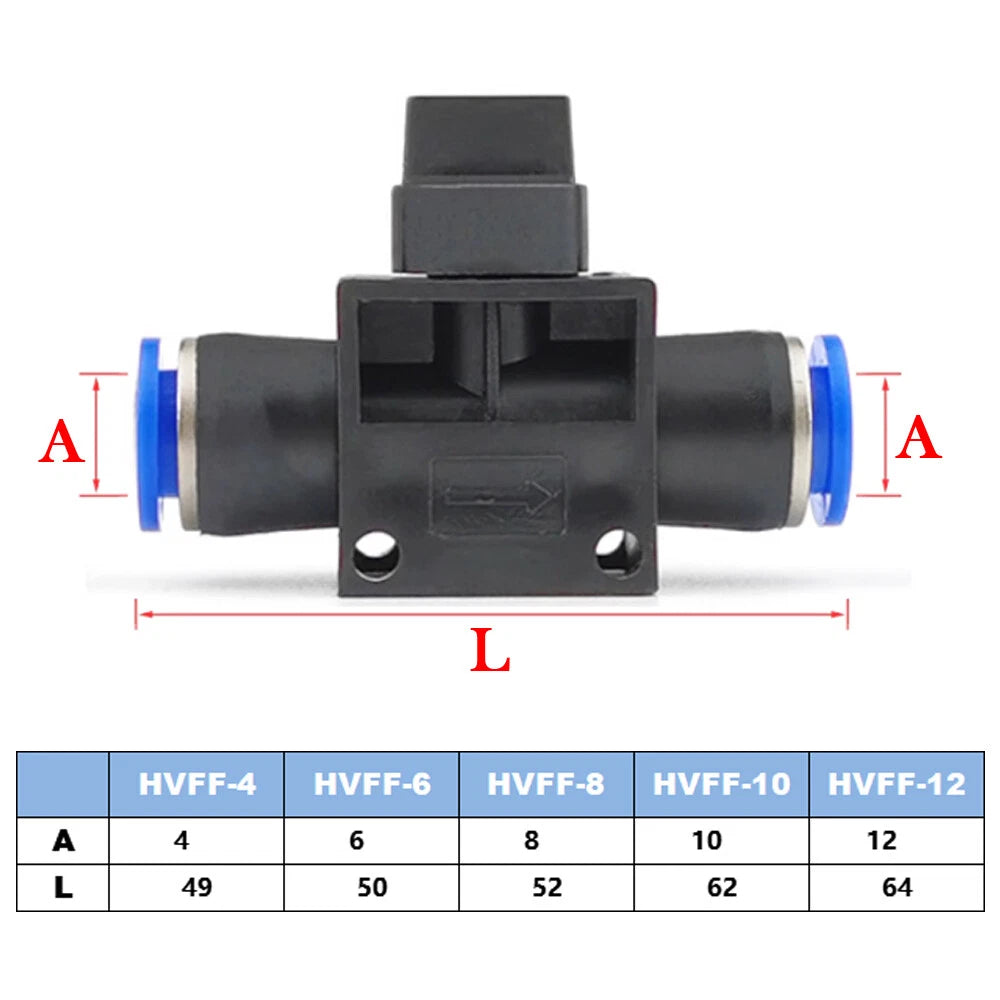

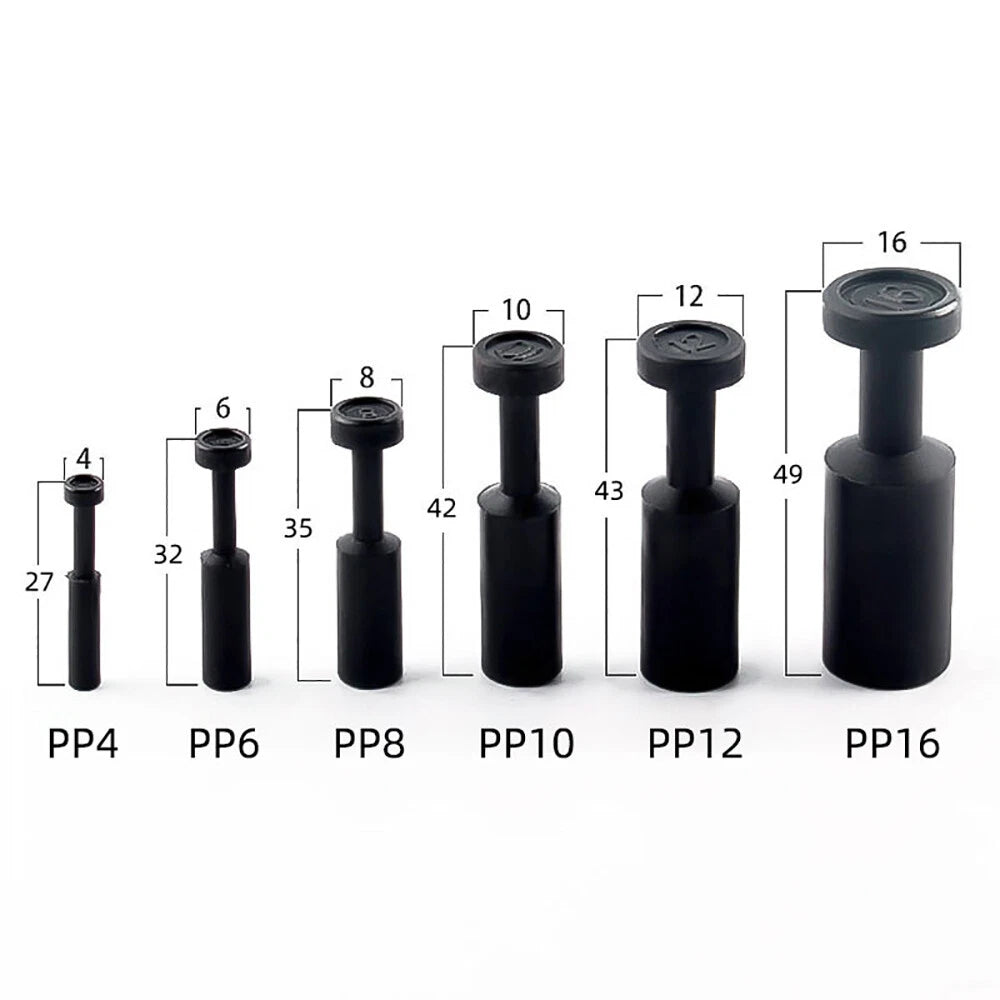

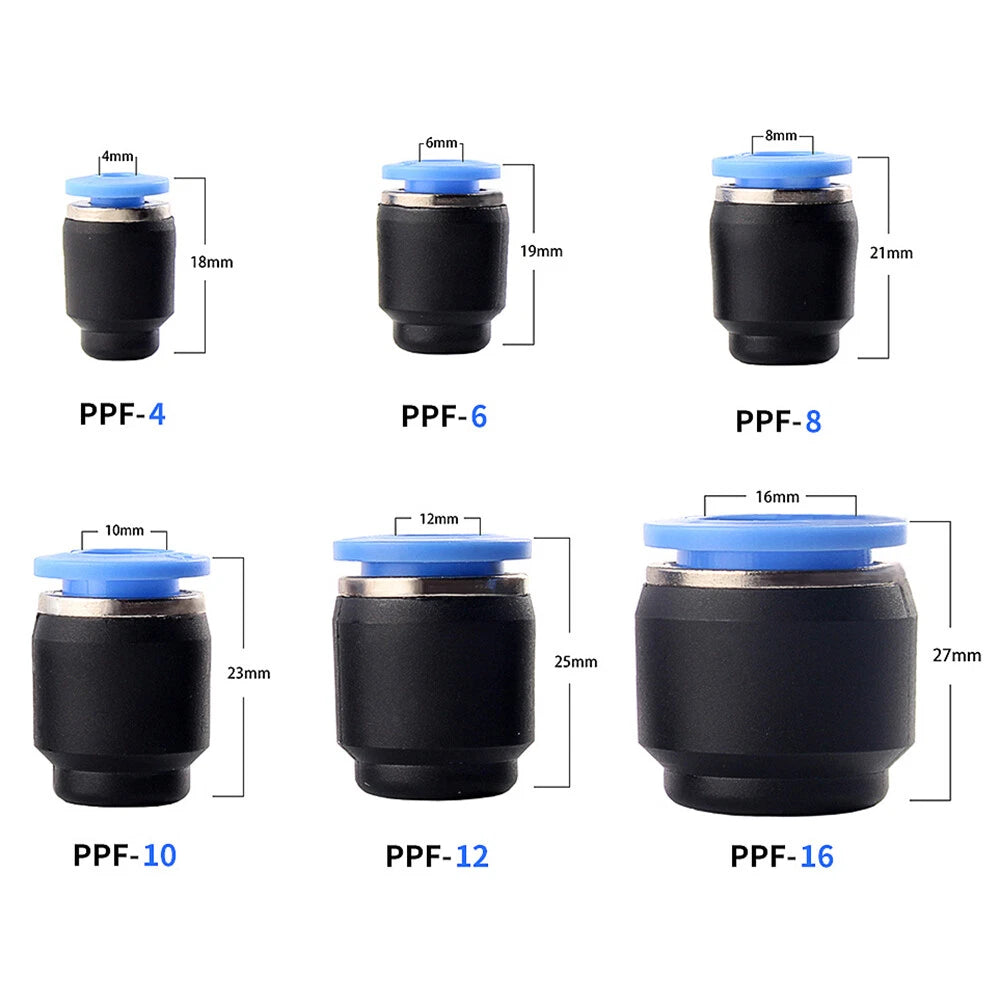

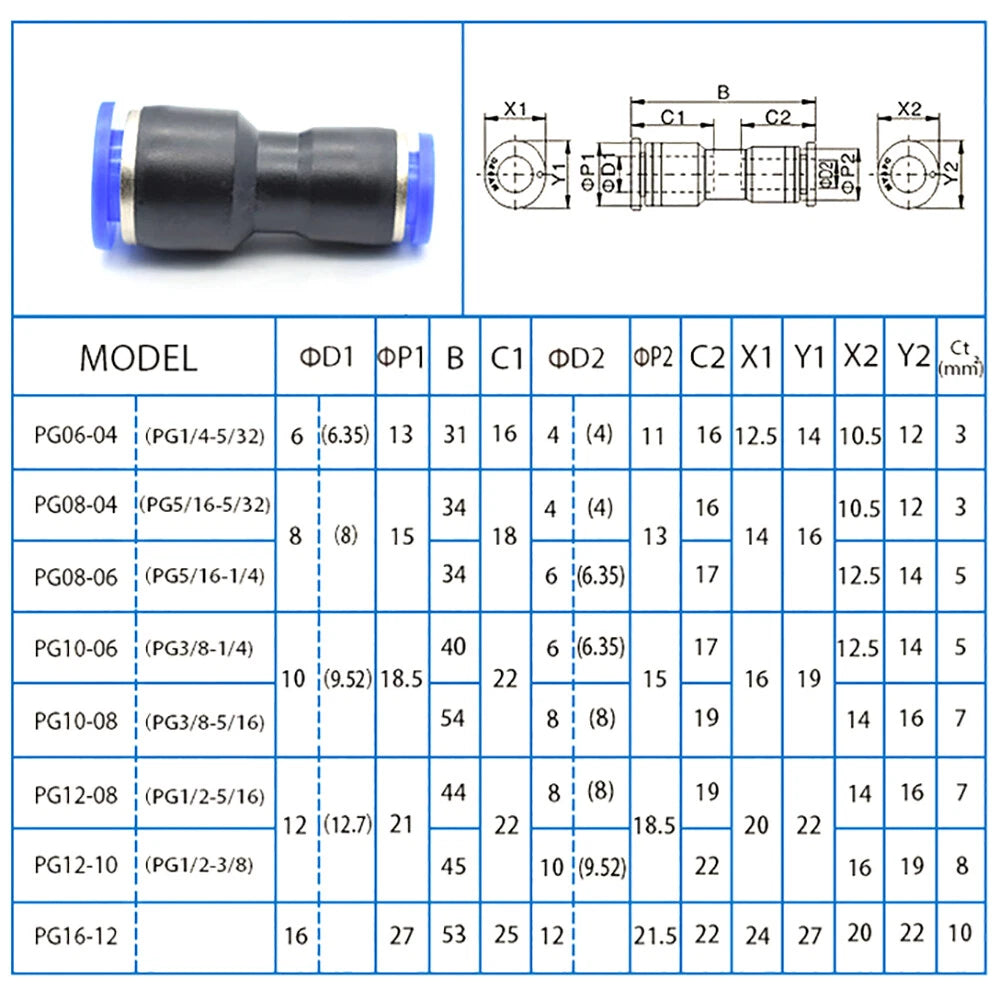

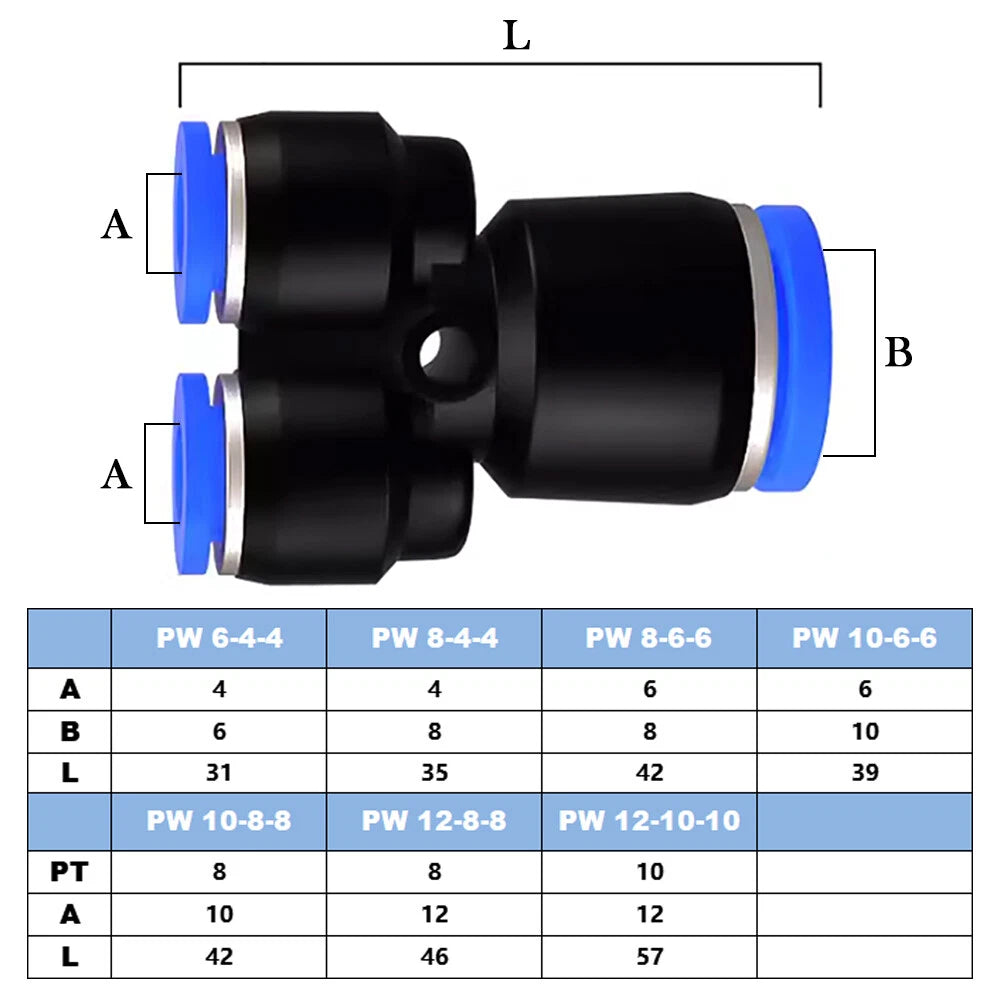

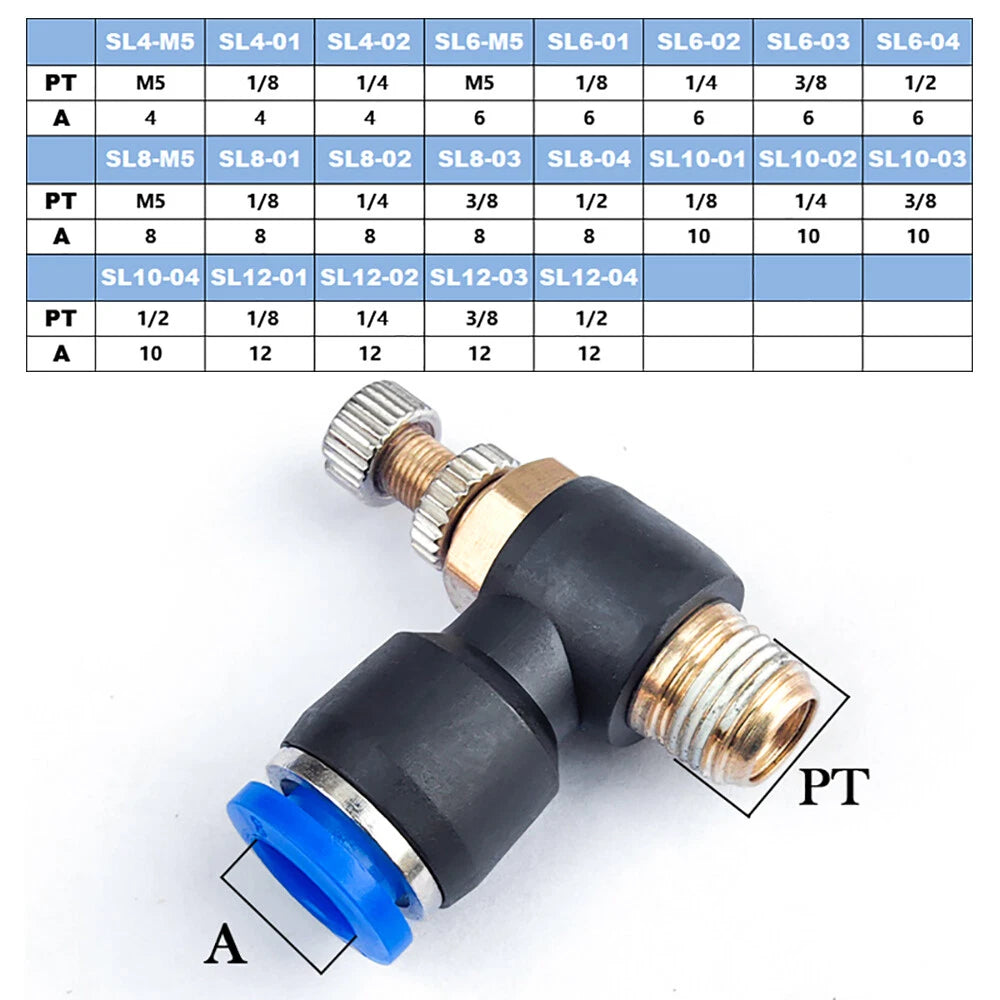

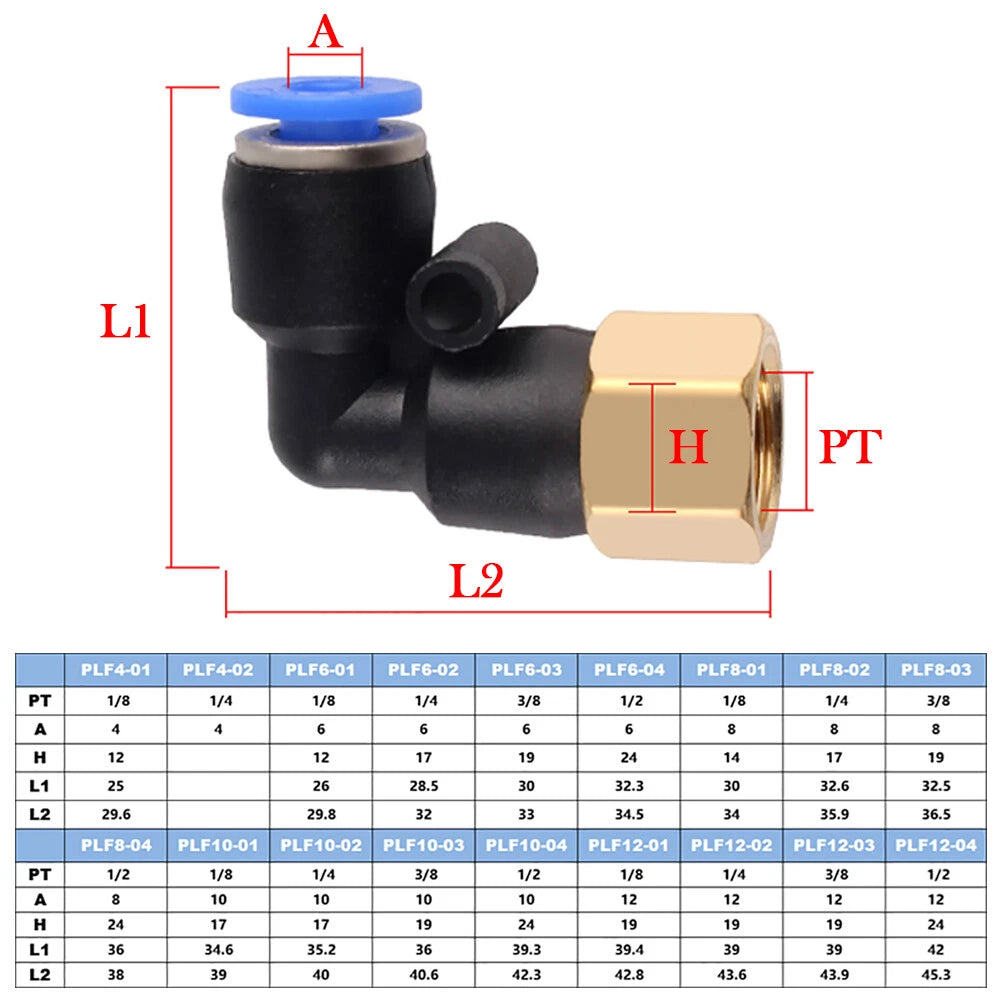

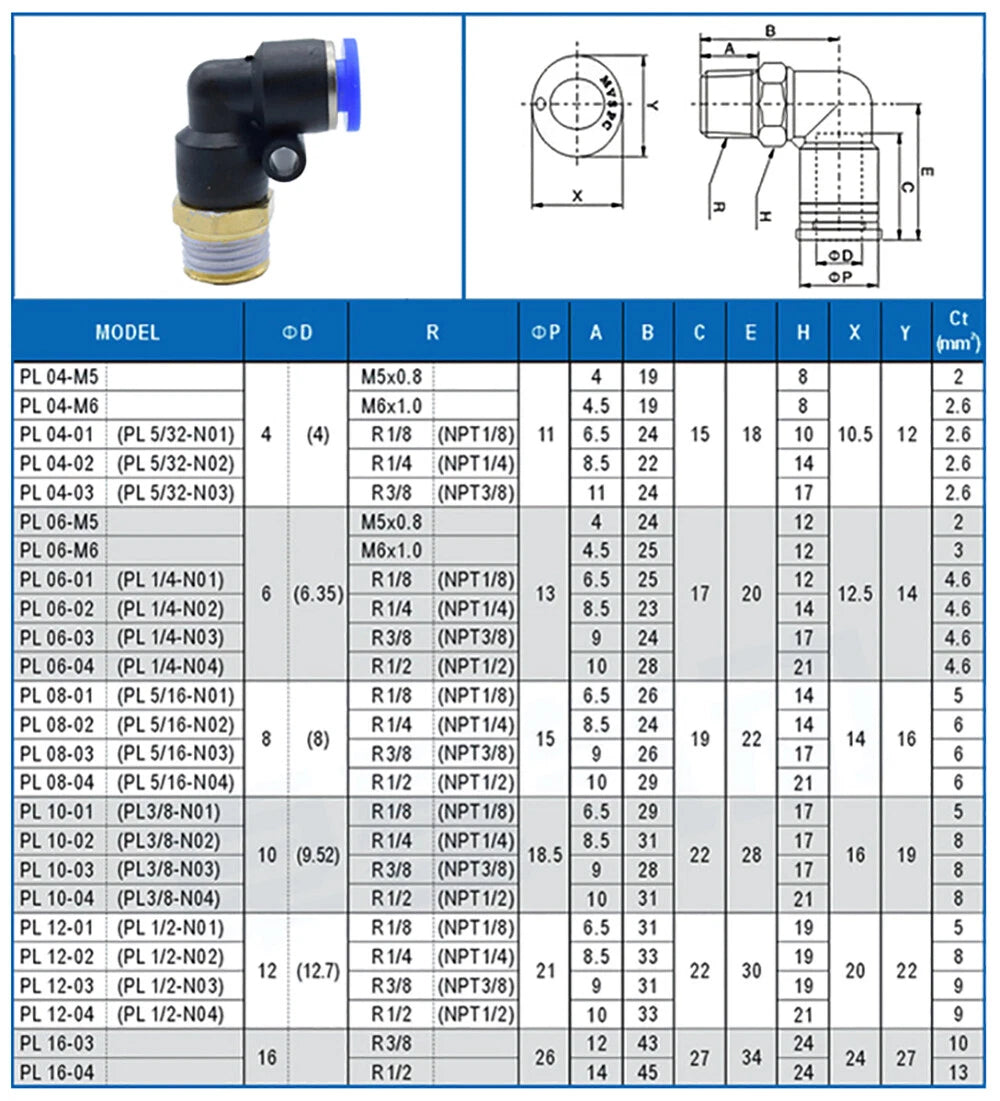

Fitting Types Available	Connector (PU), Reducing Connector (PG), T-Piece (PE), Reducing T-Piece (PEG), Male T-Piece (PB), Cross Piece (PZA), 5-Way (PK), Male 5-Way (PKB), Male Thread (PC), Female Thread (PCF), Ball Valve (HVFF), Stopper (PP), Cap (PPF), Y-Piece (PY), Reducing Y-Piece (PW), Male Y-Piece (PX), Elbow (PV), Reducing Elbow (PVG), Throttle Check Valve (SL), Male Elbow (PL), Female Elbow (PLF)
Tube OD Range	4mm (≈5/32") to 16mm (≈5/8")
Thread Sizes (threaded variants)	M3, M5, M6, M8, M8×1, M10, M12, M14, M16 (metric)
Body Material	Engineering-grade plastic (typically POM or PA) — see variant options to confirm
Seal / Collet Material	Elastomeric O-ring seal; stainless steel collet (typically)
Working Pressure (Air)	Typically up to 10 bar (145 psi) — contact us to confirm for specific variant
Working Pressure (Water/Fluid)	Typically up to 6 bar (87 psi) — contact us to confirm for specific variant
Compatible Tube Types	Semi-rigid PU, PA (nylon), PE tubing — matched by outer diameter
Connection Method	Push-to-connect (push-in fit); collet release by pressing outer ring
Quantity per Order	1 piece per unit (sold individually)
Country of Origin	See variant options

⚠️ Sizing Tip: Always measure your tube's outer diameter before selecting a size. The fitting size (e.g., "PU-6mm") refers to the tube OD it accepts, not the bore or inner diameter of the fitting body.

❓ Frequently Asked Questions

How do I choose the right tube size for these push-to-connect fittings?

Match the fitting size to your tube's outer diameter (OD). For example, a PU-6mm fitting accepts 6mm OD tubing. Common sizes in this listing range from 4mm (≈5/32") to 16mm (≈5/8"). Always measure your tube OD before ordering — the inner diameter is not the reference dimension for push-in fittings. If you are between sizes, size up and use a sleeve insert if needed.

What pressure rating do these pneumatic fittings typically handle?

Push-to-connect fittings of this type generally handle working pressures up to approximately 10 bar (145 psi) for pneumatic air lines. For water or fluid applications, the rating is typically lower — generally up to 6 bar (87 psi). Actual ratings depend on the specific variant and tube material. Contact us to confirm the rating for your application before use in safety-critical systems.

Can these fittings be used outdoors or in wet environments?

The fittings are generally made from engineering-grade plastics (POM, PA, or similar) that resist moisture and mild chemicals. They are typically suitable for indoor and sheltered outdoor use. For prolonged UV exposure or harsh outdoor conditions, we recommend verifying material compatibility. The internal O-ring seal is generally resistant to water and compressed air; compatibility with oils, solvents, or aggressive fluids should be confirmed before use.

What thread standards are used on the male and female threaded variants?

The threaded variants (PC, PCF, PL, PLF, PB, PKB, PX series) use metric threads — M3, M5, M6, M8, M10, M12, M14, M16 — as indicated in the size designation (e.g., PC6-M8mm = 6mm tube port with M8 male thread). BSP or NPT thread variants are not included in this listing. Always check the size label to confirm the thread size before ordering.

Which connector type should I choose for splitting one air line into two or more branches?

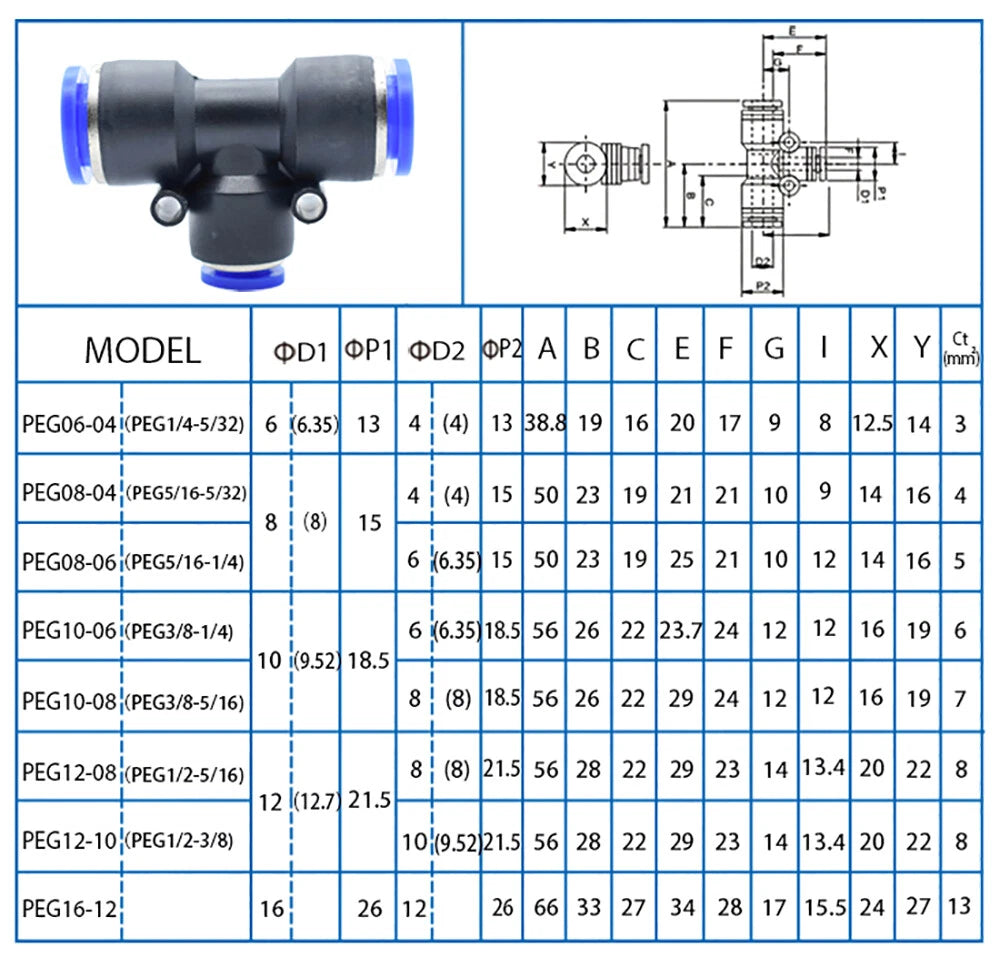

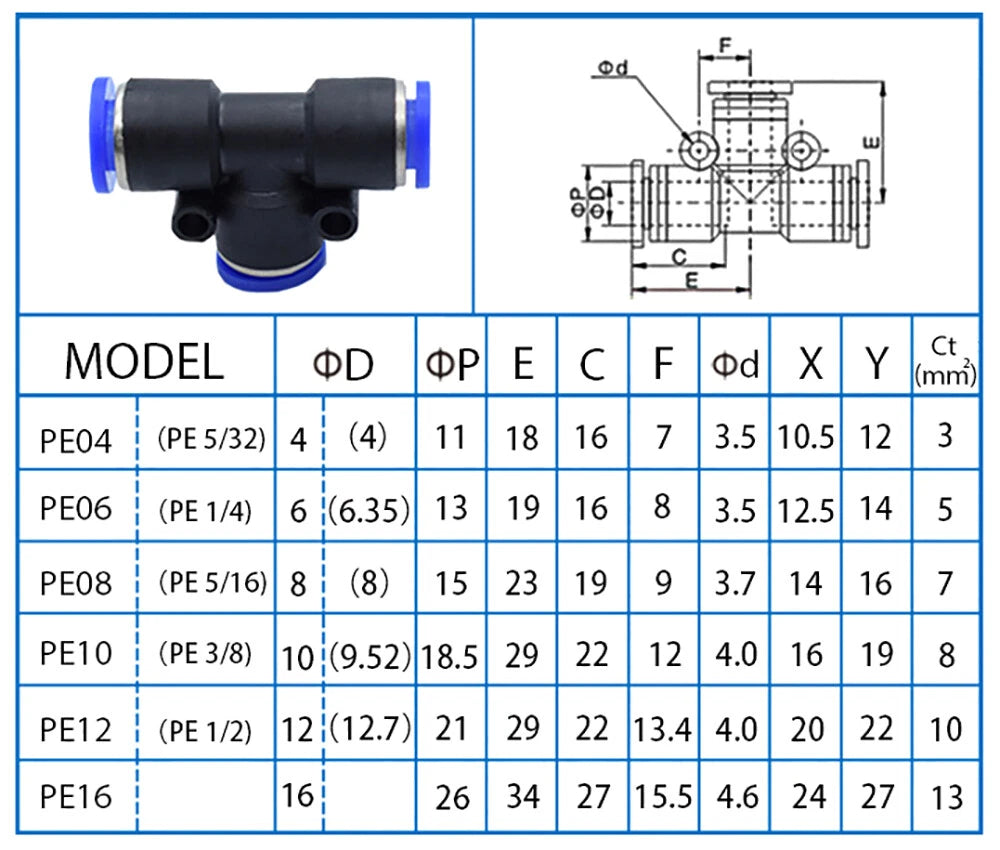

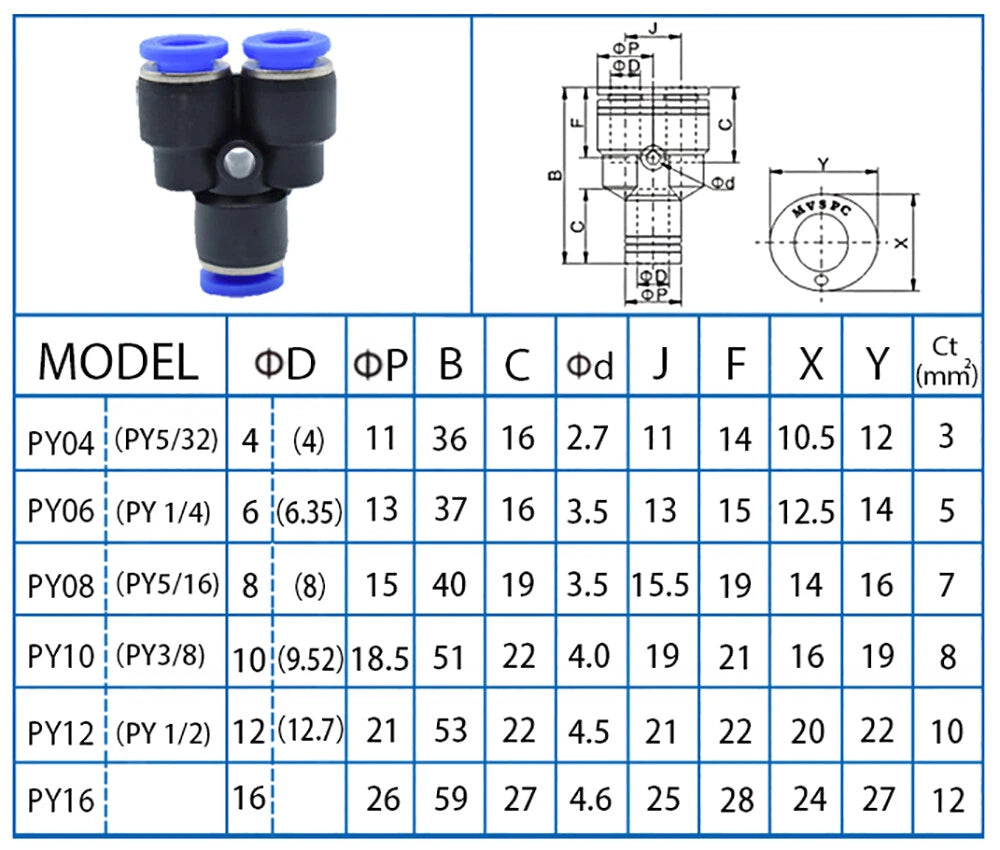

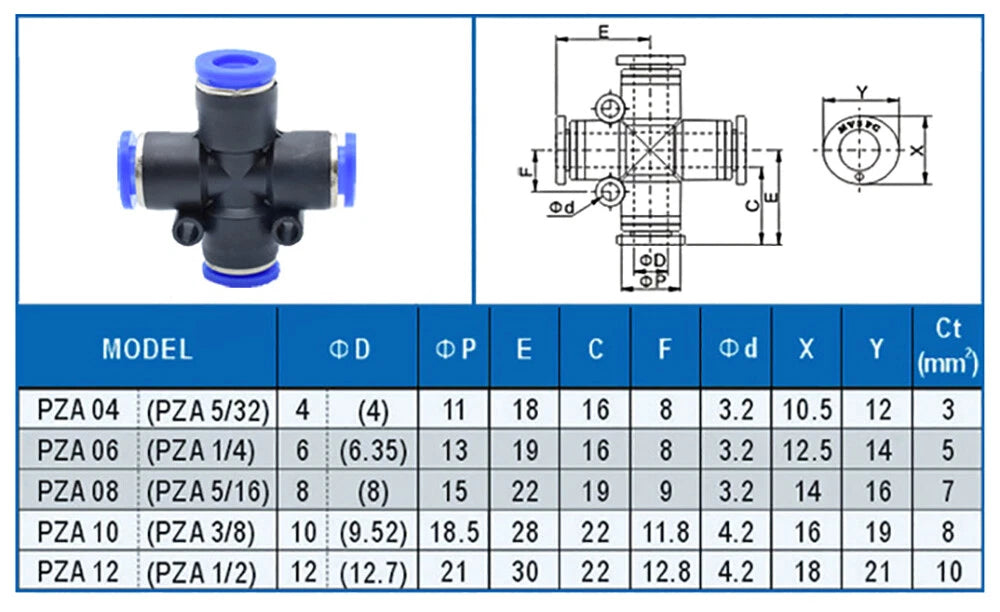

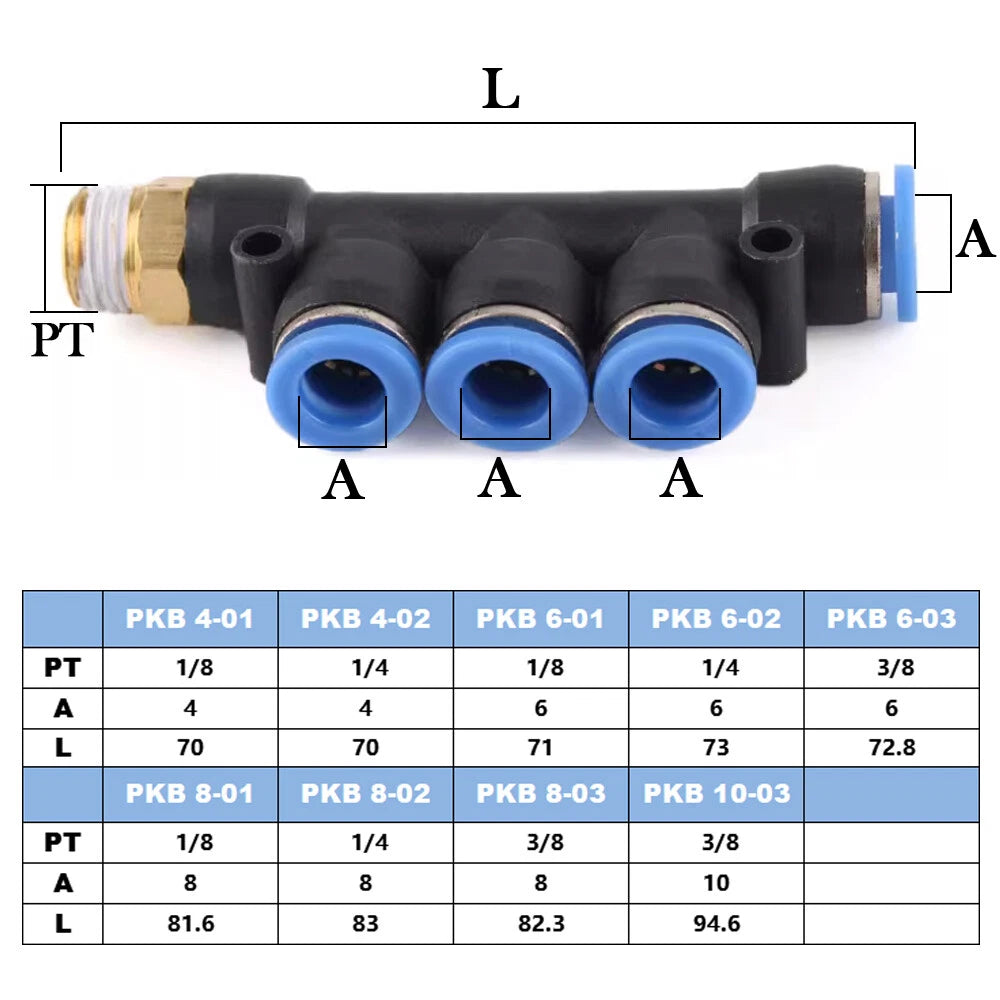

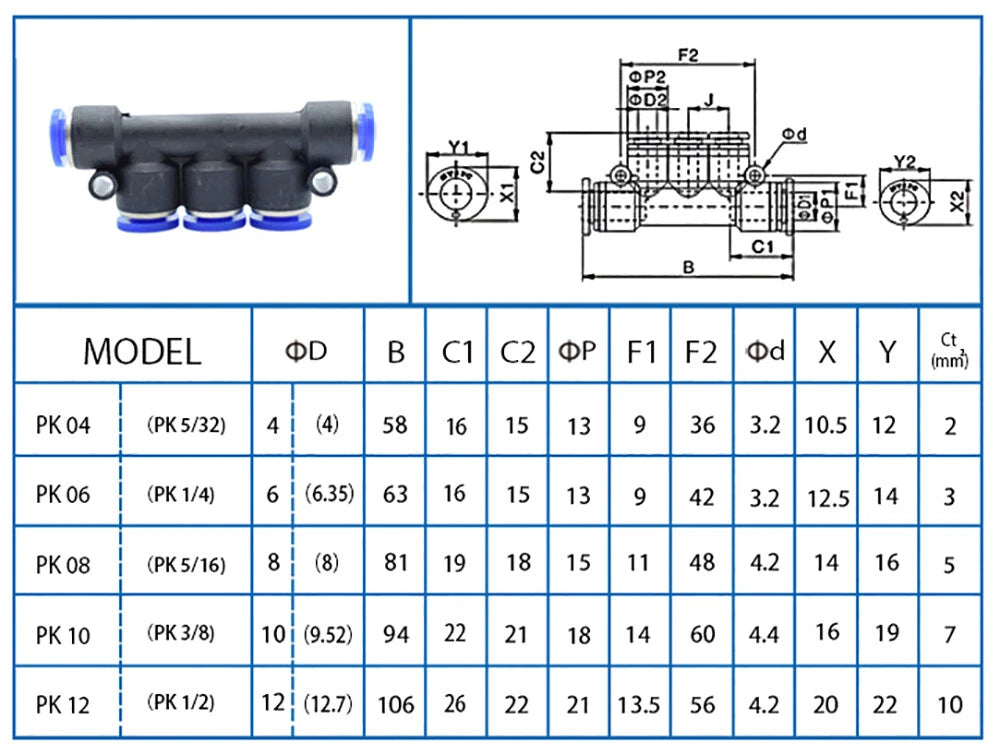

For a 1-to-2 split, use the T-Piece PE (equal bore) or Reducing T-Piece PEG (if the branch line is a different diameter). For a Y-shaped split, the Y-Piece PY provides a 120° branch angle useful in tight routing. For a 1-to-4 split, the Cross Piece PZA works well. For up to 5 ports, the 5-Way PK or Male 5-Way PKB are the right choice.

Are these fittings compatible with both PU and nylon tubing?

Yes, push-to-connect fittings of this design are generally compatible with semi-rigid tubing including polyurethane (PU), nylon (PA), and polyethylene (PE) tubing of the matching outer diameter. Soft silicone or very flexible tubing may not seal reliably because the collet requires a firm tube wall to grip. Contact us if you are unsure about your tube material.

How do I release the tube from a push-in fitting?

To release the tube: (1) Depressurize the line completely. (2) Press the collet ring (the outer ring at the tube entry point) firmly inward toward the fitting body. (3) While holding the collet ring in, pull the tube straight out. Do not twist or yank the tube, as this can damage the collet teeth and prevent future reuse.

🛒 Select your connector type and size above, then add to cart — ships from our US warehouse.
