PVC 90° Elbow Female Thread Pressure Fittings — Reliable Adhesive Connector for Plumbing & Irrigation

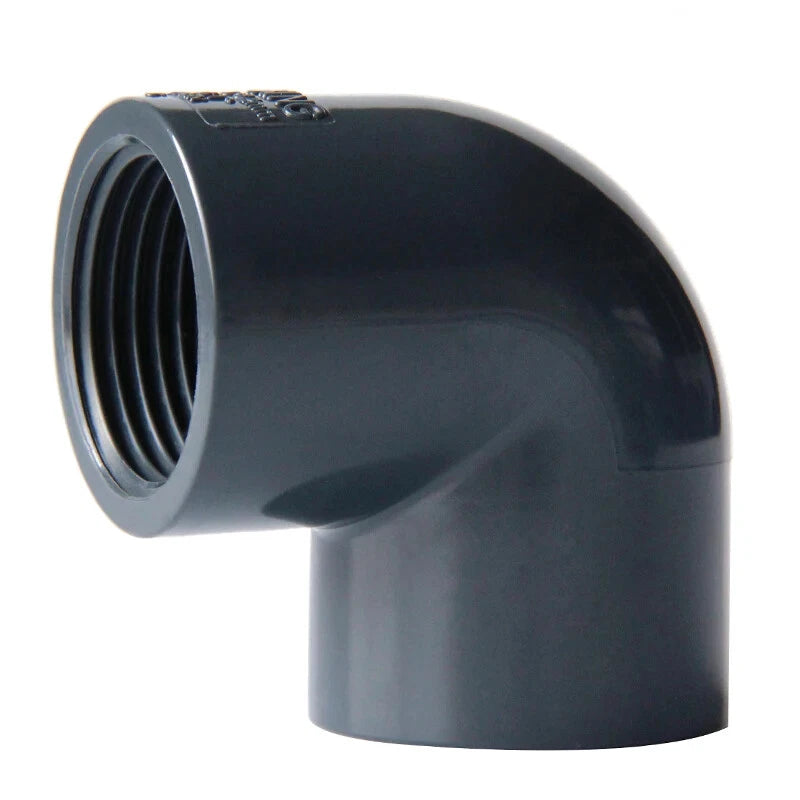

When a pipe run needs to change direction and connect to a threaded port, finding a fitting that seals under pressure without leaking is a constant challenge for plumbers, irrigation installers, and DIY homeowners alike. These PVC 90° elbow female thread pressure fittings deliver a secure solvent-weld socket on one end and a female threaded port on the other, giving you a rigid, leak-resistant 90-degree turn in a single component.

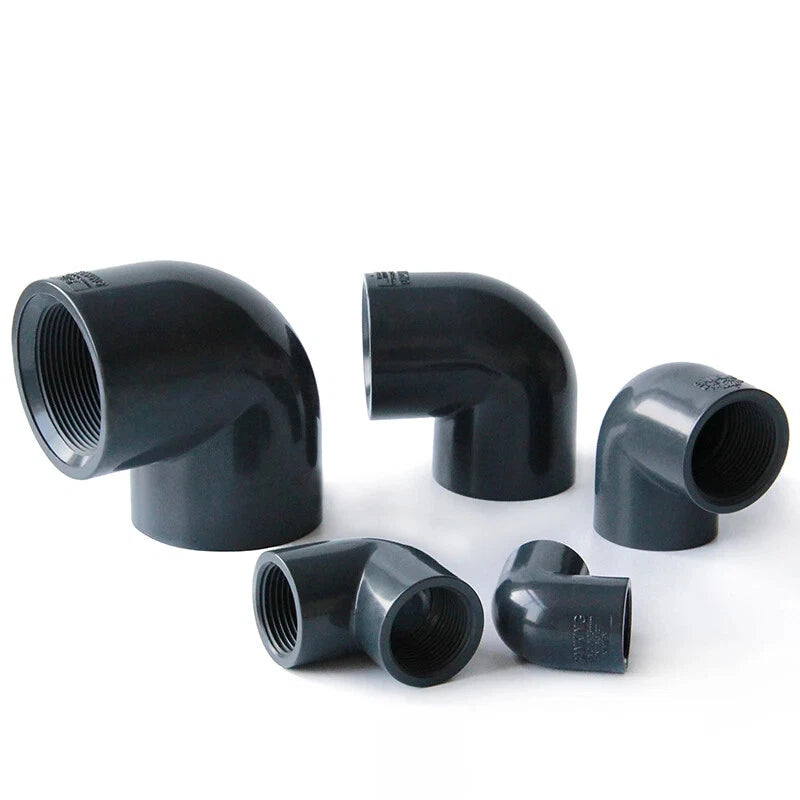

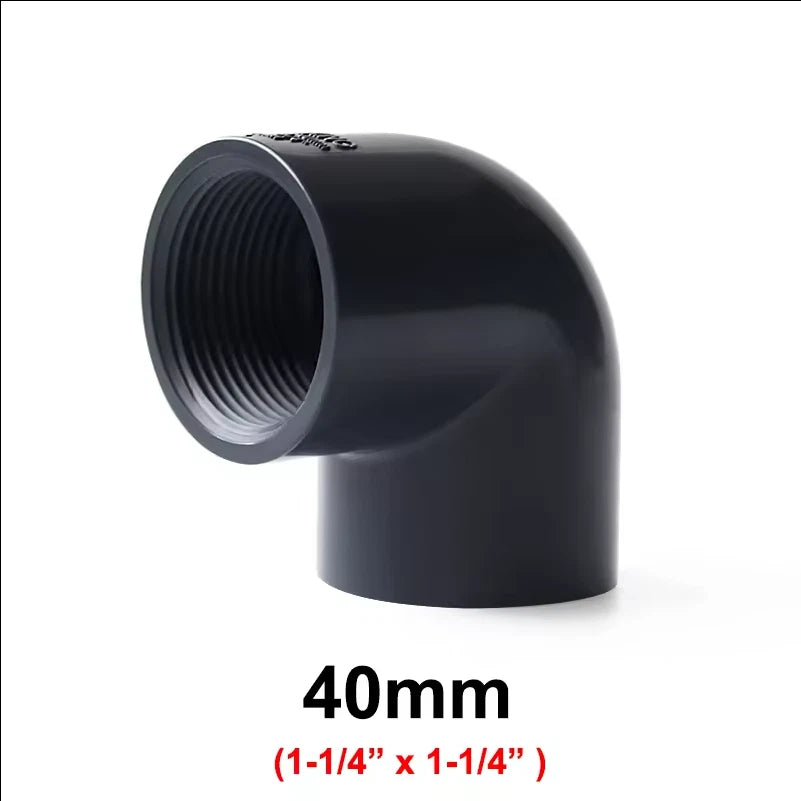

Each fitting is manufactured from rigid Schedule-40-equivalent PVC, offering a smooth bore that minimises flow restriction. Available in six pipe sizes — 20 mm (½"), 25 mm (¾"), 32 mm (1"), 40 mm (1¼"), 50 mm (1½"), and 63 mm (2") — the socket end accepts standard PVC pipe with solvent cement (adhesive), while the female-threaded port accepts BSP or NPT male fittings depending on the variant. Wall thickness and pressure rating vary by size; see variant options for confirmed figures.

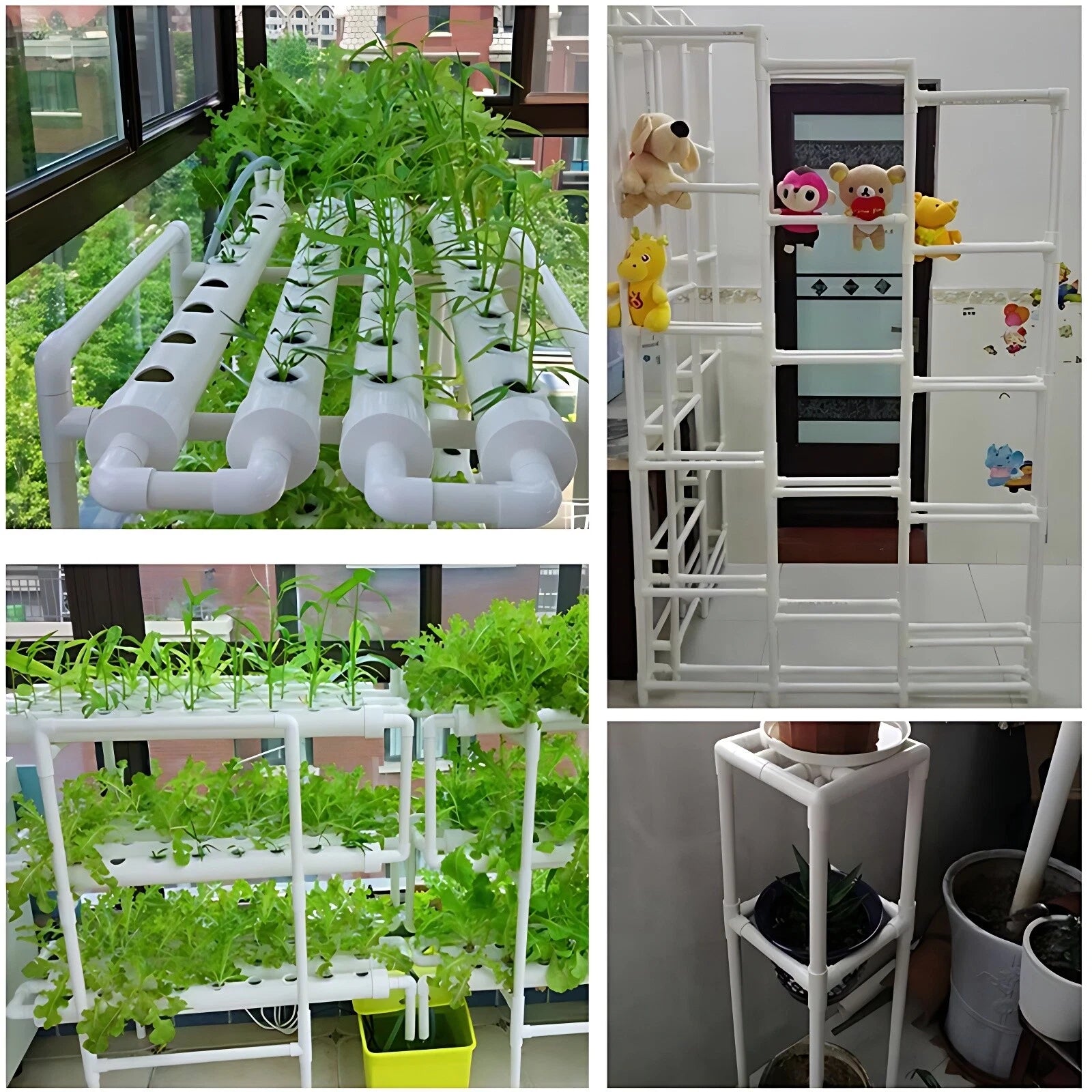

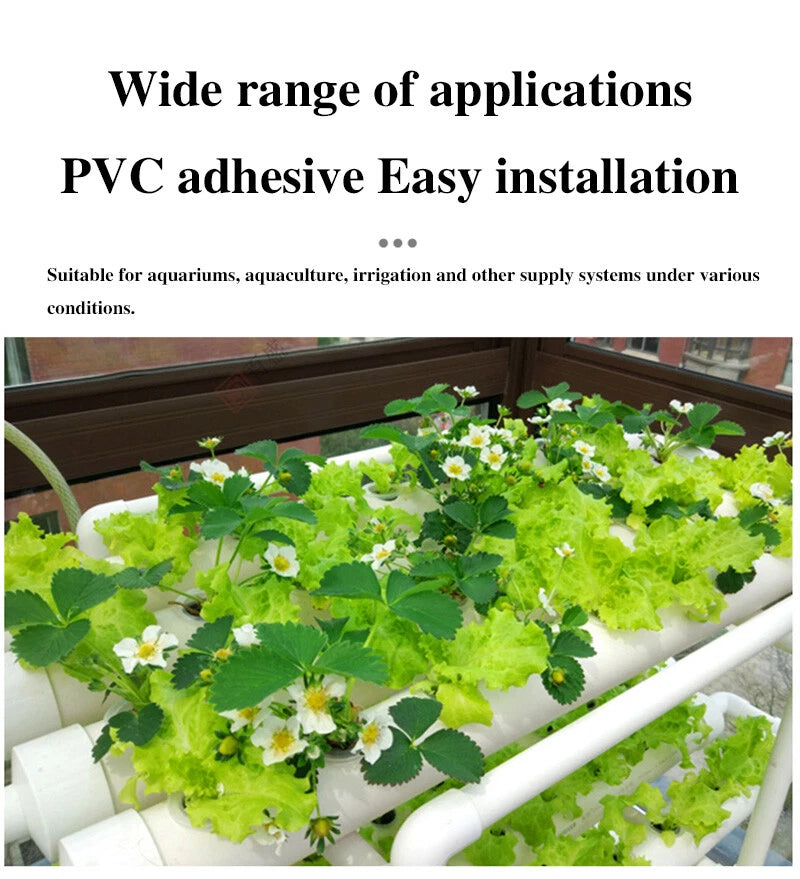

Typical applications include residential cold-water supply lines where a pipe must turn 90° into a wall-mounted valve, drip-irrigation manifolds requiring a threaded tap-off point, and above-ground pool or spa plumbing where a compact elbow saves space. The female thread also makes these fittings ideal as a PVC elbow-to-valve adapter in light commercial HVAC condensate drain systems.

⚙️ Compatibility: Designed for Schedule-40 PVC pipe. Solvent-weld (adhesive) socket end — use with standard PVC solvent cement. Female-threaded port accepts standard male BSP or NPT fittings. Not rated for hot-water or steam service. Confirm thread standard before ordering.

✅ Key Features of These PVC 90° Elbow Female Thread Pressure Fittings

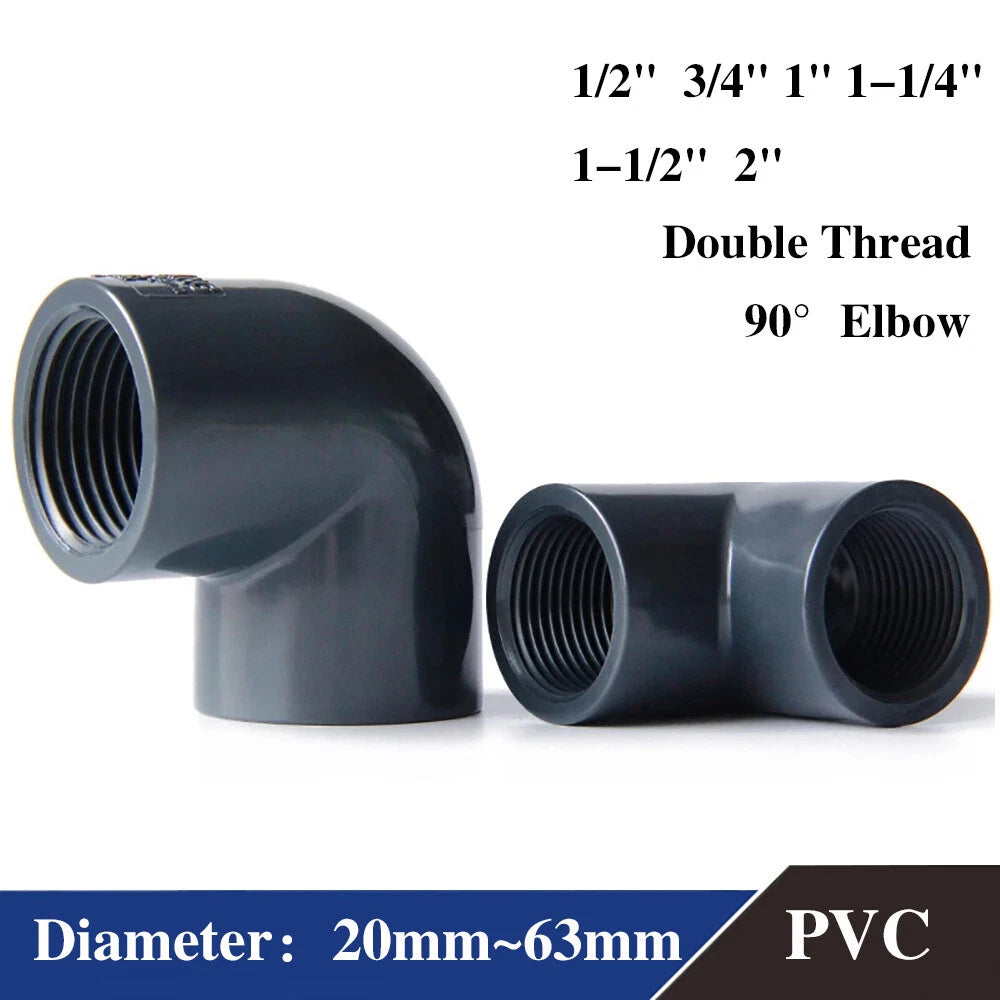

📐Six Size Options (20–63 mm / ½"–2")
Covers the most common residential and light-commercial pipe diameters, from compact ½" runs to full 2" mains, so you can match the fitting precisely to your pipe without reducers.
🔩Dual-Connection Design
One solvent-weld socket end bonds permanently to PVC pipe with standard cement; the opposite female-threaded port allows tool-free connection to male-threaded valves, adapters, or risers — combining two joint types in one body.
💧Pressure-Rated PVC Construction
Rigid PVC body withstands typical cold-water working pressures found in residential supply and irrigation systems (see variant options for rated pressure by size), resisting cracking and deformation under sustained load.
🛡️Corrosion- and Chemical-Resistant
PVC is inherently resistant to rust, scale, and a wide range of common water-treatment chemicals including chlorine, making these elbows suitable for potable water, pool, and irrigation use without protective coatings.
📦Flexible Pack Quantities (1–10 pcs)
Order a single fitting for a one-off repair or up to 10 pieces for a full installation run. Multi-pack pricing reduces per-unit cost, making it practical to stock spares on the job site.
⚡Smooth Bore for Unrestricted Flow
The swept 90° interior geometry minimises turbulence and pressure drop compared to sharp-turn fittings, helping maintain adequate flow rates in irrigation headers and supply branches.

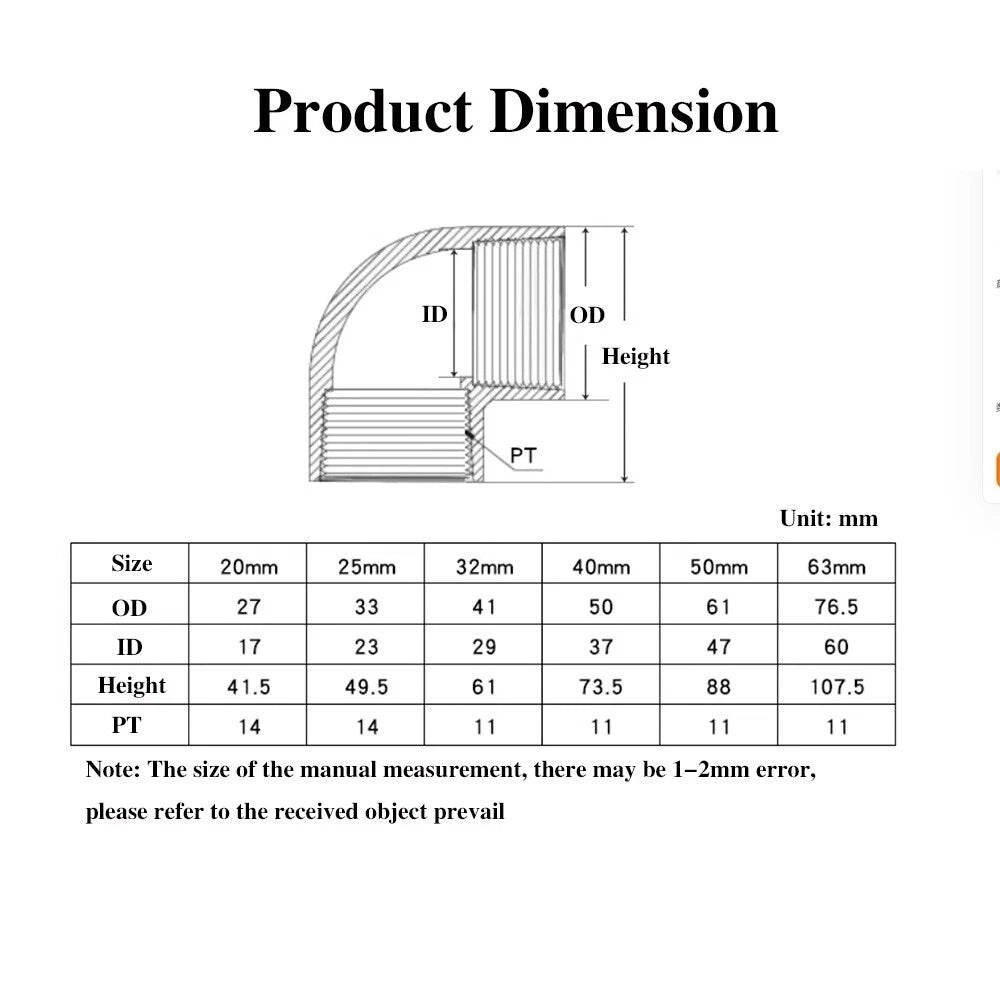

📐 Technical Specifications — PVC 90° Elbow Pressure Fittings

Product Type	90° Elbow, Female Thread × Solvent Socket
Material	Rigid PVC (Polyvinyl Chloride)

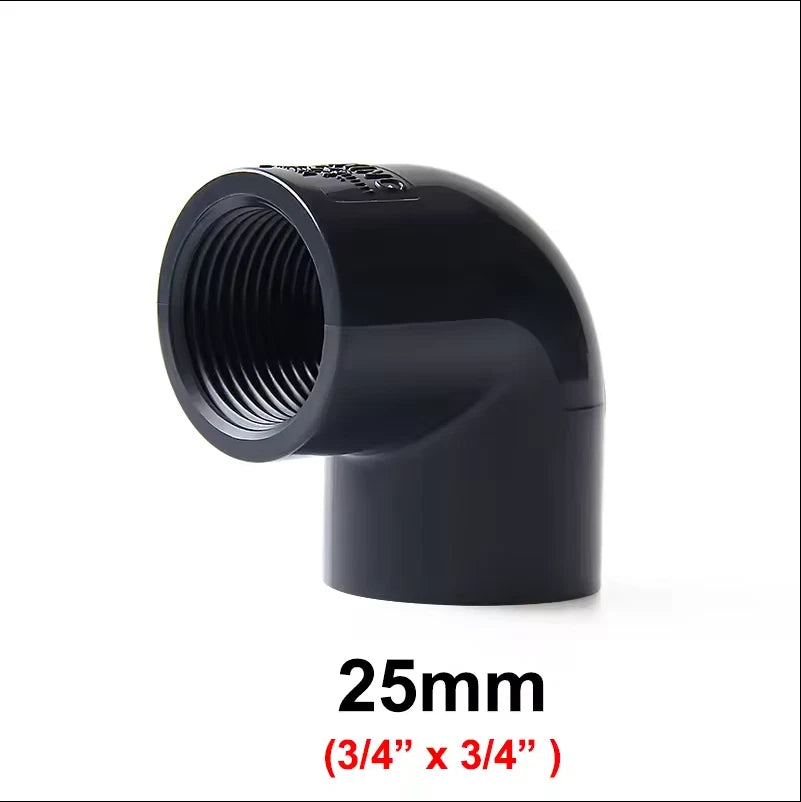

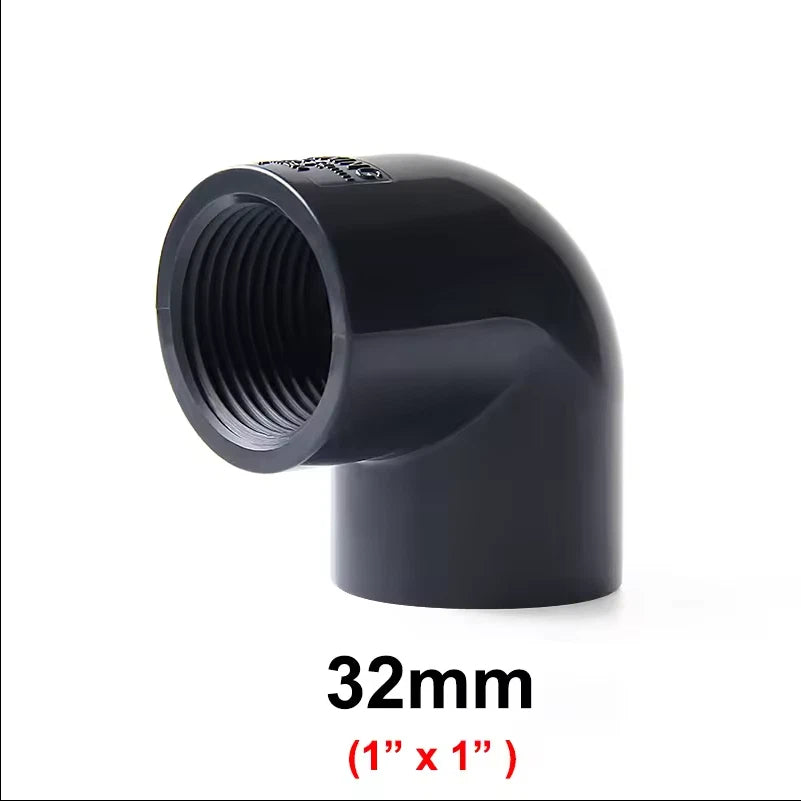

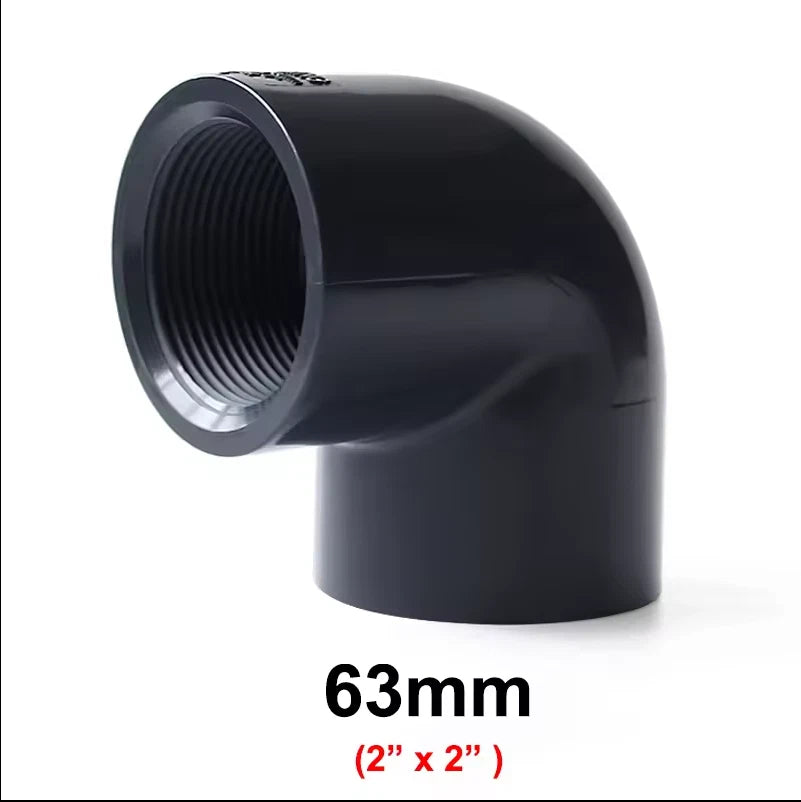

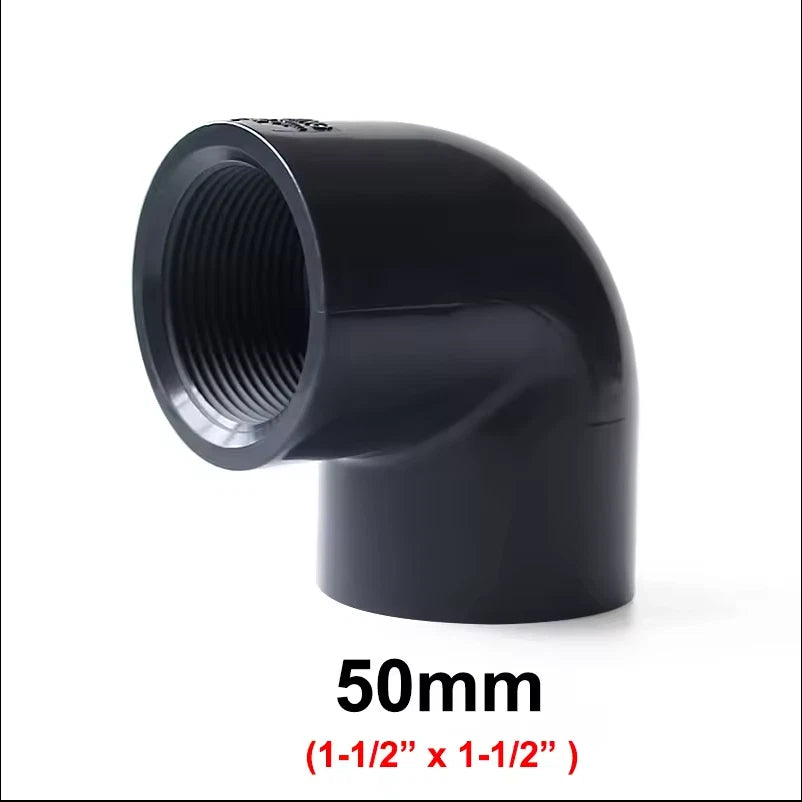

Available Sizes	20 mm (½"), 25 mm (¾"), 32 mm (1"), 40 mm (1¼"), 50 mm (1½"), 63 mm (2")
Socket End Connection	Solvent-weld (adhesive) — compatible with standard PVC cement
Threaded End Connection	Female thread (BSP / NPT — see variant options)
Pressure Rating	See variant options
Wall Thickness	See variant options
Temperature Range	0 °C – 60 °C (32 °F – 140 °F) — cold water service only
Color	White / Light Grey (standard PVC)
Package Quantity	1 / 2 / 3 / 5 / 10 pcs (select above)
Applicable Standards	Contact us to confirm

❓ Frequently Asked Questions

How do I choose the correct size elbow for my pipe?

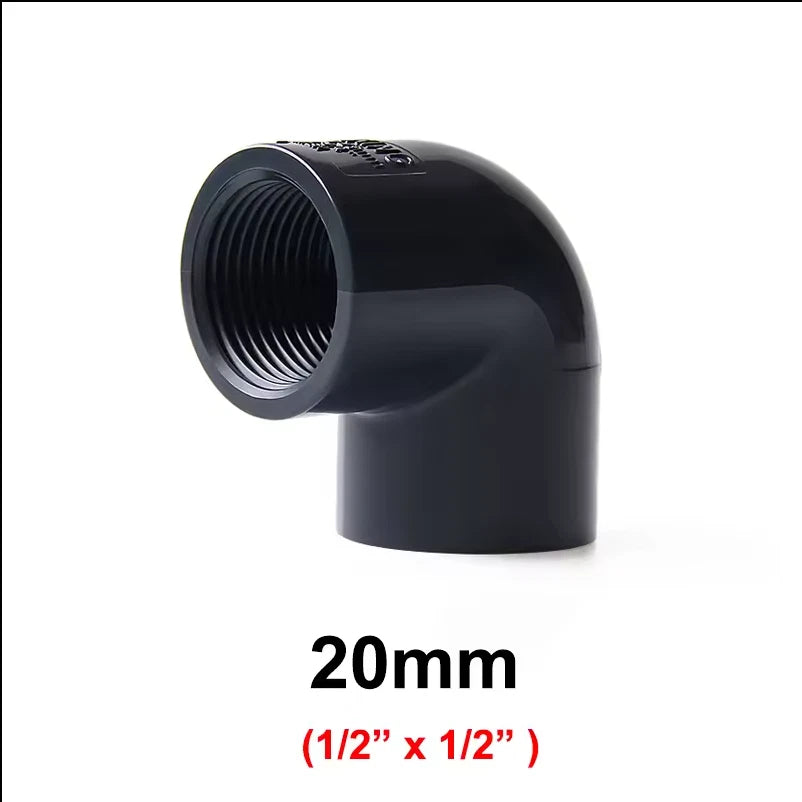

Match the fitting size to your pipe's outer diameter (OD). The size labels on these fittings follow the metric nominal pipe size: 20 mm fits ½" pipe OD, 25 mm fits ¾", 32 mm fits 1", 40 mm fits 1¼", 50 mm fits 1½", and 63 mm fits 2". If you are unsure, measure the outside of your existing pipe with calipers and compare to the listed sizes before ordering.

What thread standard does the female port use — BSP or NPT?

Thread standard can vary by production batch. BSP (British Standard Pipe) and NPT (National Pipe Thread) are not interchangeable — BSP threads have a parallel or tapered profile that differs from NPT's taper angle. Please check the variant description or contact us to confirm the thread standard for your chosen size before purchasing, especially if you are connecting to existing NPT valves common in North American plumbing.

Can these fittings be used for hot water or steam lines?

No. Rigid PVC begins to soften above approximately 60 °C (140 °F) and is not suitable for hot-water supply, steam, or hydronic heating systems. For hot-water applications, use CPVC (rated to ~93 °C / 200 °F) or metal fittings. These elbows are designed for cold-water supply, irrigation, pool/spa, and HVAC condensate drain service only.

What solvent cement should I use to bond the socket end?

Use a standard PVC solvent cement (also called PVC glue or PVC adhesive) rated for pressure pipe. For best results, apply a PVC primer to both the pipe end and the socket interior before cementing — this cleans the surface and softens the PVC for a stronger molecular bond. Allow the joint to cure for the time specified on the cement can (typically 15–30 minutes before handling, 24 hours before full pressure).

Are these fittings safe for potable (drinking) water?

PVC is widely used in potable water distribution worldwide. However, certification to NSF/ANSI 61 or equivalent drinking-water standards depends on the specific production batch. If your application requires certified potable-water compliance, please contact us to confirm certification status before ordering.

Why should I order a multi-pack instead of individual fittings?

Multi-pack options (2, 3, 5, or 10 pcs) reduce the per-unit cost and ensure you have spares on hand for a full installation run or future repairs. Irrigation systems and plumbing rough-ins often require multiple elbows of the same size, so ordering a pack avoids delays from re-ordering mid-project. Unused fittings store indefinitely when kept dry and away from UV exposure.

How do I prevent leaks at the female-threaded connection?

Wrap the male threads of the mating fitting with 2–3 layers of PTFE (Teflon) thread-seal tape before threading in. Tighten hand-tight plus approximately 1–2 turns with a wrench — over-tightening can crack the PVC female thread. Do not use pipe dope (thread compound) unless it is specifically rated as PVC-safe, as some compounds can attack PVC over time.

🛒 Select your Size and Package Quantity above, then add to cart.
