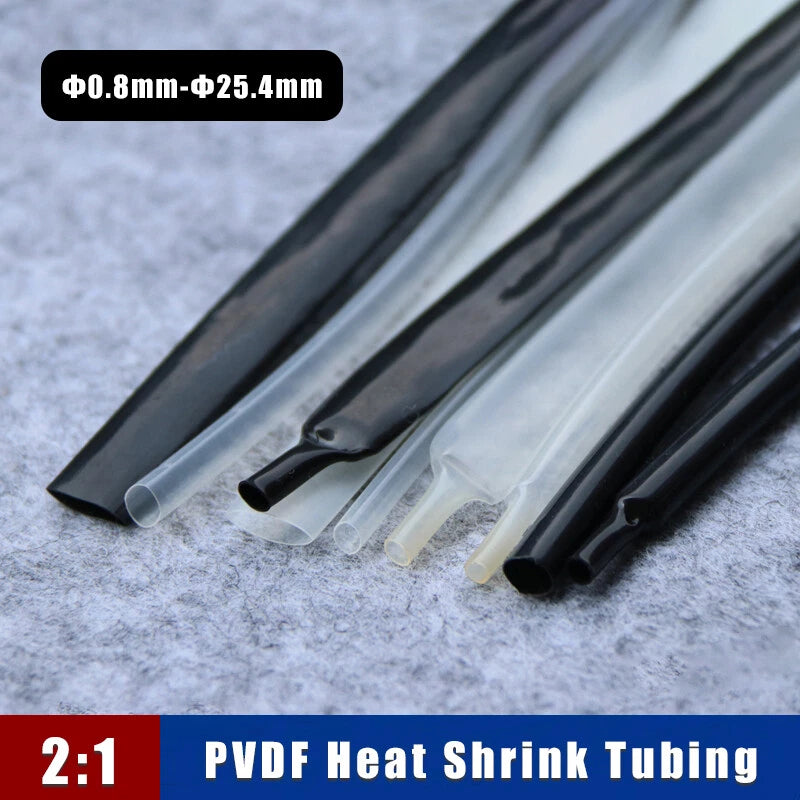

PVDF Heat Shrink Tubing 2:1 Ratio — φ0.8mm to φ25.4mm, 175°C Rated, Black & Transparent

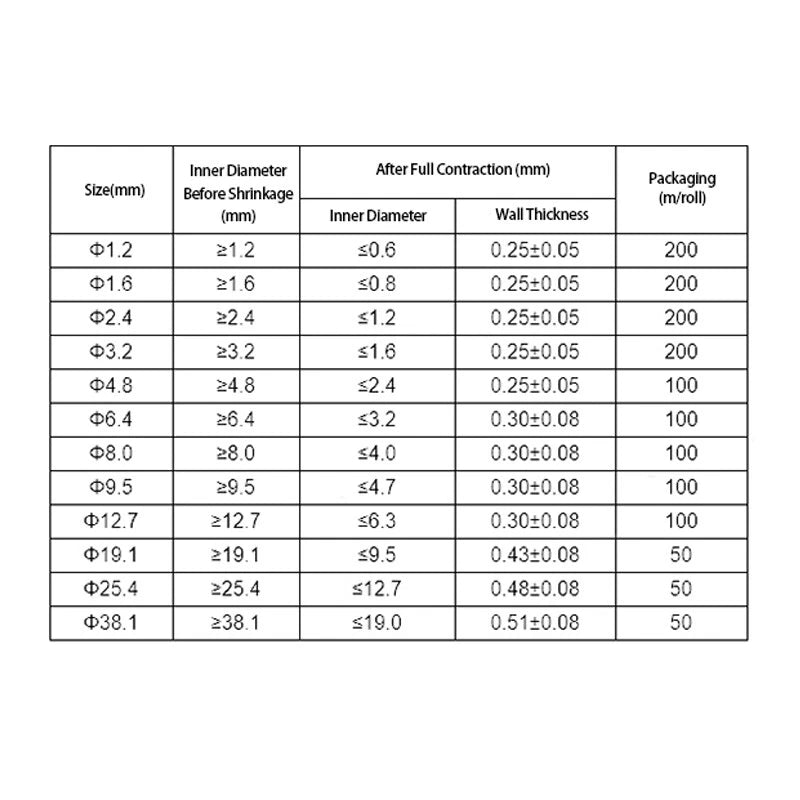

Measure the outer diameter of the bundle or wire you need to cover. Choose a tubing size whose recovered (shrunk) diameter is slightly smaller than your wire OD, and whose expanded diameter is larger. For example, if your wire bundle is 4mm in diameter, a φ4.8mm tube will typically shrink down to approximately 2.4mm — enough to grip firmly. When in doubt, size up one step.

A 2:1 shrink ratio means the tubing will shrink to approximately half its original expanded diameter when heat is applied. For example, a φ6.4mm tube will generally recover to around φ3.2mm. This ratio is suitable for most standard wire insulation and bundling applications.

PVDF heat shrink tubing typically requires a higher activation temperature than standard polyolefin tubing — generally around 175°C (347°F) or above. A heat gun set to 200–250°C is typically sufficient. Avoid open flames, which can cause uneven shrinkage or scorching.

Yes. PVDF (polyvinylidene fluoride) is inherently resistant to UV radiation, moisture, and a wide range of chemicals including acids, bases, and solvents. It is generally well-suited for outdoor installations, marine environments, and industrial settings where chemical exposure is a concern.

PVDF is generally resistant to most acids, aliphatic and aromatic hydrocarbons, alcohols, and halogens. It is not recommended for use with strong bases (e.g., concentrated sodium hydroxide) or certain ketones at elevated temperatures. Contact us to confirm compatibility with your specific chemical environment.

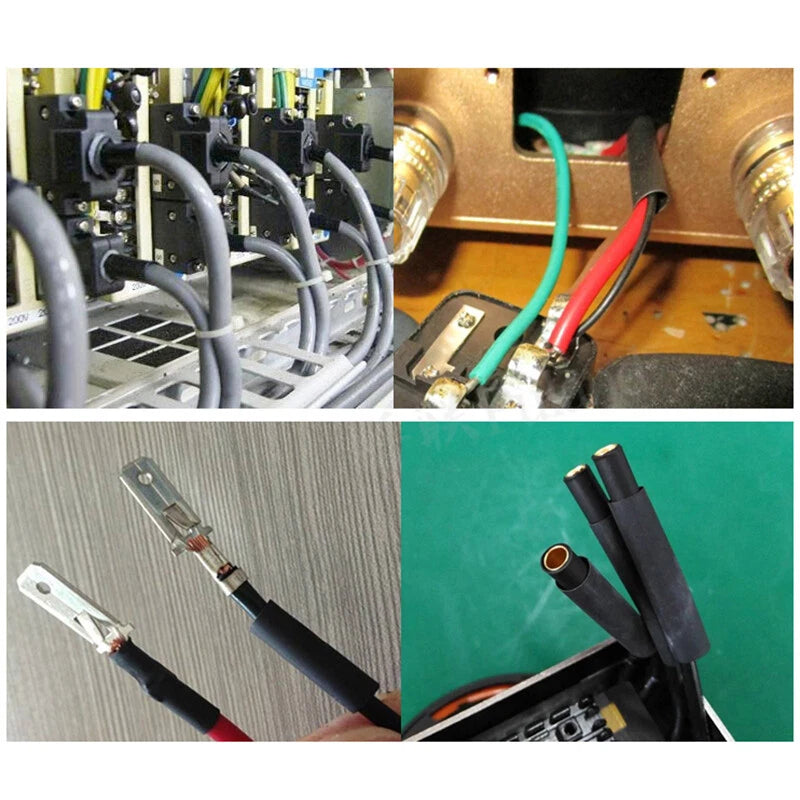

PVDF heat shrink tubing generally offers good dielectric properties and is used in many electrical insulation applications. However, voltage rating depends on wall thickness and the specific application. For safety-critical or high-voltage installations, please confirm the dielectric strength with your engineer or contact us for specifications.

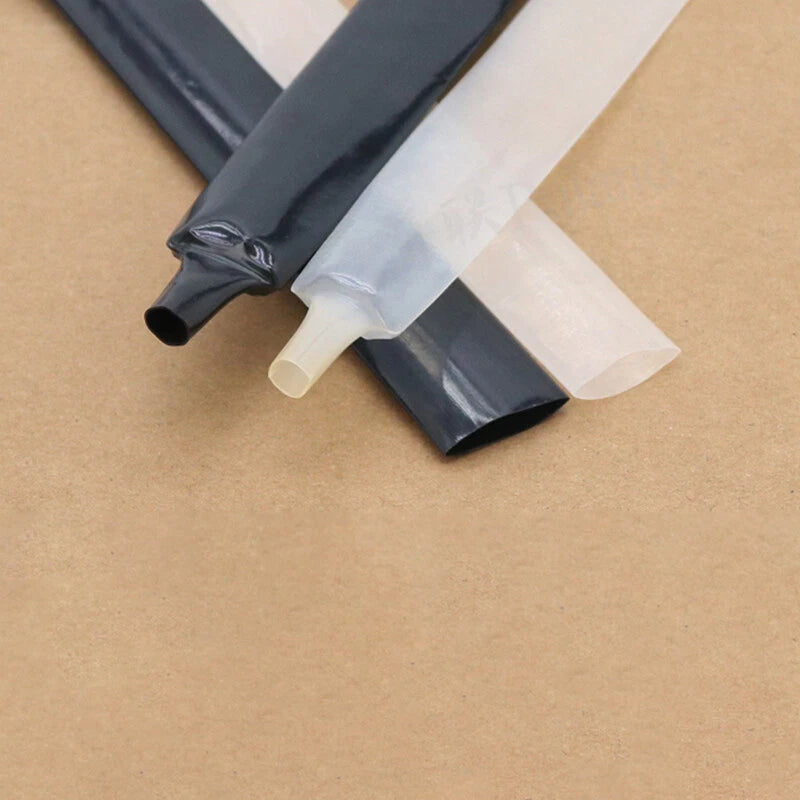

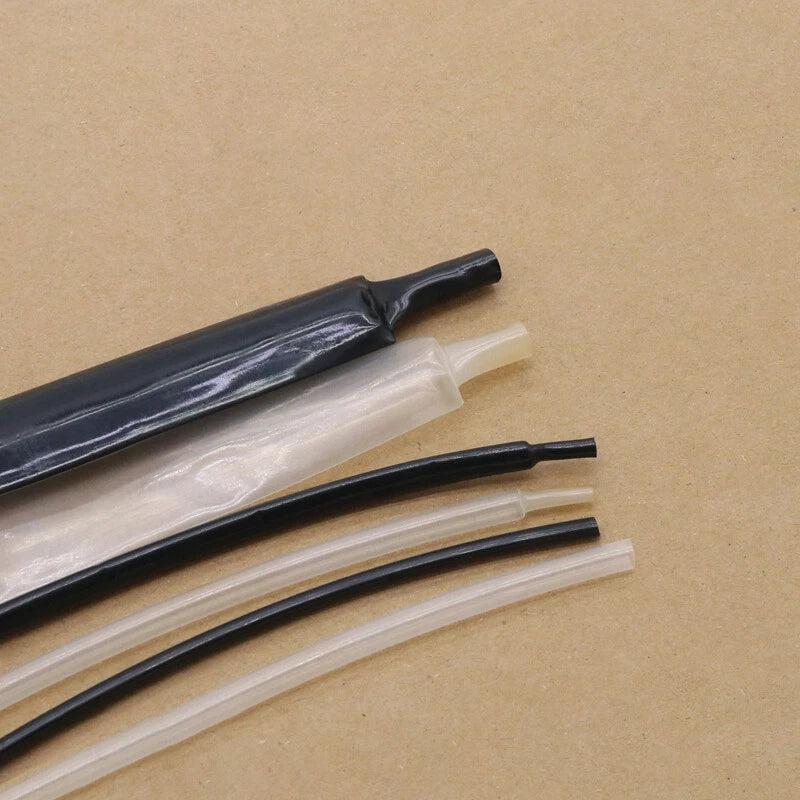

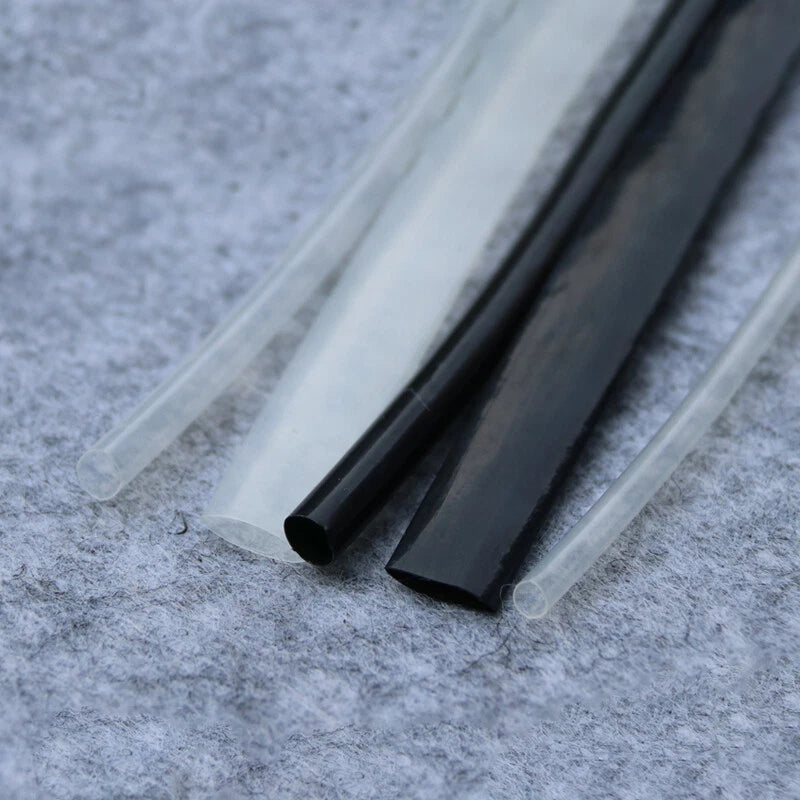

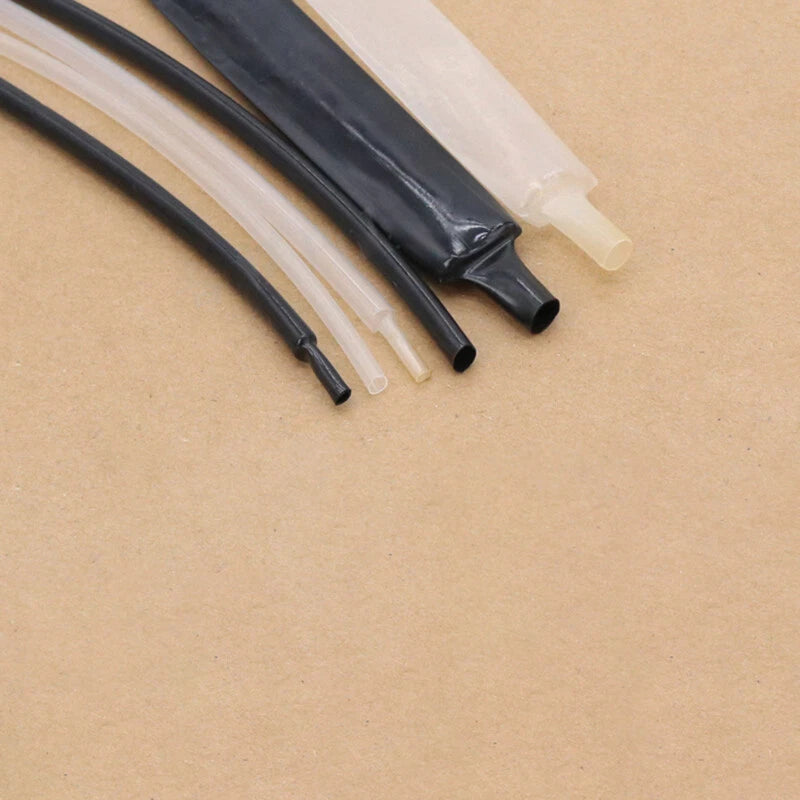

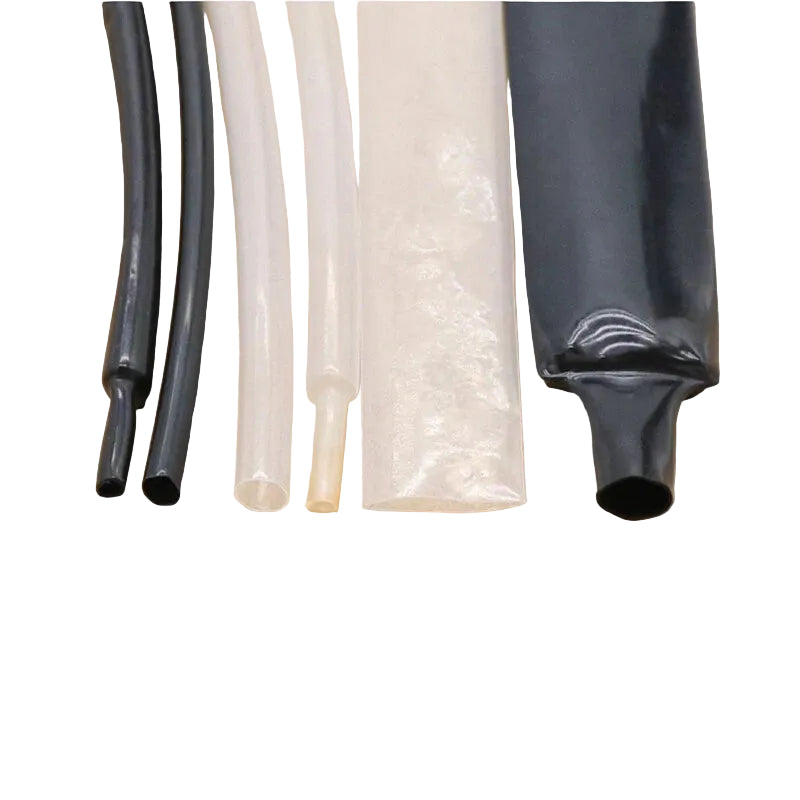

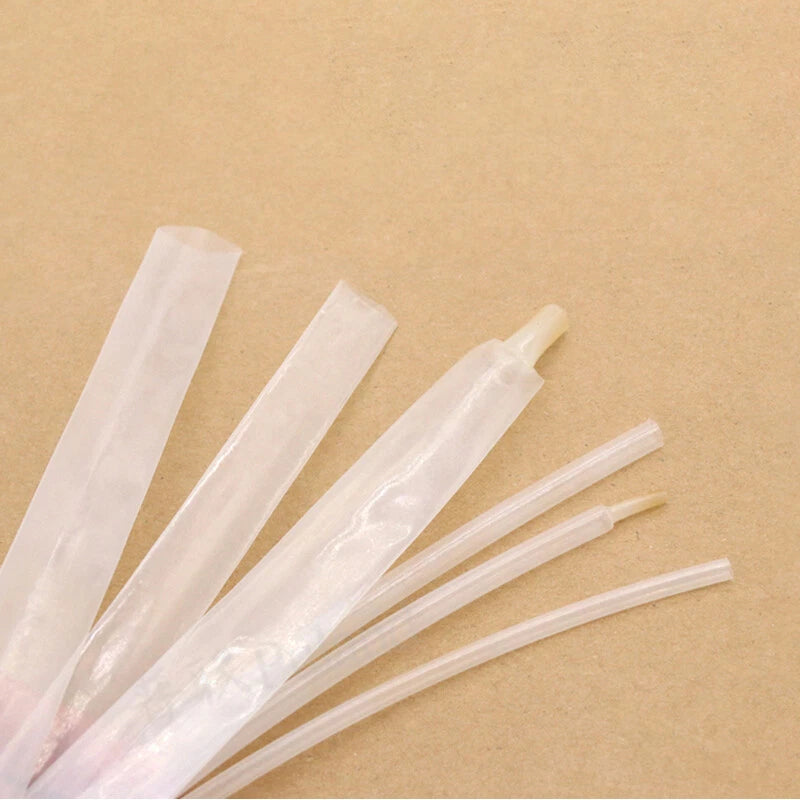

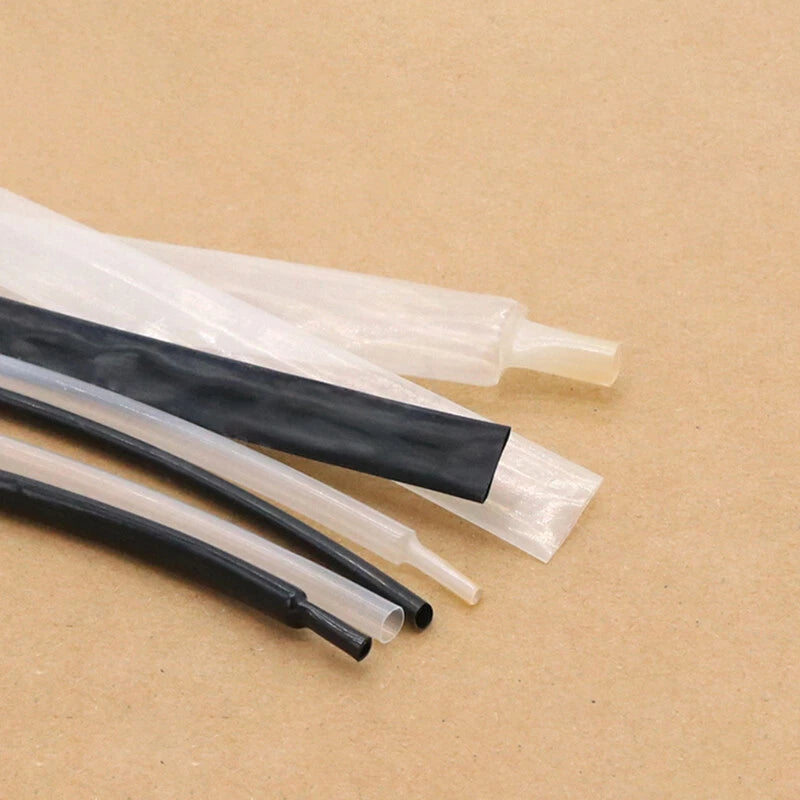

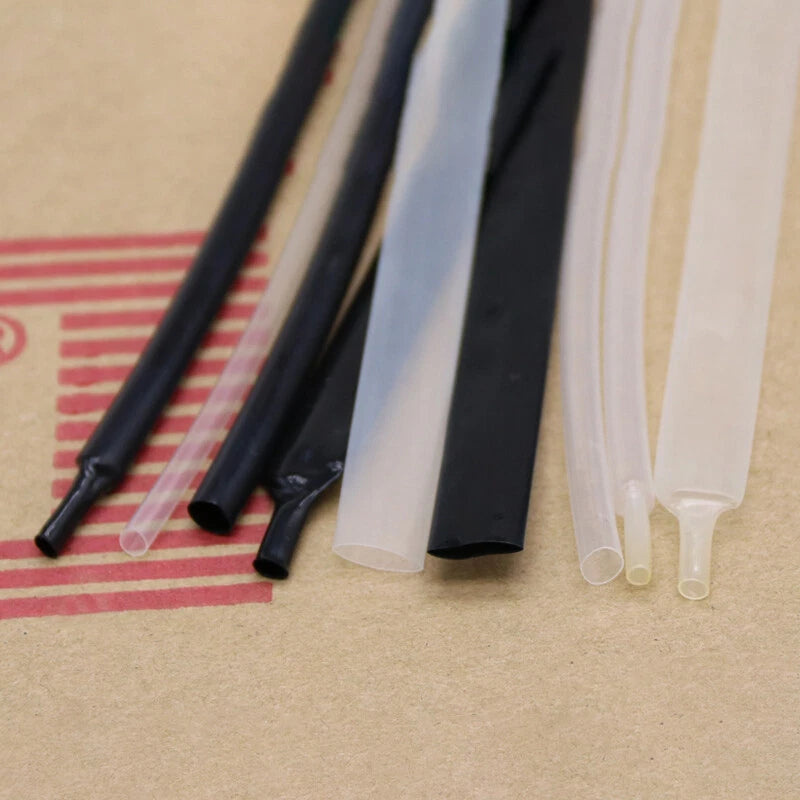

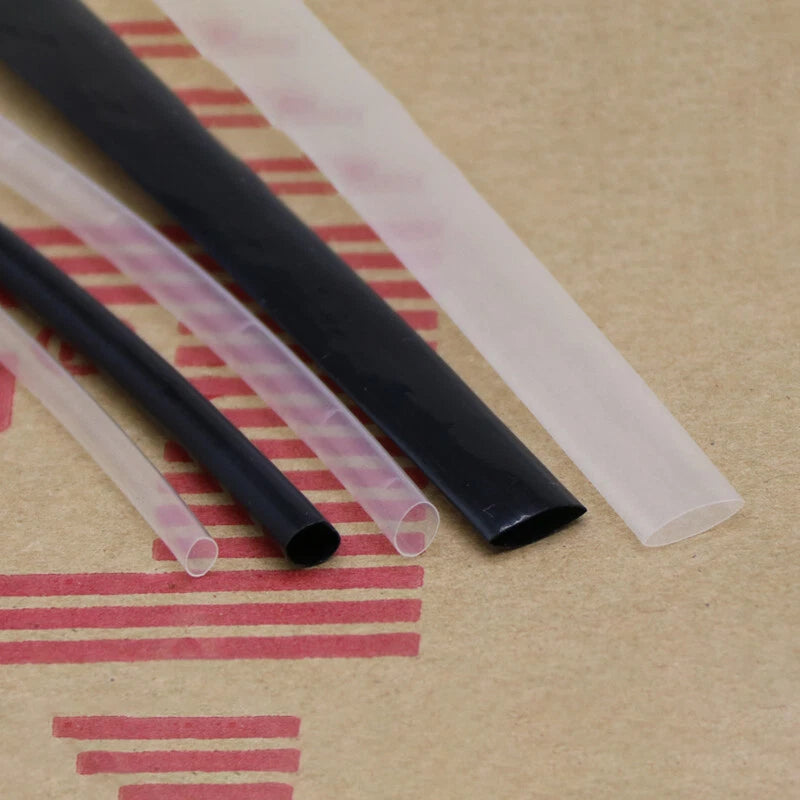

Both colors share the same PVDF material and performance characteristics. Transparent tubing allows visual inspection of the wire or component underneath after installation — useful for color-coded wiring or quality checks. Black tubing provides UV shielding and a cleaner finished appearance in most industrial applications.

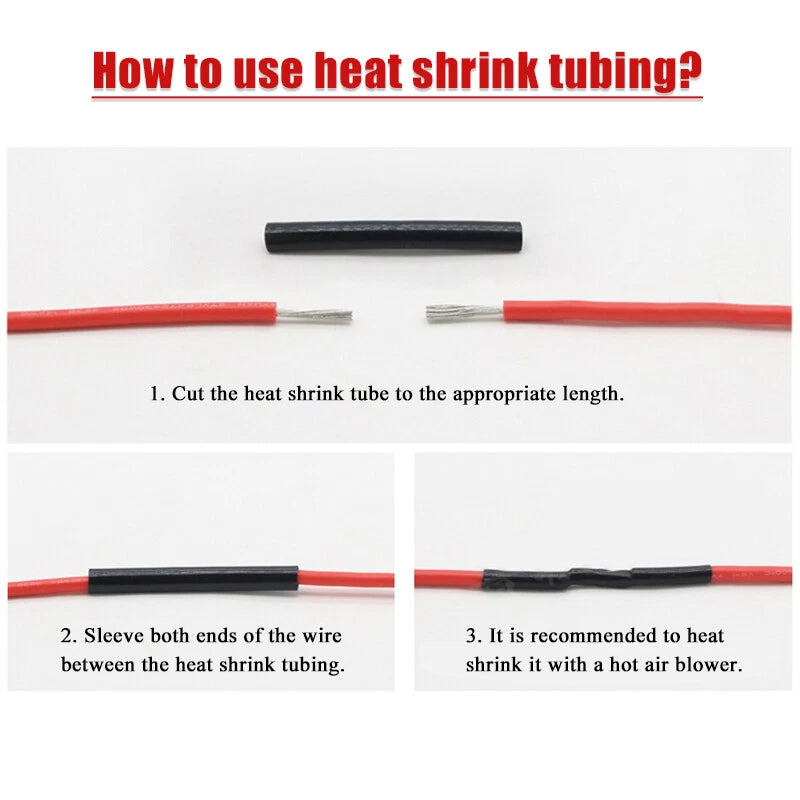

Use sharp scissors or a utility knife on a flat surface. PVDF is stiffer than standard polyolefin tubing, so a clean, straight cut is easier to achieve before shrinking. Cut slightly longer than needed — typically add 5–10mm — to account for any end pull-back during the shrinking process.
