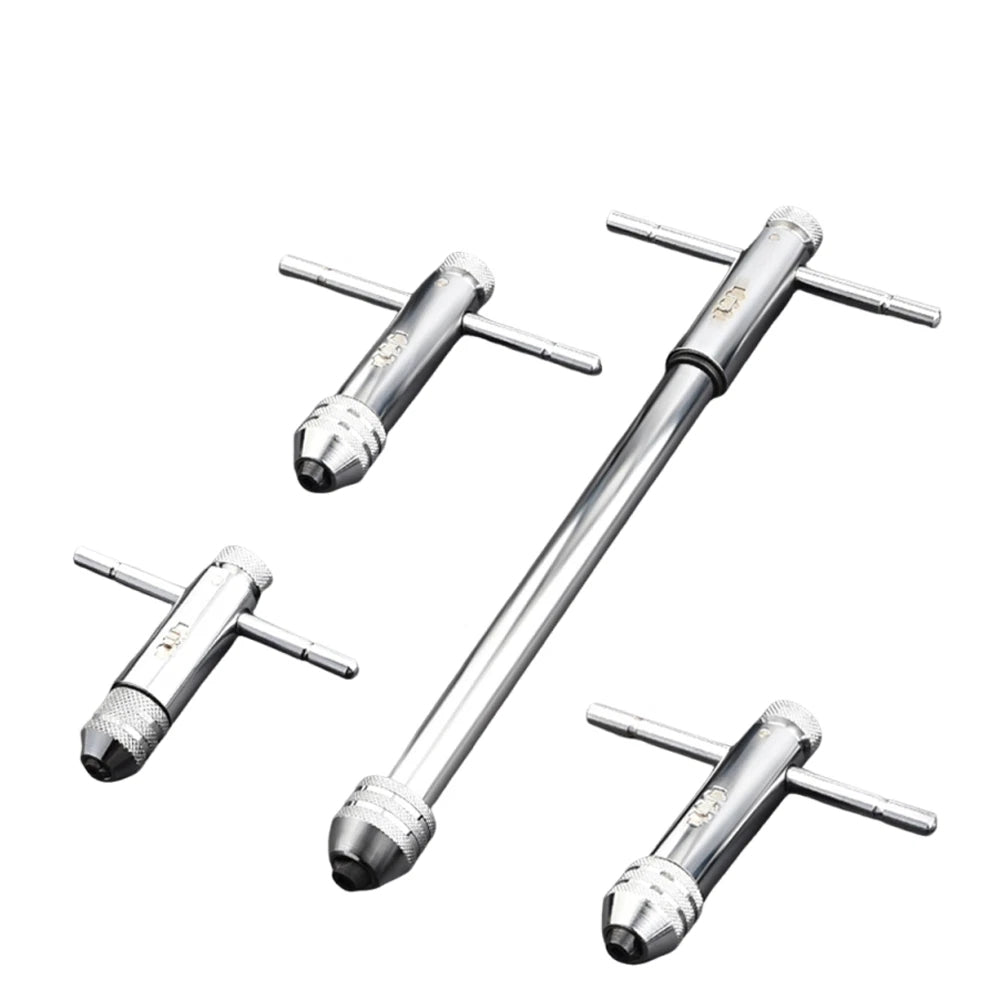

Ratchet Tap Wrench, Holder For Use With Hand Taps/Sets M1 - M8 & M5 - M12 Metric

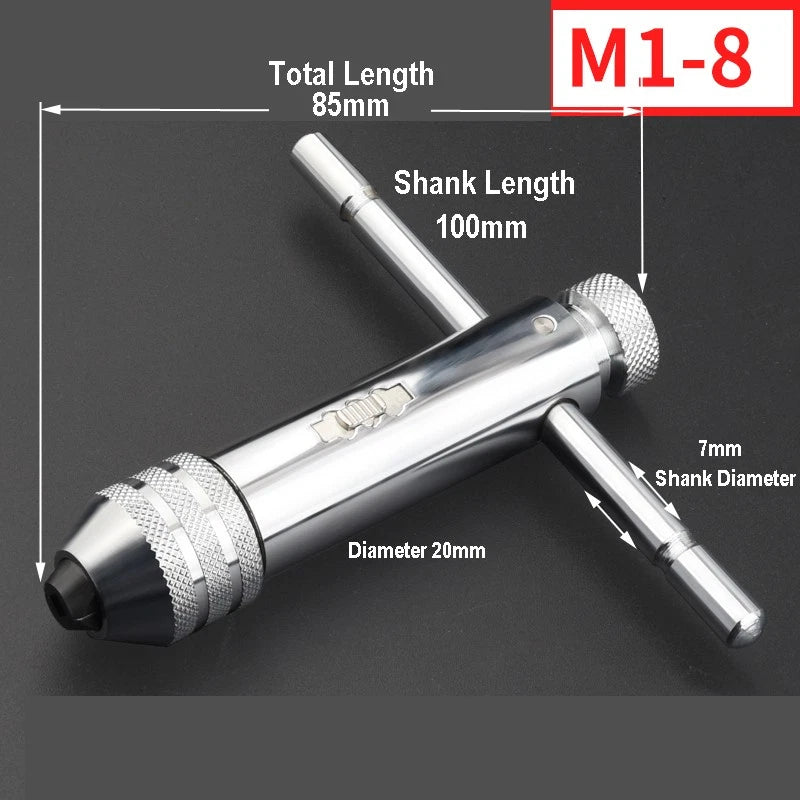

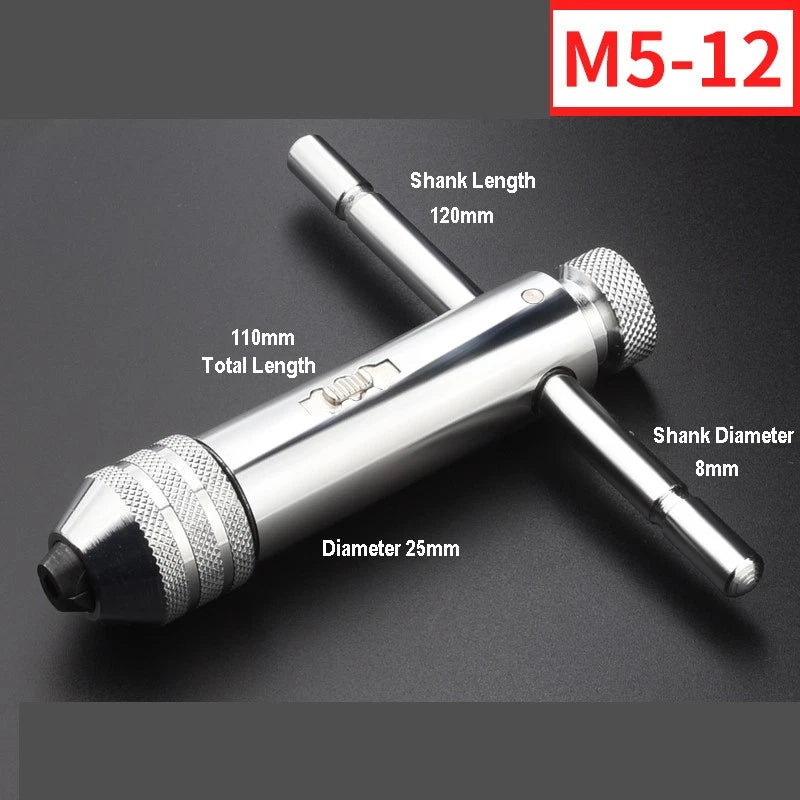

The size range refers to the tap shank diameter the chuck can grip. If your hand taps are M1 through M8 (shank diameter approximately 1–8 mm), select the M1–M8 variant. If your taps are M5 through M12 (shank approximately 5–12 mm), select the M5–M12 variant. For taps in the M5–M8 overlap, either range will work — choose based on which other tap sizes you also need to accommodate.

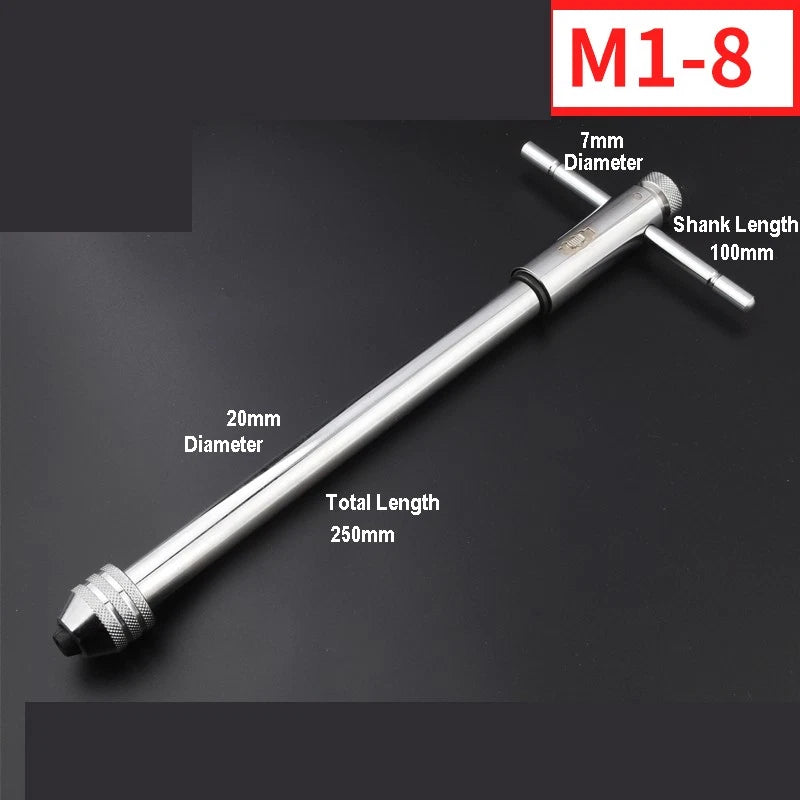

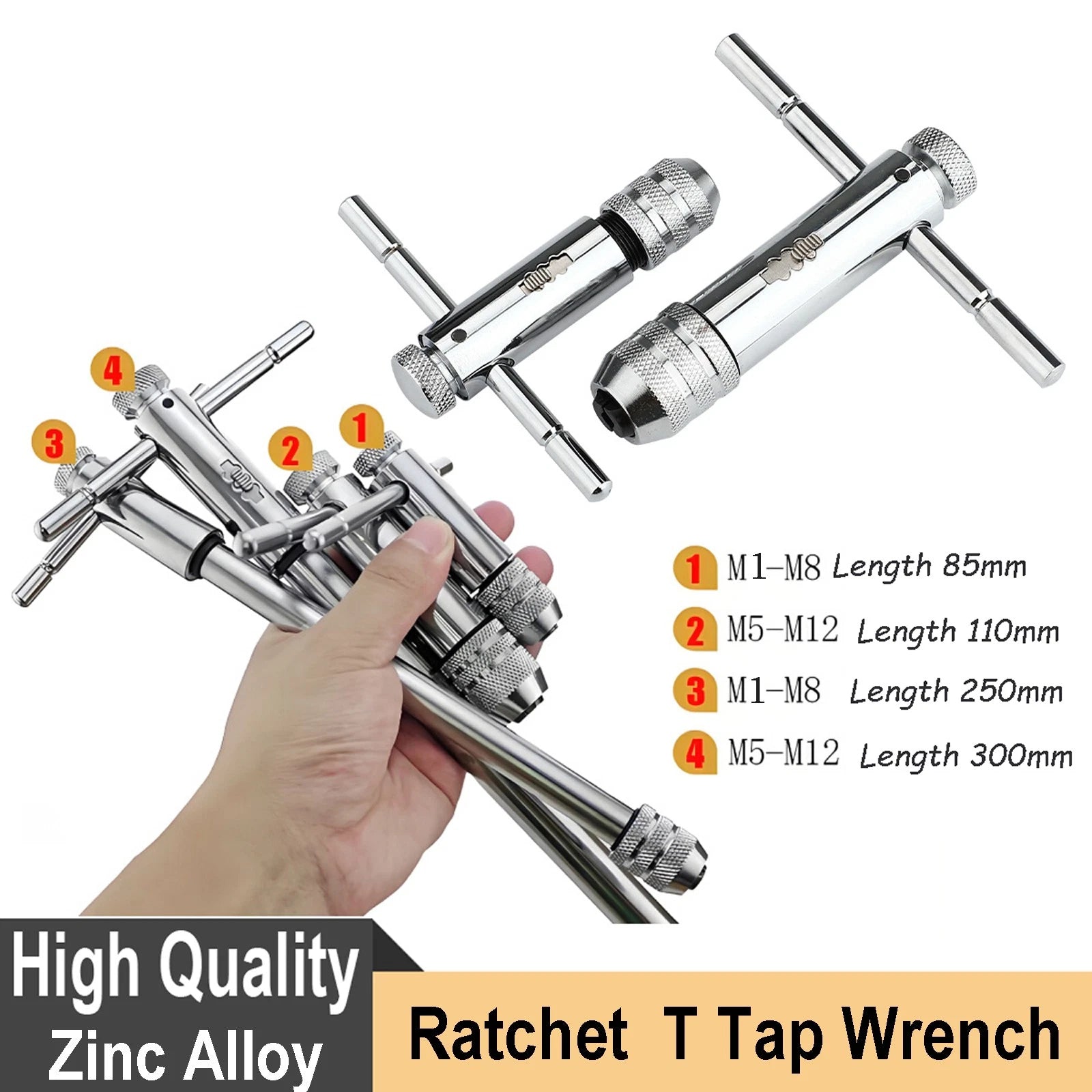

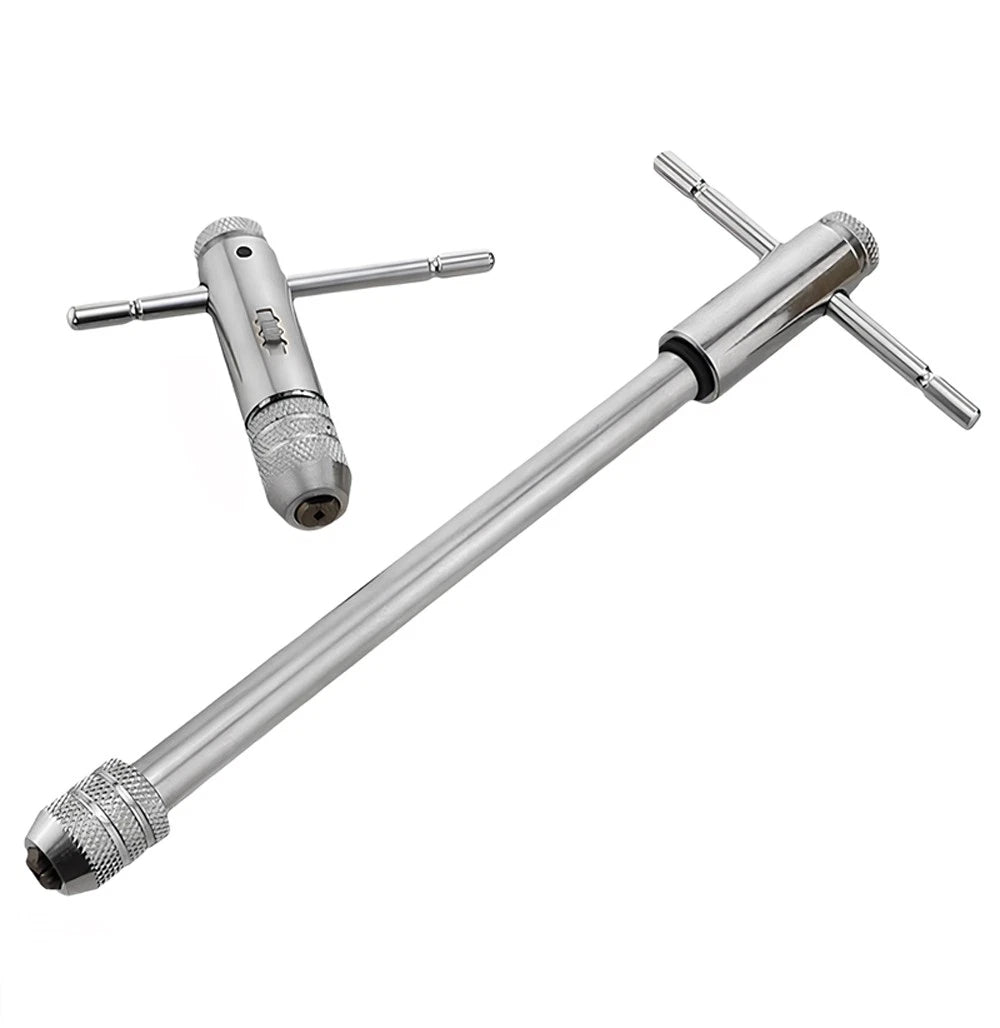

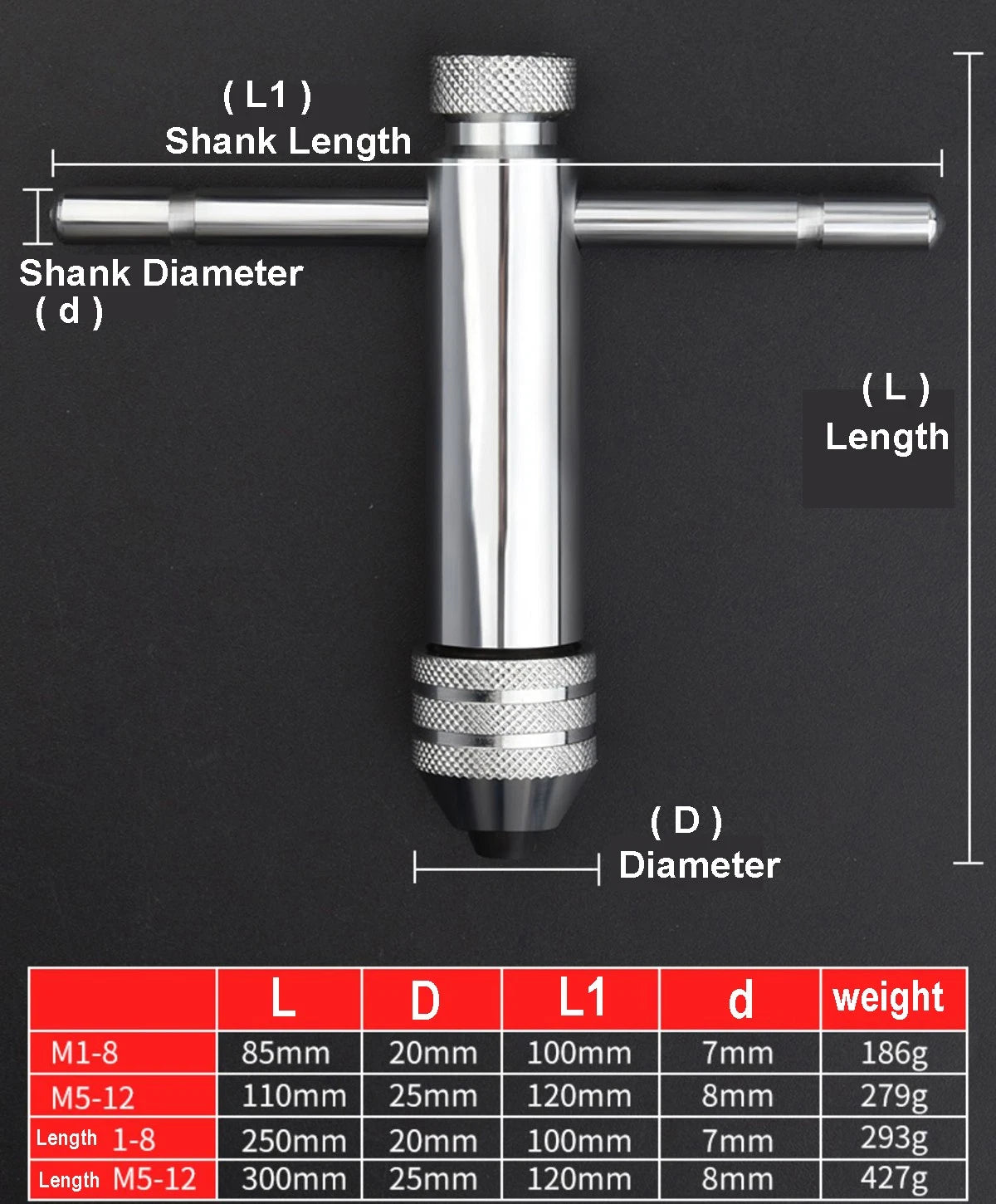

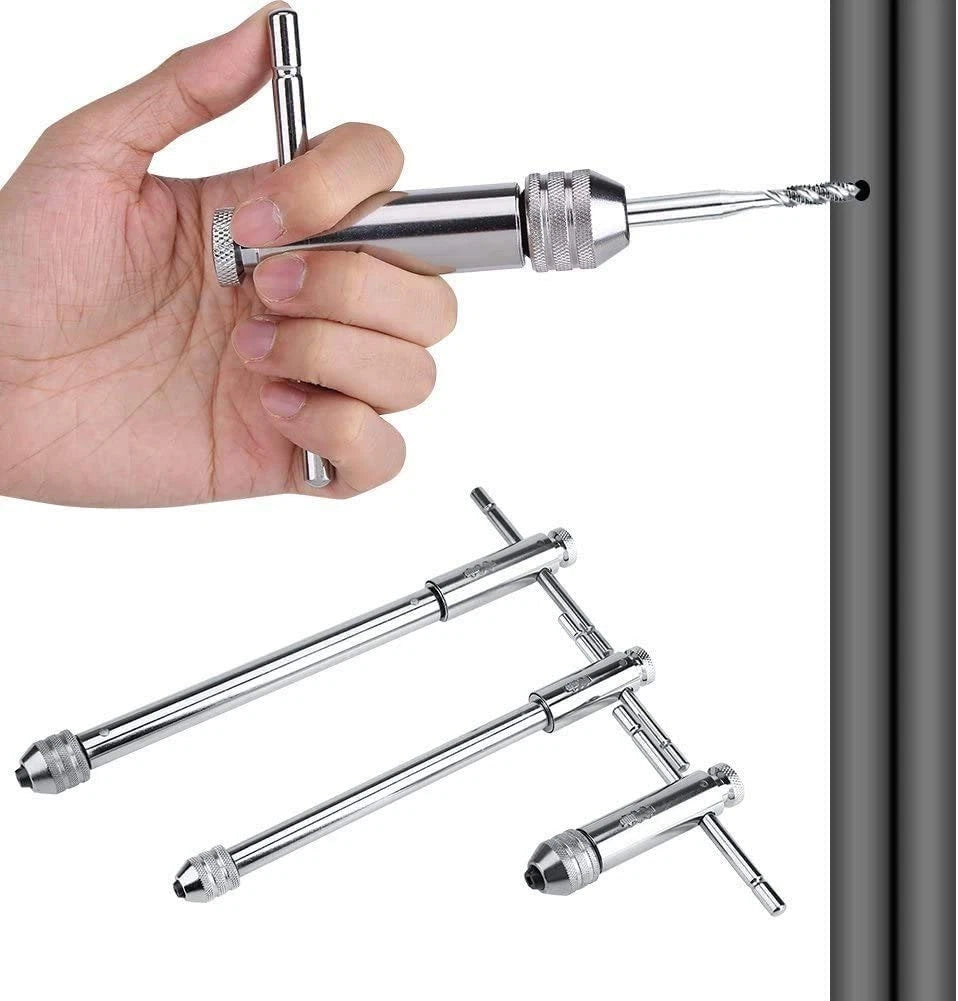

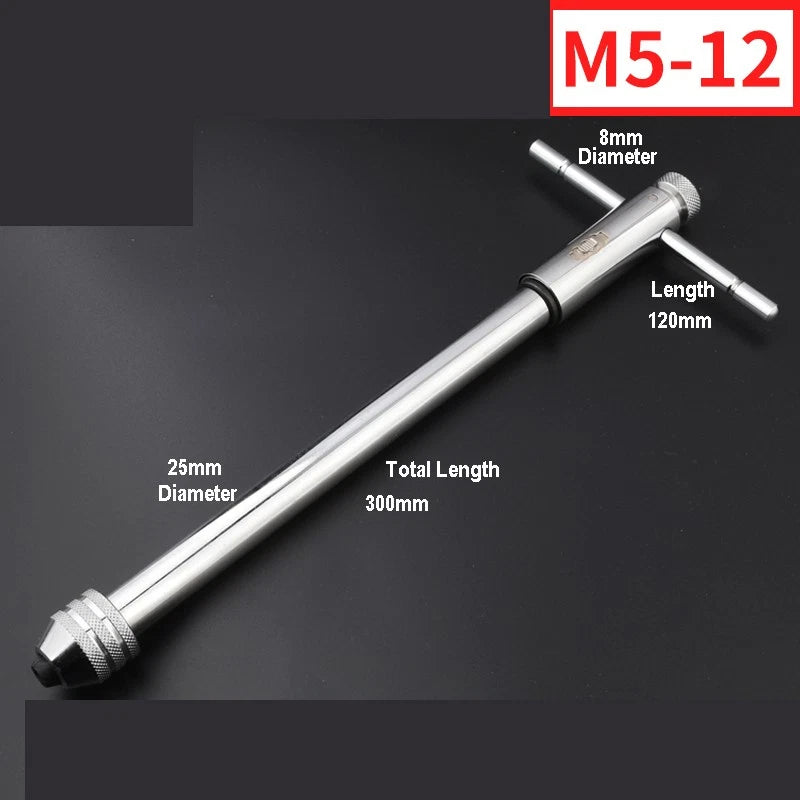

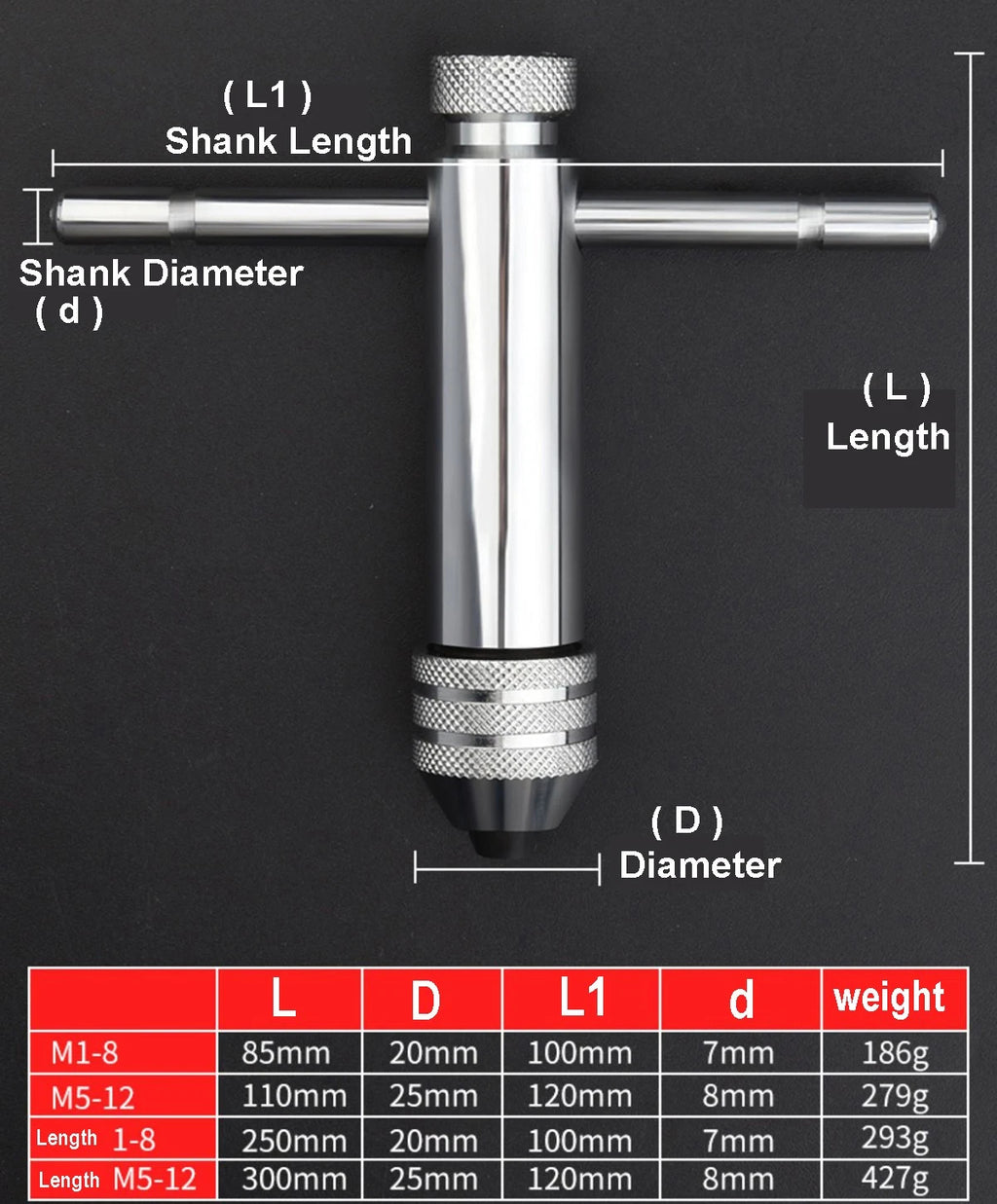

Shorter lengths (85 mm and 110 mm) are suited to standard bench threading where you have full hand clearance around the workpiece. Longer lengths (250 mm and 300 mm) provide extended reach for threading holes inside enclosures, deep cavities, or assemblies where a short handle would not clear surrounding structure. As a general rule, use the shortest length that gives you adequate clearance to avoid flex and maintain alignment.

The wrench is designed and sized for metric tap shanks. Many imperial (UNC/UNF) taps have shank diameters that fall within the same physical range as metric taps of similar size, so the chuck may grip them — however, compatibility is not guaranteed for all imperial tap shank profiles. Check your tap's shank diameter against the chuck range before use.

The ratchet is designed for hand-tapping loads typical of M1–M12 metric threads in materials such as aluminum, mild steel, brass, and plastics. It is not intended for power-assisted use or for tapping hardened steel, which requires torque levels beyond what a hand tap wrench should deliver. For best results, apply steady, controlled pressure and use cutting fluid when tapping steel.

Tapping stainless steel is possible with hand taps but requires significantly more torque and careful technique regardless of the wrench used. This ratchet tap wrench can be used for stainless steel in smaller tap sizes (M1–M6 range) with appropriate cutting fluid and slow, deliberate strokes. For larger taps in stainless or hardened alloys, a heavier-duty tap wrench or machine tapping is recommended to avoid tap breakage.

Multi-packs are useful when you need to cover both size ranges simultaneously (e.g., one M1–M8 and one M5–M12 wrench set up for different taps), when equipping multiple workstations in a shop, or when you want a spare on hand in case of loss or damage. The per-unit cost is lower in multi-packs, making them a practical choice for workshops that tap threads regularly.

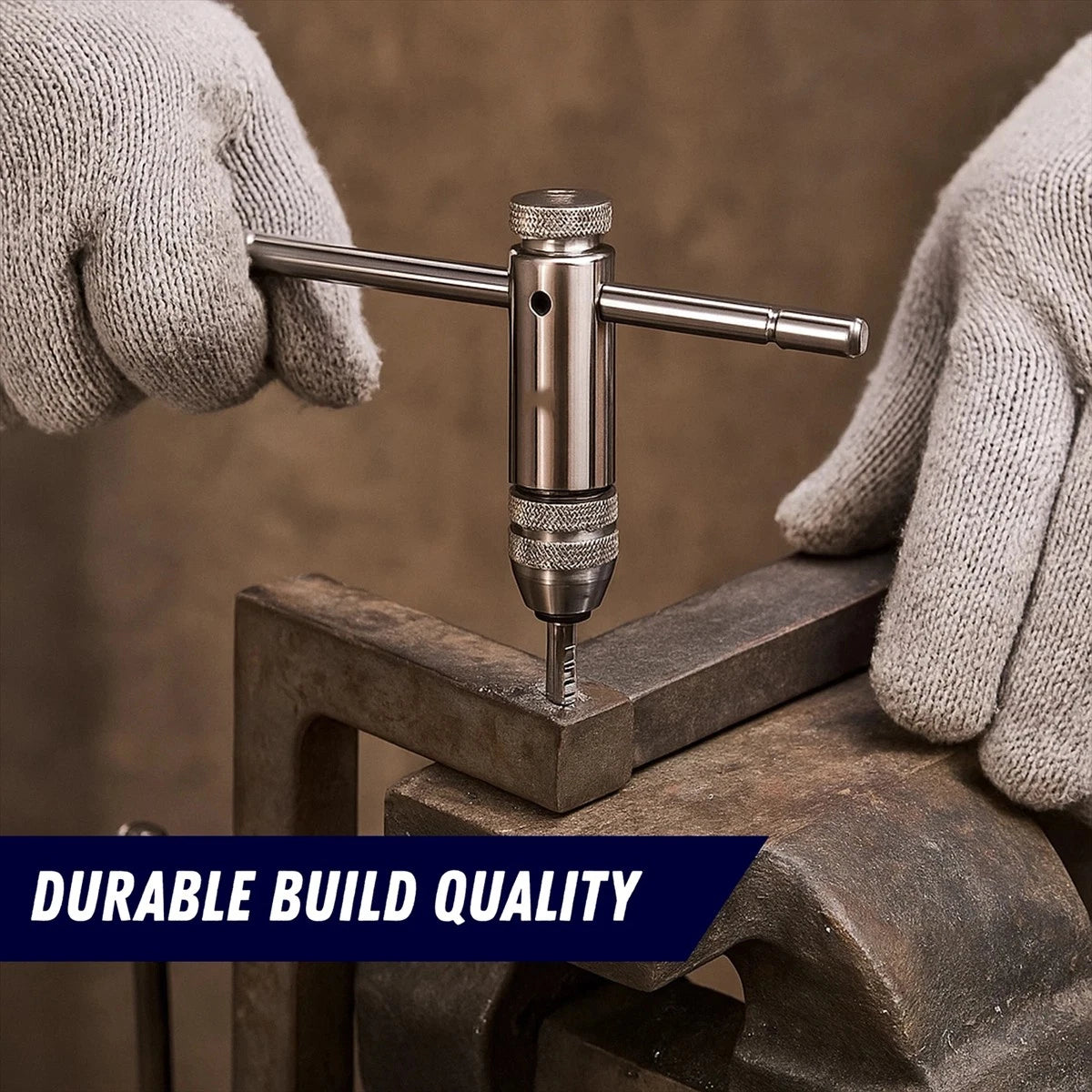

Tap breakage is most often caused by misalignment, insufficient lubrication, or forcing the tap through chips. To minimize risk: start the tap perpendicular to the workpiece surface, use cutting fluid appropriate for your material, advance the tap half a turn then back off a quarter turn to break chips, and never force the tap if you feel unusual resistance. The balanced handle on this wrench helps maintain alignment, but technique remains the most important factor.
