Reducing Y-Type Hose Barb Tee Fitting — Split or Merge Tubing Lines Without Leaks
Whether you're building a drip irrigation network, routing aquarium water lines, or splitting an air supply across multiple zones, finding a reducing tee fitting that actually holds without leaking is a constant challenge. These reducing Y-type hose barb tee fittings are designed for DIYers, hobbyists, and small-scale builders who need a reliable, no-fuss connector between tubes of different diameters.
Each fitting is a single-piece plastic tee connector with three barbed ports arranged in a Y configuration. The size format follows a Branch-Run-Branch notation — for example, 4-8-4 means two 4mm (≈5/32") branch ports and one 8mm (≈5/16") main run port. Available sizes range from 4mm to 12mm port diameters, covering the most common flexible tubing sizes used in irrigation, aquariums, pneumatic lines, and laboratory setups. Sold individually or in multi-packs of 2, 5, or 10 pieces.
Typical use cases include drip irrigation line splitting for garden beds, aquarium and fish tank water routing, small-scale pneumatic air distribution, and DIY hydroponics tubing networks — anywhere a compact reducing tee connector for flexible hose is needed.
🔗
Compatibility: Fits standard flexible tubing (silicone, PVC, vinyl, polyurethane) with matching inner diameters. Size format: Branch-Run-Branch in mm. Check your tubing's inner diameter before ordering.
⚠️
Note: These are low-pressure fittings. Not suitable for high-pressure hydraulic, steam, or compressed gas lines above typically 60 PSI. If you need confirmation for your specific application, contact us before purchasing.
✅ Key Features of These Reducing Y-Type Hose Barb Tee Fittings
-
🔀True Reducing Y Configuration — Three-port barb design lets you connect two smaller branch lines to one larger main run, or split a single line into two — ideal for drip irrigation line splitting and aquarium plumbing.
-
🛡️Corrosion-Resistant Plastic Construction — Made from rigid engineering-grade plastic (typically polypropylene), these fittings won't rust, corrode, or degrade in contact with fresh water, making them a durable choice for outdoor and wet environments.
-
📐Multiple Size Options in One Listing — Available in nine size combinations from 4mm to 12mm ports (e.g., 4-6-4, 6-10-6, 10-12-10), so you can match the exact tubing inner diameter for a snug, leak-resistant barb connection.
-
🔒Barbed Grip for Secure Sealing — The ribbed barb profile bites into flexible tubing to create a mechanical seal without adhesives or thread tape — compatible with silicone hose, PVC tubing, vinyl, and polyurethane flexible hose.
-
⚡Tool-Free Installation — Push the tubing onto each barb by hand; no wrenches, solvents, or special tools required. Fittings can generally be removed and reused when tubing is cut back, reducing waste on iterative builds.
-
📦Flexible Pack Quantities — Order 1, 2, 5, or 10 pieces per size to match your project scale — whether you need a single replacement fitting or a supply for a larger DIY hydroponics or irrigation system build.
📐 Technical Specifications — Reducing Y-Type Plastic Hose Barb Tee Connector
| Product Type |
Reducing Y-Type Hose Barb Tee Fitting |
| Configuration |
3-port Y-tee (Branch – Run – Branch) |
| Size Format |

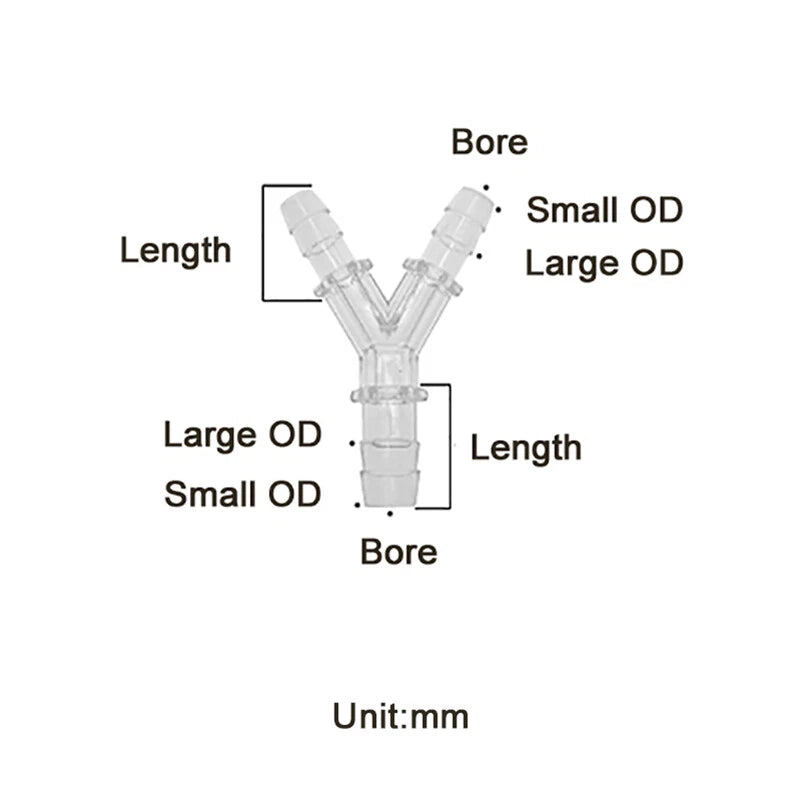

Branch-Run-Branch inner diameter in mm (e.g., 4-8-4) |
| Available Sizes |

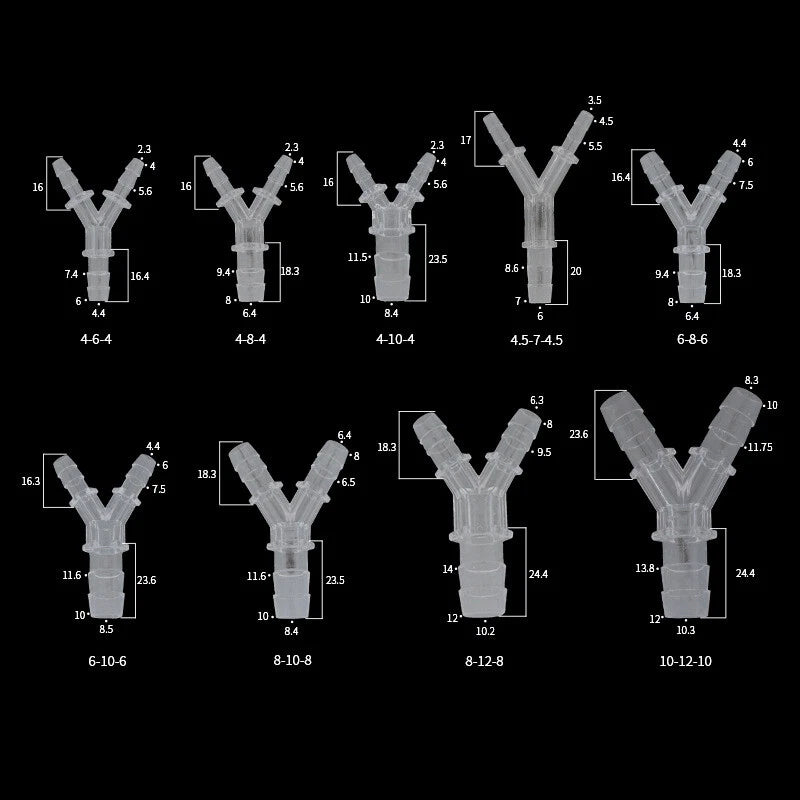

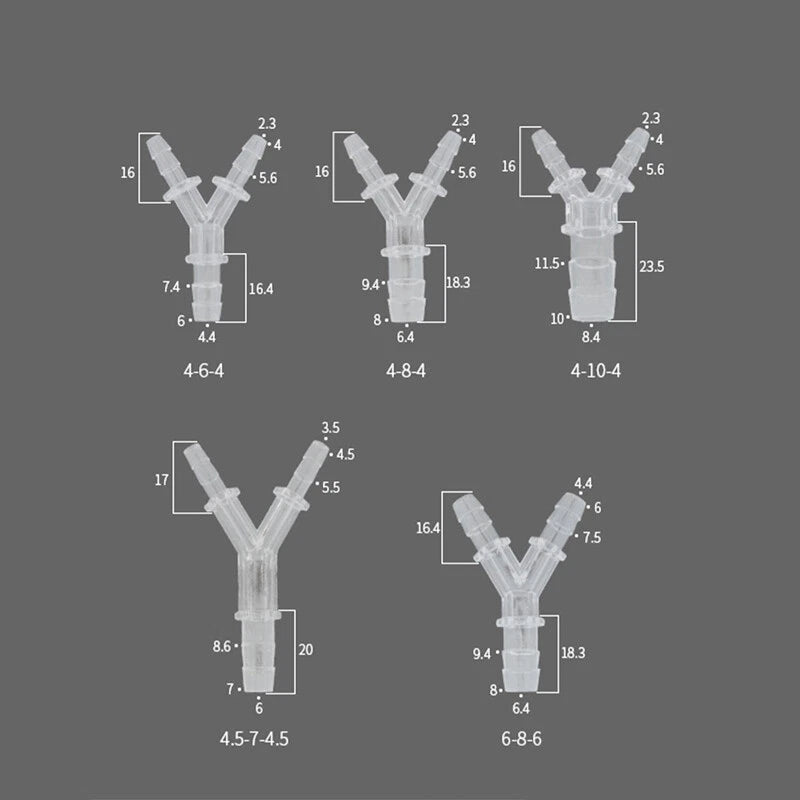

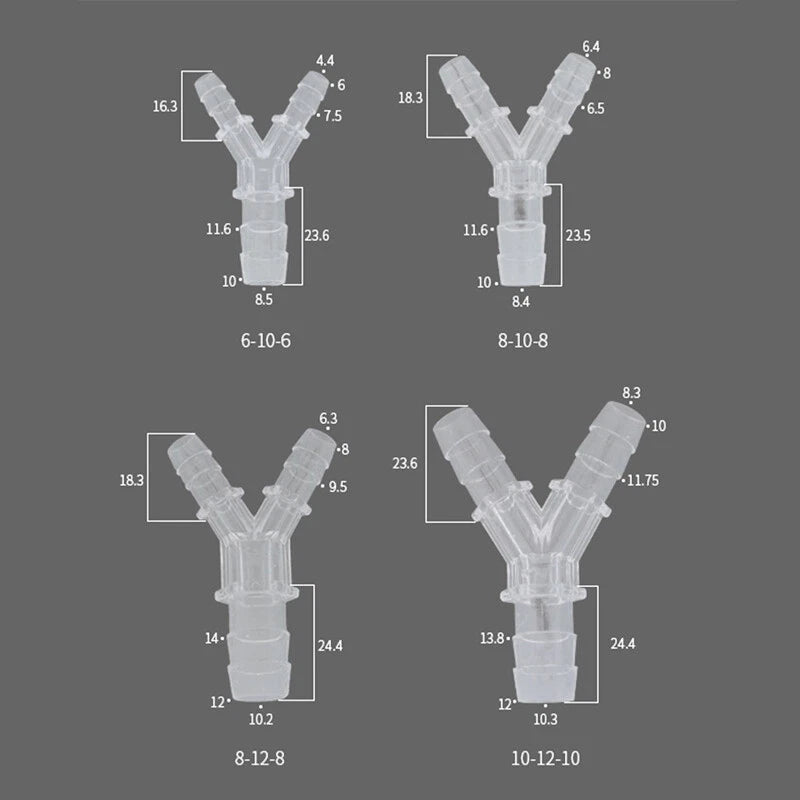

4.5-7-4.5 / 4-6-4 / 4-8-4 / 4-10-4 / 6-8-6 / 6-10-6 / 8-10-8 / 8-12-8 / 10-12-10 |
| Port Diameter Range |
4mm (≈5/32") to 12mm (≈15/32") |
| Material |
Rigid plastic (engineering-grade polymer, typically PP) |
| Connection Type |
Push-on barb (no threads, no adhesive required) |
| Compatible Tubing |
Silicone, PVC, vinyl, polyurethane flexible hose (matching ID) |
| Pressure Rating |
Low-pressure applications (typically up to 30–60 PSI; confirm for your use case) |
| Recommended Applications |
Drip irrigation, aquariums, air lines, hydroponics, lab tubing |
| Clamp Required |
Not required for low-pressure; recommended for higher-pressure or vibration environments |
| Pack Options |
1 pc / 2 pcs / 5 pcs / 10 pcs (select above) |
| Color |
See variant options |
| Country of Origin |
Contact us to confirm |
❓ Frequently Asked Questions
How do I choose the right size reducing tee fitting?
The size format is Branch-Run-Branch (e.g., 4-8-4 means two 4mm branches and one 8mm main run). Measure your tubing's inner diameter (ID) and match it to the barb size. For example, 4mm (≈5/32" ID) tubing pairs with a 4mm barb. When in doubt, size down slightly — a snug barb fit generally seals better than a loose one.
What material are these tee fittings made from?
These fittings are made from rigid plastic — typically polypropylene (PP) or a similar engineering-grade polymer — which is lightweight, corrosion-resistant, and suitable for low-pressure fluid and air applications.
Can these fittings be used outdoors or in irrigation systems?
Yes. Plastic barb fittings are generally well-suited for drip irrigation, garden watering lines, and other outdoor low-pressure water applications. They are not affected by rust or corrosion. For prolonged UV exposure, securing tubing with clamps is recommended to maintain a reliable seal.
What is the maximum pressure these fittings can handle?
Plastic barb tee fittings are typically rated for low-pressure applications — generally up to around 30–60 PSI depending on tubing type and clamp use. They are not intended for high-pressure hydraulic or steam lines. Contact us to confirm if you have specific pressure requirements.
Are these fittings compatible with standard flexible tubing?
Yes. These barb fittings are designed to work with standard flexible tubing such as silicone, PVC, polyurethane, and vinyl hose with matching inner diameters. The barbed design grips the tubing interior for a secure, leak-resistant connection without adhesives.
Do I need hose clamps with these fittings?
For most low-pressure applications such as aquariums, drip irrigation, and air lines, the barb design alone typically provides a secure fit. For higher-pressure or vibration-prone environments, using small hose clamps over the tubing is recommended to prevent pull-off.
What does the size notation like '4-8-4' mean?
The three numbers represent the inner diameter of each port in millimeters, in Branch-Run-Branch order. So '4-8-4' means the two side branches accept 4mm (≈5/32") ID tubing, while the main run port accepts 8mm (≈5/16") ID tubing. This allows you to split or merge flows between different tube sizes.
