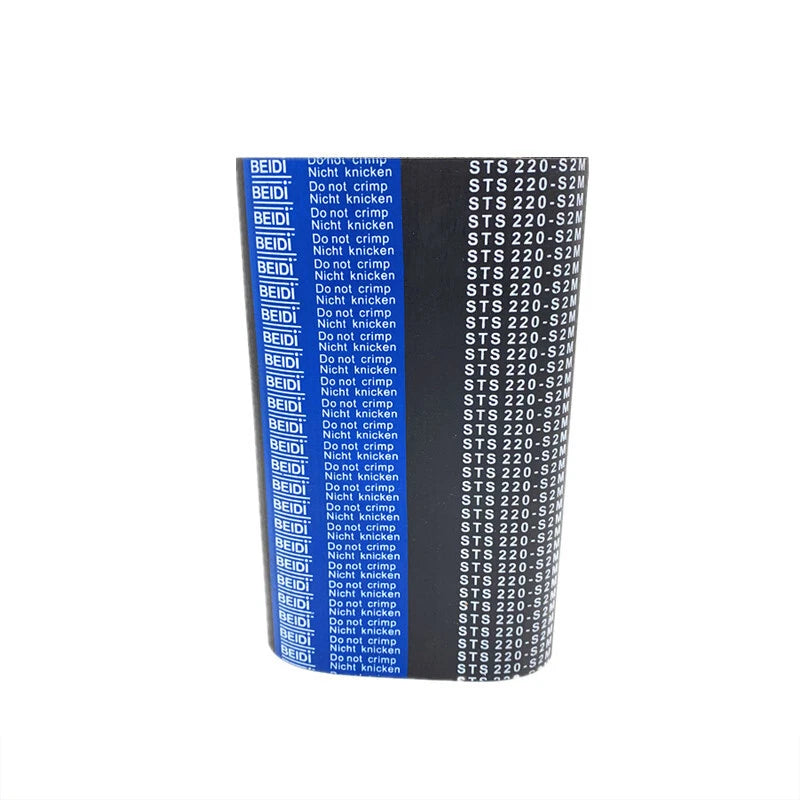

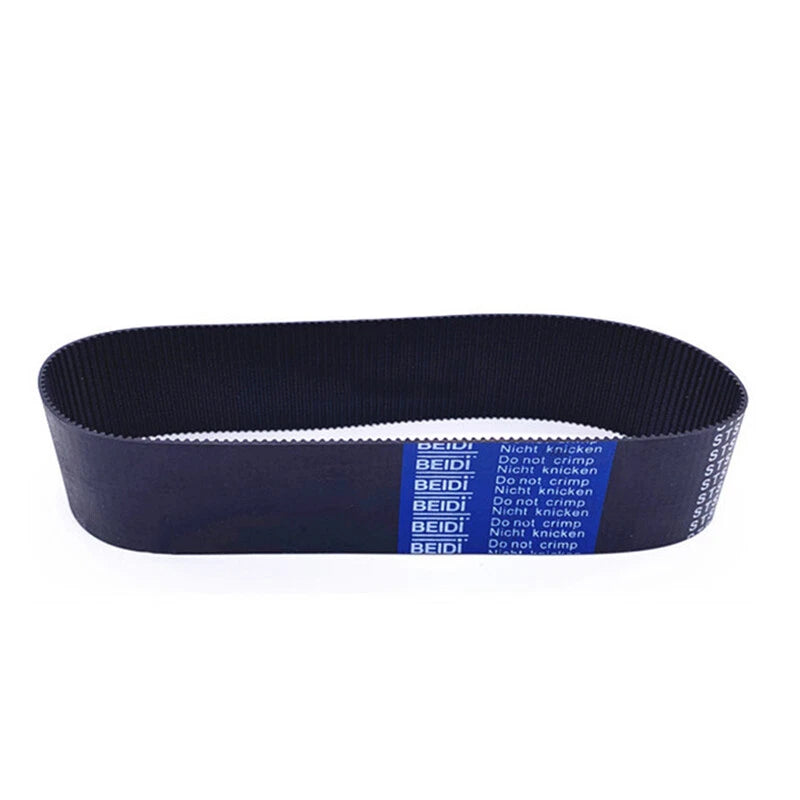

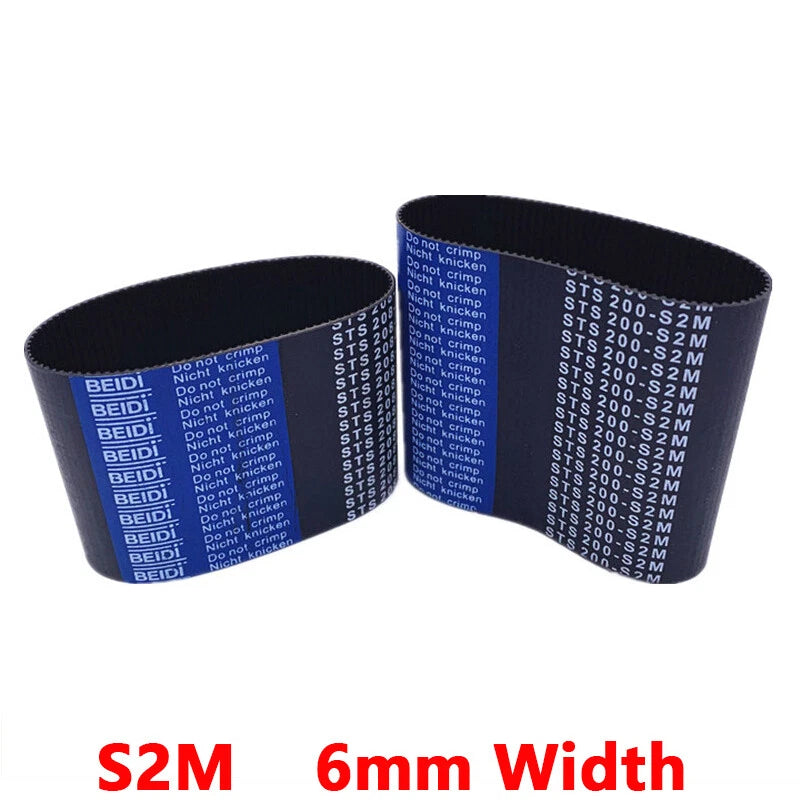

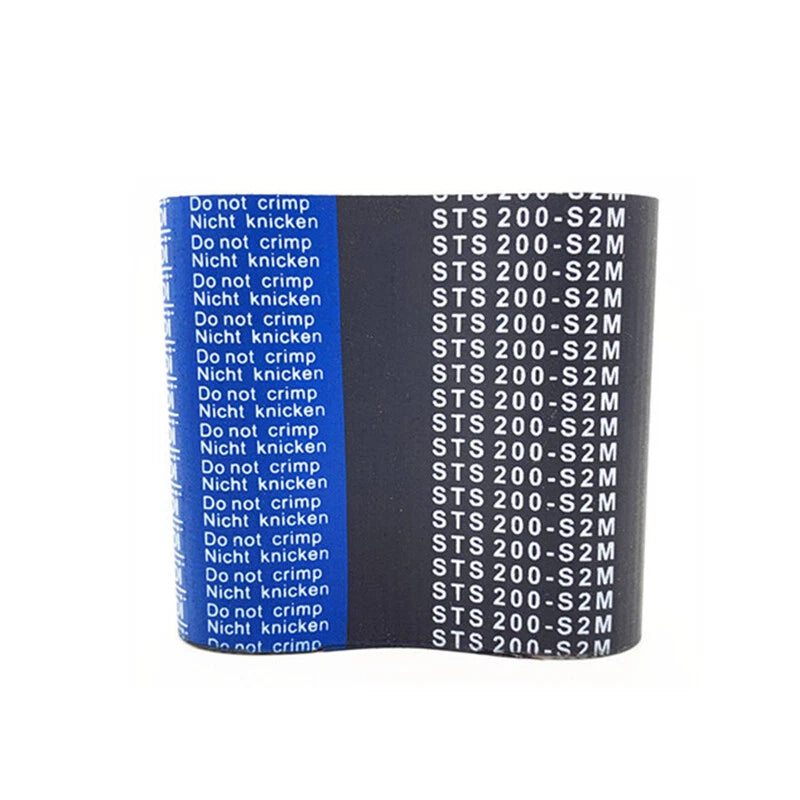

S2M Closed Loop Synchronous Timing Belt — Reliable Motion Control for CNC & 3D Printer Builds

When a slipping or mismatched drive belt throws off your CNC axis or causes layer shifts in your 3D prints, the entire project pays the price. Makers, engineers, and repair technicians who need a precise, repeatable drive solution rely on synchronous timing belts — and getting the right circumference the first time saves hours of disassembly. This S2M closed loop timing belt is stocked in 131 circumference sizes to cover the widest possible range of builds without custom cutting or splicing.

Each belt is a single closed loop with a 2mm pitch and 6mm width, available in circumferences from 82mm (≈3.2") to 1004mm (≈39.5") — select your exact tooth count and circumference from the variant dropdown above. The belt body is constructed from neoprene rubber with a fiberglass or steel tension cord core, giving it the dimensional stability needed for repeatable positioning. Width is fixed at 6mm across all variants.

Typical applications include CNC router X/Y axis drives, 3D printer CoreXY and Cartesian gantry systems, small robotic arm joints, laser engraver carriage drives, and light-duty conveyor or indexing mechanisms where synchronous motion and zero-slip performance are required.

ℹ️ Compatibility: Fits S2M-profile pulleys only. Not interchangeable with GT2, HTD2M, or T2.5 pulleys. Requires a pulley groove width of ≥6mm. Verify your pulley tooth count and center-to-center distance before ordering.

✅ Key Features of These S2M Closed Loop Synchronous Timing Belts

  • 🔁 Endless Closed Loop Construction — No splice, no joint, no weak point. The seamless loop eliminates the failure mode of open-end belt clamps, making it the go-to choice for CNC gantry and 3D printer axis drives where belt tension must stay consistent over thousands of cycles.
  • 📐 2mm Pitch for Fine Positioning — The 2mm tooth pitch delivers fine linear resolution per motor step, which is why S2M belts are widely used in desktop CNC routers and Cartesian 3D printer builds that demand repeatable, accurate motion without backlash.
  • 📏 131 Circumference Options in One Listing — From 82mm (41 teeth) to 1004mm (502 teeth), every size is available as a direct variant selection — no custom cutting, no minimum order. Find your exact circumference and order a single belt or multiples for multi-axis machines.
  • 🧱 Fiber-Reinforced Tension Core — The internal cord layer resists stretching under load, maintaining consistent tooth engagement with the pulley. This is critical for synchronous drives where belt elongation would cause positioning drift over time.
  • ⚙️ 6mm Width for Compact Drive Systems — The 6mm belt width fits the narrow pulley flanges common in desktop CNC machines, laser engravers, and compact 3D printers, while still providing adequate surface area for light-to-medium duty torque transmission.
  • 🔧 Drop-In Replacement for S2M Drive Systems — Dimensionally consistent with S2M belt standards, making these a straightforward replacement for worn or broken belts in existing CNC router, 3D printer, and pulley-driven automation systems without modifying the frame or tensioner.

📐 Technical Specifications — S2M Closed Loop Timing Belt

Belt Profile S2M (trapezoidal tooth, synchronous)
Pitch 2mm (0.079")
Belt Width 6mm (≈0.24")
Circumference Range 82mm (≈3.2") — 1004mm (≈39.5")
Tooth Count Range 41 teeth — 502 teeth
Loop Type Closed loop (endless / seamless)
Belt Body Material Neoprene rubber (typically); contact us to confirm
Tension Cord Material Fiberglass or steel cord (typically); contact us to confirm
Tooth Profile Trapezoidal (S2M standard)
Compatible Pulley Profile S2M only — not compatible with GT2, HTD, or T2.5
Minimum Pulley Groove Width ≥6mm
Typical Load Range Light to medium duty (see variant options for specific sizing)
Quantity per Order 1 belt per variant selected
Price Range $8.01 — $18.37 depending on circumference
⚠️ Sizing Note: Belt circumference = Number of Teeth × 2mm. Always verify your required circumference by measuring your pulley center-to-center distance before selecting a variant. If you are unsure, contact us to confirm.

❓ Frequently Asked Questions

How do I choose the right circumference for my S2M timing belt?

Measure the center-to-center distance between your two pulleys, then use the formula: Belt Circumference ≈ 2 × C-to-C distance + (π × pitch diameter of both pulleys ÷ 2). For S2M belts, circumference equals number of teeth × 2mm — so a 120-tooth belt has a 240mm (≈9.4") circumference. When in doubt, size up slightly; a belt that is a few millimeters too long can be tensioned with an idler, but one that is too short cannot be installed.

What load can an S2M 6mm timing belt handle?

At 6mm width, S2M belts are generally rated for light-to-medium duty motion control. They typically handle tangential loads in the range of 20–60 N depending on speed, pulley diameter, and operating conditions. They are well-suited for CNC axis drives, 3D printer gantry systems, and small robotics — not for heavy industrial conveyor or high-torque applications. Contact us to confirm load ratings for your specific use case.

Can this timing belt be used outdoors or in humid environments?

S2M timing belts are typically made from neoprene rubber, which offers moderate resistance to moisture and mild temperature variation. They are generally suitable for indoor CNC and 3D printing environments. For prolonged outdoor exposure or high-humidity conditions, a polyurethane (PU) body belt is generally more resistant to moisture and UV degradation. Contact us to confirm the exact material of your selected variant before use in harsh environments.

What pulleys are compatible with this S2M belt?

This belt requires S2M-profile pulleys only. The S2M trapezoidal tooth profile is not interchangeable with GT2, HTD2M, or T2.5 pulleys — even though some share a 2mm pitch, the tooth geometry differs. Ensure your pulley is specifically labeled S2M. The 6mm belt width requires a pulley groove width of at least 6mm; flanged pulleys are recommended to prevent lateral belt walk during operation.

Should I use a closed loop belt or an open-end belt for my CNC or 3D printer?

Closed loop (endless) belts are ideal for simple two-pulley drive systems where both pulleys are fixed — the most common configuration in 3D printer axes and CNC gantries. They install cleanly without clamps or connectors and maintain consistent tension around the loop. Open-end belts are better when you need to cut a custom length or route around multiple guides. For most desktop CNC and 3D printer builds, a closed loop belt is the more reliable and cleaner solution.

Does the listed circumference measure the tooth side or the back of the belt?

The circumference listed (e.g., 240mm for a 120-tooth belt) is the pitch circumference — measured along the neutral axis through the tension cord layer, which is the industry-standard measurement for timing belts. It corresponds directly to: Number of Teeth × Pitch (2mm). Use this value in your center-to-center distance calculation when sizing the belt for your drive system.

What is the difference between S2M and GT2 timing belts?

Both S2M and GT2 belts share a 2mm pitch, but their tooth profiles are different and not interchangeable. GT2 uses a curvilinear (rounded) tooth profile designed for lower backlash and smoother engagement, making it the more common choice for precision 3D printers. S2M uses a trapezoidal tooth profile, which is widely used in legacy CNC systems and industrial motion control equipment. Always match the belt profile to your pulley profile — mixing them will cause skipping or premature wear.

🛒 Select your circumference (tooth count) above, then add to cart — ships from our US warehouse.
