S3M Timing Belt — Reliable Closed-Loop Drive for Precision Motion Systems

When a slipping or mismatched drive belt causes positioning errors, missed steps, or unexpected downtime in your machine, the fix starts with the right synchronous belt. Engineers, repair technicians, and DIY builders working on light industrial equipment, automation rigs, and power transmission assemblies rely on S3M timing belts to maintain accurate, slip-free motion between shafts.

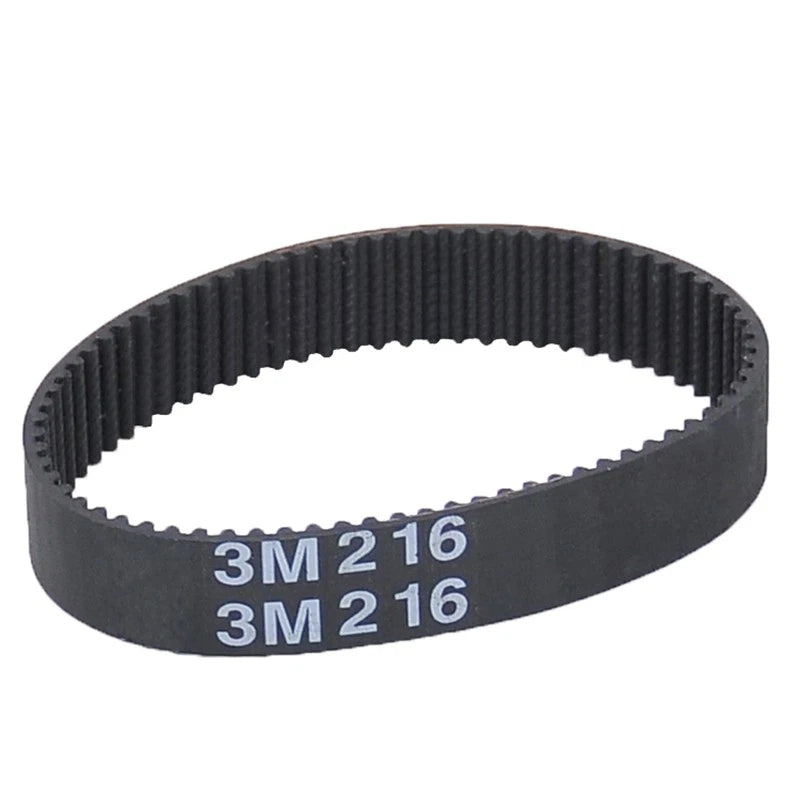

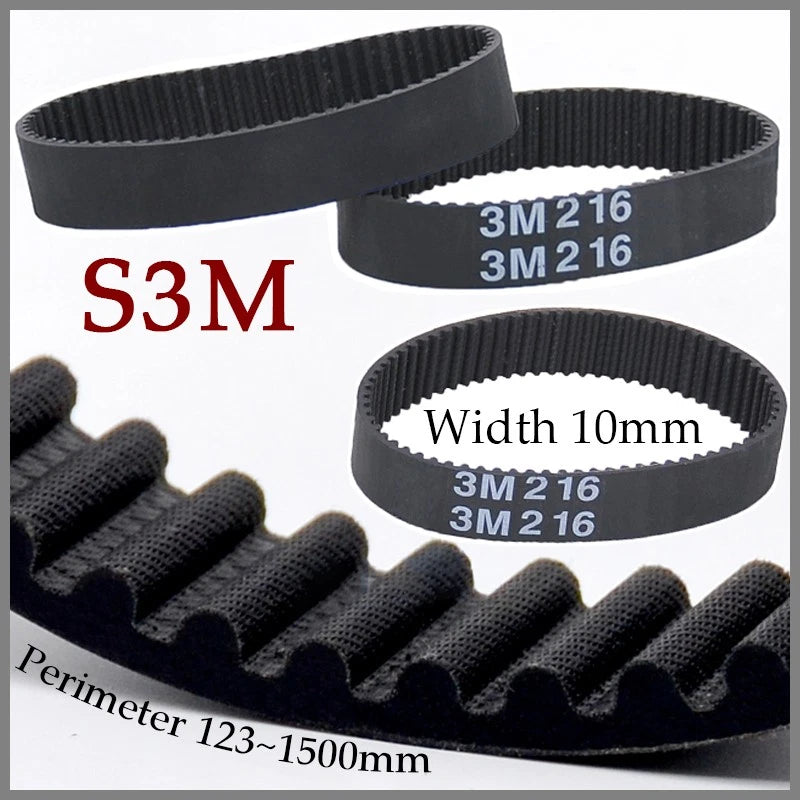

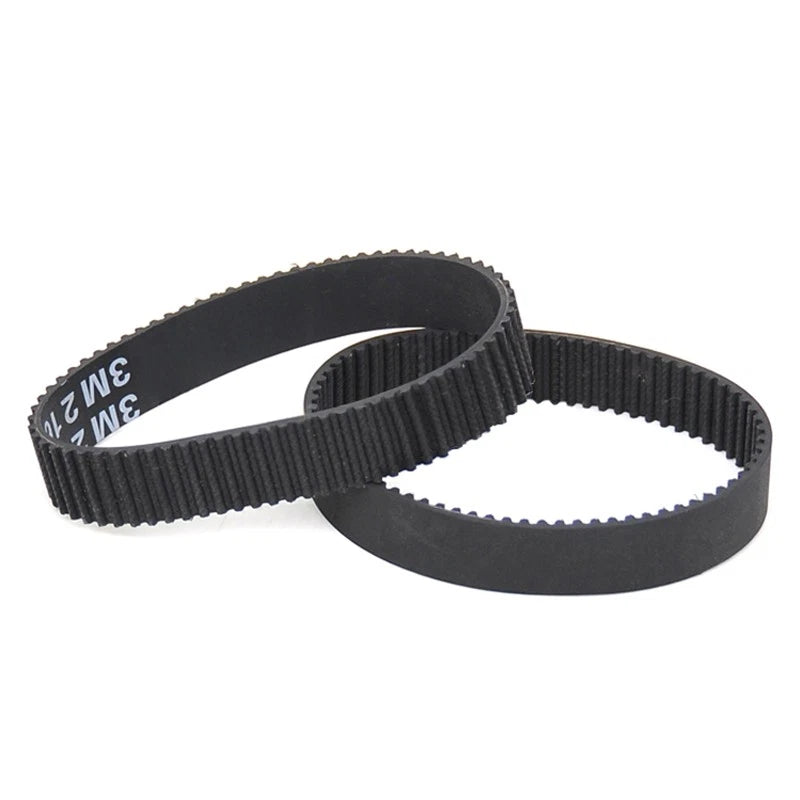

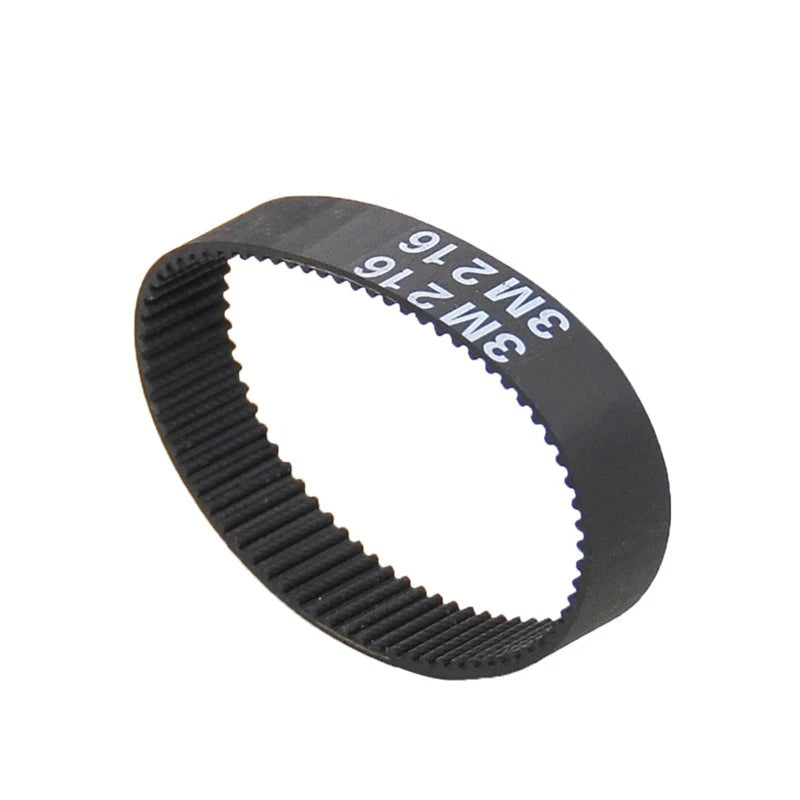

Each belt in this listing is a single closed-loop S3M synchronous timing belt with a 3mm tooth pitch and 10mm belt width. The black rubber construction incorporates load-carrying tension cords for dimensional stability under cyclic loading. Circumference options span from 123mm (≈4.8") to 1500mm (≈59.1"), covering a wide range of center-distance configurations — select your required loop length from the Model dropdown above.

Typical use cases include small conveyor drives, stepper motor transmission systems, light-duty automation equipment, and replacement maintenance on existing S3M-pulley machines. The standardized S3M tooth profile also makes these belts a straightforward fit for repair applications where an OEM belt has worn out.

ℹ️ Compatibility Note: These belts are designed for S3M-profile pulleys only (3mm pitch, trapezoidal tooth form). They are not interchangeable with GT2, HTD-3M, or other 3mm-pitch profiles. Verify your pulley tooth profile before ordering.

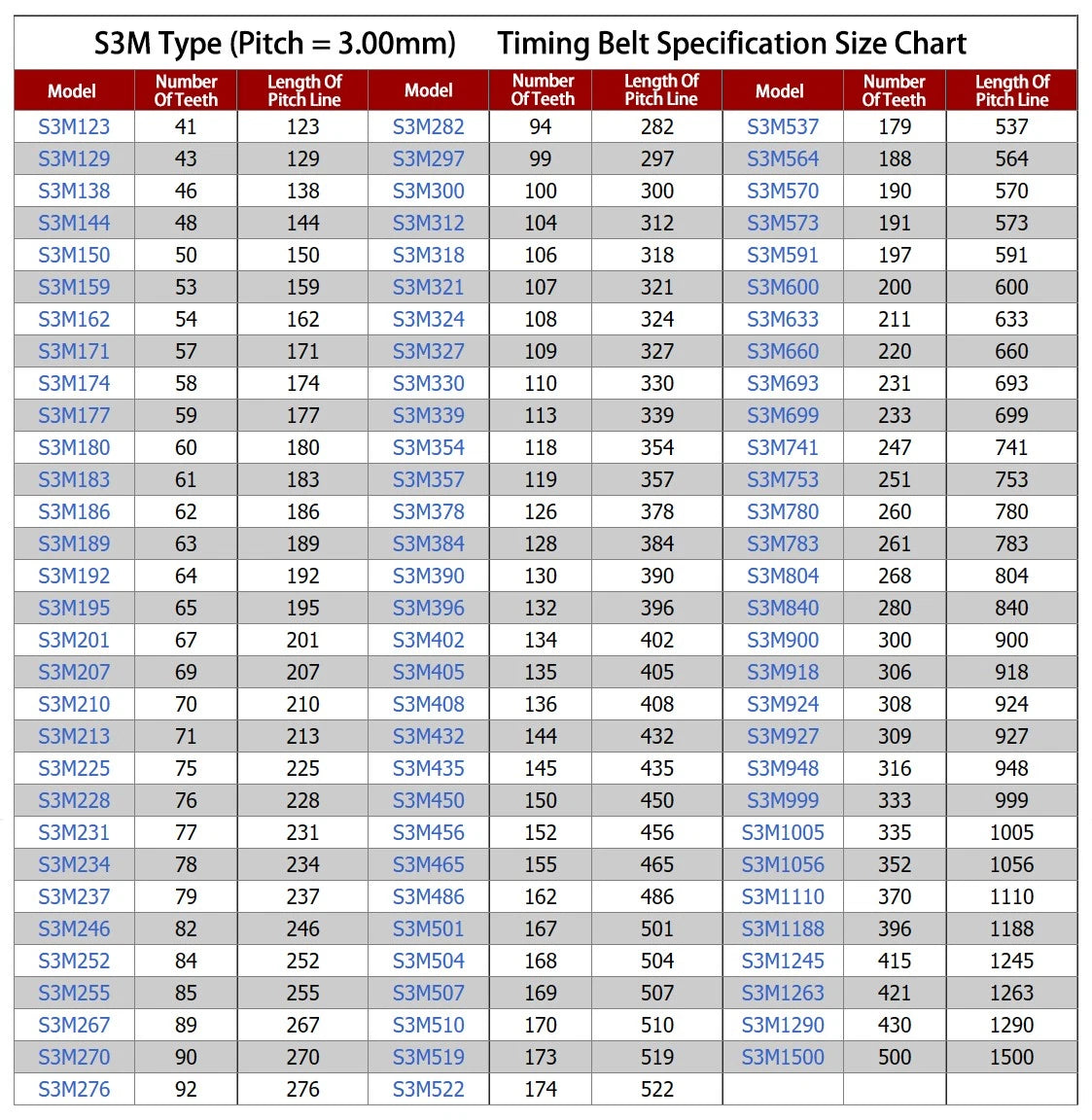

⚠️ Size Selection: Belt model numbers indicate closed-loop circumference in millimeters (e.g., S3M-300mm = 300mm loop). Measure your required belt path before selecting a variant. If your measurement falls between sizes, contact us to confirm the best fit.

✅ Key Features of These S3M Closed-Loop Timing Belts

  • ⚙️Standardized S3M Tooth Profile — 3mm pitch trapezoidal teeth mesh precisely with S3M pulleys, delivering synchronous (no-slip) power transmission for position-critical drives.
  • 📏Wide Length Selection — 93 circumference options from 123mm (≈4.8") to 1500mm (≈59.1") in 3mm increments, covering most light-duty drive configurations without custom cutting.
  • 🔩10mm Belt Width — A practical width for small-to-medium torque transmission; fits standard 10mm-wide S3M pulley flanges commonly found in automation and conveyor equipment.

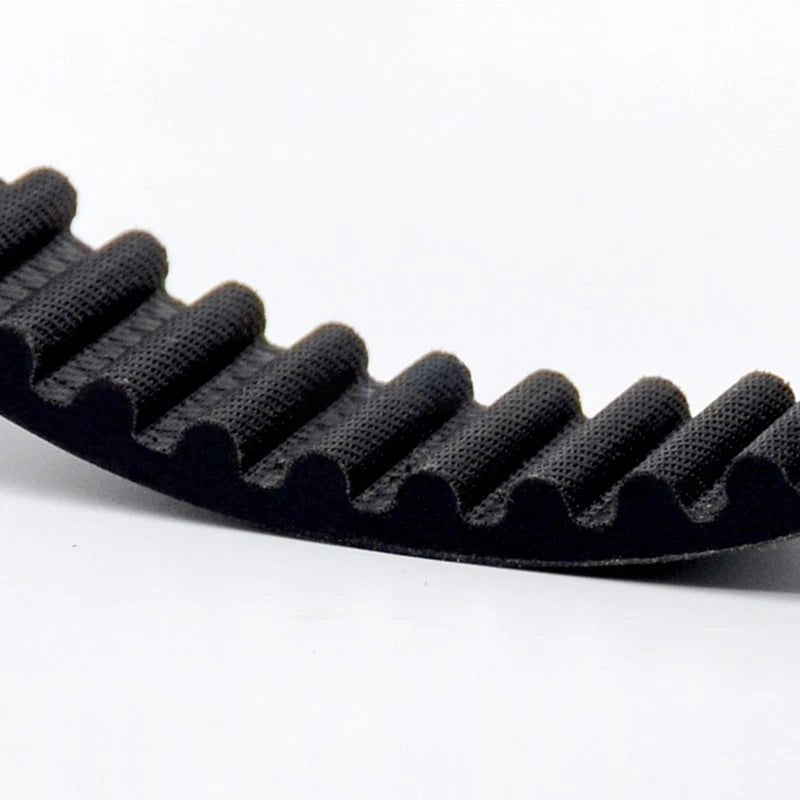

  • 🧱Rubber Body with Tension Cord Reinforcement — The rubber compound provides flexibility and tooth form retention, while embedded tension cords resist elongation under cyclic load — a key factor in maintaining drive accuracy over time.
  • 🔄Closed-Loop Construction — Factory-formed endless loop eliminates the splice joint weakness found in cut-and-joined belts, giving more consistent tension distribution around the full belt path.
  • 🔧Drop-In Replacement Fit — Matches the S3M dimensional standard used across many OEM machines, making these belts a direct maintenance replacement without pulley modification in most cases.

📐 Technical Specifications — S3M Synchronous Timing Belt

Belt Profile S3M (Metric Trapezoidal Synchronous)
Tooth Pitch 3mm (0.118")
Belt Width 10mm (≈0.39")
Circumference Range 123mm (≈4.8") to 1500mm (≈59.1")
Tooth Form Trapezoidal (S-series standard)
Material Rubber with tension cord reinforcement (typically neoprene or EPDM compound)
Color Black
Loop Type Closed loop (endless)
Compatible Pulley Profile S3M only — not compatible with GT2, HTD-3M, or MXL profiles
Tensile Rating See variant options / Contact us to confirm for your load
Temperature Range Generally suitable for -20°C to +80°C (contact us for extreme conditions)
Quantity per Order 1 belt per unit

❓ Frequently Asked Questions

How do I choose the right S3M timing belt length?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the standard formula: Belt Length ≈ 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are the pulley pitch diameters. Alternatively, wrap a flexible tape measure around both pulleys to approximate the loop length. Our variants are listed in millimeters — for example, S3M-300mm means a 300mm (≈11.8") closed-loop circumference. If your measurement falls between two sizes, generally select the next size up and adjust center distance to achieve proper tension.

What tensile strength does an S3M timing belt typically have?

S3M belts generally incorporate fiberglass or steel tension cords embedded in the rubber body, providing good tensile load capacity for their size class. They are typically suited for light-to-medium duty power transmission applications. Specific load ratings vary by manufacturer and cord material. If you have a defined load requirement, please contact us to confirm suitability before ordering.

Can these timing belts be used outdoors or in wet environments?

S3M belts are generally made from neoprene or EPDM rubber, which offers moderate resistance to moisture, oil mist, and mild temperature variation (typically -20°C to +80°C). They are not generally rated for continuous submersion or prolonged exposure to harsh chemicals or direct UV. For outdoor or humid installations, shielding the belt from standing water and direct sunlight will help extend service life.

What pulleys are compatible with S3M timing belts?

S3M belts are compatible with S3M-profile pulleys only — 3mm pitch, trapezoidal tooth form per the metric synchronous belt standard. They are not interchangeable with GT2 (2mm pitch curvilinear), HTD-3M (3mm pitch round tooth), MXL, or XL profiles, even if the belt width appears similar. Always verify the pulley tooth profile and pitch designation before ordering.

How do I decide between different circumference lengths if my measurement is between two sizes?

In most cases, select the next size up from your measured belt path length, then adjust the pulley center distance inward to achieve proper tension. Avoid forcing a belt that is too short onto fixed-center pulleys, as this over-tensions the belt and accelerates wear on both the belt teeth and pulley bearings. If your center distance is not adjustable, contact us with your exact measurement and we can advise on the closest available size.

What is the tooth pitch and profile of these belts, and how does it differ from HTD or GT2?

These belts use the S3M profile: 3mm tooth pitch with a trapezoidal tooth form. The "S" designation indicates the metric trapezoidal synchronous standard. By contrast, HTD-3M uses a 3mm pitch with a round (curvilinear) tooth form, and GT2 uses a 2mm pitch with a modified curvilinear profile. These profiles are not interchangeable — using an S3M belt on an HTD or GT2 pulley will result in poor mesh and accelerated wear.

Are S3M timing belts suitable for 3D printers or CNC motion systems?

S3M belts are generally used in light industrial automation and power transmission equipment. Most consumer 3D printers specify GT2 belts (2mm pitch, curvilinear tooth). However, if your specific machine's motion system was designed around S3M pulleys, these belts will typically fit correctly. Always verify the pulley profile marked on your machine's documentation or the pulley itself before purchasing.

🛒 Select your model (circumference) above, then add to cart — ships from our US warehouse.
