S3M Closed-Loop Timing Belt — 3mm Pitch Rubber Synchronous Drive Belt, 10mm Wide

When a slipping or mismatched drive belt causes positioning errors in your 3D printer, CNC router, or robotic axis, the entire project pays the price. Engineers, makers, and repair technicians who need a reliable closed-loop synchronous belt in the S3M profile — without ordering a custom cut — know how frustrating it is to find the right circumference in stock. This listing covers over 150 discrete belt lengths, from 87mm (≈3.4") to 4500mm (≈177.2"), so you can match your existing drive geometry without compromise.

Each belt is a closed-loop (endless) rubber synchronous belt with an S3M tooth profile: 3mm pitch (tooth-to-tooth spacing), 10mm (≈3/8") width, and a curvilinear tooth form for smooth, low-noise engagement. The rubber body is reinforced with embedded tension cords (typically fiberglass or steel) to resist elongation under load. The variant label format is [circumference in mm]-S3M — for example, 300-S3M indicates a 300mm (≈11.8") inner circumference belt.

Typical applications include desktop 3D printer X/Y axis drives, CNC router gantry systems, laser engraver carriage belts, small conveyor belt replacements, and precision motion stages in laboratory or industrial automation equipment. The 10mm width makes this a versatile choice for compact drive systems where space is limited but torque transmission must remain consistent.

🔗 Compatibility: Fits any standard S3M-profile pulley (3mm pitch, curvilinear tooth). Not compatible with GT2, HTD 3M, or trapezoidal MXL/XL pulleys. Confirm your pulley profile before ordering.

✅ Key Features of These S3M Closed-Loop Rubber Timing Belts

  • 📐150+ Sizes in One Listing — Belt circumferences from 87mm to 4500mm let you find an exact match for your drive system without custom fabrication.
  • 🔄Closed-Loop (Endless) Construction — No splice point means consistent tension distribution and zero risk of a joint failure mid-operation on your CNC or 3D printer axis.
  • 🦷S3M Curvilinear Tooth Profile — The rounded tooth form engages S3M pulleys with lower backlash and quieter operation compared to older trapezoidal profiles at the same 3mm pitch.

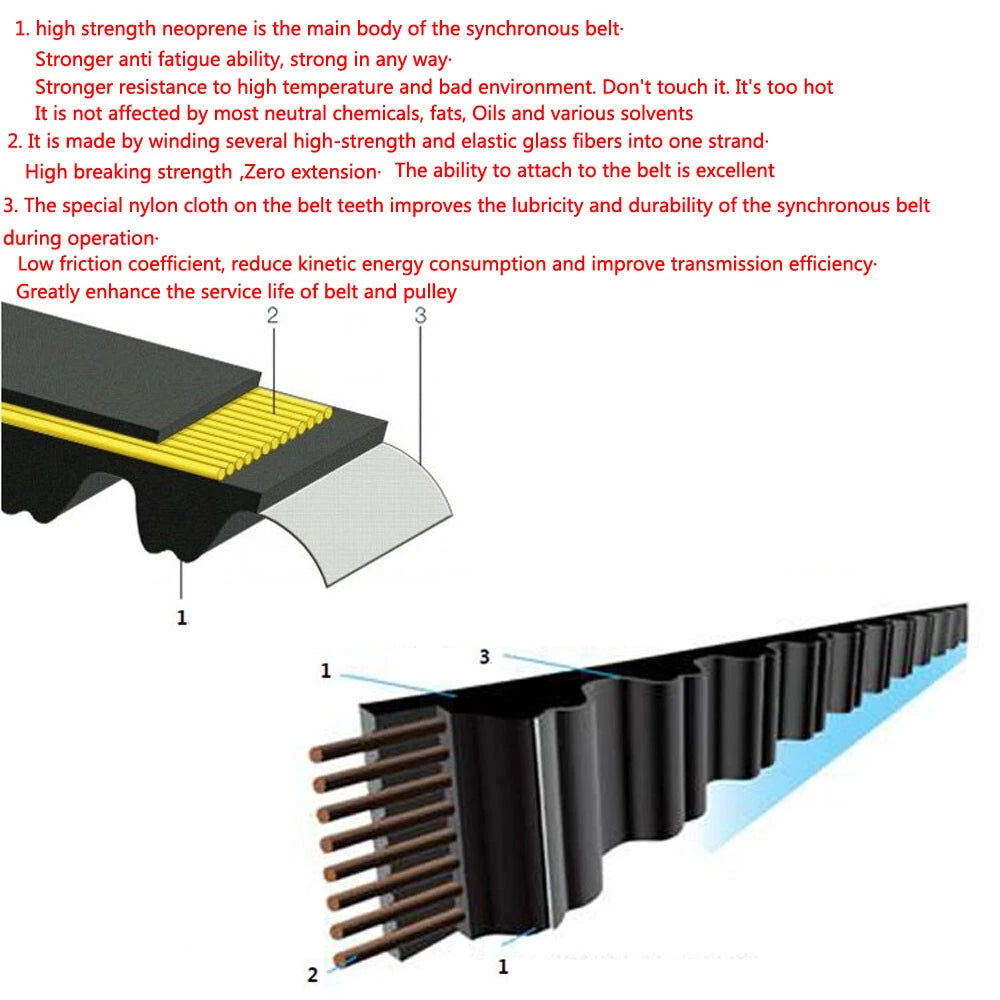

  • 💪Reinforced Tension Cord Core — Embedded cords (typically fiberglass or steel) resist belt stretch under cyclic loading, helping maintain positional accuracy in closed-loop motion systems.
  • ⚙️10mm Width for Compact Drives — The 10mm (≈3/8") belt width fits standard S3M pulleys used in desktop CNC routers, laser engravers, and robotic arm joints without requiring wide-format hardware.
  • 🚀Direct Replacement Fit — Manufactured to S3M metric synchronous belt standards, making these a straightforward drop-in replacement for worn or broken belts in existing equipment.

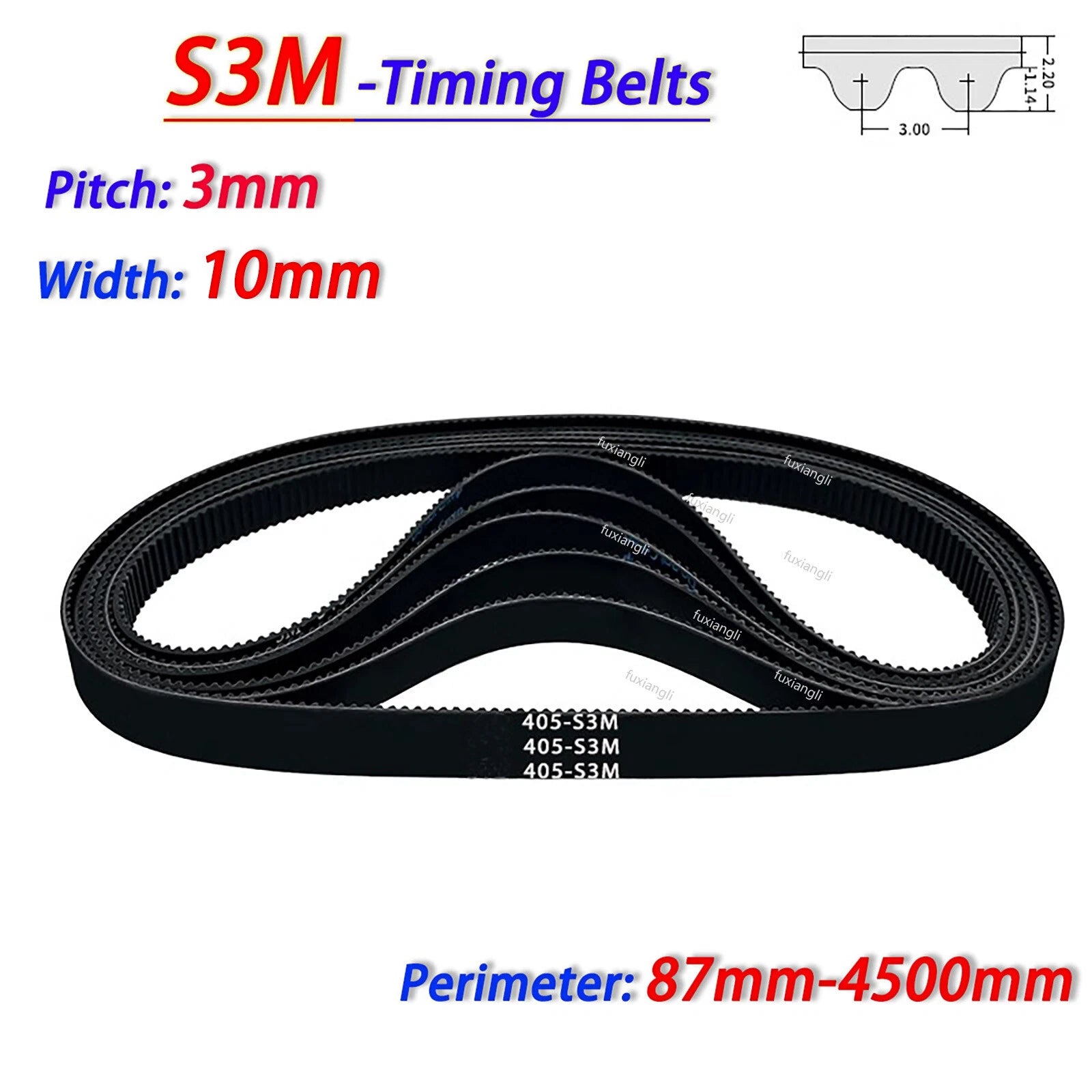

📐 Technical Specifications — S3M Rubber Synchronous Timing Belt

Belt Profile S3M (Curvilinear / Rounded Tooth, Metric)
Pitch 3mm (tooth-to-tooth spacing)
Belt Width 10mm (≈3/8")
Belt Type Closed-Loop (Endless / No Splice)
Inner Circumference Range 87mm (≈3.4") – 4500mm (≈177.2")
Available Sizes 150+ discrete lengths (see variant selector)
Material Rubber (neoprene or EPDM-based compound)
Tension Member Embedded cords (typically fiberglass or steel)
Tooth Face Nylon fabric-faced (typical for S3M profile)
Compatible Pulley Profile S3M only (not GT2, HTD 3M, MXL, or XL)
Quantity per Order 1 piece (1Pcs)
Variant Label Format [Circumference mm]-S3M (e.g., 300-S3M = 300mm loop)
Operating Temperature See variant options / Contact us to confirm
Max Tensile Load See variant options / Contact us to confirm
⚠️ Size Note: The number in each variant name is the belt's inner circumference in mm, not the length of one straight side. Measure your drive path carefully before selecting. If your required size falls between two listed options, generally choose the next size up and adjust your tensioner.

❓ Frequently Asked Questions

How do I choose the right S3M belt length?

The number before the dash in each variant name is the belt's inner circumference in millimeters (e.g., 300-S3M = 300mm / ≈11.8" circumference). Measure the center-to-center distance between your pulleys, calculate the required loop length using your pulley diameters, and select the closest available size. When in doubt, size up slightly to allow for tensioner adjustment.

What does S3M mean, and how is it different from GT2 or HTD 3M?

S3M is a synchronous belt profile designation. The "S" indicates a curvilinear (rounded) tooth profile, "3" refers to the 3mm pitch, and "M" denotes the metric standard. GT2 and HTD 3M also use a 3mm pitch but have different tooth geometries — they are not interchangeable with S3M pulleys. Always confirm your pulley's tooth profile before ordering.

What tensile strength can these belts handle?

S3M rubber timing belts typically include fiberglass or steel tension cords embedded in the rubber body, providing good tensile load capacity for their size class. Exact load ratings vary by belt length and manufacturer batch. For high-torque or safety-critical applications, please contact us to confirm specifications before ordering.

Can these belts be used outdoors or in wet/oily environments?

These belts are made from neoprene or EPDM-based rubber compounds that generally offer moderate resistance to moisture, light oils, and mild temperature variation. They are not typically rated for continuous outdoor UV exposure or full immersion. For harsh outdoor, chemical, or high-temperature environments, contact us to confirm suitability before purchase.

Are these belts compatible with standard S3M pulleys from other brands?

Yes. These belts follow the S3M metric synchronous belt standard and are designed to mesh with any S3M-profile pulley (3mm pitch, curvilinear tooth form), regardless of brand. They are not interchangeable with GT2, HTD 3M, or trapezoidal MXL/XL profiles, even if the pitch appears similar on a ruler.

Which machines commonly use S3M timing belts?

S3M belts are commonly found in desktop 3D printers (X/Y axis drives), CNC router gantry systems, laser engraver carriage drives, robotic arm joints, small conveyor systems, and precision motion stages in laboratory or light industrial automation. The 10mm width is a popular choice for compact drive systems requiring moderate torque with minimal hardware footprint.

How do I convert the belt circumference from mm to inches?

Divide the millimeter value by 25.4. Quick reference examples: 300mm ÷ 25.4 ≈ 11.8", 600mm ÷ 25.4 ≈ 23.6", 900mm ÷ 25.4 ≈ 35.4", 1200mm ÷ 25.4 ≈ 47.2". Use this to cross-reference with inch-based belt catalogs or to verify fit against equipment documentation listed in imperial units.

What if the exact circumference I need is not listed?

With over 150 sizes available, most standard drive geometries are covered. If your required circumference falls between two listed options, generally select the next size up and use your tensioner or idler pulley to take up the slack. If you need a size outside the listed range, contact us — we may be able to source it or suggest a compatible alternative.

🛒 Select your belt size (circumference) above, then add to cart — ships from our US warehouse.
