S5M Closed Loop Timing Belt — Precise, Slip-Free Drive for CNC, 3D Printers & Automation

When a skipped tooth or a stretched belt throws off your CNC cut or causes a layer shift mid-print, the cost goes beyond the ruined workpiece — it's lost time and lost confidence in your machine. Makers, engineers, and automation builders who depend on repeatable positioning need a synchronous belt that holds its pitch under load, run after run. This S5M closed loop timing belt delivers exactly that: a slip-free, tooth-driven connection between motor and load with no creep and no guesswork.

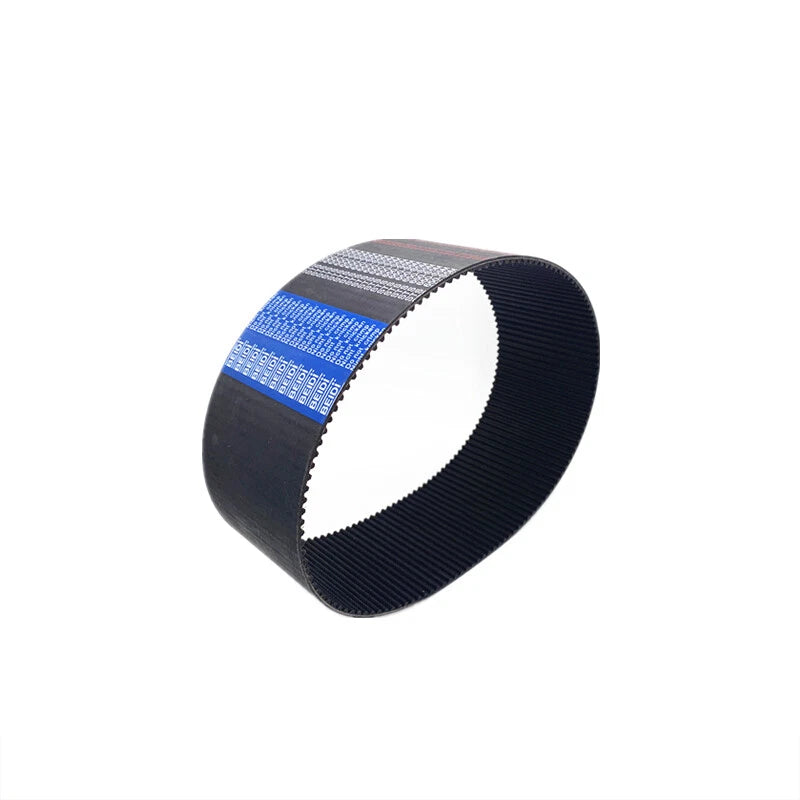

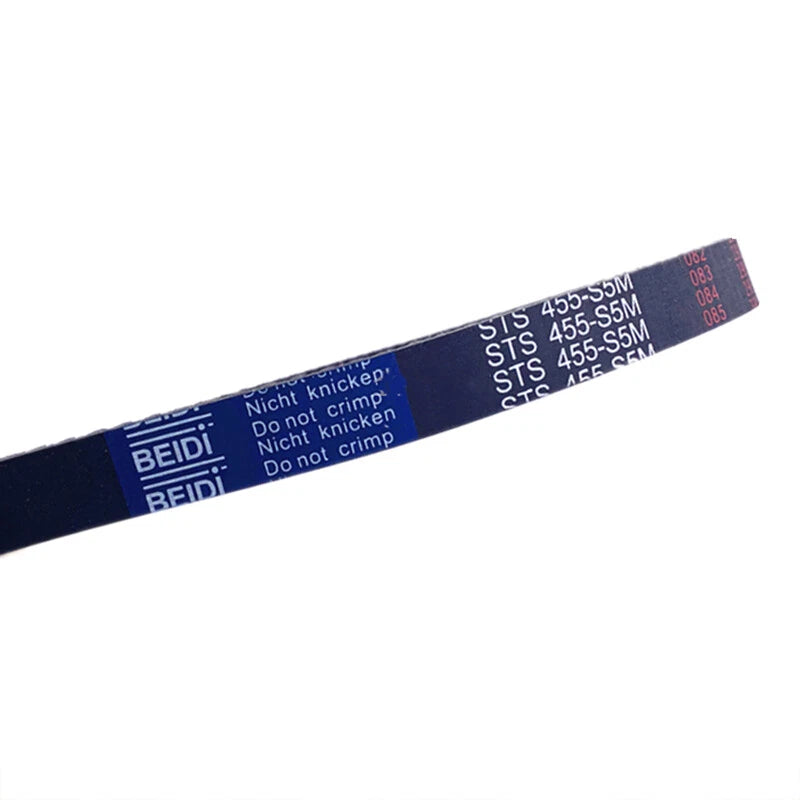

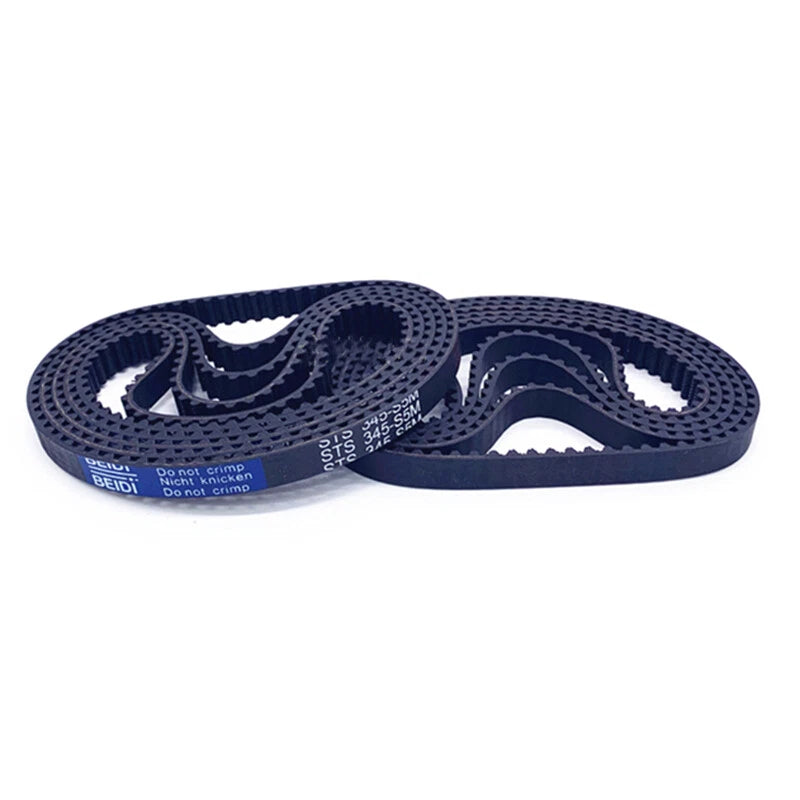

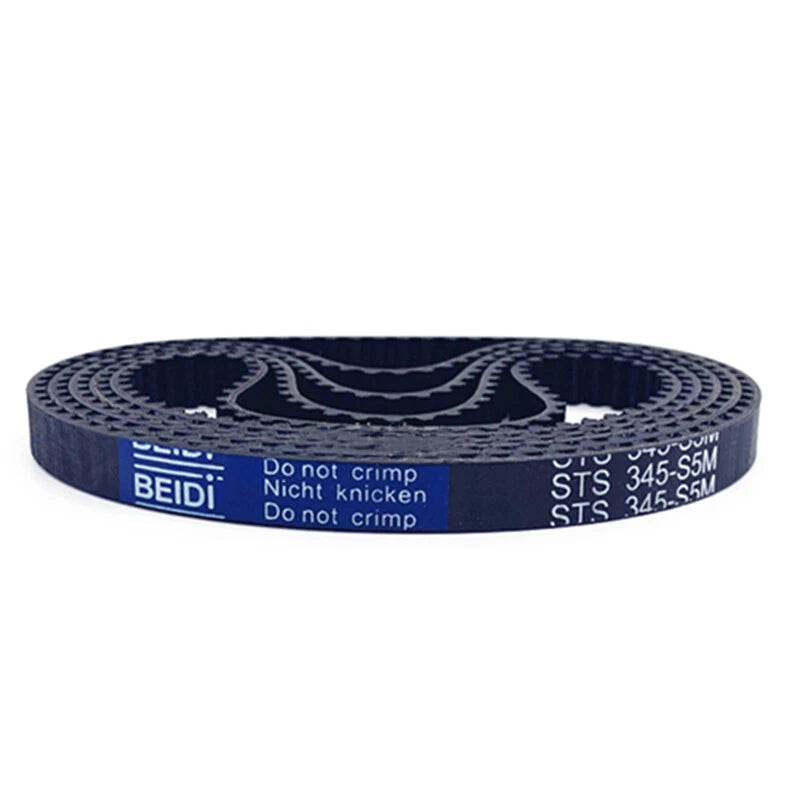

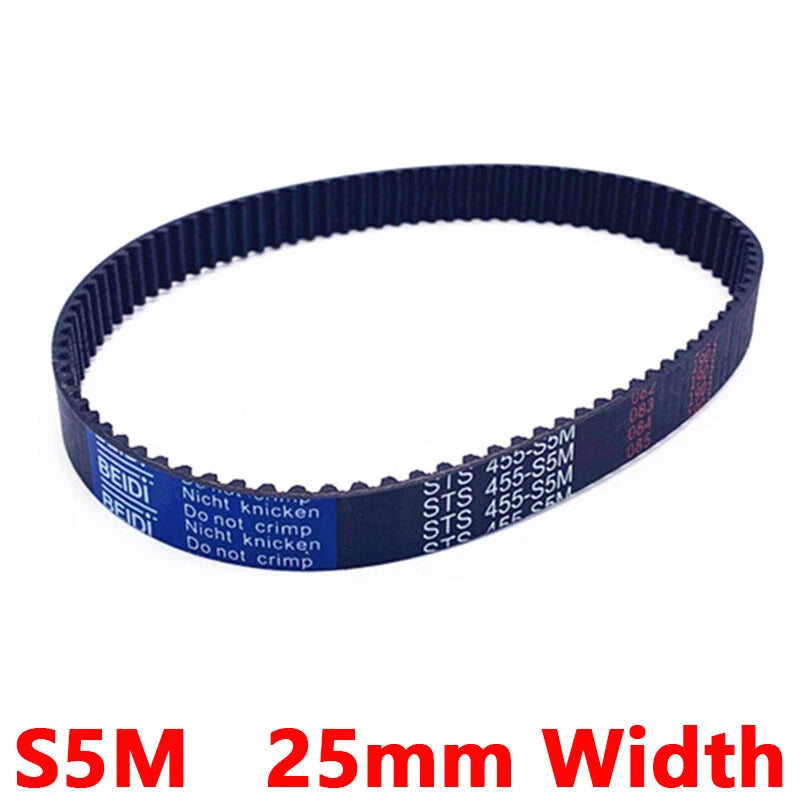

Each belt is a continuous closed loop with a 5mm pitch (tooth-to-tooth spacing) and a 25mm (≈1") belt width. Available in 138 sizes ranging from 180mm (≈7.1") to 4000mm (≈157.5") inner circumference, with tooth counts from 36 to 800 teeth. The curvilinear S5M tooth profile is manufactured to mesh with standard S5M and HTD 5M pulleys. Belt construction is typically neoprene rubber with tensile cord reinforcement for dimensional stability — confirm material spec for your specific application.

Typical use cases include CNC router X/Y axis drives, 3D printer motion systems (CoreXY, bed-slinger, and delta configurations), laser cutter gantry drives, and light industrial conveyor or indexing systems where precise positioning and low backlash are required.

ℹ️ Compatibility: Fits standard S5M and HTD 5M pulleys with a 25mm or wider groove. Match belt tooth count to pulley tooth count. Belt length listed is inner circumference. Not compatible with GT2, T5, or other pitch profiles.

✅ Key Features of These S5M Closed Loop Synchronous Timing Belts

  • 🔁Closed Loop, No-Seam Construction — Continuous endless loop eliminates the weak point of joined or laced belts, delivering consistent tension and smooth power transfer across the full belt circumference.
  • 📐5mm S5M Pitch Tooth Profile — Curvilinear tooth geometry meshes cleanly with S5M and HTD 5M pulleys, providing low backlash and accurate positioning — critical for CNC routing and 3D printer motion systems.
  • 📏138 Sizes in One Listing — From 180mm to 4000mm inner circumference, covering the vast majority of CNC, 3D printer, and automation drive configurations without custom ordering.
  • ⚙️25mm Working Width — Wider than standard 15mm belts, this 25mm width increases load capacity and lateral stability, reducing the risk of belt tracking off narrow pulleys under dynamic loads.
  • 🧱Reinforced Tensile Cord Core — Internal cord reinforcement (typically fiberglass or steel) resists elongation under tension, maintaining pitch accuracy over time and reducing the need for frequent re-tensioning.
  • 🔧Drop-In Replacement for Common Drive Systems — Direct replacement for worn or broken S5M belts in CNC routers, laser engravers, pick-and-place machines, and 3D printers without modifying pulley spacing or motor mounts.

📐 Technical Specifications — S5M Closed Loop Synchronous Timing Belt

Belt Profile S5M (Synchronous, 5mm pitch, curvilinear tooth)
Pitch 5mm (0.197")
Belt Width 25mm (≈1")
Inner Circumference Range 180mm (≈7.1") – 4000mm (≈157.5")
Tooth Count Range 36 teeth – 800 teeth (see variant options)
Belt Type Closed loop (endless)
Tooth Profile Compatibility S5M, HTD 5M pulleys
Construction Material Neoprene rubber with tensile cord reinforcement (typically fiberglass or steel — contact us to confirm)
Operating Temperature See variant options / Contact us to confirm
Color / Finish See variant options
Quantity per Order 1 belt per unit
Ships From US warehouse
⚠️ Size Note: Belt length is the inner circumference of the loop. Verify your required belt length before ordering. If you are unsure, measure your existing belt or calculate from your pulley center distance. See FAQ below for the calculation method.

❓ Frequently Asked Questions

How do I choose the right belt length for my machine?

Measure the center-to-center distance between your two pulleys, then calculate the required belt circumference using the formula: Belt Length = 2 × C + π × (D1 + D2) / 2, where C is center distance and D1/D2 are pulley pitch diameters. For S5M belts, pitch diameter = (Teeth × 5mm) / π. When in doubt, size up — a slightly longer belt with an adjustable tensioner is easier to work with than one that's too short. All lengths listed are the belt's inner circumference.

What does S5M mean, and is it the same as HTD 5M?

S5M is a synchronous belt profile with a 5mm pitch and a modified curvilinear tooth form. It is generally interchangeable with HTD 5M pulleys and belts of the same width and tooth count, as both share the same 5mm pitch and similar tooth geometry. Always verify pulley compatibility before ordering.

What load or torque can this belt handle?

S5M belts at 25mm width are typically rated for moderate power transmission — generally suitable for CNC axis drives, 3D printer extruder systems, and light industrial automation. Actual load capacity depends on pulley diameter, speed, and operating temperature. For high-torque applications, consult the belt manufacturer's load tables or contact us to confirm suitability.

Can this belt be used outdoors or in wet environments?

These belts are generally made from neoprene rubber with fiberglass or steel cord reinforcement, which provides good resistance to oil, moderate heat, and humidity. They are not typically rated for continuous submersion or harsh chemical exposure. For outdoor or washdown environments, verify the specific material spec or contact us to confirm.

Will this belt fit my existing S5M or HTD 5M pulleys?

Yes — in most cases, S5M belts are compatible with HTD 5M pulleys of the same tooth count and width. The 25mm belt width requires a pulley groove width of at least 25mm. Always match the belt's tooth count to the pulley's tooth count for proper meshing. If your pulley is narrower than 25mm, this belt will overhang the flanges.

How do I decide between a shorter and longer belt for the same application?

Choose the belt length that matches your fixed center-to-center distance. If your machine has an adjustable tensioner or slotted motor mount, you have more flexibility — in that case, select the nearest standard length and adjust tension accordingly. A belt that is too tight will wear bearings prematurely; one that is too loose will skip teeth under load.

What is the difference between a closed loop belt and an open-end belt?

A closed loop (endless) belt is a continuous loop with no seam or joint — it is the standard form for most drive applications and provides smooth, consistent power transfer. An open-end belt is sold by the foot and must be cut and joined on-site. For CNC, 3D printing, and automation drives, closed loop belts are generally preferred for reliability and precision.

🛒 Select your size above, then add to cart — ships from our US warehouse.
