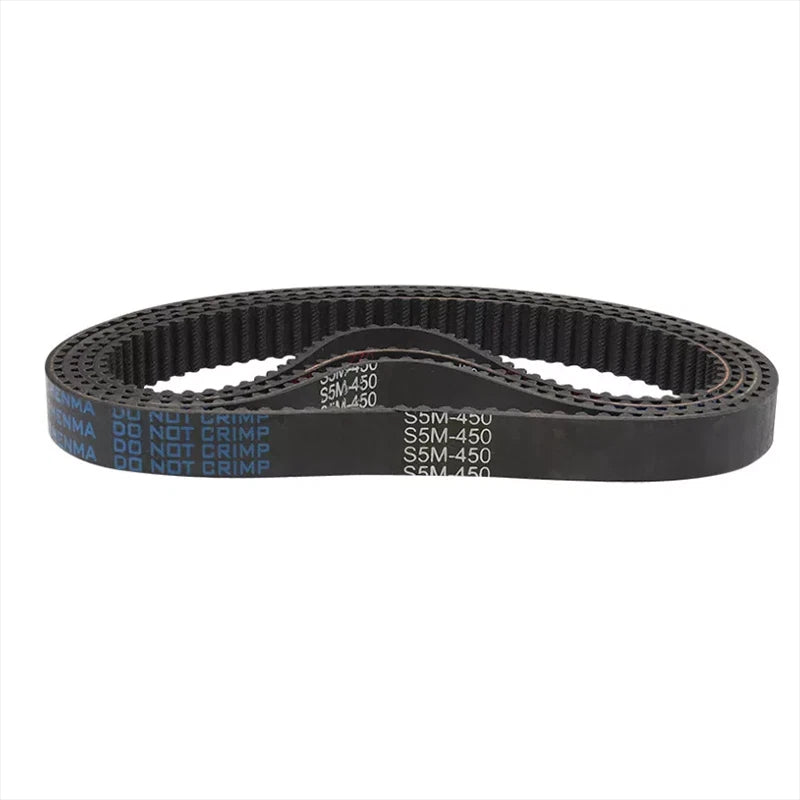

S5M Closed-Loop Rubber Timing Belt — Precise Drive for CNC, 3D Printers & Automation

When a slipping or mismatched drive belt causes positioning errors on your CNC router, laser engraver, or 3D printer, every job suffers. Makers, machine builders, and repair technicians who need a reliable synchronous belt in a specific closed-loop size often struggle to find the right perimeter without ordering custom cuts. This S5M closed-loop rubber timing belt solves that problem with a wide selection of pre-formed loop sizes — no splicing, no joining hardware required.

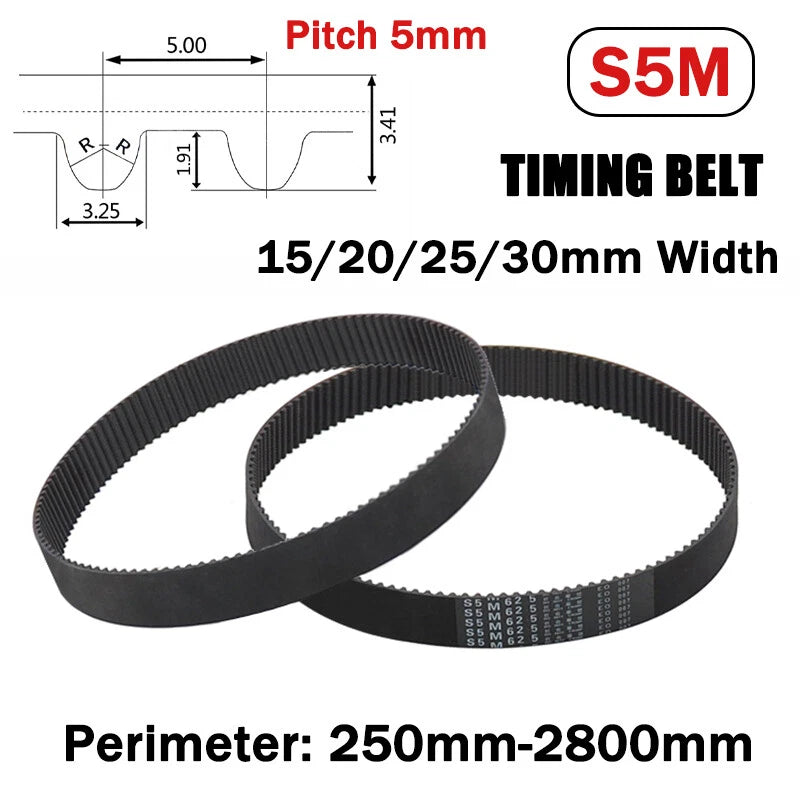

Each belt features the S5M tooth profile (5mm pitch, rounded tooth form) and is available in four widths — 15mm (≈0.59"), 20mm (≈0.79"), 25mm (≈0.98"), and 30mm (≈1.18") — with perimeter options ranging from 250mm (≈9.8") to 2800mm (≈110.2"). The rubber construction with internal fiber reinforcement provides dimensional stability under tension, helping maintain consistent tooth engagement across the full loop.

Typical applications include CNC router X/Y axis drives, 3D printer motion systems, laser cutter gantry belts, pick-and-place machine drives, and light conveyor systems where synchronous, slip-free power transmission is required. The closed-loop design eliminates the need for belt lacing or field joining, making replacement straightforward on most machines.

ℹ️ Compatibility Note: This belt uses the S5M tooth profile (5mm pitch). Verify your pulleys or sprockets are rated for S5M before ordering. Belt width must match or be narrower than your pulley's usable face width for proper tracking.

⚠️ Size Tip: Perimeter is the total closed-loop circumference, not the center-to-center distance. If you are unsure of the correct perimeter for your machine, measure the existing belt or calculate from your pulley layout. Contact us to confirm before ordering.

✅ Key Features of These S5M Closed-Loop Timing Belts

🔁Closed-Loop Construction — Factory-formed seamless loop eliminates splices and joining hardware, reducing failure points on CNC router drives and 3D printer motion systems.

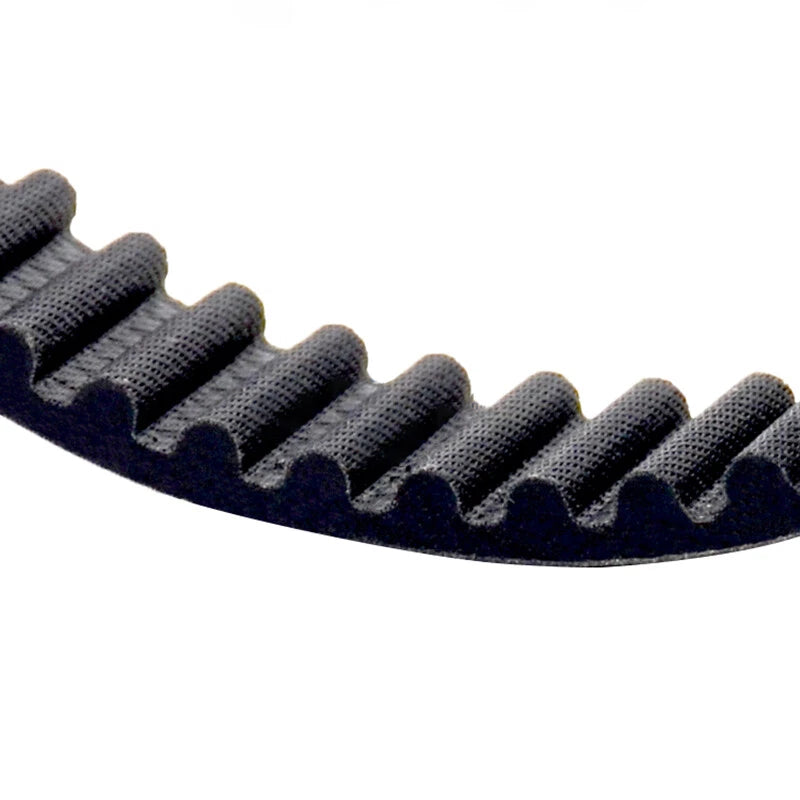

📐S5M Tooth Profile (5mm Pitch) — Rounded tooth form compatible with standard S5M pulleys and sprockets for synchronous, slip-free power transmission in precision motion-control equipment.
📏Wide Size Selection — Four widths (15, 20, 25, 30mm) and perimeters from 250mm to 2800mm let you match the belt to your machine's exact pulley layout without custom fabrication.
🧱Fiber-Reinforced Rubber Body — Internal tensile cords help maintain belt length under load, supporting consistent tooth pitch and reducing stretch-related positioning drift on laser engraver gantry drives.
🔧Drop-In Replacement Fit — Designed to match S5M dimensional standards so the belt installs directly onto existing S5M pulleys without modification, simplifying maintenance on pick-and-place machine drives.
🏭Broad Application Range — Suitable for CNC routers, 3D printers, laser cutters, conveyor systems, and other light-to-medium duty automation equipment requiring synchronous belt drives.

📐 Technical Specifications — S5M Closed-Loop Rubber Timing Belt

Belt Type	S5M Closed-Loop Timing Belt

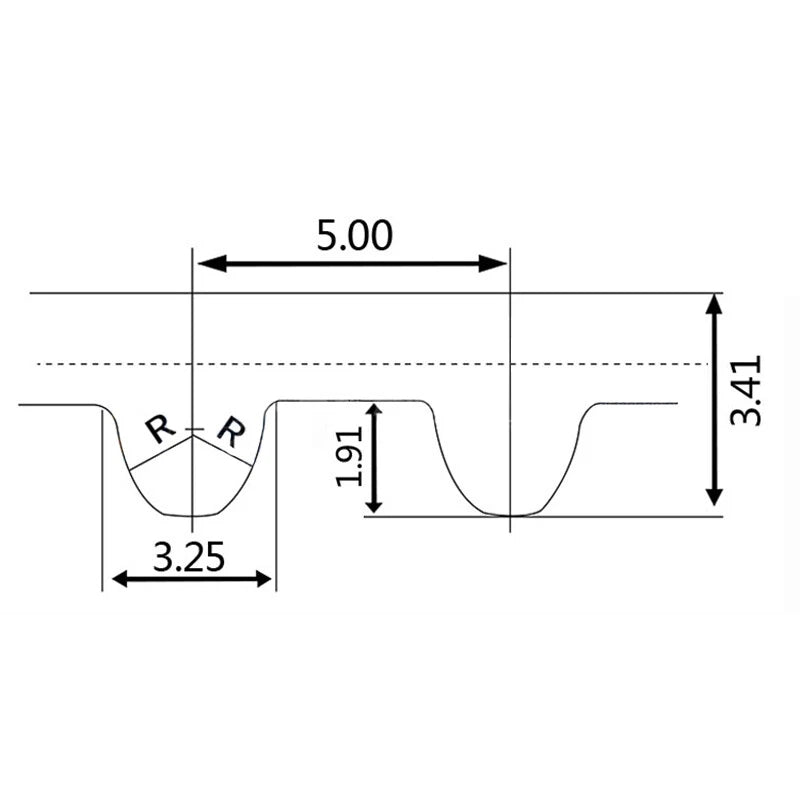

Tooth Profile	S5M (5mm pitch, rounded tooth)
Available Widths	15mm (≈0.59"), 20mm (≈0.79"), 25mm (≈0.98"), 30mm (≈1.18")

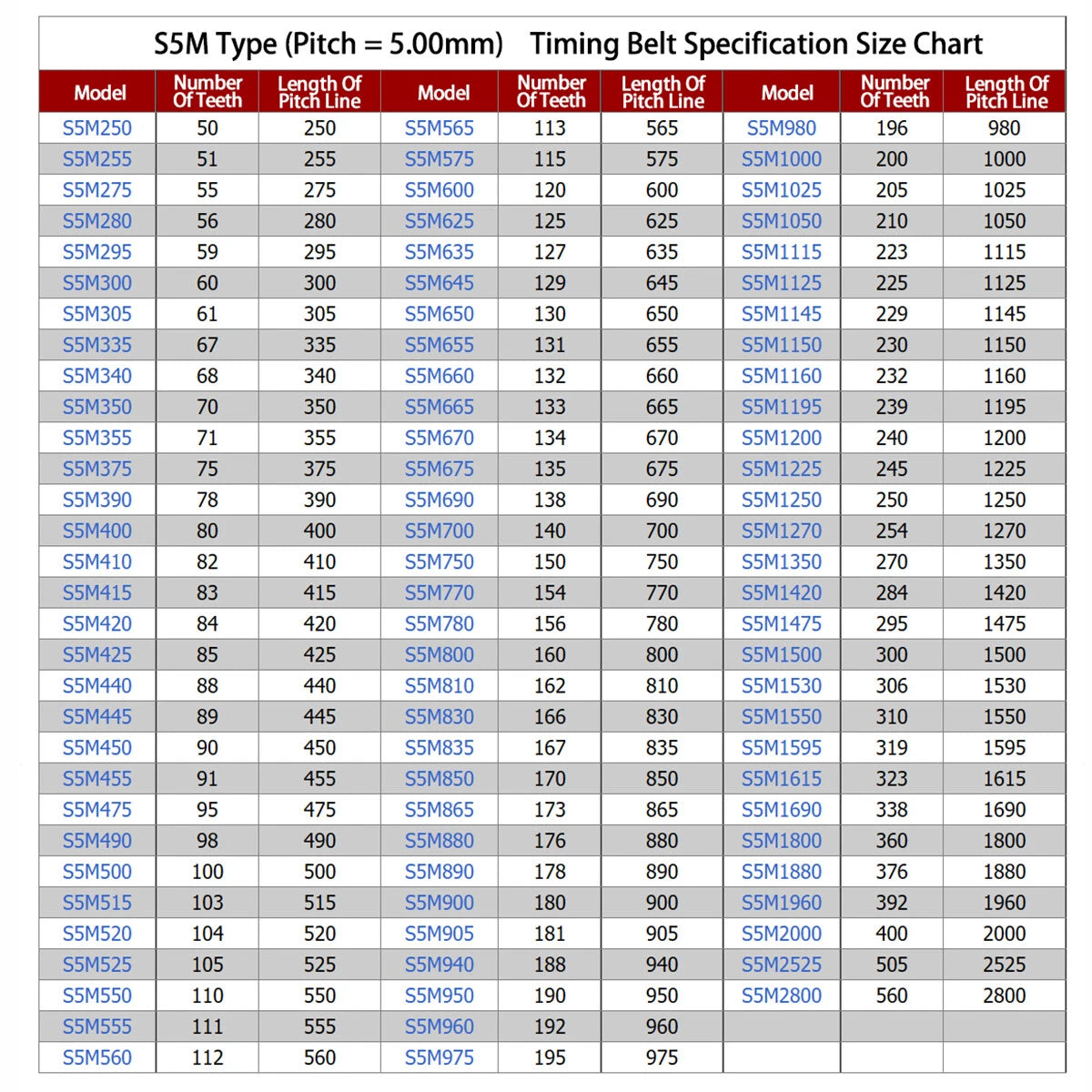

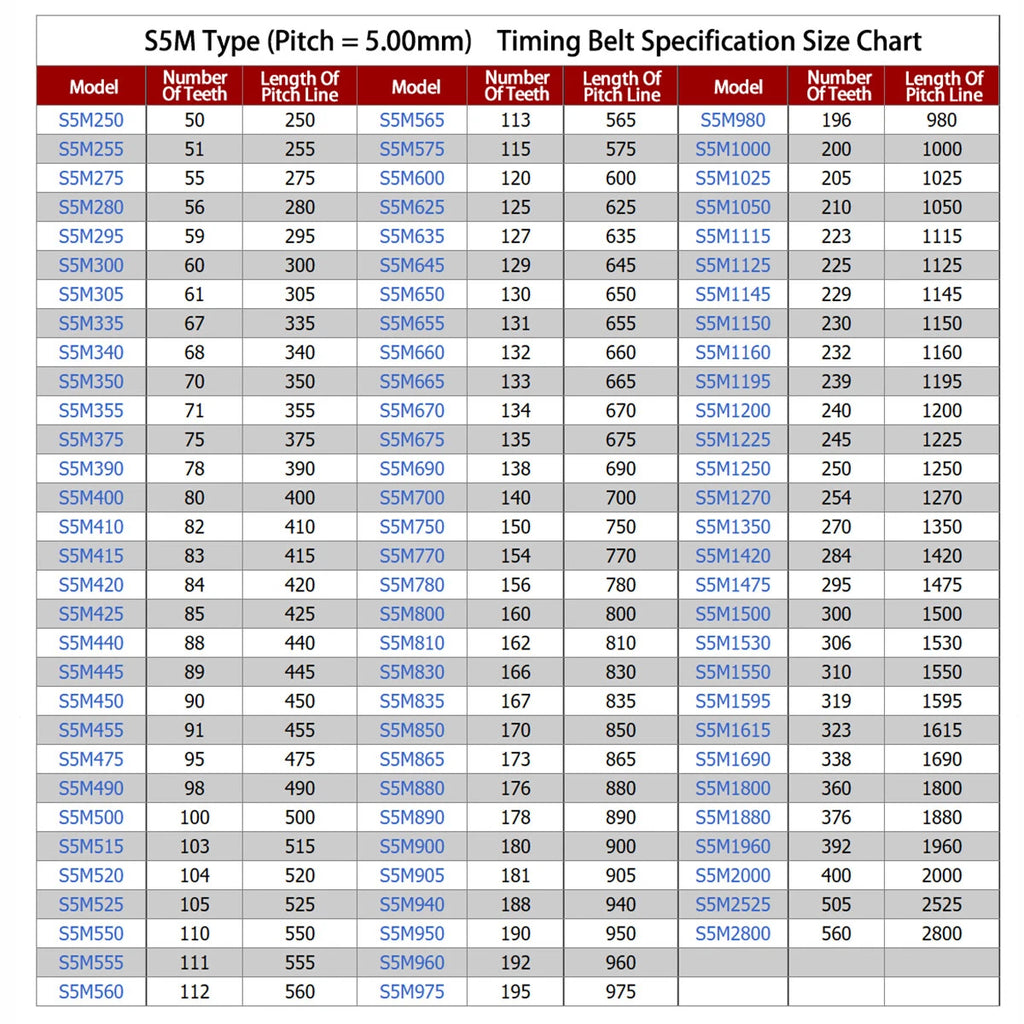

Perimeter Range	250mm (≈9.8") – 2800mm (≈110.2")
Material	Rubber with internal fiber reinforcement
Loop Construction	Seamless closed loop (no splice)
Drive Type	Synchronous (positive engagement)
Compatible Pulleys	Standard S5M pulleys and sprockets
Typical Applications	CNC routers, 3D printers, laser engravers, conveyor drives, automation equipment
Color/Finish	See variant options
Operating Temperature	Contact us to confirm
Quantity per Order	1 piece per unit (multi-piece options available in variants)

❓ Frequently Asked Questions

How do I choose the right perimeter length for my S5M timing belt?

Measure the center-to-center distance between your two pulleys, then calculate: Perimeter ≈ 2 × center distance + (π × pulley pitch diameter). For example, a 500mm perimeter belt is approximately 19.7". Always verify against your machine's belt path before ordering. When in doubt, consult your machine's documentation or contact us to confirm the correct size.

How do I convert the perimeter from mm to inches?

Divide the perimeter in mm by 25.4 to get inches. Quick reference examples:

250mm ÷ 25.4 ≈ 9.8"
500mm ÷ 25.4 ≈ 19.7"
1000mm ÷ 25.4 ≈ 39.4"
1500mm ÷ 25.4 ≈ 59.1"
2000mm ÷ 25.4 ≈ 78.7"

What load or torque can an S5M timing belt handle?

S5M belts are generally rated for light-to-medium duty power transmission. Actual load capacity depends on belt width, pulley diameter, and operating speed. Wider belts (25–30mm) typically carry higher torque than narrower ones (15–20mm). For specific load ratings relevant to your application, contact us to confirm suitability.

Can I use this timing belt outdoors or in humid environments?

The rubber compound used in S5M belts generally offers moderate resistance to moisture and mild temperature variation. However, prolonged exposure to UV radiation, oils, or extreme temperatures may reduce belt life. For outdoor or harsh-environment applications, we recommend verifying material compatibility with your specific conditions before installation.

Is this belt compatible with standard S5M pulleys and sprockets?

Yes. This belt follows the S5M tooth profile standard — 5mm pitch, rounded tooth form — and is compatible with any S5M-spec pulley or sprocket. Always confirm your pulley's tooth profile matches S5M (not HTD5M or other 5mm-pitch profiles, which have different tooth geometry) before installation.

Which width should I choose — 15mm, 20mm, 25mm, or 30mm?

Width selection depends on your pulley face width and required torque capacity. As a general rule: 15–20mm widths suit lighter CNC and 3D printer axes; 25–30mm widths are better for higher-torque or wider-pulley applications. Match the belt width to your pulley's usable face width for best tracking and to avoid edge wear.

What machines commonly use S5M closed-loop timing belts?

S5M closed-loop belts are commonly used in CNC routers, laser engravers, 3D printers, pick-and-place machines, conveyor systems, and other precision motion-control equipment where synchronous, slip-free power transmission is required. They are a standard replacement belt for many desktop and industrial automation platforms.

🛒 Select your width and perimeter above, then add to cart — ships from our US warehouse.
