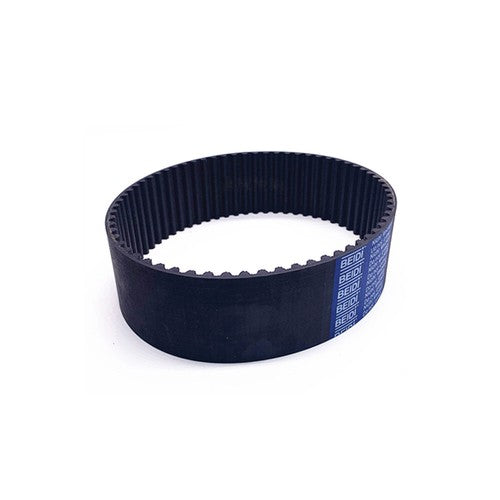

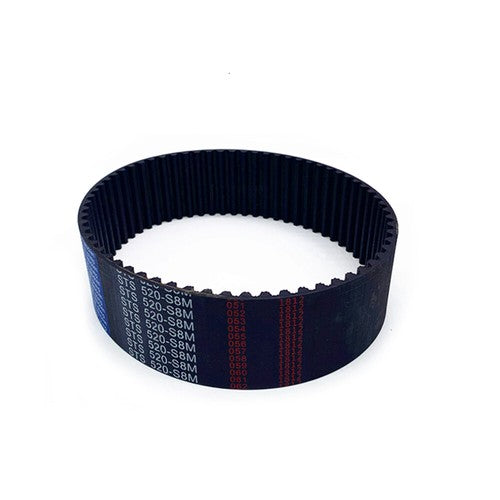

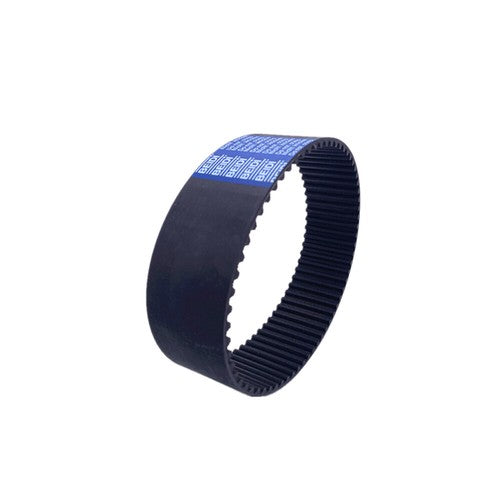

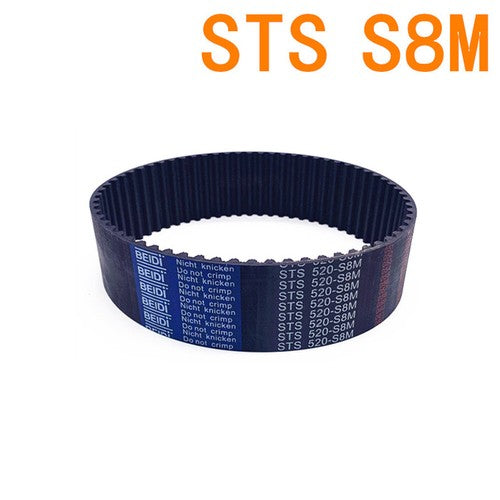

S8M Timing Belt 8mm Pitch 30mm Wide — Closed Loop Rubber Synchronous Belt for CNC & Automation

The perimeter listed (e.g., 352mm ≈ 13.9" or 1000mm ≈ 39.4") is the total outer circumference of the closed loop. To find your required perimeter, measure your existing belt directly, or calculate: (2 × center distance) + (circumference of both pulleys ÷ 2). When in doubt, size up slightly — a belt that is marginally too long is easier to tension than one that is too short. Always cross-reference the teeth count in the variant name with your pulley tooth count.

S8M belts are generally suited for moderate-to-high torque synchronous drive applications. Actual capacity depends on belt length, number of teeth in mesh, pulley diameter, and operating speed. For critical load calculations, consult your drive system's engineering data or the belt manufacturer's load rating tables. Typically, wider belts (like this 30mm version) carry more torque than narrower equivalents of the same pitch.

The rubber compound used in S8M belts is generally resistant to light moisture and moderate operating temperatures. However, prolonged exposure to UV radiation, petroleum-based oils, or aggressive chemicals can degrade the rubber over time. For outdoor, washdown, or oil-splash environments, verify material compatibility with your specific conditions before installation. In most cases, a protective cover or guard is recommended.

S8M belts require S8M-profile pulleys with an 8mm pitch trapezoidal tooth form. They are not compatible with HTD 8M pulleys (curvilinear tooth) or GT2 8mm pulleys, even though all three share an 8mm pitch. Mixing profiles causes accelerated tooth wear and belt skipping. Always confirm the pulley is specifically rated for S8M profile.

First, confirm your machine uses S8M-profile pulleys with 8mm pitch. Then identify the required belt perimeter (loop circumference) from your machine's documentation or by measuring the existing belt. Select the matching perimeter from the variant dropdown — the teeth count shown (e.g., "44 & 1Pcs" for 352mm) should match or be compatible with your pulley tooth count. This 30mm wide belt is suitable for machines with pulleys flanged for 30mm belt width.

Both S8M and HTD 8M have an 8mm tooth pitch, but they use different tooth profiles. S8M uses a trapezoidal (angular) tooth, while HTD 8M uses a curvilinear (rounded) tooth. These profiles are not interchangeable — using an S8M belt on an HTD 8M pulley (or vice versa) will result in poor meshing, premature wear, and potential belt skipping under load. Always match belt and pulley to the same profile designation.

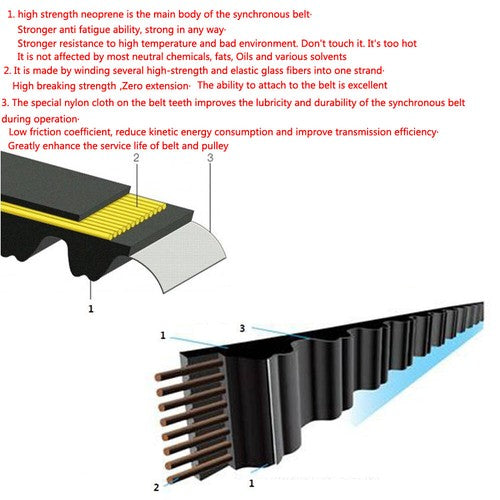

The tensile cord type (fiberglass vs. steel) affects elongation under load and maximum tensile strength. Fiberglass cord generally offers lower stretch and good fatigue resistance for most CNC and automation applications. Steel cord provides higher tensile strength for heavy-load drives. The specific cord construction for this listing is not specified per variant — contact us to confirm if your application has strict tensile requirements.
