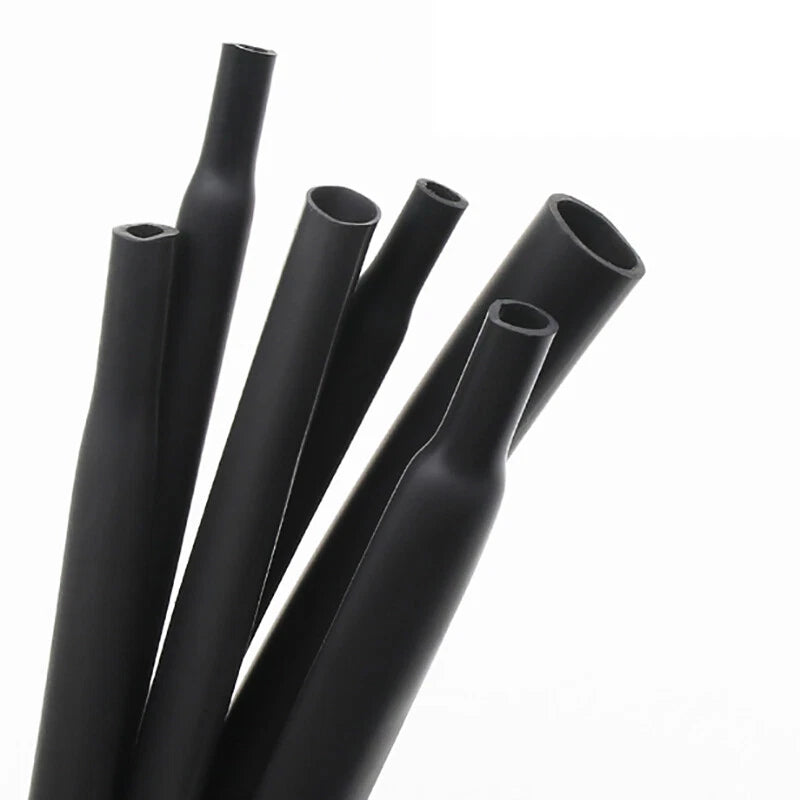

Silicone Rubber Heat Shrink Tubing — Flexible Heatshrink Tube, φ0.8mm–φ40mm, 6 Colors

Select a tubing diameter that is typically 20–30% larger than the outer diameter of the wire or component you need to cover. For example, for a 3mm wire bundle, a φ4mm or φ5mm tube (unshrunk) generally provides a secure fit after shrinking. Silicone heat shrink tubing typically has a 2:1 shrink ratio — a φ10mm (≈3/8") tube shrinks to approximately φ5mm (≈3/16"). When in doubt, size up rather than down.

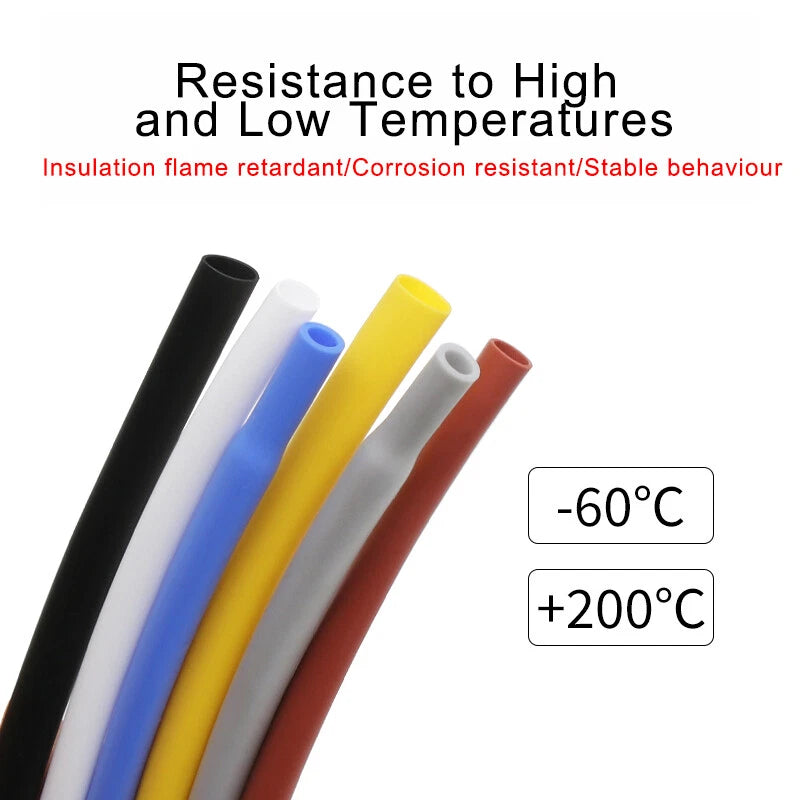

Silicone rubber heat shrink tubing generally withstands continuous operating temperatures from approximately -60°C (-76°F) to +200°C (+392°F). This makes it suitable for high-temperature wiring applications such as engine compartments, industrial equipment, and lighting fixtures. Always verify the specific rating for your application before use in safety-critical environments.

Silicone rubber is inherently resistant to UV exposure, moisture, and mild chemicals, making it generally suitable for outdoor cable protection and marine wiring applications. For fully waterproof sealed connections, consider pairing with adhesive-lined heat shrink tubing at termination points. This silicone tubing provides excellent environmental protection for exposed wire runs.

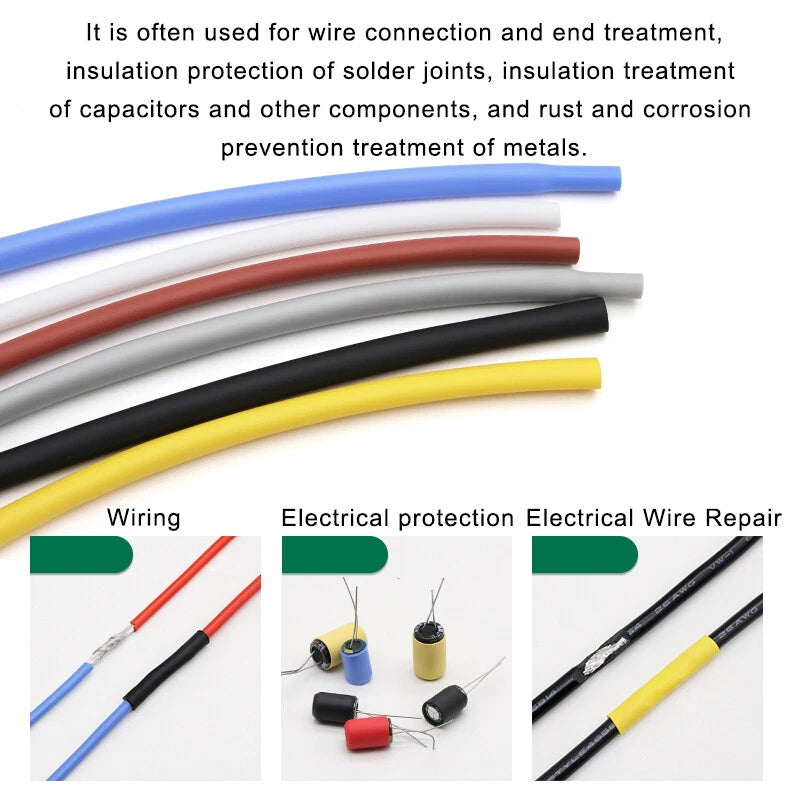

The φ0.8mm–φ40mm size range covers applications from fine gauge wires (typically AWG 28–30 at the small end) up to large cable bundles, multi-pin connectors, and terminal blocks at the larger sizes. It is compatible with standard wire gauges, solder joints, crimp connectors, and heat-shrink-compatible terminals. Always check the unshrunk inner diameter against your component's outer diameter before ordering.

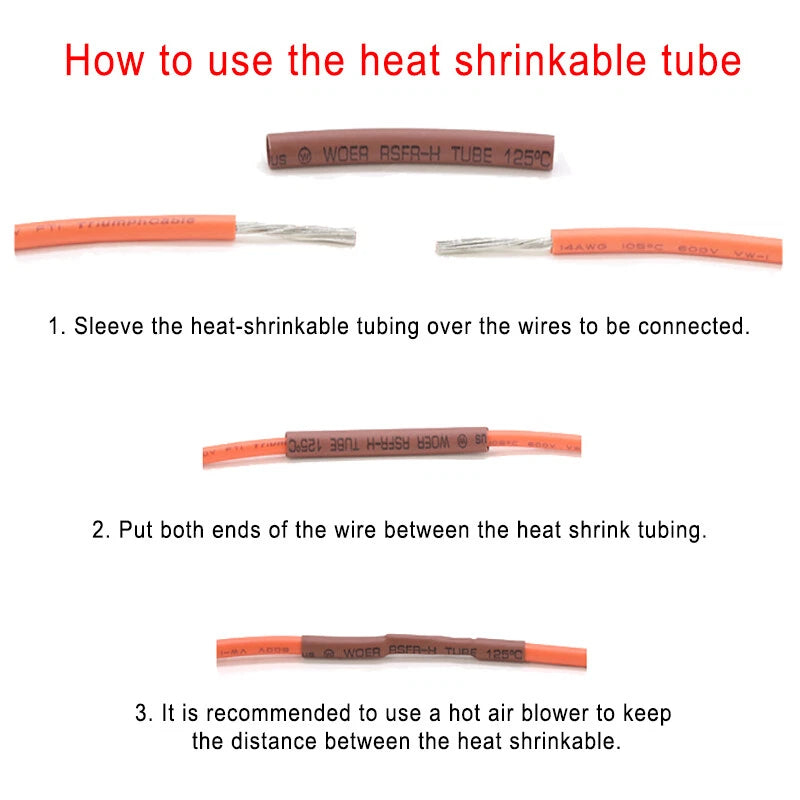

A heat gun set to approximately 120–150°C (248–302°F) is the recommended tool for even, controlled shrinking. Move the heat gun slowly along the tubing length to avoid hot spots. A lighter or match can work in a pinch but may cause uneven shrinkage or surface scorching. Avoid direct flame contact with the tubing surface. A hot air station works well for small-diameter tubing on PCB components.

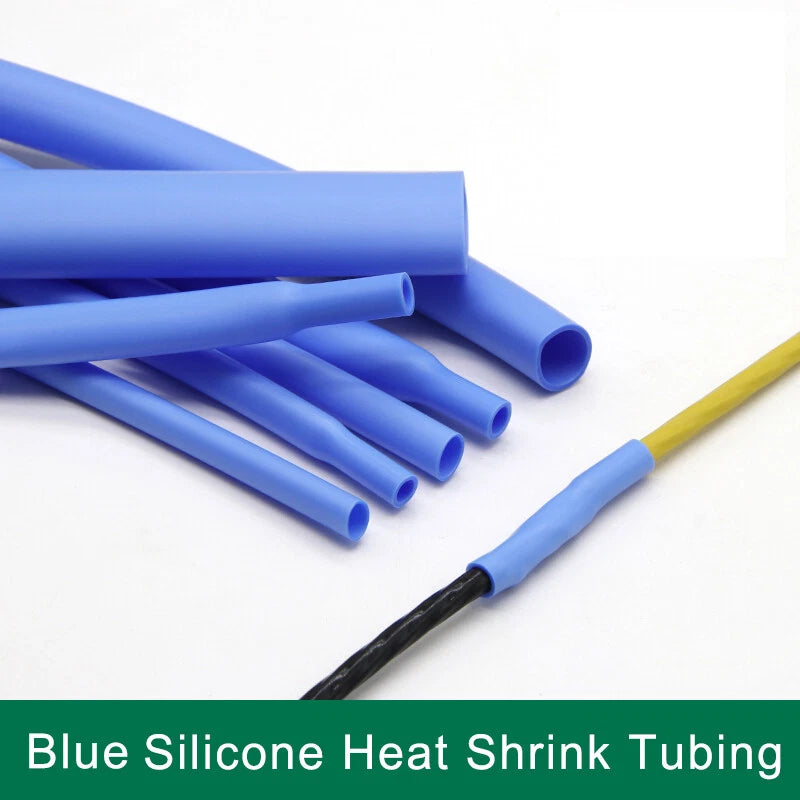

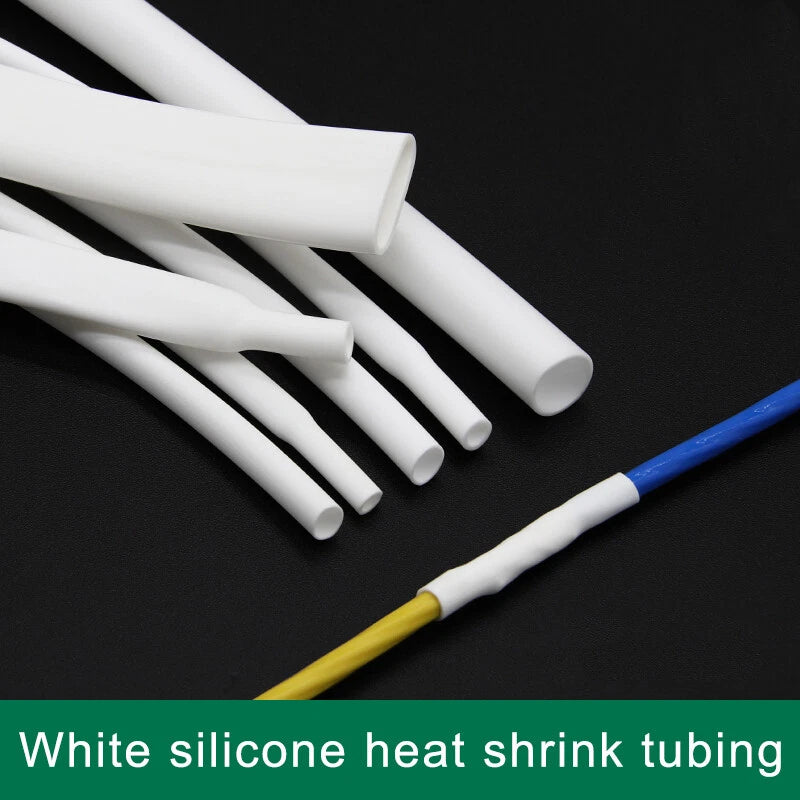

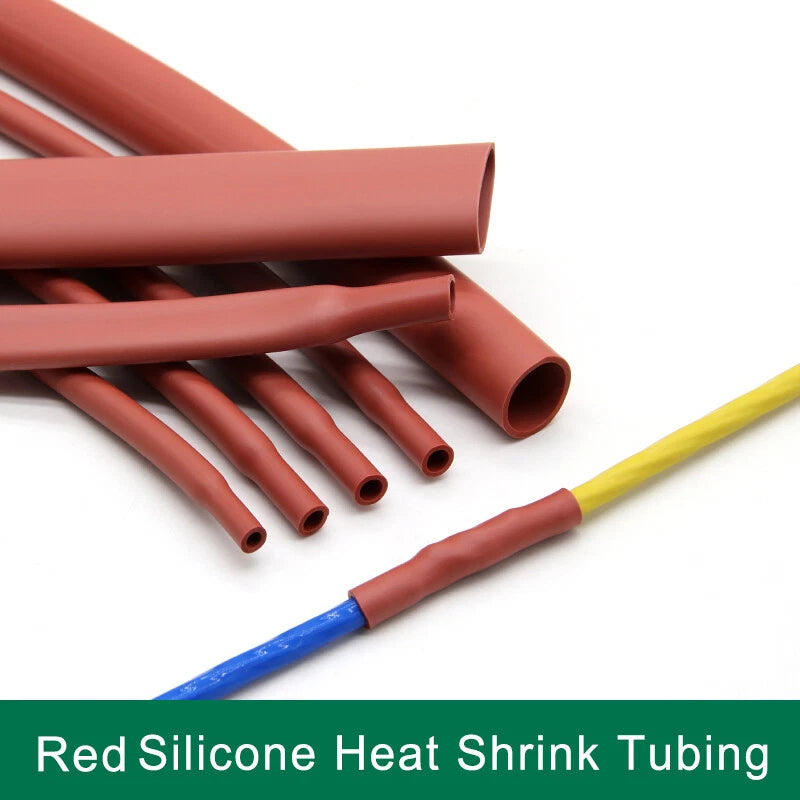

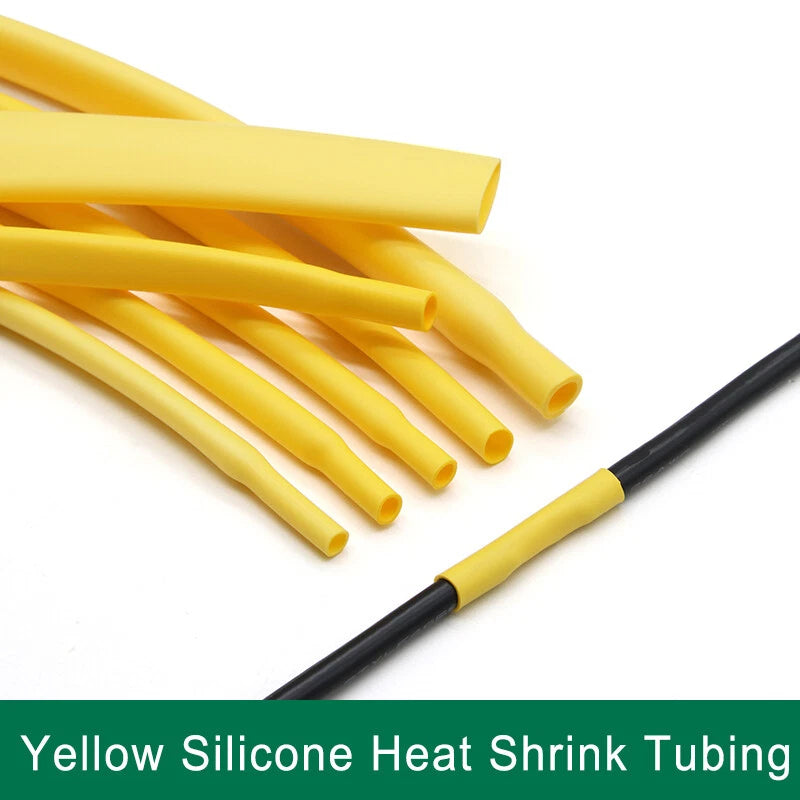

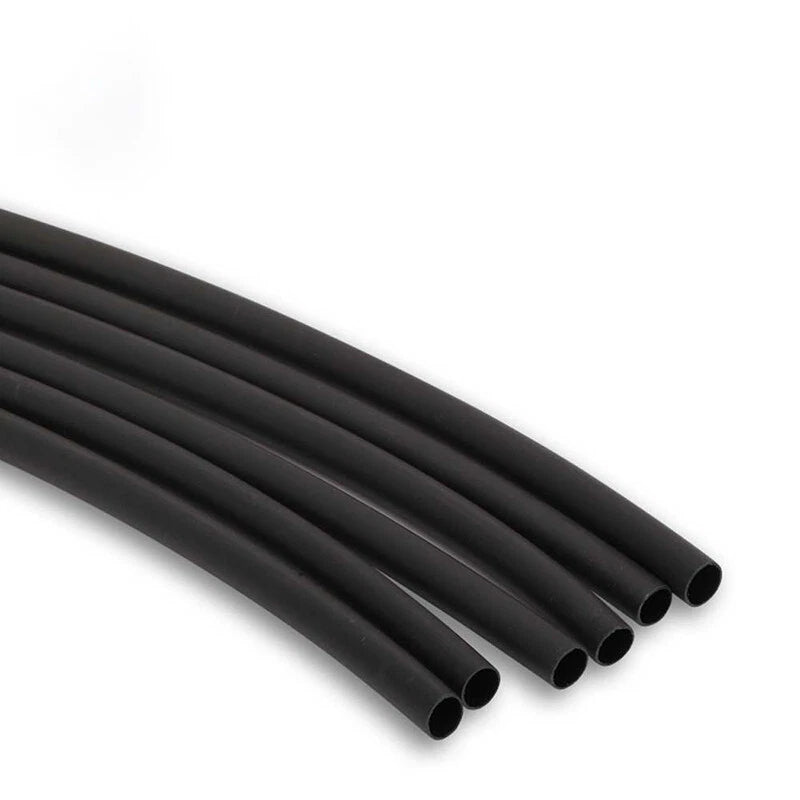

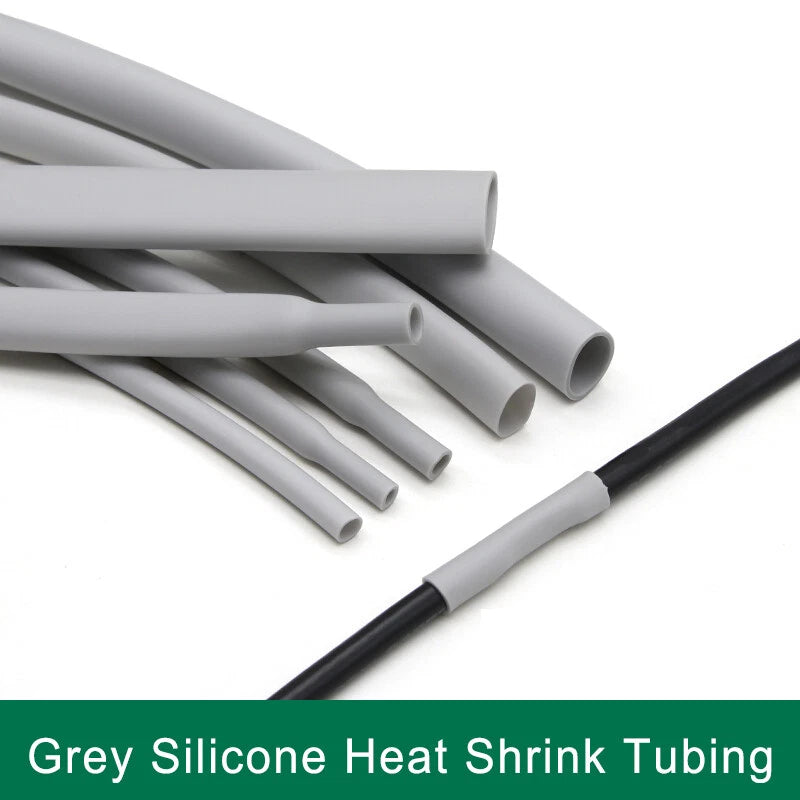

Color coding is a standard practice in electrical wiring to identify circuits at a glance and reduce troubleshooting time. Common conventions: Black — ground or negative; Red — positive or live; Blue — neutral or secondary circuits; Yellow — caution, signal, or switched live; White — neutral (US standard); Grey — general-purpose, shielded, or return conductors. Choose based on your applicable wiring standard (NEC, IEC, etc.) or your own color-coding system.

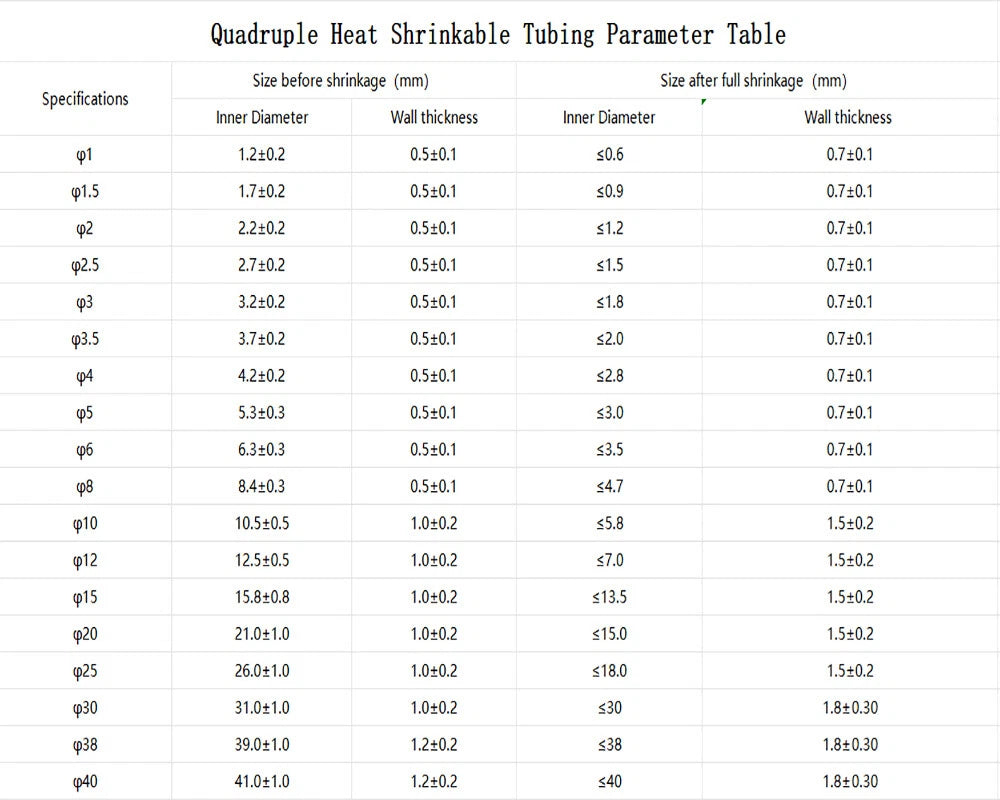

Silicone heat shrink tubing typically has a 2:1 shrink ratio, meaning the tubing shrinks to approximately half its original unshrunk inner diameter when heat is applied. For example, a φ10mm (≈3/8" unshrunk) tube will shrink to approximately φ5mm (≈3/16"). A φ40mm (≈1-9/16" unshrunk) tube will shrink to approximately φ20mm (≈13/16"). Always confirm the shrink ratio for your specific variant before cutting.

Yes — silicone rubber heat shrink tubing is widely used in RC and drone applications for insulating ESC wiring, motor leads, battery connector joints, and servo wire bundles. Its flexibility after shrinking is particularly valued in RC builds where wires experience constant vibration and movement. The small diameter options (φ0.8mm–φ3mm) are well-suited for fine gauge RC wiring.
