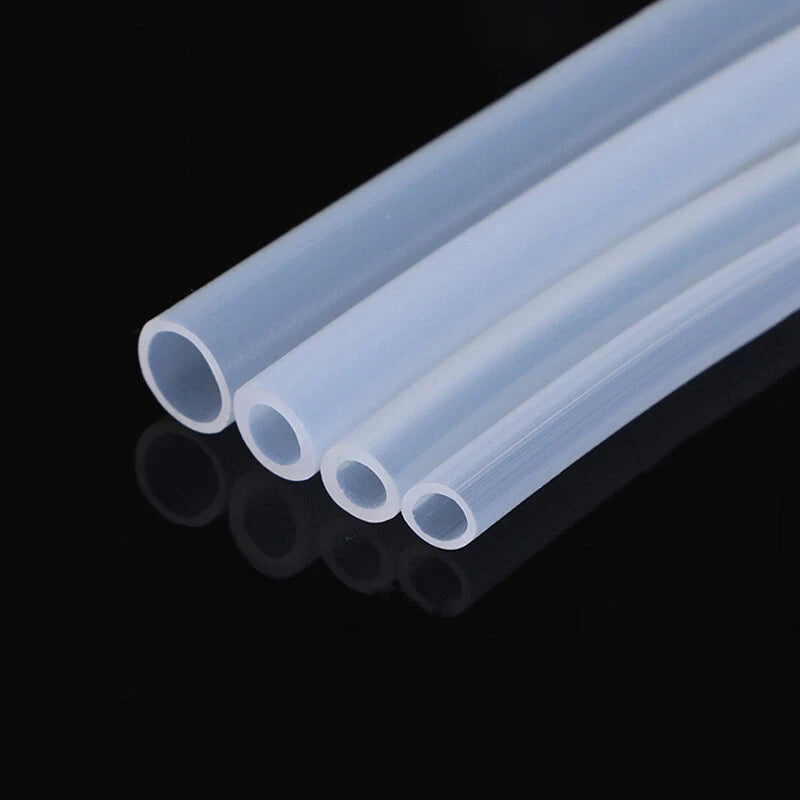

Silicone Rubber Hose Pipe Tubing ID 2mm-29mm Peristaltic Pump Transparent Tube

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

Silicone Rubber Hose Pipe Tubing ID 2mm-29mm Peristaltic Pump Transparent Tube

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Size (ID*OD): 2mm*5mm

Length: 1 Meter

Preis:

$3.09 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Transparent Silicone Rubber Hose Tubing — Flexible, Food-Safe & Wide Temperature Range

When standard PVC or rubber tubing cracks under heat, leaches odors into your fluid, or simply won't flex around tight bends, you need a material that holds up. DIYers, lab technicians, aquarium builders, and small-batch food processors all run into the same wall: finding a hose that stays pliable, stays clean, and stays intact across a wide range of conditions. This transparent silicone rubber hose tubing is built for exactly those situations.

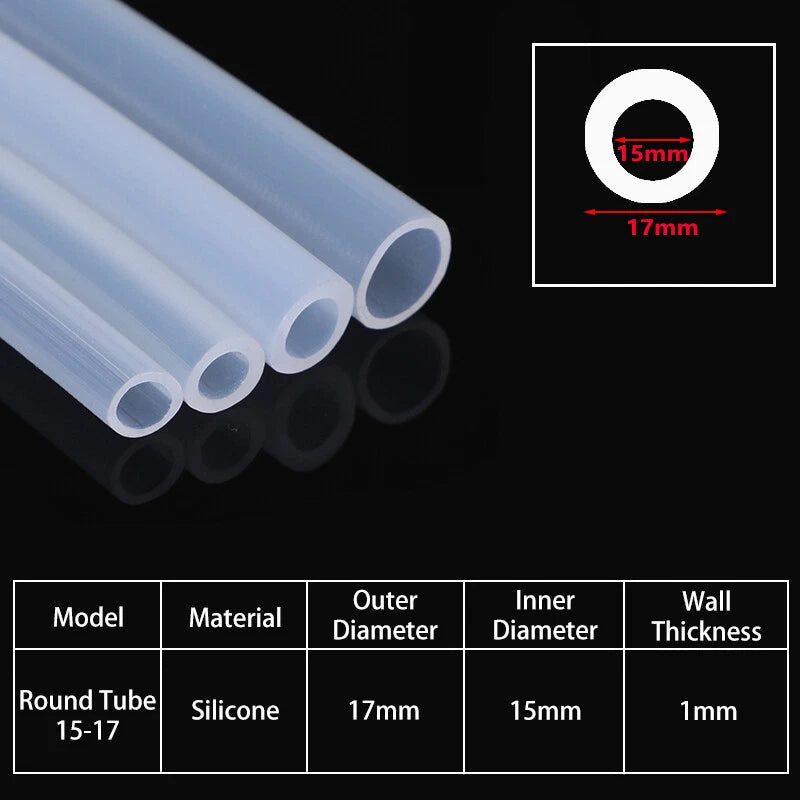

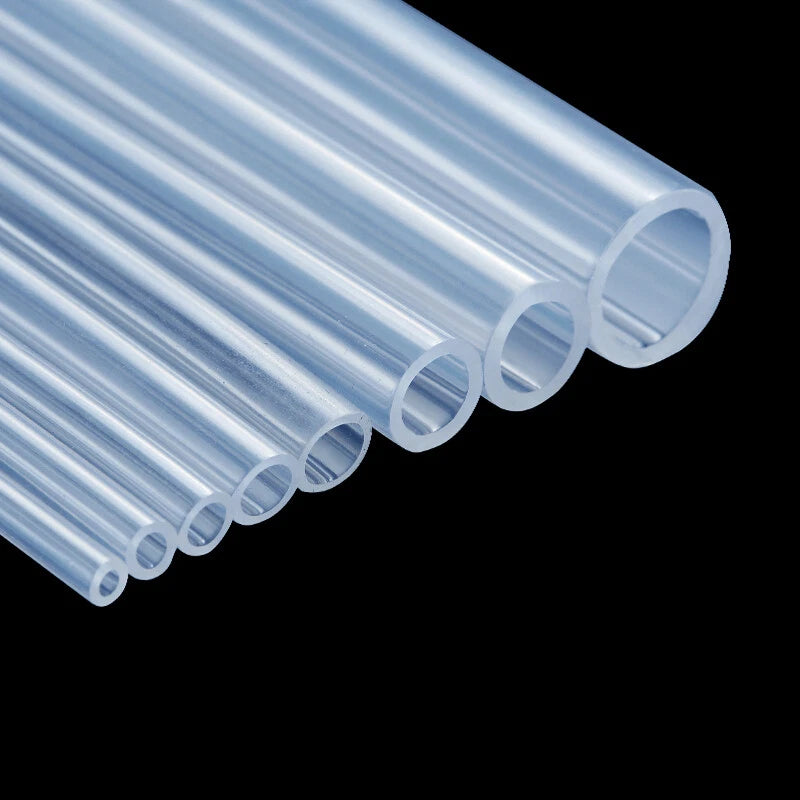

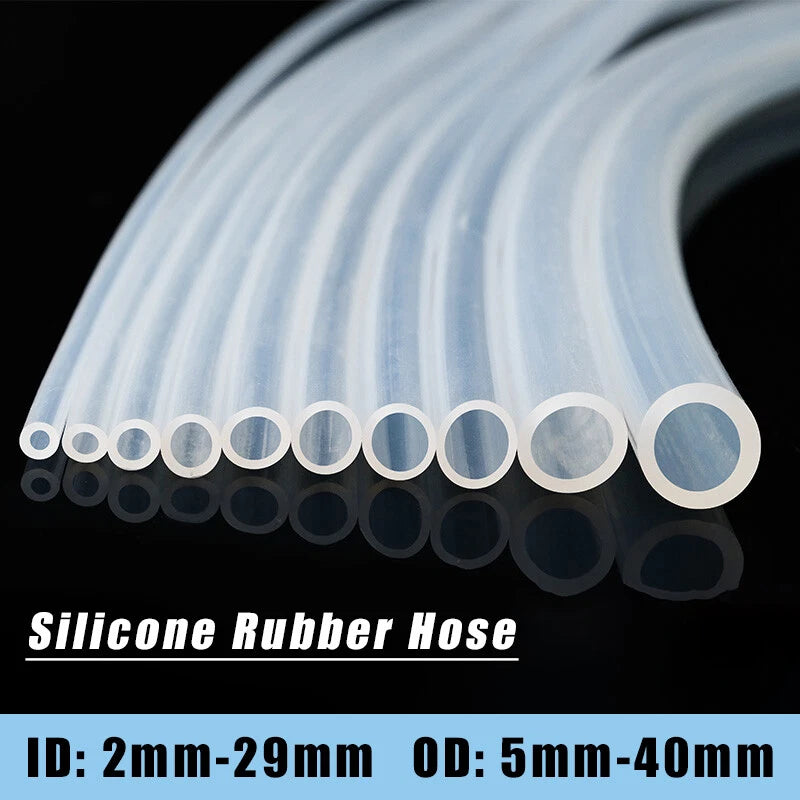

Each length is cut from solid-wall silicone rubber tube with an inner diameter (ID) ranging from 2 mm (approx. 5/64 in) to 29 mm (approx. 1-1/8 in) and an outer diameter (OD) ranging from 5 mm to 40 mm, giving wall thicknesses that vary by size. The tubing is fully transparent, allowing visual flow monitoring without fittings or sight glasses. Temperature resistance spans -60 °C to 280 °C (-76 °F to 536 °F), covering everything from freezer lines to steam-adjacent applications.

Typical use cases include peristaltic pump feed lines where the tube must flex millions of times without fatigue, aquarium and hydroponics water routing where clarity and non-toxicity matter, laboratory fluid transfer where chemical compatibility with silicone is required, and food or beverage processing lines where odor-neutral, FDA-grade silicone is the standard. The tubing is also widely used as vacuum tubing, coolant overflow hose, and flexible connector between rigid fittings in tight engine bays or HVAC setups.

⚙️ Compatibility note: Verify your ID and OD against your fittings before ordering. Silicone tubing stretches slightly, so a snug push-fit onto a barb fitting one size up is normal. Not recommended for petroleum-based fluids or strong solvents.

✅ Key Features of These Silicone Rubber Hose Tubes

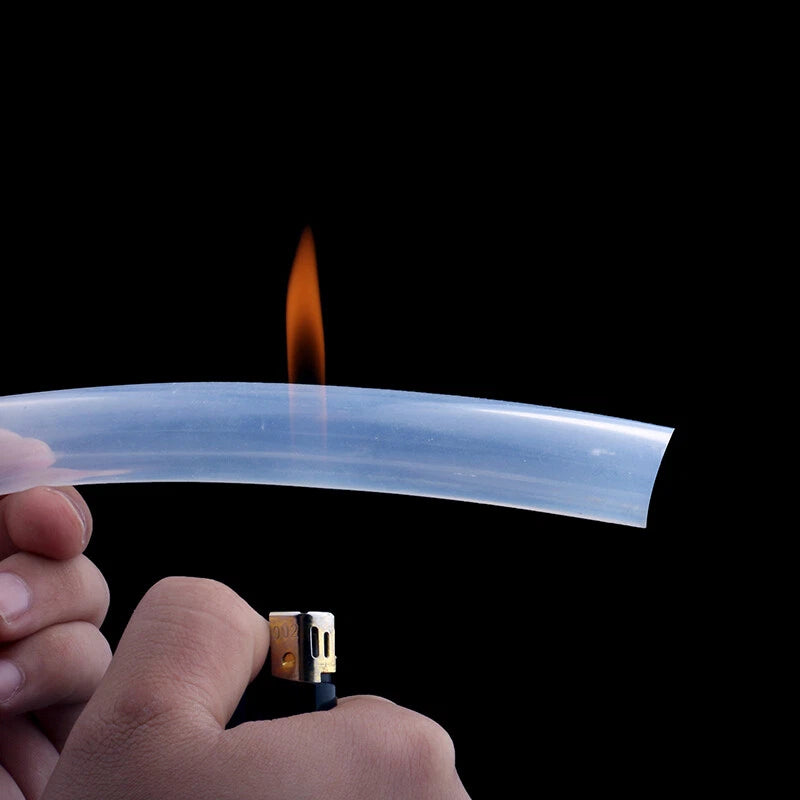

🌡️ Wide temperature range: Rated -60 °C to 280 °C (-76 °F to 536 °F), suitable for both cryogenic and high-heat fluid transfer without cracking or softening.
👁️ Fully transparent wall: Clear silicone construction lets you monitor flow, detect air bubbles, and confirm fluid color without cutting into the line.
🔄 Peristaltic pump compatible: The flexible, resilient wall rebounds after each compression cycle, making it a direct fit for peristaltic and roller pump applications.
🍽️ Odor-neutral, food-safe silicone: Non-toxic and tasteless material does not impart flavor or odor to water, beverages, or food-grade fluids passing through the tube.
📐 24 size options, 8 length options: ID from 2 mm to 29 mm paired with lengths from 1 m to 20 m — order exactly what your project needs without cutting waste from an oversized roll.
🔧 Push-fit and clamp compatible: Soft, pliable wall seats firmly over standard barb fittings and accepts hose clamps without cracking, splitting, or deforming at the clamp edge.

📐 Technical Specifications — Silicone Rubber Hose Tubing

Material	Silicone Rubber
Color / Finish	Transparent (clear)
Inner Diameter (ID) Range	2 mm – 29 mm (approx. 5/64 in – 1-1/8 in)
Outer Diameter (OD) Range	5 mm – 40 mm (approx. 13/64 in – 1-37/64 in)
Wall Thickness	See variant options
Available Lengths	1 m, 2 m, 3 m, 4 m, 5 m, 8 m, 10 m, 20 m
Temperature Range	-60 °C to 280 °C (-76 °F to 536 °F)

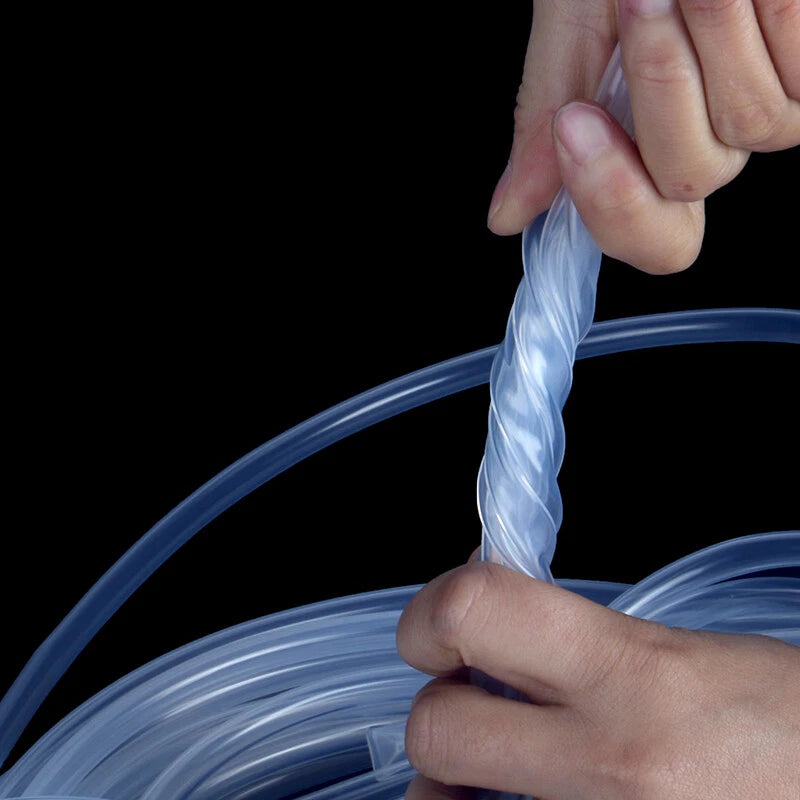

Flexibility	Highly flexible; suitable for repeated compression cycles
Fluid Compatibility	Water, air, food-grade liquids, mild chemicals; not for petroleum solvents
Product Type	Silicone Rubber Hose / Tubing

❓ Frequently Asked Questions

How do I choose the right ID and OD for my fitting?

Match the ID of the tubing to the outer diameter of your barb or nipple fitting. For example, a 6 mm barb fitting typically pairs with a 6 mm ID tube. Silicone stretches slightly, so going one size down on the ID gives a tighter, leak-resistant seal. Always confirm the OD as well if the tube must pass through a grommet or panel hole.

Is this tubing safe for drinking water or food contact?

Silicone rubber is widely used in food and beverage applications because it is odor-neutral, tasteless, and does not leach plasticizers. This tubing is made from silicone rubber, which is the same material class used in food-grade hose applications. If your application requires a specific certification (e.g., FDA 21 CFR), please contact us to confirm before ordering.

Can I use this hose with a peristaltic or roller pump?

Yes. Peristaltic pumps work by repeatedly squeezing and releasing the tube wall. Silicone rubber's elastic memory allows it to return to its original shape after each compression cycle, which is why it is the standard material for peristaltic pump tubing. Select the ID that matches your pump head's specified tube bore.

What is the maximum temperature this tubing can handle?

The tubing is rated for continuous use from -60 °C to 280 °C (-76 °F to 536 °F). At the upper end, this covers most hot-water, steam-adjacent, and automotive coolant overflow applications. For sustained exposure above 250 °C, monitor the tubing periodically for any surface hardening.

Will this tubing work with petroleum-based fluids or solvents?

Silicone rubber has limited resistance to petroleum-based oils, fuels, and strong organic solvents such as acetone or toluene. For those fluids, a fluorosilicone or PTFE-lined hose is a better choice. This tubing is well-suited for water, air, mild acids, alcohols, and food-grade liquids.

How do I cut the tubing cleanly to length?

Use a sharp utility knife or dedicated tube cutter on a flat surface. A single clean cut perpendicular to the tube axis prevents the end from deforming when pushed onto a barb fitting. Avoid scissors, which tend to compress and distort the cut end.

Can I use hose clamps with this silicone tubing?

Yes. Standard worm-drive hose clamps work well with silicone tubing. Tighten gradually and avoid over-torquing, as silicone is softer than rubber and can be cut by the clamp edge if overtightened. A smooth-band clamp or T-bolt clamp is gentler on the tube wall for high-pressure applications.

🛒 Select your Size (ID*OD) and Length above, then add to cart.
