Specification: SS-12F44 2-way 3-pin vertical

Amout(pcs): 15pcs

Preis:

$2.69 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

PCB Slide Toggle Switches — SS / SK / MSK / MSS Series for Reliable Circuit Switching

If you've ever had a DIY electronics project stall because you couldn't find the right slide switch footprint — too wide, wrong pin count, or the wrong throw configuration — you know how frustrating component sourcing can be. These SS / SK / MSK / MSS series PCB slide toggle switches are stocked specifically for makers, hobbyists, electronics students, and repair technicians who need a reliable, drop-in solution without ordering a custom part.

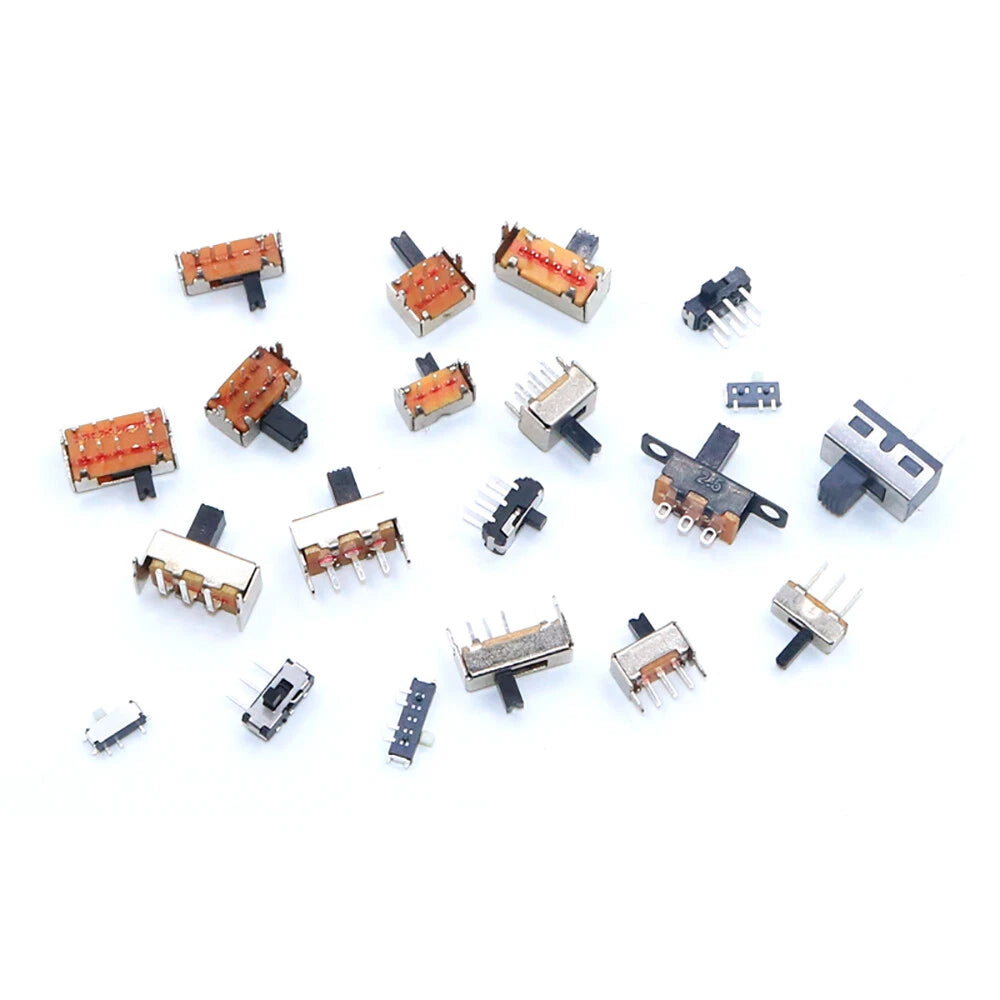

Each set includes your chosen model and quantity (available in packs from 2 to 60 pieces depending on the variant). The switches are constructed with a thermoplastic housing and metal contact mechanism, available in both through-hole (THT) and surface-mount (SMD) configurations. Pin counts range from 3-pin to 8-pin across single-row and double-row layouts, covering 2-way (1P2T) and 3-way switching positions. Actuator travel is compact, making these switches suitable for space-constrained PCB layouts.

Typical use cases include mode selection switches in Arduino and Raspberry Pi projects, channel routing in DIY audio gear such as guitar pedals and synthesizers, power-path switching in battery-operated devices, and function selection in custom control panels. Long-tail searches like "miniature PCB slide switch 3-pin through-hole" and "SMD toggle switch 6-pin double row" describe exactly what this listing covers.

🔌 Compatibility Note: Through-hole models typically use a 2.54 mm (0.1") pin pitch — compatible with standard breadboards and DIY PCB grids. SMD variants require surface-mount pads; verify your PCB footprint before ordering. Select your model number from the Specification dropdown to confirm pin count and row configuration.

✅ Key Features of These PCB Slide Toggle Switches

🎚️Multiple Throw Configurations — Available in 2-way (1P2T) and 3-way positions, covering single-pole and double-pole switching needs for a wide range of DIY circuit designs.
📐Single & Double Row Layouts — Choose from compact single-row models (3–4 pin) or double-row variants (6–8 pin) to match your PCB footprint and ganged-switching requirements.
🔩THT and SMD Options — Through-hole models suit hand-soldering and prototyping; SMD variants (labeled in the model name) are designed for surface-mount PCB assembly workflows.
🏗️Compact Actuator Profile — The low-profile slide actuator keeps the switch height minimal, making these miniature slide switches a practical fit for enclosures with tight clearance.
📦Flexible Pack Quantities — Order from 2 to 60 pieces per pack depending on the model, so you can stock up for production runs or grab just enough for a one-off prototype.
🔄Broad Series Coverage — Includes SS, SK, MSS, and MSK series models in one listing, letting you compare and select the exact slide switch specification your schematic calls for without hunting across multiple suppliers.

📐 Technical Specifications — PCB Slide Toggle Switch Series

Product Type	Miniature PCB Slide Toggle Switch
Series	SS, SK, MSS, MSK
Switching Positions	2-way (1P2T) and 3-way; see variant options
Pin Count	3-pin, 4-pin, 6-pin, 7-pin, or 8-pin; see variant options
Row Configuration	Single row or double row; see variant options
Mount Type	Through-hole (THT) or Surface-Mount (SMD); see variant options
Pin Pitch (THT)	Typically 2.54 mm (0.1") — contact us to confirm for your model
Rated Current	Typically 0.3 A (signal-level switching; not for mains power)
Rated Voltage	Typically 6 V DC
Housing Material	Thermoplastic (PA or similar)
Contact Material	Copper alloy with silver-plated contacts (typical for series)
Pack Quantity	2 / 4 / 5 / 10 / 15 / 20 / 30 / 40 / 60 pcs; see variant options
Operating Temperature	Contact us to confirm
RoHS Compliance	Contact us to confirm

⚠️ Spec Confirmation: Electrical ratings (current, voltage, temperature) are typical values for this switch series. For safety-critical or production applications, please contact us to confirm the exact datasheet specifications for your chosen model number.

❓ Frequently Asked Questions

How do I choose the right slide switch size and pin count for my project?

Match the switch to your circuit's pole/throw requirement first: 1P2T (single-pole double-throw) for simple on/off routing, 2-way for two-position selection, 3-way for three-position. Then confirm the pin count matches your PCB footprint — 3-pin for single-row 1P2T, 6-pin for double-pole, 8-pin for double-row 3-way. When in doubt, check your PCB datasheet or measure the existing footprint pitch (typically 2.54 mm / 0.1" for through-hole variants).

What is the difference between THT (through-hole) and SMD versions?

THT (through-hole technology) switches have pins that pass through the PCB and are soldered on the back — easier for hand-soldering and prototyping. SMD (surface-mount device) variants sit flat on the board surface and are soldered directly to pads, making them suitable for compact, automated PCB assembly. Check the model suffix: models labeled "SMD" in this listing are surface-mount; all others are through-hole.

What current and voltage ratings do these slide switches support?

These are low-current signal-level switches. They are generally rated for 0.3 A at 6 V DC (typical for SS/SK/MSK/MSS series miniature slide switches). They are not designed for mains voltage or high-current power switching. Contact us to confirm the exact rating for your chosen model before use in safety-critical applications.

Are these switches suitable for outdoor or high-humidity environments?

These are standard-grade PCB slide switches without an IP-rated enclosure. They are generally intended for indoor, dry-environment electronics. For outdoor or high-humidity use, they should be housed inside a sealed enclosure. Conformal coating of the PCB after installation can also help protect against moisture.

What PCB pitch do these switches use — are they compatible with standard 2.54 mm grids?

Through-hole models in this series typically use a 2.54 mm (0.1") pin pitch, which is compatible with standard breadboards and most DIY PCB layouts. SMD variants have a different pad footprint — refer to the specific model datasheet or contact us to confirm compatibility with your PCB design.

How do I decide between a single-row and double-row switch?

Single-row switches (e.g., SS, SK series) are more compact and suit simple 1P2T or 2-way switching tasks. Double-row switches (e.g., SK-22D07, SK-23D07) provide more poles in the same footprint, useful when you need to switch multiple signal lines simultaneously with one actuator. Choose double-row when your circuit requires ganged switching of two or more independent circuits.

Can I use these switches for audio signal routing in guitar pedals or DIY synths?

Yes — miniature PCB slide switches like these are commonly used in DIY audio projects for mode selection, bypass routing, and parameter switching. They are generally well-suited for low-level audio signals. For high-gain or noise-sensitive paths, ensure the switch is properly grounded and shielded within your enclosure to minimize interference.

🛒 Select your specification and quantity above, then add to cart — ships from our US warehouse.
