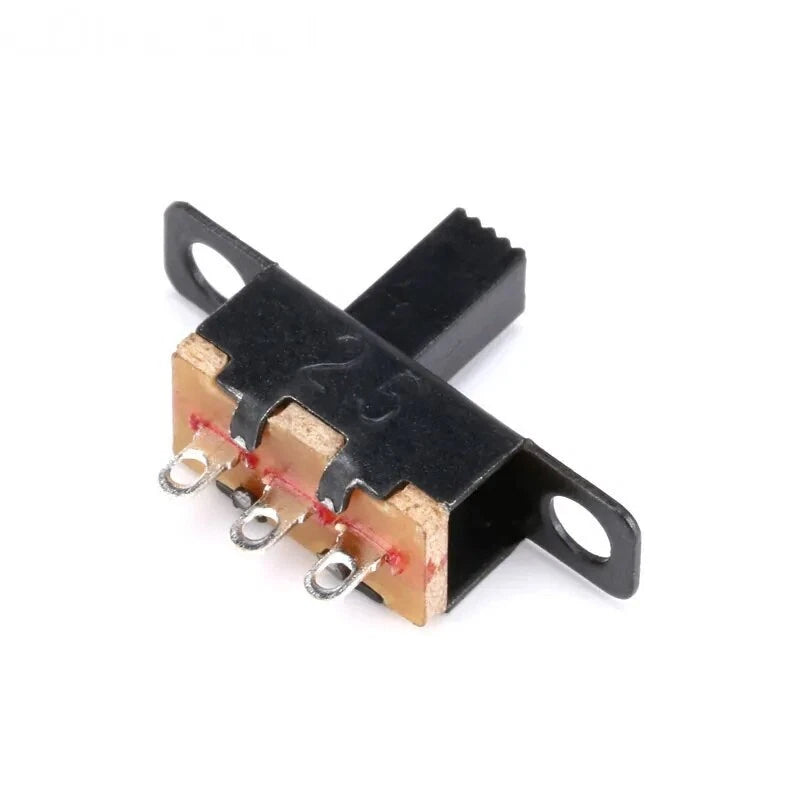

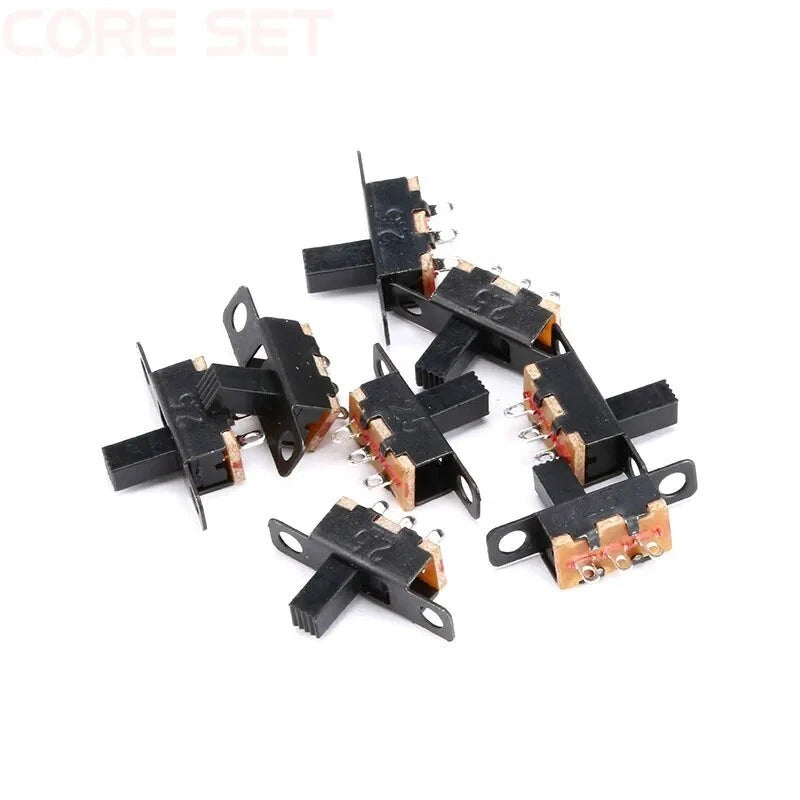

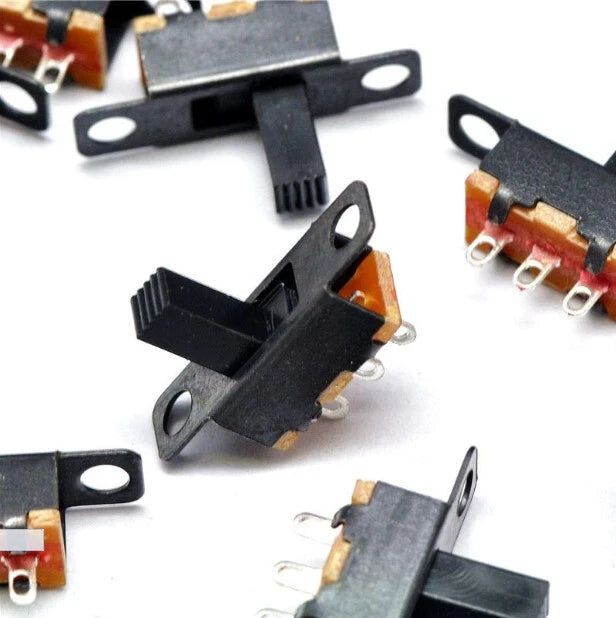

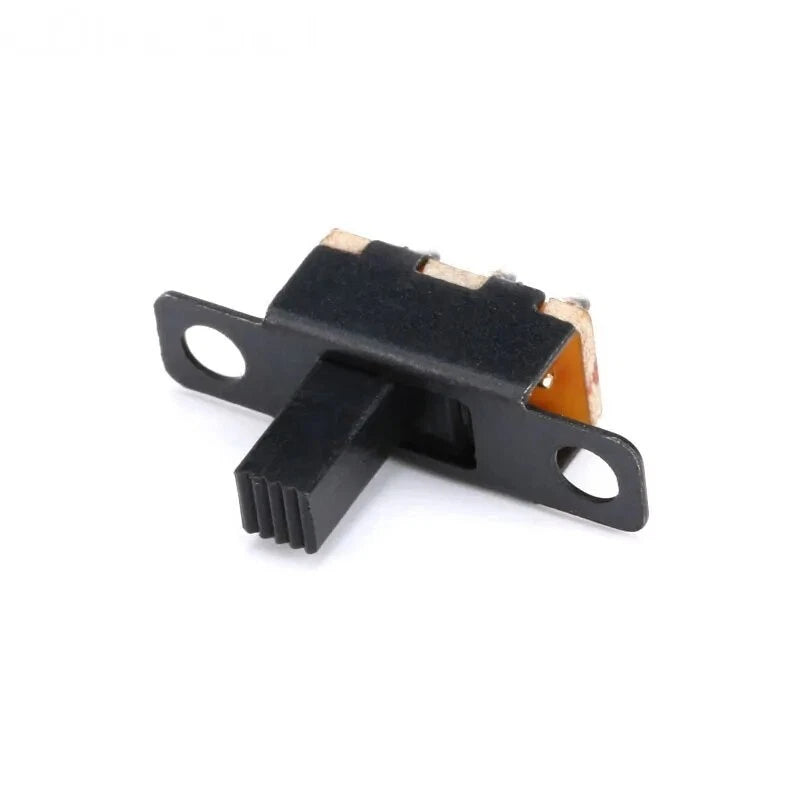

SS12F15VG6 Small Slide Toggle Switch 3-Pin 2-Position — 10 Pack

This switch features a 6mm (approximately 1/4") handle height, which is generally suited for standard PCB-mount and panel-mount applications. If your enclosure has tight vertical clearance, measure the available space above the board before ordering. For most DIY electronics and Arduino builds, 6mm is a common and compatible height.

Slide toggle switches of this type typically support ratings in the range of 0.3A–0.5A at 12V DC. Always verify the datasheet for your specific application and stay within the rated load to ensure reliable operation. If you need higher current capacity, consider a rocker or toggle switch rated for your load.

This is a standard, non-sealed slide switch and is generally intended for indoor or enclosed-enclosure use. For outdoor or high-humidity environments, a sealed or IP-rated switch is recommended. Using an unsealed switch in wet conditions may cause corrosion or intermittent contact.

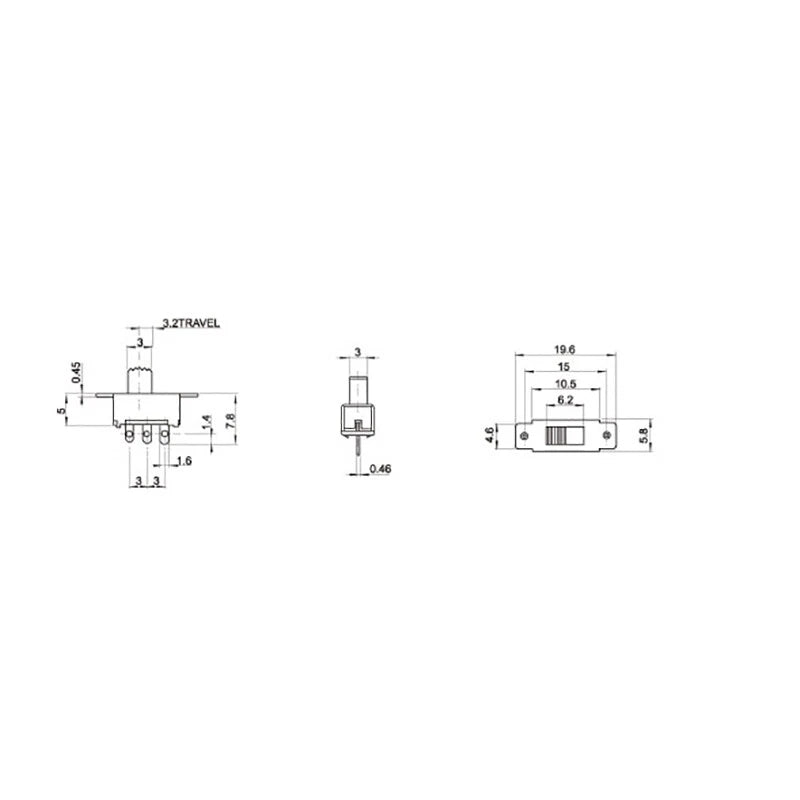

The SS12F15VG6 typically uses a 2.54mm (0.1") pin pitch, which is compatible with standard breadboards and PCB layouts. Confirm the exact footprint against your PCB design before soldering to ensure the pads align correctly.

This is a 2-gear (2-position) SPDT-style slide switch. In one position, the common pin connects to one output; in the other position, it connects to the second output. This makes it ideal for toggling between two circuits, power states, or operating modes in your project.

Yes. These mini slide switches are commonly used in Arduino, Raspberry Pi, and other microcontroller projects for power switching, mode selection, and signal routing. Their 2.54mm pitch makes them breadboard-friendly for prototyping, and they can be soldered directly to a custom PCB for permanent installations.

Buying in a 10-pack gives you spares for prototyping, reduces per-unit cost, and ensures you have replacements on hand if a switch is damaged during soldering. It's a practical choice for hobbyists and makers who work on multiple projects or want to keep a stock of common components.
