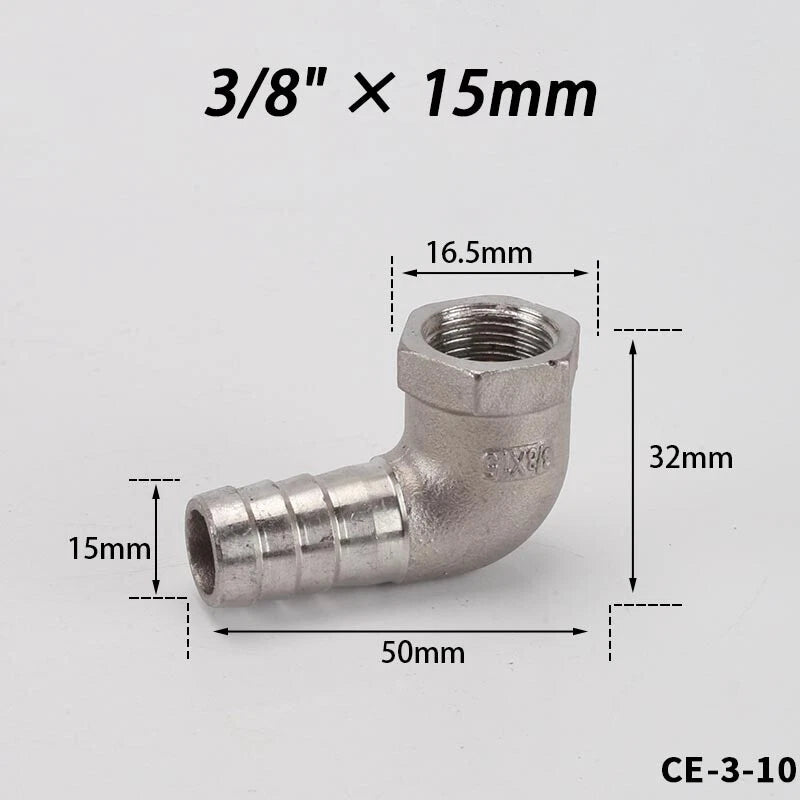

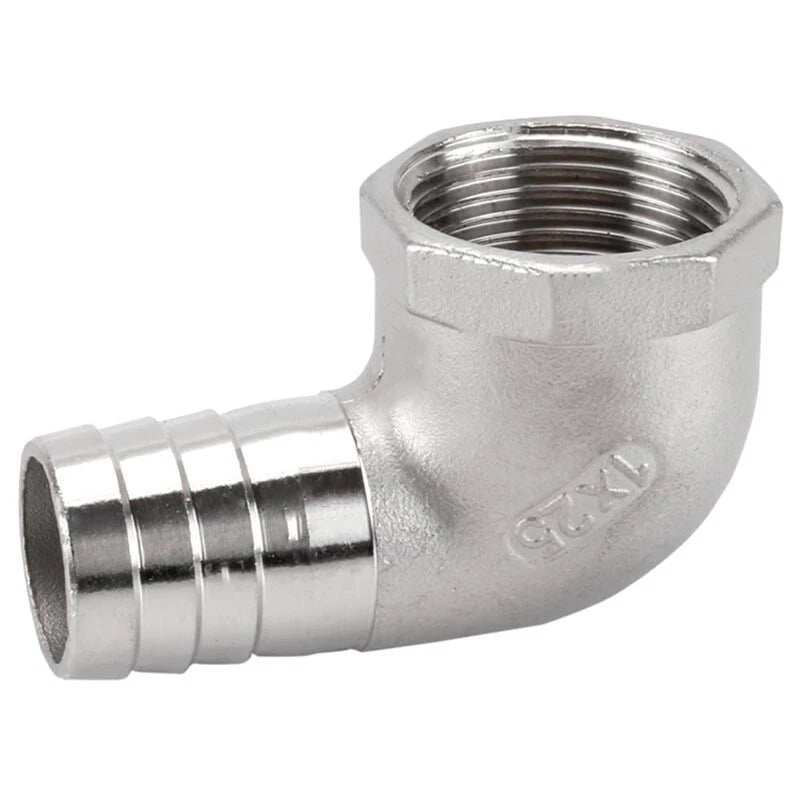

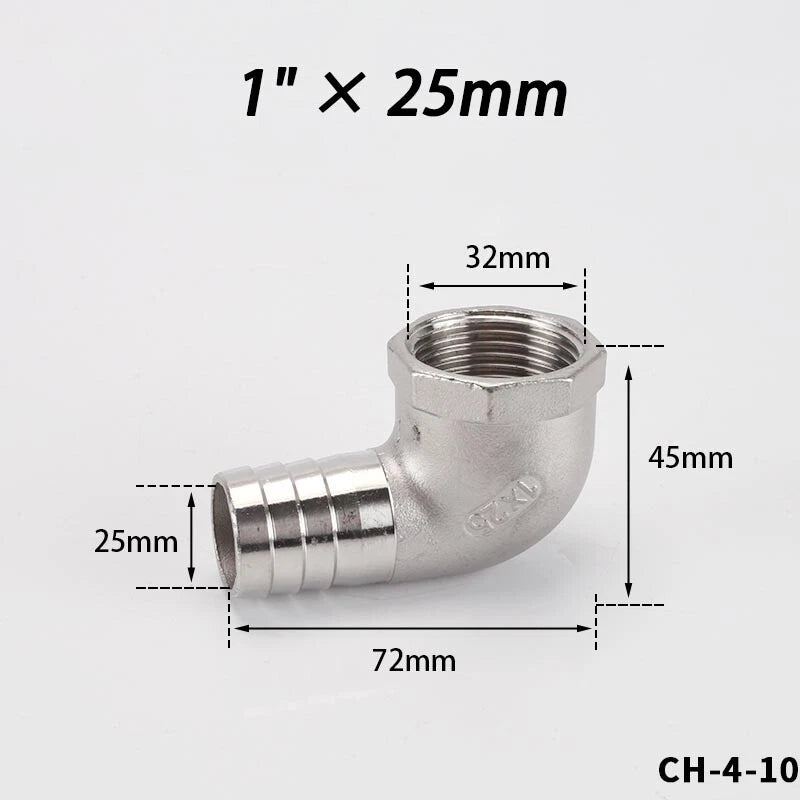

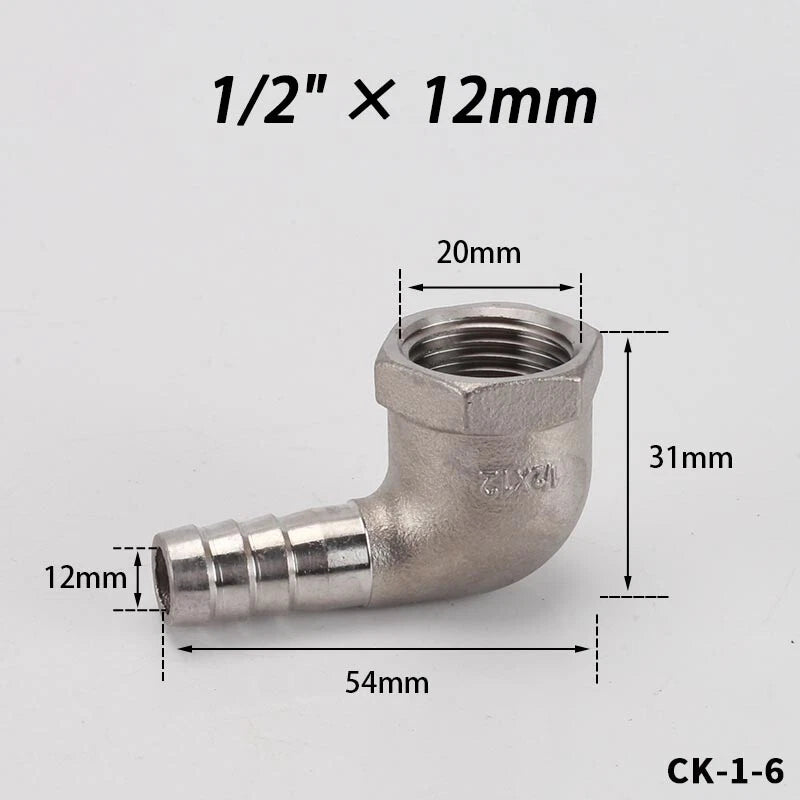

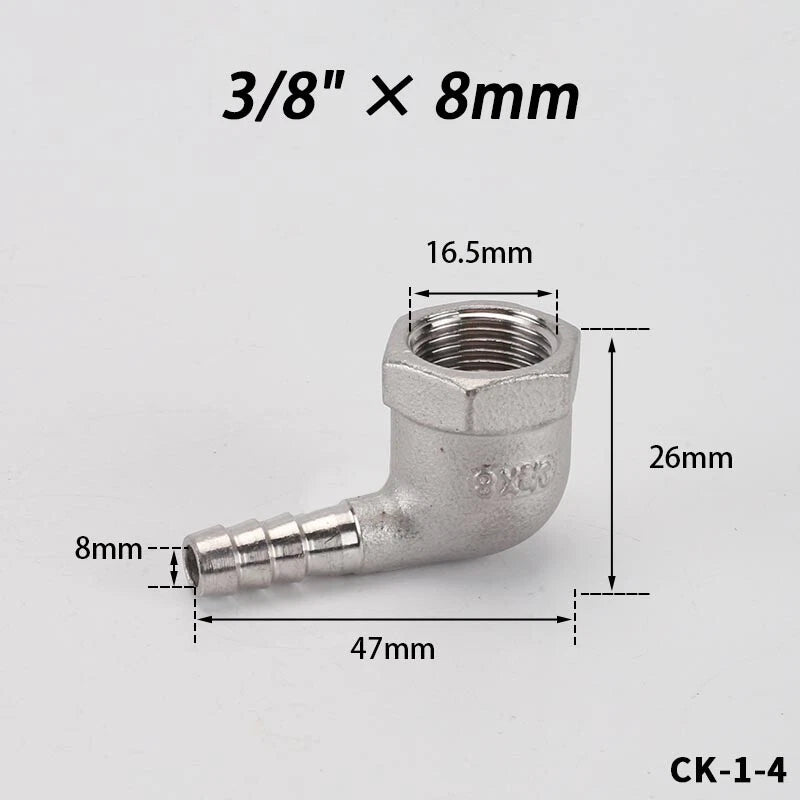

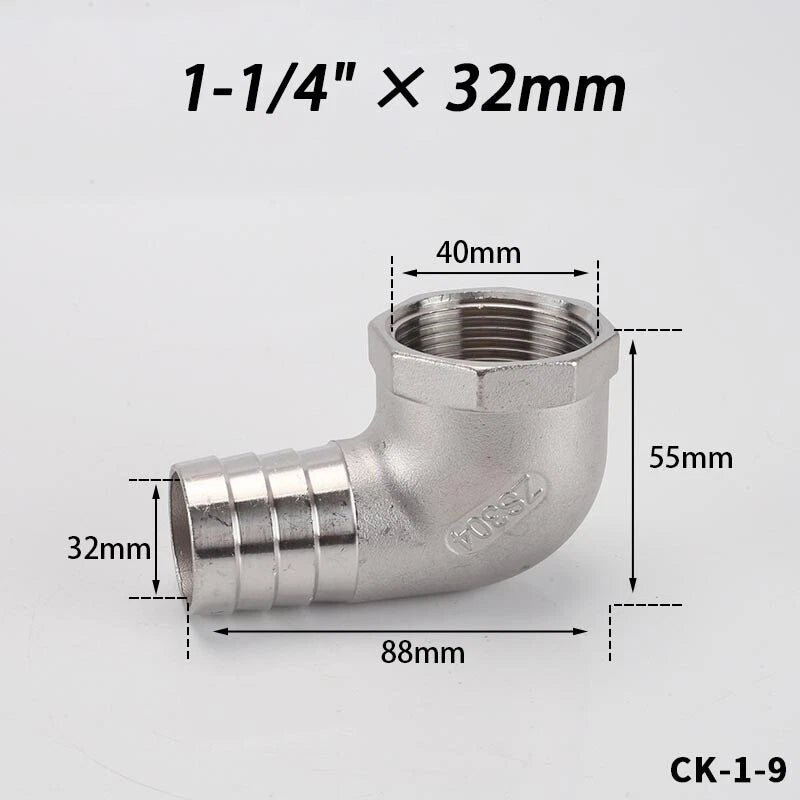

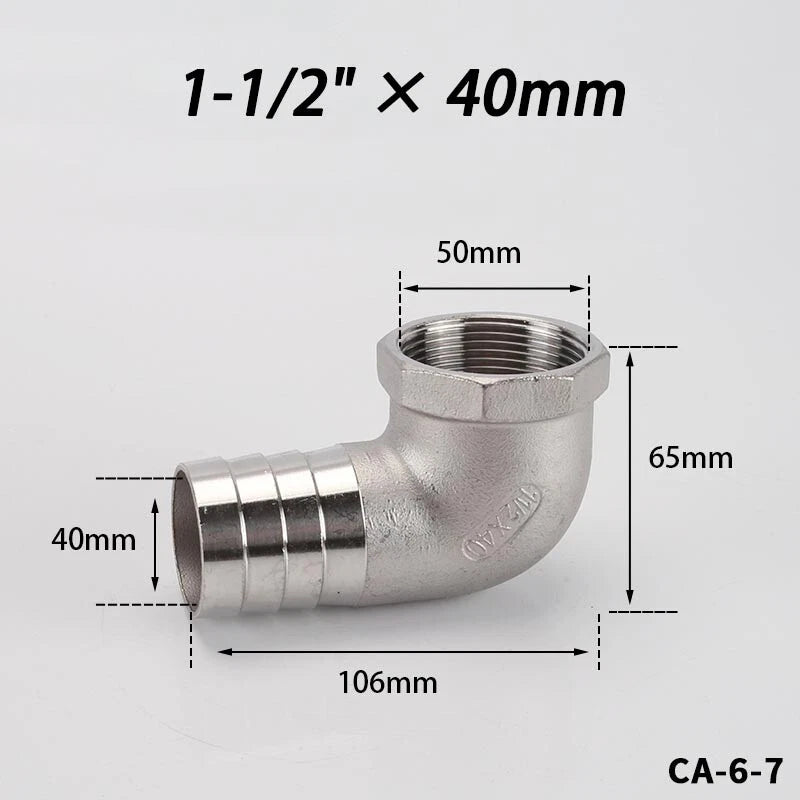

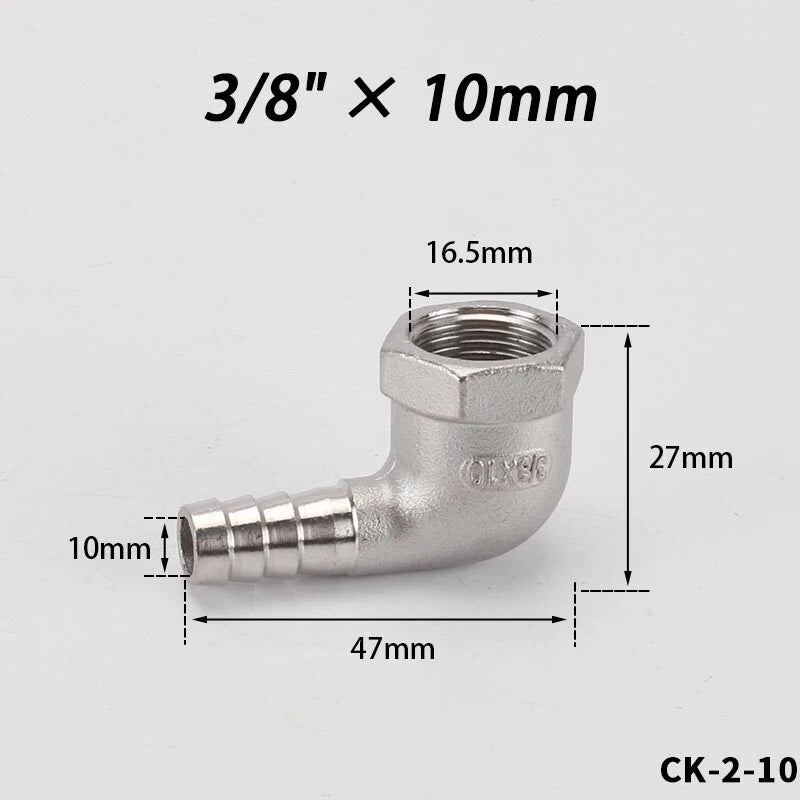

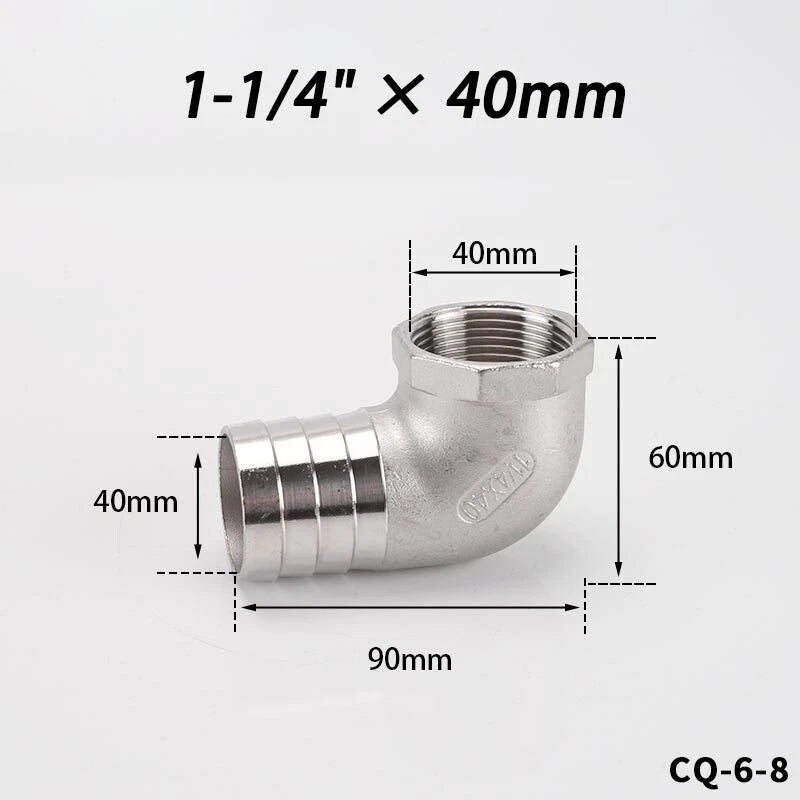

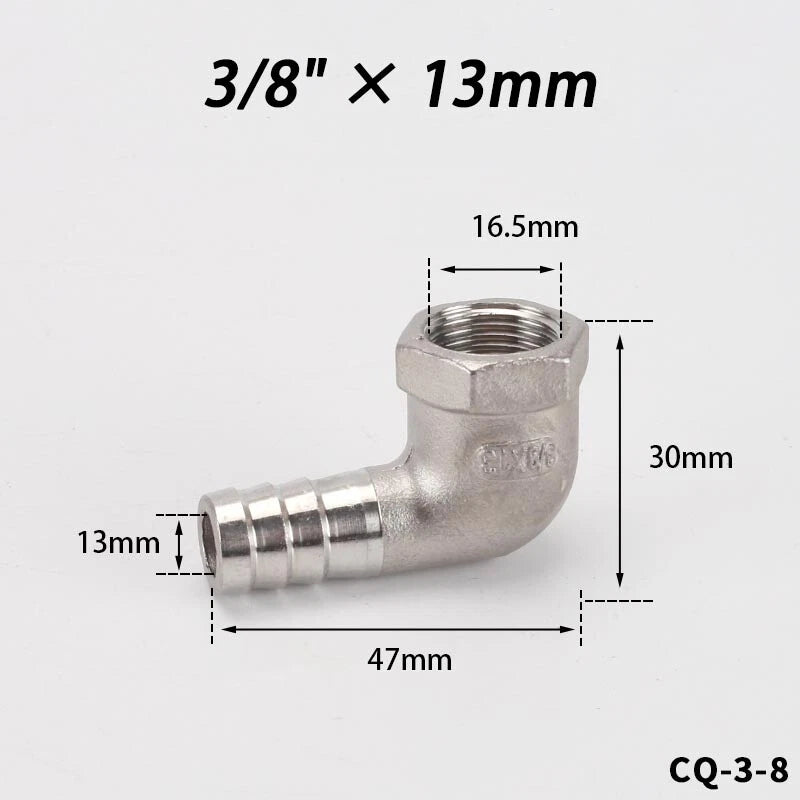

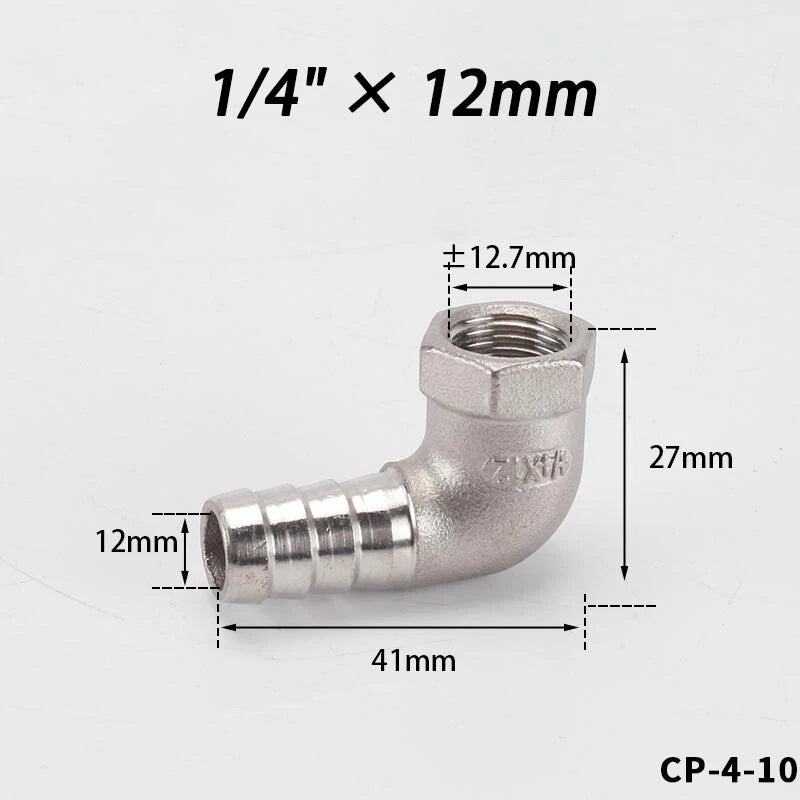

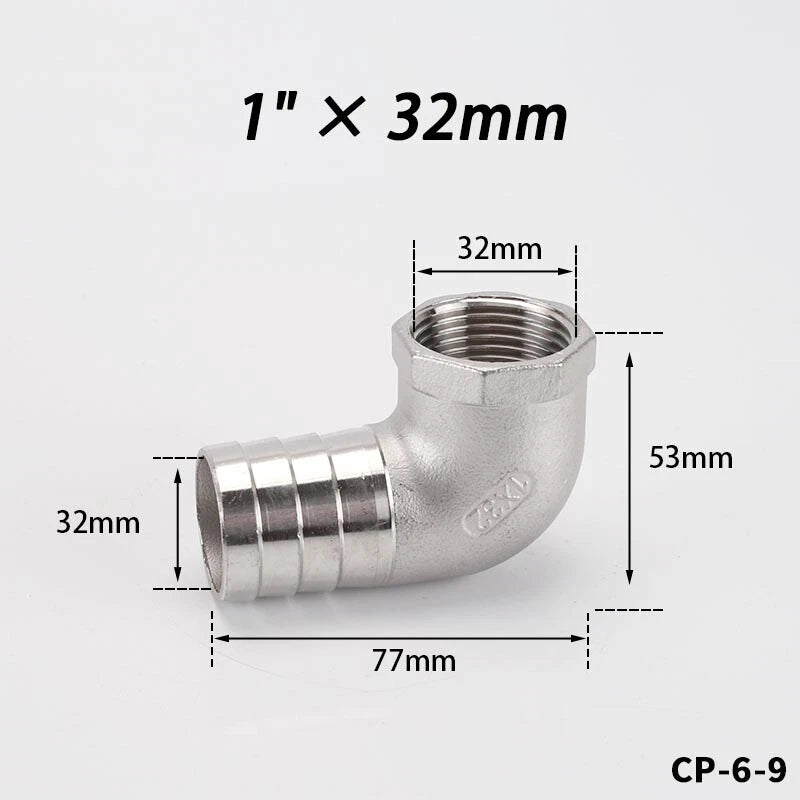

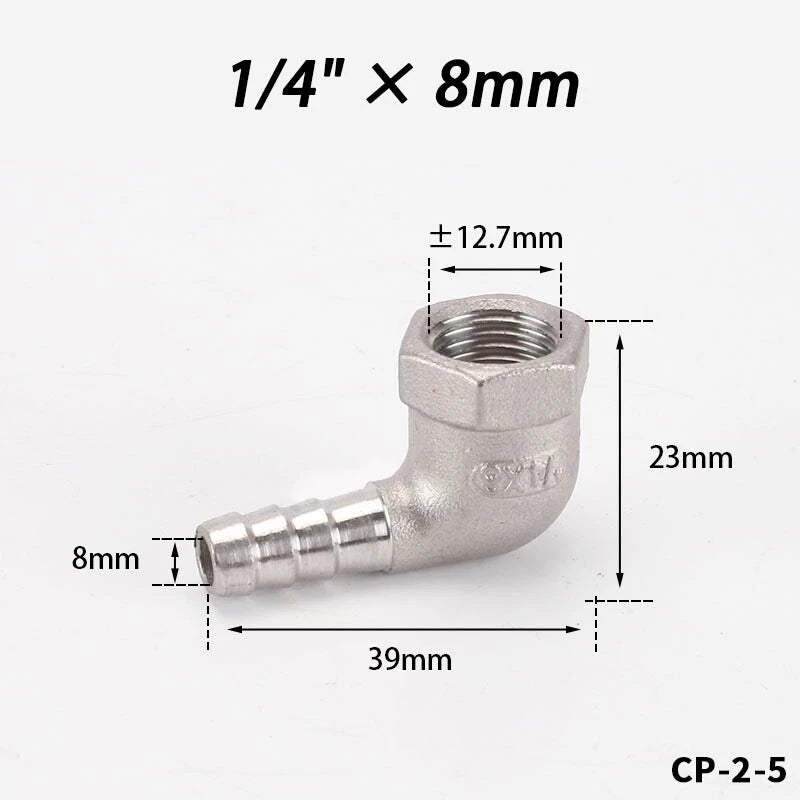

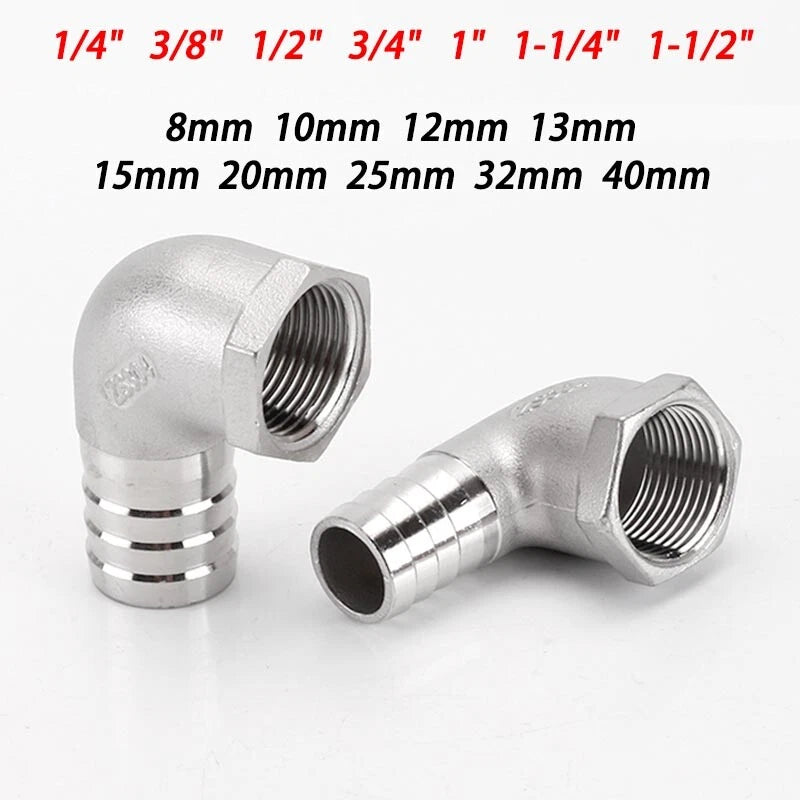

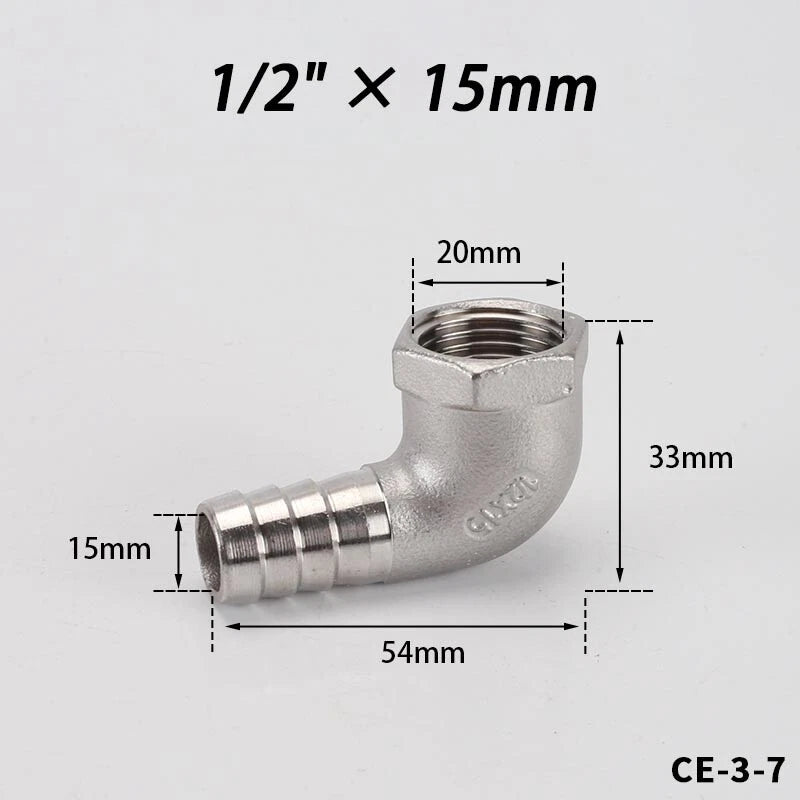

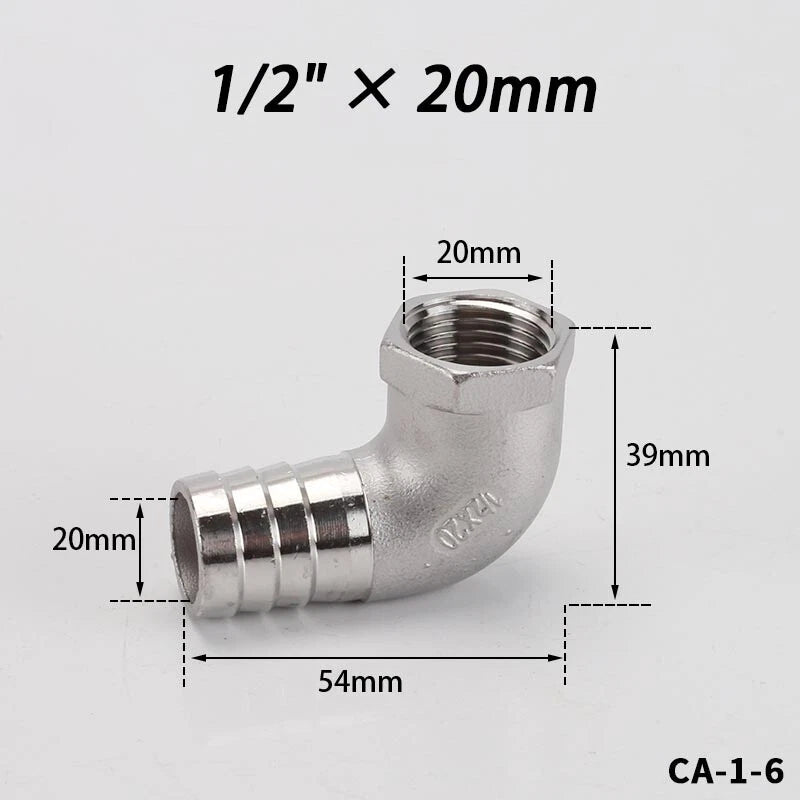

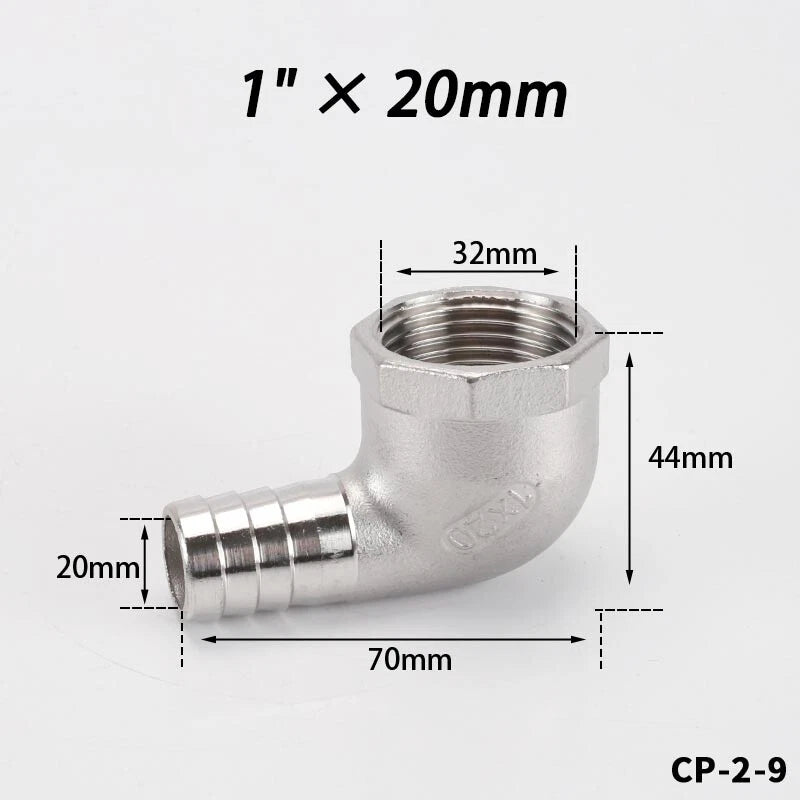

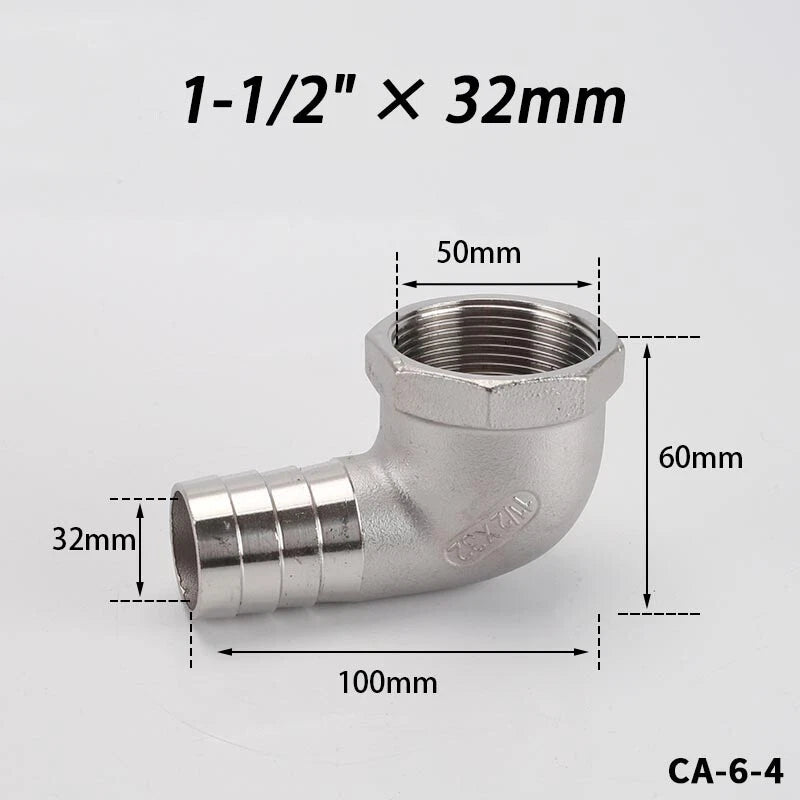

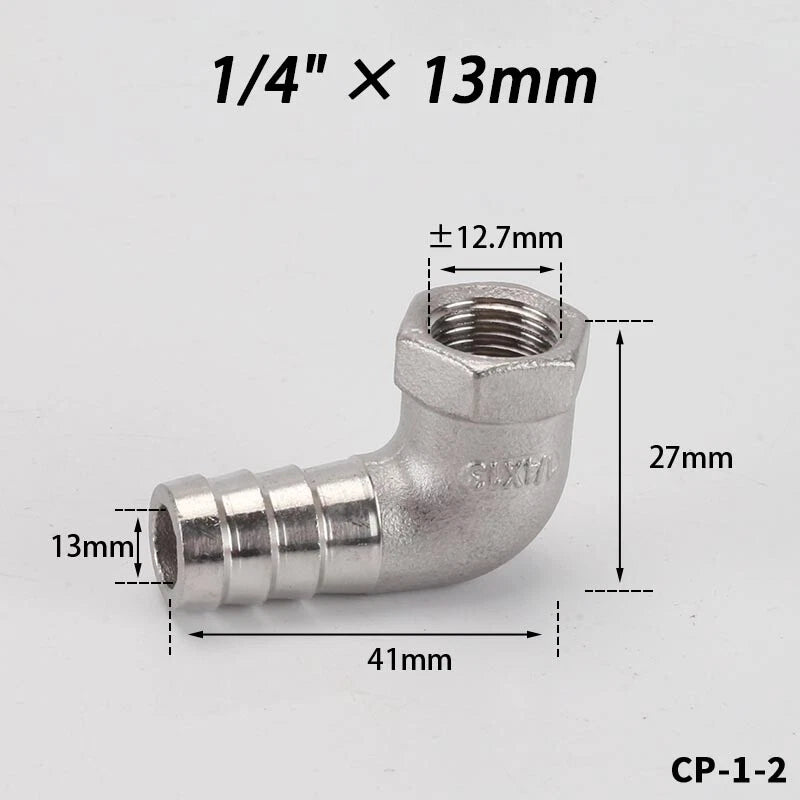

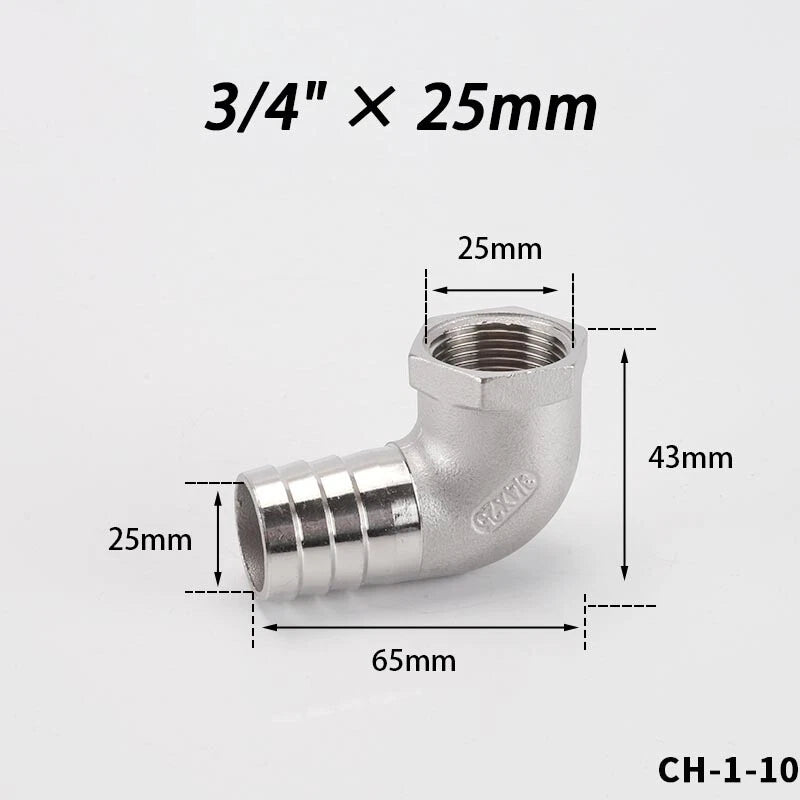

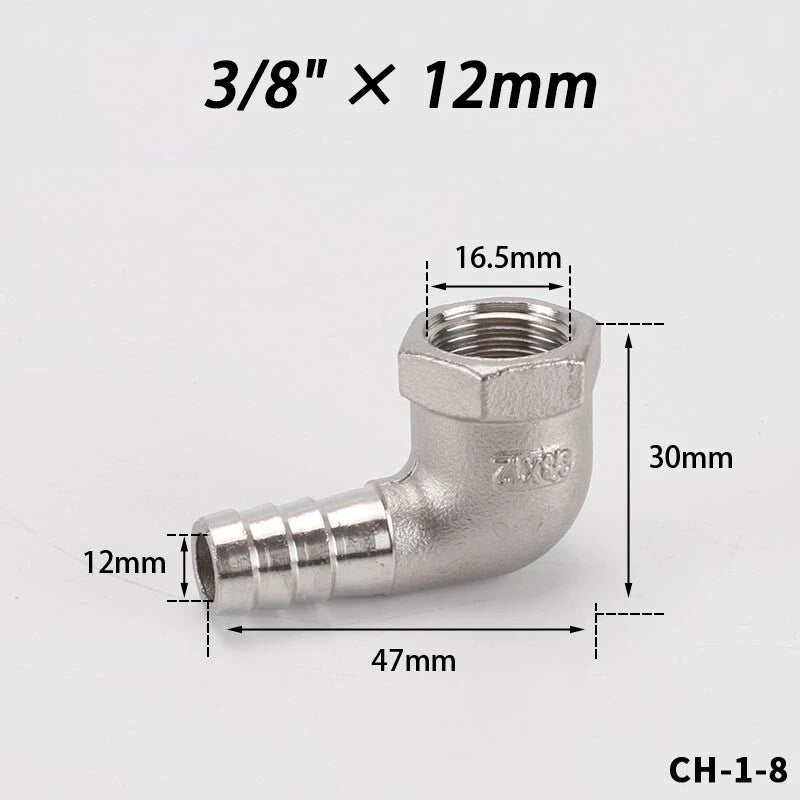

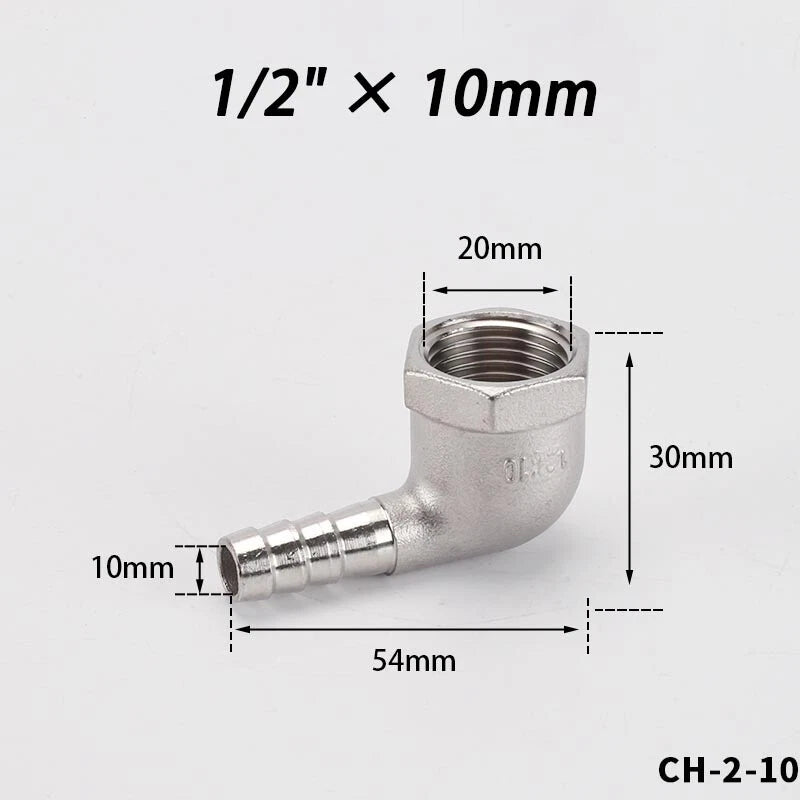

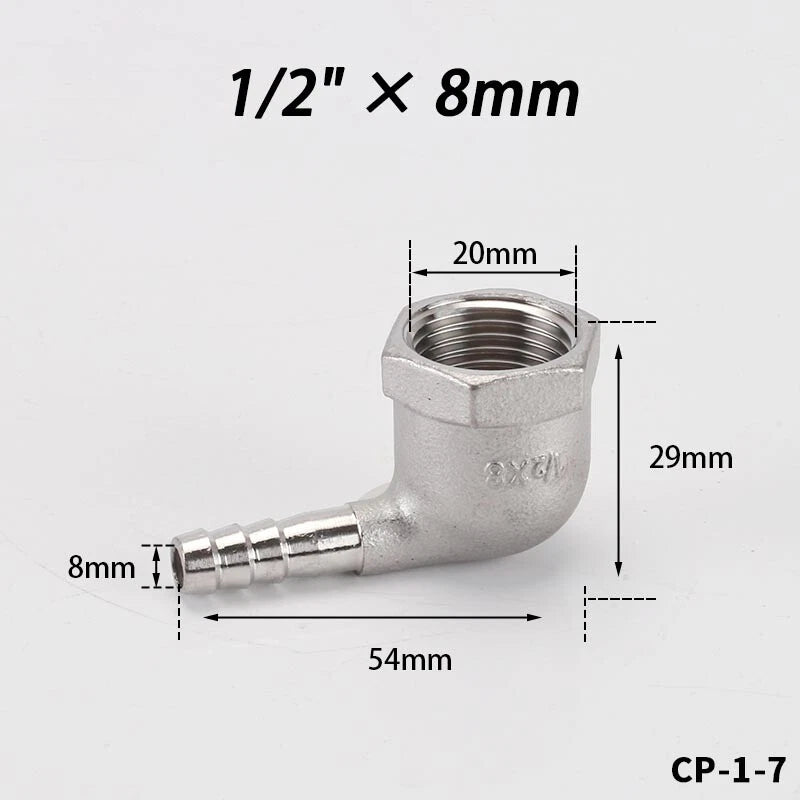

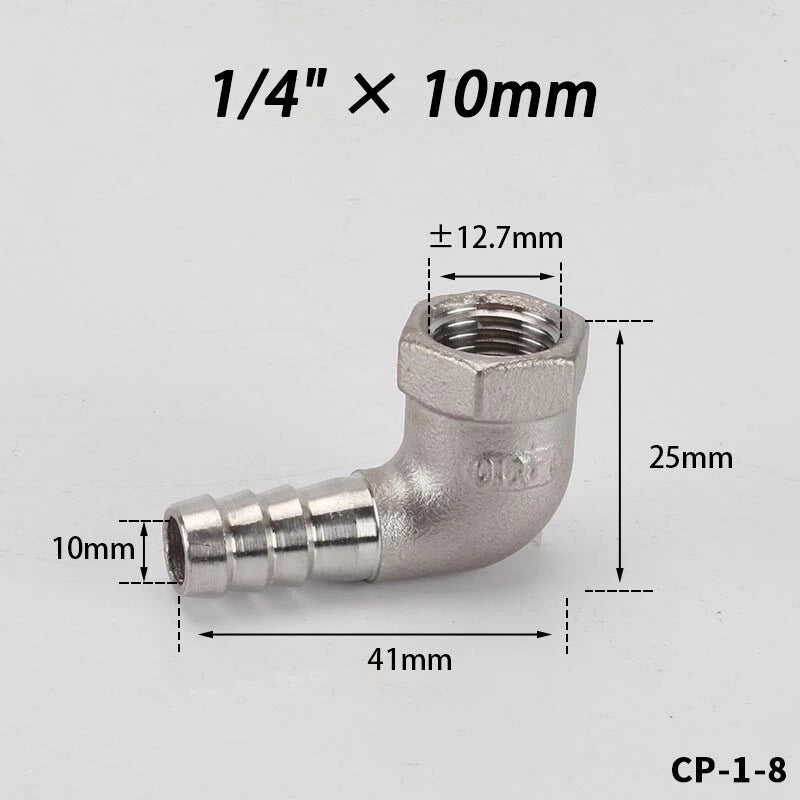

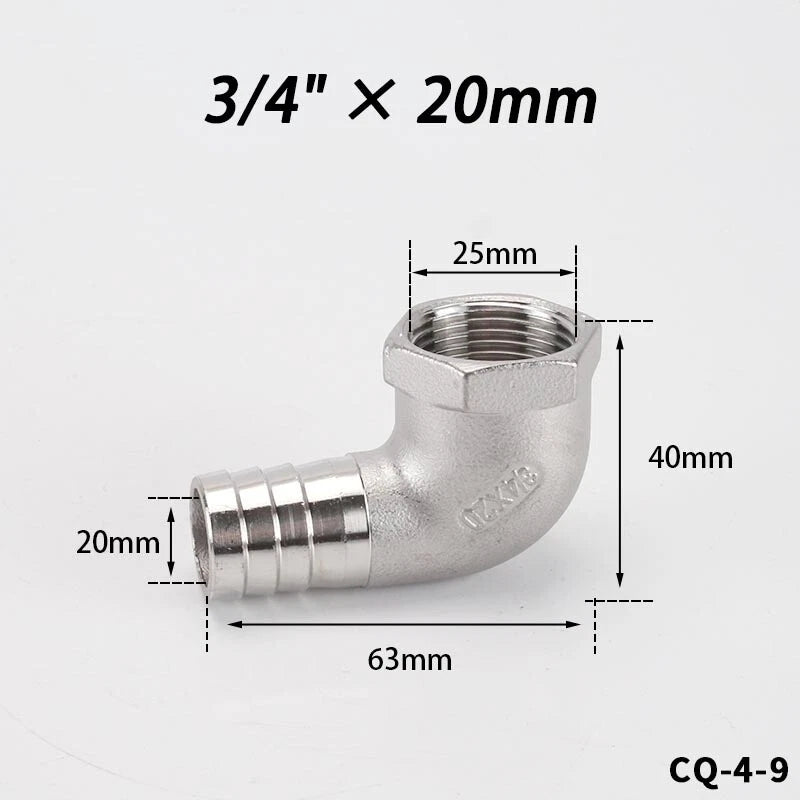

Stainless Steel Female Fitting x Barb Hose Tail End Elbow Connector 1 4" - 11 2"

Match two dimensions: the female thread diameter to the male fitting already on your pipe or valve (e.g., 1/2" BSP), and the barb length to the inner diameter of your flexible hose. A barb that is slightly larger than the hose ID creates a tighter grip; a barb that is too small will allow the hose to slip off under pressure. Check both the thread size and barb size listed in the variant name before ordering.

Yes. Stainless steel maintains its tensile strength and resists surface oxidation in outdoor, wet, and humid environments. Unlike brass or zinc alloys, it does not develop the green patina or white corrosion deposits that can contaminate water lines or seize threads over time. For garden irrigation, drip systems, and exposed plumbing runs, stainless steel is a durable long-term choice.

For low-pressure applications such as gravity-fed irrigation or garden watering, the ribbed barb profile typically holds flexible hose securely without a clamp. For higher-pressure systems — such as pressurized water supply lines or pneumatic tubing — a stainless steel hose clamp over the barb connection is recommended to prevent blow-off. Always test the connection at operating pressure before leaving it unattended.

These connectors use BSP (British Standard Pipe) female threads, which have a parallel thread form. BSP and NPT (National Pipe Taper) threads are not directly interchangeable — NPT threads are tapered and will not seal correctly with BSP fittings without an adapter. If your existing fittings are NPT, please contact us before ordering to confirm compatibility.

Stainless steel itself tolerates elevated temperatures well. However, the maximum safe operating temperature depends on the specific alloy grade and the pressure at which the system runs. For standard cold and warm water plumbing (up to approximately 60°C / 140°F), these connectors are suitable. For steam or high-temperature process lines, please contact us to confirm the alloy specification before use.

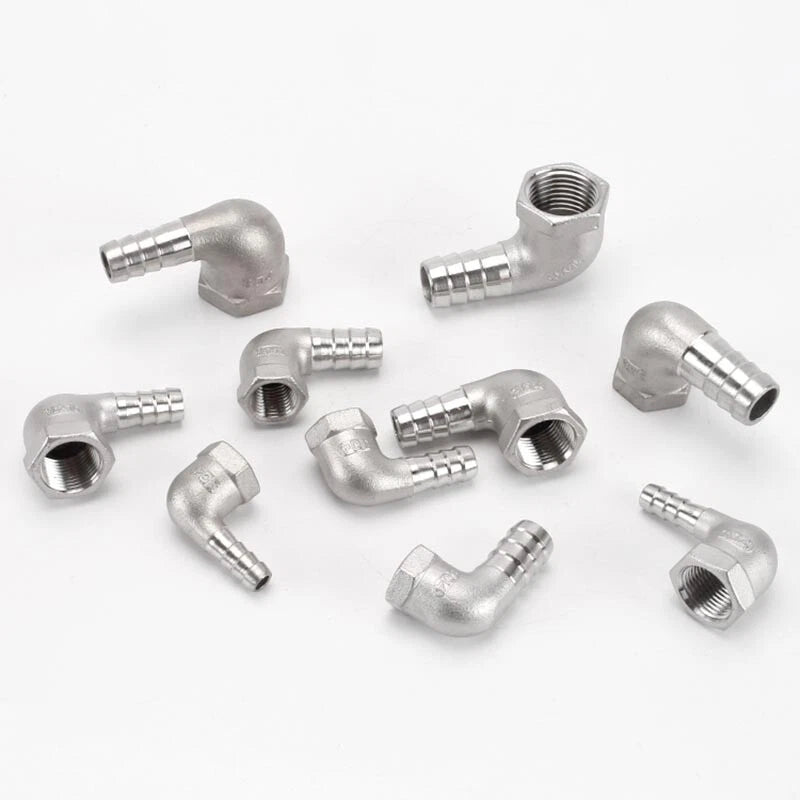

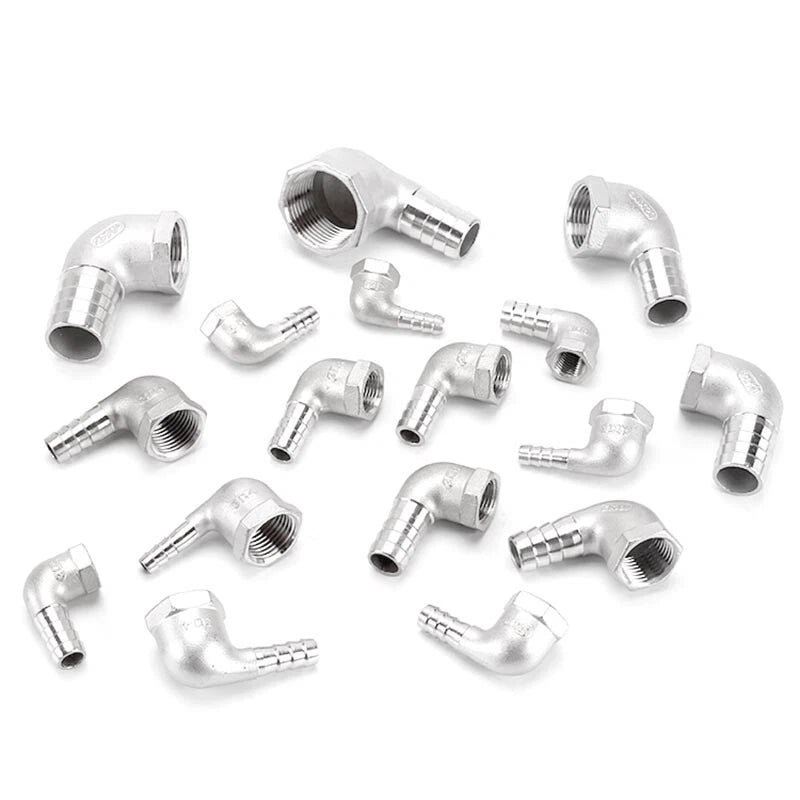

Multi-pack variants reduce the per-unit cost compared to buying individual connectors, making them practical for irrigation system builds, plumbing renovations with multiple connection points, or trade and workshop stocking. Having spares on hand also avoids project delays if a fitting is damaged during installation or if an additional connection point is added later.

Apply PTFE (plumber's) tape to the male thread before threading in the connector. Wrap the tape clockwise (when viewed from the thread end) for 2–3 layers, then hand-tighten the connector and finish with a wrench — typically 1/4 to 1/2 turn past hand-tight. Avoid over-tightening, which can crack fittings or strip threads. Inspect for drips at operating pressure and re-tape if needed.
