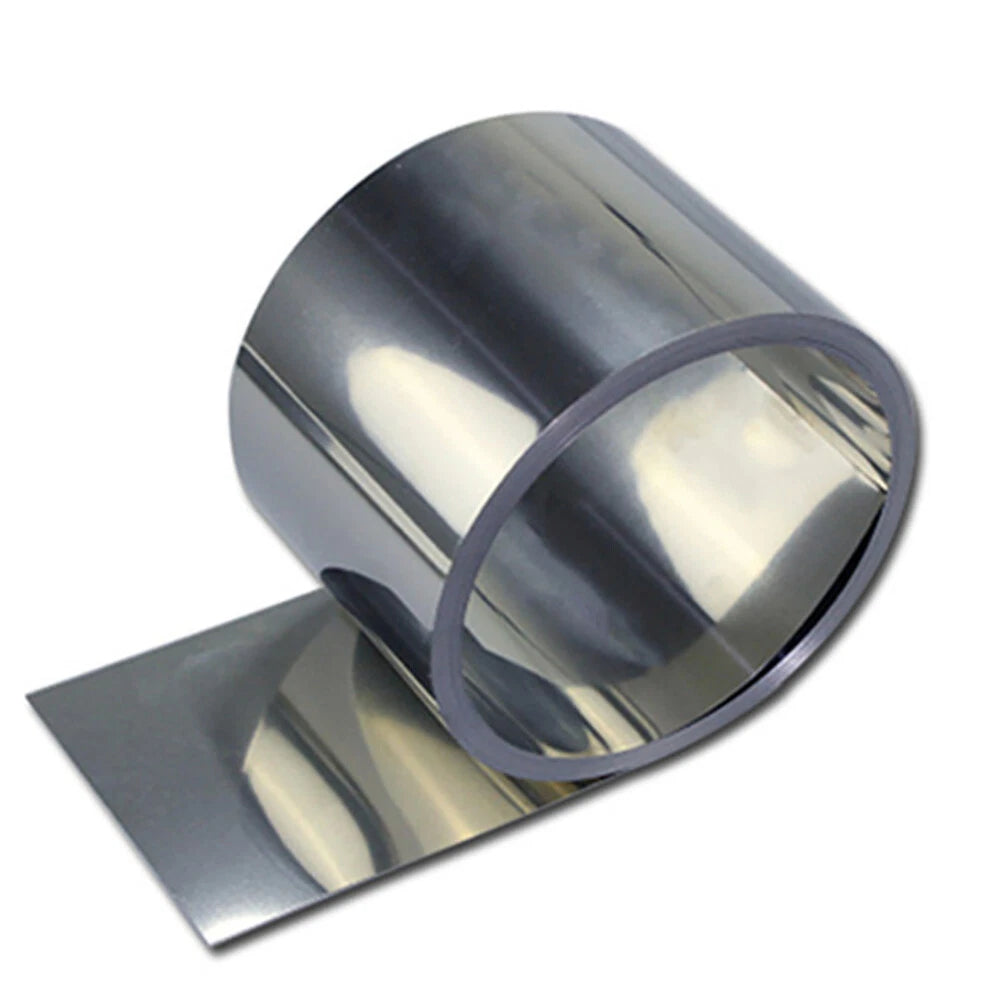

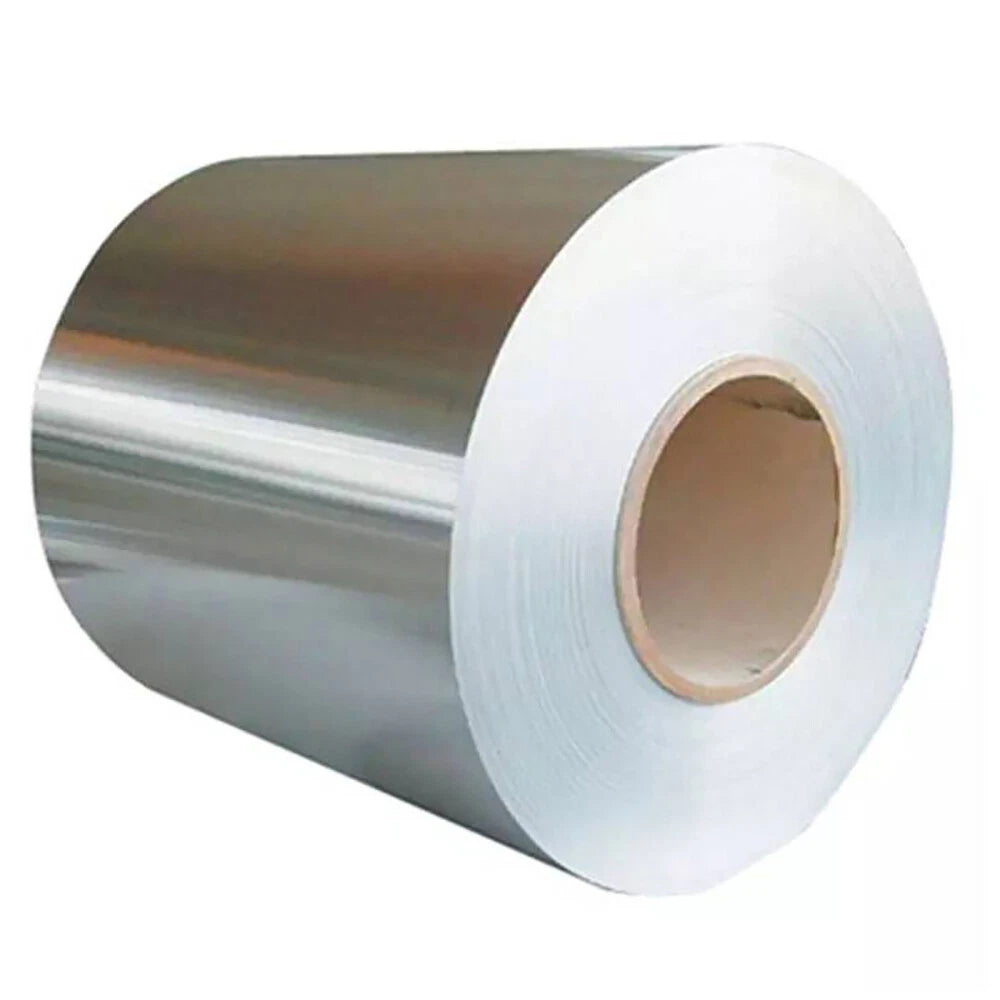

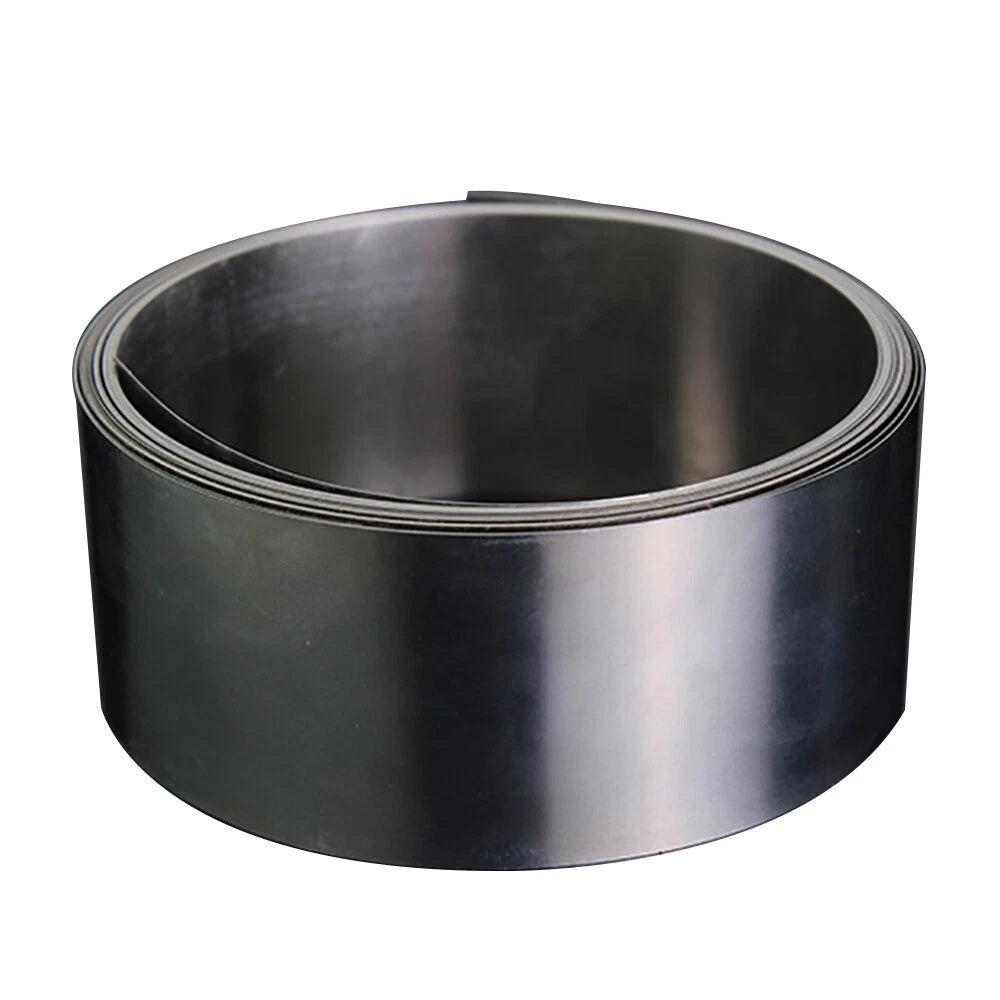

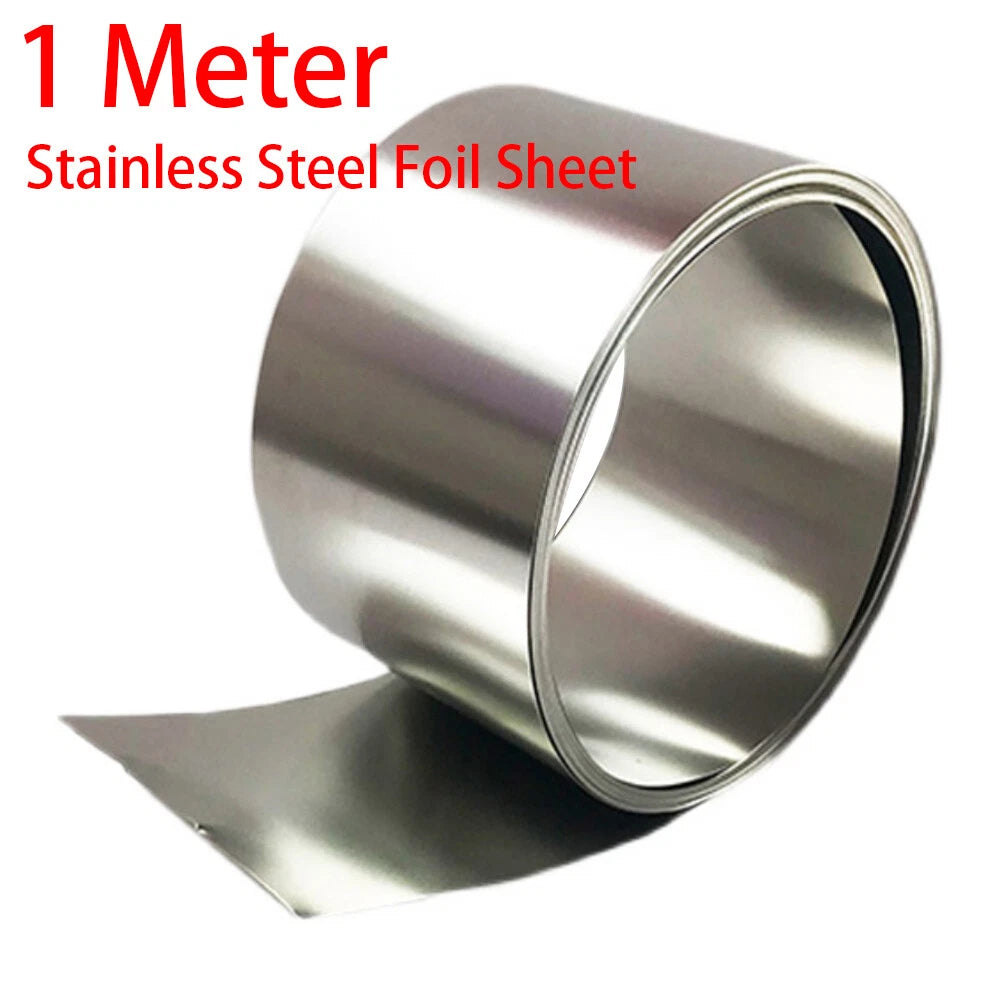

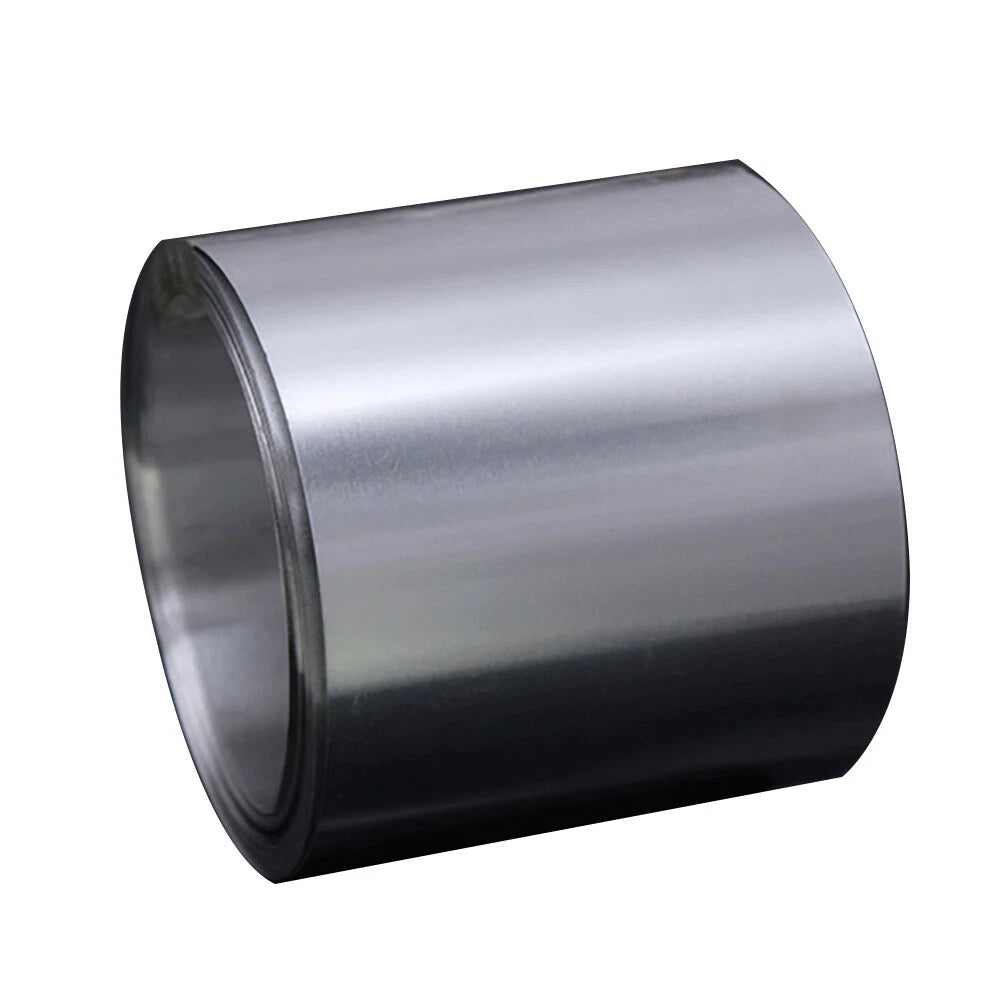

0.05-0.5mm x 300mm x 1000mm Stainless Steel Foil Sheet Fine Plate Strip Steel A2

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

0.05-0.5mm x 300mm x 1000mm Stainless Steel Foil Sheet Fine Plate Strip Steel A2

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Width: 300mm

Long: 1000mm

Thick & Amount: 0.1mm & 1pcs

Preis:

$13.70 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

Stainless Steel Foil Sheet 300×1000mm — Precision-Cut A2 Strip for Shimming, Gaskets & Fabrication

When a project demands exact tolerances — shimming a machine bed, cutting a custom gasket, or lining a surface — even a fraction of a millimeter matters. Machinists, fabricators, and hands-on DIYers who need a reliable, flat stainless steel foil sheet in a consistent, workable size will find this A2 (304-grade equivalent) strip an indispensable bench staple.

Each sheet measures 300mm wide × 1000mm long (approx. 11.8 in × 39.4 in) and is available in thicknesses from 0.05mm to 0.5mm (0.002 in – 0.020 in). The material is A2 austenitic stainless steel — non-magnetic in its annealed state, with a smooth, mill-finished surface that accepts cutting, bending, and forming without cracking at these gauges.

Typical applications include precision shimming between mating surfaces, custom-cut gaskets for plumbing or HVAC flanges, thin backing plates in electronics enclosures, and decorative inlay strips in woodworking or metalworking projects. The 300×1000mm format is also widely used as a stainless steel shim stock roll substitute when a flat, pre-cut sheet is preferred.

🔧 Compatibility Note: Suitable for general fabrication, shimming, and gasket cutting. Verify thickness tolerance requirements against your application before ordering. Not intended for structural load-bearing use.

✅ Key Features of These Stainless Steel Foil Sheets

📏Ultra-thin gauge range: Available from 0.05mm to 0.5mm (0.002"–0.020") — covers the most common shimming and gasket thicknesses in a single product line.
🧲A2 austenitic grade: Low magnetic permeability in annealed condition; resists rust and staining in moist or mildly corrosive environments without surface coating.
📐Consistent sheet dimensions: 300mm × 1000mm (11.8" × 39.4") flat-cut format — easy to score, shear, or punch to final shape on the bench.
🔄Flexible multi-pack options: Order 1, 2, or 4 pieces per variant to match your project quantity without over-buying.
✂️Workable at thin gauges: Sheets at 0.05–0.3mm can be cut with heavy-duty scissors or a craft knife; 0.4–0.5mm suits tin snips or a guillotine shear.
🏭Mill-finished surface: Smooth, consistent finish on both faces — suitable for direct contact applications where surface irregularity would cause fit issues.

📐 Technical Specifications — Stainless Steel Foil Sheet

Material Grade	A2 Austenitic Stainless Steel (304 equivalent)
Sheet Width	300mm (11.81 in)
Sheet Length	1000mm (39.37 in)
Thickness Range	0.05mm – 0.5mm (0.002" – 0.020")
Thickness (per variant)	See variant options
Pack Quantity	See variant options (1, 2, or 4 pcs)
Surface Finish	Mill finish (smooth, both faces)
Magnetic Property	Low permeability (non-magnetic in annealed state)
Corrosion Resistance	Suitable for moist and mildly corrosive environments
Typical Applications	Shimming, gasket cutting, thin backing plates, decorative inlay

❓ Frequently Asked Questions

How do I choose the right thickness for shimming?

Measure the gap you need to fill with a feeler gauge, then select the closest available thickness (0.05, 0.1, 0.15, 0.2, 0.3, 0.4, or 0.5mm). For gaps larger than 0.5mm, stack multiple sheets — the flat mill finish ensures consistent contact between layers.

Can I cut this foil sheet with standard workshop tools?

Yes. Sheets from 0.05mm to 0.3mm can be cut cleanly with heavy-duty scissors, a sharp craft knife against a steel rule, or a rotary cutter. For 0.4mm and 0.5mm variants, tin snips or a bench-mounted guillotine shear will give a cleaner edge with less distortion.

Is A2 stainless steel the same as 304 stainless?

A2 is the ISO designation that corresponds closely to AISI 304 stainless steel. Both refer to an 18/8 austenitic alloy (approximately 18% chromium, 8% nickel). The terms are used interchangeably in most engineering and DIY contexts.

Will this sheet rust or corrode outdoors?

A2/304 stainless steel offers good corrosion resistance in most indoor and sheltered outdoor environments. It is not recommended for prolonged exposure to salt spray or chloride-rich environments — for those conditions, A4/316 grade is more appropriate. For typical workshop, HVAC, or light outdoor use, A2 performs reliably.

Is the sheet magnetic?

In its annealed (as-supplied) state, A2 austenitic stainless steel has very low magnetic permeability and will not be attracted to a standard magnet. Note that cold-working (bending, cutting) can induce slight magnetism at the worked edges — this is normal and does not affect corrosion resistance.

How many pieces should I order for a gasket project?

For a single gasket, 1 piece is usually sufficient — the 300×1000mm sheet provides ample material for most flange sizes. If you are cutting multiple gaskets or want a spare in case of a cutting error, the 2-piece or 4-piece pack offers a lower per-sheet cost and ensures you have backup material on hand.

Can this foil be used as a heat shield or thermal barrier?

Thin stainless steel foil can act as a radiant heat reflector in low-temperature applications (typically up to around 400°C / 750°F for 304 grade). For direct flame contact or sustained high-heat environments, consult a materials engineer to confirm suitability for your specific conditions.
