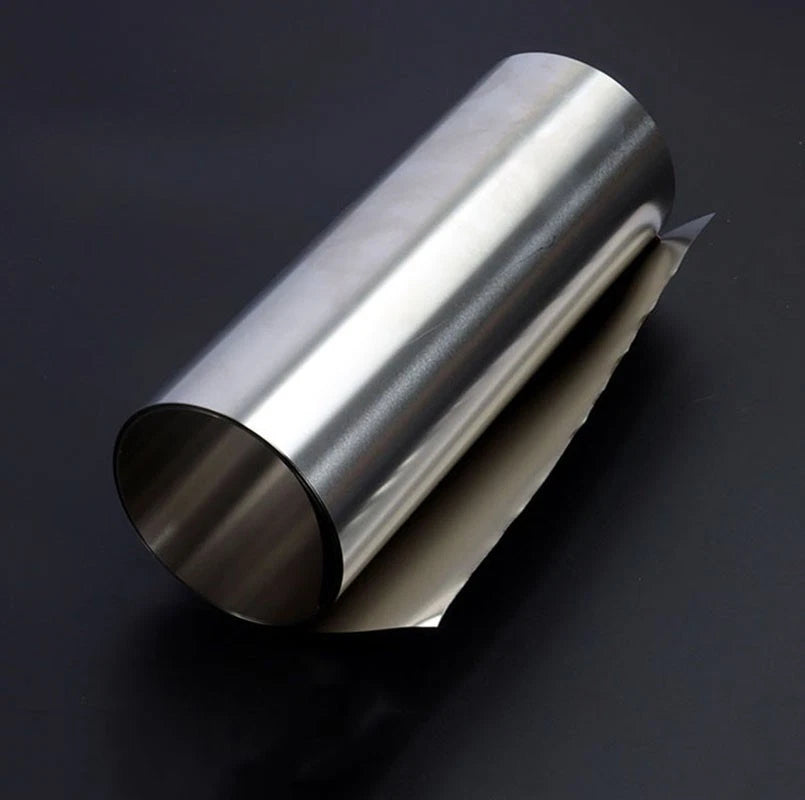

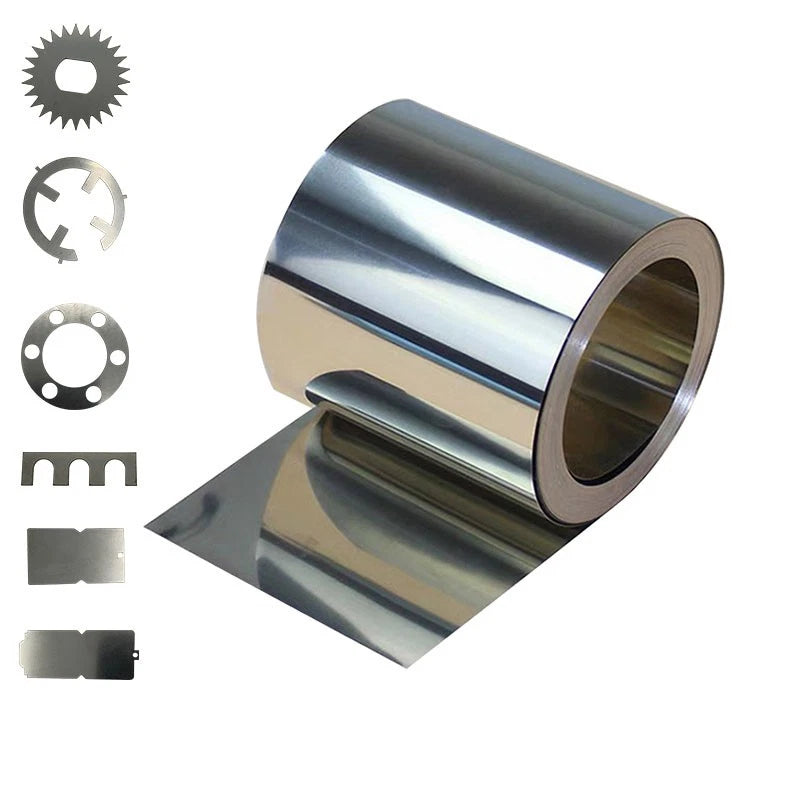

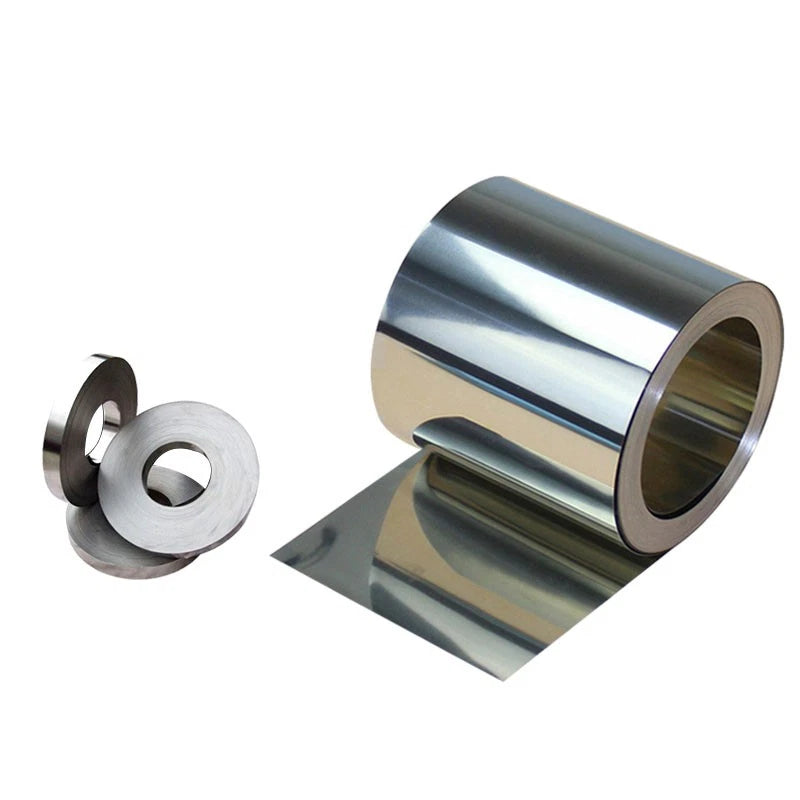

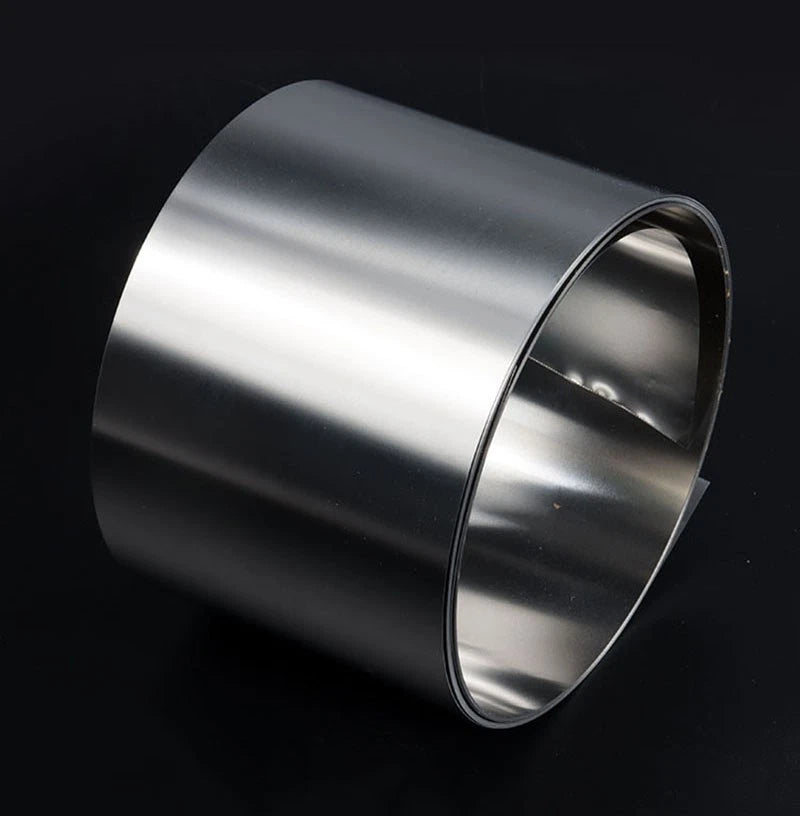

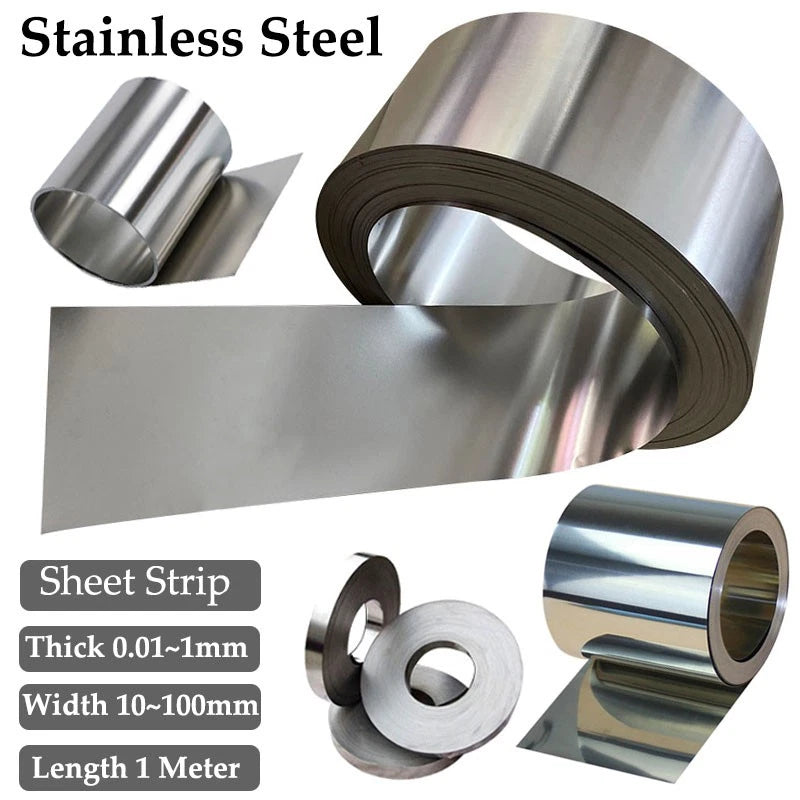

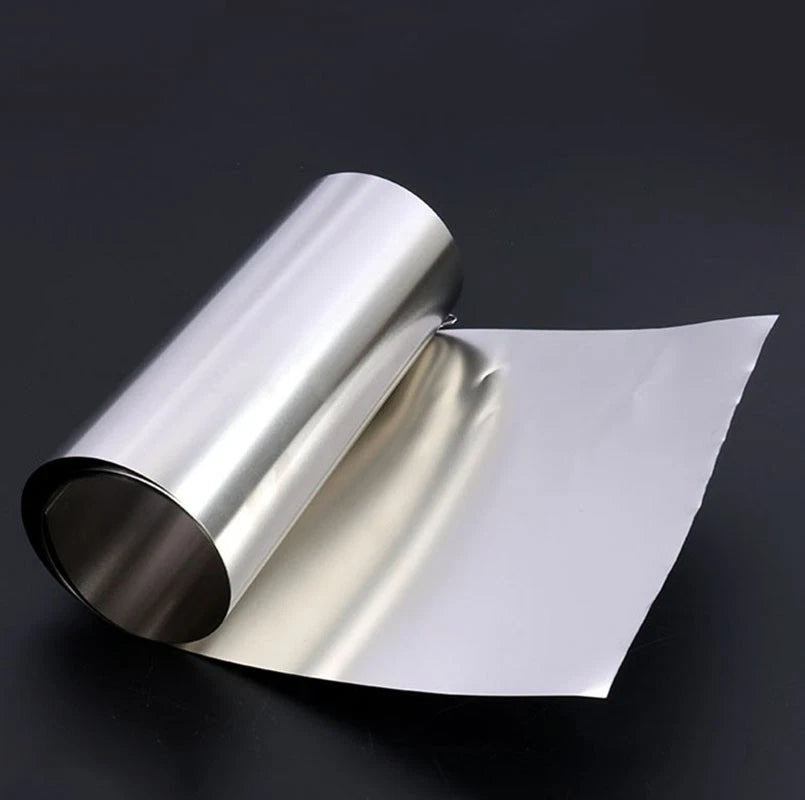

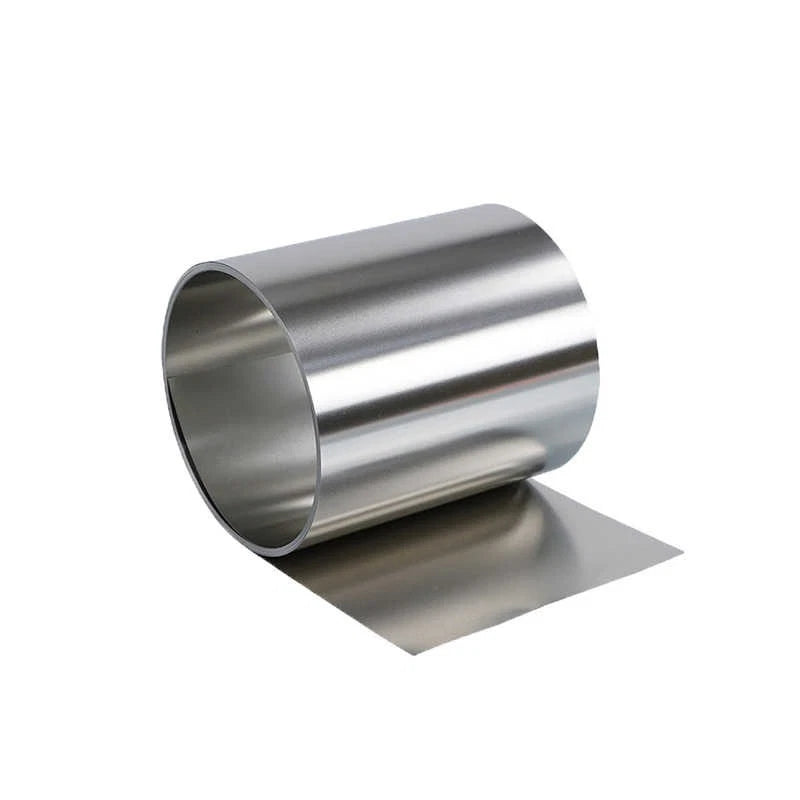

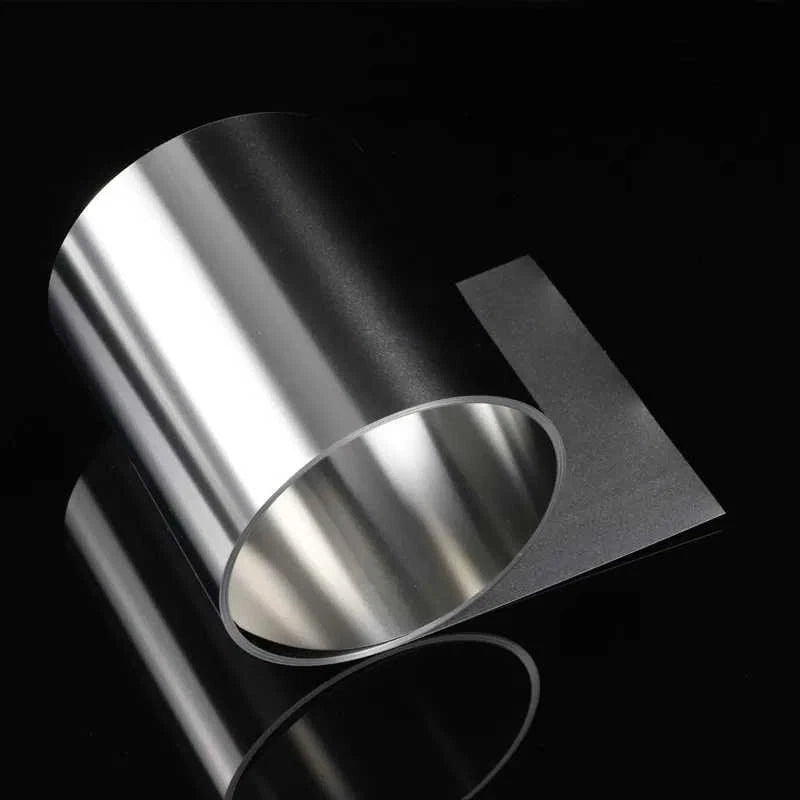

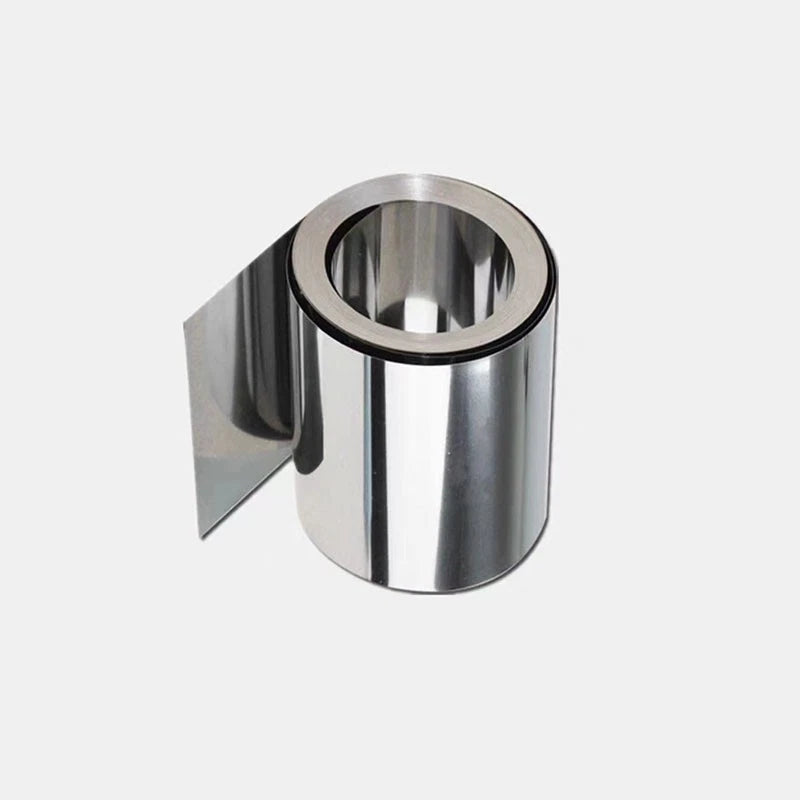

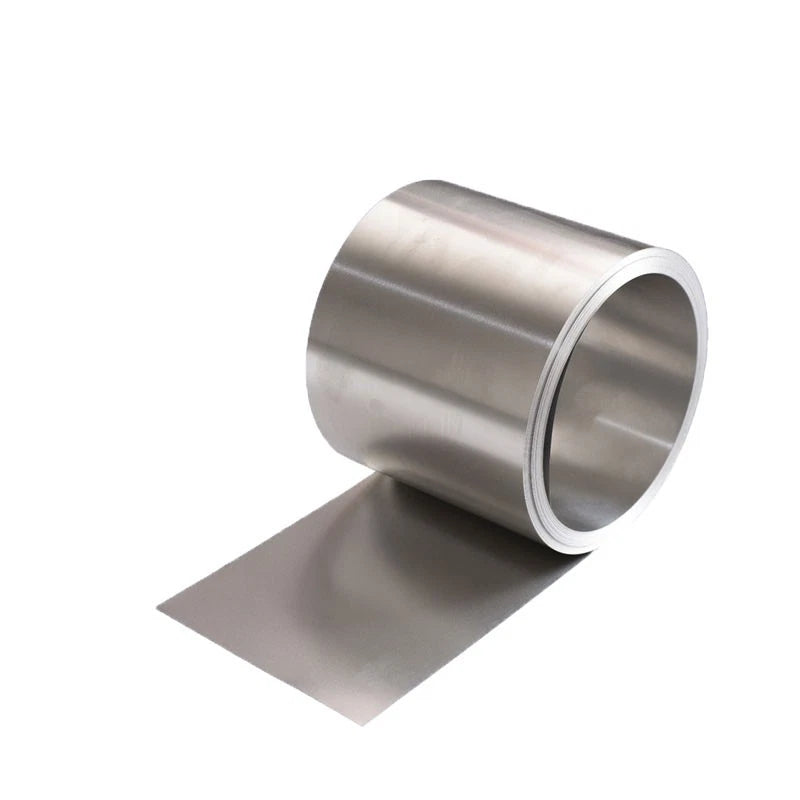

Stainless Steel Tape Film Sheet Strip Flat Bar Metal Foil Band Roll 0.01mm~1mm

For instrument-level shimming or foil sealing, gauges of 0.01–0.05 mm are appropriate. For general mechanical shimming and gasket blanks, 0.05–0.3 mm covers most needs. For flat bar brackets, wear strips, or structural banding, 0.4–1.0 mm provides the rigidity required. If you are unsure, measure the gap or material thickness needed with a feeler gauge before ordering.

Select a width equal to or slightly wider than your target dimension so you can trim to exact size. Narrow widths (10–25 mm) suit tape, banding, and small shim pads. Mid widths (30–80 mm) cover most gasket and heat-shield work. Wide options (100–300 mm) are suited to flat bar stock, splash guards, and large-format shimming or panel forming tasks.

Stainless steel strip in the 0.5–1.0 mm thickness range provides meaningful structural rigidity for light-duty brackets, clips, and wear strips. For load-bearing applications, the cross-sectional area (thickness × width) determines the load capacity. Consult an engineer if the strip will carry significant tensile or bending loads in a safety-critical assembly.

Stainless steel resists atmospheric corrosion, rain, and mild chemical exposure. In coastal or high-chloride environments, surface staining or pitting can develop over time. Keeping the surface clean and avoiding prolonged contact with dissimilar metals in wet conditions extends service life. For marine-grade corrosion resistance, a molybdenum-bearing grade (such as 316) would be more appropriate.

Yes. Gauges up to approximately 0.1 mm can be cut cleanly with sharp scissors or a utility knife and a metal straight edge on a firm surface. Gauges from 0.15 mm to 0.5 mm respond well to aviation tin snips. For gauges above 0.5 mm, an angle grinder with a thin cutting disc, a jigsaw with a metal blade, or laser cutting gives the cleanest result. Always deburr cut edges before handling.

Yes. Stainless steel strip can be TIG or MIG welded using appropriate stainless steel filler wire (308L is commonly used for 304-grade material). For gauges below 0.2 mm, use a pulse TIG process with careful heat control to avoid burn-through or warping. Silver brazing is also an option for lower-temperature joining where full fusion welding is not practical.

Yes, in most practical applications. Shim stock is simply flat-rolled metal strip supplied in thin gauges for gap-filling and alignment work. This listing covers the same thickness range as standard shim stock rolls, and the flat-rolled format is directly suitable for shimming bearing housings, machine bases, and precision assemblies.
