T5 Timing Belt 10mm Wide — Closed Loop Synchronous Drive Belt for Precise Motion Control

When a slipping V-belt or a stretched chain costs you accuracy, repeatability, or an entire production run, you need a synchronous drive solution you can count on. Engineers, CNC builders, 3D printer enthusiasts, and automation technicians rely on T5 closed loop timing belts to deliver exact, slip-free power transmission in demanding environments.

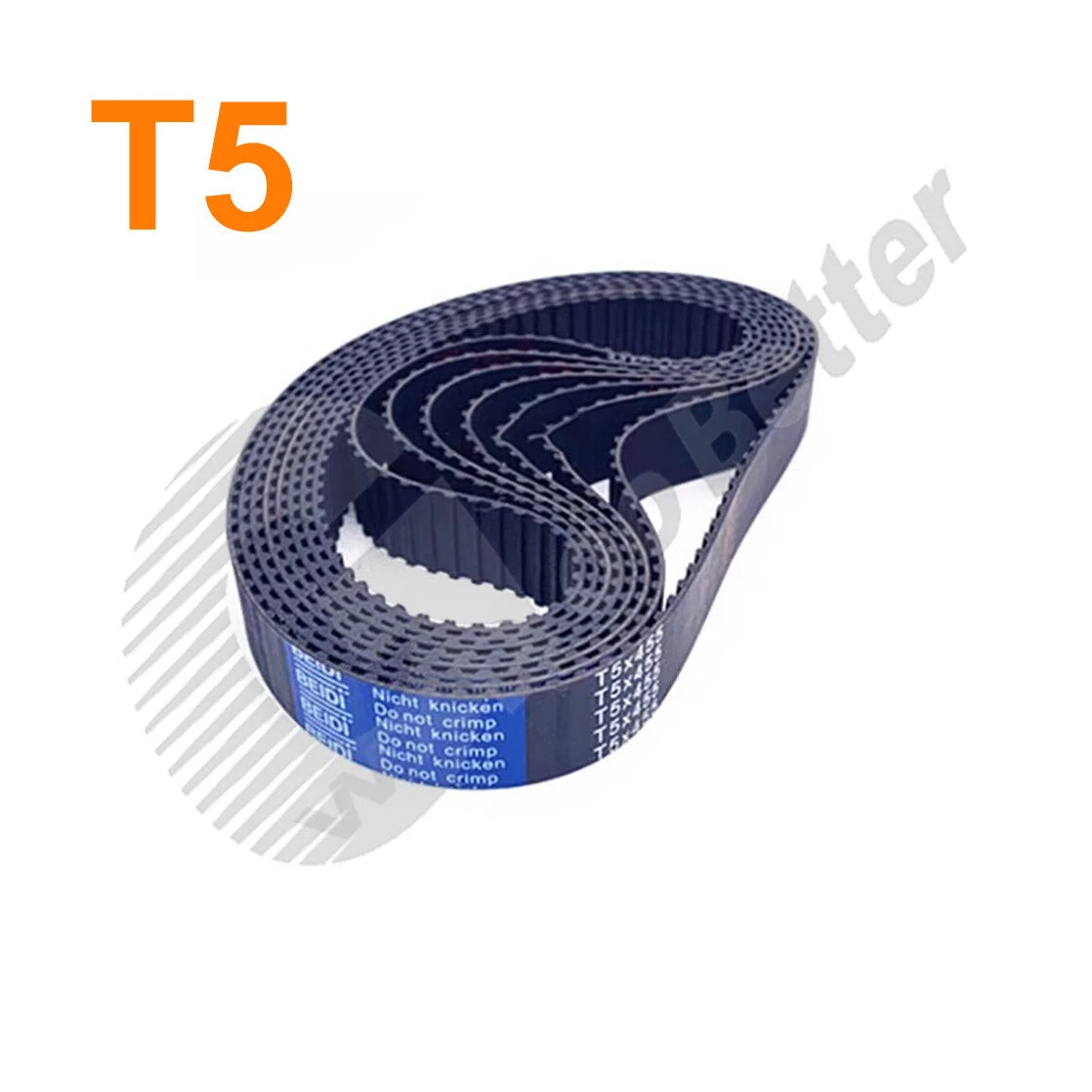

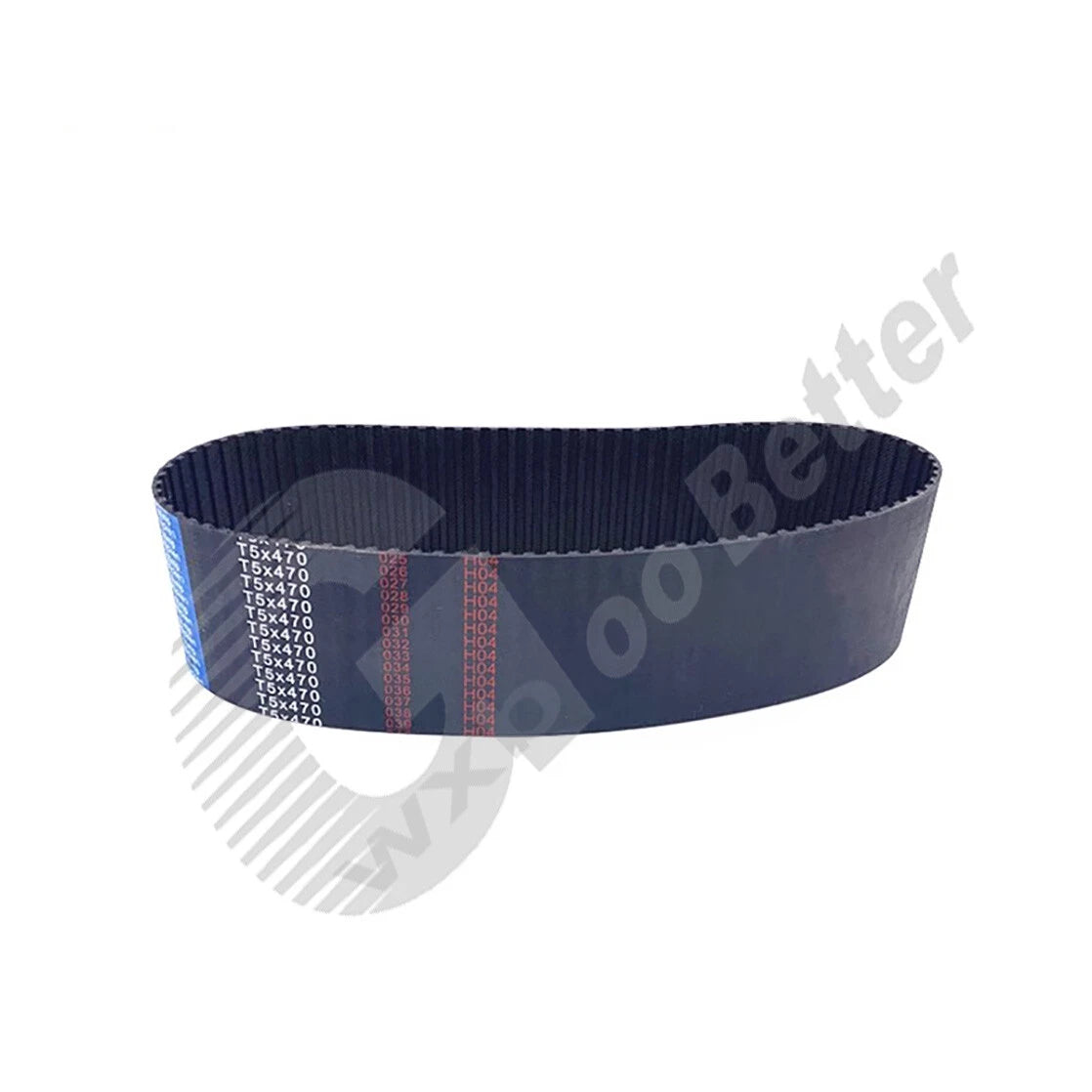

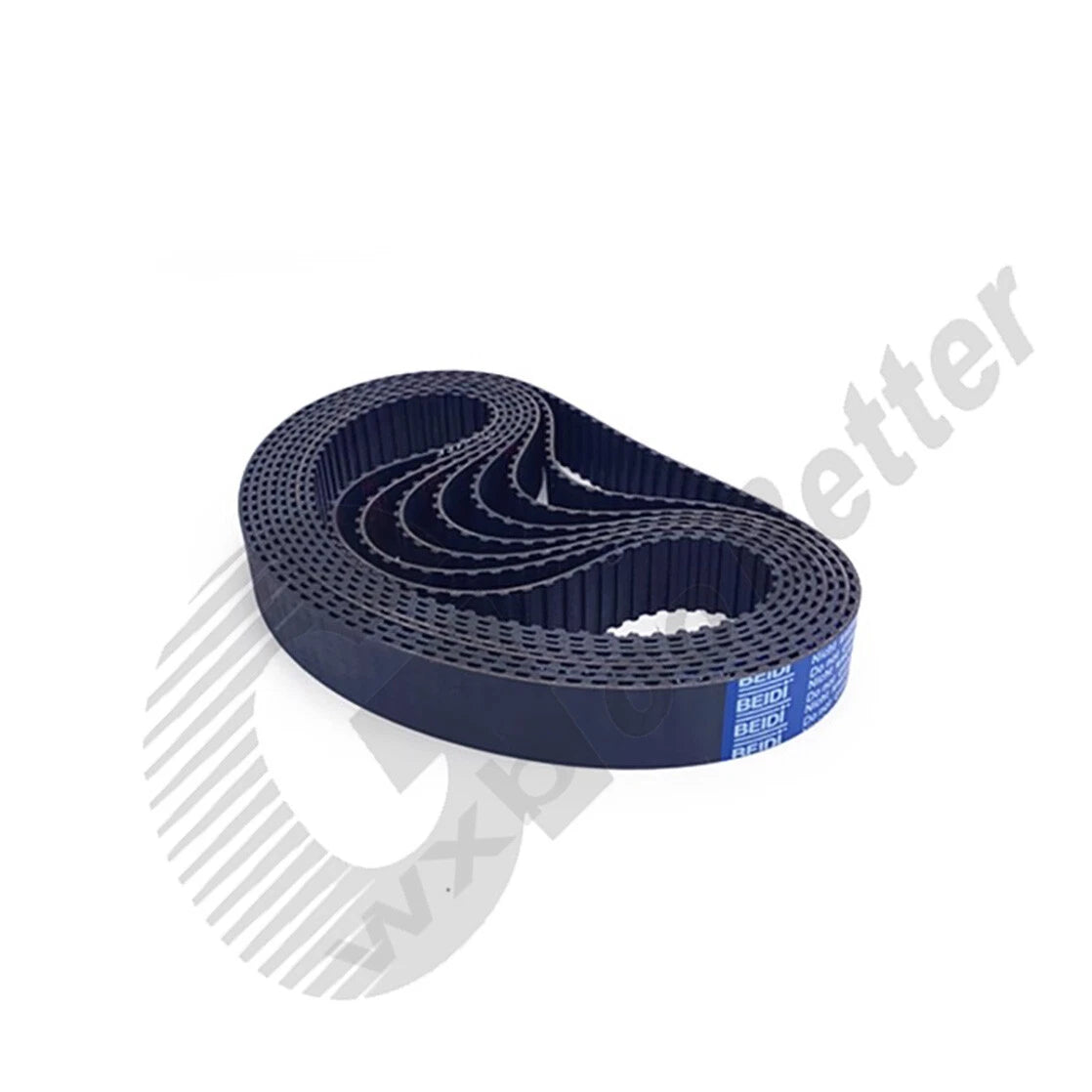

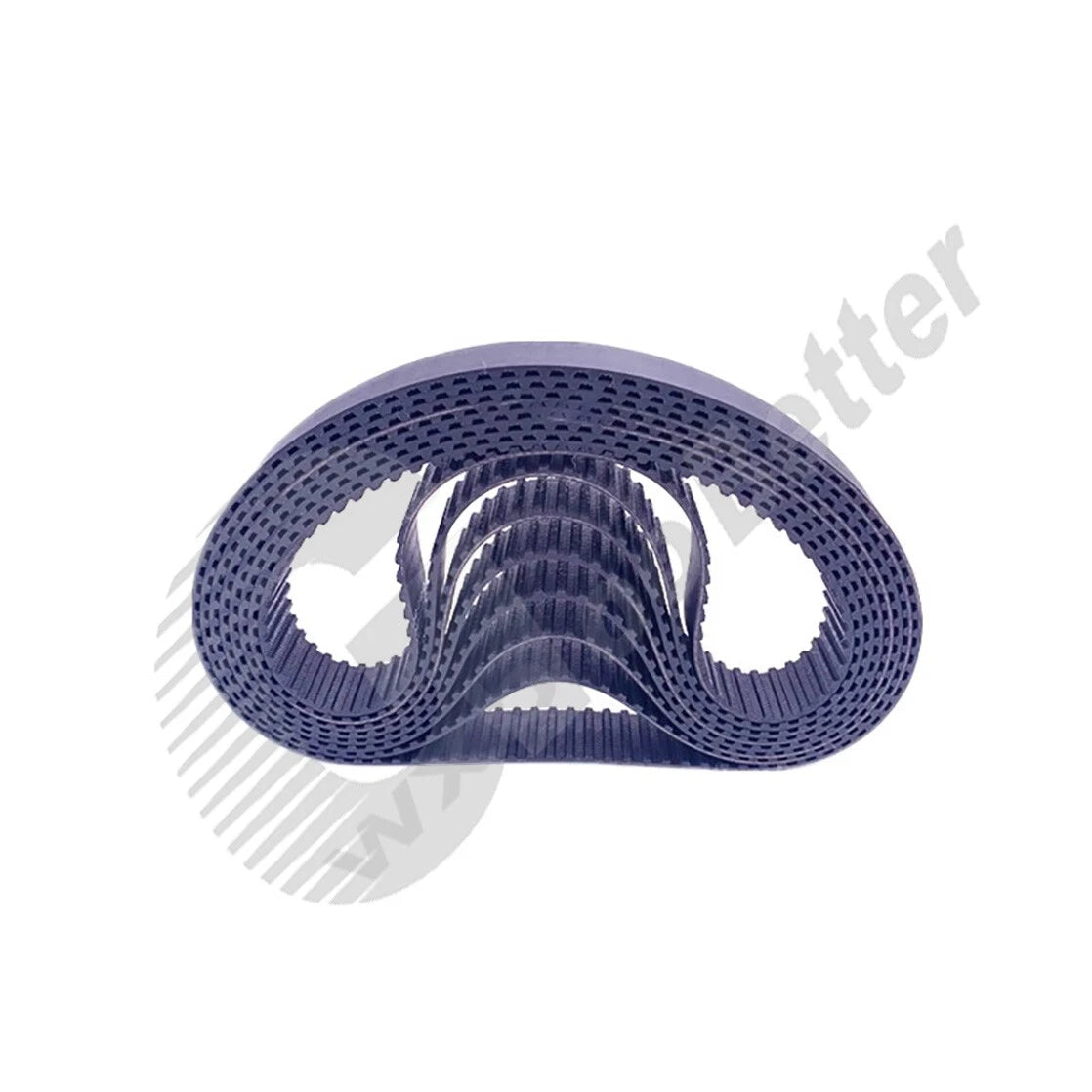

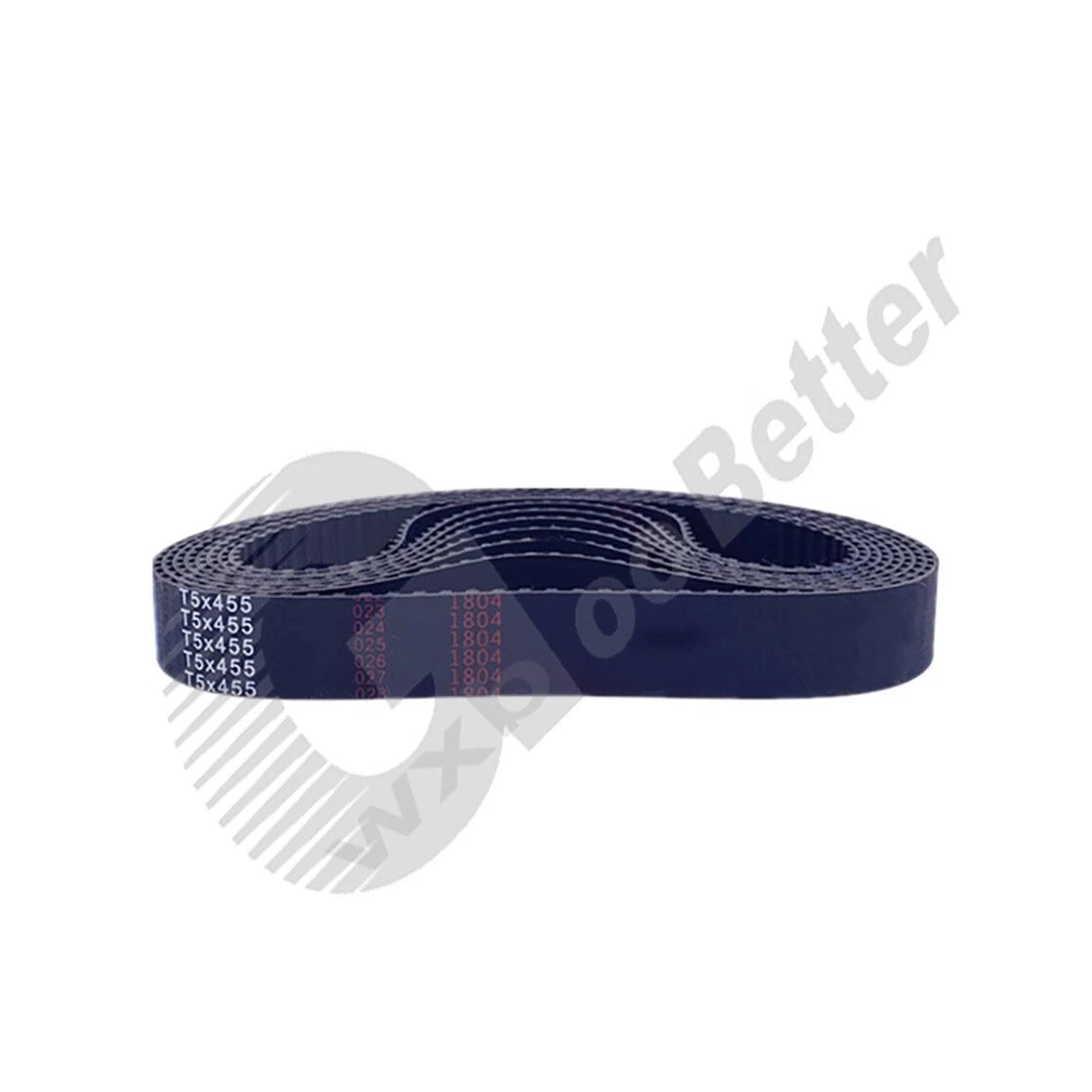

Each belt in this listing is a single closed-loop (endless) T5 synchronous belt with a width of 10mm (≈3/8") and a tooth pitch of 5mm (≈0.197"). Available inner circumferences range from 165mm (≈6.5") to 3820mm (≈150.4"), covering the vast majority of light-to-medium duty drive applications. The belt body is typically constructed from neoprene rubber with a fiberglass or steel tension cord core and a nylon tooth-facing fabric for wear resistance.

Typical use cases include CNC router axis drives, 3D printer motion systems (X/Y gantry and Z-axis), conveyor indexing systems, laser cutter carriages, and packaging line synchronization — anywhere a T5 closed loop synchronous belt must maintain positional accuracy over thousands of cycles.

🔗 Compatibility: Designed for standard T5-profile pulleys (5mm pitch) with a 10mm belt width. Verify your pulley's belt-width spec before ordering. Not compatible with T2.5, T10, AT5, or HTD profiles.

⚠️ Size Note: The "C=" value is the belt's inner circumference, not the center-to-center distance. Select your size using the dropdown above. If you need a size not listed, contact us to confirm availability.

✅ Key Features of These T5 Closed Loop Timing Belts

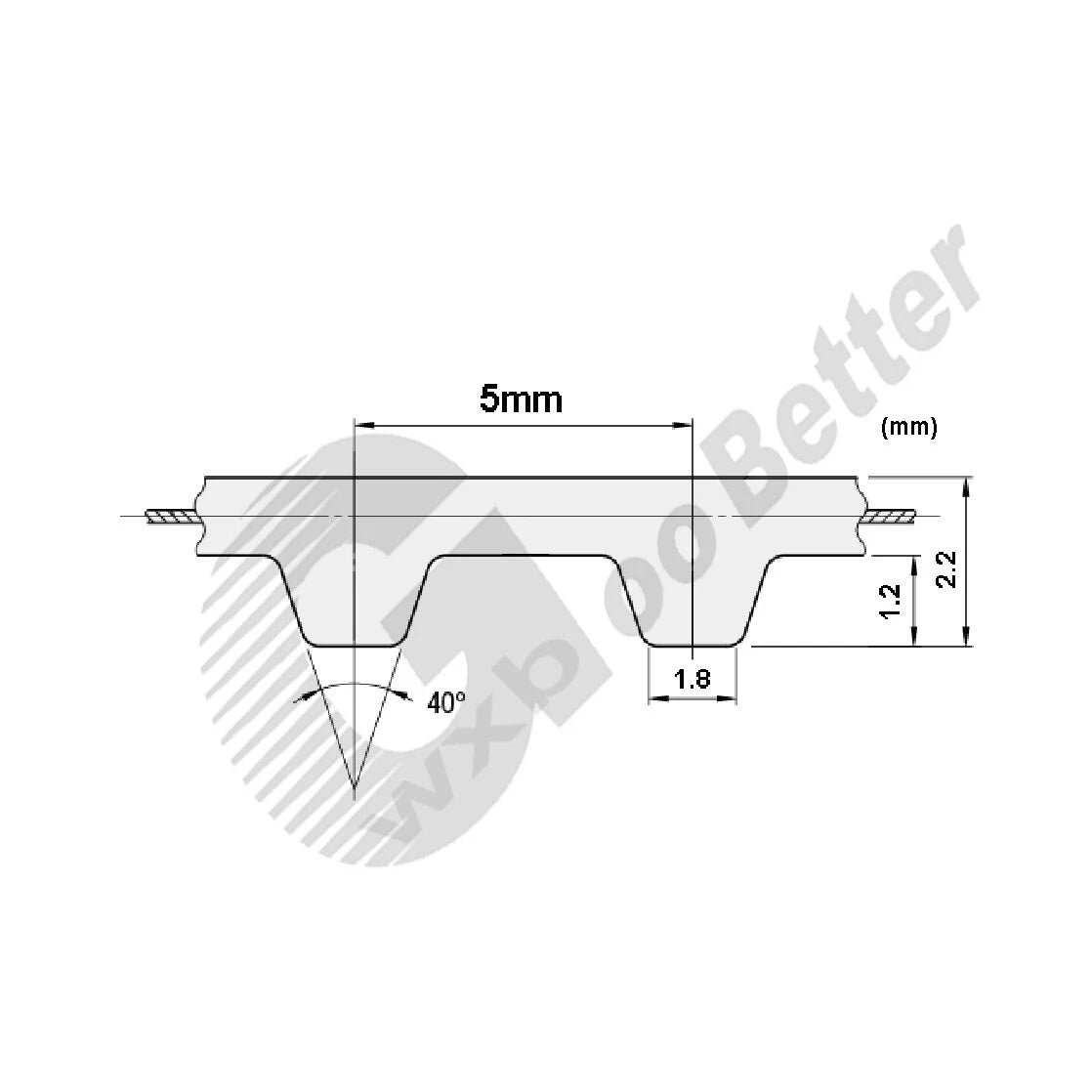

⚙️T5 Tooth Profile — 5mm Pitch — Standardized trapezoidal tooth geometry ensures consistent meshing with any T5 pulley, eliminating backlash in CNC and 3D printer drive systems.
📏Wide Size Range — Inner circumferences from 165mm (≈6.5") to 3820mm (≈150.4") in a single listing, so you can source replacement belts for compact desktop machines and large-format industrial conveyors alike.
🔩10mm Uniform Belt Width — Consistent 10mm (≈3/8") width across all sizes maintains proper pulley tracking and even load distribution across the tooth face.
🧵Reinforced Tension Cord Core — Fiberglass or steel cord reinforcement resists elongation under cyclic loading, keeping your axis calibration stable over extended run times.
🛡️Neoprene Body with Nylon Tooth Facing — The rubber compound provides flexibility across a range of operating temperatures, while the nylon facing reduces tooth wear against metal pulleys in continuous-duty applications.
🔄Closed Loop (Endless) Construction — No splice, no weak point — the seamless loop design delivers uniform tension and eliminates the vibration and noise associated with joined or laced belts.

📐 Technical Specifications — T5 Synchronous Timing Belt

Belt Profile	T5 (Trapezoidal, 5mm pitch)
Belt Width	10mm (≈3/8")
Tooth Pitch	5mm (0.197")
Inner Circumference (C=)	165mm (≈6.5") to 3820mm (≈150.4") — see variant options
Belt Type	Closed Loop (Endless / Seamless)
Body Material	Neoprene rubber (typically)
Reinforcement	Fiberglass or steel tension cord (typically)
Tooth Facing	Nylon fabric (typically)
Compatible Pulley Profile	T5 only (5mm pitch, 10mm width)
Quantity per Order	1 pc or 2 pcs — see variant options
Application	CNC, 3D printers, conveyors, automation, laser cutters
Operating Temperature	Contact us to confirm
Country of Origin	See variant options

❓ Frequently Asked Questions

How do I choose the right belt length (circumference)?

The "C=" value is the belt's inner circumference. To find the right size, measure the center-to-center distance between your two pulleys, then use the formula: C ≈ 2 × center distance + π × pitch diameter of one pulley. For example, a 500mm belt (≈19.7") typically suits a center distance of roughly 200–220mm with standard T5 pulleys. When in doubt, size up — a slightly longer belt can be tensioned; a short one cannot be installed.

What is the pitch of a T5 timing belt?

T5 timing belts have a tooth pitch of 5mm (0.197") — the distance from the center of one tooth to the center of the next. The belt must be paired with T5-profile pulleys for proper meshing. It is not interchangeable with T2.5 (2.5mm pitch), T10 (10mm pitch), or HTD profiles.

What load or tension can this belt handle?

T5 belts at 10mm width are generally suited for light-to-medium duty applications. Typical allowable working tension is in the range of 50–150 N, depending on speed, pulley diameter, and wrap angle. For high-load or high-speed applications, consult your drive system specifications. If you need higher capacity, consider a wider belt or a higher-series profile such as AT5 or HTD.

Can this belt be used outdoors or in wet environments?

Standard T5 neoprene timing belts generally offer moderate resistance to moisture and mild chemicals. They are typically not recommended for prolonged submersion or direct exposure to oils, solvents, or extended UV radiation without additional protection. For outdoor or harsh-environment installations, contact us to confirm the specific belt material before ordering.

Will this belt fit my existing T5 pulleys?

Yes — provided your pulleys are T5-profile (5mm pitch) and designed for a 10mm belt width. T5 is a standardized tooth profile, so this belt is compatible with T5 pulleys from any manufacturer. Always verify the pulley's belt-width specification matches 10mm before ordering.

How do I convert the belt length from mm to inches?

Divide the mm value by 25.4. Quick reference examples:

250mm ÷ 25.4 ≈ 9.8"
500mm ÷ 25.4 ≈ 19.7"
1000mm ÷ 25.4 ≈ 39.4"
2000mm ÷ 25.4 ≈ 78.7"
3820mm ÷ 25.4 ≈ 150.4"

Use this formula to match your existing belt's inch measurement to the mm sizes in the dropdown above.

What applications are T5 10mm timing belts commonly used in?

T5 closed loop synchronous belts at 10mm width are widely used in CNC routers (X/Y/Z axis drives), 3D printers (gantry and lead-screw assist), laser cutter carriages, conveyor indexing systems, packaging equipment, medical devices, and general factory automation — anywhere slip-free, repeatable motion is required.

🛒 Select your size and quantity above, then add to cart — ships from our US warehouse.
