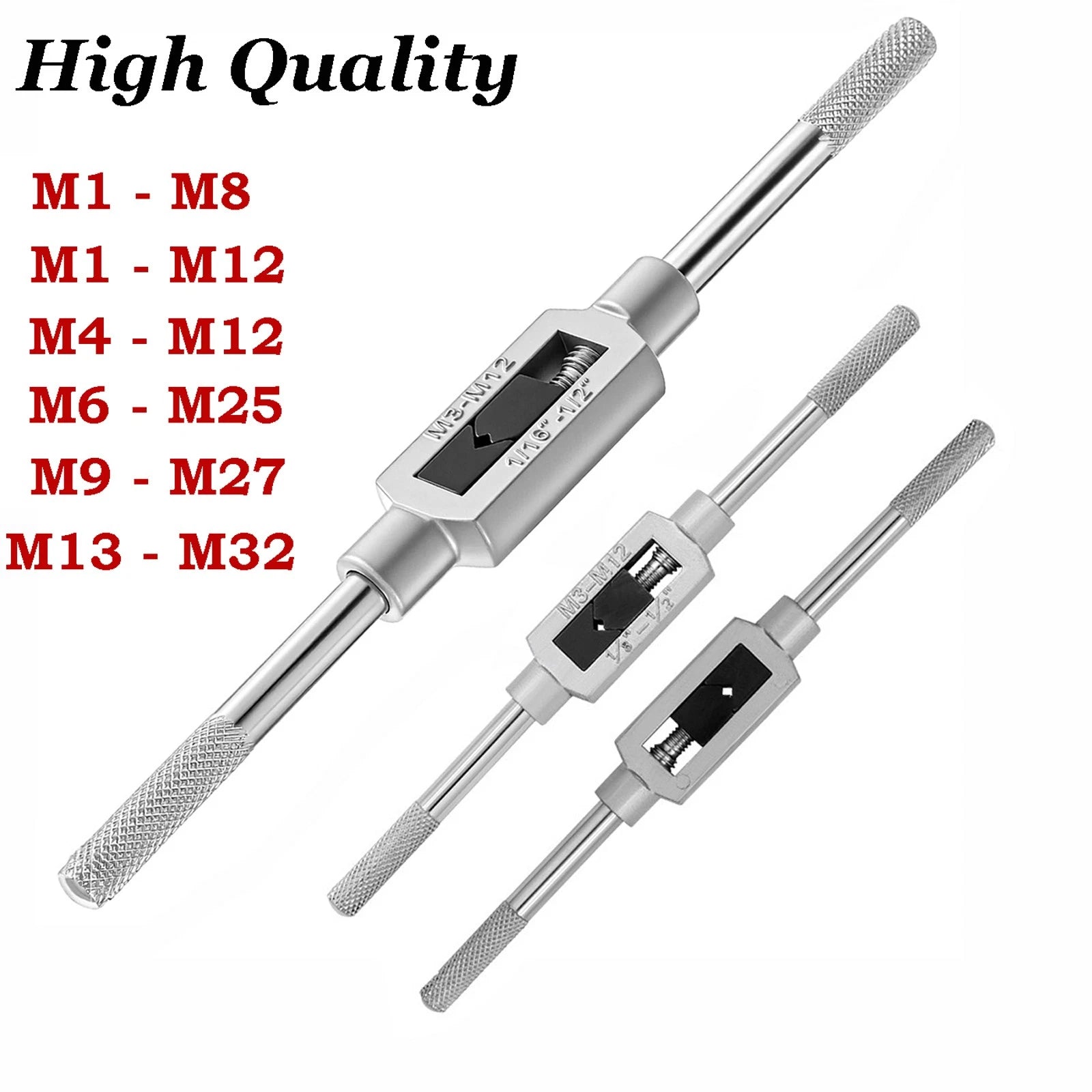

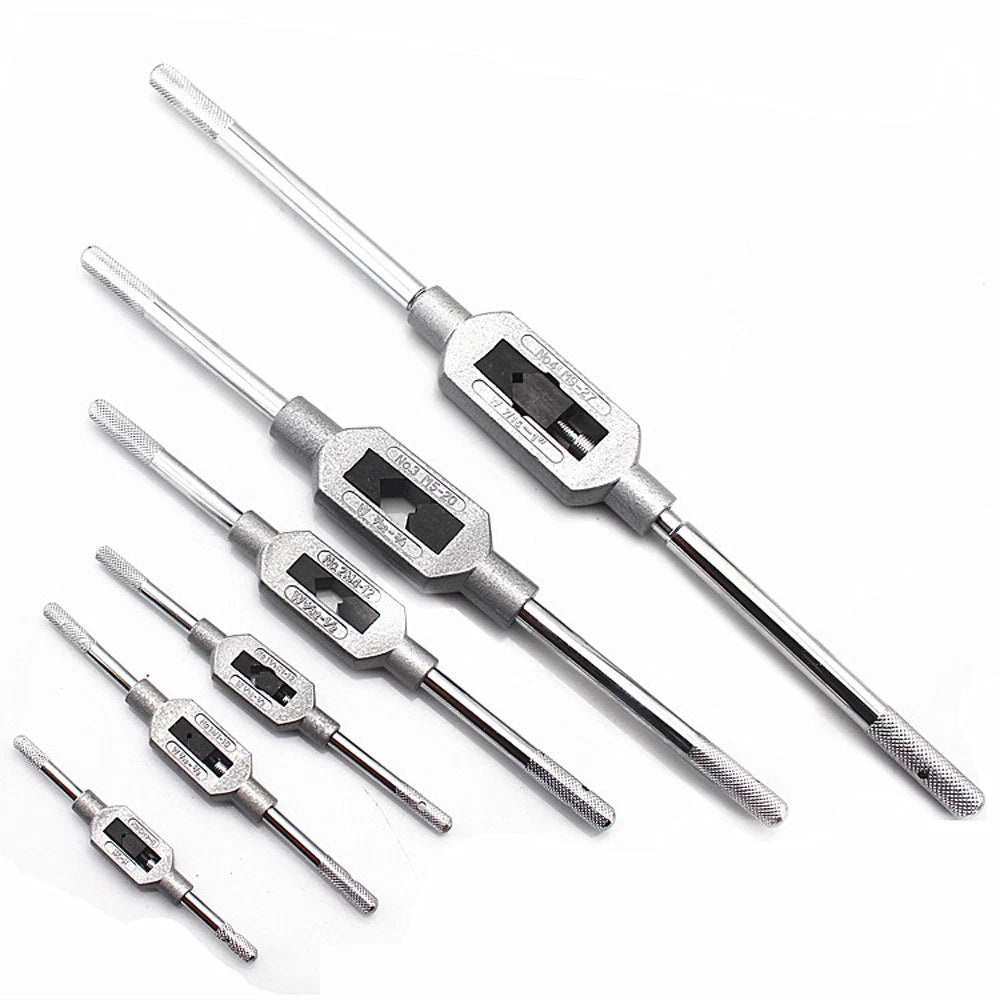

Tap Wrench Top Quality, Holder For Use With Hss Hand Taps/Sets From Tool M1 -M27

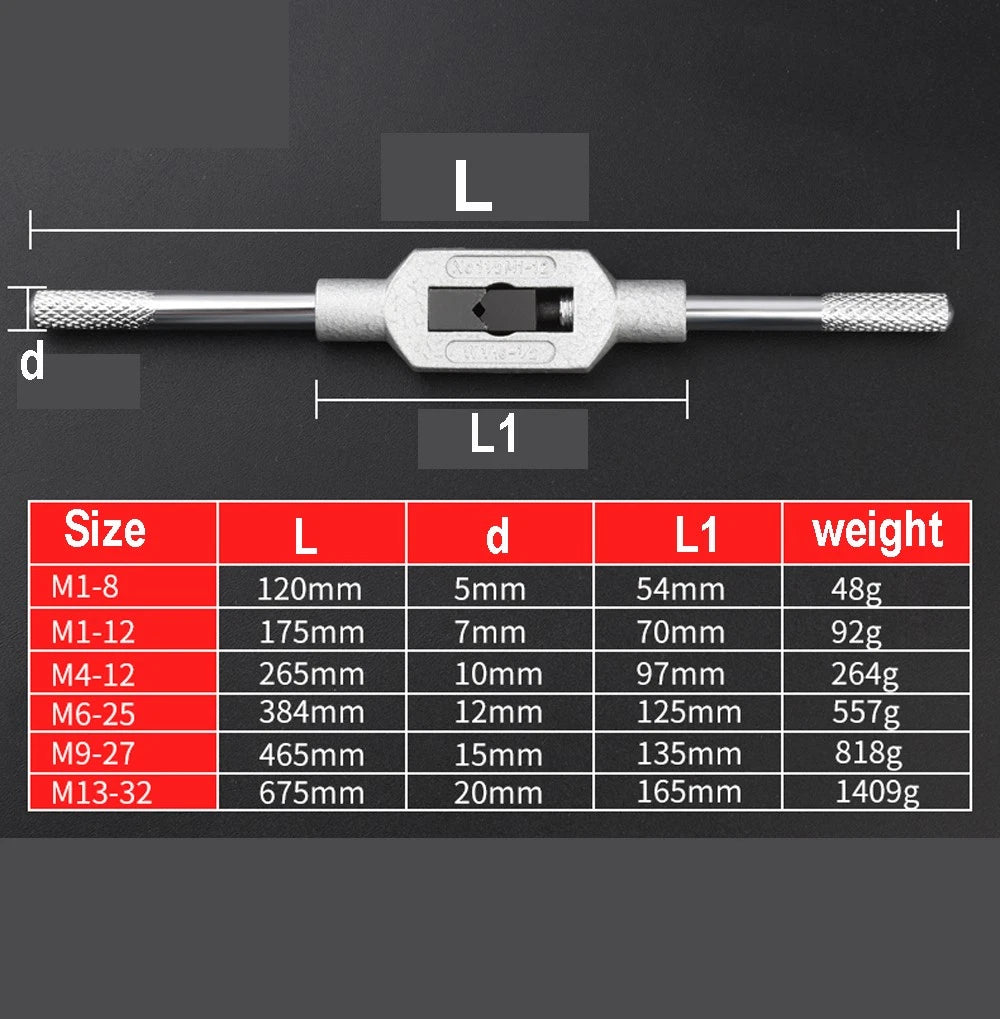

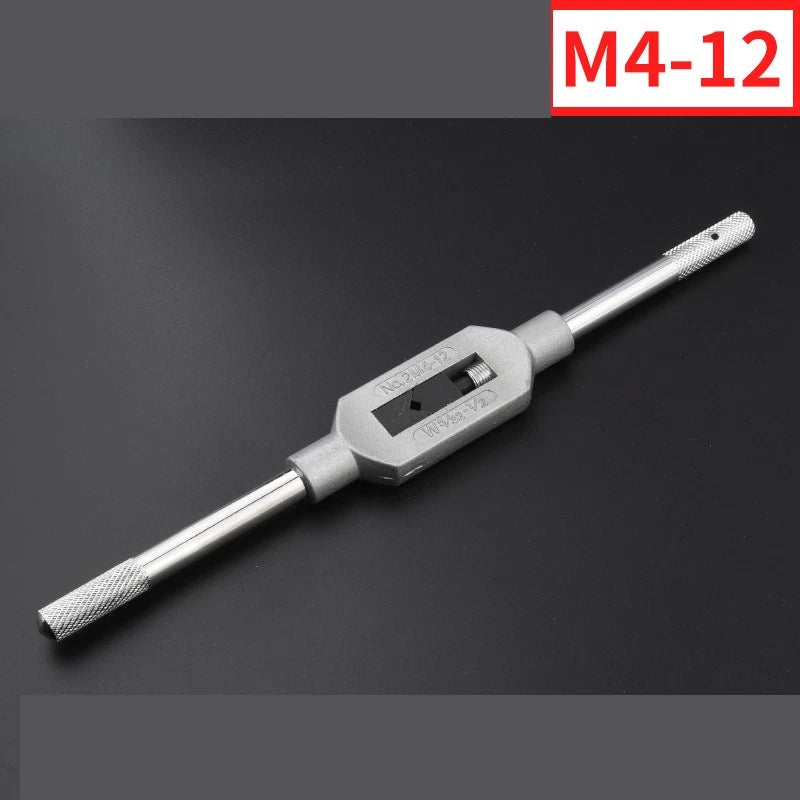

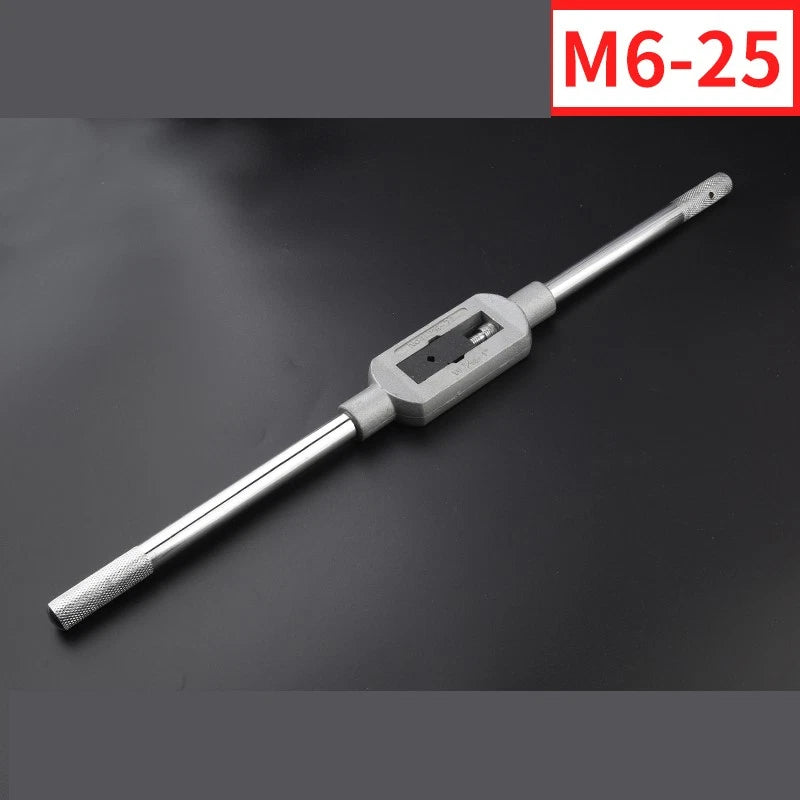

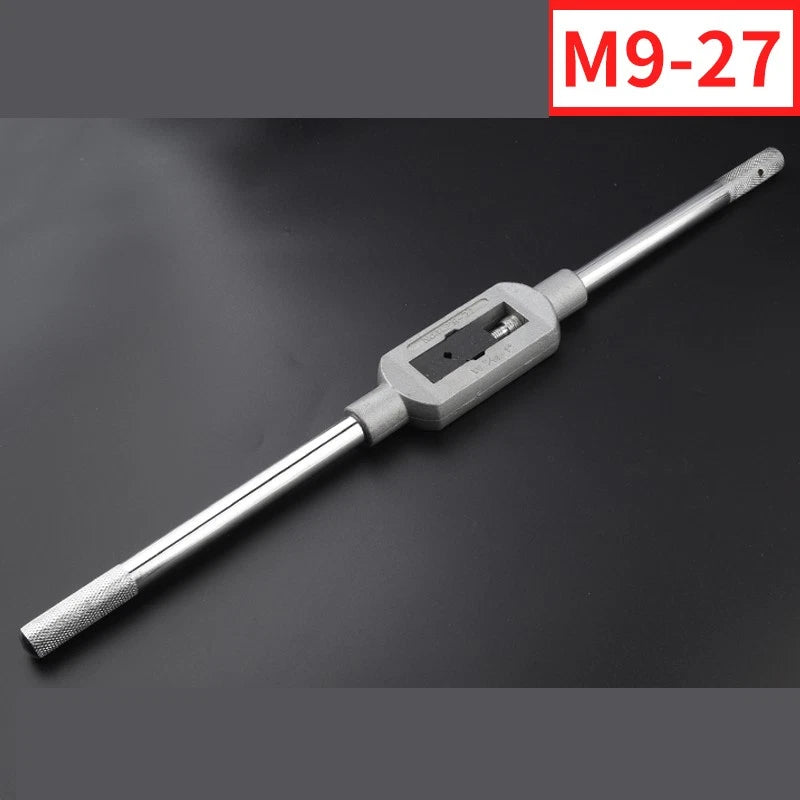

Match the size set to the largest tap shank diameter you plan to use. For example, if your tap set runs up to M12, either the M1–M12 or M4–M12 option will work. If you regularly use taps up to M25 or M27, select the M6–M25 or M9–M27 set respectively. When in doubt, size up — a larger chuck can still grip smaller shanks within its range.

Yes. The chuck grips the shank of the tap, not the cutting flutes, so it is compatible with taper, plug, and bottoming tap styles as long as the shank diameter falls within the selected size range.

The wrench itself is built from hardened steel and can handle the torque required for tapping stainless steel and other tough alloys. However, tap breakage risk increases with harder materials — use cutting fluid, take short turns, and back off frequently to clear chips regardless of the wrench used.

Yes. The T-handle design gives you fine rotational control, which is important when tapping blind holes where you need to feel resistance and stop before bottoming out. Use a bottoming tap for the final passes in blind holes.

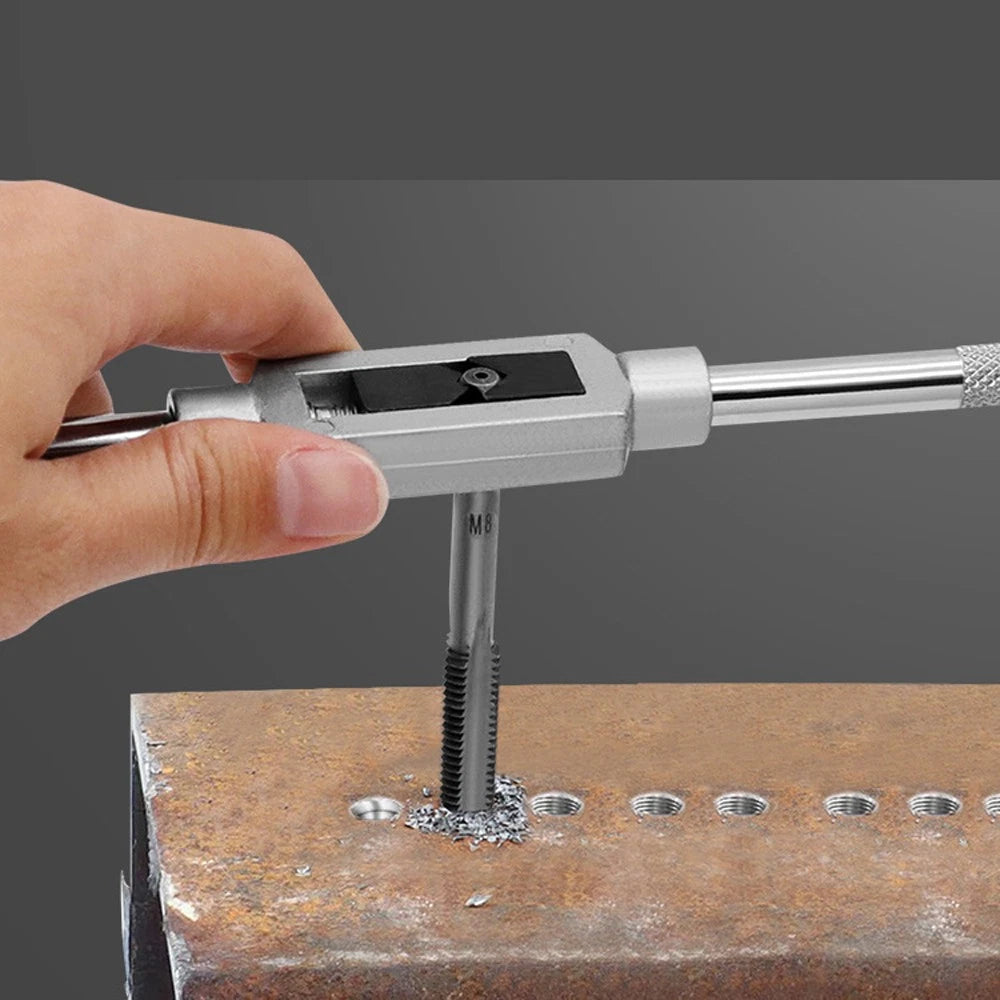

Apply consistent, even pressure with both hands on the T-handles. Turn forward approximately half a turn, then reverse a quarter turn to break the chip. Use appropriate cutting fluid for the material. Ensure the tap is started perpendicular to the workpiece surface. Avoid forcing the tap if resistance increases suddenly.

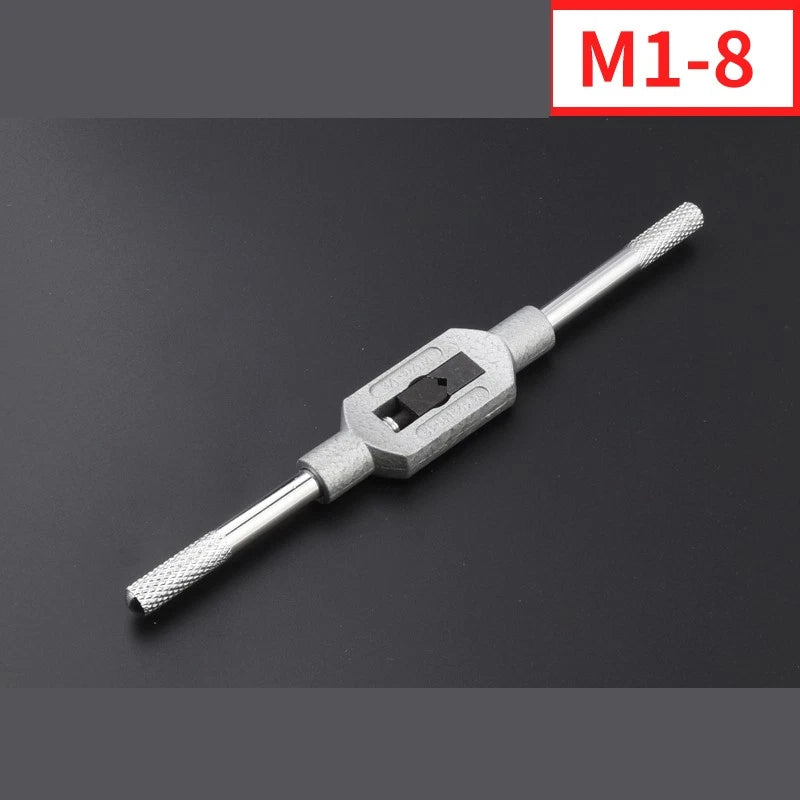

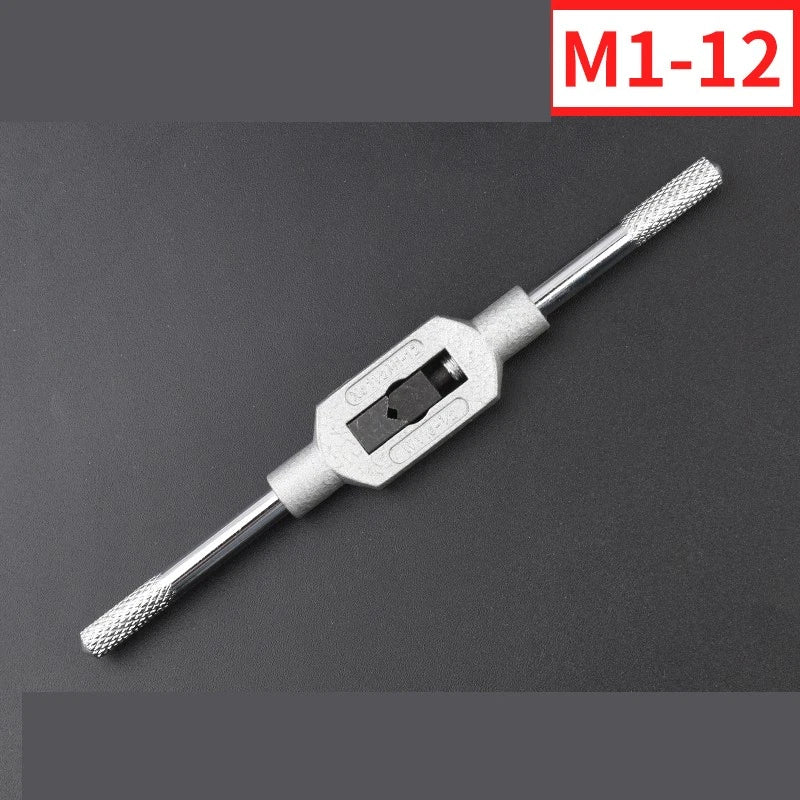

The M1–M8 set has a smaller maximum chuck capacity suited for fine taps up to M8 shank diameter. The M1–M12 set has a larger chuck capacity to accommodate taps up to M12 while still gripping smaller shanks. If your work spans both fine and medium metric taps, the M1–M12 set offers broader coverage.
