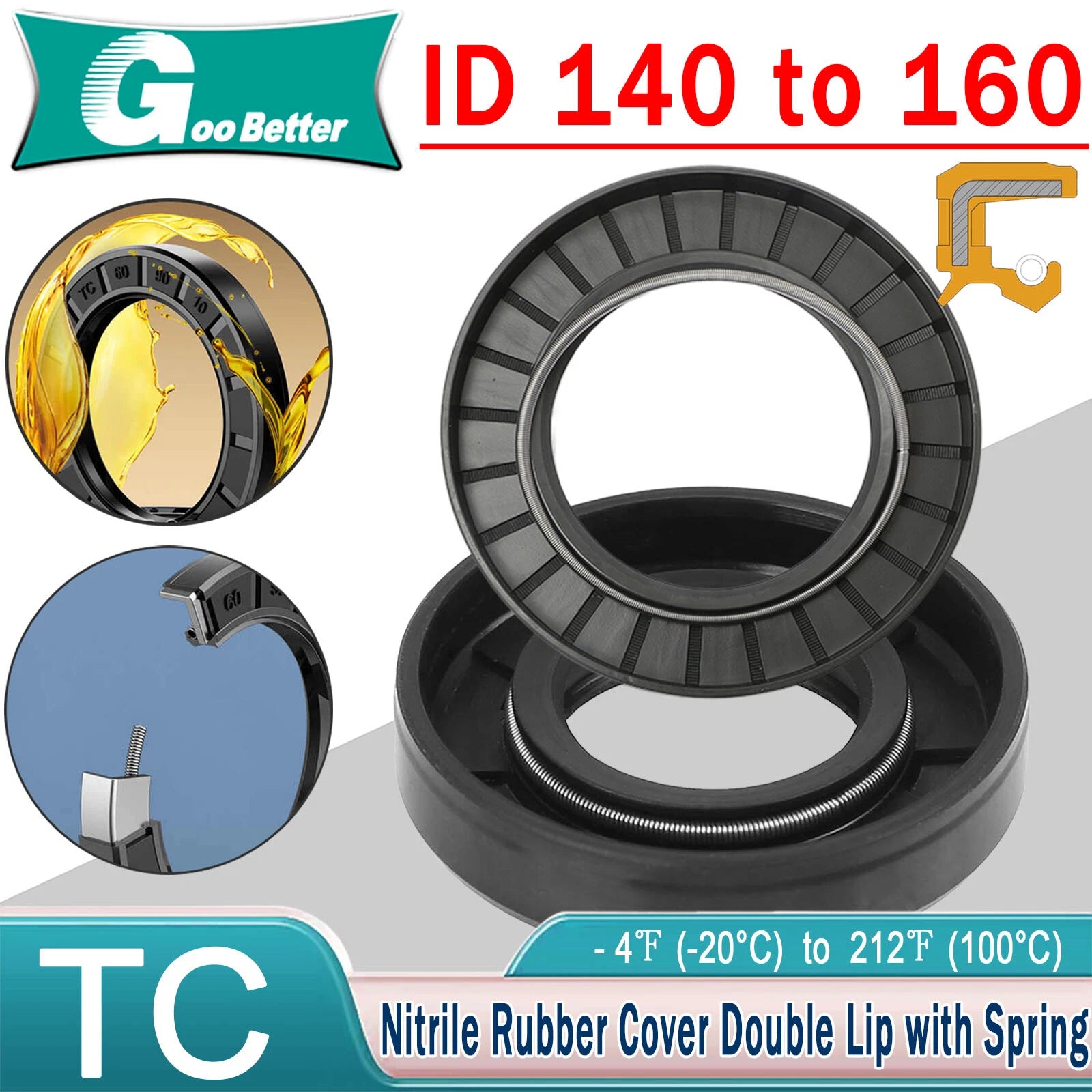

TC Oil Seal 140–160mm ID | Double Lip NBR Rotary Shaft Seal | R23 / TC / TTO | All Depths

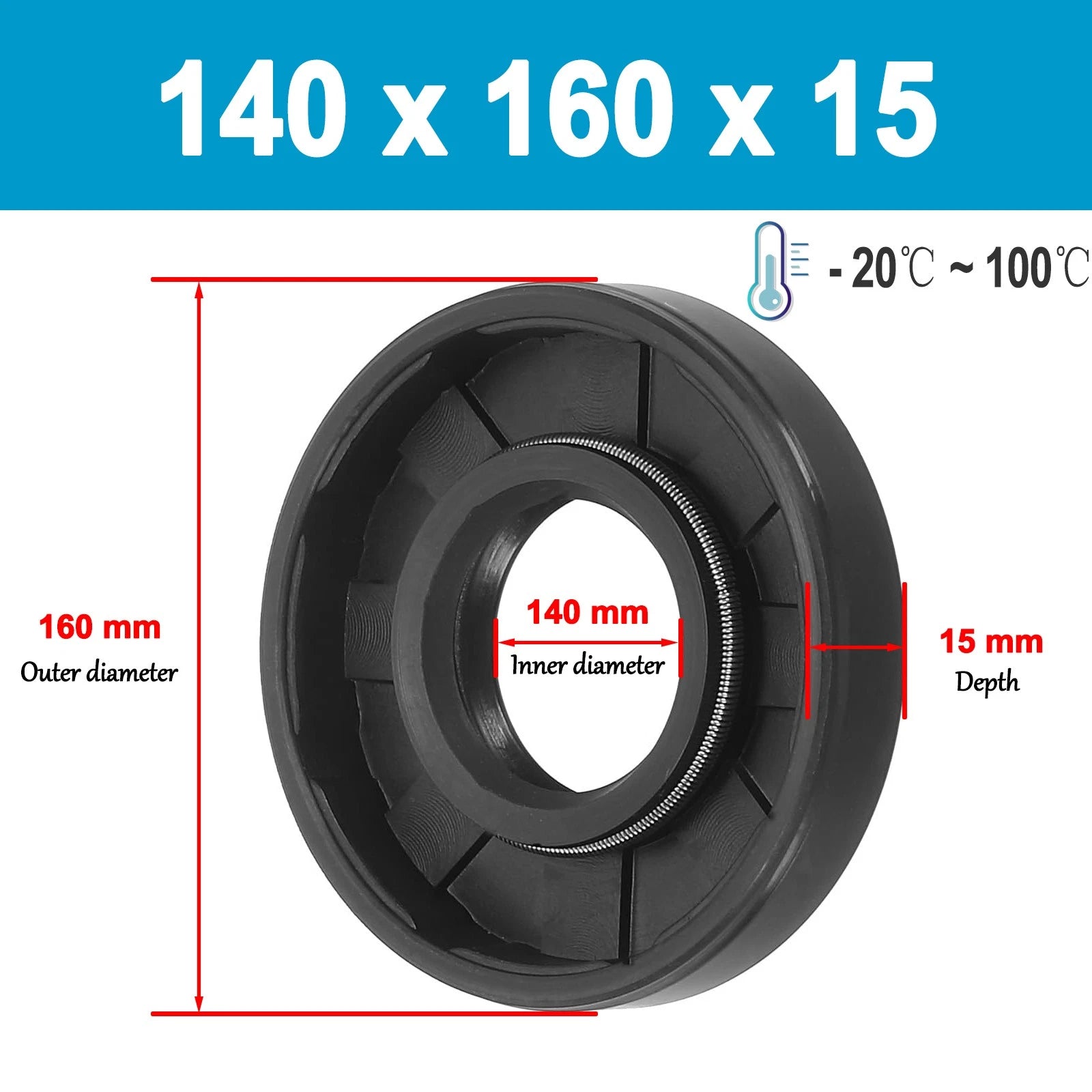

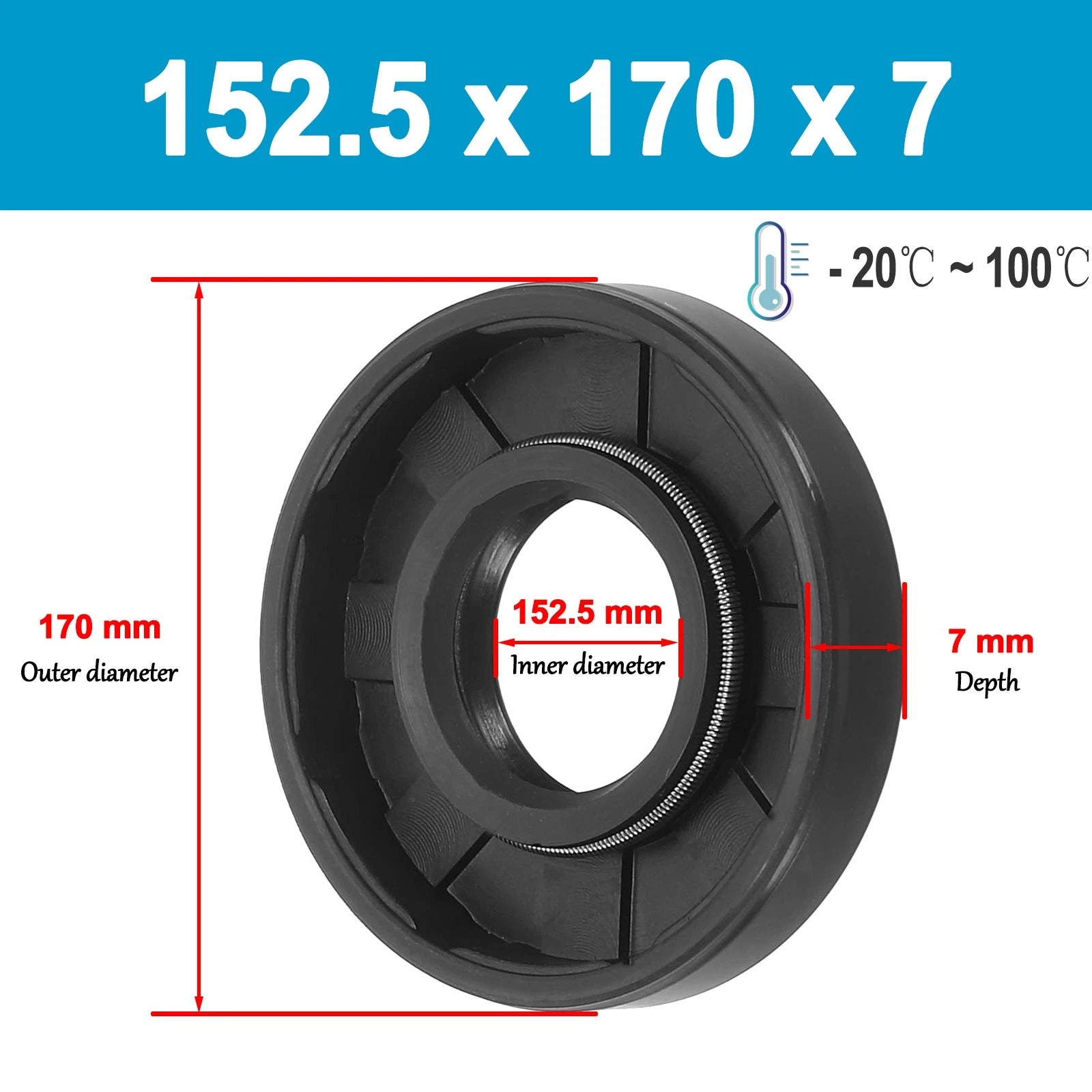

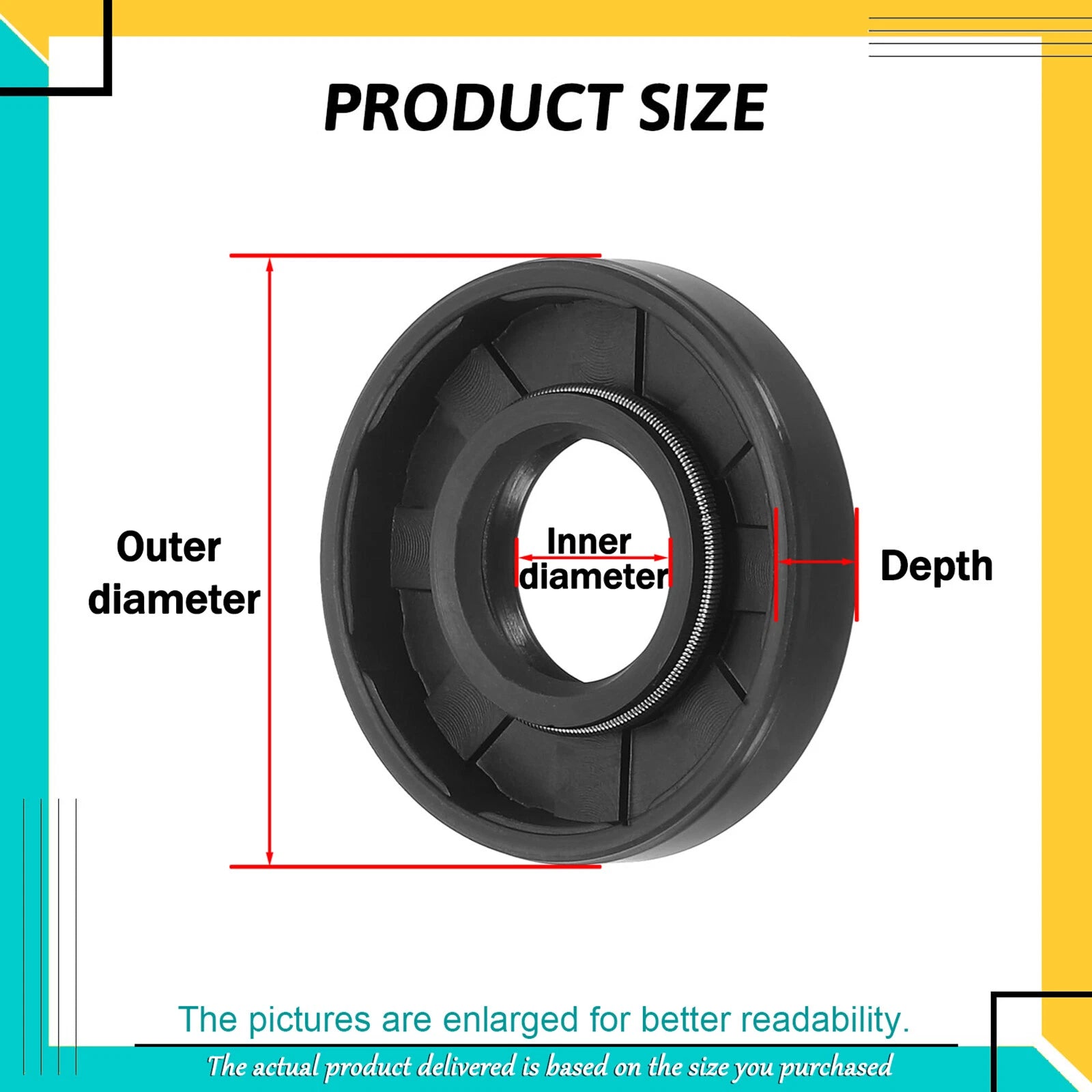

Measure the shaft diameter (inner Ø), the bore diameter (outer Ø), and the housing depth. Match all three to the variant listed as Inner Ø × Outer Ø × Depth (all in mm). For example, a 150 × 180 × 15 seal fits a 150mm (≈5.91") shaft, a 180mm (≈7.09") bore, and a 15mm (≈0.59") deep housing. If you only have inch measurements, multiply by 25.4 to convert to mm.

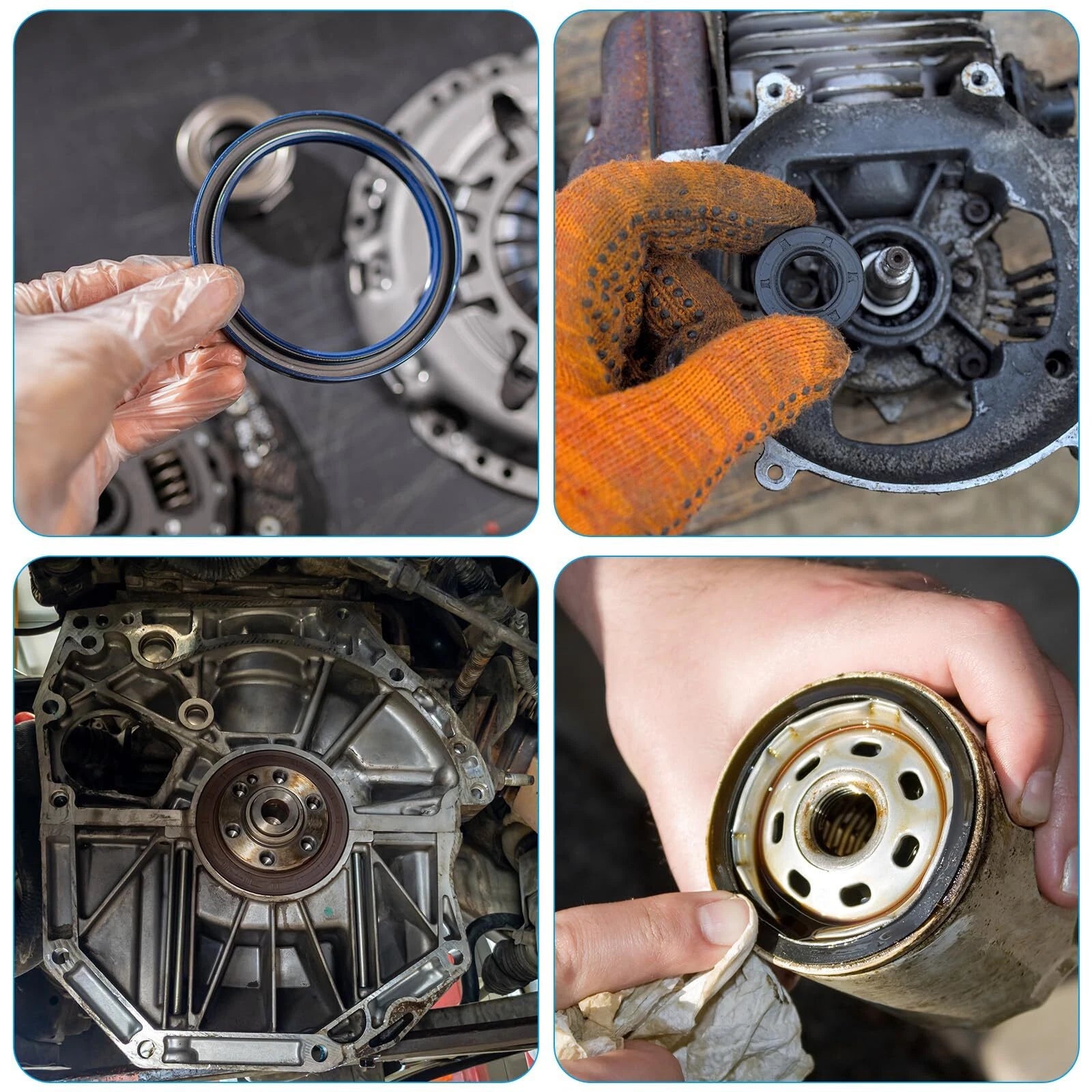

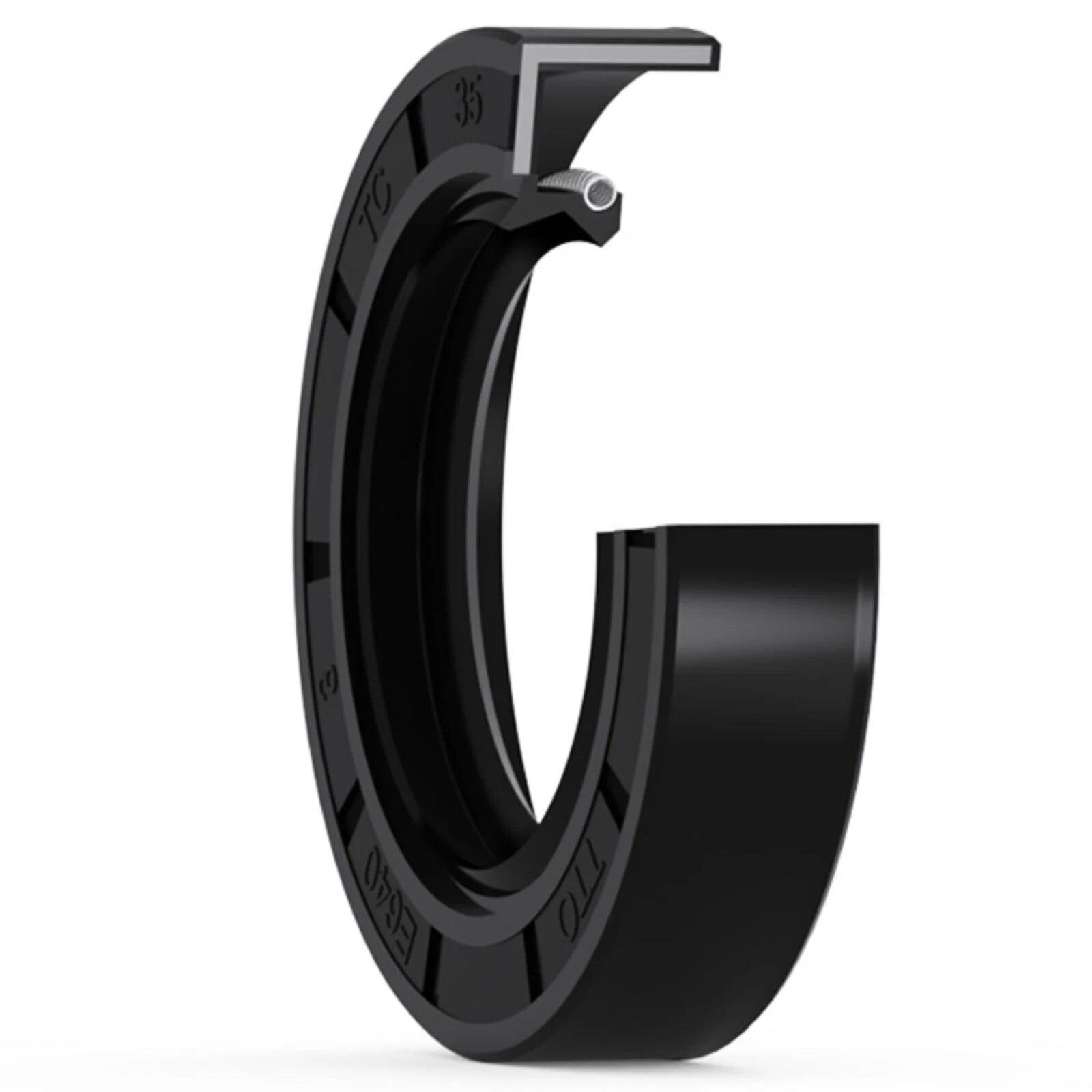

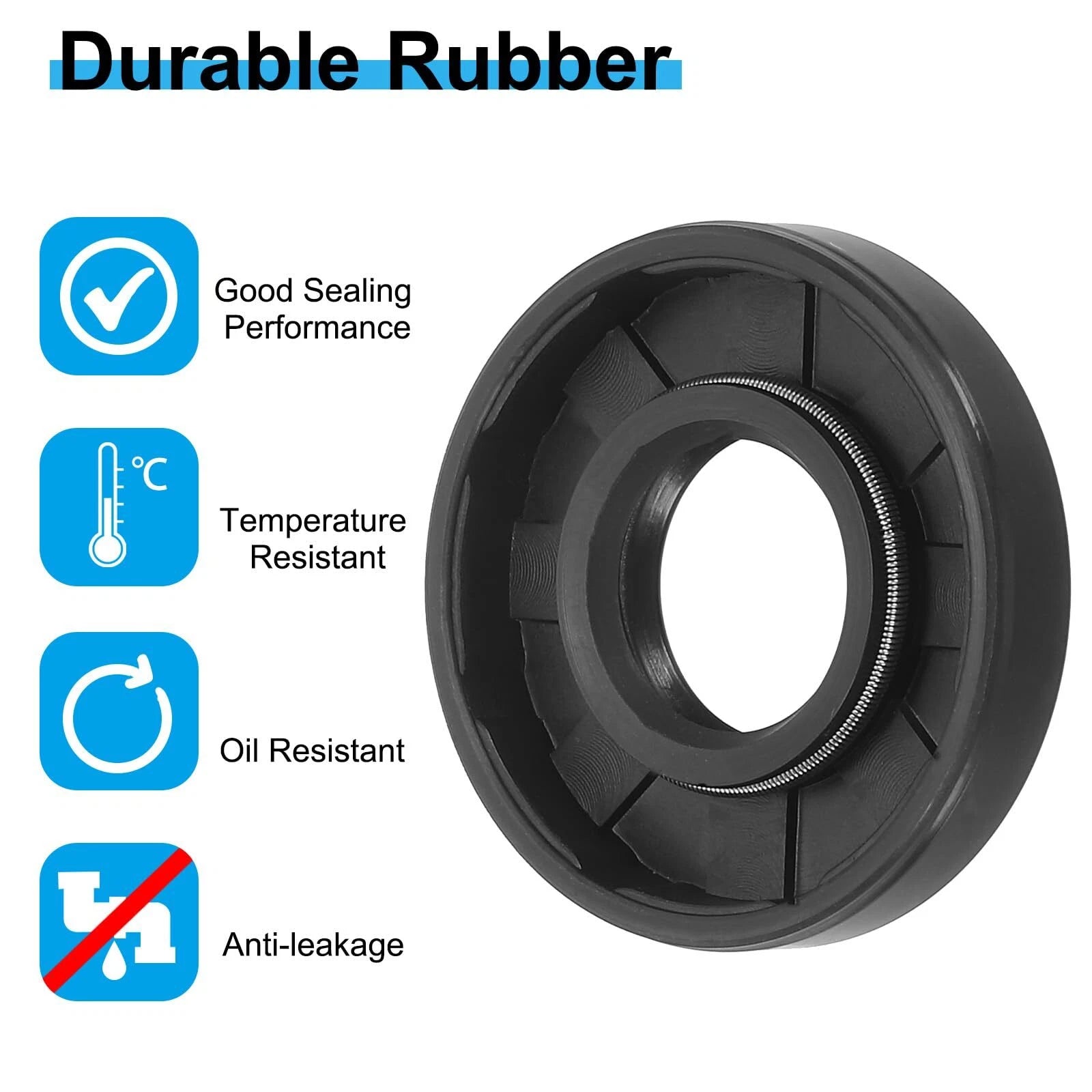

TC (also called TTO or R23) refers to a double-lip radial shaft seal design. The primary lip retains lubricant; the secondary dust lip keeps contaminants out. This is the most widely used general-purpose seal type across automotive, industrial, and agricultural equipment. Seals from different manufacturers with the same TC designation and identical dimensions are generally interchangeable.

TC-type NBR oil seals are generally rated for low-to-moderate shaft speeds and static pressures up to approximately 0.3 bar (4.4 psi). For higher-pressure applications, a PTFE-lipped or spring-energized seal is typically recommended. Contact us to confirm suitability for your specific application.

NBR (nitrile rubber) offers good resistance to water, oil, and mild chemicals, making it suitable for many outdoor and wet environments. However, NBR is generally not recommended for prolonged UV exposure or ozone-rich environments. For harsh outdoor conditions, a FKM (Viton) seal is typically a better choice. The secondary dust lip on TC seals does provide additional protection against water and mud ingress.

NBR oil seals generally operate reliably in a temperature range of approximately -40°C to +120°C (-40°F to +248°F). Short-term peaks up to +130°C are typically tolerated. For continuous high-temperature applications above 120°C, FKM (Viton) material is generally recommended.

NBR is generally compatible with mineral-based oils, gear oils, hydraulic fluids, and many synthetic lubricants. It is not recommended for use with phosphate-ester fluids, ketones, or highly aromatic fuels. If you are unsure about fluid compatibility, contact us to confirm before ordering.

Clean the housing bore and shaft. Lightly lubricate the seal lips with the fluid being sealed. Press the seal squarely into the bore using a seal driver or a flat plate — never hammer directly on the seal face. Ensure the seal is flush or slightly below the housing face. Avoid nicking the primary lip on shaft keyways or splines during installation.

These seals are available in packs of 1, 2, 5, or 10 pieces depending on the size selected. For a single repair, a 1-pack is sufficient. Workshops and fleet operators typically find the 5- or 10-pack more economical for recurring maintenance tasks on tractors, trucks, or industrial equipment.
