Closed-Loop PU Timing Belt 2001–2198mm — Precision Drive for CNC, 3D Printers & Automation

When your CNC router skips steps or your conveyor loses sync, the culprit is often a stretched or mismatched drive belt. Engineers, makers, and machine builders who need a closed-loop timing belt in the 2001–2198mm perimeter range — with widths from 10mm to 30mm — will find this PU steel-wire belt a reliable, dimensionally stable solution.

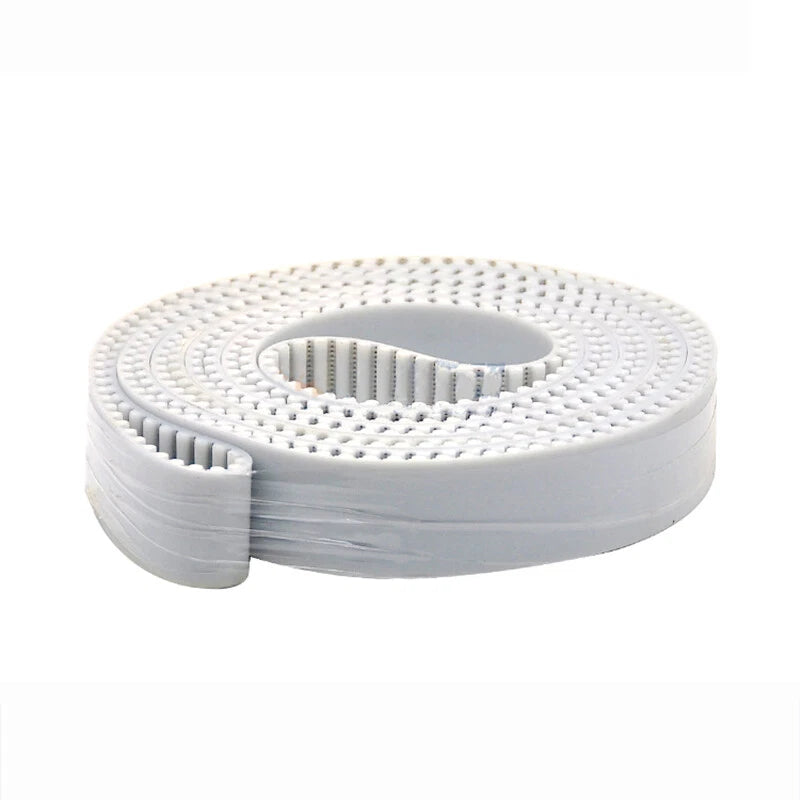

Each belt is a seamless closed loop made from polyurethane (PU) with built-in steel wire reinforcement. Available perimeters run from 2001mm (≈78.8") to 2198mm (≈86.5") in 3mm increments, with tooth counts from 667 to 733 teeth at a T3 pitch. Width options are 10mm, 15mm, 20mm, and 30mm to match a range of drive system requirements.

Typical use cases include CNC router X/Y axis drives, 3D printer bed or gantry loops, linear actuator systems, and light industrial conveyor drives where a closed-loop timing belt with low stretch and consistent tooth engagement is required.

ℹ️ Compatibility: Designed for T3 tooth profile pulleys. Verify your pulley pitch (3mm) and tooth count match your required belt perimeter before ordering. Width must match your pulley face width or be narrower.
⚠️ Size confirmation: With 249+ variants across perimeter and width combinations, please double-check your machine's required belt loop length and width before adding to cart. Refer to your drive system manual or measure your existing belt.

✅ Key Features of These Closed-Loop PU Timing Belts

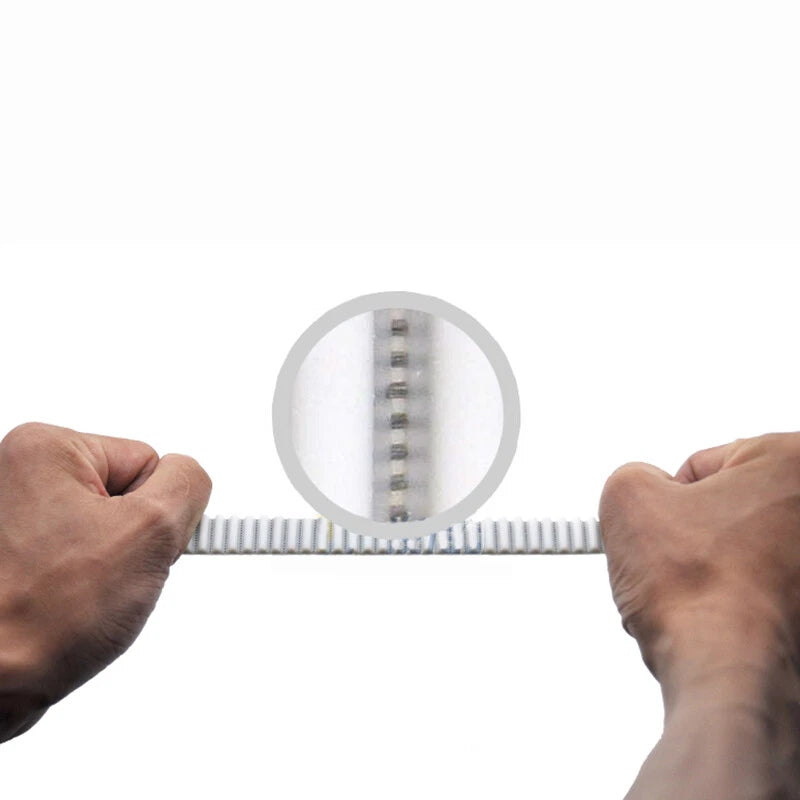

  • 🔩Steel Wire Reinforcement — Embedded steel wire core minimizes belt elongation under load, maintaining positioning accuracy in CNC and linear motion applications.

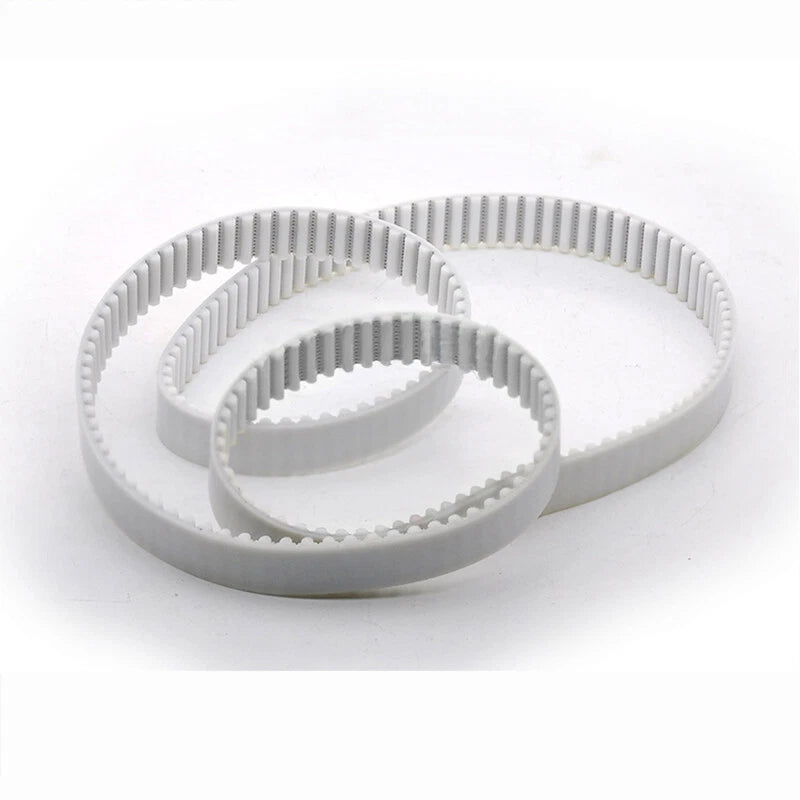

  • 🔄Seamless Closed-Loop Construction — No joint or splice means consistent tension distribution and reduced vibration throughout the drive cycle.

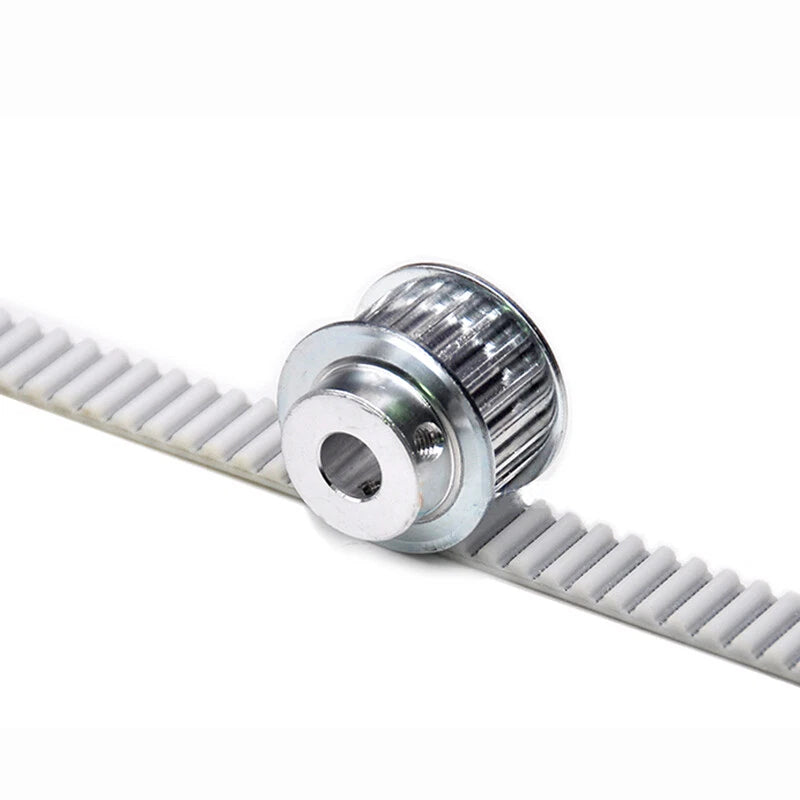

  • 📐T3 Tooth Profile, 3mm Pitch — Matches widely used T3 pulleys found in 3D printers, CNC routers, and automation equipment for straightforward drop-in replacement.
  • 🧪Polyurethane Body — PU material offers better oil and chemical resistance than standard rubber belts, extending service life in workshop and light industrial environments.
  • 📏Wide Size Selection — Perimeters from 2001mm to 2198mm (667–733 teeth) and widths of 10, 15, 20, and 30mm cover a broad range of closed-loop timing belt replacement needs.
  • ⚙️Consistent Tooth Engagement — Uniform tooth geometry across the full loop supports smooth, repeatable motion in precision drive systems such as automated assembly lines and plotters.

📐 Technical Specifications — Closed-Loop PU Timing Belt

Belt Type Closed-loop timing belt
Material Polyurethane (PU) with built-in steel wire
Tooth Profile T3 (3mm pitch)
Perimeter Range 2001mm (≈78.8") – 2198mm (≈86.5")
Tooth Count Range 667 teeth – 733 teeth
Available Widths 10mm, 15mm, 20mm, 30mm
Reinforcement Built-in steel wire core
Construction Seamless closed loop (no joint)
Recommended Use CNC drives, 3D printer gantry/bed, linear actuators, light conveyor systems
Pulley Compatibility T3 profile pulleys (confirm tooth count and face width)
Operating Environment Indoor / light industrial; moderate oil and chemical resistance
Quantity per Order 1 belt per variant selected

❓ Frequently Asked Questions

How do I choose the right perimeter length for my machine?

Measure the center-to-center distance between your drive and driven pulleys, then calculate the required belt loop length. For example, a 2001mm (≈78.8") belt is typically suited for medium-span CNC or conveyor setups. Always verify against your pulley tooth count — each tooth pitch is 3mm, so 667 teeth × 3mm = 2001mm perimeter. When in doubt, measure your existing belt or consult your machine's documentation.

What width should I choose for my application?

Wider belts generally carry higher torque loads. A 10mm width is typically sufficient for light-duty 3D printers and small CNC routers. 15–20mm widths are generally used for mid-range automation and conveyor systems. 30mm widths are suited for heavier-duty industrial drives. The belt width should match or be slightly narrower than your pulley face width. Consult your machine's specification sheet to confirm the required belt width.

What is the tooth pitch of this timing belt?

This belt uses a 3mm tooth pitch (T3 profile), which is a widely adopted standard for precision motion control. The tooth count ranges from 667 teeth (2001mm perimeter) to 733 teeth (2199mm perimeter) across the available sizes. Confirm your pulleys are T3 profile before ordering.

Is this belt suitable for outdoor or high-humidity environments?

Polyurethane (PU) offers better resistance to oils, mild chemicals, and moderate moisture compared to rubber belts. However, prolonged exposure to UV radiation or standing water may reduce service life. For outdoor installations, additional shielding is generally recommended. Contact us if you need guidance for a specific environment.

Will this belt work with standard T3 pulleys?

Yes. This belt is designed to the T3 tooth profile standard and is compatible with T3 pulleys commonly used in CNC machines, 3D printers, and linear motion systems. Always verify the pulley tooth count and pitch match before ordering. If you are unsure, contact us to confirm compatibility.

How does the built-in steel wire affect belt performance?

The embedded steel wire core significantly reduces belt elongation under load, maintaining consistent positioning accuracy over time. This makes it well-suited for applications where dimensional repeatability is critical, such as CNC routing and automated assembly lines. Compared to belts without reinforcement, steel wire cores typically exhibit lower creep under sustained tension.

Can I use this belt for high-speed applications?

PU timing belts with steel wire reinforcement are generally capable of handling moderate-to-high speeds typical of CNC and automation equipment. Maximum allowable speed depends on pulley diameter, tooth engagement, and system tension. Consult your drive system specifications for exact limits, or contact us to confirm suitability for your application.

🛒 Select your perimeter and width above, then add to cart — ships from our US warehouse.
