Toggle Rocker Switch ON-ON 3-Pin 15A 250V AC — Reliable Circuit Control for DIY Panels & Wiring Projects

When a wiring project demands a dependable, easy-to-actuate toggle rocker switch ON-ON for switching between two circuits, a loose or undersized switch creates frustrating rework and potential safety hazards. Hobbyists building custom control panels, electricians wiring sub-panels, and automotive enthusiasts retrofitting dashboards all need a switch that seats firmly, actuates cleanly, and holds its rating under real-world loads.

The BEM-1121 is a 3-pin, 2-position ON-ON toggle rocker switch rated at 15A and 250V AC. Each unit features a compact rocker-style body with three solder or quick-connect terminals (1 COM + 2 outputs), a snap-in panel mount design, and a durable plastic housing with a metal actuator lever. Available in quantities of 1, 2, 4, 6, or 10 pieces per order to match your project scale.

Typical use cases include DIY electrical control boxes, marine accessory panels, automotive relay bypass switches, and workshop equipment on/off selectors — anywhere a 3-pin ON-ON toggle switch for 15A circuits is needed for clean two-circuit selection.

ℹ️ Compatibility Note: This switch uses a standard 3-pin ON-ON configuration (SPDT). Verify your panel cutout dimensions and terminal connector size before installation. Contact us to confirm exact body and cutout measurements.

✅ Key Features of These 3-Pin ON-ON Toggle Rocker Switches

  • ⚡15A / 250V AC Rating — Handles demanding loads in household, workshop, and light industrial circuits without derating under normal operating conditions.
  • 🔀True ON-ON Two-Position Action — SPDT logic connects COM to one of two outputs in each position, making it ideal for source-selection or dual-load switching in DIY control panels.
  • 🔩Snap-In Panel Mount Design — The rocker body clips directly into a standard rectangular panel cutout, eliminating the need for separate mounting hardware during installation.
  • 🔌Quick-Connect Compatible Terminals — Three exposed terminals accept standard spade connectors for tool-free wiring changes, speeding up automotive dashboard and marine panel builds.
  • 🏗️Compact, Low-Profile Body — The rocker-style actuator sits flush or near-flush with the panel surface, reducing snag risk in tight enclosures and custom fabricated boxes.

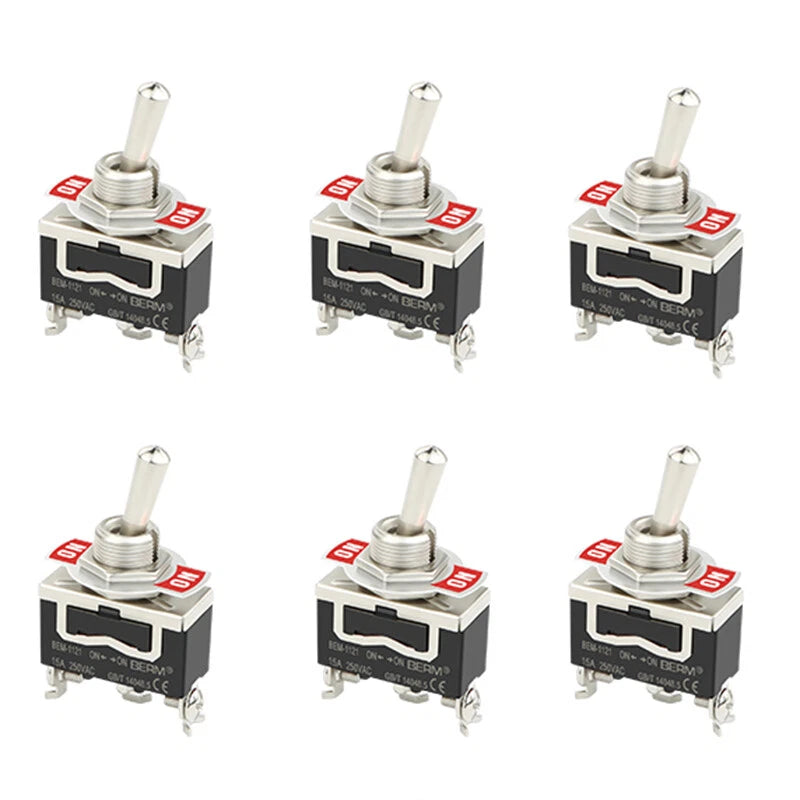

  • 📦Multi-Pack Quantity Options — Order 1, 2, 4, 6, or 10 pieces to match your exact project needs, with per-unit savings on larger packs — useful for batch wiring or keeping spares on hand.

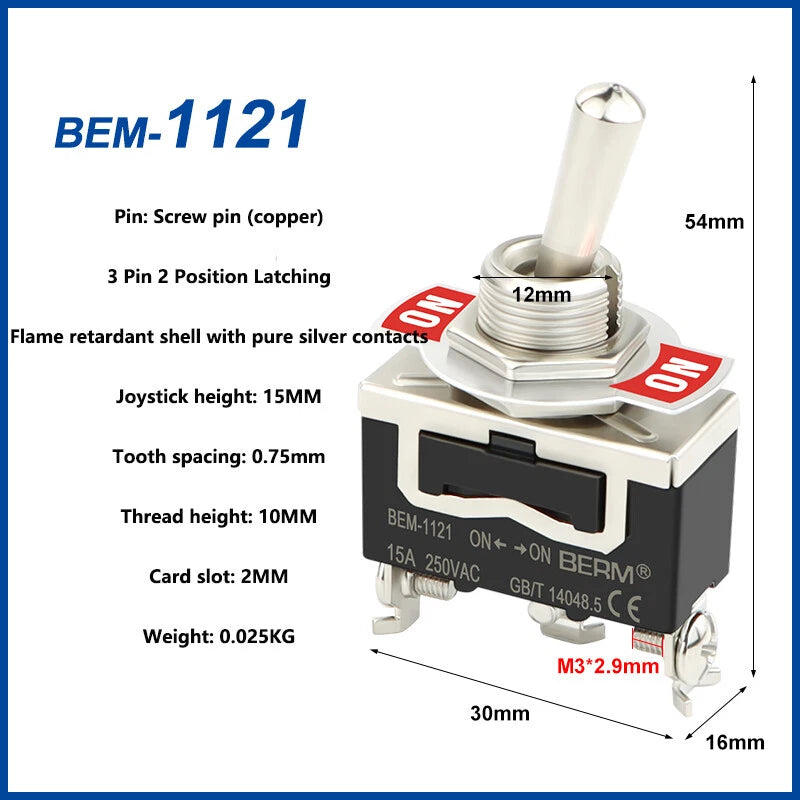

📐 Technical Specifications — 3-Pin ON-ON Toggle Rocker Switch

Model BEM-1121
Switch Type Toggle Rocker Switch
Circuit Configuration SPDT (Single Pole Double Throw)
Number of Pins 3 (1 COM + 2 Output)
Positions 2 (ON-ON)
Voltage Rating 250V AC
Current Rating 15A (AC); see variant options for DC rating
Terminal Type Quick-connect / solder (contact us to confirm)
Panel Cutout Contact us to confirm
Housing Material See variant options
Actuator Material See variant options
Mounting Style Snap-in panel mount
Operating Temperature See variant options
Quantity per Order 1 / 2 / 4 / 6 / 10 pcs (select above)
Certifications Contact us to confirm
⚠️ Spec Confirmation: Panel cutout dimensions, exact terminal pitch, and DC current rating are not printed on the packaging. Please contact us before drilling or crimping to confirm these values for your specific installation.

❓ Frequently Asked Questions

How do I choose the right quantity for my project?

Count the number of switching points in your circuit or panel. For a single-circuit DIY control box, 1 pc is typically sufficient. Larger wiring harnesses or multi-circuit panels generally require 4–10 pcs. Buying in a multi-pack reduces per-unit cost and keeps spares on hand for future repairs.

What current and voltage can this switch handle?

The BEM-1121 is rated at 15A and 250V AC. For DC circuits, the safe operating current is generally lower — typically 10–12A at 12V DC — due to arc-suppression differences. Always verify your load requirements before wiring.

Can this switch be used outdoors or in marine environments?

This switch is not rated for direct water exposure. For outdoor or marine installations, it is generally recommended to mount it inside a weatherproof enclosure (IP65 or higher) to protect the terminals from moisture and corrosion.

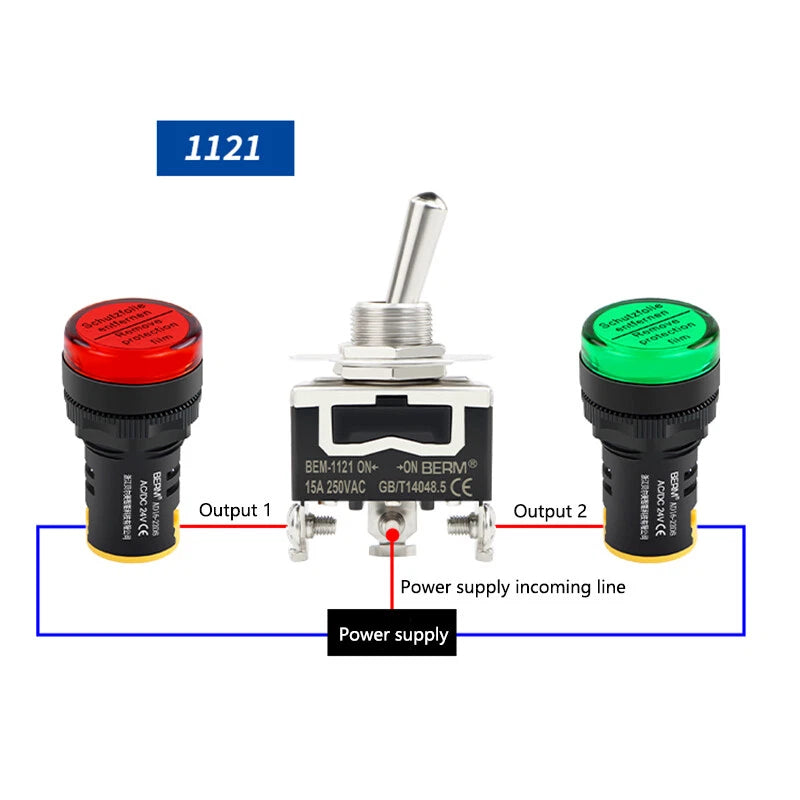

What does 3-pin ON-ON mean, and how do I wire it?

A 3-pin ON-ON toggle switch has one common (COM) terminal and two output terminals. In position 1, COM connects to output A; in position 2, COM connects to output B. This makes it ideal for selecting between two circuits — for example, switching between two power sources or two loads. Refer to the wiring diagram included with your order.

What panel cutout size does this switch require?

Toggle rocker switches of this type typically require a rectangular panel cutout. The exact dimensions depend on the switch body size — please contact us to confirm the precise cutout dimensions for the BEM-1121 before drilling.

Is this switch compatible with standard quick-connect terminals?

Yes. The 3-pin terminals on this switch are generally compatible with standard 4.8mm (3/16") or 6.3mm (1/4") female quick-connect (spade) terminals, which are widely available at hardware stores. Confirm terminal size before crimping.

Can I use this switch for 12V DC automotive or RV wiring?

In most cases, yes — toggle switches rated for AC use can also handle low-voltage DC circuits at reduced current. For 12V DC automotive or RV applications, the switch will generally perform reliably at loads well within its AC rating. Always verify the actual load current against the switch's DC rating before installation.
