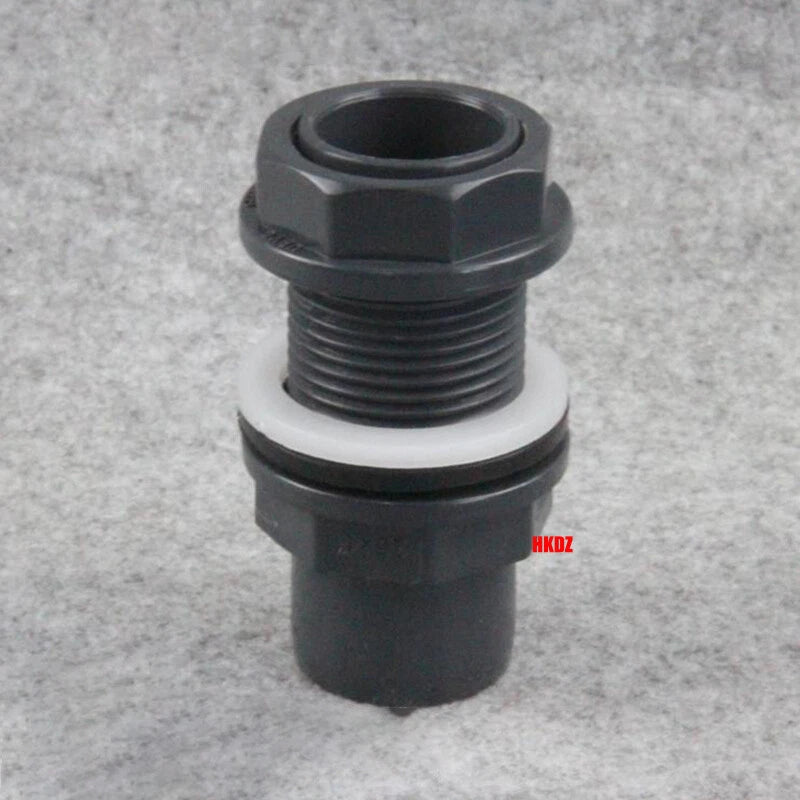

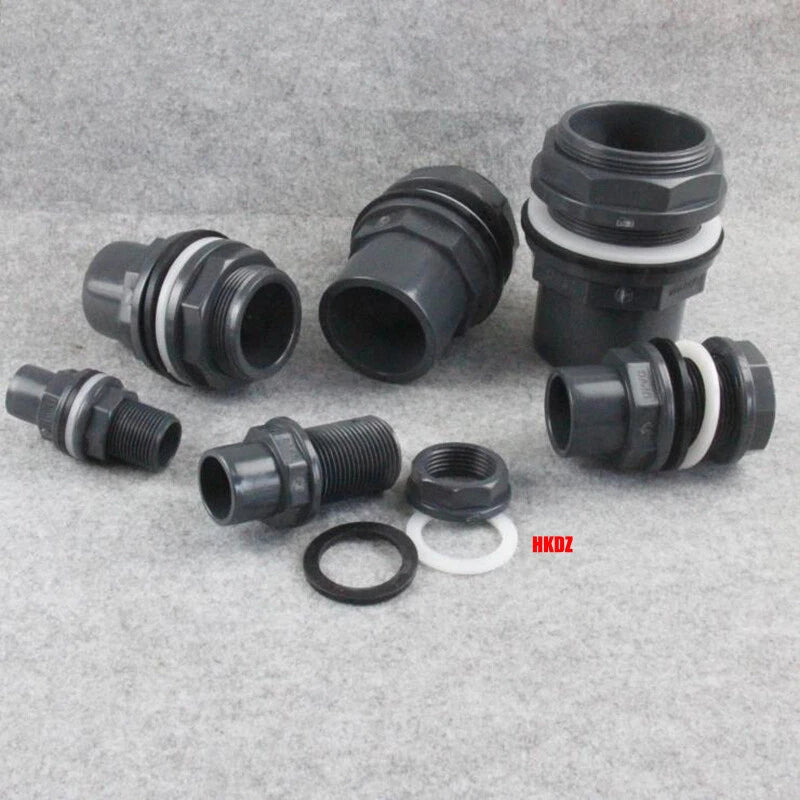

U-PVC Fish Water Tank Inlet Outlet Water Pipe Fittings Joint ID Thread Connector

Measure the inner diameter (ID) of your existing pipe with a caliper. Common aquarium return-line sizes are 20 mm (¾ in) and 25 mm (1 in); pond circulation lines typically use 32 mm (1¼ in) to 50 mm (2 in); large aquaculture or rainwater systems often use 63 mm (2½ in). If you are measuring a threaded fitting rather than the pipe bore, measure the thread root diameter and match it to the closest ID option. Contact us if you need confirmation.

Yes. U-PVC is chemically inert and does not leach plasticizers, heavy metals, or other compounds into the water. It is widely used in both freshwater and marine aquarium plumbing. The material is also resistant to saltwater corrosion, making it suitable for reef and marine systems where metal fittings would corrode over time.

Standard PVC (plasticized PVC) contains added plasticizers to make it flexible, which can leach into water over time and reduce dimensional stability under pressure. U-PVC (unplasticized PVC) contains no plasticizers, making it harder, more dimensionally stable, and safer for potable and aquatic water contact. U-PVC is the correct choice for pressure-rated pipe systems and aquarium plumbing.

Yes. Wrapping the male thread with 2–3 layers of PTFE (plumber’s) tape before assembly is recommended to ensure a watertight seal and to prevent galling of the PVC threads. Avoid over-tightening — hand-tight plus approximately one quarter-turn with a strap wrench is typically sufficient. Do not use petroleum-based pipe dopes, which can degrade PVC over time.

U-PVC fittings are rated for typical low-to-medium pressure water systems. For aquarium and pond applications, operating pressures are generally well within the material’s capability. For pressurized irrigation or mains-pressure connections, verify the pressure rating with us before installation, as the exact rating depends on pipe schedule and fitting wall thickness.

Yes. The threaded ID connection is designed to be removable. You can unscrew the fitting for filter maintenance, system reconfiguration, or seasonal pond draining, then reassemble with fresh PTFE tape. Inspect the threads for wear or cracking before each reassembly. Unlike solvent-welded joints, no cutting or pipe replacement is required.

A standard sump setup with one drain and one return line requires 2 fittings — select the 2 PCS option for convenience. A dual-drain Herbie or Bean Animal overflow typically needs 3 fittings (two drains, one emergency). For a multi-tank fish room with a shared sump, the 5 PCS pack covers most manifold configurations. Match the quantity to the number of through-wall penetrations in your build.
