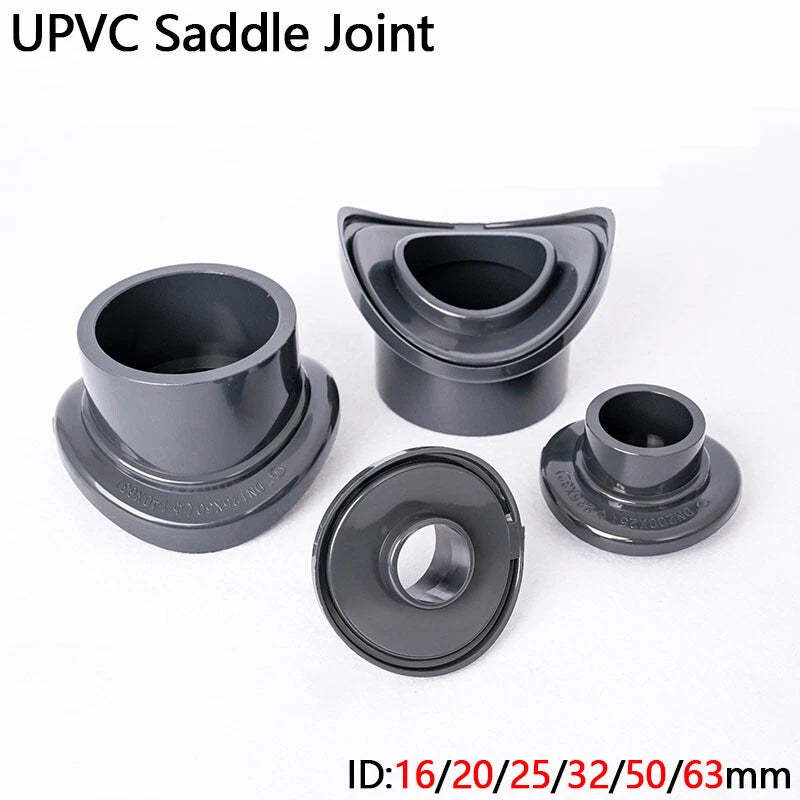

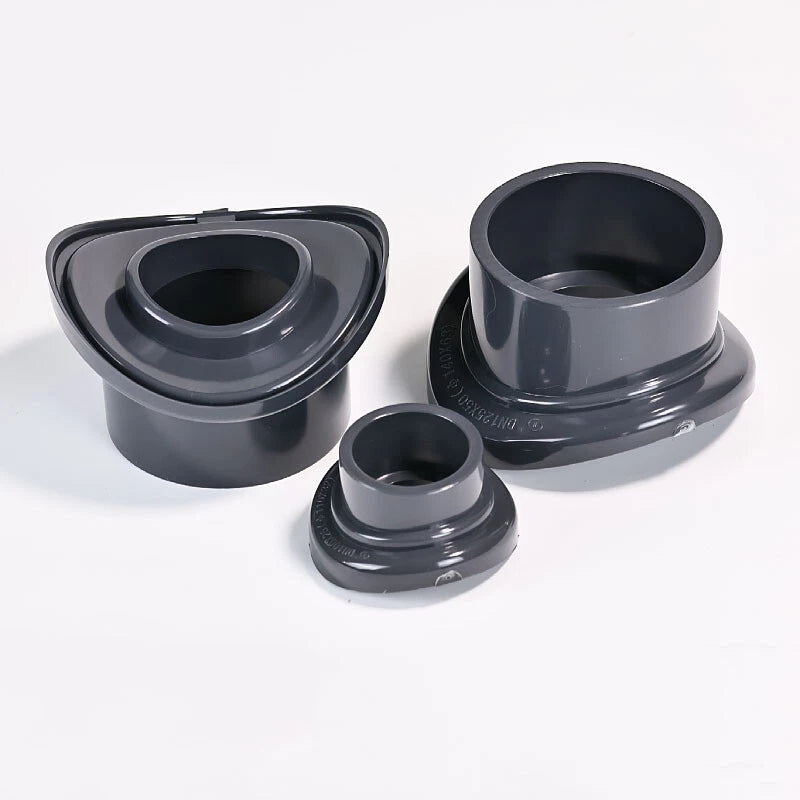

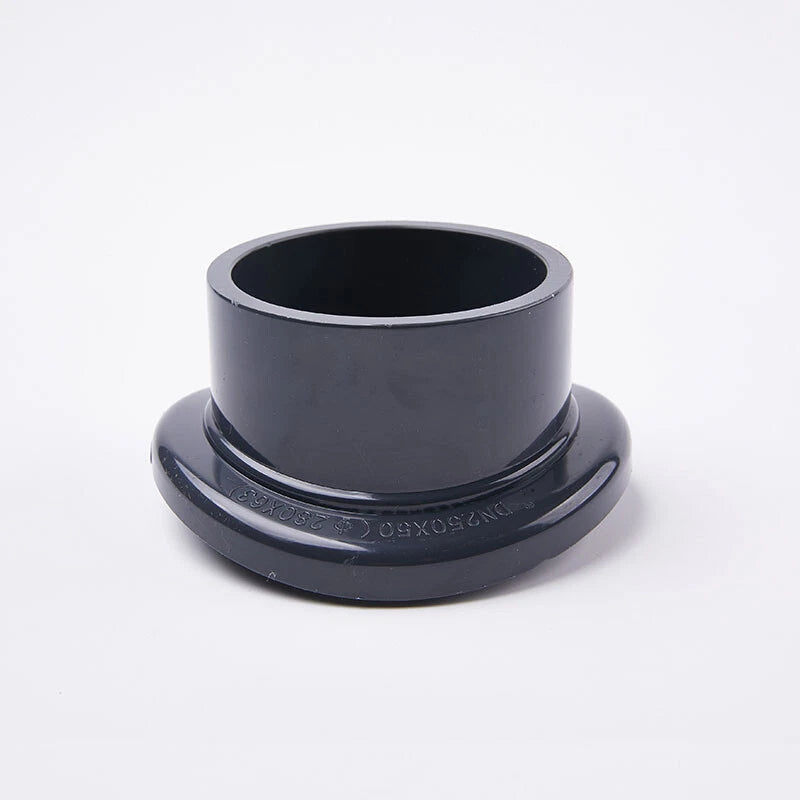

UPVC Saddle Joint Saddle Connector Arc Substitute Tee Water Fittings Multi Size

Match the ID column in the variant selector to your existing pipe's outer diameter, and the Curve column to the span length you need to bridge. If your pipe OD falls between two listed IDs, select the next size up to ensure the saddle seat makes full contact. When in doubt, measure your pipe OD with calipers before ordering.

Yes. UPVC is UV-stabilised for exposed outdoor use and is widely used in buried irrigation and drainage applications. For long-term buried use, ensure the trench backfill is free of sharp stones that could stress the fitting body. No additional coating or wrapping is required for standard soil conditions.

These saddle connectors are designed and sized for rigid UPVC / PVC pressure pipe. CPVC has a slightly different OD schedule, and ABS or flexible PE pipe may not provide the rigid seating surface needed for a leak-free clamp. We recommend verifying your pipe's OD and material before ordering. Contact us to confirm if you are unsure.

The arc-profile saddle seat distributes clamping load evenly around the pipe circumference, which significantly reduces point-load stress compared to flat-base saddles. Working pressure rating depends on the specific size variant and installation conditions. For pressure-critical applications, refer to the variant specifications or contact us to confirm the rated pressure for your chosen size.

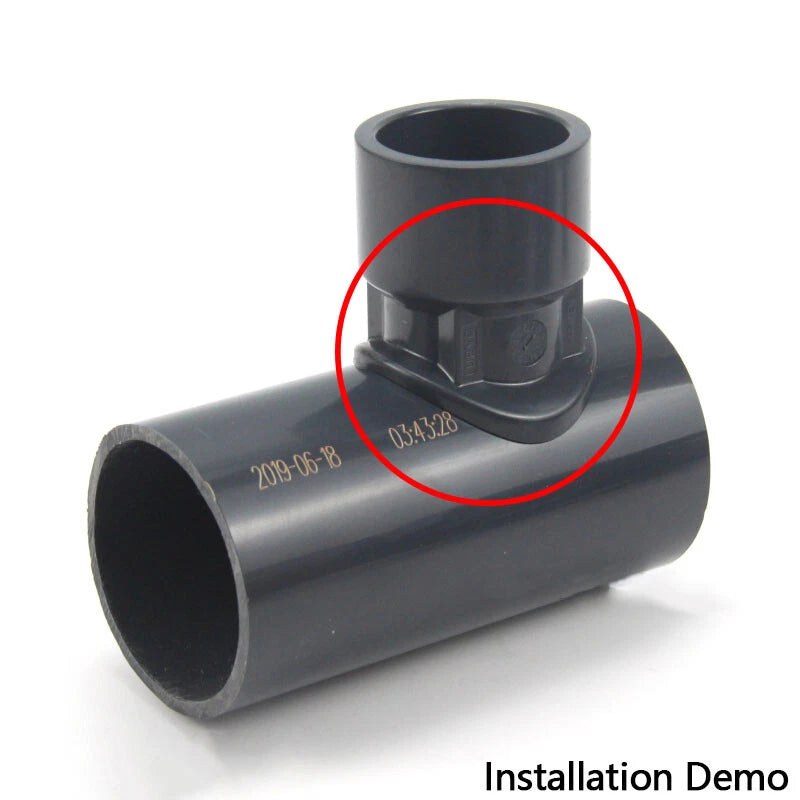

No — that is the key advantage of a saddle connector. The fitting clamps onto the outside of the existing pipe. You drill a single outlet hole through the pipe wall at the desired branch point, then secure the saddle over it. This means the host pipe remains structurally intact and the system can often remain pressurised during installation with a simple shut-off.

A standard tee requires cutting out a section of pipe and inserting a union or slip-fix, which is time-consuming and requires the system to be fully drained. A saddle joint lets you add a branch outlet to an existing run with minimal disruption — ideal for extending irrigation zones, adding a tap point, or retrofitting a drainage branch without major excavation or pipe replacement.

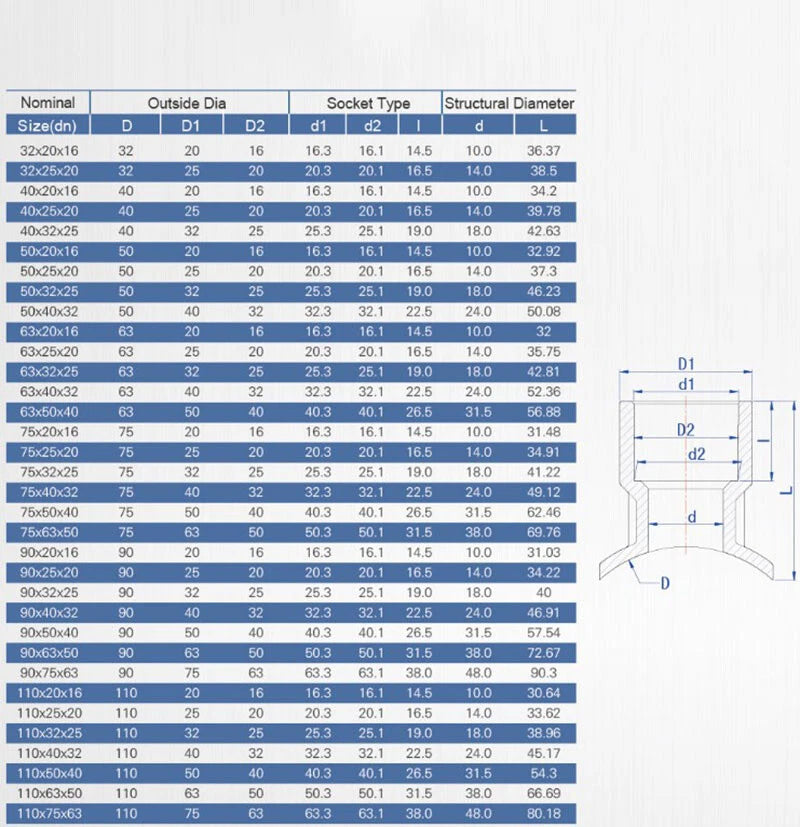

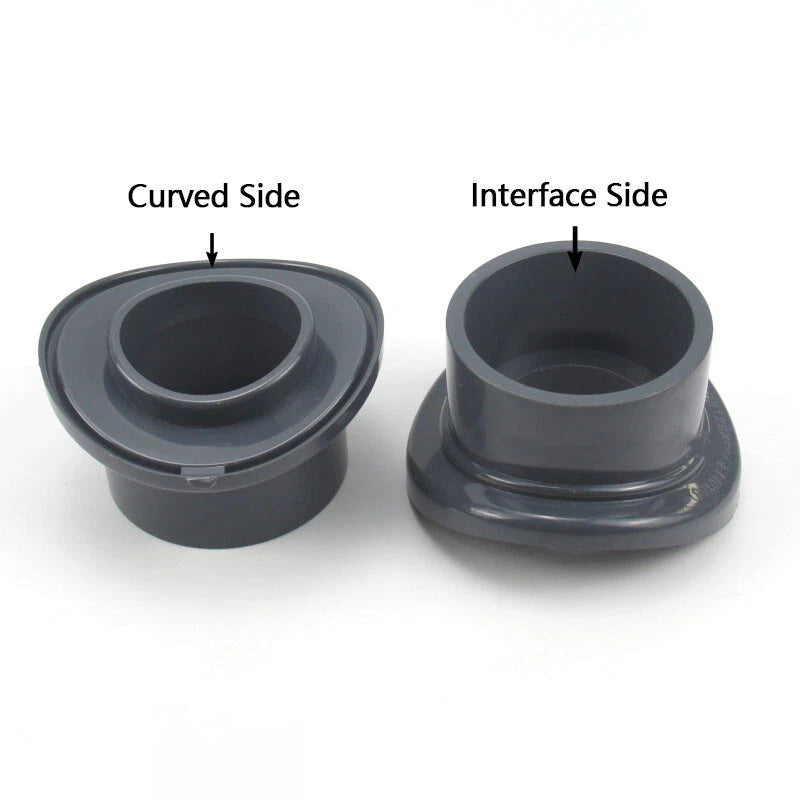

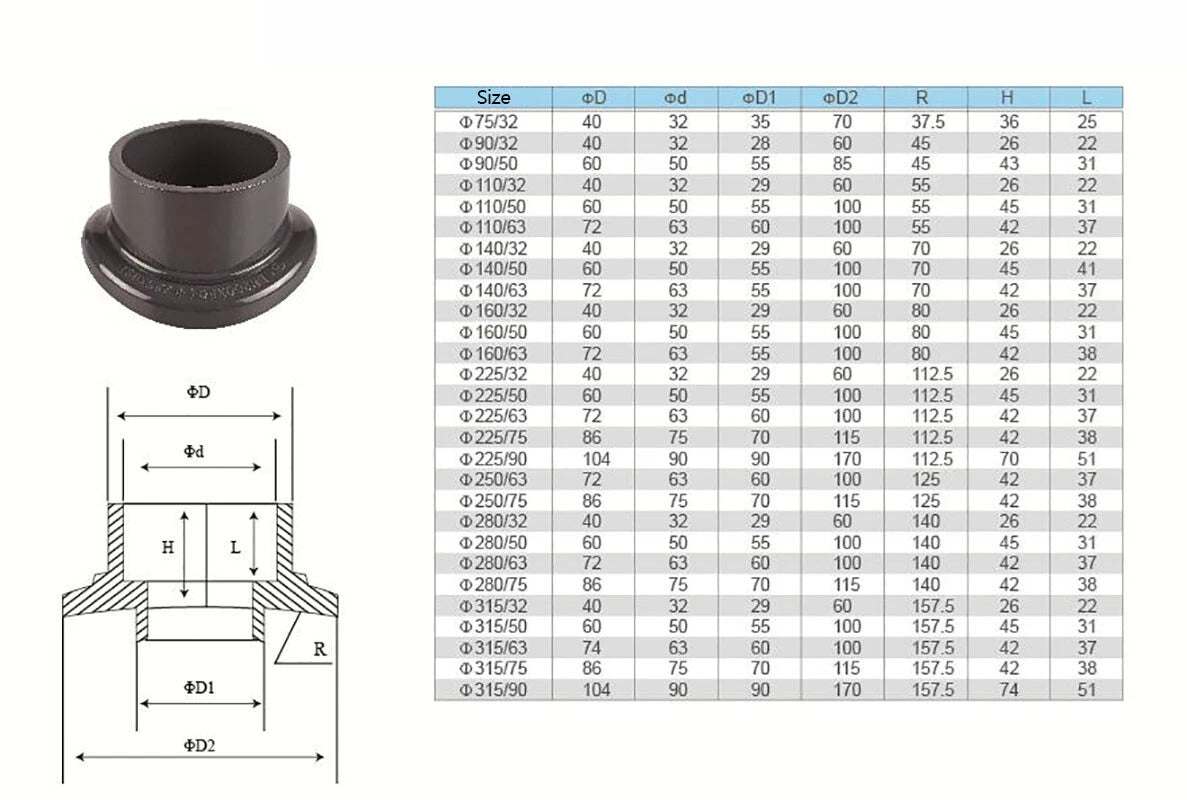

Curve is the arc length (span) of the saddle body along the host pipe — it determines how much of the pipe surface the fitting covers. ID (Inner Diameter) is the bore of the branch outlet — match this to your branch pipe's outer diameter. OD (Outer Diameter) is the outer dimension of the branch outlet spigot. Always cross-reference all three values against your pipe specifications before ordering.
