V-Belt M Section 9.5x6mm Classical Drive Belt Imperial Sizes M16–M60

Zum Zoomen über das Bild scrollen Klicke zum Zoomen auf das Bild

V-Belt M Section 9.5x6mm Classical Drive Belt Imperial Sizes M16–M60

Name: V-Belt M Section 9.5x6mm Classical Drive Belt Imperial Sizes M16–M60
Brand: HomeDIYer
Price: 7.96 USD
Availability: InStock

HomeDIYer

Keine Bewertungen

By HomeDIYer®

Standard: Imperial

Size Model: M16

Perimeter: 16 inch (≈406 mm)

Preis:

$7.96 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

M Section Classical V-Belt 9.5x6mm — Reliable Drive Belt for Automotive & CNC Applications

When a worn or snapped drive belt brings your engine accessory, workshop machine, or CNC spindle to a halt, getting the right replacement fast matters. This M section classical V-belt is designed for mechanics, machinists, and DIYers who need a dependable power-transmission belt that fits standard M (O) section pulleys without guesswork.

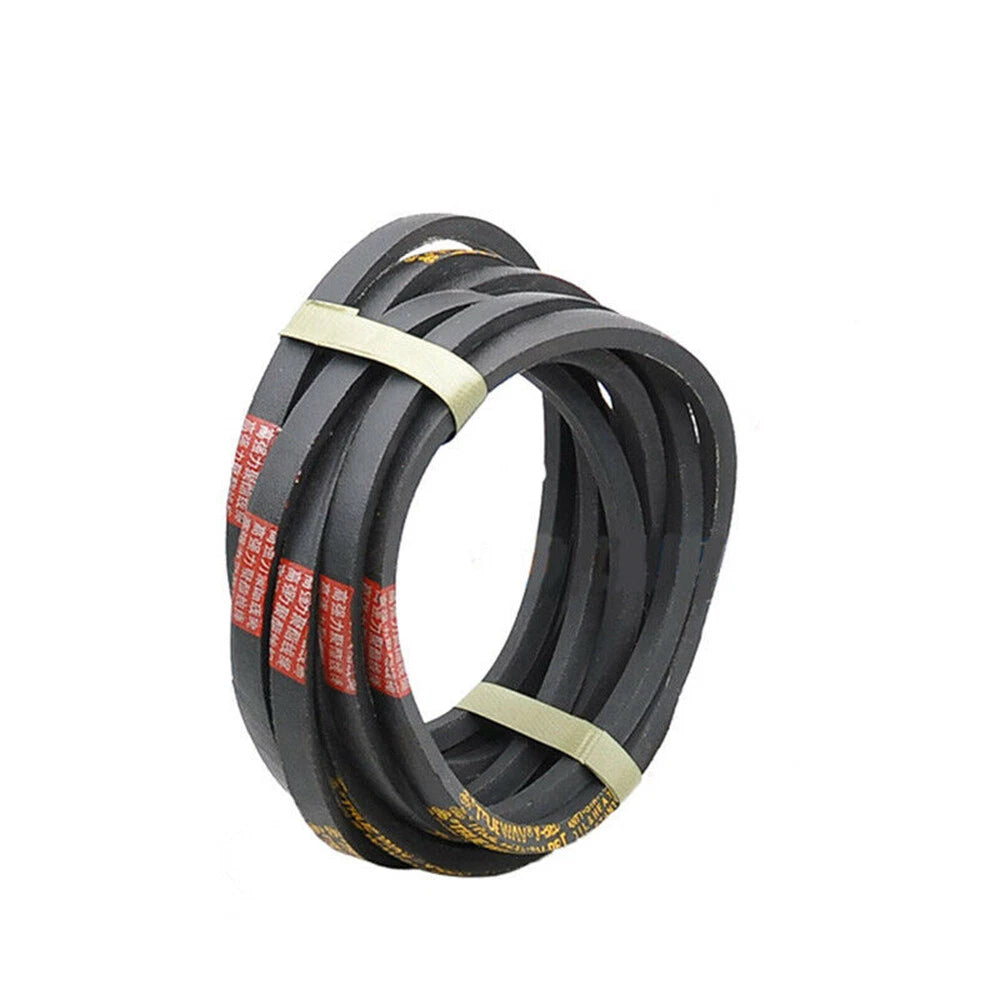

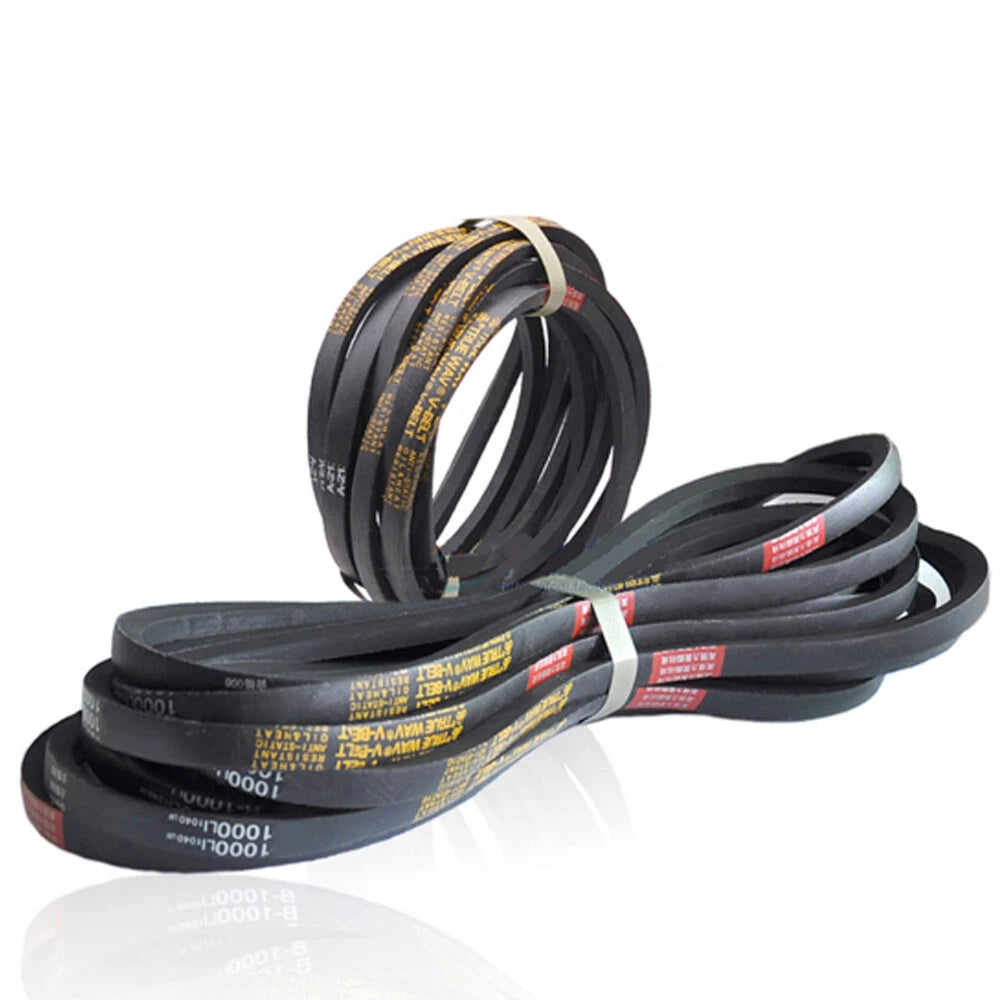

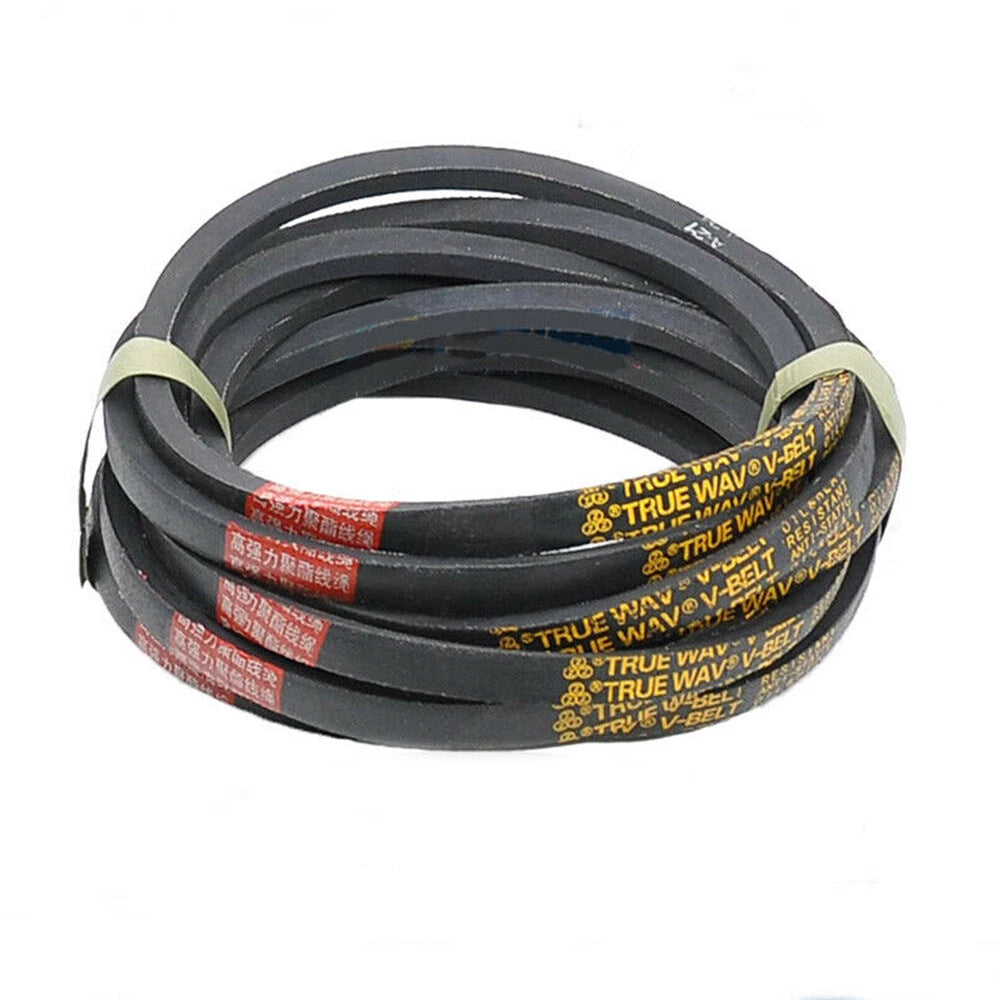

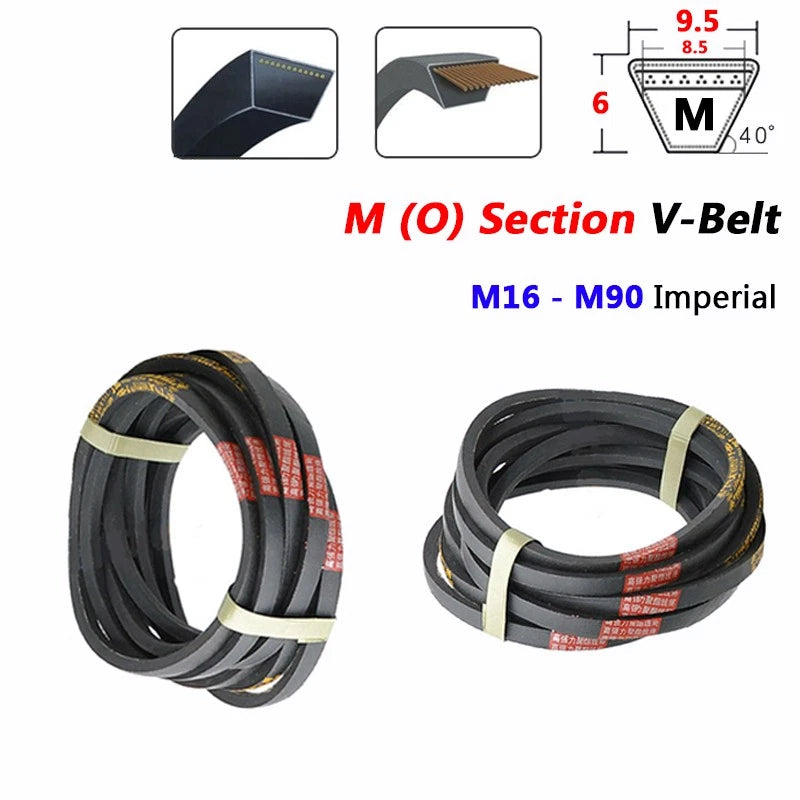

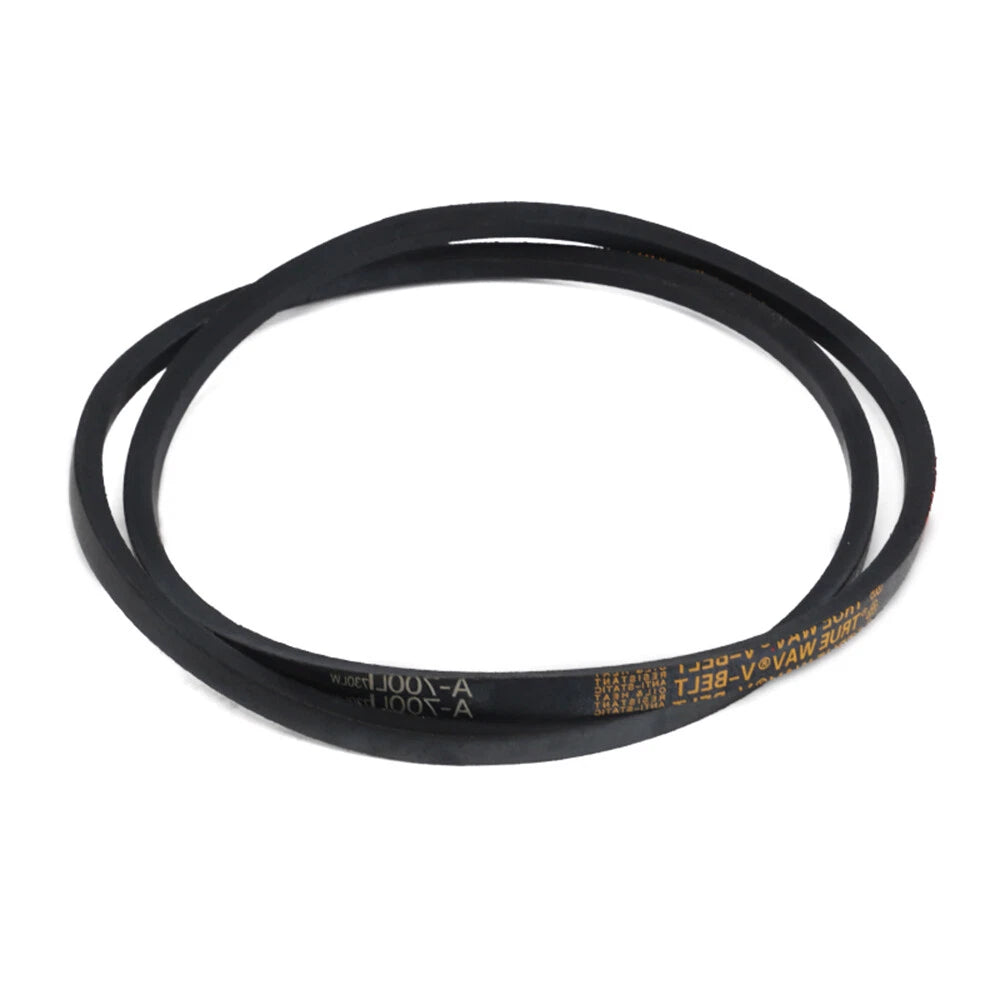

Each belt is a single classical V-belt with a cross-section of 9.5mm (3/8") top width × 6mm (≈1/4") height, conforming to the M (O) section profile. Available in imperial sizes M16 through M60, with outside perimeters ranging from 16 inch (≈406 mm) to 60 inch (≈1524 mm). Select your size by matching the M-number to the outside circumference of your existing belt or the measured pulley path.

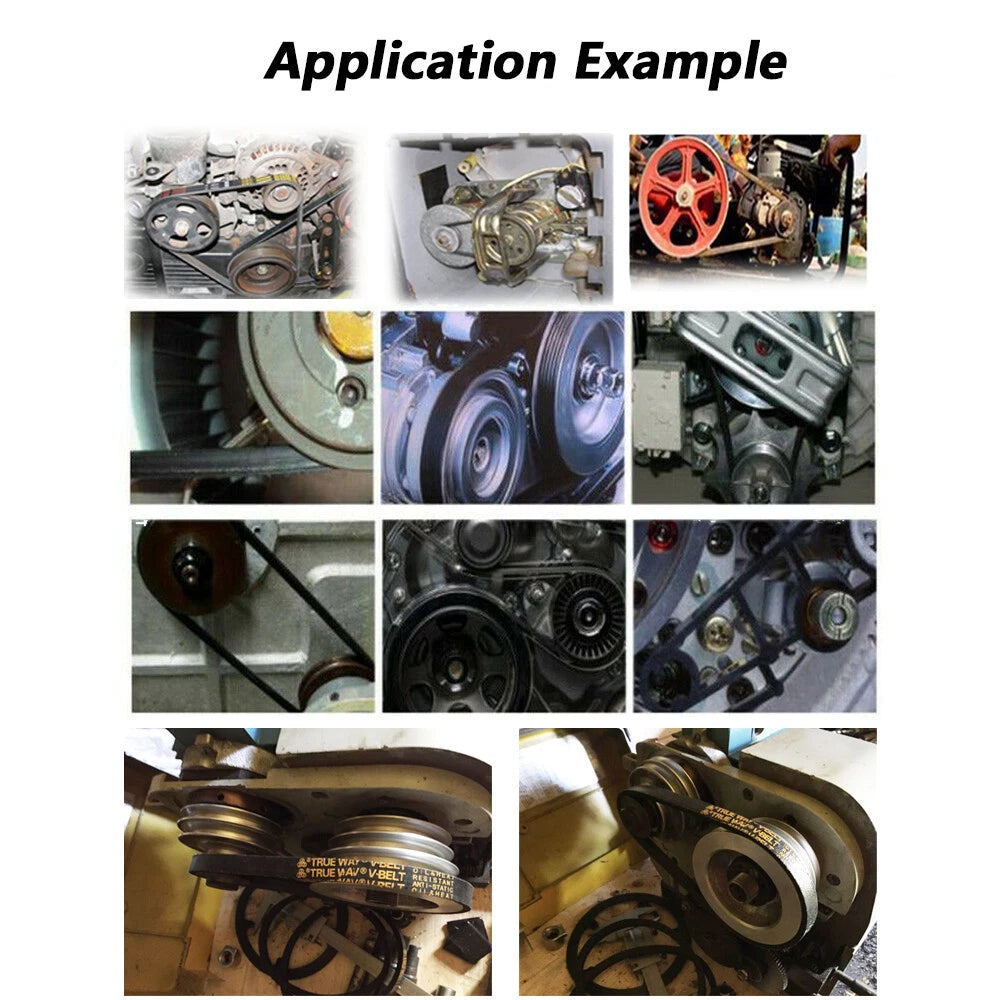

Typical applications include automotive alternator and water-pump drives, small engine accessories, compact CNC router spindle drives, lathe and drill-press belt drives, and light industrial conveyor systems — anywhere a 9.5mm classical V-belt groove is specified.

ℹ️ Compatibility: Fits standard M (O) section pulleys and sheaves. Verify your pulley groove width and angle before ordering. The M-number equals the belt's outside circumference in inches — e.g., M24 ≈ 24 inch (609 mm) perimeter.

✅ Key Features of These M Section Classical V-Belts

📐Precise M Section Profile — 9.5mm top width × 6mm height cross-section matches M (O) section pulley grooves for consistent contact and efficient power transfer.
📏Wide Imperial Size Range — Available from M16 (16", ≈406 mm) to M60 (60", ≈1524 mm), covering the most common replacement sizes for automotive and CNC drive belt applications.
⚙️Classical Wrapped Construction — The wrapped fabric cover generally reduces slippage on the pulley sidewalls and helps the belt seat evenly in the groove under load.
🌡️Rubber Compound Flexibility — The rubber body retains flexibility across a typical operating temperature range, reducing the risk of cracking during cold starts or warm workshop conditions.
🔄Direct Replacement Fit — Dimensioned to classical M section standards, making these belts a straightforward swap for OEM or aftermarket M section drive belts on automotive accessories and light machinery.
🏭Versatile Industrial Use — Suitable for CNC routers, lathes, drill presses, small engine drives, and other equipment where a 9.5x6mm V-belt groove is specified.

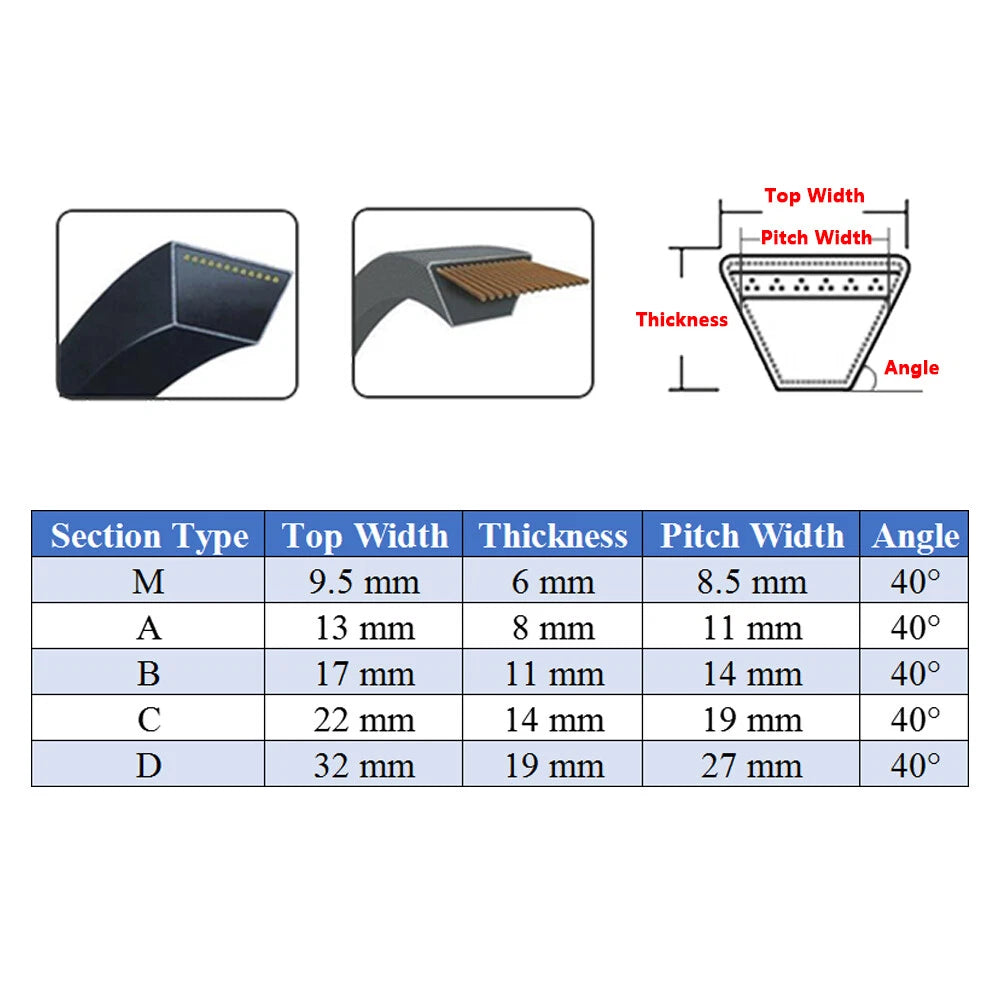

📐 Technical Specifications — M Section Classical V-Belt

Belt Section	M (O) — Classical V-Belt
Top Width	9.5mm (3/8")
Belt Height	6mm (≈1/4")
Size Standard	Imperial (M-series)
Available Sizes	M16 to M60 (see variant options)
Outside Perimeter Range	16 inch (≈406 mm) — 60 inch (≈1524 mm)
Construction	Classical wrapped rubber V-belt
Typical Application	Automotive accessories, CNC spindle drives, light industrial machinery
Pulley Compatibility	Standard M (O) section grooved pulleys/sheaves
Quantity per Order	1 belt per variant selected
Color/Finish	See variant options
Operating Temperature	Contact us to confirm

⚠️ Size Tip: The M-number equals the outside circumference in inches. Measure your old belt's outside perimeter or calculate the pulley path length before selecting a size. When between sizes, choose the larger size to avoid over-tensioning.

❓ Frequently Asked Questions

How do I choose the right V-belt size?

Measure the outside circumference (perimeter) of your existing belt or the pulley path. The M-number corresponds to the belt's outside circumference in inches — for example, M24 has a perimeter of approximately 24 inches (≈609 mm). When in doubt, size up by one increment to avoid over-tensioning.

What does the M (O) section designation mean?

The M section (also called O section in some international standards) is a classical V-belt profile with a top width of 9.5mm and a height of 6mm. It is one of the most common light-duty belt profiles used in automotive accessories, small engines, and compact CNC machines.

Can this belt handle outdoor or high-humidity environments?

Classical rubber V-belts are generally resistant to moderate moisture and temperature variation. However, prolonged exposure to oils, solvents, or extreme UV radiation can degrade the rubber compound over time. For outdoor applications, inspect the belt periodically for cracking or glazing.

What is the load capacity of an M section V-belt?

M section belts are typically rated for light-to-medium power transmission. Actual load capacity depends on belt length, pulley diameter, speed, and wrap angle. For heavy-duty or high-torque applications, consider upgrading to an A or B section belt with a larger cross-section.

Is this belt compatible with standard M section pulleys?

Yes. These belts conform to the classical M (O) section profile and are generally compatible with any pulley or sheave designed for M section belts. Always verify the groove angle and width of your pulley before ordering.

How do I know when to replace my V-belt?

Replace your V-belt if you notice visible cracking, fraying, glazing on the contact surface, squealing under load, or slippage. In most cases, belts on frequently used equipment should be inspected every 6–12 months as a preventive measure.

Can I use this belt on a CNC router or milling machine?

Yes. M section V-belts are commonly used in compact CNC routers, milling machines, and lathe spindle drives where a 9.5mm belt groove is specified. Confirm the required perimeter size from your machine's manual or by measuring the existing belt.

🛒 Select your size and perimeter above, then add to cart — ships from our US warehouse.
