Waterproof Toggle Switch for Car, Boat & Marine — Reliable ON-OFF Control in Any Environment

If you've ever had a toggle switch corrode, arc, or fail mid-trip because it wasn't built for the conditions, you know how critical the right switch is. Whether you're wiring a boat dashboard, building a custom off-road rig, or adding auxiliary circuits to an RV, this waterproof toggle switch gives electricians, DIYers, and marine builders a dependable solution that holds up to vibration, moisture, and continuous use.

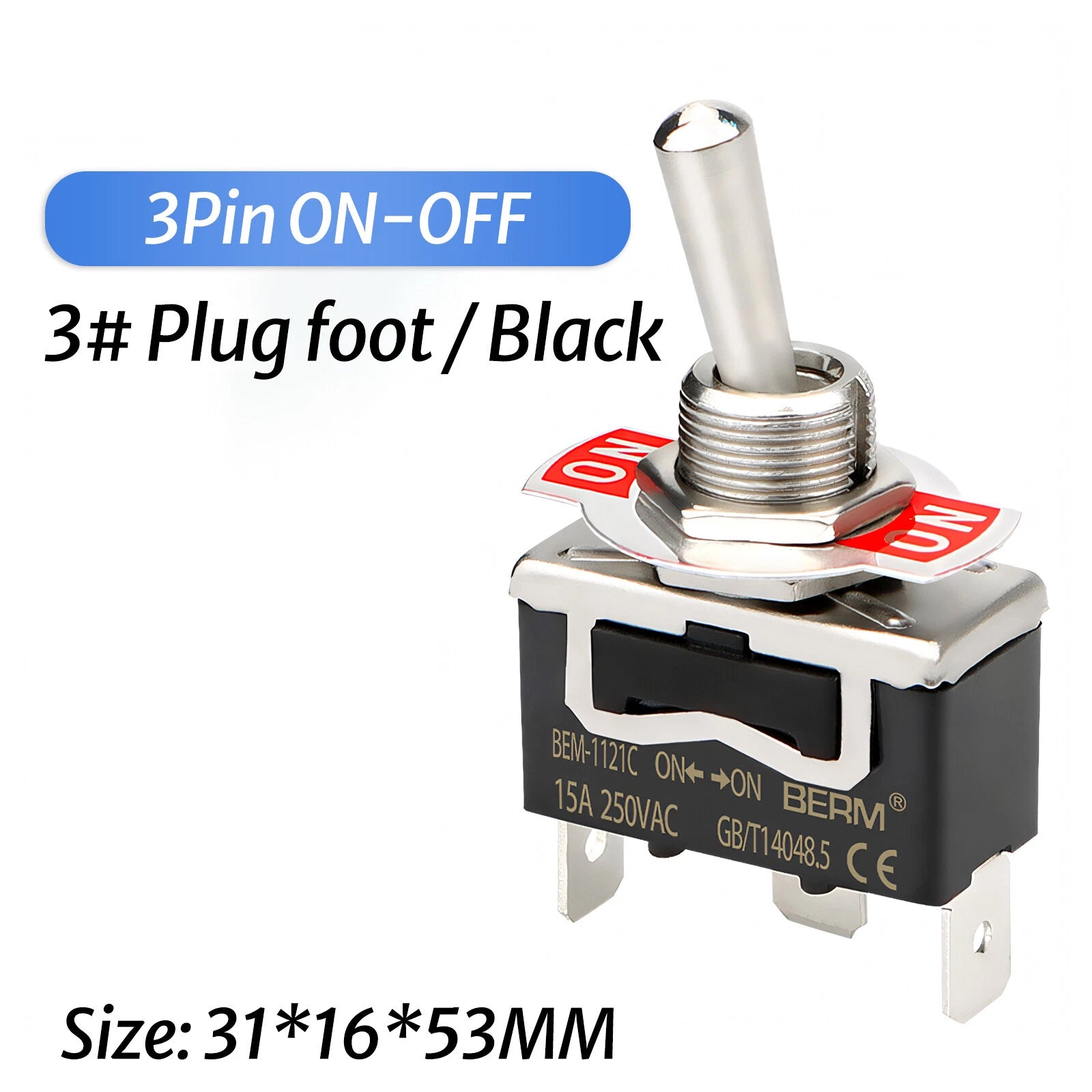

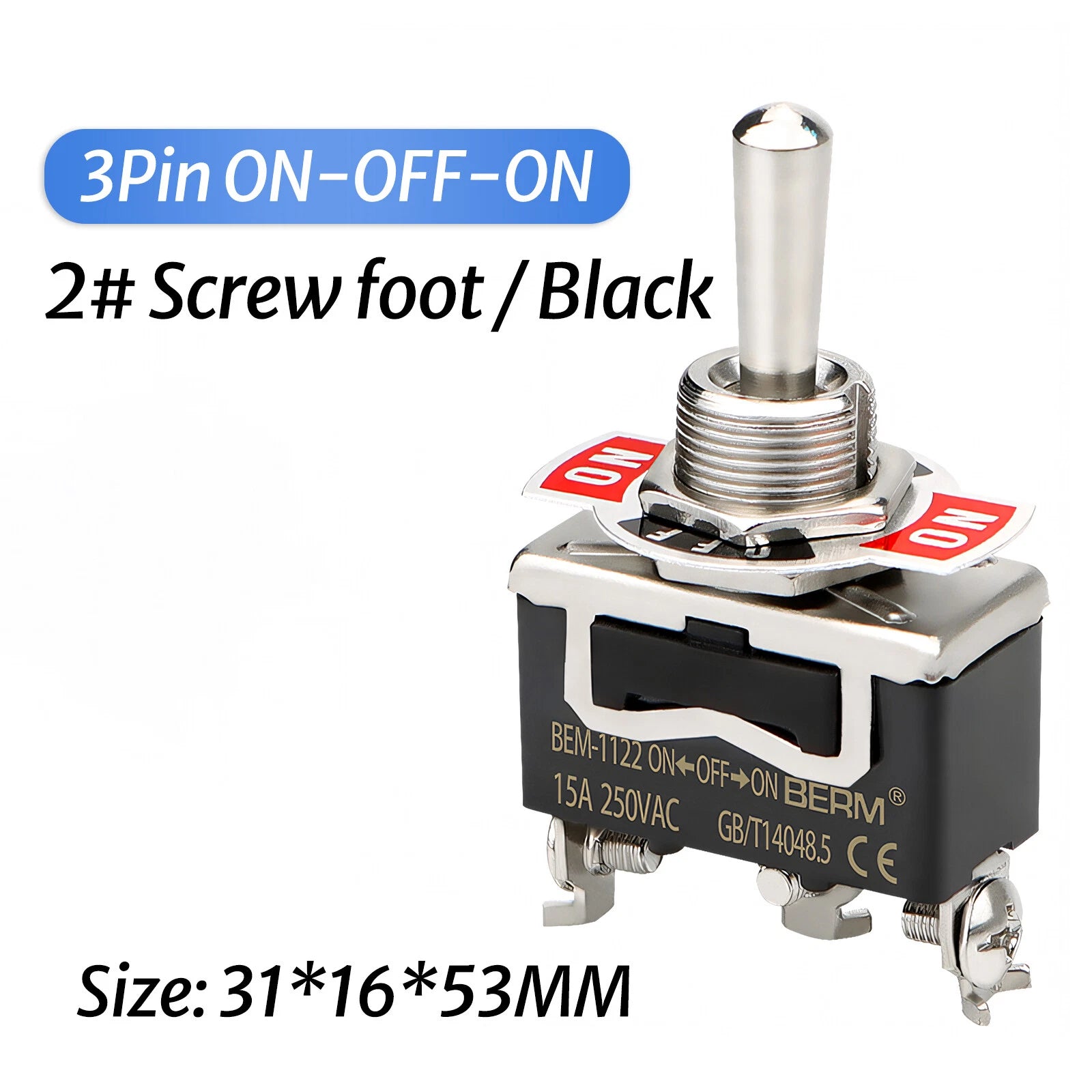

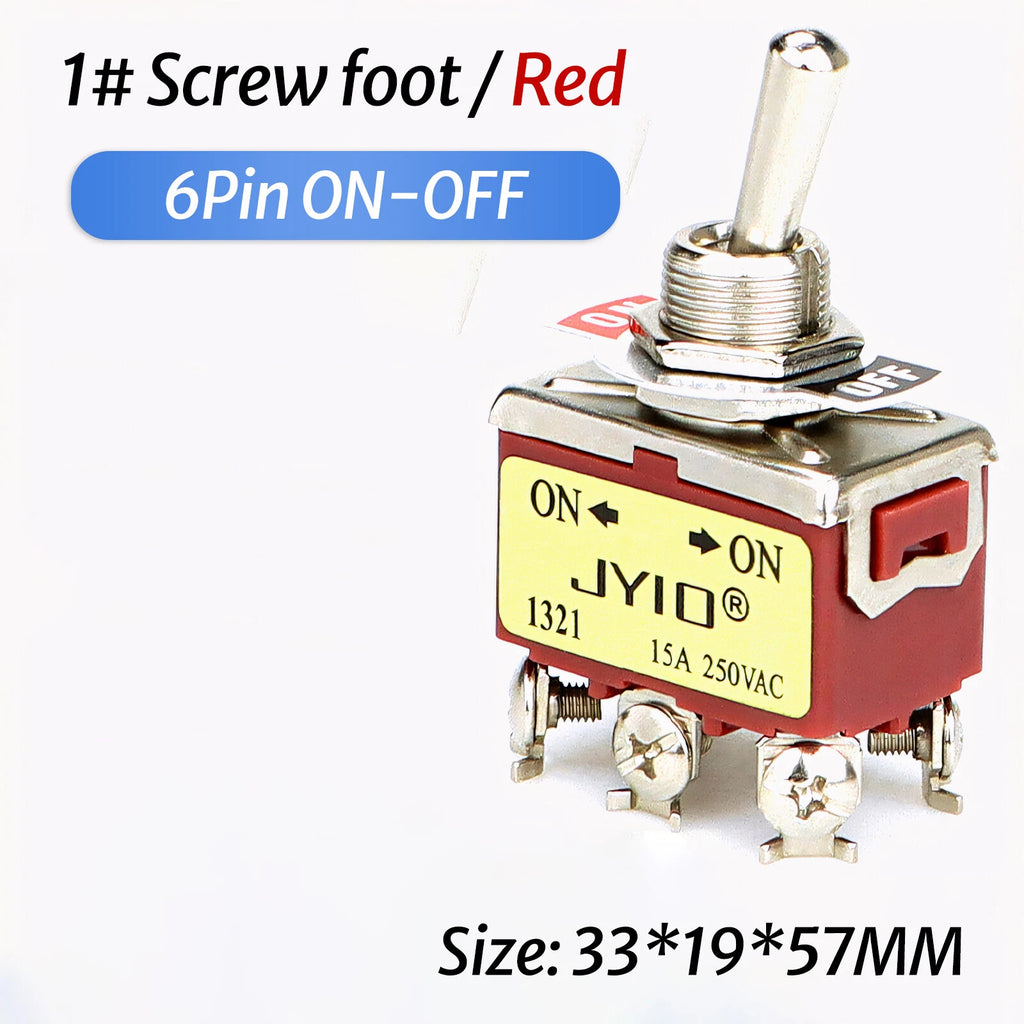

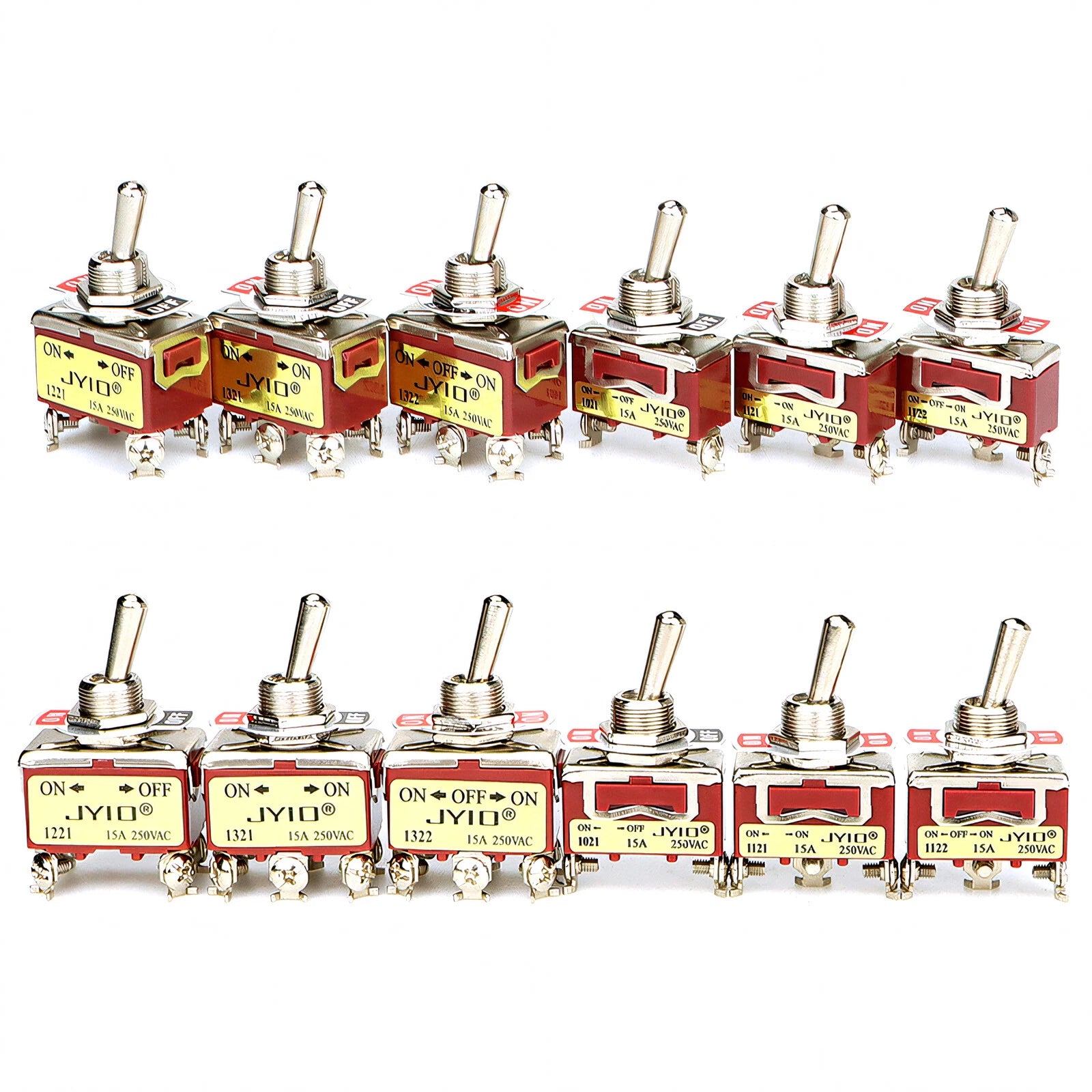

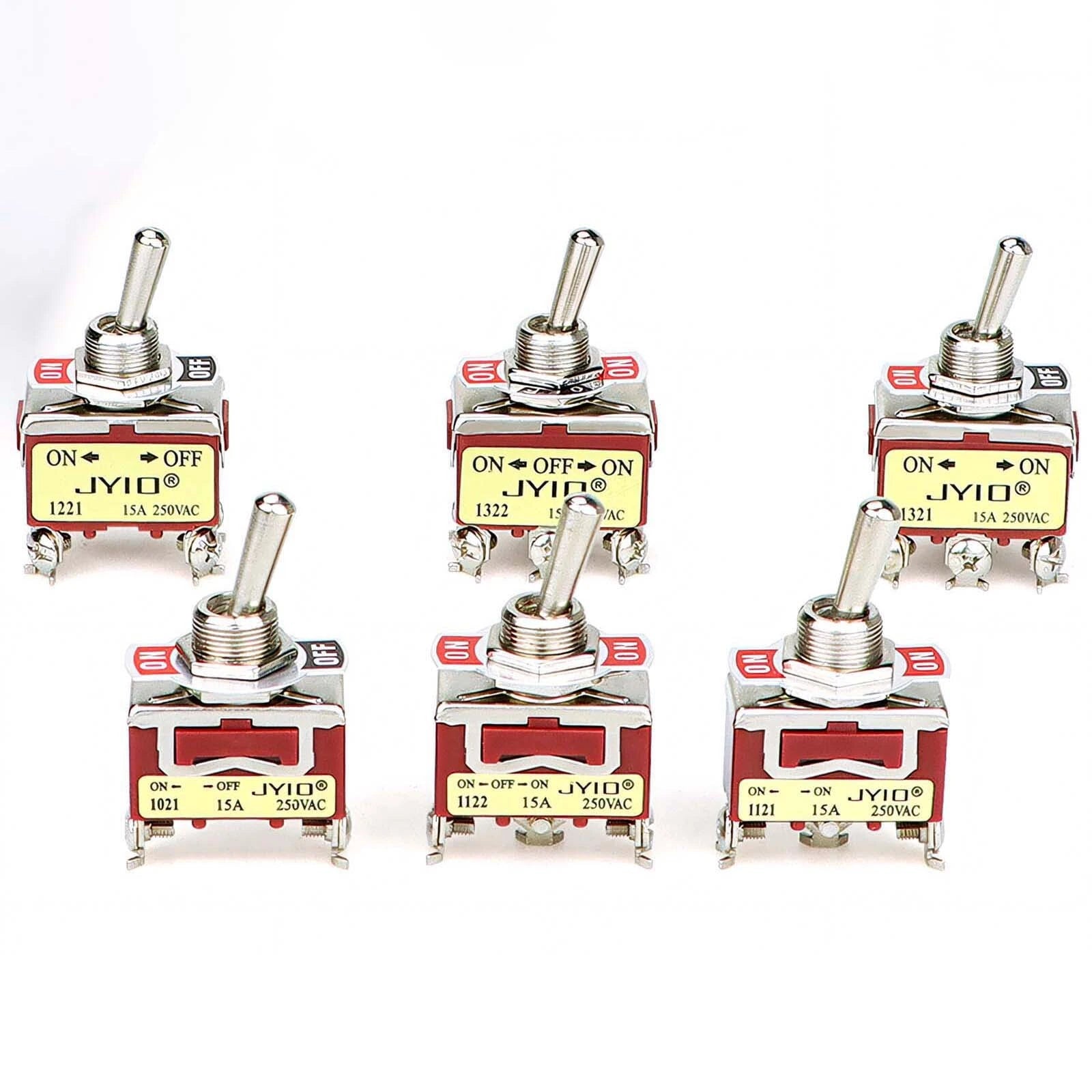

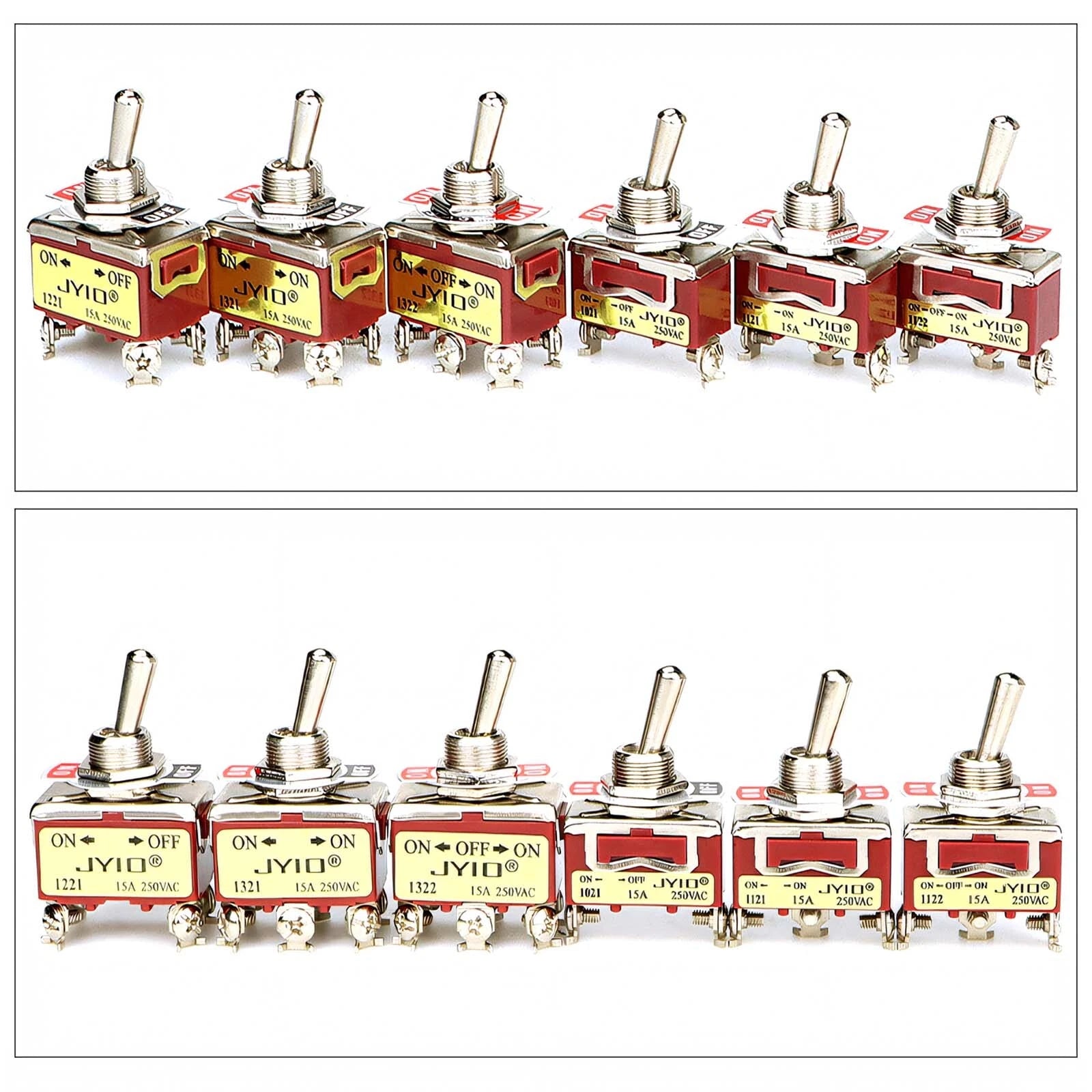

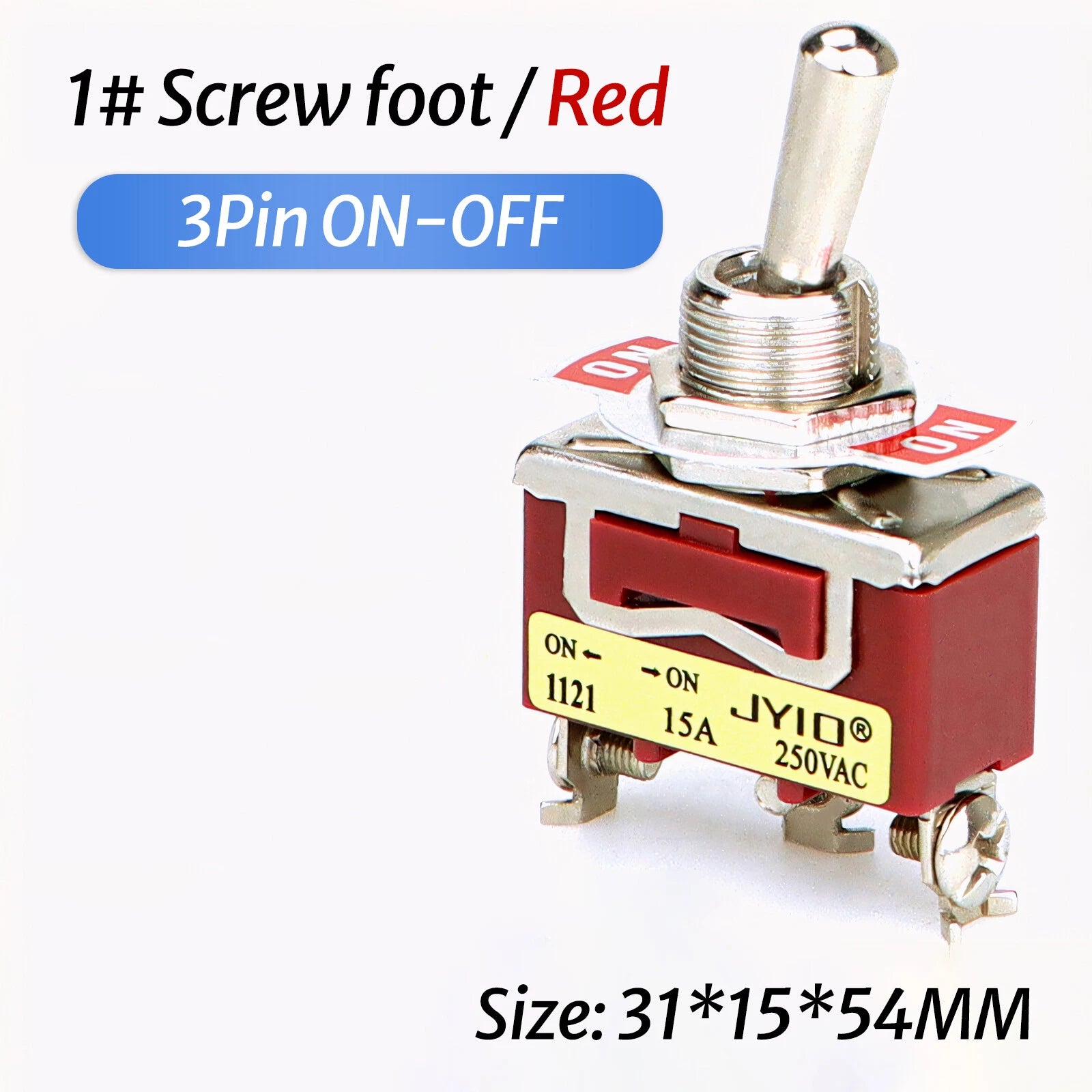

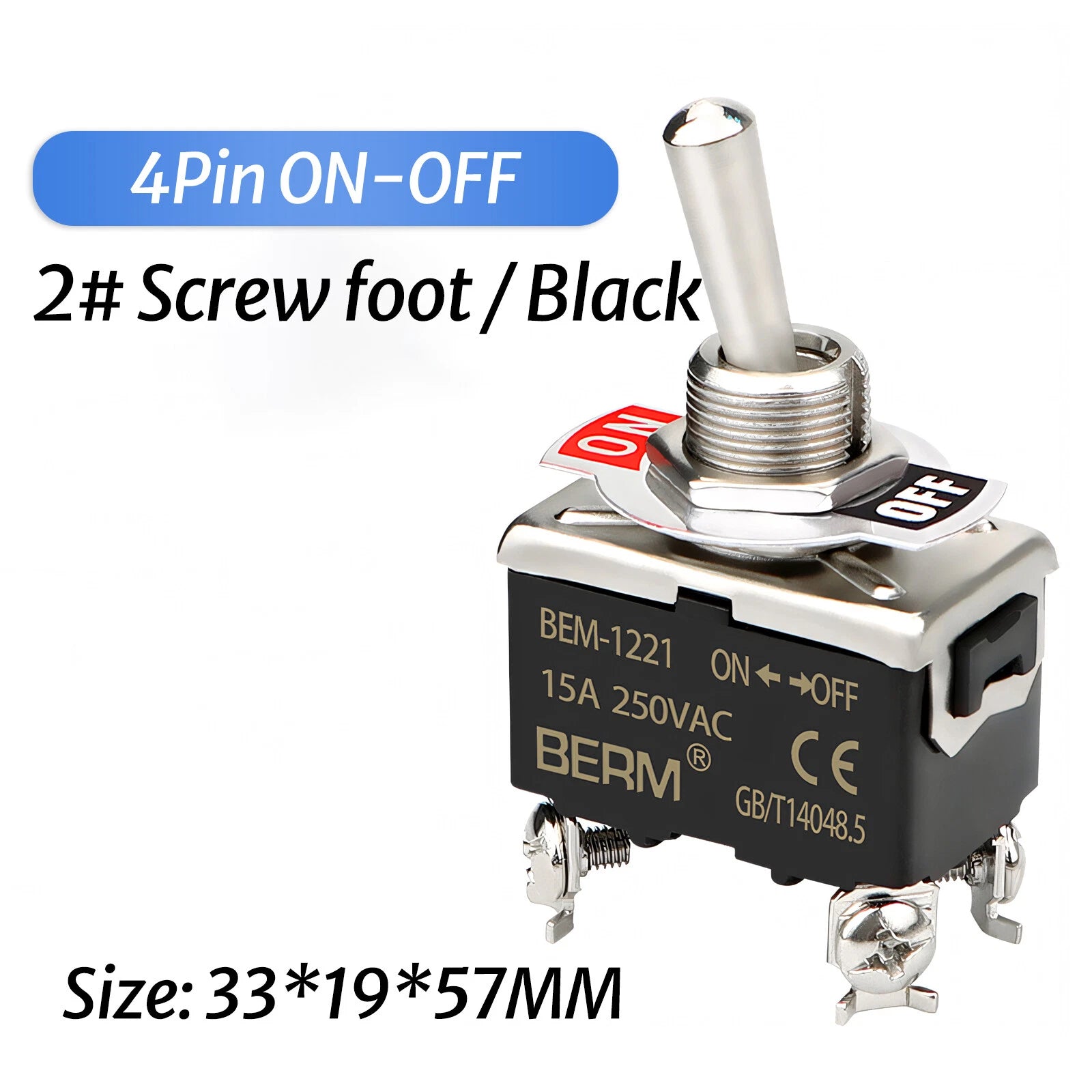

Each switch is sold individually or in multi-packs of 5, 10, 20, or 50 pieces. The lineup covers three mounting styles — screw foot in red (Type 1#), screw foot in black (Type 2#), and plug foot in black (Type 3#) — with pin configurations from 2-pin up to 6-pin. Circuit functions include standard ON-OFF, three-position ON-OFF-ON, and momentary Self-Reset ON-OFF-ON. An optional waterproof rubber cap (Type 4#) is available separately to protect the toggle lever from splash and moisture. Rated at 15A / 250V AC, these switches are available in multiple models to match your exact wiring needs.

Typical applications include marine switch panels and boat console wiring, automotive auxiliary lighting and accessory control, RV and camper van electrical builds, industrial control panels, and DIY electronics projects requiring a rugged waterproof toggle switch for 12V DC circuits.

🔌 Compatibility Note: Screw foot types (1# & 2#) use threaded terminal connections. Plug foot type (3#) uses quick-connect spade terminals. All models fit a standard ~12mm panel cutout. Verify your pin count and circuit function (ON-OFF vs. ON-OFF-ON) before ordering.

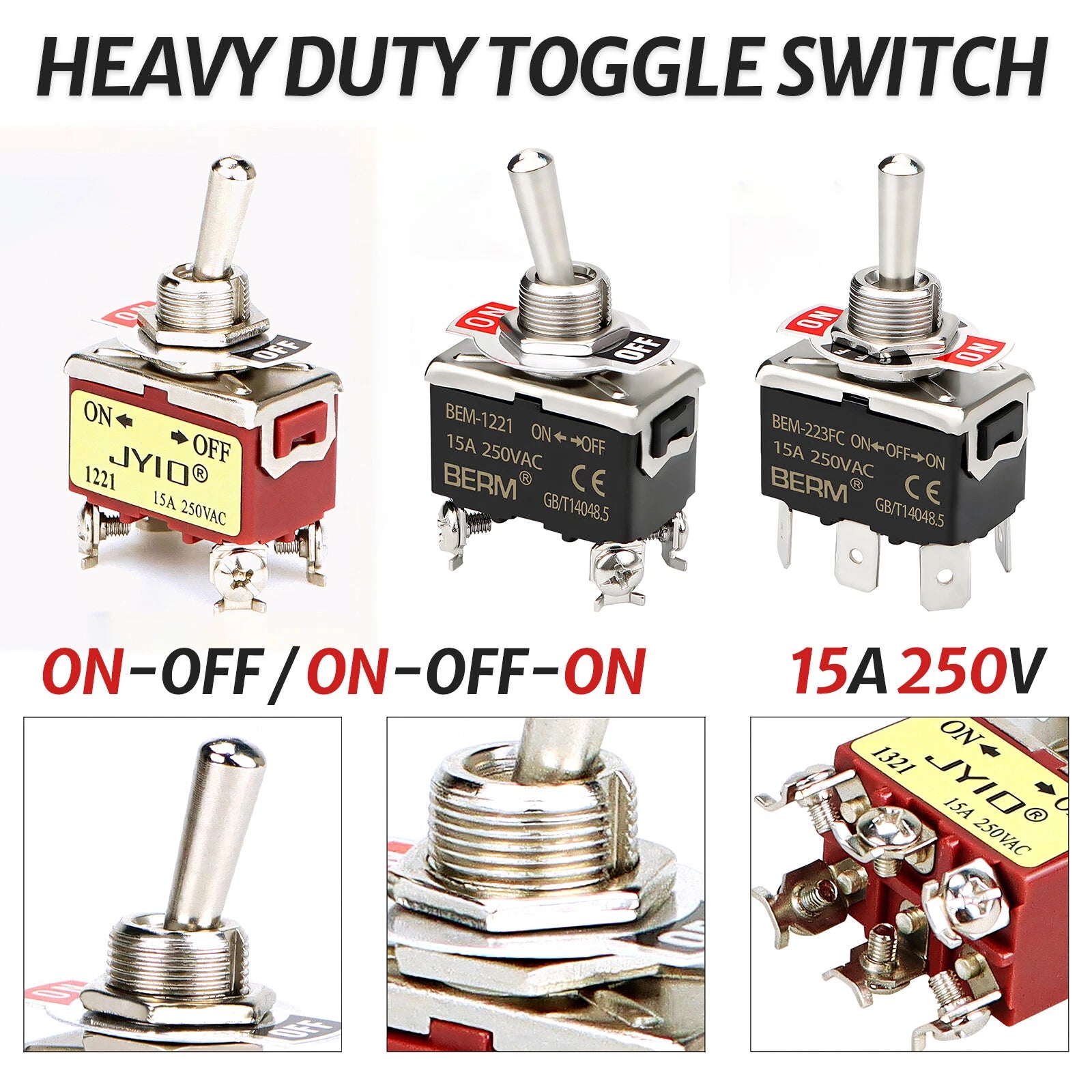

✅ Key Features of These Waterproof Toggle Switches

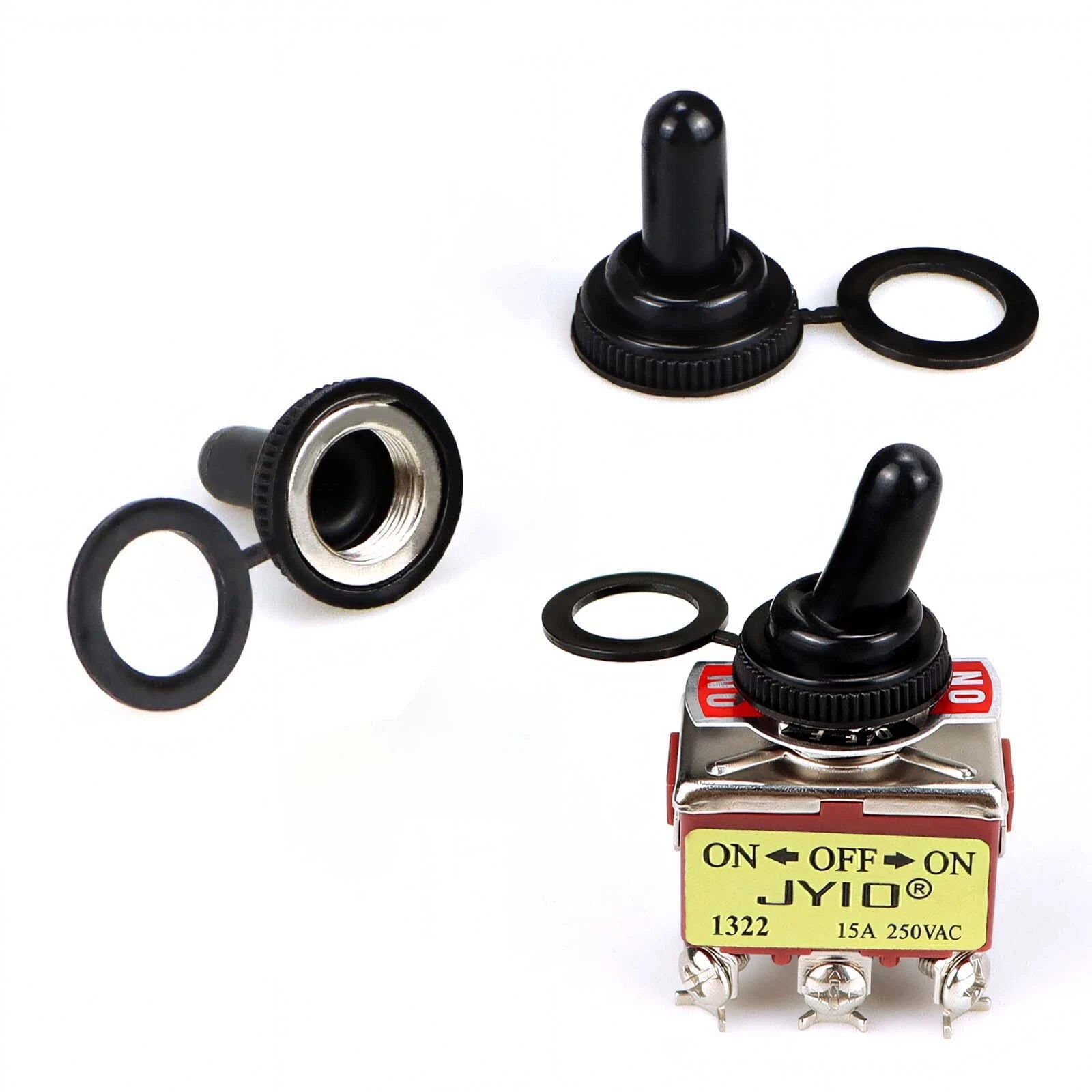

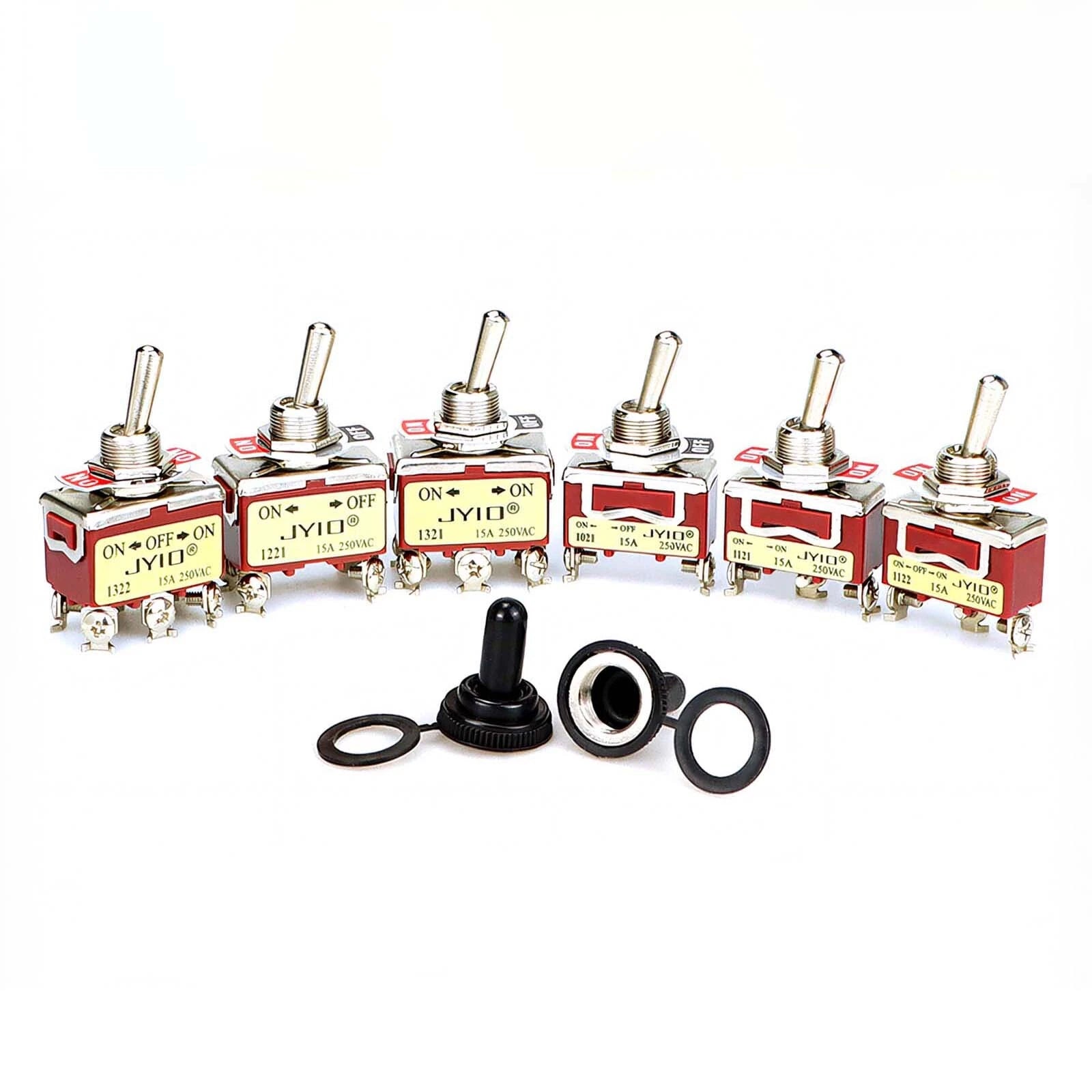

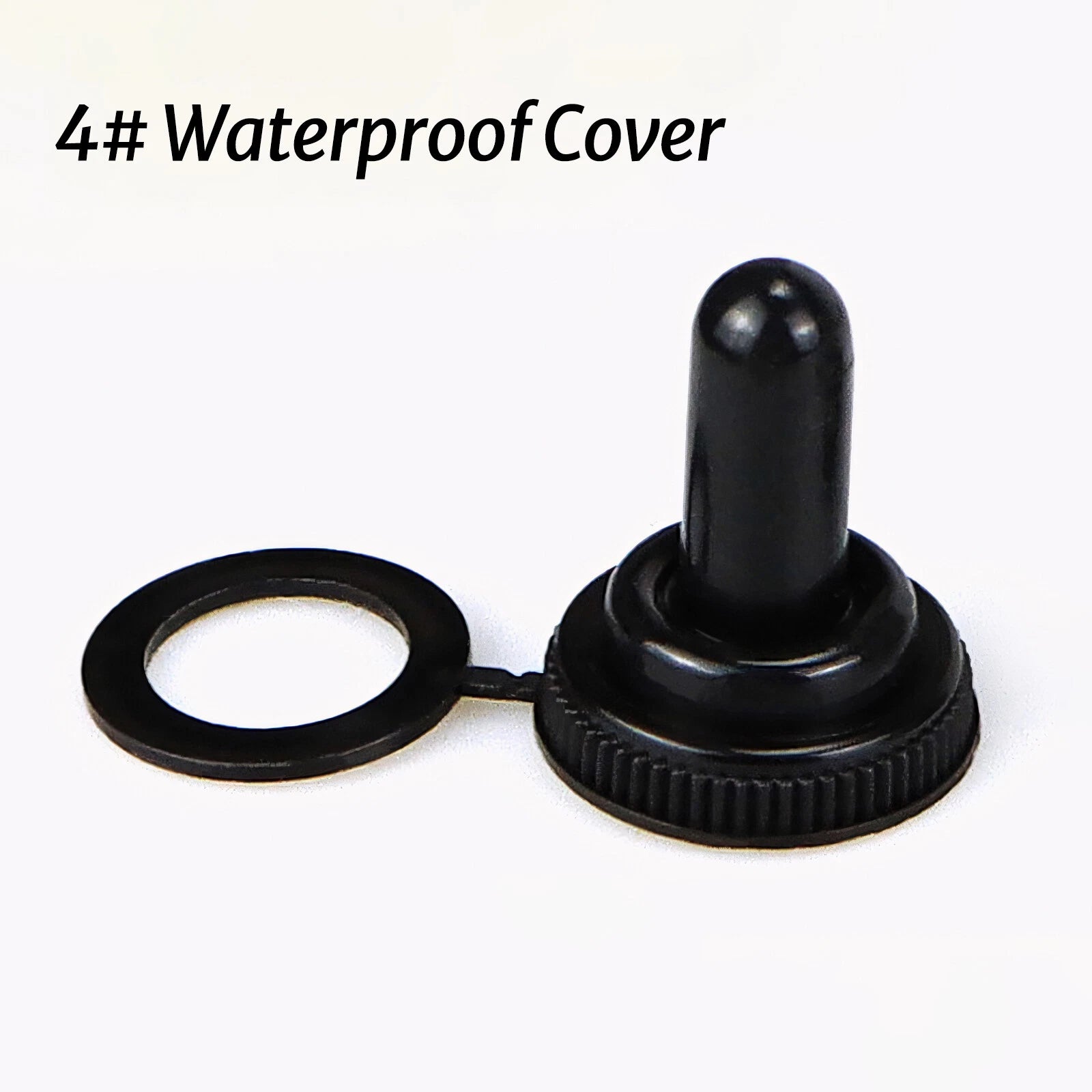

💧Waterproof Toggle Lever Cap Available — The Type 4# rubber cap fits over the toggle to seal against splash and moisture, making this switch suitable for marine dashboards and outdoor enclosures.
⚡15A / 250V AC Rated — Handles demanding loads in automotive 12V DC and marine circuits; the high AC rating provides substantial headroom for continuous-duty use.

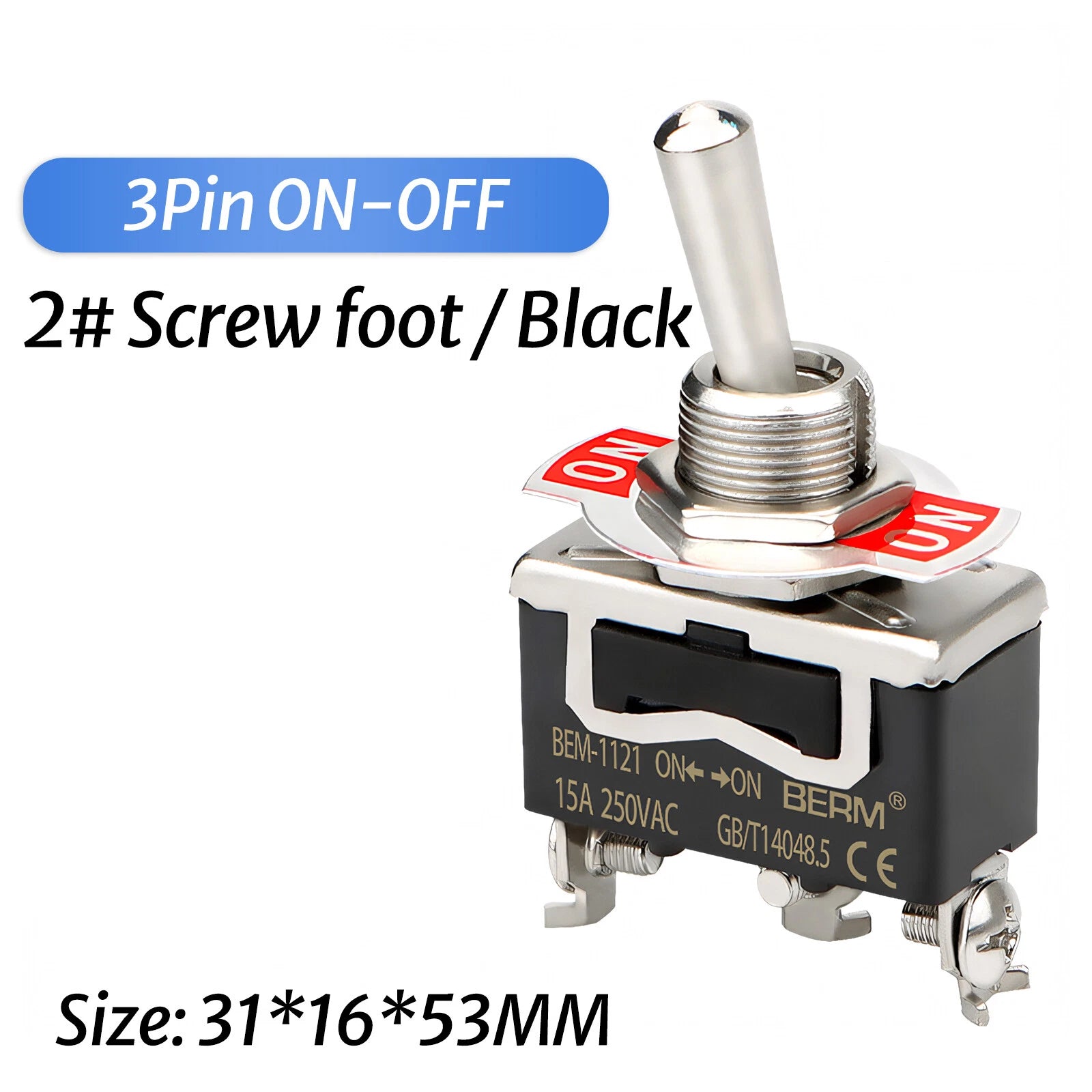

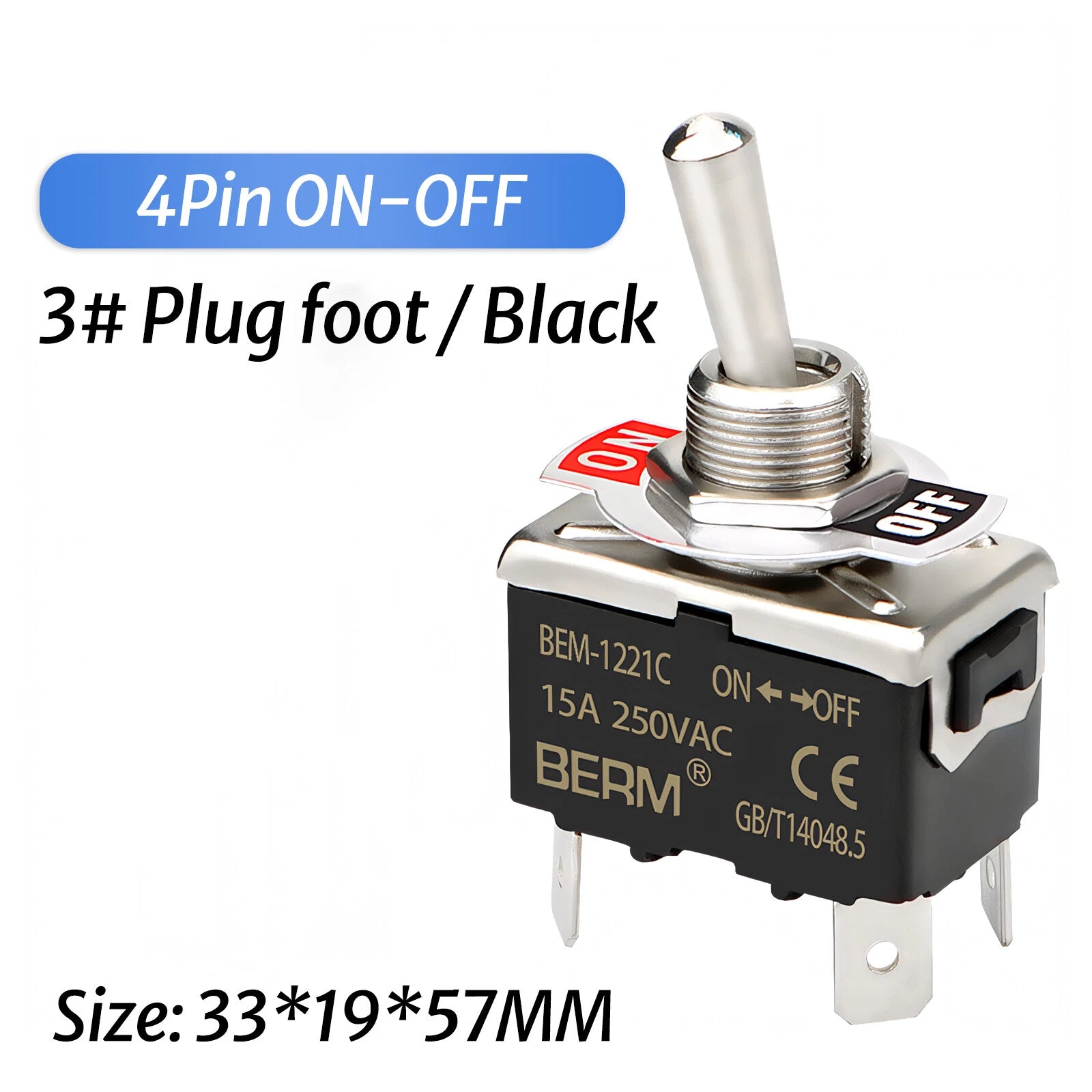

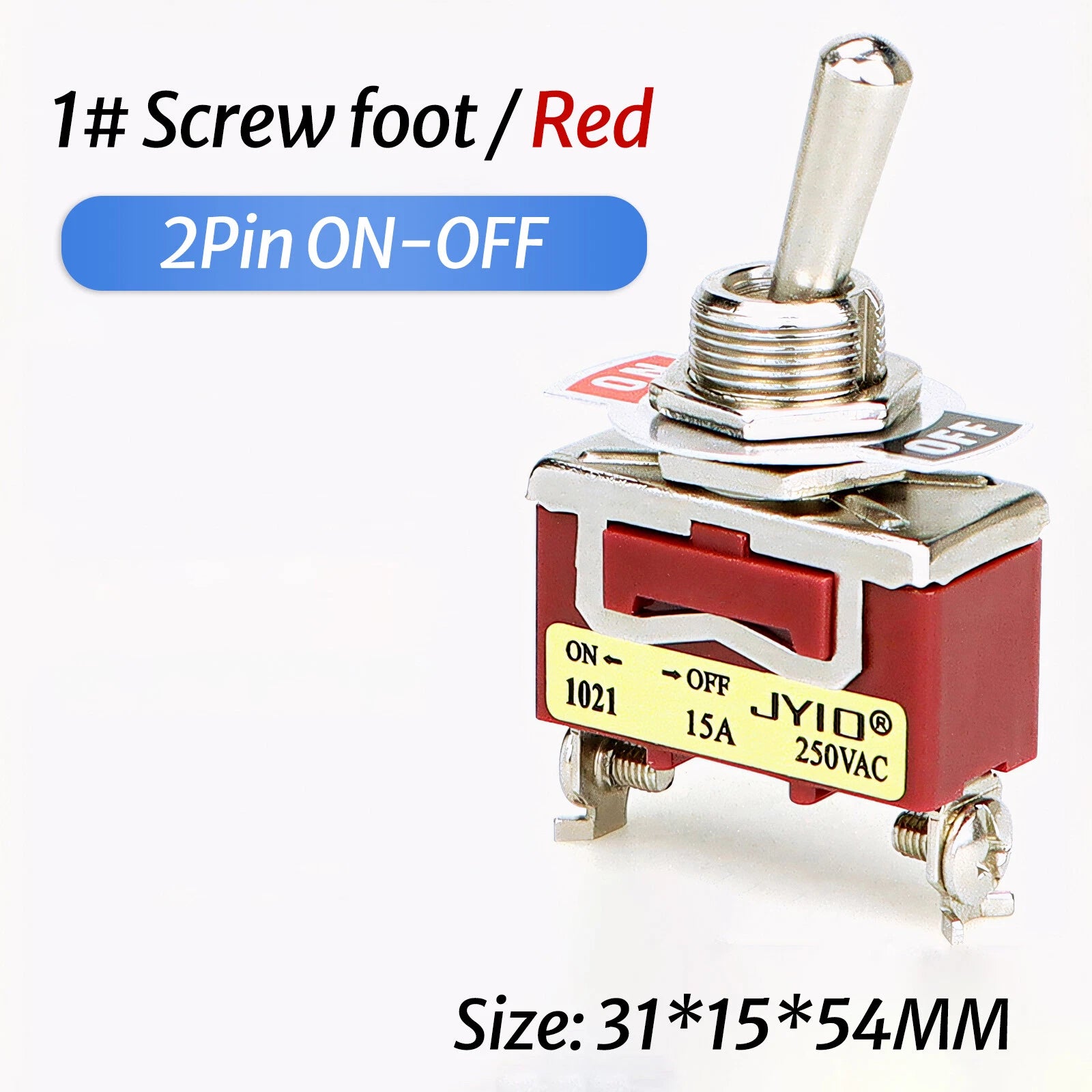

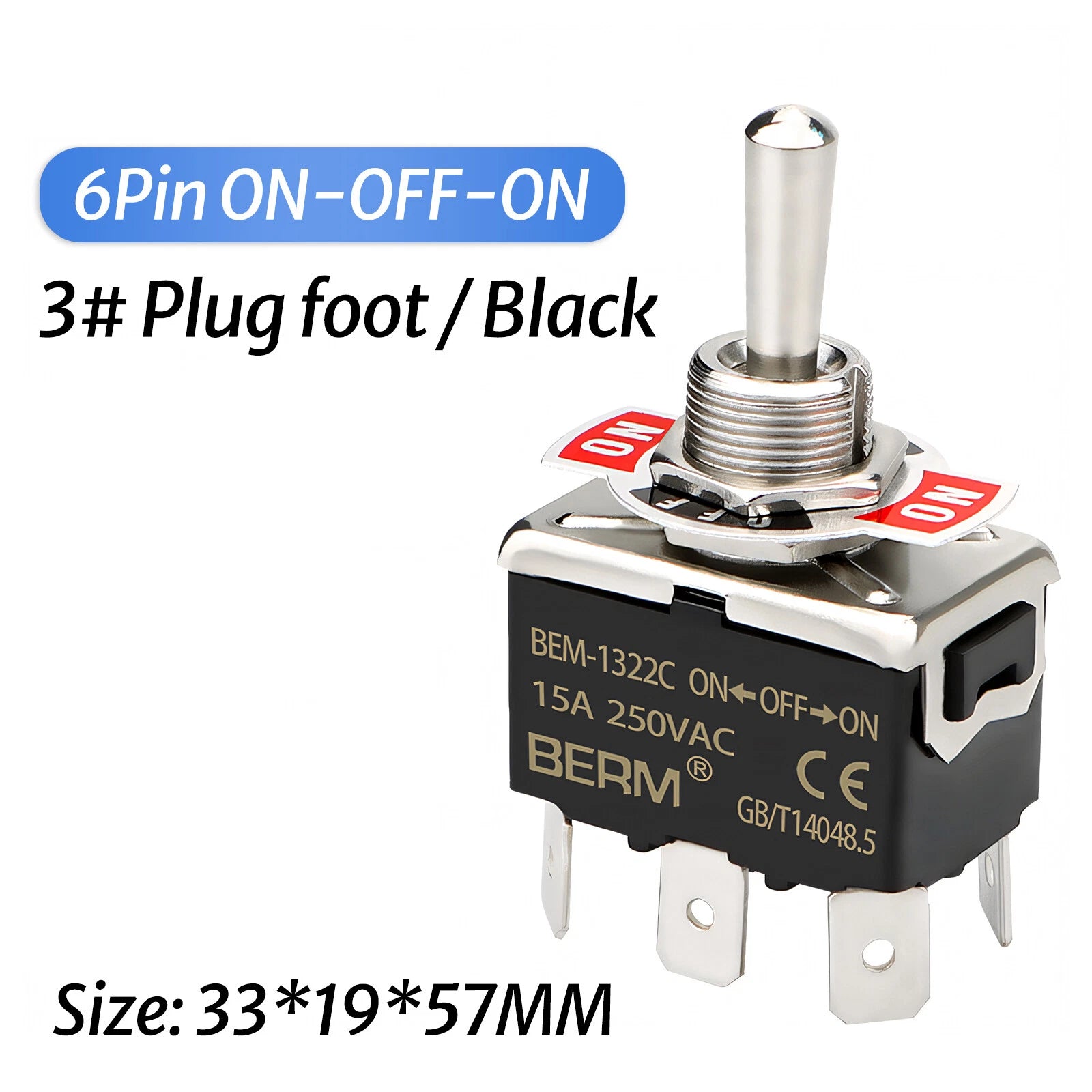

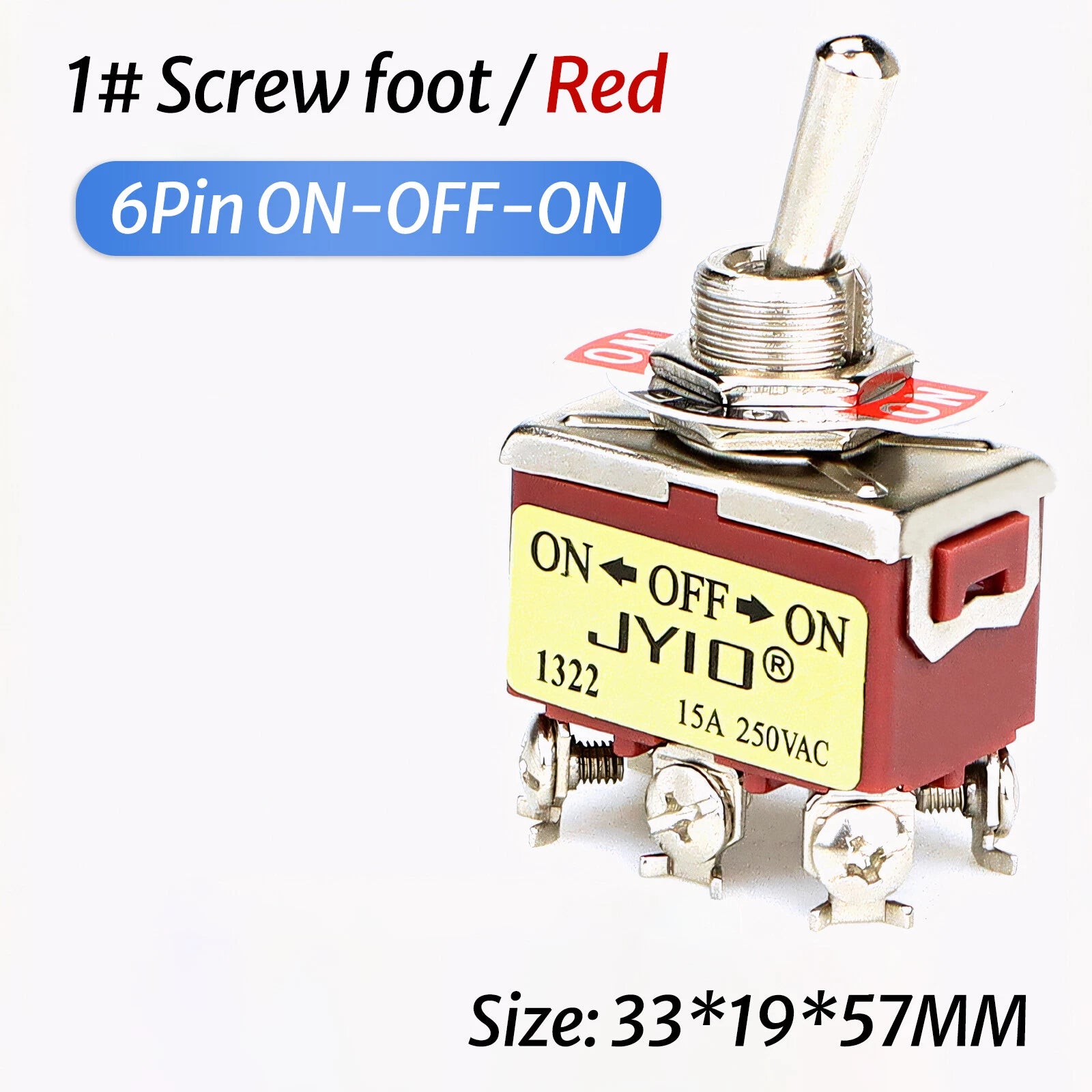

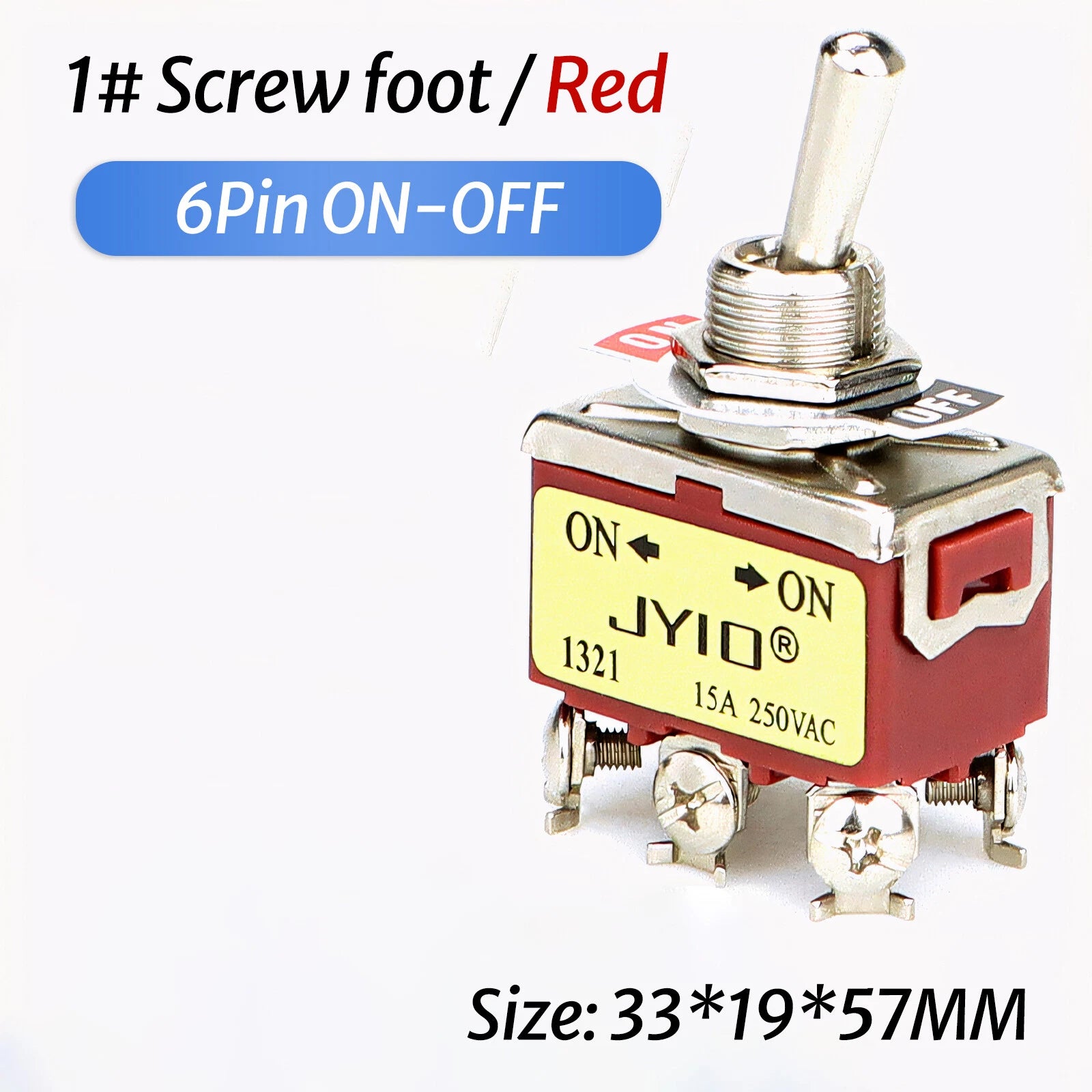

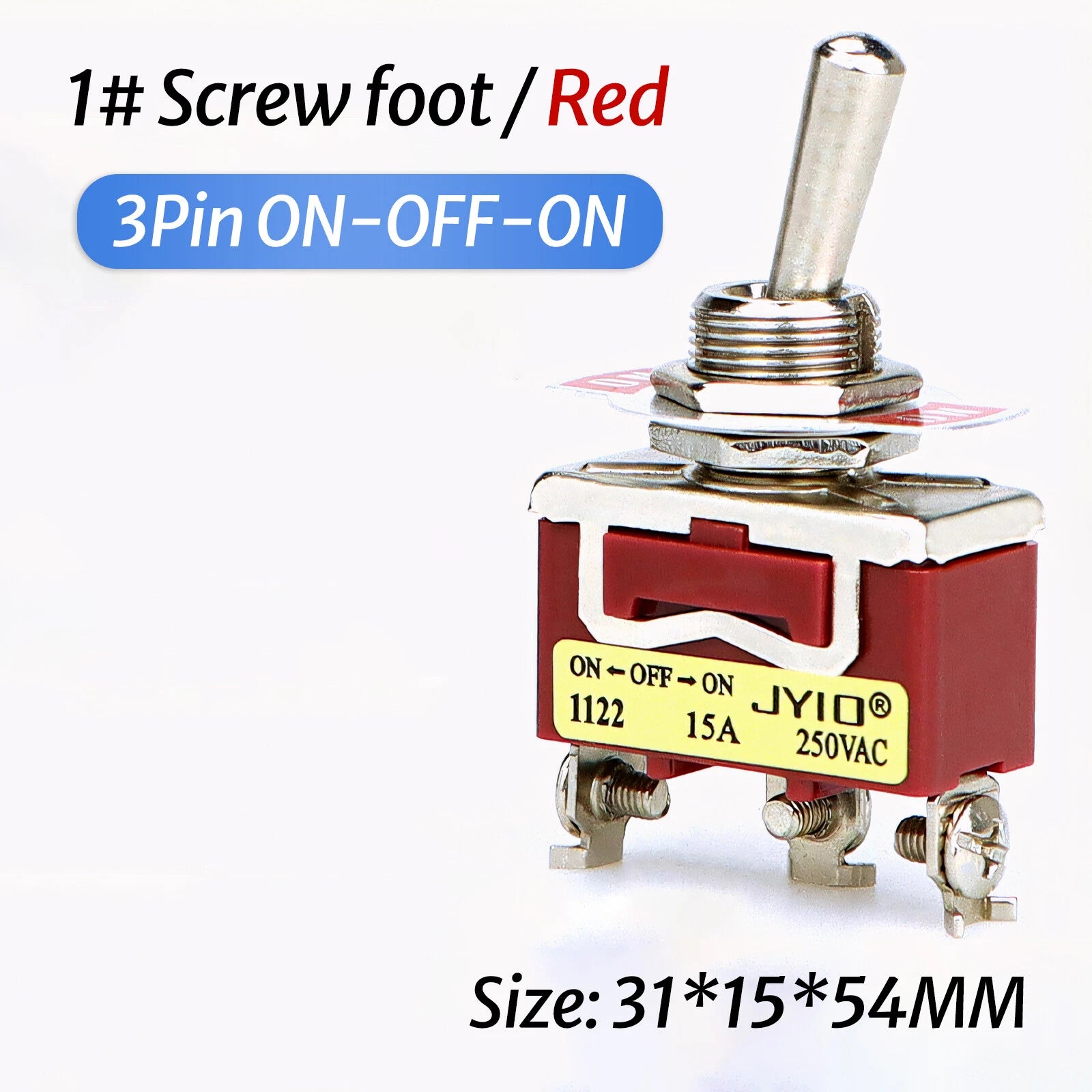

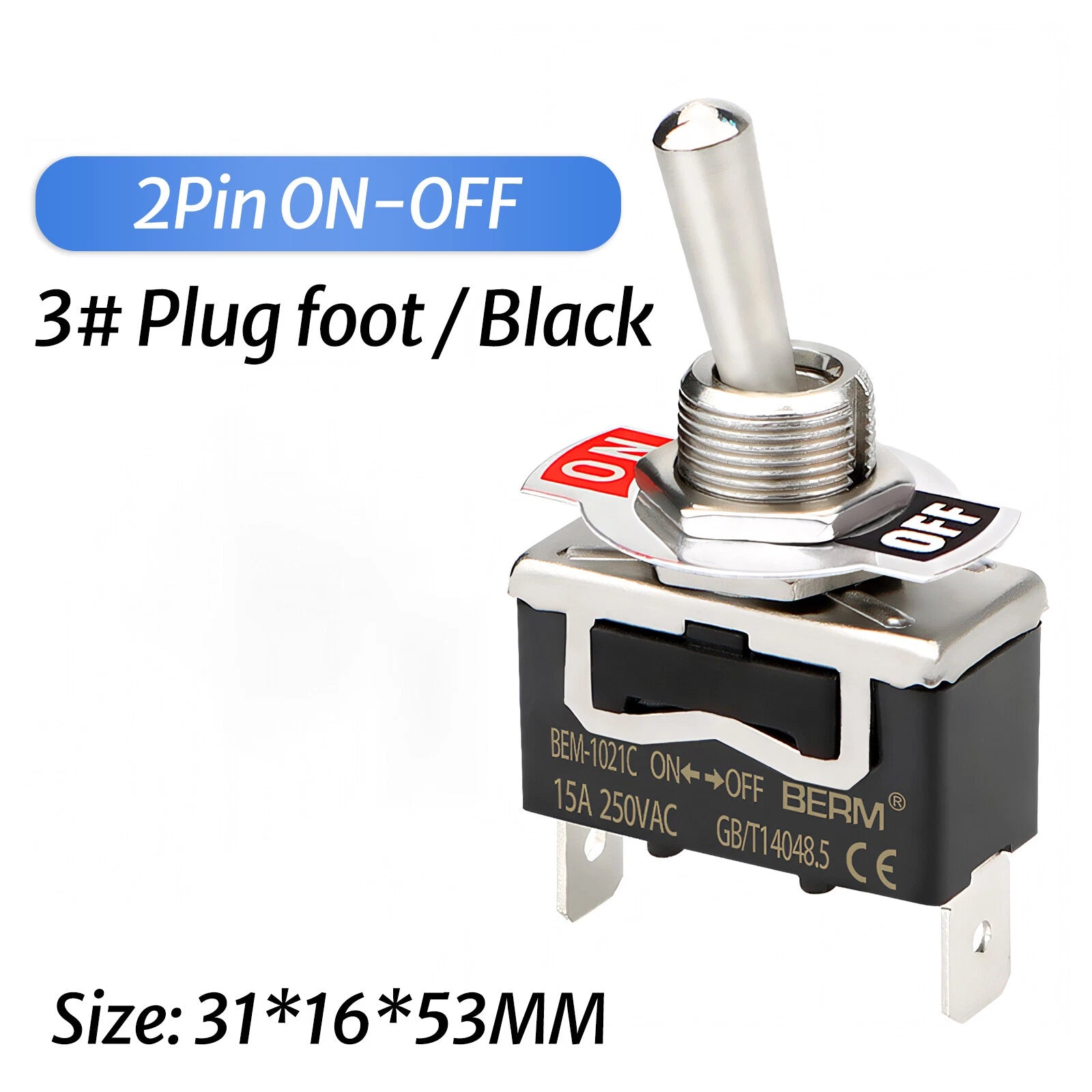

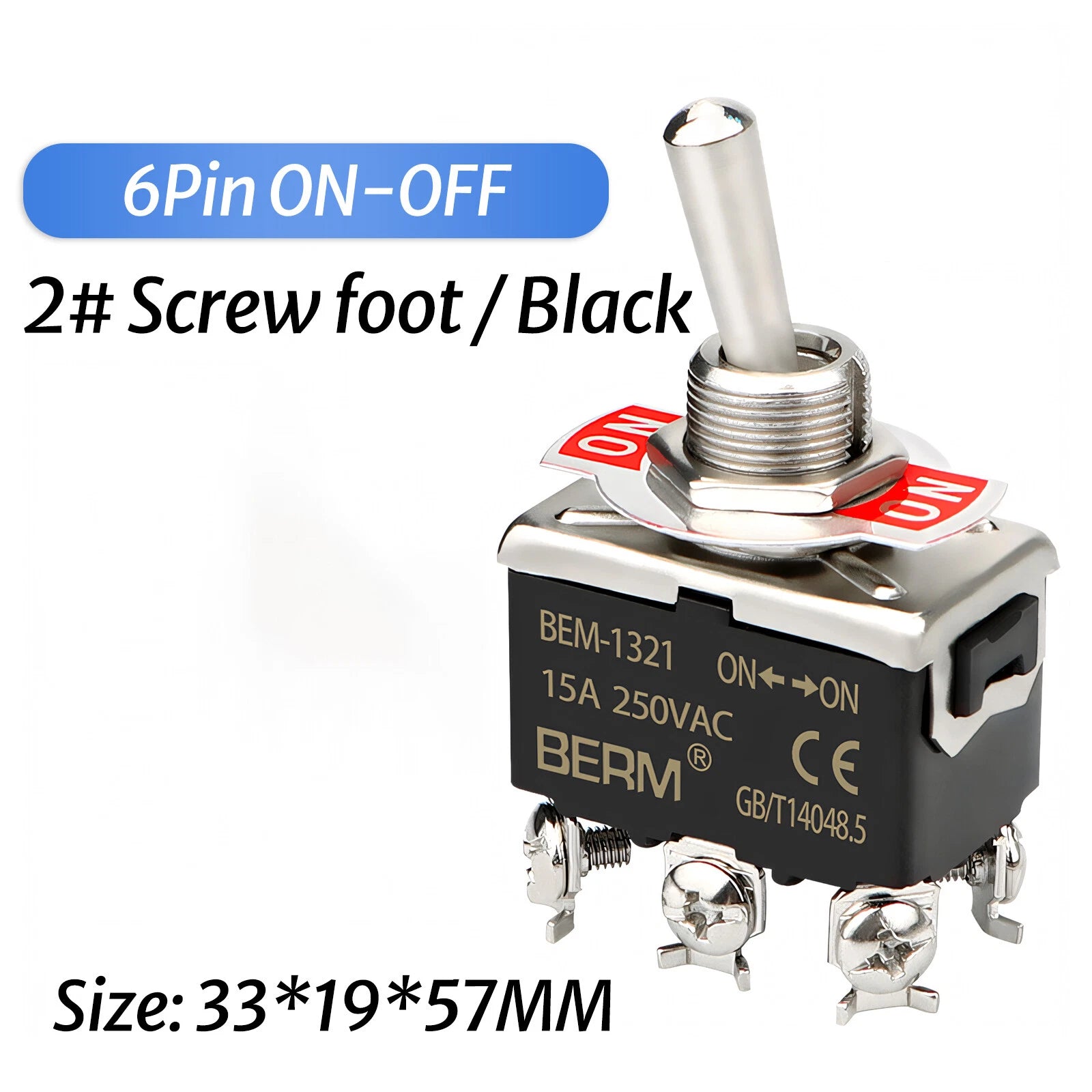

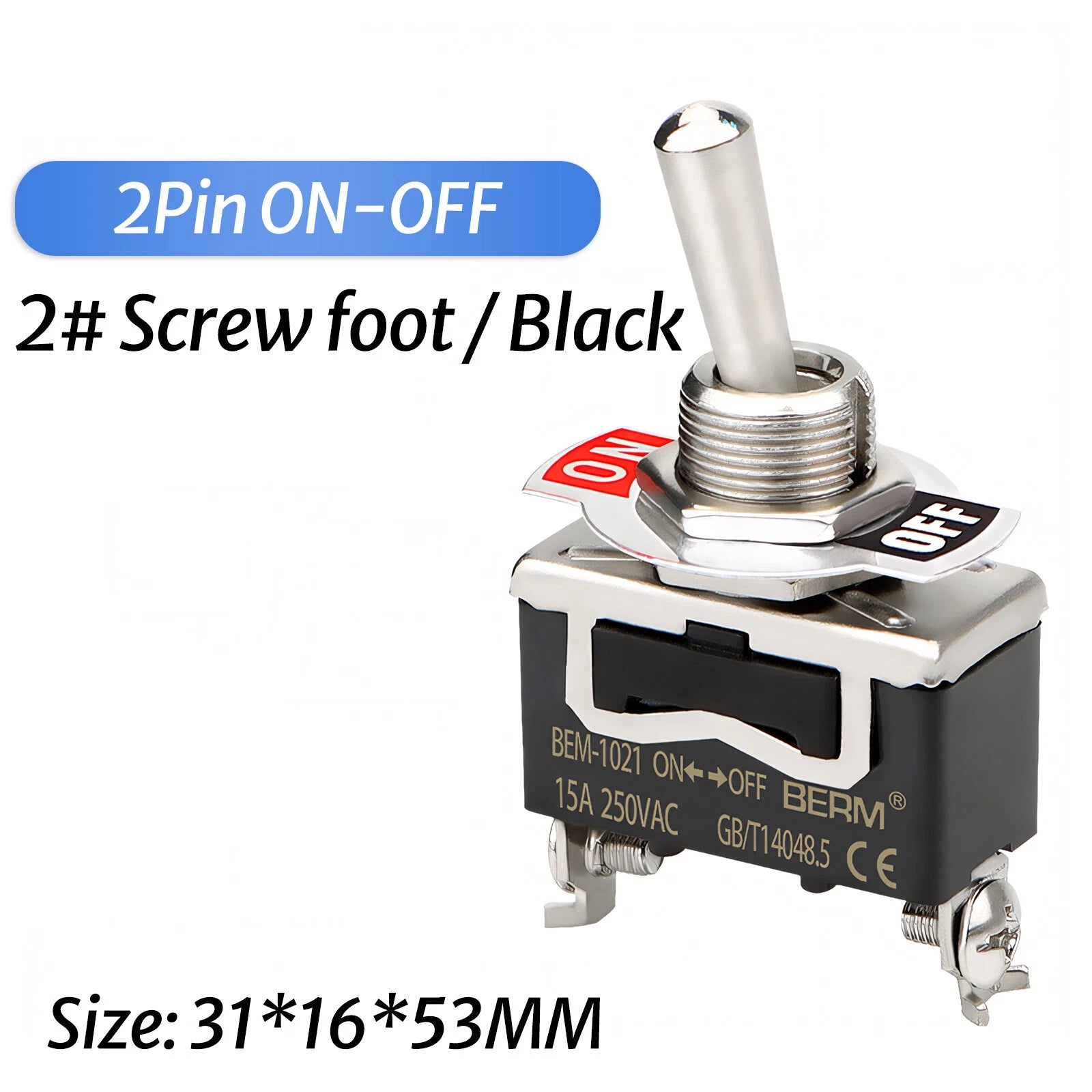

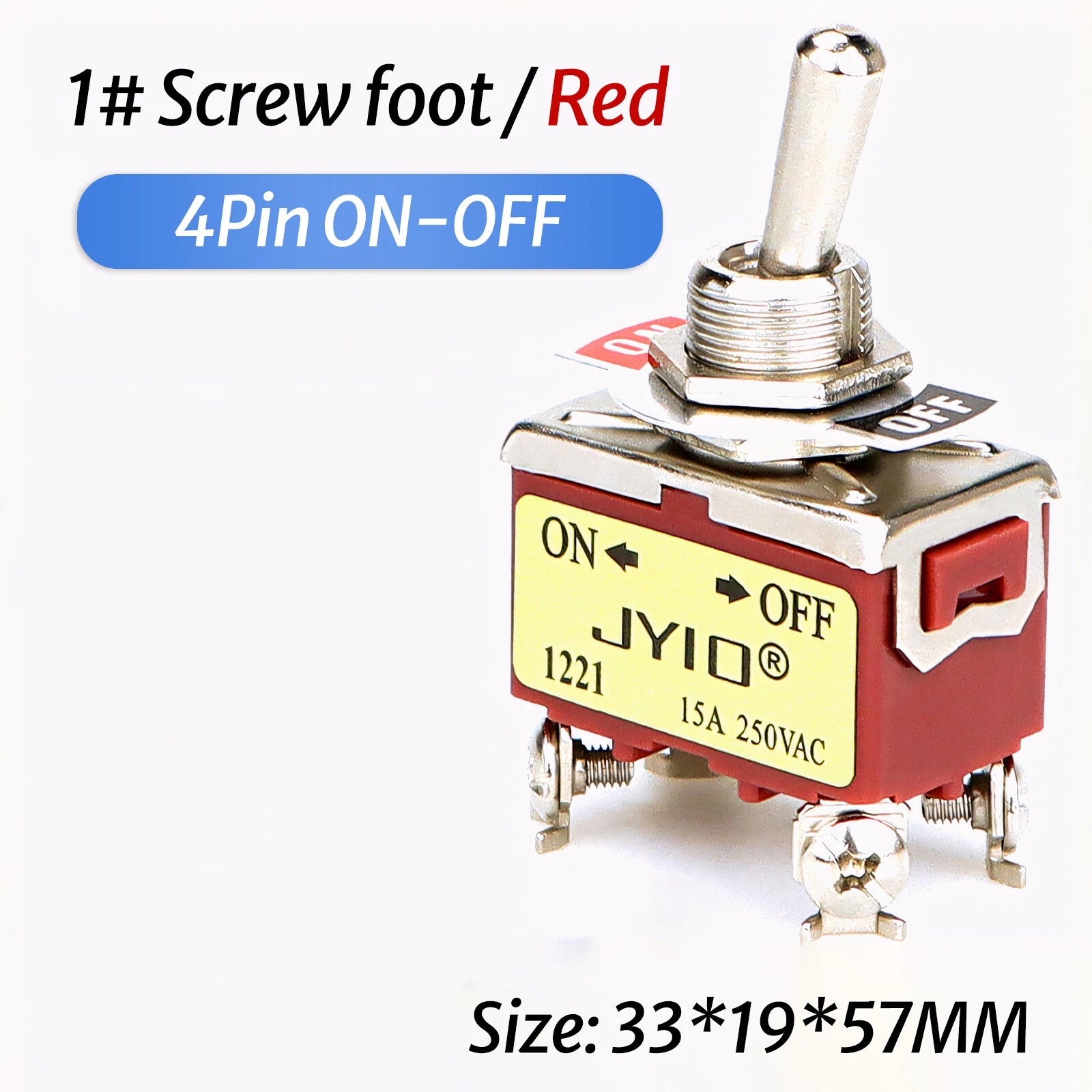

🔩Two Terminal Styles — Choose screw foot terminals (Types 1# & 2#) for secure permanent wiring, or plug foot spade terminals (Type 3#) for fast tool-free connections in automotive and marine harnesses.
🔄Multiple Circuit Functions — ON-OFF, ON-OFF-ON, and momentary Self-Reset ON-OFF-ON models let you match the switch to your exact circuit requirement — from simple lighting to motor reversing.

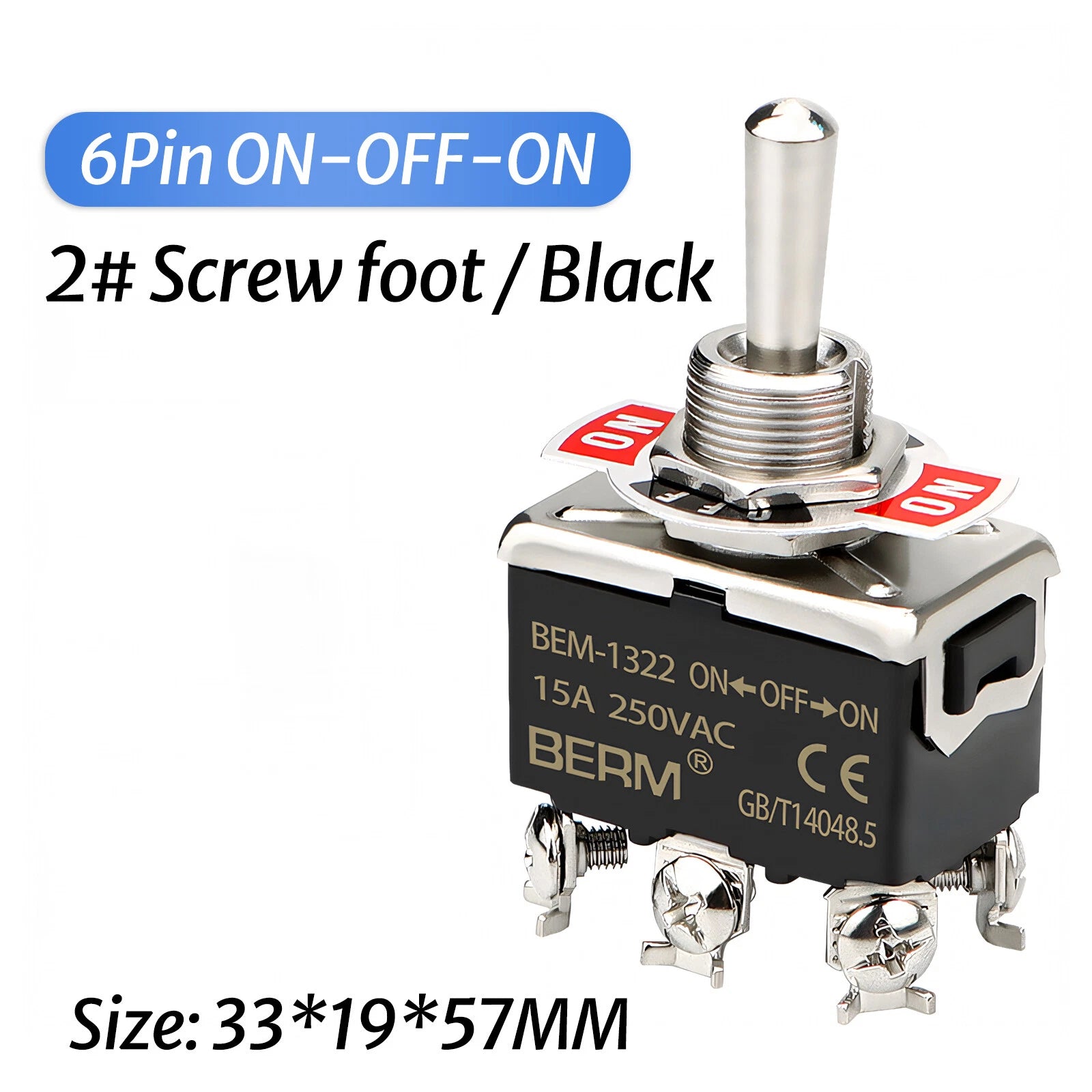

📐2-Pin to 6-Pin Configurations — Covers single-circuit ON-OFF (2-pin), dual-circuit switching (3-pin, 4-pin), and full dual-circuit ON-OFF-ON control (6-pin) for complex wiring applications.
📦Flexible Pack Sizes — Available in quantities of 1, 5, 10, 20, or 50 pieces, so you can stock up for a full panel build or grab a single replacement without overpaying.

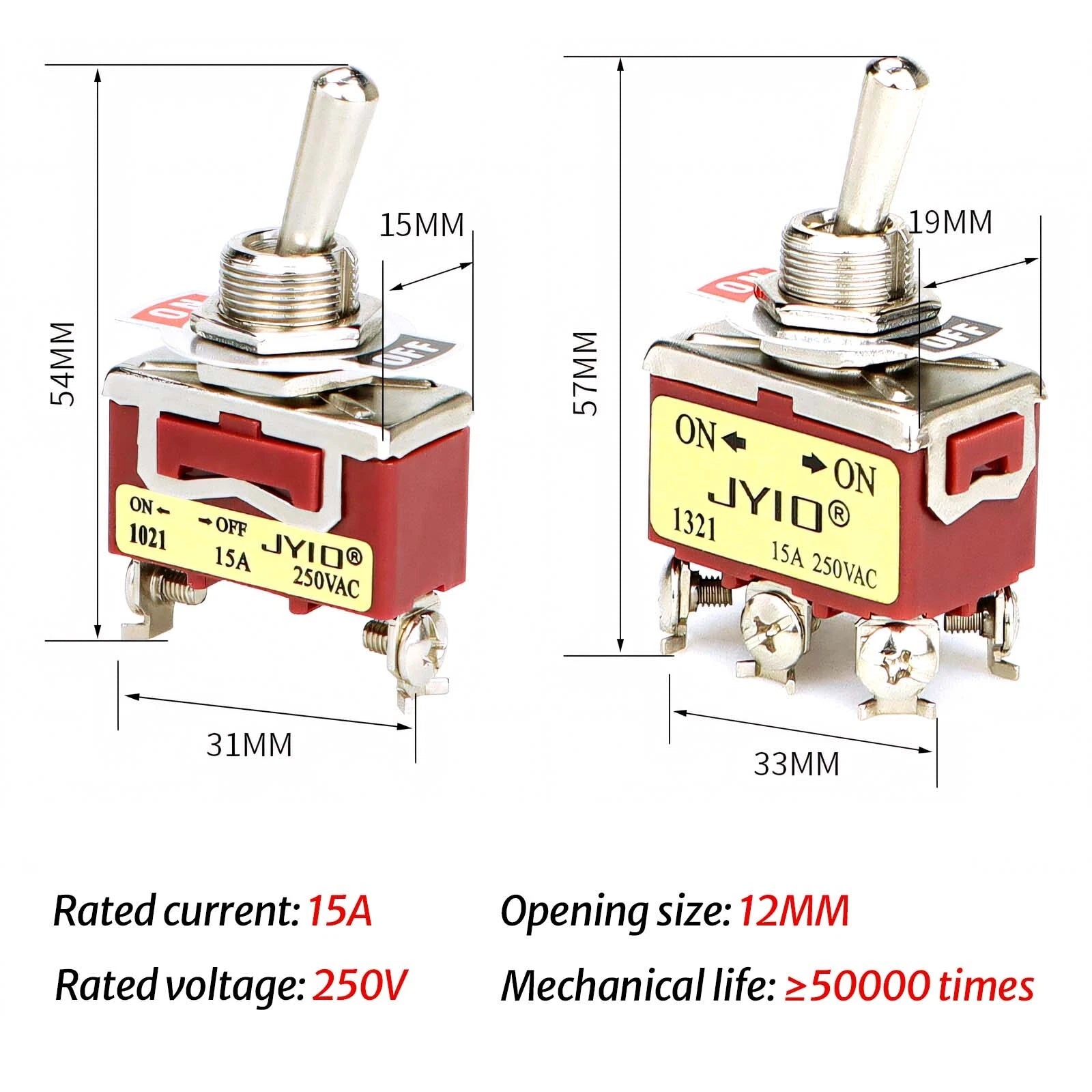

📐 Technical Specifications — Waterproof Heavy Duty Toggle Switch

Switch Type	Heavy Duty Toggle Switch
Circuit Function	ON-OFF / ON-OFF-ON / ON-OFF-ON Self-Reset (Momentary) — see variant options
Pin Count	2-Pin, 3-Pin, 4-Pin, or 6-Pin — see variant options
Voltage Rating	250V AC (typically 125V AC at higher current; 12V–24V DC compatible)
Current Rating	15A
Terminal Style	Screw foot (Types 1# & 2#) or Plug foot / Spade (Type 3#)
Color / Finish	Red body (Type 1#) or Black body (Types 2# & 3#)
Panel Cutout	Typically ~12mm (≈15/32") diameter — confirm with your panel specs
Waterproof Cap	Available separately as Type 4# Waterproof Cap

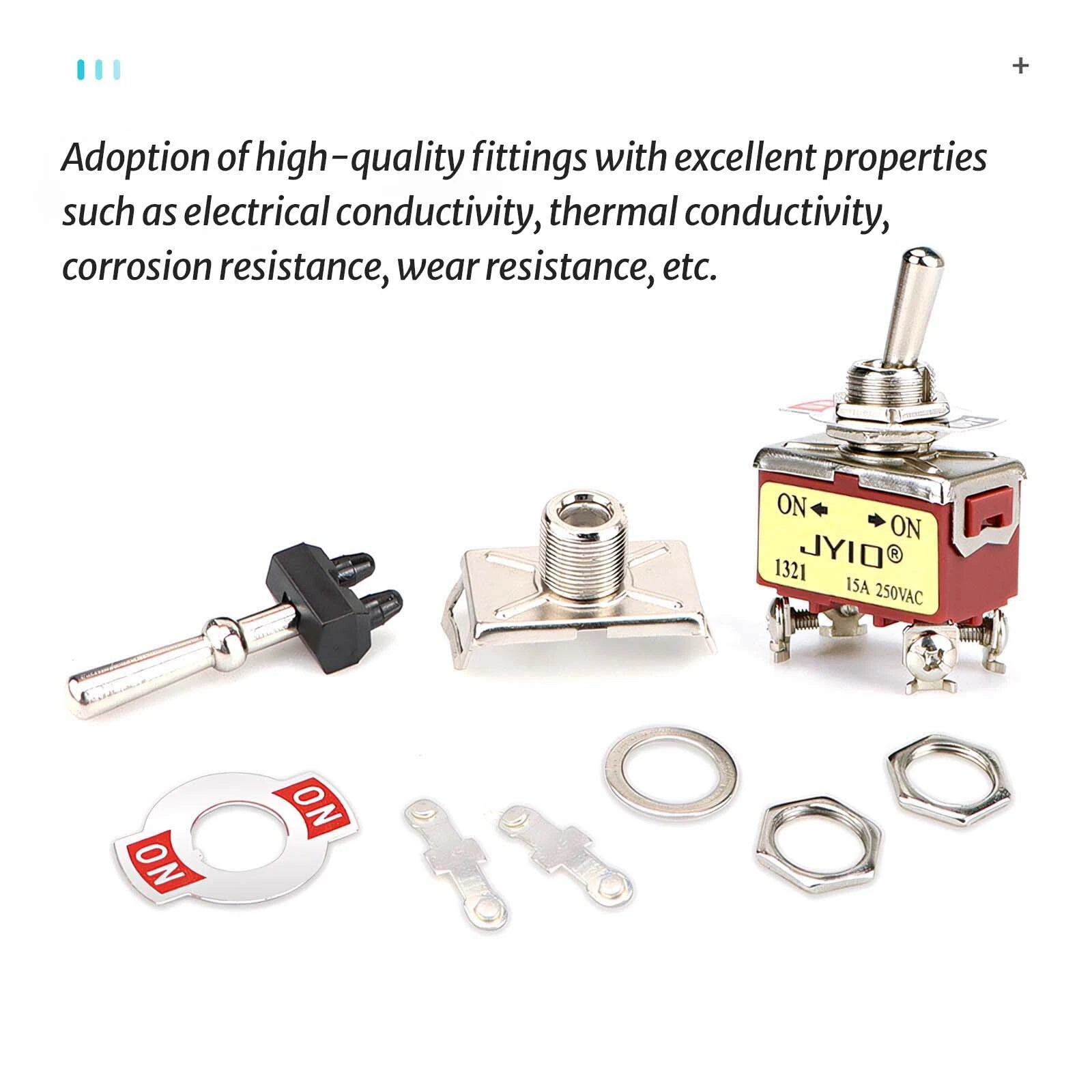

Mounting	Panel mount with threaded bushing and locking nut
Quantity per Order	1 / 5 / 10 / 20 / 50 pieces — see variant options
Typical Applications	Automotive, marine, RV, boat, industrial control panels, DIY electronics

⚠️ Spec Confirmation: Panel cutout diameter and exact body dimensions vary slightly by model. If you are replacing an existing switch, measure your current cutout before ordering. Contact us to confirm fit for non-standard panel thicknesses.

❓ Frequently Asked Questions

How do I choose the right pin count for my application?

Pin count determines how many circuits the switch controls. A 2-pin switch handles a single ON-OFF circuit. A 3-pin switch supports ON-OFF or ON-OFF-ON (two independent circuits). A 4-pin switch typically controls two separate circuits simultaneously. A 6-pin switch is used for ON-OFF or ON-OFF-ON with dual-circuit control — common in marine and automotive wiring. When in doubt, match the pin count to your existing wiring harness or consult your vehicle's wiring diagram.

What is the current and voltage rating of these toggle switches?

These switches are generally rated at 15A at 250V AC (or typically 20A at 125V AC). This makes them suitable for most 12V DC automotive and marine circuits, as well as standard household AC applications within the rated load. Always verify your circuit's actual load before installation.

Are these switches waterproof for outdoor or marine use?

The switches include an optional waterproof rubber cap (Type 4#) that fits over the toggle lever to provide splash and moisture resistance. This makes them suitable for boat dashboards, outdoor enclosures, and marine environments. For full submersion, additional sealing of the mounting hole is recommended.

What is the difference between ON-OFF and ON-OFF-ON models?

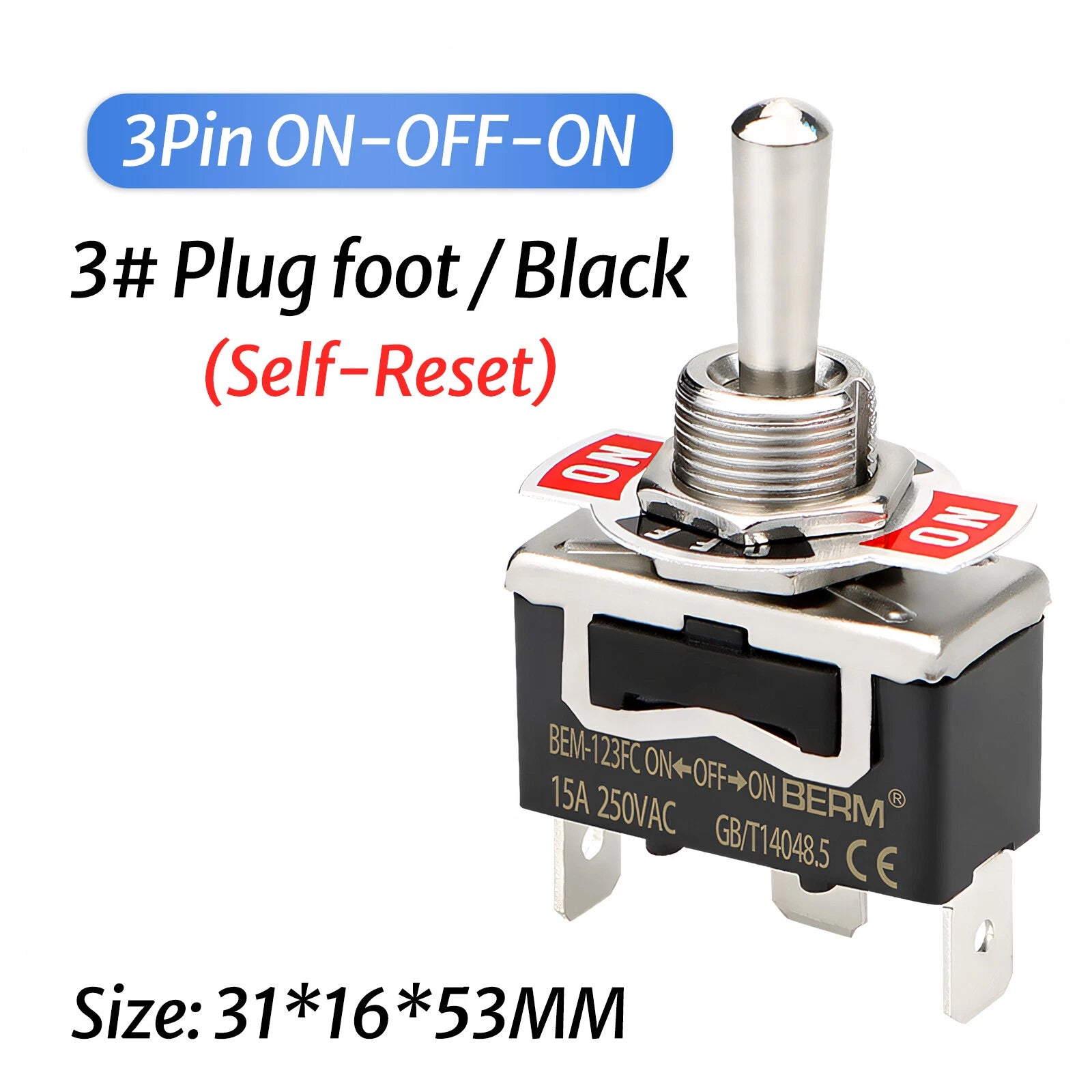

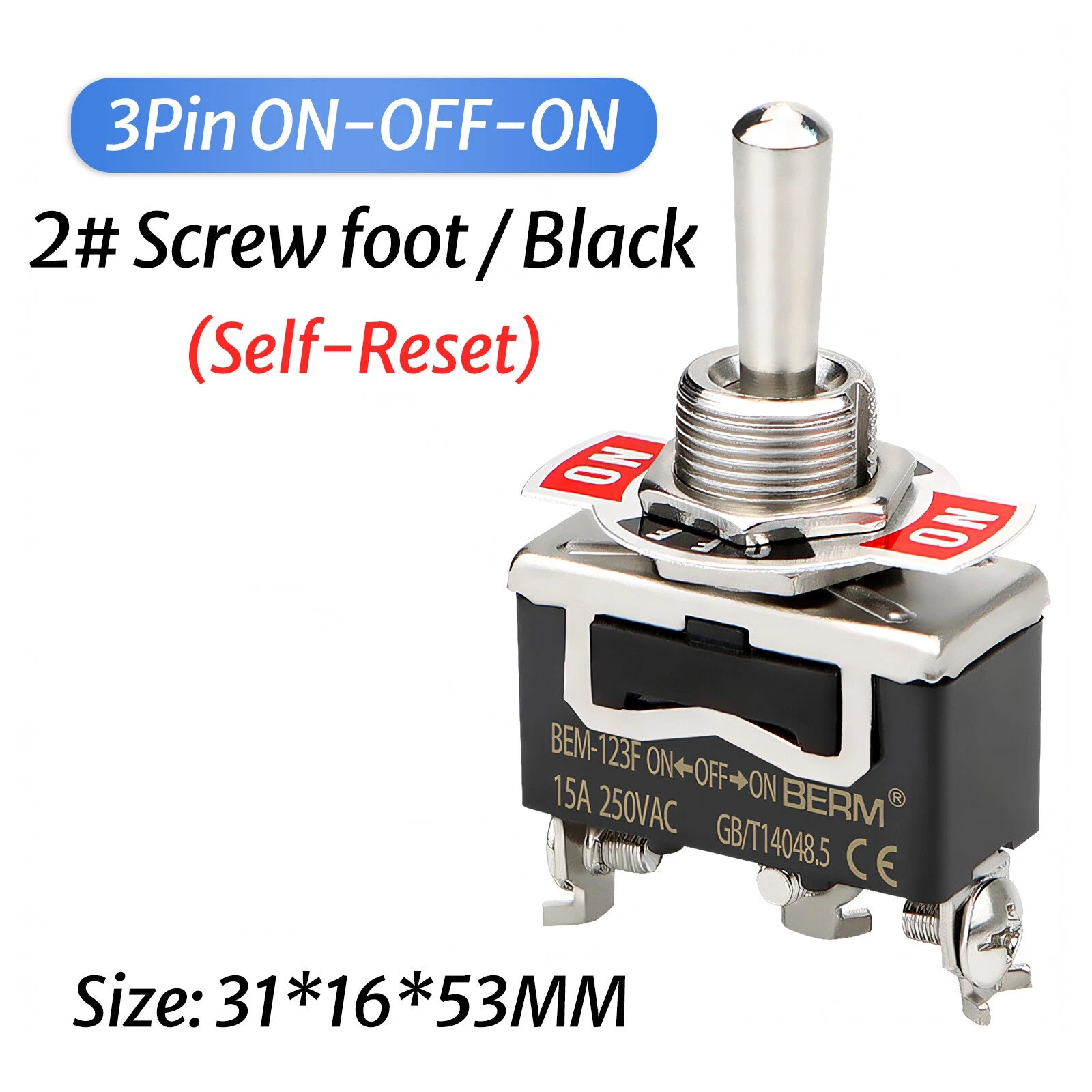

An ON-OFF switch has two stable positions: fully on or fully off. An ON-OFF-ON switch has three stable positions: on in one direction, off in the center, and on in the other direction — useful for reversing motors or switching between two power sources. The Self-Reset (momentary) ON-OFF-ON variant returns to the center OFF position when released, acting as a momentary contact switch.

What is the difference between screw foot (Types 1 & 2) and plug foot (Type 3) mounting?

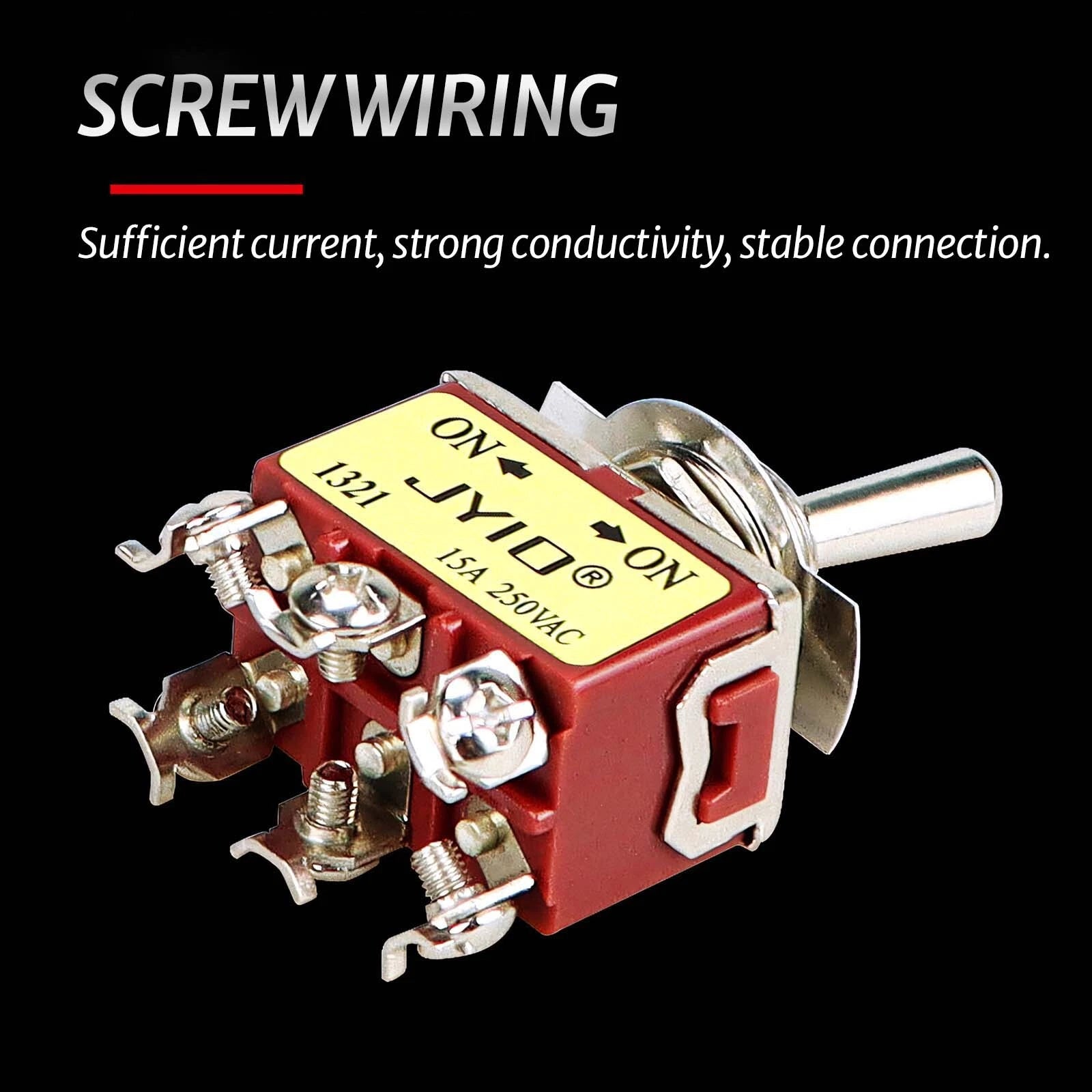

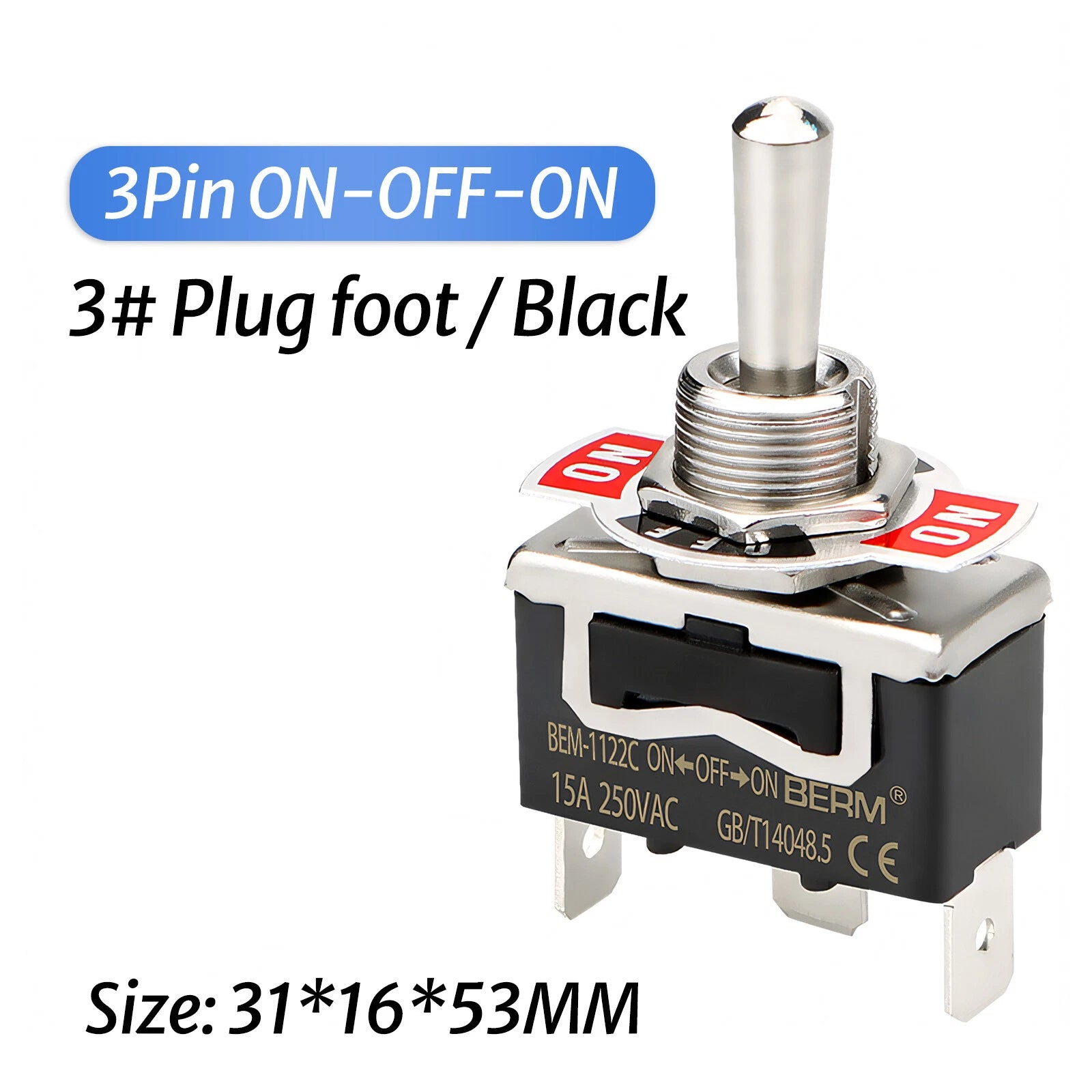

Screw foot switches use threaded terminals where wires are secured with screws — reliable for permanent installations. Plug foot switches use quick-connect spade terminals for tool-free wire insertion, making them faster to install and easier to swap out. Both types are mechanically equivalent in function and rating.

What panel cutout size is required to mount these switches?

These toggle switches typically require a round panel cutout of approximately 12mm (≈15/32") in diameter. A mounting nut is included to secure the switch from the back of the panel. Always measure your panel thickness to ensure the threaded bushing length is sufficient for a secure fit.

Can I use these switches in a 12V DC automotive or boat circuit?

Yes. These switches are commonly used in 12V and 24V DC automotive, marine, and RV circuits. The 15A rating at 250V AC translates to a higher current capacity at lower DC voltages, making them well-suited for controlling lights, fans, pumps, and other accessories in vehicles and boats.

🛒 Select your type, model, and quantity above, then add to cart — ships from our US warehouse.
