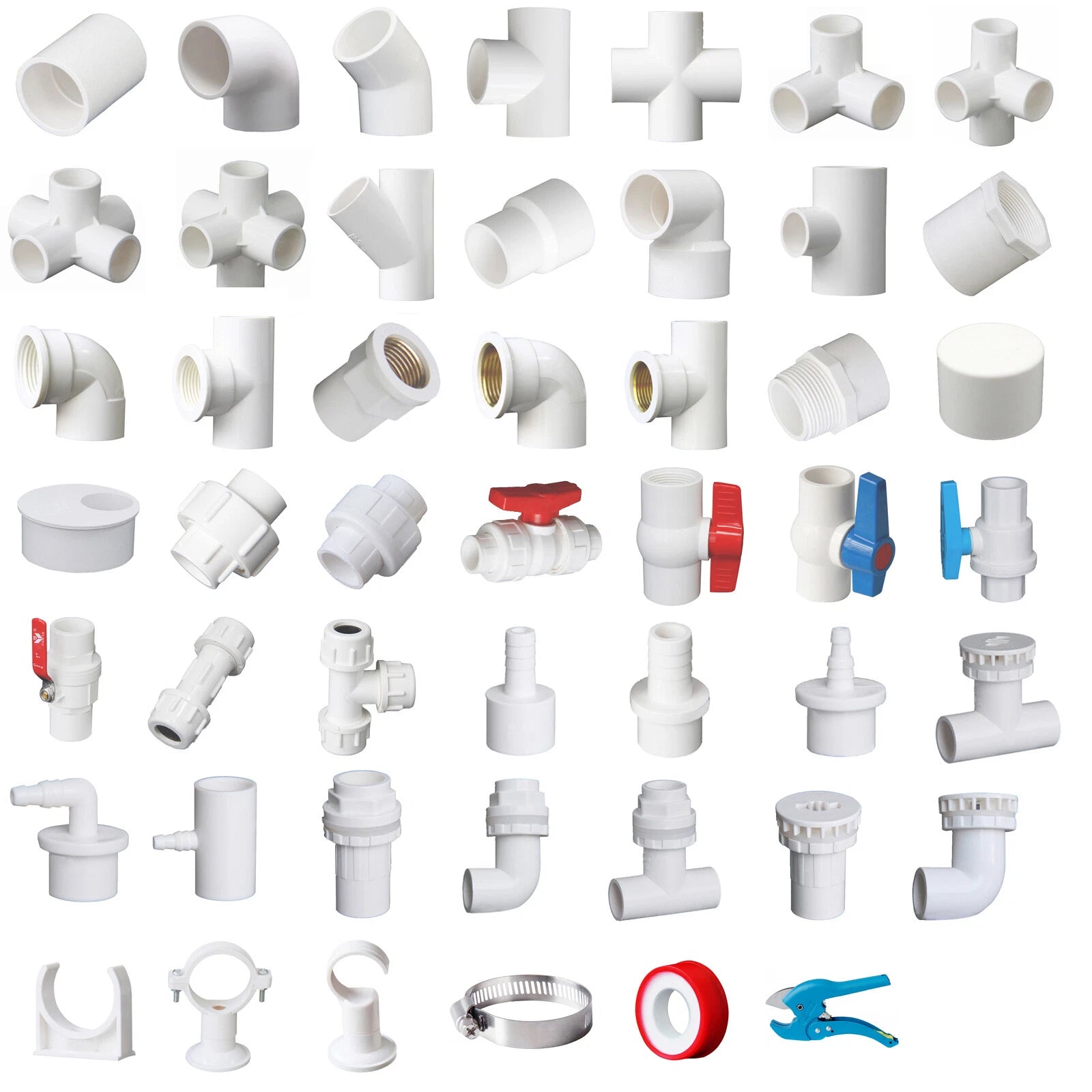

White PVC 20mm ID Pressure Pipe Fittings Metric Solvent Weld Various Parts

These fittings are designed for standard 20mm OD (outside diameter) metric PVC pressure pipe. The socket ends accept a 20mm spigot with a solvent-weld joint. If your pipe is imperial or a different metric size, check the outer diameter before ordering — the nominal 20mm ID refers to the pipe bore, not the fitting socket bore.

Yes. Solvent-weld fittings require PVC solvent cement (also called PVC glue or solvent weld adhesive), which is sold separately. Apply a thin, even coat to both the pipe spigot and the fitting socket, push together with a slight twist, and hold for 30 seconds. Full cure typically takes 24 hours before pressure testing. PTFE tape is not required for solvent joints but is needed for the BSP-threaded variants.

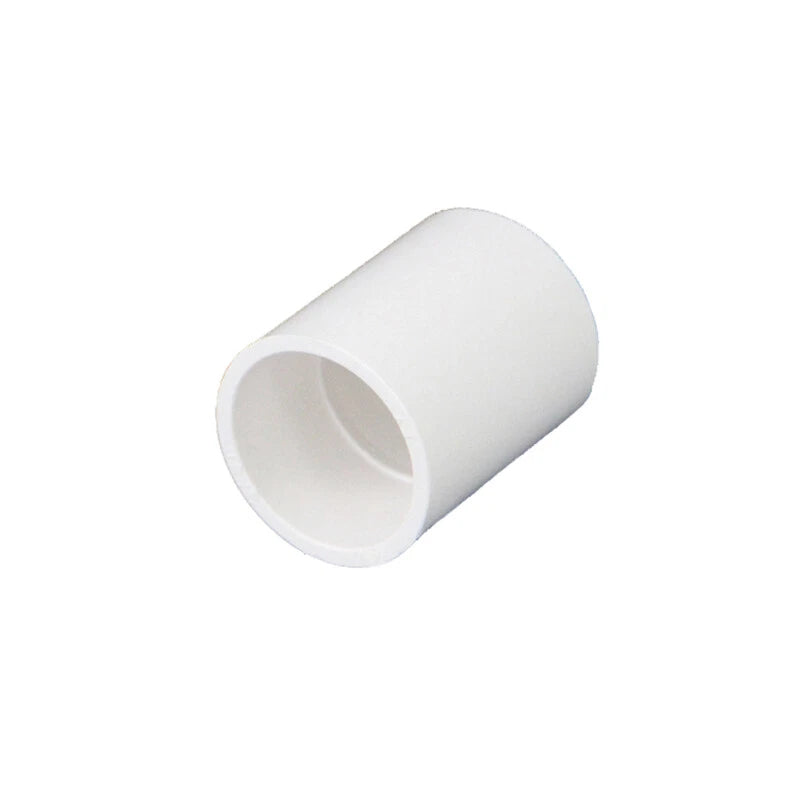

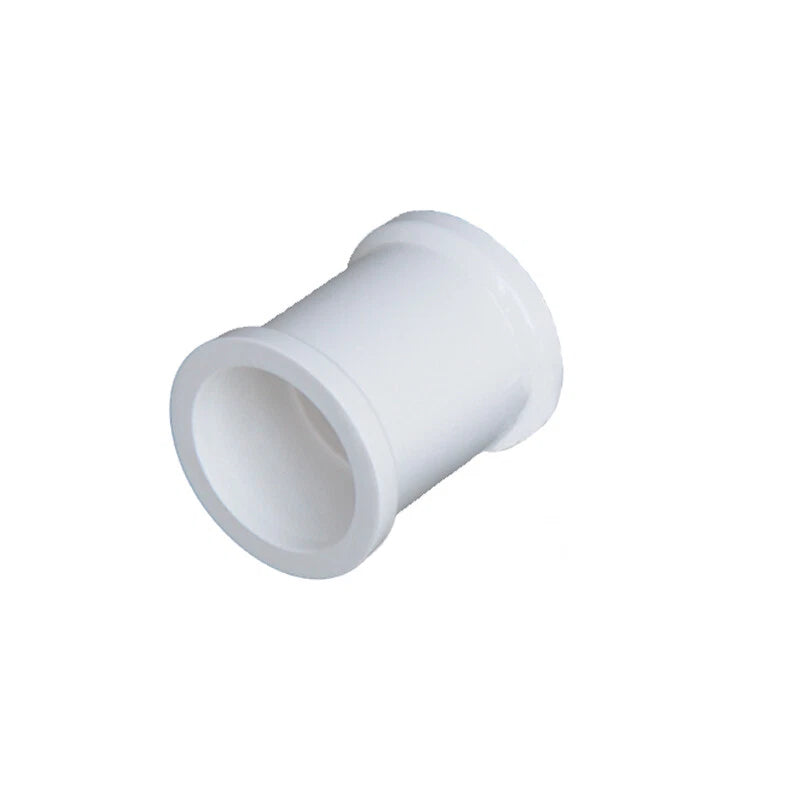

The Socket (Thick) has a heavier wall section compared to the standard Socket, providing additional mechanical strength at the joint. It is suited to applications where the fitting may be subject to side-loading, vibration, or where a longer engagement length is preferred. For straightforward pressure pipe runs, the standard Socket is sufficient.

PVC pressure fittings are widely used in irrigation and non-potable water systems. For potable (drinking) water applications, confirm that the specific fittings and the solvent cement you use carry the relevant local certification (such as WRAS in the UK or NSF/ANSI 61 in the US). Contact us to confirm suitability for your specific application before installation.

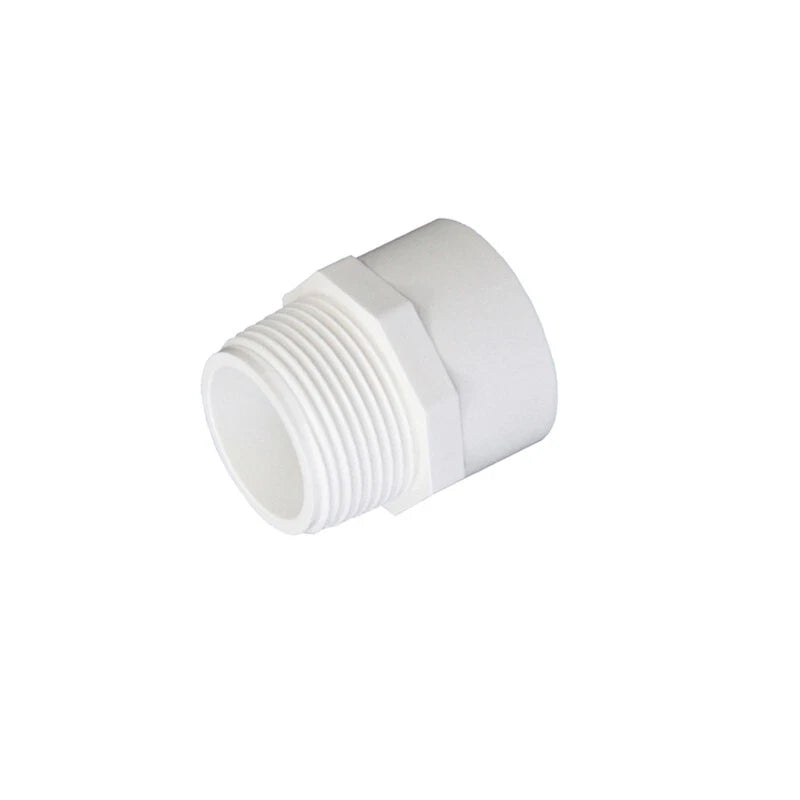

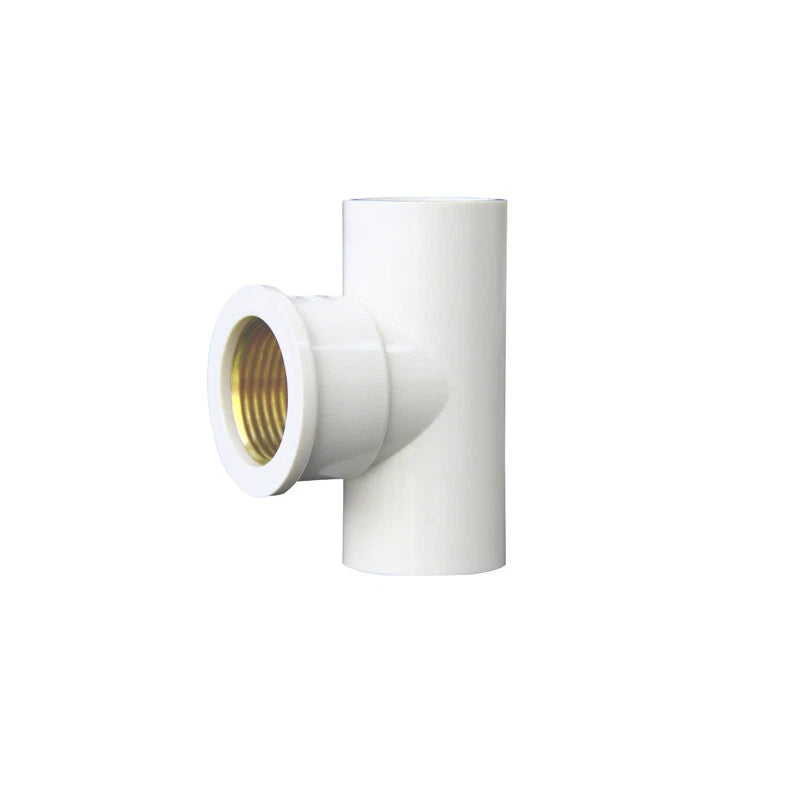

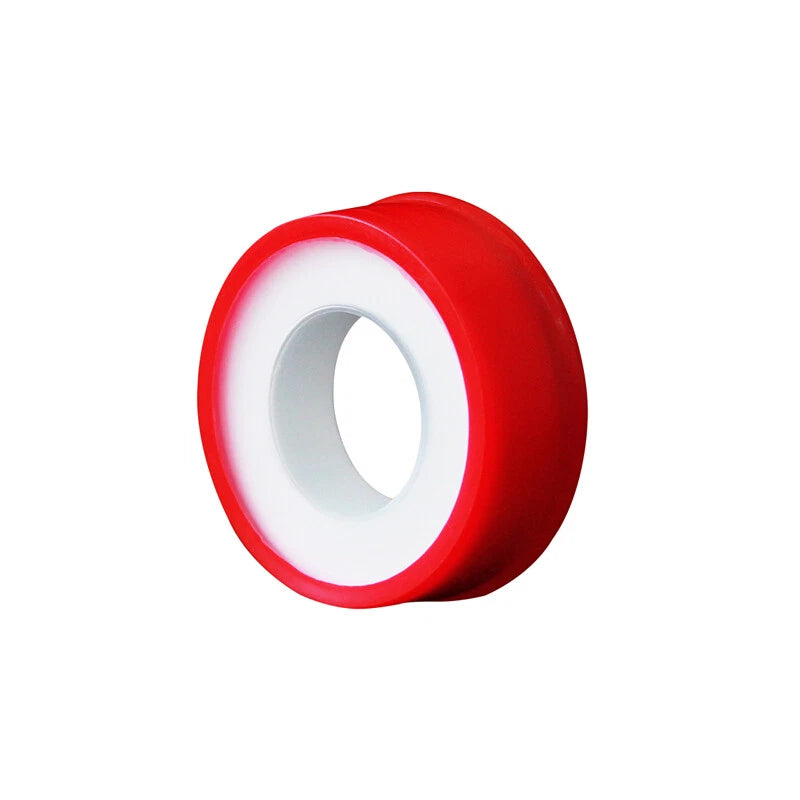

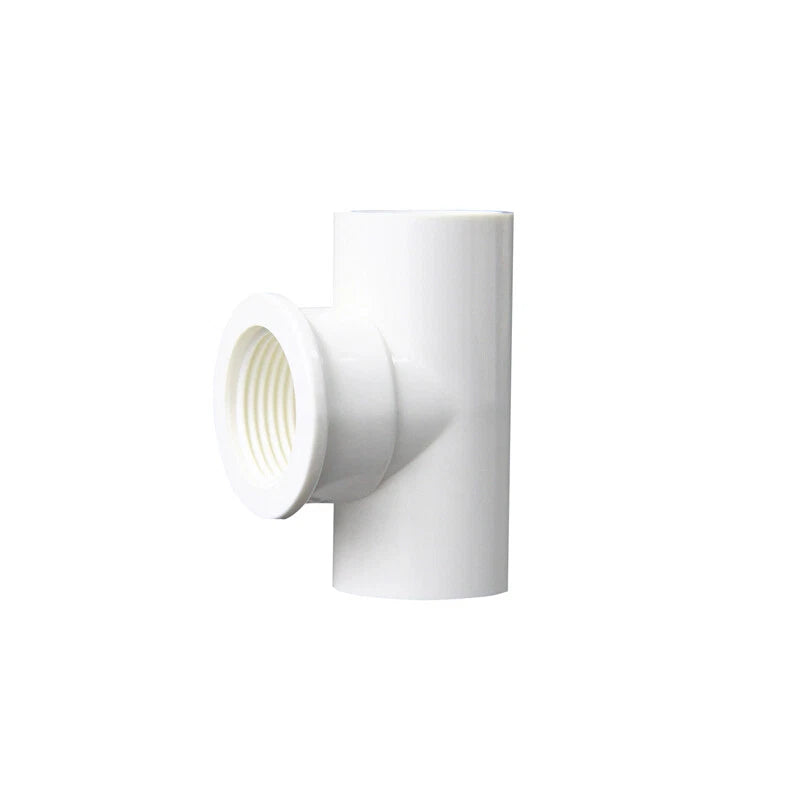

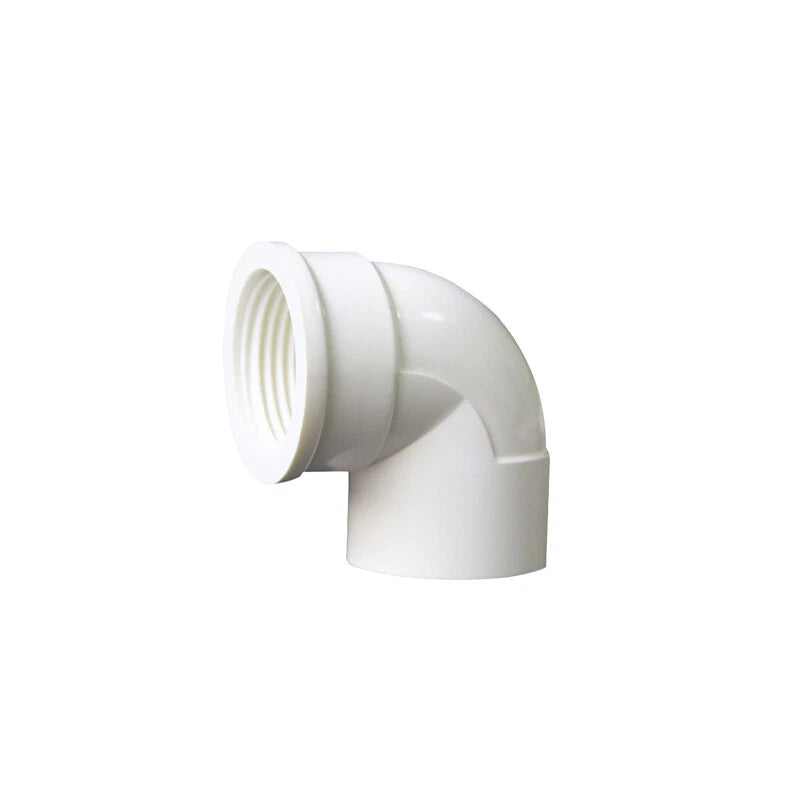

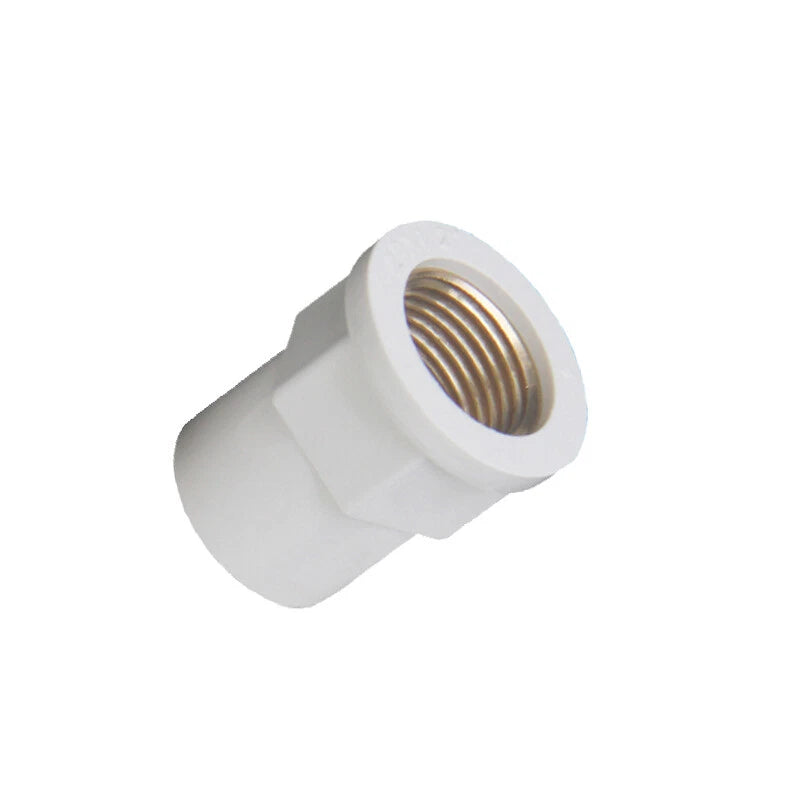

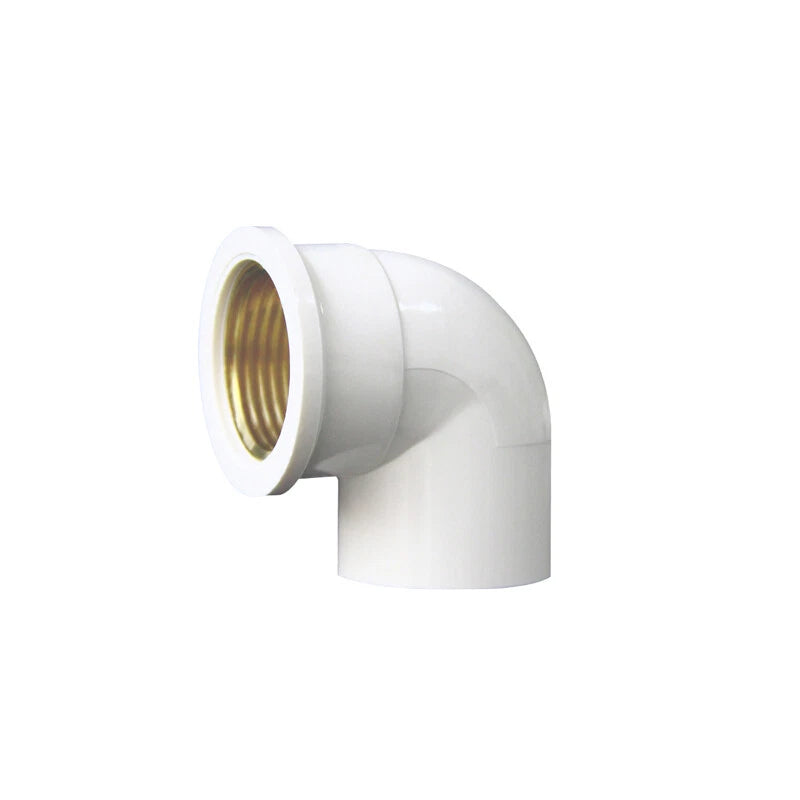

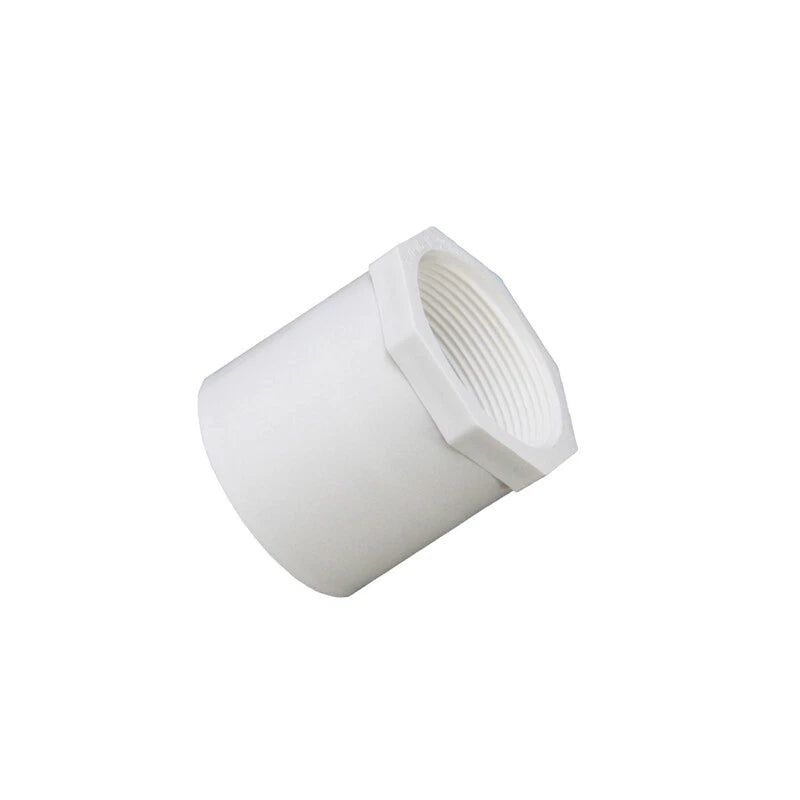

FBSP (Female British Standard Pipe) variants have an internal thread that accepts a male BSP fitting or valve — use these when connecting to a male-threaded pump outlet, tap, or valve. MBSP (Male British Standard Pipe) socket adaptors have an external thread — use these when connecting to a female-threaded port. Both are ½" BSP thread. Wrap the BSP threads with PTFE tape (included as a separate part in this listing) before assembly to ensure a leak-free seal.

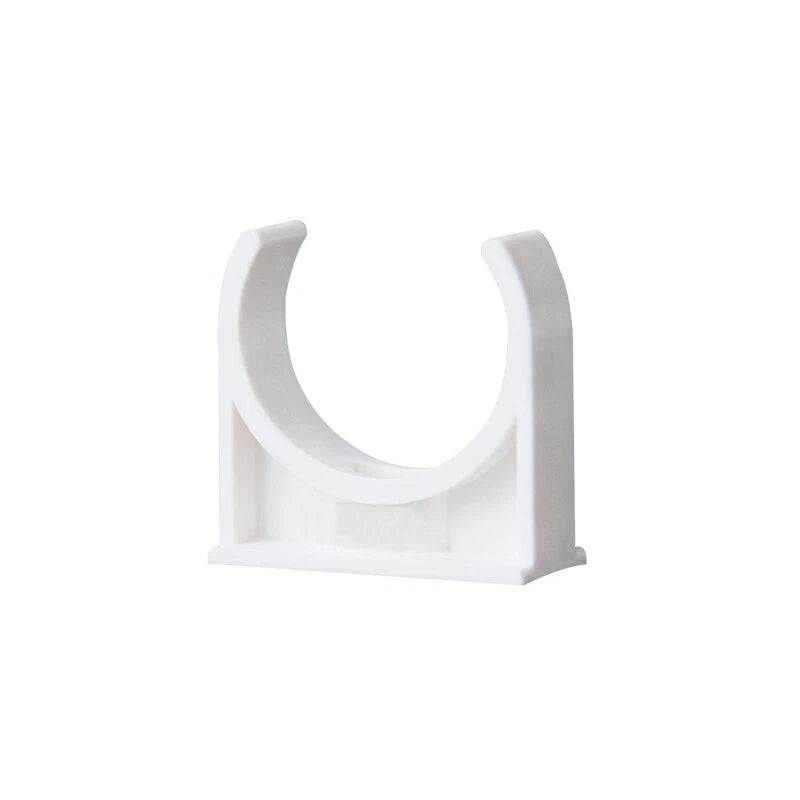

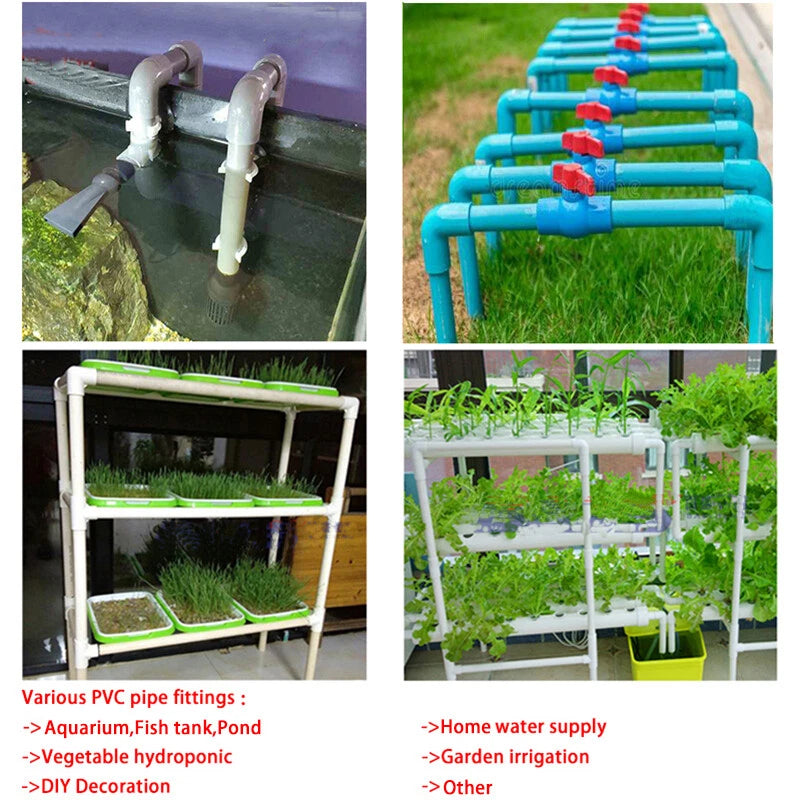

Rigid PVC is chemically resistant to saltwater and is a common material in marine aquarium sump and filtration builds. The fish tank connectors, drainage fittings, and sucker clips in this range are suitable for both freshwater and saltwater use. Ensure all solvent-weld joints are fully cured before filling the system, and avoid exposing the fittings to prolonged UV light, which can cause PVC to become brittle over time.

For a single repair or prototype, the 1-piece option lets you test fit and confirm compatibility before committing. For a full irrigation loop or sump build, the 3- or 5-piece packs offer a lower per-unit cost and ensure you have spares on hand. The 10- and 20-piece packs are suited to larger installations or trade use where multiple identical fittings are needed at multiple points in the run.
