🔨 Product Overview

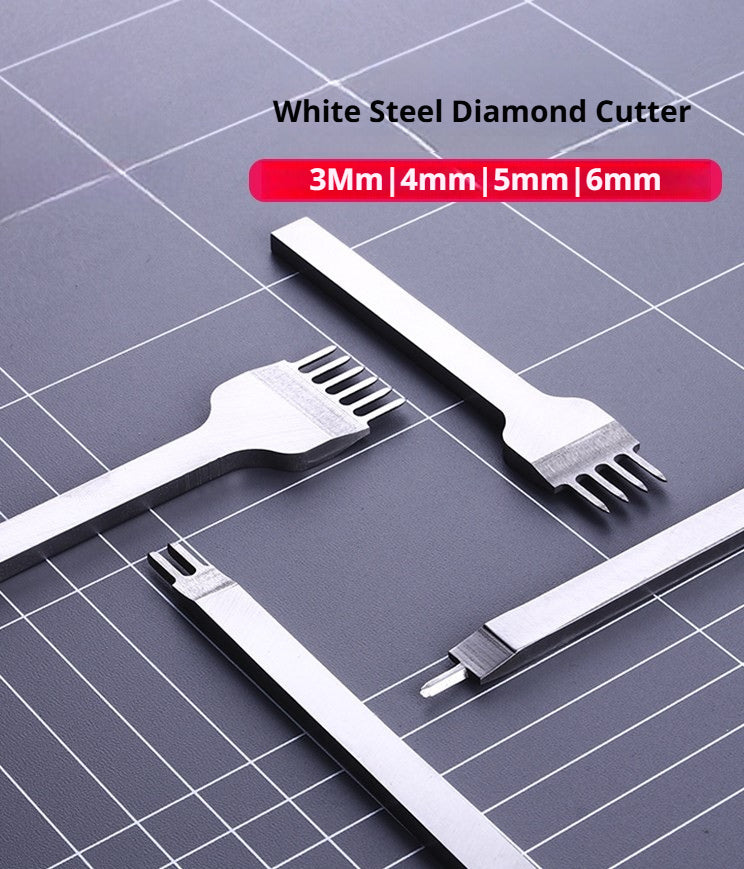

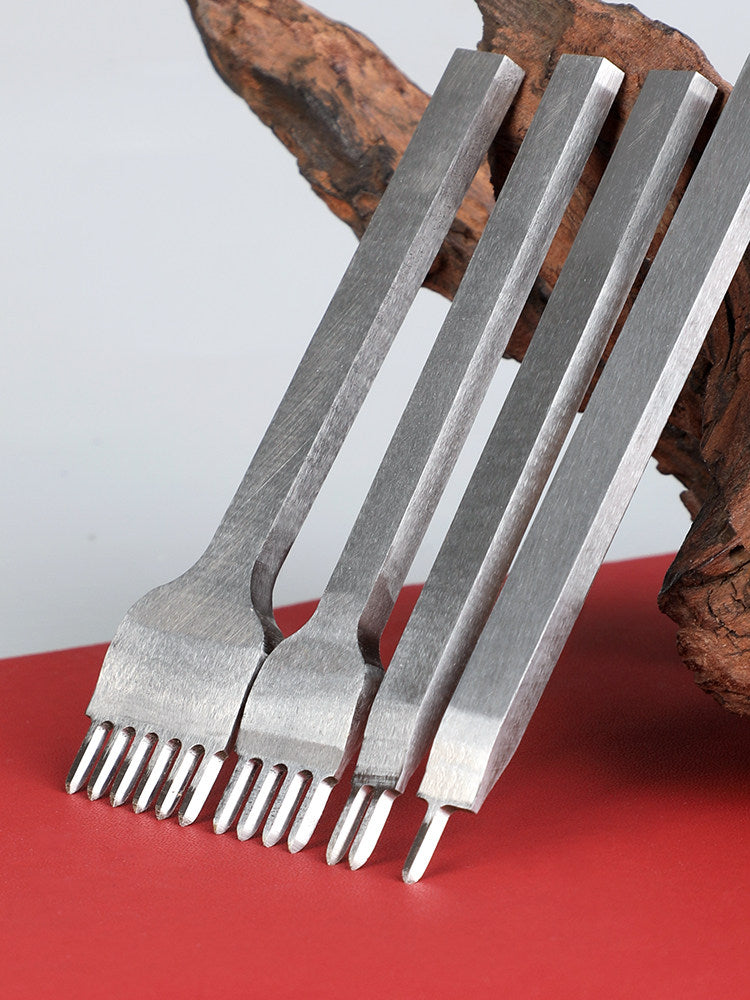

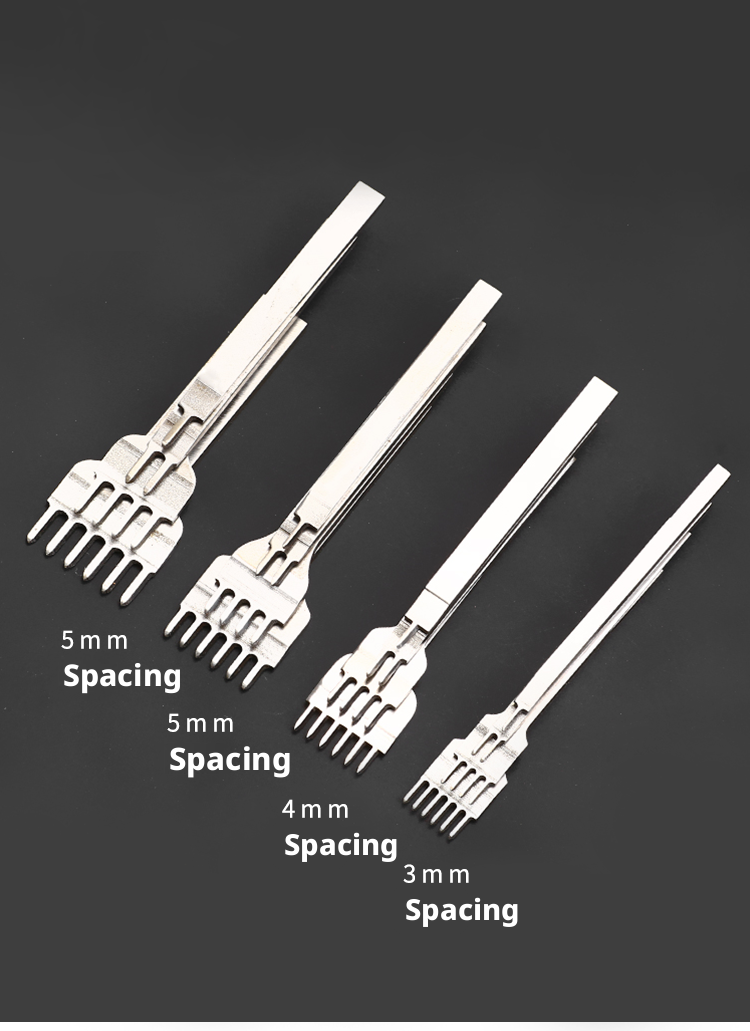

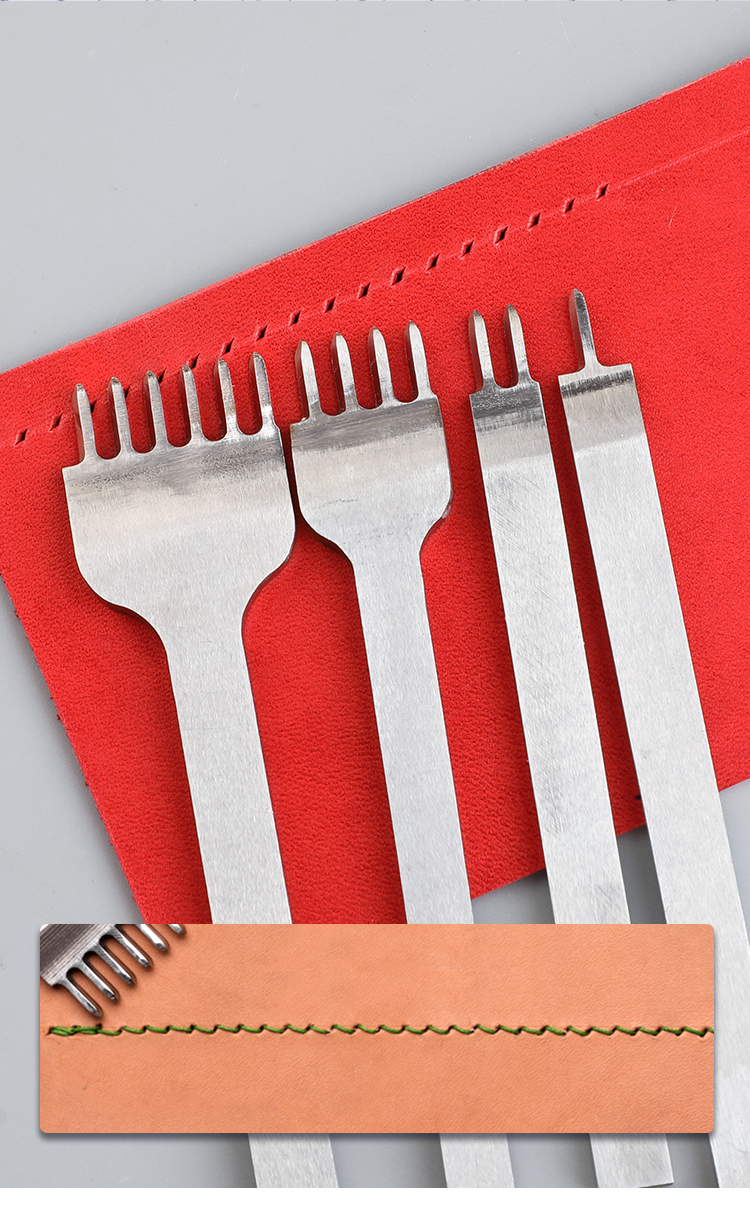

The White Steel Diamond Chisel Set is a professional punching tool for hand sewing leather goods. Made from genuine HRC62 white steel (not common stainless iron), these chisels create clean, evenly spaced diamond-shaped holes that are essential for saddle stitching. The upgraded thick version features a handle width increased from 5.7mm to 8.6mm, providing better grip and control. Available in four spacing options (3mm, 4mm, 5mm, 6mm) and four tooth counts (1, 2, 4, 6), you can choose individual chisels or complete sets (1+2+4+6 teeth per spacing).
Whether you are making a small wallet (3‑4mm spacing), a handbag (4‑5mm spacing), or a heavy saddle (6mm spacing), these diamond chisels deliver precise, consistent holes without tearing the leather. The chisels are heat‑treated to HRC62 hardness, offering excellent wear resistance and edge retention. Each set also includes a free multi‑function puller (or chopper) to help remove chisels from dense leather safely. For best results, use with a soft cutting board (not a hard punching board) and strike vertically to prevent breakage.
✨ Key Features & Benefits
- ✔️ Genuine HRC62 White Steel Construction – Hardened to 62 on the Rockwell C scale, these chisels stay sharp much longer than standard stainless or carbon steel options. Resists dulling and chipping.
- ✔️ Upgraded Thick Handle (8.6mm width) – The handle is significantly thicker than standard versions (up from 5.7mm), providing a more comfortable grip and better force transfer. Reduces hand fatigue during heavy punching.
- ✔️ Four Spacing Options – 3/4/5/6mm – 3mm for fine work (watch straps, small accessories), 4mm for wallets and clutches (most popular), 5mm for handbags and briefcases, 6mm for saddles and heavy bags.

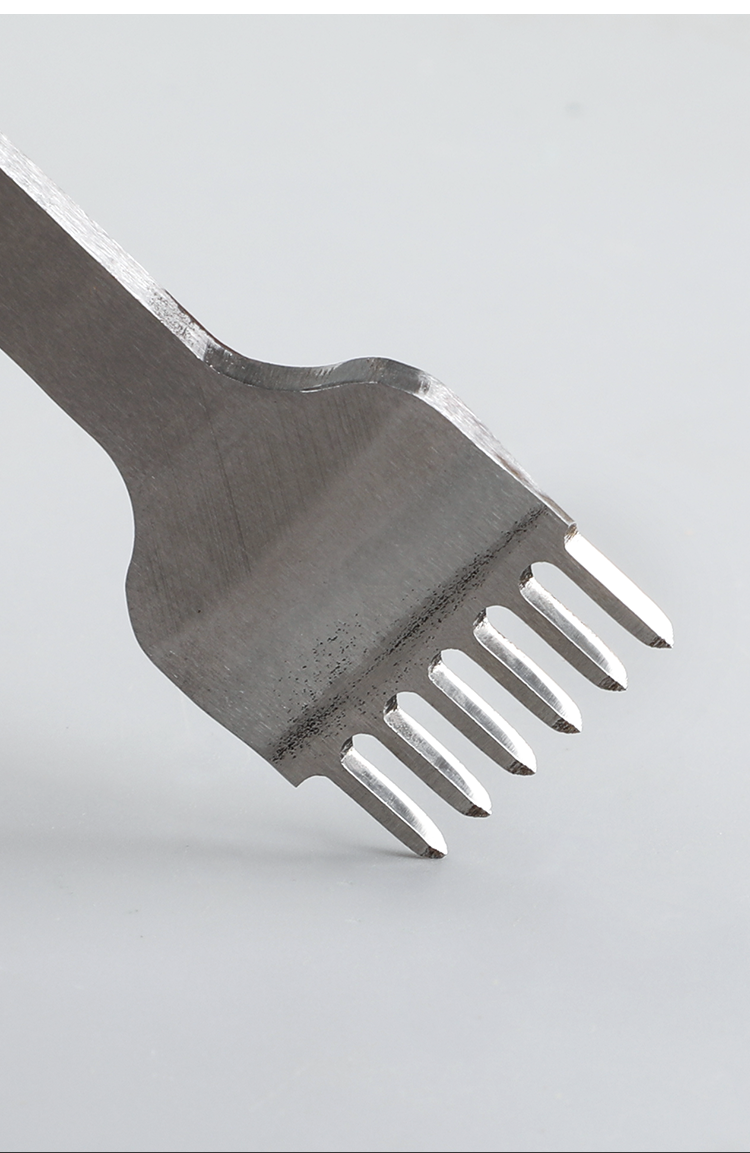

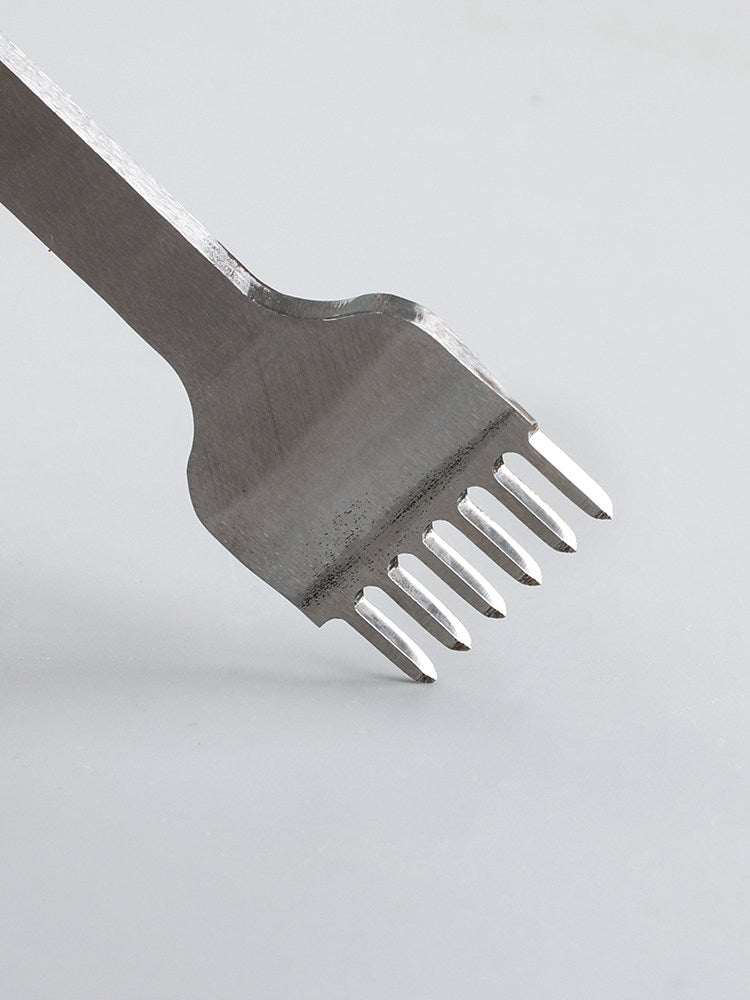

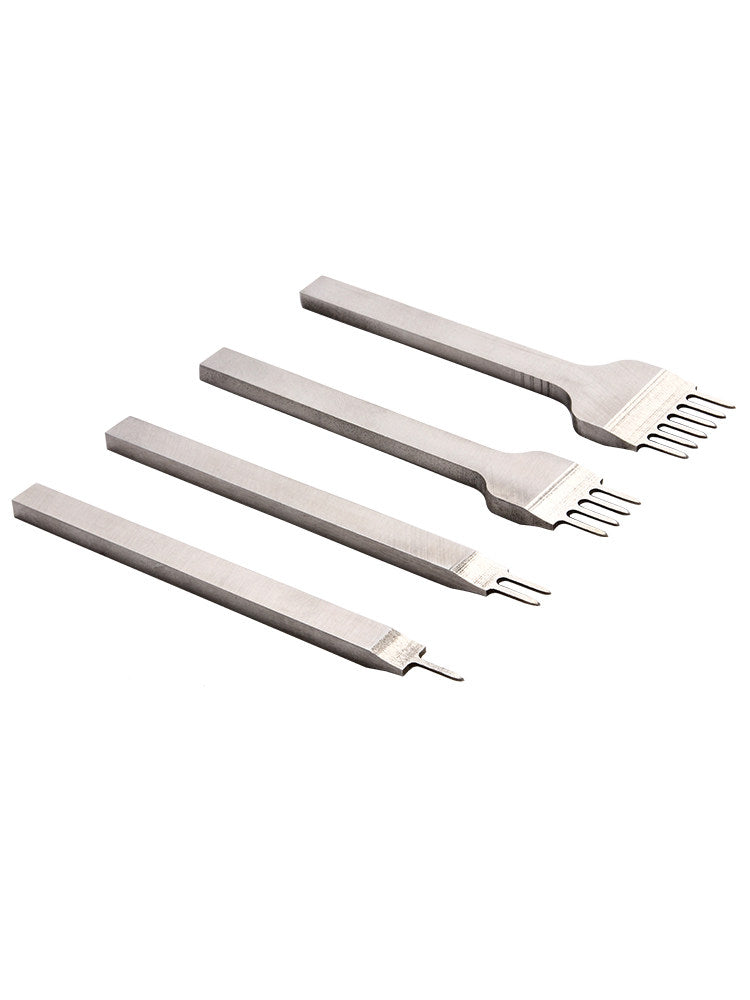

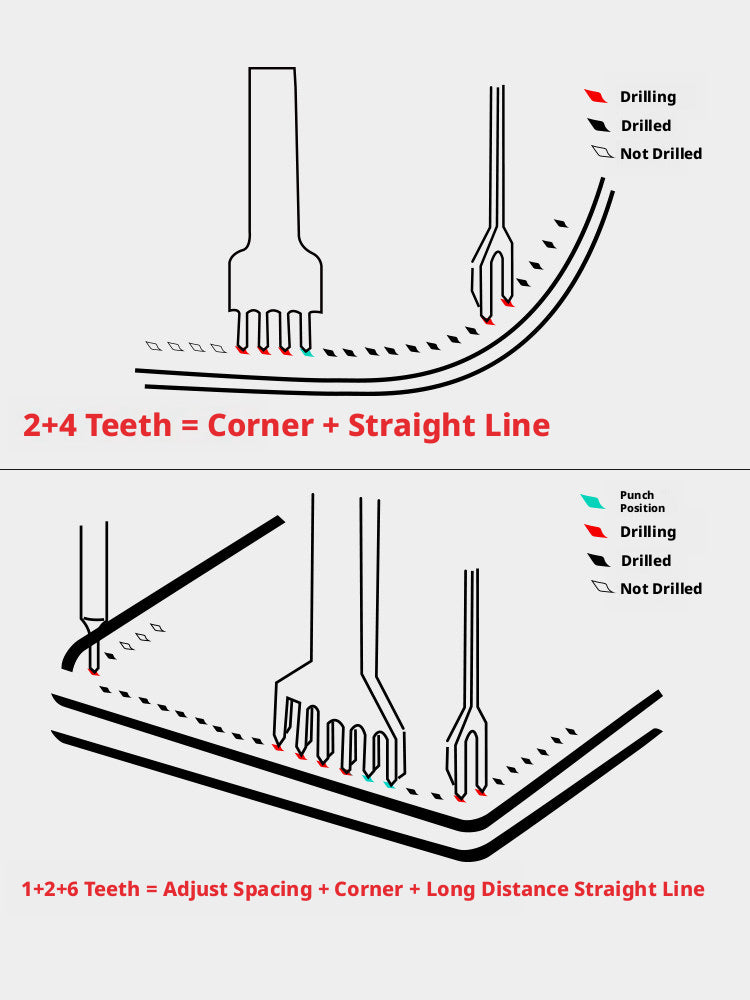

- ✔️ Multiple Tooth Counts – 1,2,4,6 – 1‑tooth chisel for corners and spacing adjustments; 2‑tooth for curves and tight turns; 4‑tooth for straight lines (most used); 6‑tooth for long straight seams (saves time).

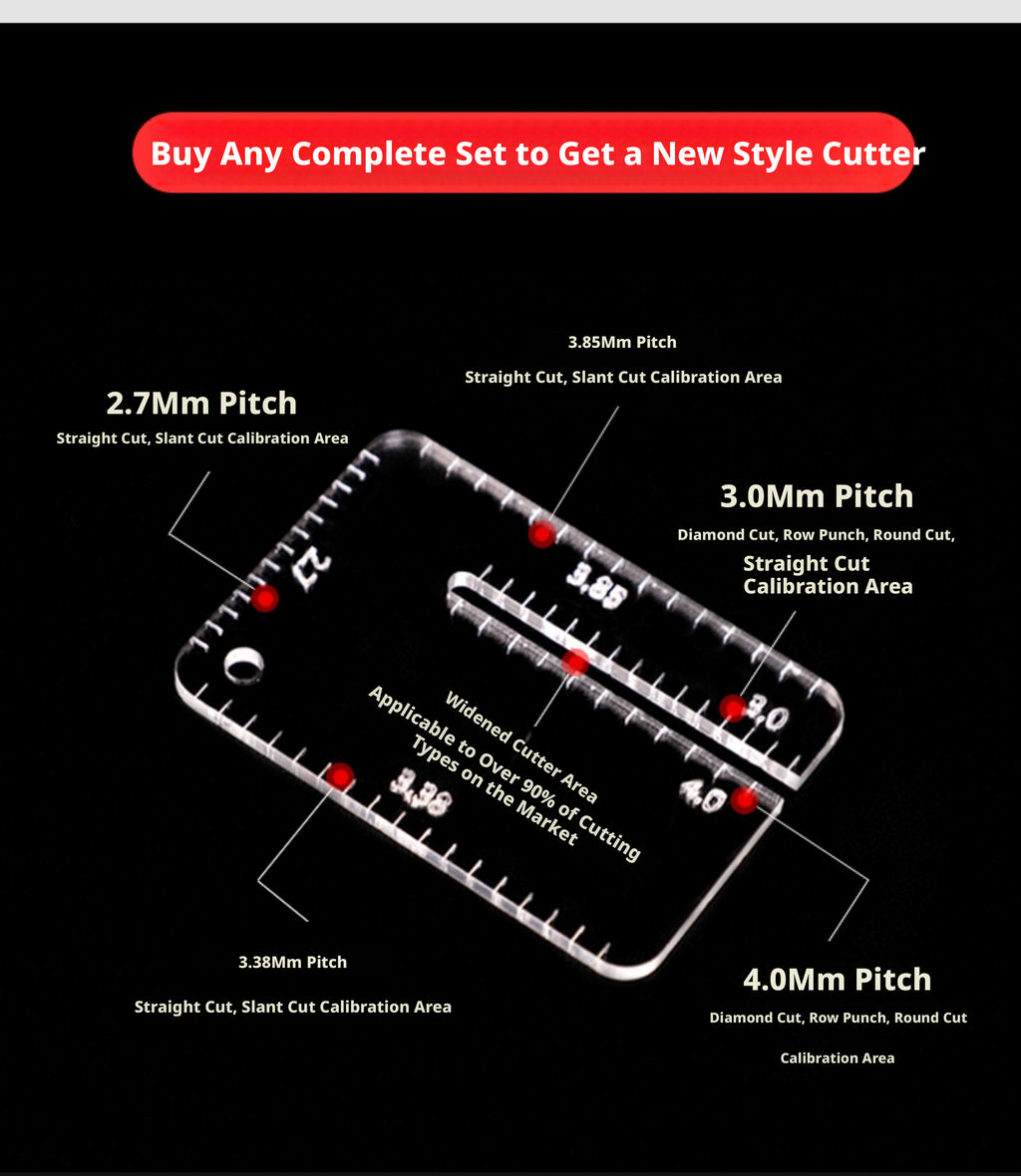

- ✔️ Complete Sets with Free Puller – Purchase a full set (1+2+4+6 teeth) for any spacing and receive a multi‑function puller/chopper free. This tool helps extract chisels safely without damaging the teeth.

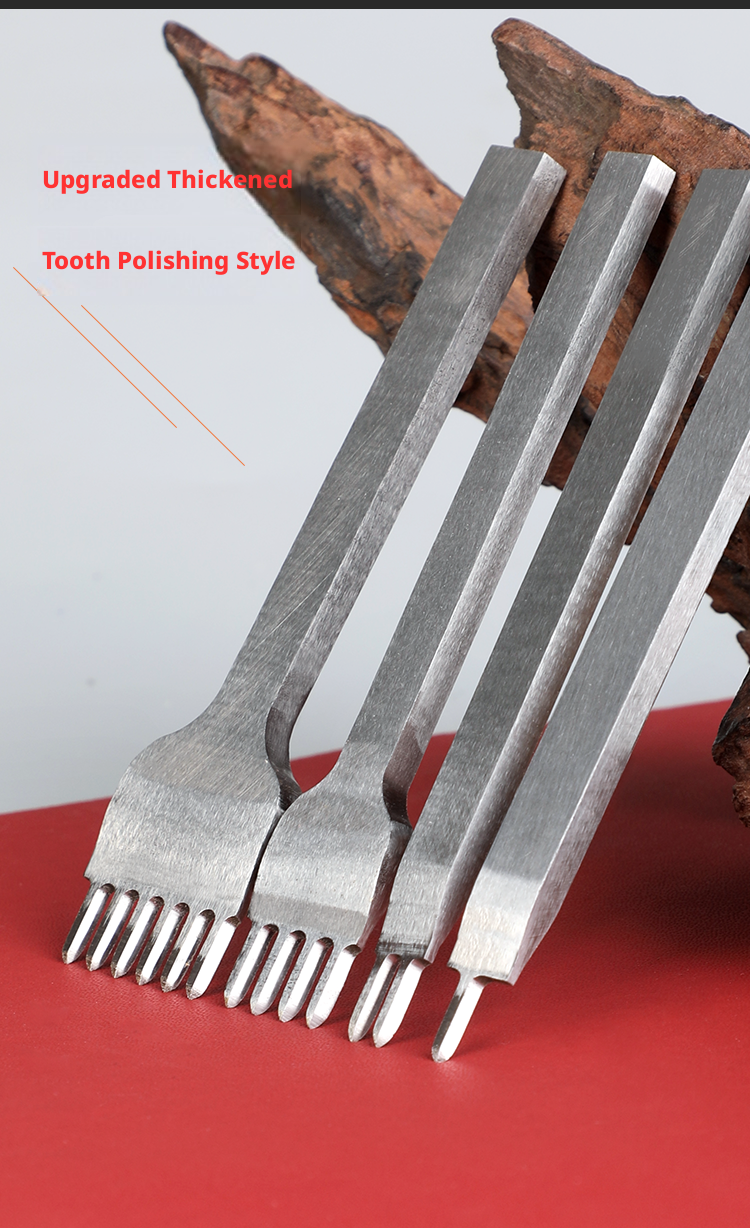

- ✔️ Polished Tooth Option – The upgraded polished version has smoother tooth surfaces for even cleaner hole exit and reduced friction.

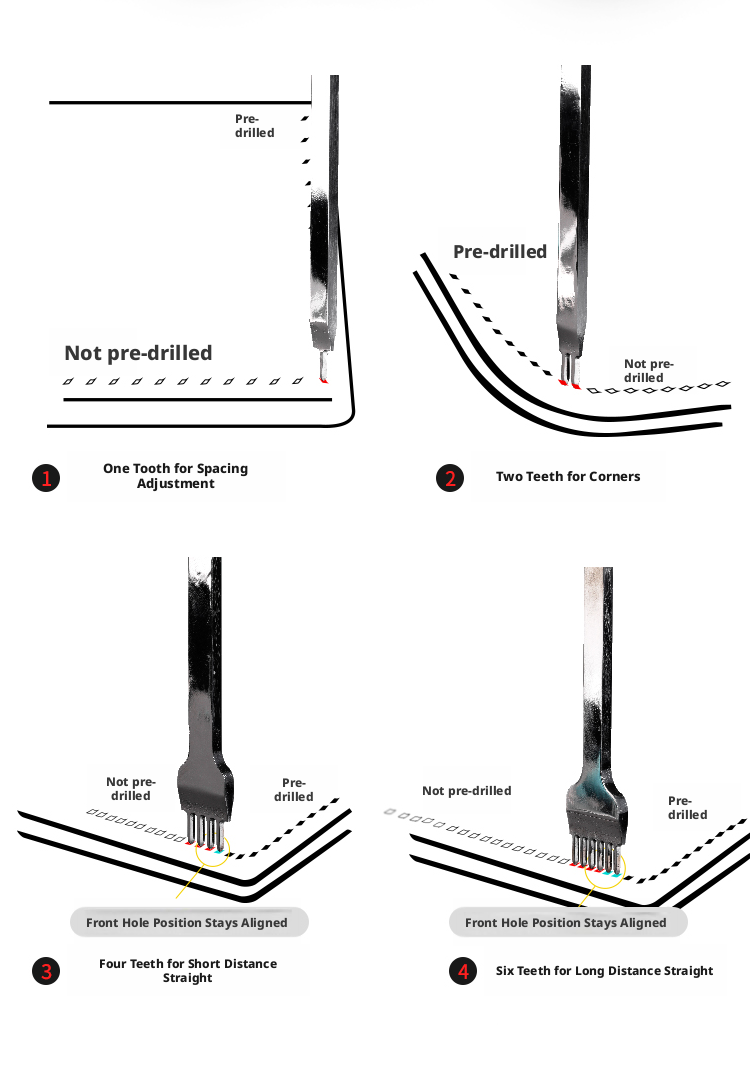

- ✔️ Pre‑Drilled vs. Not Pre‑Drilled Reference – The chisels are designed for punching through leather. To keep front holes aligned, use the 4‑tooth or 6‑tooth chisels straight; for corners, use 1‑tooth and 2‑tooth.
🧵 Ideal For These Leather Projects
Leather Wallet Stitching Belt Hole Punching Handbag & Tote Assembly Crossbody Bag Seams Watch Strap & Key Fob Saddle & Quiver Construction Briefcase & Portfolio Clutch & Card Holder Leather Journal Cover Holster & Sheath Stitching
🔧 Compatibility Guide
✔ Compatible With:
- ✔️ Vegetable Tanned Leather (2‑6mm thickness)
- ✔️ Chrome Tanned & Genuine Leather
- ✔️ Faux Leather (softer – use lighter strikes)
- ✔️ Soft cutting board (polyethylene or self‑healing mat)
- ✔️ Waxed polyester thread (0.45‑1.2mm depending on spacing)
✘ Not Recommended For:
- ✘ Hard punching boards (use only soft cutting boards)
- ✘ Metal or wood punching
- ✘ Striking at an angle – always keep chisel vertical
- ✘ Forcing chisel out of thick leather by prying – use a puller

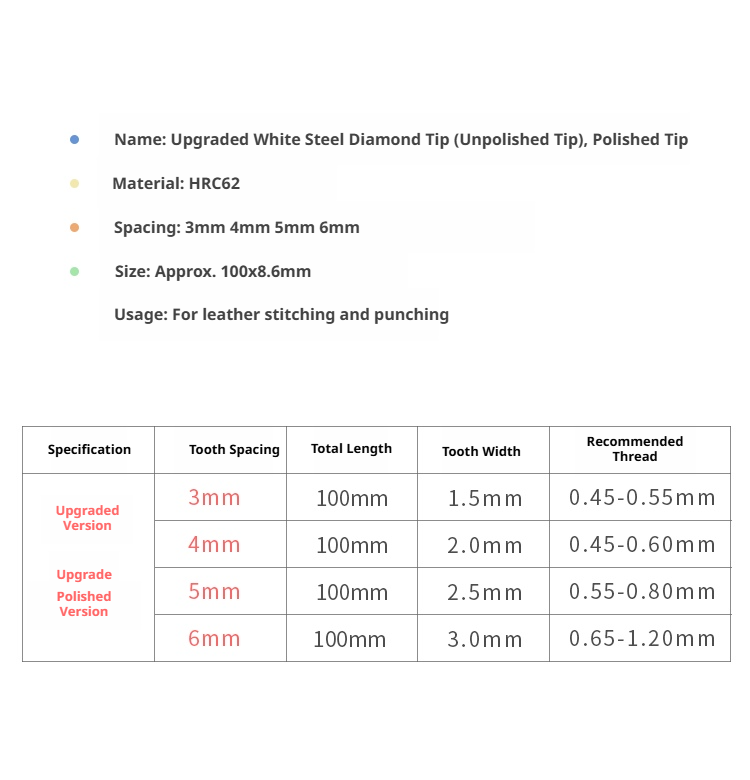

| Material |
Genuine white steel, HRC62 hardness |
| Handle Material |
Metal (thickened, width 8.6mm) |
| Total Length (approx.) |
100mm (3.94 inches) – handle + tooth section |
| Spacing Options |
3mm, 4mm, 5mm, 6mm |
| Tooth Count Options |
1 tooth, 2 teeth, 4 teeth, 6 teeth (individual or full set 1+2+4+6) |
| Tooth Width (approx.) |
3mm spacing: 1.5mm; 4mm: 2.0mm; 5mm: 2.5mm; 6mm: 3.0mm |
| Recommended Thread Diameter |
3mm: 0.45‑0.55mm; 4mm: 0.45‑0.60mm; 5mm: 0.55‑0.80mm; 6mm: 0.65‑1.20mm |
| Surface Finish |
Unpolished or polished (upgraded polished version available) |
| Included Free Tool (with full set) |
Multi‑function puller / chopper |
| Package Contents |
Varies by selection: individual chisel or set of 4 chisels (1,2,4,6 teeth) for selected spacing + puller |

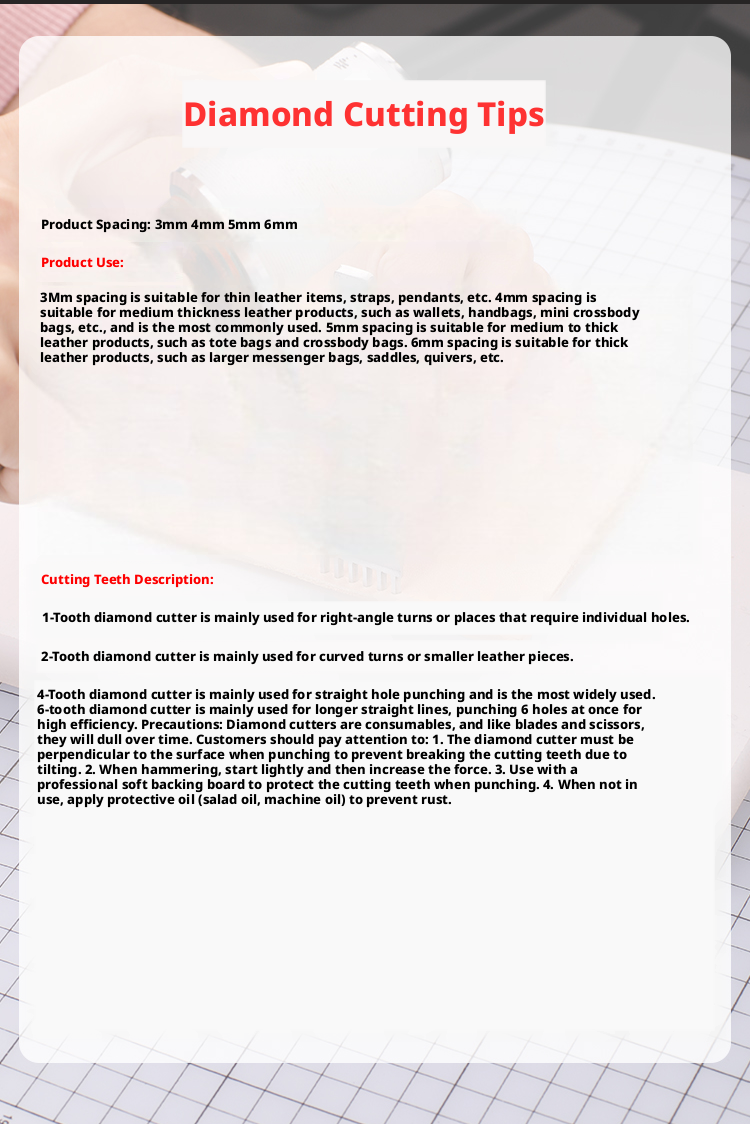

✍️ How to Use – Diamond Chisel Punching Guide
-
Select the correct spacing and tooth count – For straight lines, use 4‑tooth or 6‑tooth chisels. For corners or curves, use 1‑tooth or 2‑tooth. Match spacing to your project (3mm for fine, 4mm standard, 5‑6mm for heavy).
-
Mark your stitch line – Use a wing divider or stitching groover to mark a line 3‑5mm from the leather edge. Align the chisel teeth along this line.
-
Position the chisel vertically – Hold the chisel perpendicular to the leather surface. Striking at an angle will break the teeth. Use a mallet (rawhide or poly) – avoid metal hammers.
-
Strike with even force – Start with light taps to set the teeth, then strike firmly until the teeth just penetrate through the leather. Do not drive the chisel deep into the cutting board – only enough to exit the leather.
-
Remove the chisel – Gently rock the chisel side to side to loosen, then pull straight up. If stuck, use the included puller: hook it under the chisel head and tap upward with a mallet. Never pull at an angle or use pliers on the teeth.
-
Continue along the seam – Insert the first tooth of the next strike into the last hole of the previous strike to maintain even spacing. Repeat until the entire stitch line is punched.
💡 Important: Always use a soft cutting board (polyethylene or self‑healing mat). Never use a hard punching board – it will dull or break the teeth. Keep the chisel vertical at all times.
❓ Frequently Asked Questions
Q: What is the difference between white steel and stainless iron chisels?
A: White steel (HRC62) is much harder and holds a sharp edge longer than common stainless iron (typically HRC45‑50). White steel resists dulling when punching thick leather, but it is also more brittle – you must strike vertically and avoid prying.
Q: Which spacing should I choose for a beginner making wallets?
A: 4mm spacing is the most common and recommended for beginners. It works well with 0.45‑0.60mm thread and gives a classic stitch look. A 4‑tooth chisel is ideal for straight lines, plus a 1‑tooth for corners.
Q: Do I need to buy the full set (1+2+4+6 teeth) or can I start with just one?
A: You can start with a 4‑tooth chisel and a 1‑tooth chisel (for corners). However, the full set (1+2+4+6) is more convenient for long seams (6‑tooth saves time) and curves (2‑tooth is easier than 4‑tooth). The free puller with the set is also very useful.

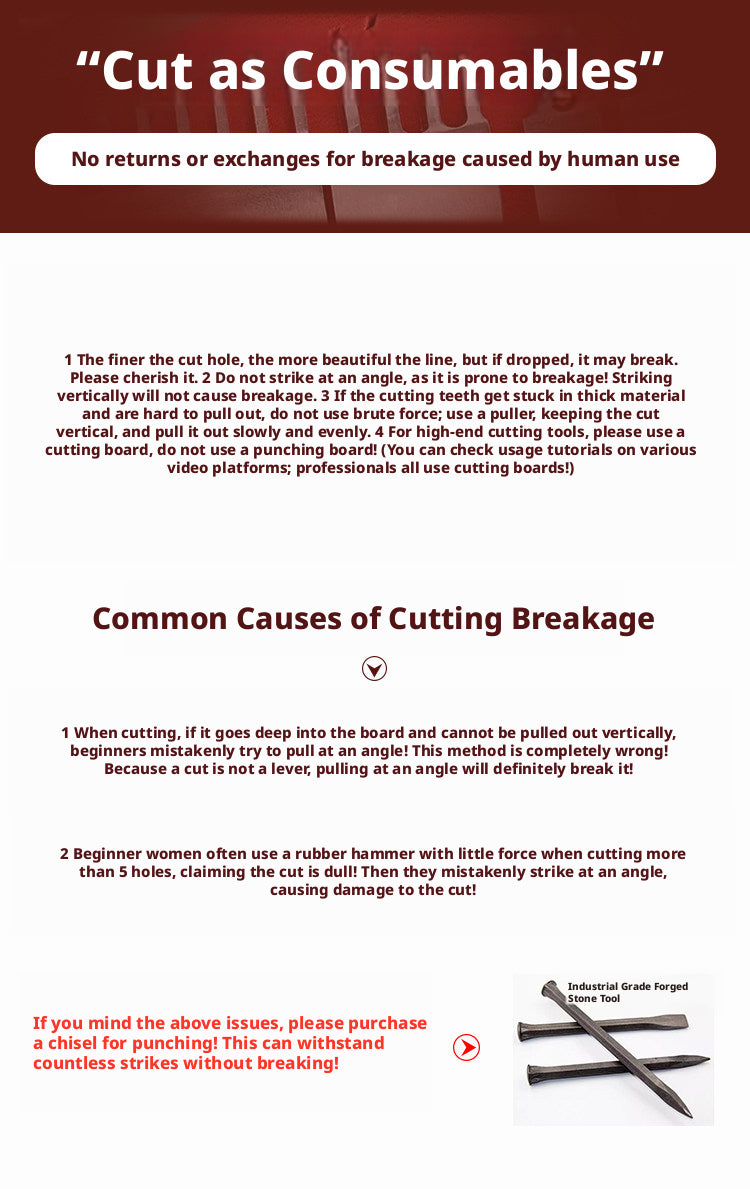

Q: Why are my chisel teeth breaking?
A: Most breakage occurs from striking at an angle (not vertical) or prying the chisel out sideways. Always hold the chisel perpendicular to the leather. If stuck, use the puller to lift straight up. Also, never punch on a hard surface – use a soft cutting board.
Q: Can I use these chisels on chrome‑tanned leather?
A: Yes, but chrome‑tan is softer and more elastic. The holes may close up slightly after punching, making threading harder. For best results, use a slightly larger spacing (4‑5mm) and wipe the chisel teeth with wax or soap before each strike.
Q: How do I maintain and store the chisels to prevent rust?
A: After each use, wipe the teeth with a dry cloth. Apply a light coat of machine oil or salad oil to the steel parts. Store in a dry place. Avoid leaving them on damp leather or in humid environments.
Q: What is the free puller/chopper used for?
A: The multi‑function puller helps remove chisels that become stuck in thick leather. Hook it under the chisel head and tap upward with a mallet. It also acts as a chopper for cutting thread or small leather pieces (depending on the model).
⭐ Why Leather Crafters Choose These White Steel Diamond Chisels
DIY Friendly – Clear spacing options and tooth counts make it easy to start.
Reliable Quality – Genuine HRC62 white steel stays sharp and resists wear.
Thickened Handle – 8.6mm width provides better grip and punching power.
Versatile Sizes – From 3mm fine to 6mm heavy, one brand covers all.
Complete Sets Include Puller – Safe removal of chisels without damage.
📦 Ready to punch perfect diamond stitching holes? Add your White Steel Diamond Chisel set to the cart today.
