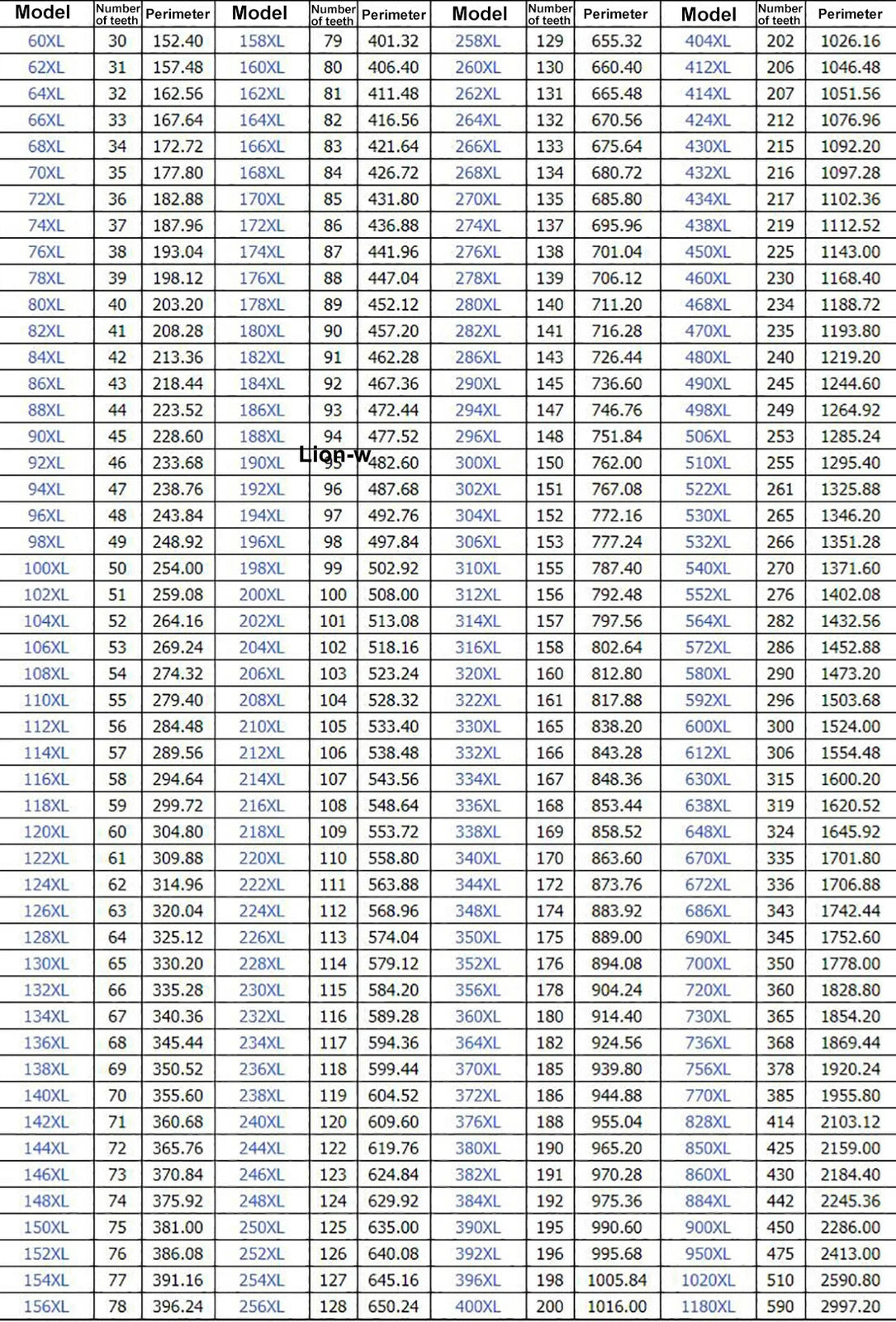

Model* Width(mm)* Number of teeth* Perimeter(mm): 506XL*10mm * 253 * 1285.24MM

QTY(pcs): 1

Preis:

$15.75 USD

Lagerbestand:

Verfügbar (500 Stück), versandbereit

Menge:

Teile dieses Produkt

Deine Zahlungsinformationen werden sicher verarbeitet. Wir speichern keine Kreditkartendaten und haben auch keinen Zugang zu deinen Kreditkartendaten.

Quantity Discount Promotion

DIY Expert Support

Get fitment advice & recommendations

Mon-Fri, 8:30AM-8PM

WhatsApp Email

⚡

24-Hour Fast Ship

🚚

Arrives in 3-14 days

🌍

Global Reach

↩️

30-Day Returns

🌱 1 tree planted with every purchase

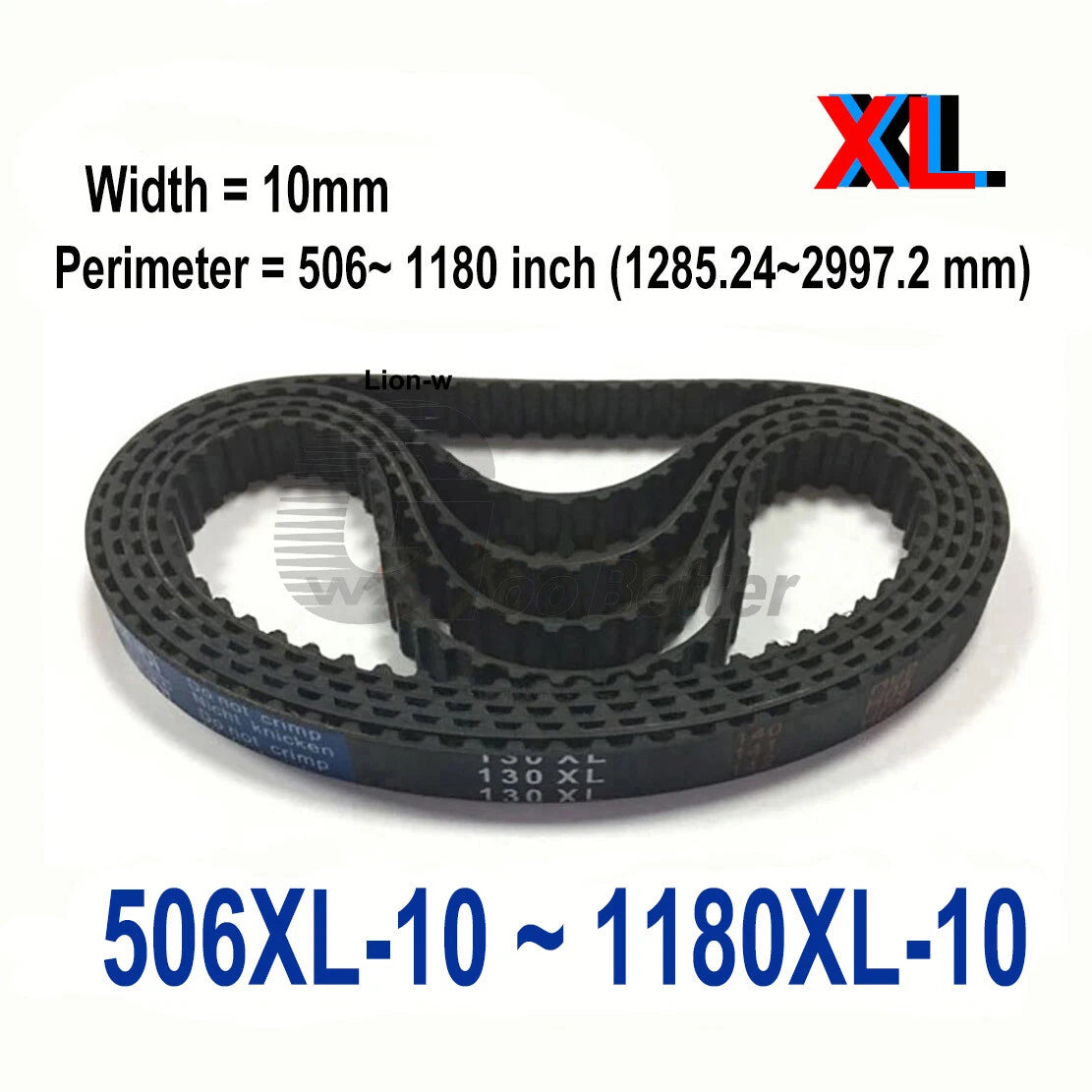

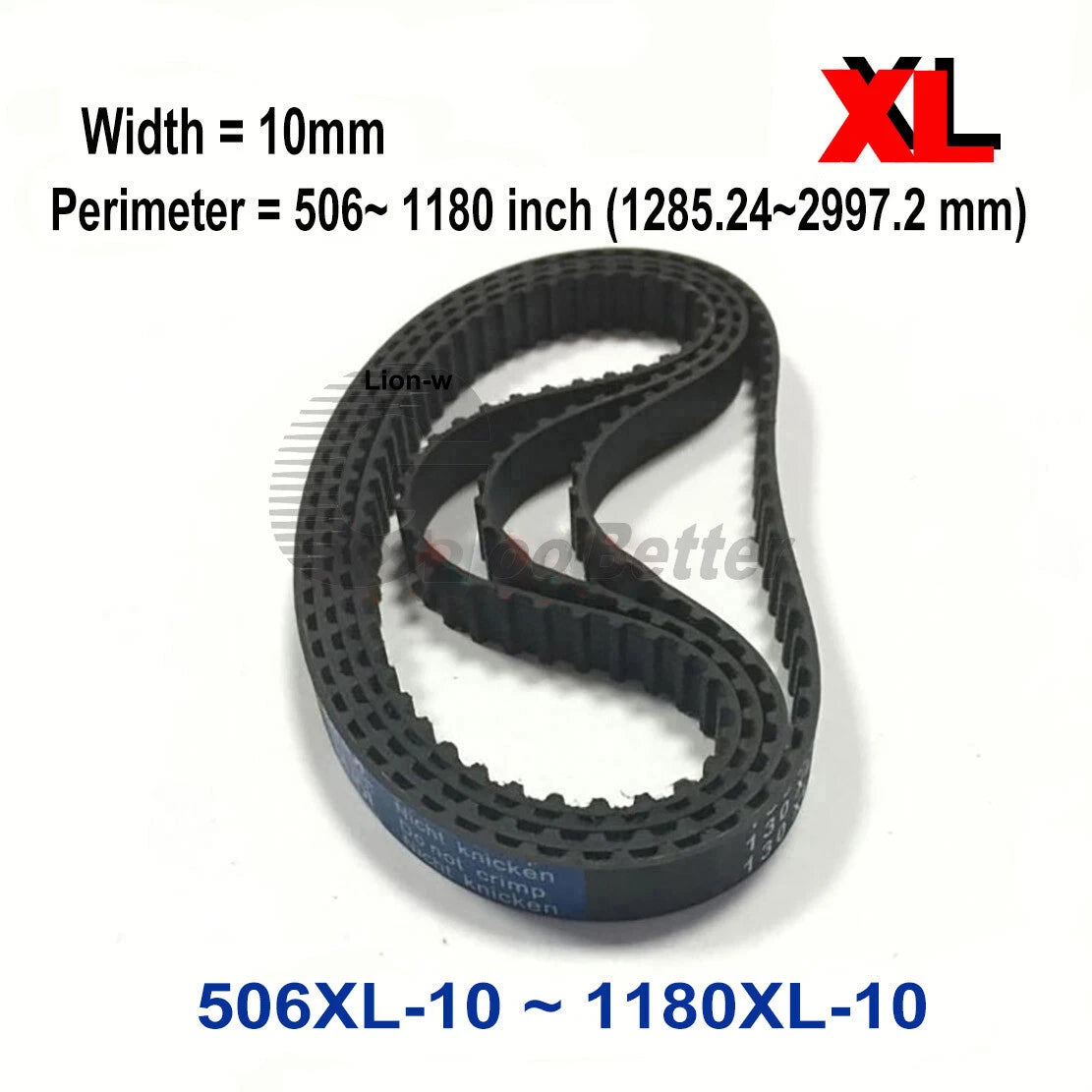

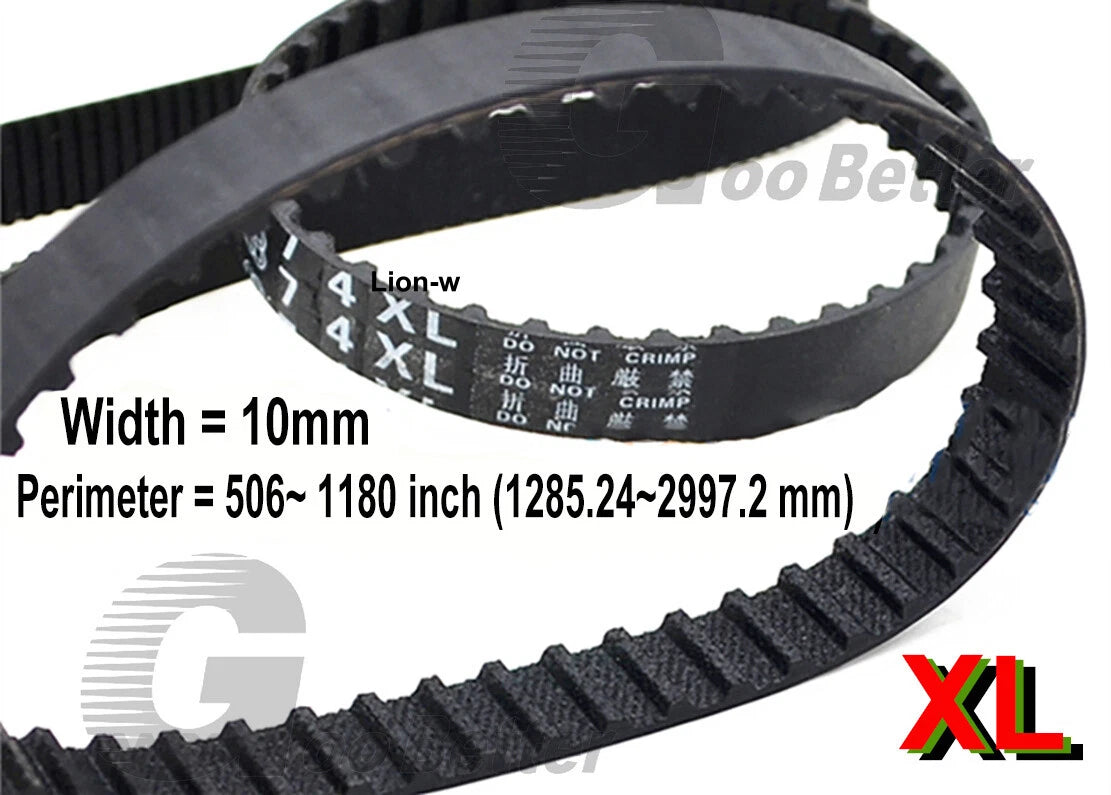

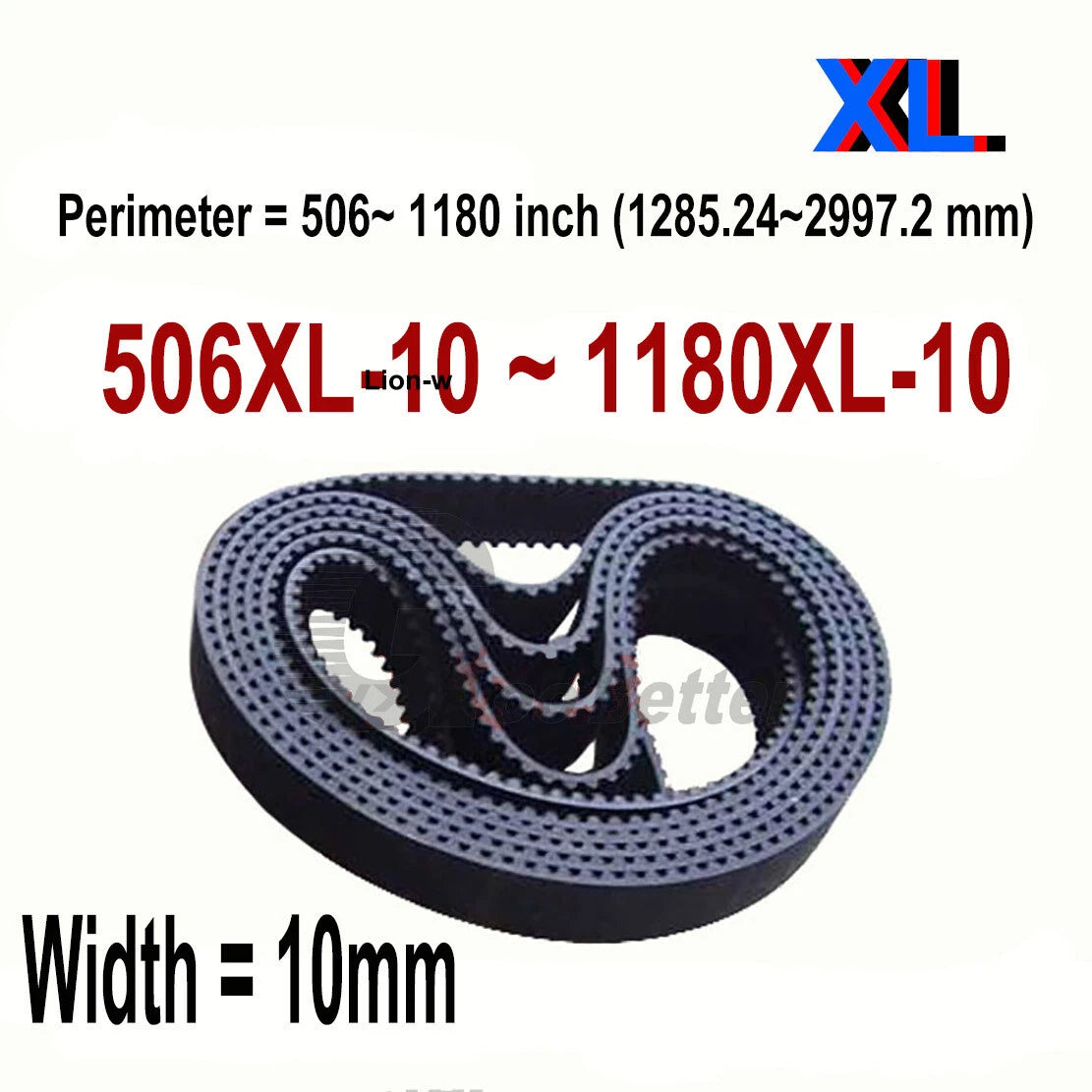

XL Rubber Timing Belts — Reliable 10mm Drive Belts for Precision Motion Control

When a worn or snapped timing belt brings your CNC router, 3D printer, plotter, or light conveyor to a halt, every minute of downtime costs you. These XL rubber timing belts are stocked specifically for makers, repair technicians, and small-machine operators who need a direct replacement without waiting weeks for a custom order.

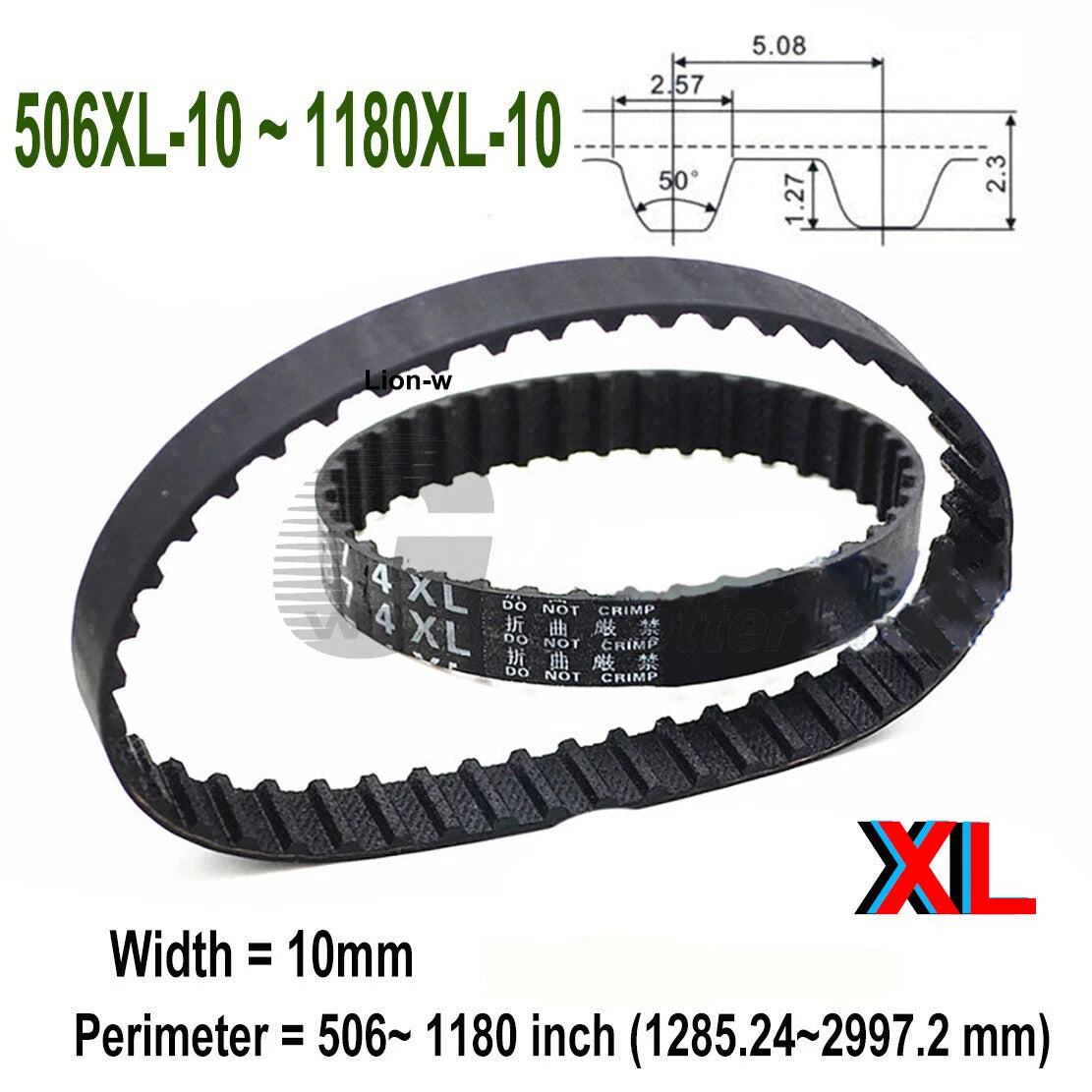

Each belt in this listing features a 10mm (≈3/8") width and follows the standard XL tooth profile with a 5.080mm (0.200") pitch. Available models span from 506XL (perimeter 1285.24mm / ≈50.6") to 1180XL (perimeter 2997.2mm / ≈118"), covering a wide range of drive configurations. The rubber compound is reinforced with a low-stretch tension cord for dimensional stability under load. Order 1, 2, or 3 pieces per transaction.

Typical applications include desktop CNC machines requiring XL replacement drive belts, 3D printer Y-axis and X-axis belt replacements, light-duty conveyor systems, and stepper motor timing belt drives in automation equipment. The standardized XL tooth profile ensures drop-in compatibility with any XL-profile pulley system.

ℹ️ Compatibility Note: These belts use the standard XL tooth profile (5.080mm pitch). Confirm your pulley accepts a 10mm wide belt and matches the XL groove profile before ordering. Select your model number by perimeter — e.g., 506XL = 50.6" (1285.24mm).

✅ Key Features of These XL Rubber Timing Belts

⚙️Standard XL Tooth Profile — 5.080mm (0.200") pitch conforms to the industry-standard XL specification, ensuring direct compatibility with XL-profile pulleys used in CNC machines, printers, and automation drives.
📏Wide Size Range — 34 model options from 506XL to 1180XL cover perimeters from 1285mm (≈50.6") to 2997mm (≈118"), making it straightforward to find a replacement XL drive belt for most light-duty machines.
🔩Low-Stretch Tension Cord — Internal reinforcement cord resists elongation under cyclic load, maintaining consistent tooth engagement and reducing the need for frequent re-tensioning in stepper motor timing belt drives.
🛡️Rubber Compound Construction — The belt body is molded from a synthetic rubber compound that provides flexibility across a range of operating temperatures and resists cracking from repeated flexing around small-diameter pulleys.
📦Multi-Pack Options — Available in quantities of 1, 2, or 3 pieces per order, so you can stock spares for scheduled maintenance or keep a backup on hand for production-critical equipment.
🚀US Warehouse Stock — Ships from our US warehouse, reducing transit time compared to overseas suppliers — a practical advantage when you need a replacement XL timing belt quickly to minimize machine downtime.

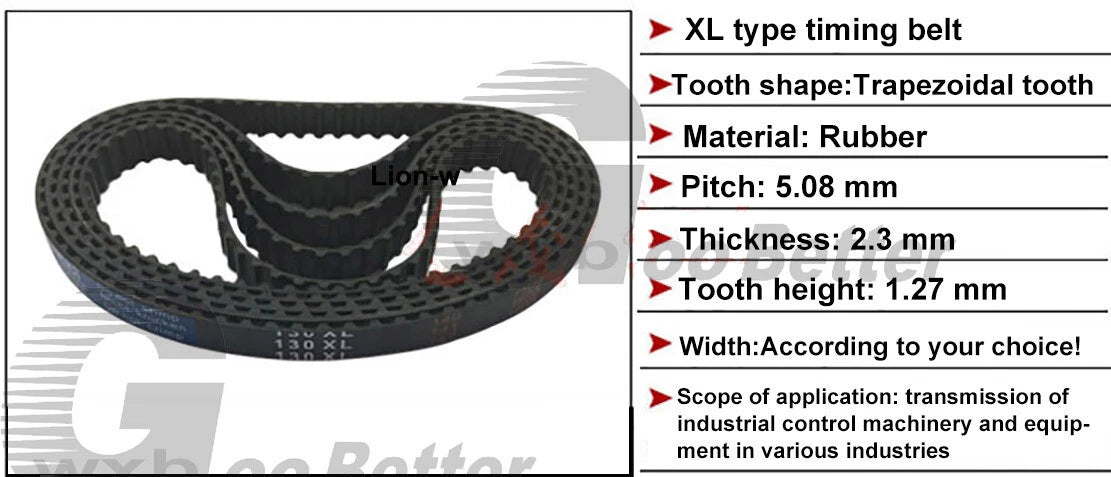

📐 Technical Specifications — XL Rubber Timing Belt

Belt Type	XL (Extra Light) Synchronous Timing Belt

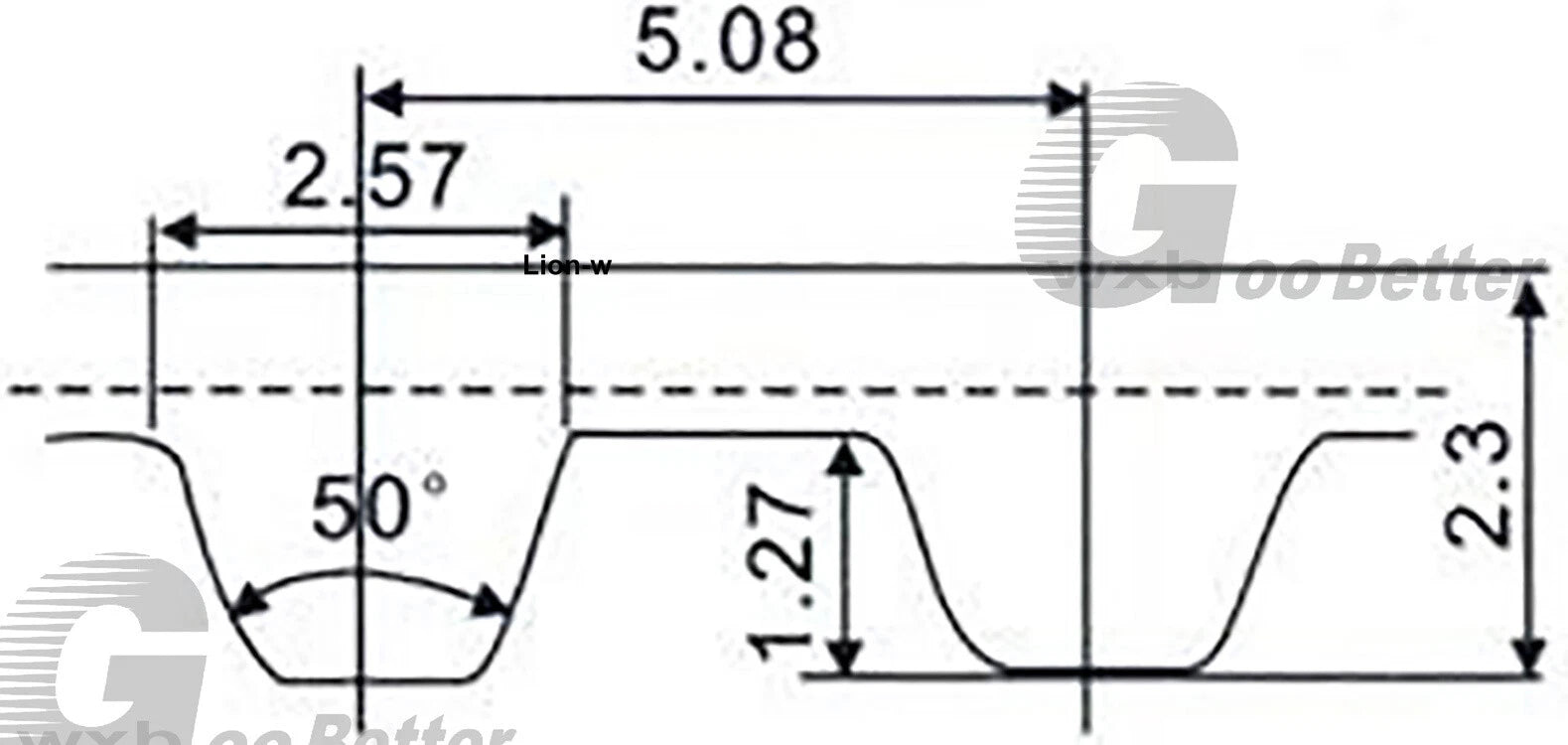

Tooth Pitch	5.080mm (0.200")
Belt Width	10mm (≈3/8")
Available Models	506XL to 1180XL (34 sizes)
Perimeter Range	1285.24mm (≈50.6") — 2997.2mm (≈118")
Number of Teeth Range	253 teeth (506XL) — 590 teeth (1180XL)
Belt Material	Synthetic rubber with reinforcement cord
Tooth Profile	Standard XL (trapezoidal)
Compatible Pulley Type	Standard XL-profile pulleys (10mm groove width)
Quantity per Order	1, 2, or 3 pieces (select above)
Operating Temperature	See variant options / Contact us to confirm
Country of Origin	Contact us to confirm

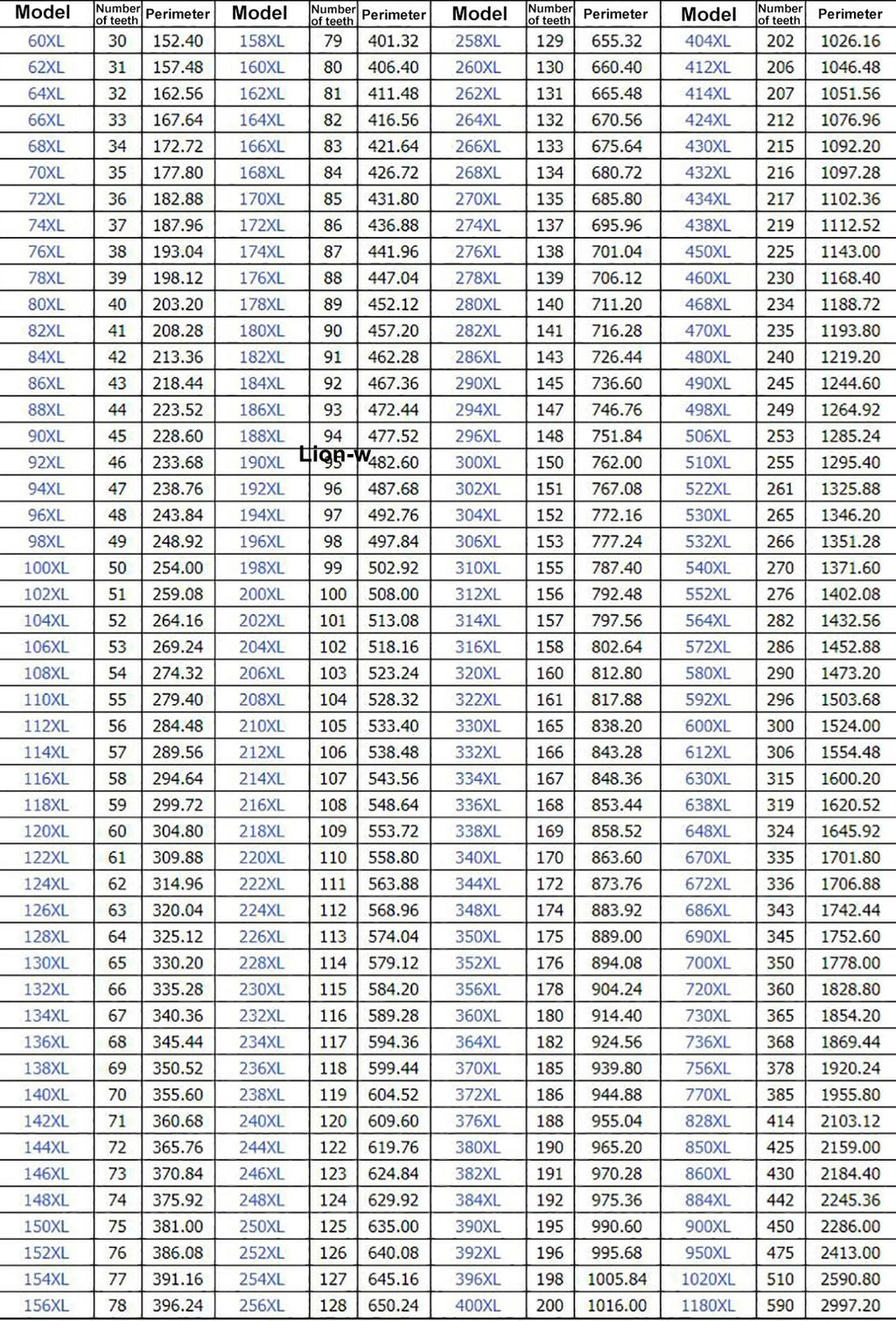

⚠️ Size Tip: The model number encodes the perimeter in tenths of an inch. 506XL = 50.6" = 1285.24mm. Use this to cross-reference your existing belt or machine spec sheet before ordering.

❓ Frequently Asked Questions

How do I choose the right XL timing belt size?

Match the model number to your existing belt or measure the perimeter of your drive path. The model number (e.g., 506XL) encodes the perimeter in tenths of an inch — 506XL is typically 50.6 inches (≈1285mm). Width is fixed at 10mm for all variants in this listing. When in doubt, measure the old belt or consult your machine's manual. For inch-to-mm conversion: multiply inches by 25.4 (e.g., 50.6" × 25.4 = 1285.24mm).

What does the XL designation mean for timing belts?

XL stands for Extra Light — it is a standardized tooth profile with a 5.080mm (0.200") pitch. XL belts are generally used in light-duty power transmission and motion control applications such as printers, plotters, CNC machines, and small conveyor systems. They are not interchangeable with L, H, or MXL profile belts.

What is the load capacity of these XL rubber timing belts?

XL profile timing belts are designed for light-to-medium duty applications. Exact load ratings depend on the number of teeth in mesh, pulley diameter, and operating speed. In most cases, XL belts are suitable for stepper and servo motor drives in desktop CNC and 3D printing equipment. For precise torque and load specifications, refer to your equipment's engineering documentation or contact us to confirm suitability.

Can these timing belts be used outdoors or in wet environments?

These belts are made from a synthetic rubber compound with an internal tension cord. They are generally suitable for indoor use and light incidental moisture exposure. For continuous outdoor use, high-humidity environments, or exposure to oils and chemicals, verify the specific material compound with us before ordering, as performance may vary.

Are these belts compatible with standard XL pulleys?

Yes. These belts follow the standard XL tooth profile (5.080mm pitch, trapezoidal tooth form) and are compatible with any standard XL-profile pulley. Always verify that the pulley groove width accommodates a 10mm belt before ordering. XL belts are not compatible with L, H, MXL, or T5/T10 metric pulleys.

How do I convert the belt perimeter from mm to inches?

Divide the perimeter in mm by 25.4 to get inches. For example, 1285.24mm ÷ 25.4 ≈ 50.6 inches (506XL). Alternatively, the model number directly encodes the perimeter in tenths of an inch — making cross-referencing straightforward without a calculator. Example: 700XL = 70.0" = 1778mm.

Can I buy multiple belts at once?

Yes. Each listing offers quantity options of 1, 2, or 3 pieces per order. Buying in multiples is a cost-effective way to keep spares on hand for scheduled maintenance or production environments where belt replacement is a routine task.

How do I know if my machine uses an XL belt vs. another profile?

Check the existing belt for a printed designation (e.g., "506XL10" or "XL" stamped on the back). If the belt is worn, measure the tooth pitch — XL belts have a pitch of approximately 5.08mm (0.200"). You can also consult your machine's parts list or service manual. If you're unsure, contact us with your machine model and we'll help identify the correct belt.

🛒 Select your model and quantity above, then add to cart — ships from our US warehouse.
