Beschreibung

XL Timing Belt 5.08mm Pitch — Closed-Loop Rubber Drive Belt for CNC, 3D Printers & Conveyors

When a slipping V-belt or worn drive chain causes positioning errors on your CNC router or 3D printer, the fix is a properly sized synchronous timing belt. Machinists, makers, and automation engineers who need repeatable, backlash-free motion rely on XL-series closed-loop timing belts to keep their drives locked in sync — whether they're cutting aluminum, printing parts overnight, or running a light conveyor line.

Each belt in this listing is a single closed-loop XL timing belt with a 5.08mm (0.200") pitch and a 12.7mm (1/2") working width. The fiberglass-reinforced rubber construction combines a neoprene body with high-tensile fiberglass cords for dimensional stability under load. Available in 194 tooth-count sizes from 60XL (circumference 304.8mm / ≈12.0") up to 1180XL (circumference 5,994.4mm / ≈236.0") — select your exact tooth count from the variant dropdown above.

Typical use cases include CNC router X/Y axis drives where precise step-to-distance accuracy is critical, FDM 3D printer motion systems that demand low-stretch belt performance, and light industrial conveyor or indexing table drives where synchronous timing eliminates cumulative positioning error.

🔗 Compatibility: Fits all standard ANSI XL-profile pulleys and sprockets with a 5.08mm (0.200") pitch groove. Belt width is 12.7mm (1/2") — confirm your pulley accepts a 1/2" wide belt before ordering.
⚠️ Size note: Belt size = tooth count × 5.08mm circumference. Example: 100XL = 508mm (≈20.0") loop. If you are unsure of your required tooth count, measure your old belt's outer circumference or use your pulley center-distance calculation, then contact us to confirm.

✅ Key Features of These XL Closed-Loop Timing Belts

  • 📐 ANSI XL Standard Profile — 5.08mm (0.200") pitch trapezoidal tooth geometry matches any standard XL pulley, making these a direct drop-in replacement for CNC router drive belts and 3D printer motion systems.
  • 🧵 Fiberglass Tensile Cord — Embedded fiberglass cords resist stretching under cyclic load, maintaining consistent belt-to-pulley engagement and reducing the need for frequent retensioning on long-running machines.
  • 🔄 True Closed-Loop Construction — Seamless loop with no mechanical joint means no weak point, no periodic splice failure, and smooth tooth engagement throughout the full belt circumference.
  • 📏 Wide Size Range — 60XL to 1180XL — 194 tooth-count options in a single listing cover the vast majority of light-duty synchronous drive applications, from compact desktop CNC machines to longer conveyor runs.
  • 🛡️ Rubber Body with Oil & Moisture Resistance — Neoprene-compound rubber body handles incidental coolant splash, light oil mist, and workshop humidity better than urethane-only belts in typical machining environments.
  • ⚙️ 12.7mm (1/2") Working Width — The most common XL belt width for light-to-medium duty drives; compatible with standard 1/2" XL pulleys used across hobbyist CNC, laser cutter, and small automation platforms.

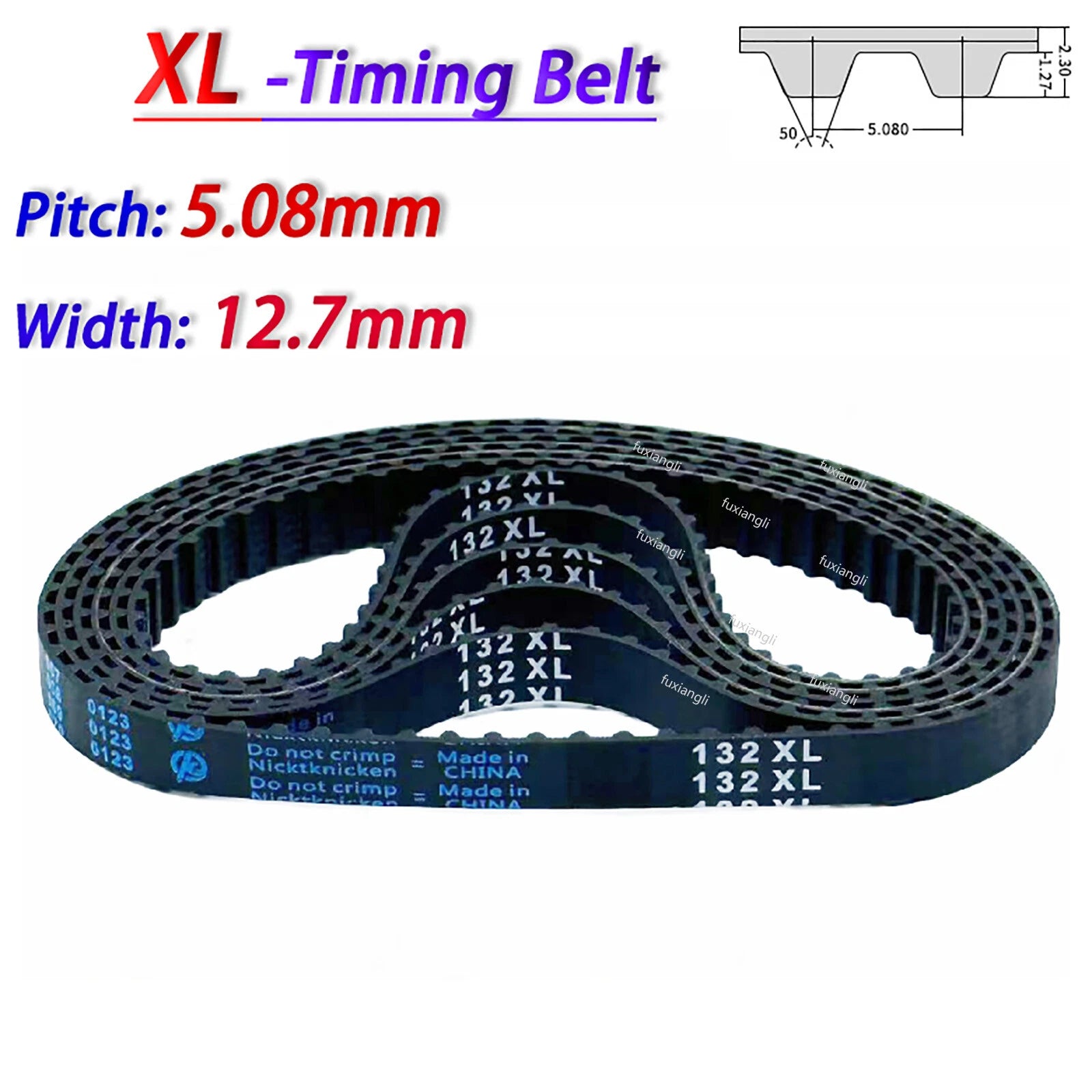

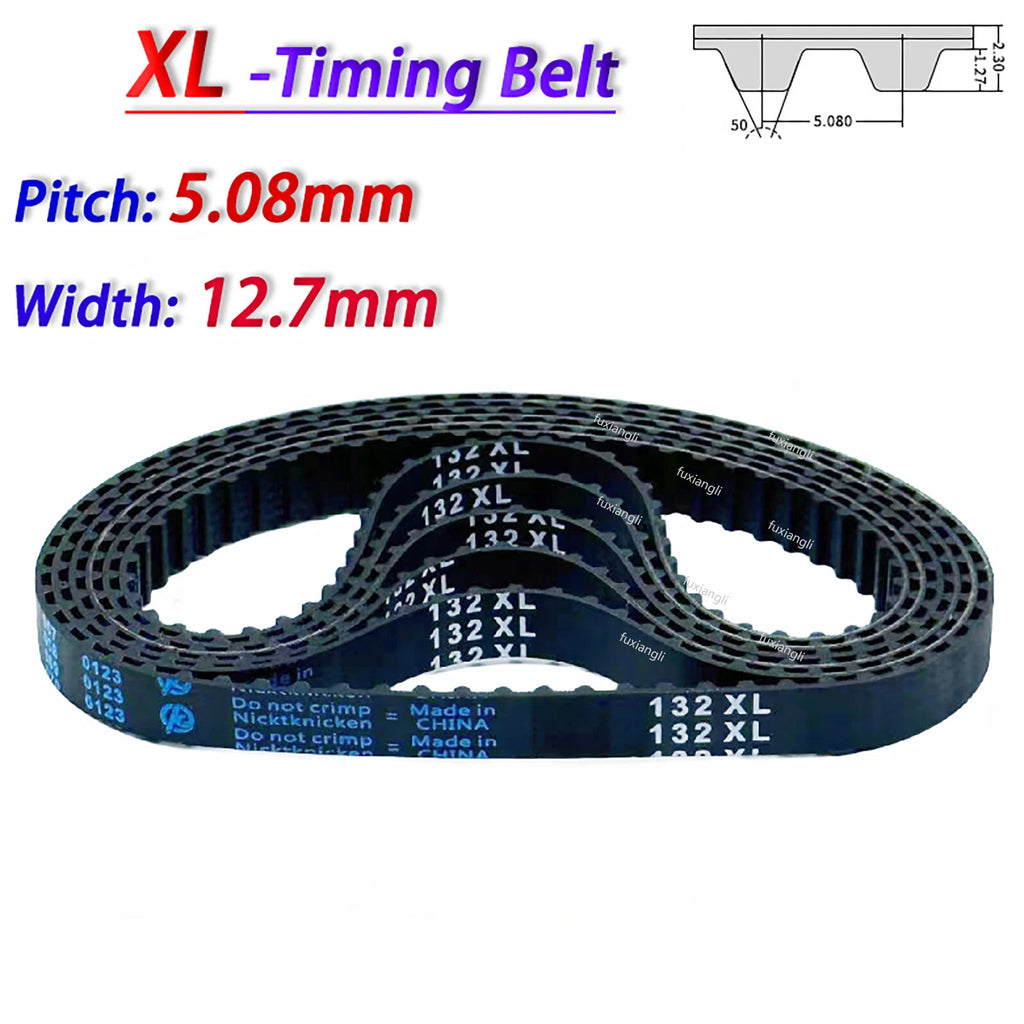

📐 Technical Specifications — XL Closed-Loop Timing Belt

Belt Series XL (Extra Light)
Tooth Profile Trapezoidal (ANSI/RMA XL standard)
Pitch 5.08mm (0.200")
Belt Width 12.7mm (1/2")
Tooth Count Range 60XL – 1180XL (select variant)
Circumference Range 304.8mm (≈12.0") – 5,994.4mm (≈236.0")
Tensile Member Fiberglass cord
Belt Body Material Rubber (neoprene compound)
Tooth Face Material Nylon fabric facing (typically)
Loop Type Closed loop (seamless)
Quantity per Order 1 piece
Operating Temperature See variant options / Contact us to confirm
Max Tensile Load See variant options (typically 100–250 N for 12.7mm width)
Compatible Pulley Width 1/2" (12.7mm) XL pulley groove

❓ Frequently Asked Questions

How do I choose the right XL timing belt length for my machine?

XL timing belts are sized by tooth count. Multiply the tooth count by the pitch to get the belt circumference: Circumference = Tooth Count × 5.08mm (0.200"). For example, a 100XL belt has a circumference of 508mm (≈20.0"). To find your required tooth count, either measure your existing belt's outer circumference and divide by 5.08mm, or use the standard two-pulley belt-length formula: L = 2C + π(D₁+D₂)/2 + (D₁−D₂)²/4C, where C is center distance and D₁/D₂ are pulley pitch diameters. Round up to the nearest available tooth count.

What does "XL" mean and how does it differ from L or H series belts?

XL stands for Extra Light — an ANSI/RMA standard designation for a trapezoidal tooth belt with a 5.08mm (0.200") pitch. It is lighter and more compact than the L series (9.525mm pitch) or H series (12.7mm pitch). XL is generally the right choice for precision positioning in CNC routers, 3D printers, laser cutters, and small plotters. Choose L or H when you need to transmit significantly higher torque in heavier machinery.

What load or torque can these belts handle?

At 12.7mm (1/2") width, XL timing belts are typically rated for light-to-medium duty applications. Tensile load capacity is generally in the range of 100–250 N depending on belt length, pulley diameter, and operating speed. For high-torque or continuous industrial duty, consider upgrading to an L or H series belt or a wider XL variant. Contact us if you need to confirm load ratings for a specific application.

Can I use these belts outdoors or in wet / oily environments?

The neoprene rubber body generally provides good resistance to moisture, incidental coolant splash, and light oil mist — making these suitable for typical workshop and light industrial environments. They are not designed for prolonged submersion or exposure to aggressive solvents and fuels. For outdoor installations, shield the belt from direct UV exposure where possible, as prolonged UV can degrade rubber compounds over time.

Are these belts compatible with my existing XL pulleys?

Yes, in most cases. These belts follow the ANSI XL trapezoidal tooth profile standard (5.08mm pitch), so they are compatible with any standard XL-series pulley or sprocket. The key check is pulley groove width: confirm your pulley accepts a 12.7mm (1/2") wide belt. If your pulleys are designed for a narrower (e.g., 6.4mm) or wider (e.g., 19.1mm) belt, you will need a different width variant.

How do I convert the XL tooth count to inches?

Divide the tooth count by 5 to get the approximate circumference in inches (since XL pitch = 0.200" = 1/5"). Examples: 60XL ≈ 12.0", 100XL ≈ 20.0", 200XL ≈ 40.0", 500XL ≈ 100.0". For exact values, multiply tooth count × 0.200". This is the pitch circumference (measured at the belt's pitch line, not the outer surface).

I need a quantity greater than 1 — can I order multiple belts?

Each listing is sold as 1 piece per order. To order multiple belts of the same size, simply increase the quantity in your cart. If you need bulk pricing for larger quantities, contact us before placing your order and we will do our best to accommodate.

🛒 Select your belt size (tooth count) above, then add to cart — ships from our US warehouse.
