XL Timing Belt 5.08mm Pitch — Reliable Synchronous Drive for Machines, Printers & DIY Builds

When a slipping V-belt or worn drive belt causes your machine to lose sync, skip steps, or stall mid-job, the fix starts with the right replacement. Whether you're a maker maintaining a 3D printer, a technician servicing a CNC router, or a shop owner keeping conveyor equipment running, a correctly sized XL-profile timing belt is the foundation of accurate, repeatable motion.

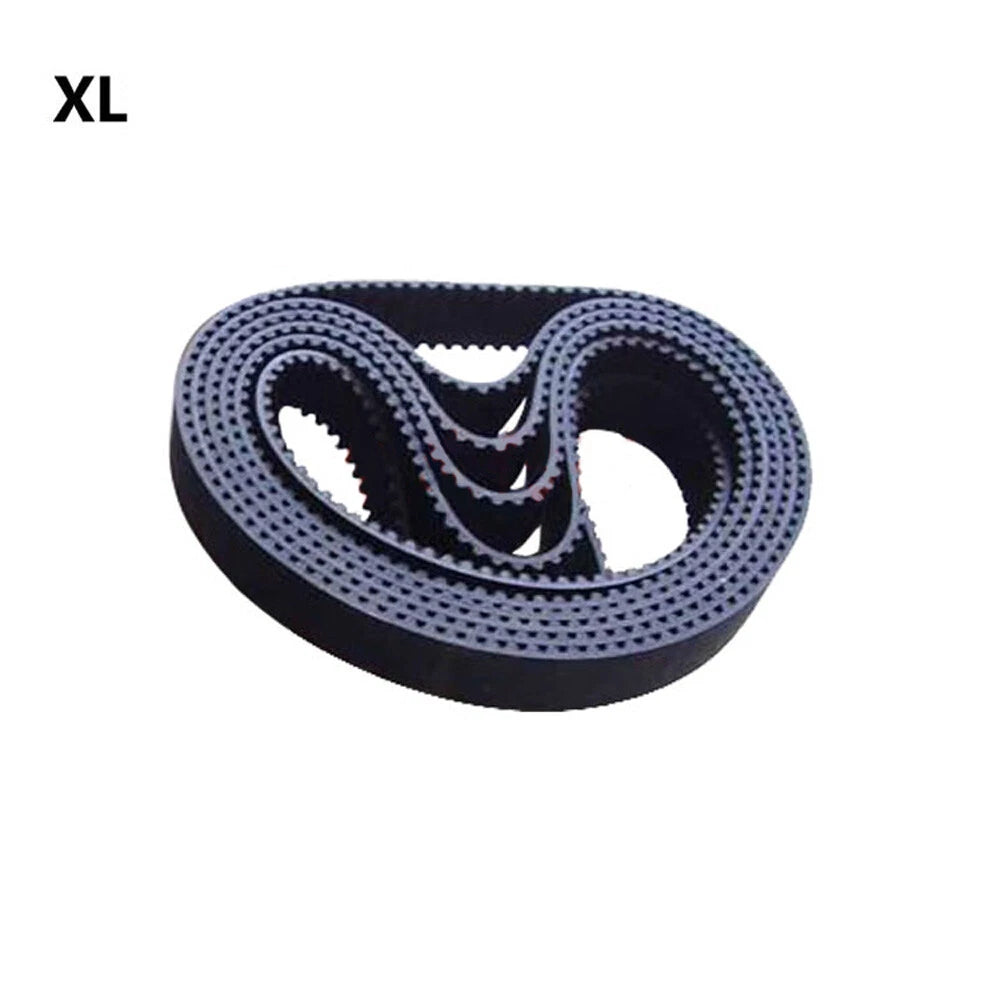

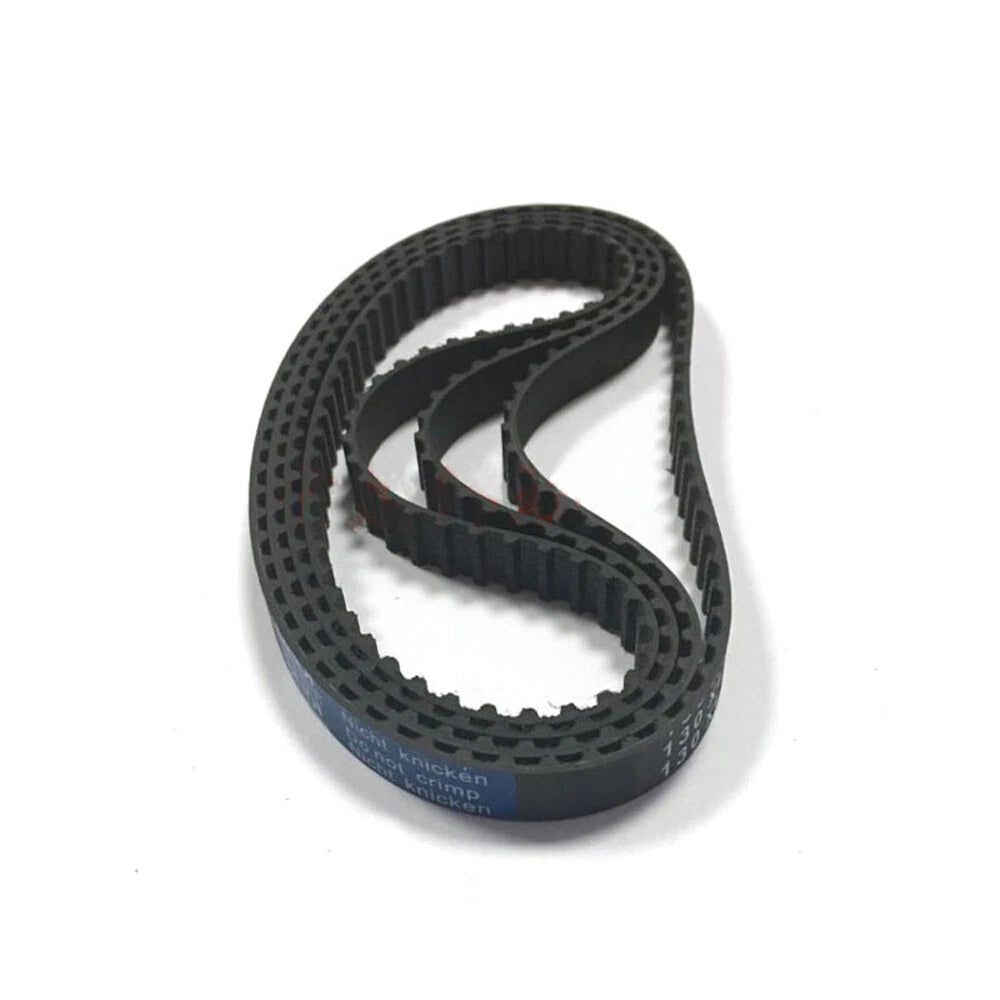

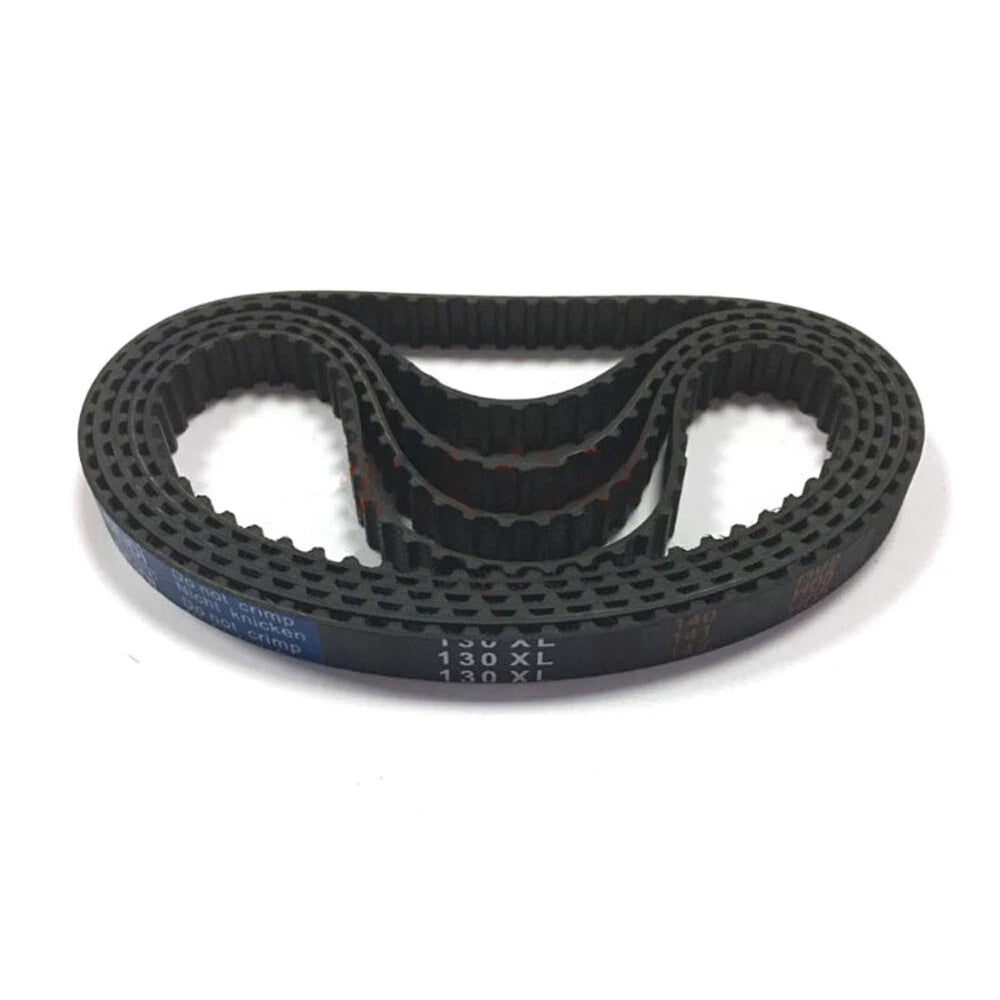

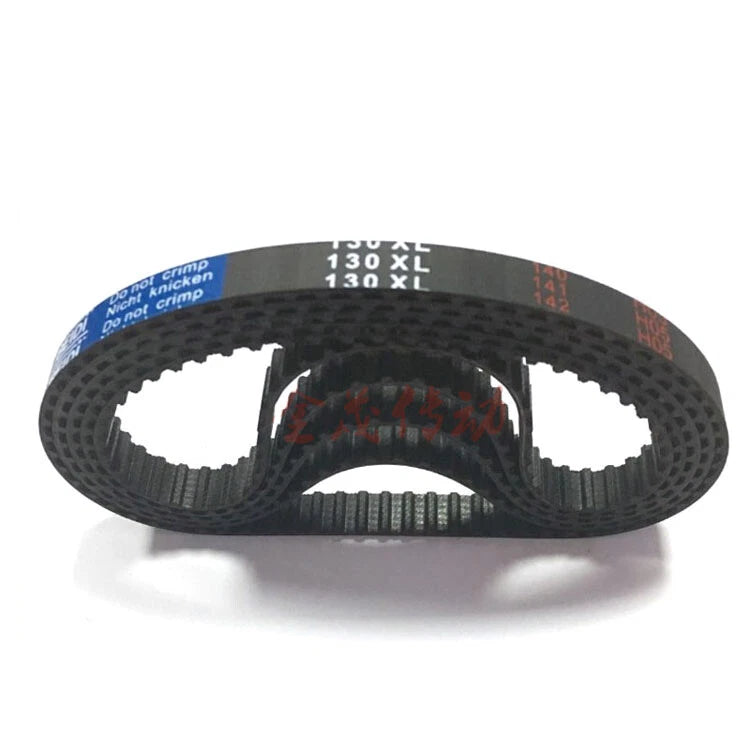

Each belt in this listing is a closed-loop rubber timing belt with an XL tooth profile, 5.08mm (0.200") pitch, and 10mm (≈3/8") width. Available in sizes from 60XL to 1180XL — the number indicates tooth count, so a 100XL belt has 100 teeth and a circumference of approximately 508mm (≈20.0"). Select your exact tooth count from the dropdown above.

These XL rubber drive belts are widely used in 3D printer Y-axis and X-axis drives, CNC router feed systems, light conveyor lines, laser engraver carriages, and small engine timing systems — anywhere a synchronous, no-slip drive is required at a compact width.

🔗 Compatibility: Fits standard XL-profile pulleys and sprockets with 5.08mm (0.200") pitch. Pulley groove width must accommodate 10mm (≈3/8"). Verify your pulley tooth profile is XL — not MXL, L, or HTD — before ordering.

⚠️ Size Note: The number before "XL" equals the tooth count, not the belt length in mm. A 100XL belt = 100 teeth × 5.08mm = 508mm circumference. If unsure, count the teeth on your existing belt or contact us to confirm.

✅ Key Features of These XL Close Loop Rubber Timing Belts

⚙️XL Tooth Profile — Industry Standard Fit — The 5.08mm pitch XL profile is one of the most common synchronous belt standards, compatible with a wide range of XL pulleys used in 3D printers, CNC machines, and light industrial drives.
🔄Closed-Loop Construction — Zero Splice Points — Manufactured as a continuous endless loop with no joints or splices, eliminating the weak points that cause premature failure in cut-and-joined belts.
📏Wide Size Range — 60XL to 1180XL — With over 190 tooth-count options in a single listing, you can find the exact replacement for most XL-drive applications without custom ordering or long lead times.
🧱Rubber Body with Fiber Reinforcement — The rubber compound provides flexibility and grip on pulley teeth, while internal fiber cords generally help resist stretching under normal operating loads.
📐10mm Width — Compact and Versatile — At 10mm (≈3/8") wide, these belts fit the narrow pulley grooves common in desktop CNC routers, laser cutters, and small-format automation equipment without requiring wide-flange pulleys.
🚀Drop-In Replacement for Common XL Drive Systems — Dimensionally consistent with standard XL belt specifications, making these a straightforward swap for worn or broken belts in existing machines without modifying the drive system.

📐 Technical Specifications — XL Close Loop Rubber Timing Belt

Belt Profile	XL (Extra Light)
Pitch	5.08mm (0.200" / 1/5")
Belt Width	10mm (≈3/8")
Construction	Closed loop (endless)
Material	Rubber with fiber tension cord
Available Sizes	60XL – 1180XL (tooth count; see variant options)
Circumference Range	60XL ≈ 304.8mm (12.0") — 1180XL ≈ 5994.4mm (236.0")
Tooth Count	See variant options (60 to 1180 teeth)
Compatible Pulley Profile	XL (5.08mm pitch)
Recommended Pulley Width	≥ 10mm groove width
Typical Applications	3D printers, CNC routers, laser engravers, light conveyors, small engine timing
Operating Temperature	Contact us to confirm
Color / Finish	See variant options
Quantity per Order	1 piece (per variant selected)

❓ Frequently Asked Questions

How do I choose the right XL timing belt size?

The number before "XL" indicates the tooth count. Multiply tooth count by the XL pitch (5.08mm / 0.200" per tooth) to get the belt's outer circumference. For example, a 100XL belt has 100 teeth × 5.08mm = 508mm (≈20.0") circumference. Measure your existing belt or calculate center distance to confirm the correct size. If your belt is worn, count the teeth directly — that number is your size.

What does "XL" mean in timing belt sizing?

XL stands for Extra Light, an industry-standard tooth profile with a pitch of 5.08mm (0.200"). It is one of the most widely used synchronous belt profiles in light-duty power transmission and motion control applications. Do not confuse XL with MXL (2.032mm pitch), L (9.525mm pitch), or HTD profiles — they are not interchangeable.

How strong is this rubber timing belt, and what loads can it handle?

XL-profile rubber timing belts are generally rated for light-to-medium duty applications. Tensile strength and load capacity vary by belt length and construction. In most cases, they are well-suited for 3D printer axes, laser engraver carriages, and small CNC feed systems. For high-torque or continuous industrial use, please contact us to confirm suitability for your specific load requirements.

Can this timing belt be used outdoors or in wet environments?

The rubber compound used in XL timing belts typically offers moderate resistance to moisture and mild temperature variation. However, prolonged exposure to UV, oils, or harsh chemicals may degrade the belt over time. For outdoor or chemically exposed environments, contact us to confirm compatibility before ordering.

What pulley or sprocket does this belt fit?

This belt is designed to fit standard XL-profile pulleys and sprockets with a 5.08mm (0.200") pitch. The belt width is 10mm (≈3/8"), so your pulley groove width should accommodate at least 10mm. Verify your pulley's tooth profile is XL before ordering — MXL, L, H, and HTD profiles use different pitches and are not compatible.

How do I measure my existing belt to find the replacement size?

Count the number of teeth on your existing belt — that number is your XL size designation (e.g., 100 teeth = 100XL). Alternatively, measure the belt's outer circumference in inches and divide by 0.200" to get the tooth count. If your belt is worn or broken, measure the center-to-center distance of your pulleys and use a standard belt length calculator to determine the correct tooth count.

Is this a closed-loop belt or an open-ended belt?

This is a closed-loop (endless) timing belt. It forms a continuous loop and cannot be cut or spliced. Installation typically requires removing a pulley or shaft to slip the belt into place. If you need an open-ended belt that can be cut to length, please contact us — that is a different product type.

🛒 Select your size (tooth count) above, then add to cart — ships from our US warehouse.
