When a project demands frequent adjustments without reaching for a wrench, standard hex bolts become a frustration. Makers, engineers, and workshop enthusiasts who need repeatable hand-tightened connections rely on knurled thumb screws that deliver a secure grip every time. These M8 knurled thumb screws are designed for anyone who values speed, precision, and a clean finish in their builds.

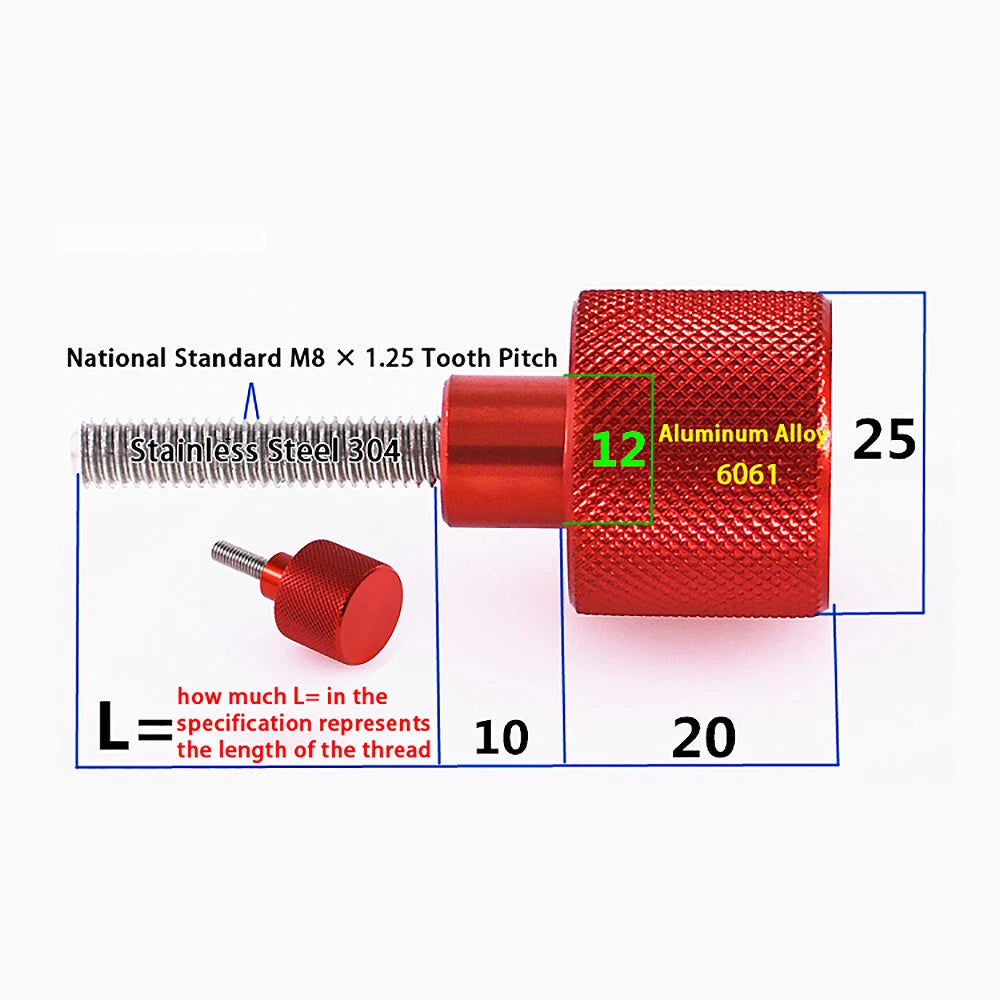

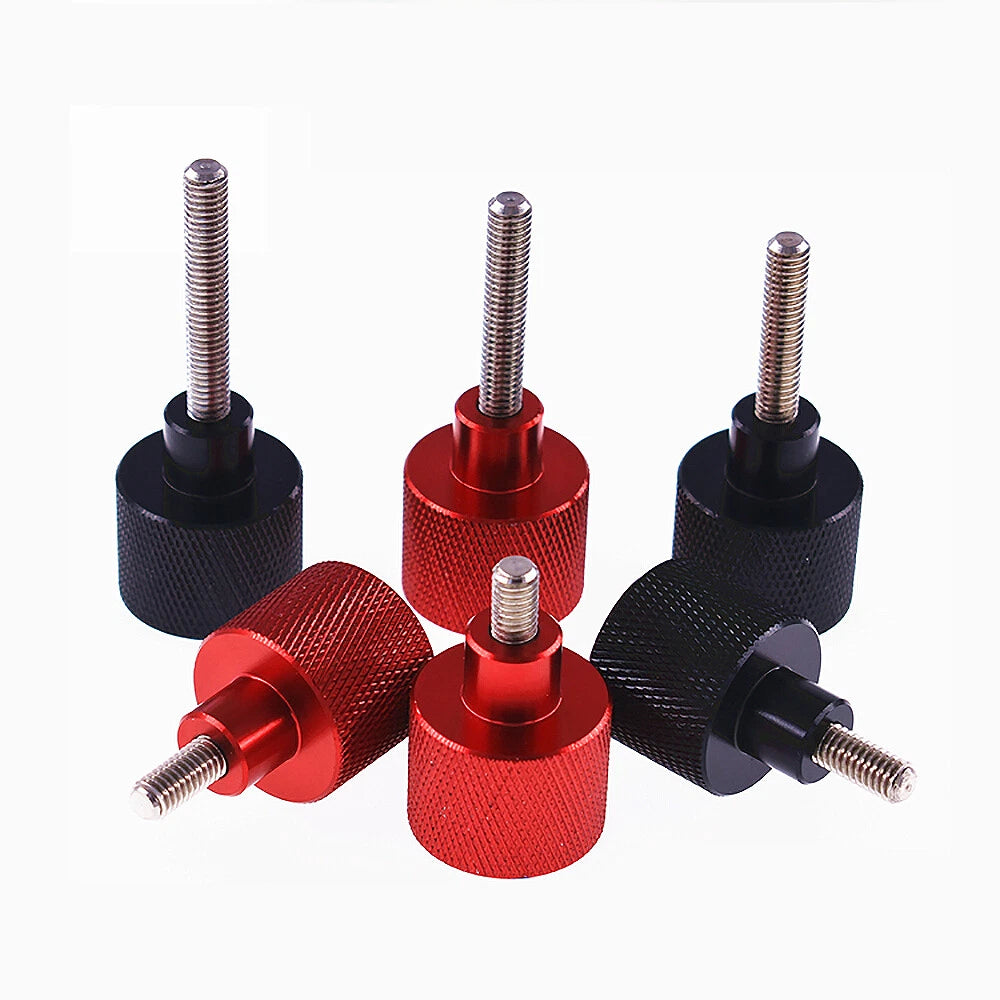

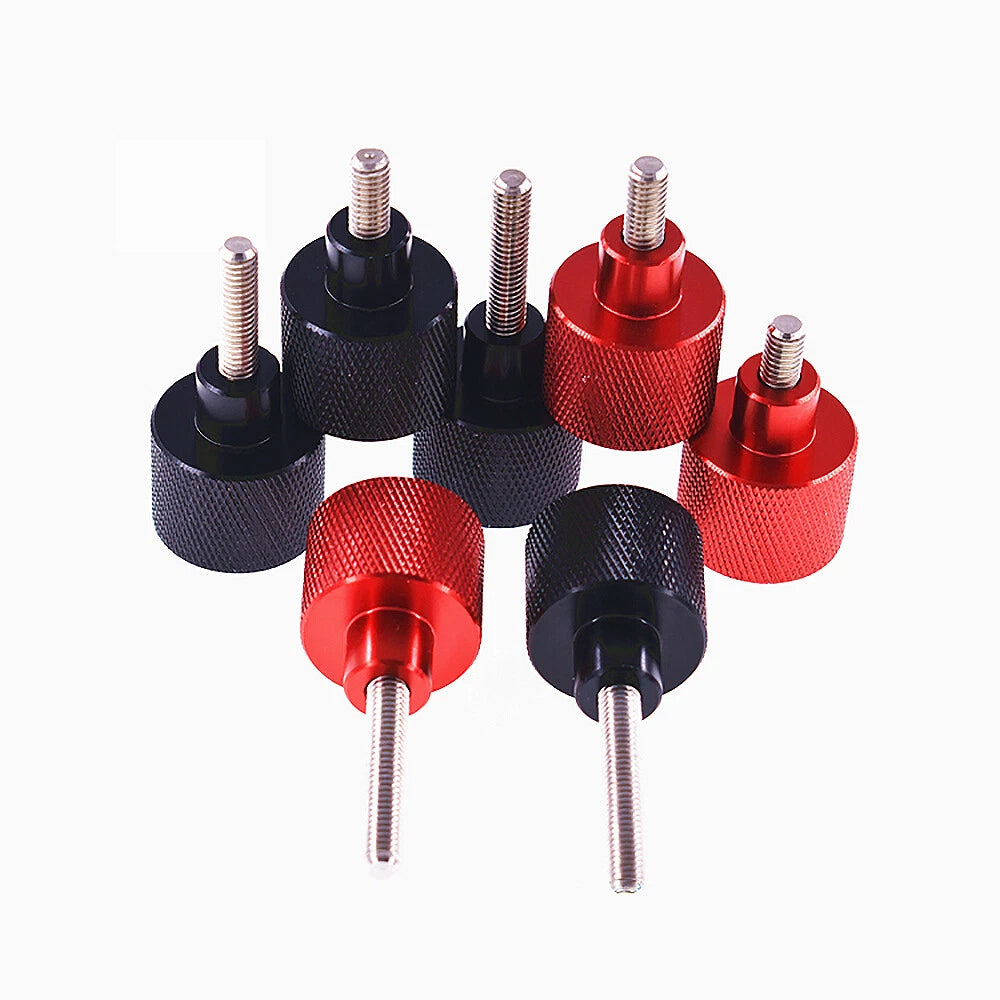

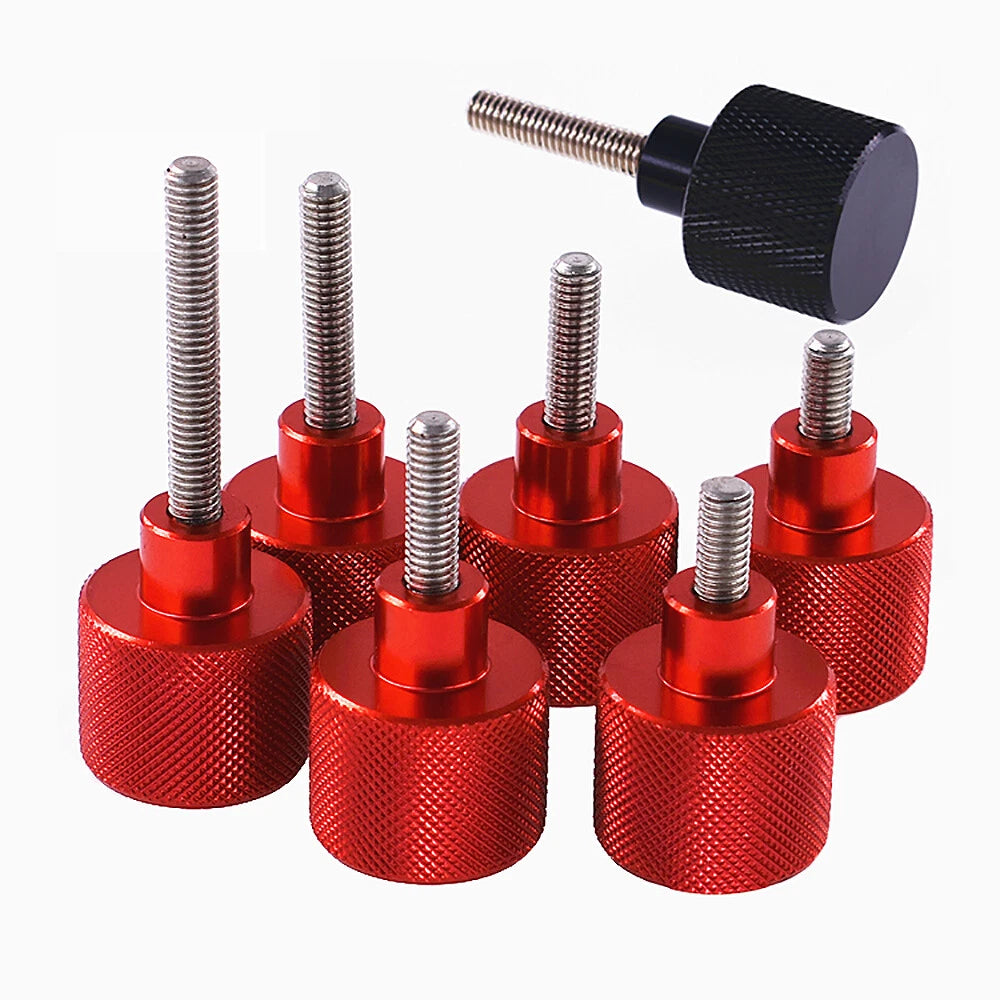

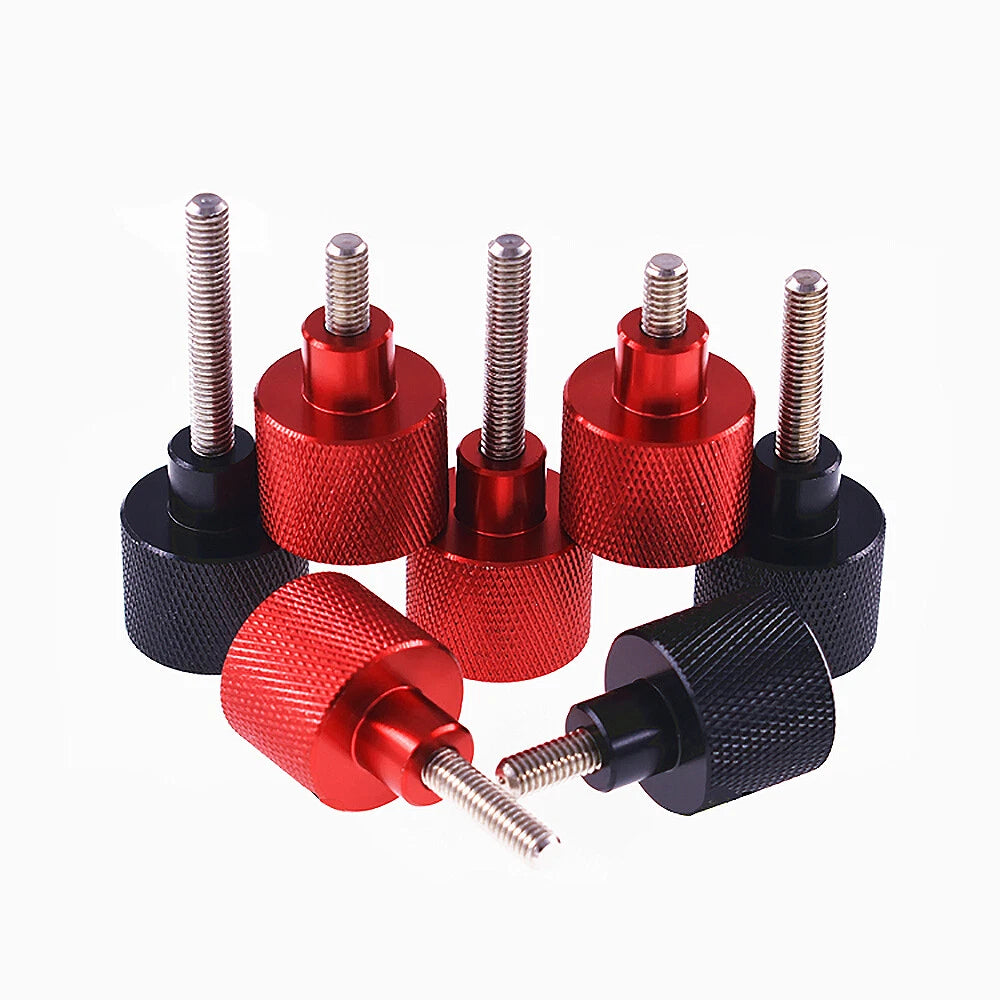

Each screw features a knurled high-head design machined from aluminium alloy, with a stainless steel threaded shank for corrosion resistance. The M8 metric thread (1.25mm pitch) runs through shank lengths ranging from 10mm to 100mm (approximately 0.39 in to 3.94 in), giving you the flexibility to match the exact stack-up of your assembly. Available in Black anodised and Red anodised finishes.
Typical use cases include 3D printer frame assembly requiring tool-free panel removal, CNC enclosure access doors where M8 knurled thumb bolts replace standard fasteners, and electronics rack mounting where hand-tightened knob bolts speed up maintenance cycles. The knurled grip surface also suits jig and fixture setups on woodworking benches and metalworking tables.
| Thread Size | M8 |
|---|---|
| Thread Pitch | 1.25mm (metric coarse) |
| Shank Length (excl. head) | 10mm – 100mm (0.39 in – 3.94 in) |
| Head Style | High knurled thumb head |
| Drive Style | Thumb (hand-tightened, no tool required) |
| Head Material | Aluminium alloy |
| Shank Material | Stainless steel |
| Finish / Colour | Black anodised / Red anodised |
| System of Measurement | Metric |
| Pack Quantity Options | 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 pcs |
| Head Diameter (approx.) | See variant options |
| Head Height (approx.) | See variant options |
Measure the total thickness of the material(s) you are fastening through, then select a shank length that is equal to or slightly longer than that measurement. The listed length does not include the head height. For example, if your panel stack is 18mm thick, the M8 × 20mm variant gives a small amount of thread engagement beyond the panel for a nut or threaded insert.
The aluminium alloy head reduces overall weight and is anodised for colour and surface hardness. The stainless steel threaded shank provides the tensile strength and corrosion resistance needed where the screw contacts metal hardware. This combination gives you a lightweight, grippy fastener that still holds up in damp or mildly corrosive environments.
Yes. The M8 × 1.25mm metric coarse thread is the standard pitch for M8 fasteners and is compatible with any M8 nut, T-nut, threaded insert, or tapped hole that conforms to ISO 724 / DIN 13. This includes common aluminium extrusion T-slot hardware used in 3D printer and CNC frames.
Knurled thumb screws are designed for hand-tightening only and are not intended for high-torque structural joints. They are suited for applications where panels, covers, or components need to be removed and refitted regularly. If your application requires a specific clamping force, consider using a standard M8 hex bolt with a torque wrench instead.
Anodising creates an oxide layer on the aluminium head that improves surface hardness and provides moderate corrosion resistance. The finish is suitable for indoor workshop environments and light outdoor use. Avoid prolonged exposure to salt spray or strong acids, which can degrade the anodised layer over time. The stainless steel shank offers stronger corrosion resistance than the head.
Yes. M8 knurled thumb screws are a popular choice for 3D printer enclosure panels, CNC machine access doors, and electronics enclosures where tool-free access is needed. Select the shank length that matches your panel thickness and pair with M8 T-nuts or threaded inserts in your aluminium extrusion profile.
Both finishes are functionally identical. Black anodised blends into most industrial and workshop builds for a clean, understated look. Red anodised is ideal for colour-coding specific fasteners — for example, marking access panels that should only be opened during maintenance — or for builds where a bold accent colour is part of the design intent.
