🔩 Modified Truss Head Self Tapping Screws for Sheet Metal & Wood

When a standard pan head sits too proud and a countersunk head isn’t an option, the modified truss head delivers the ideal low‑profile clamp. Designed for fastening thin sheet metal, wood, plastics, and composite materials, these Phillips self tapping screws from GooBetter Fastener eliminate the need for separate nuts or pre‑tapped holes. The wide bearing surface distributes clamping force over a larger area — perfect for HVAC ductwork, automotive interior panels, electrical enclosures, and furniture assembly. Coated in a matte black zinc finish, they resist corrosion in indoor and light‑duty outdoor environments while blending into dark backgrounds for a cleaner look. Available from M1.2 up to M4, this assortment keeps the right size at your fingertips whether you're a professional installer or a home workshop enthusiast.

✅ Key Features – Phillips Modified Truss Head Self Tapping Screws

Modified truss head profile provides a low, wide clamping surface without protruding excessively
Self‑tapping thread form cuts its own mating thread in sheet metal, wood, and plastic — no pre‑tap needed
Black zinc plating delivers a non‑reflective finish and effective corrosion protection for indoor applications
Phillips drive recess centers the driver and reduces cam‑out during installation
Metric sizing from M1.2 through M4 covers a broad range of material thicknesses and load requirements
Heat‑treated steel construction ensures consistent hardness and reliable thread engagement
Ideal for workshop organizers, HVAC techs, auto restorers, and general industrial maintenance

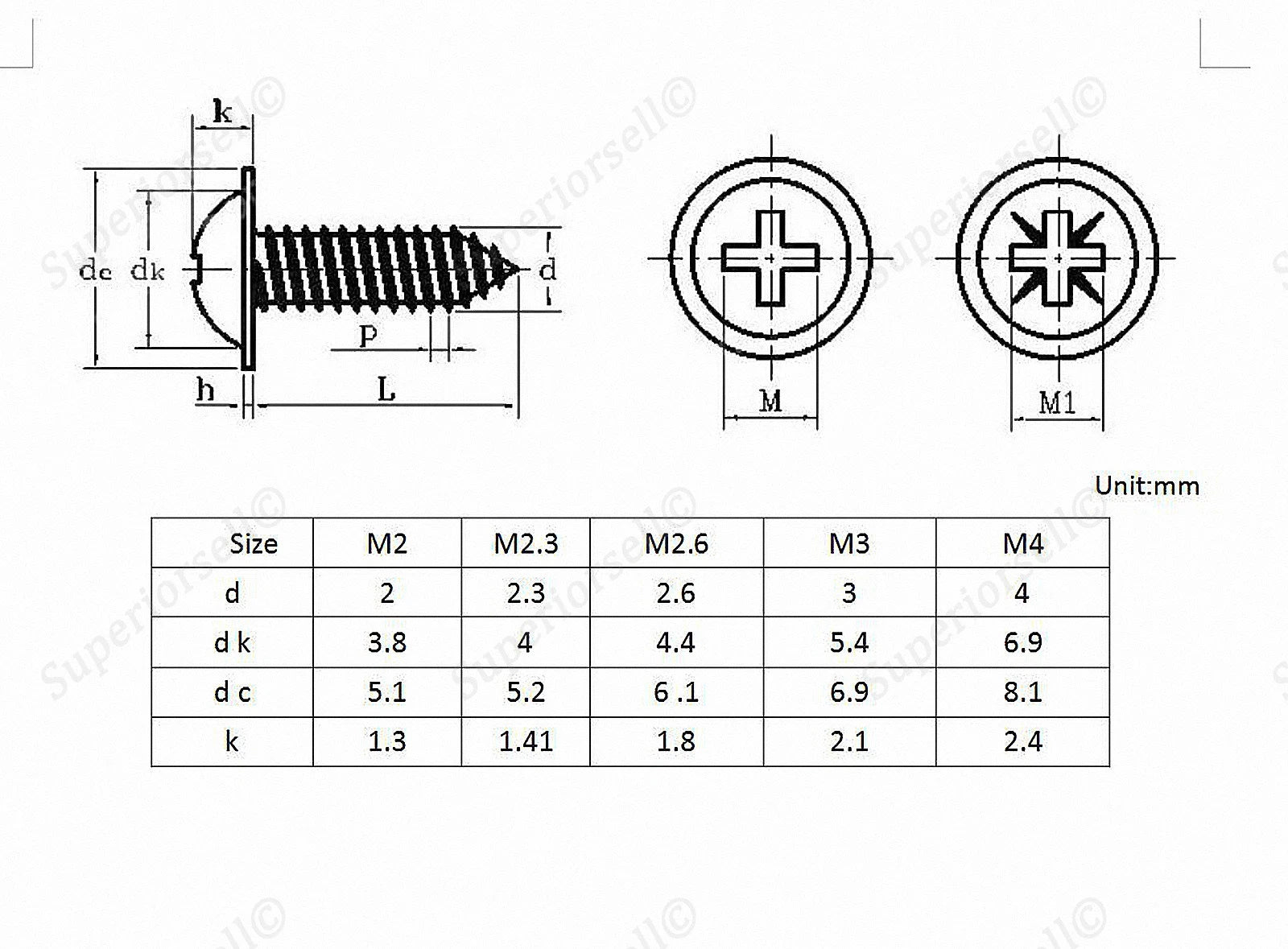

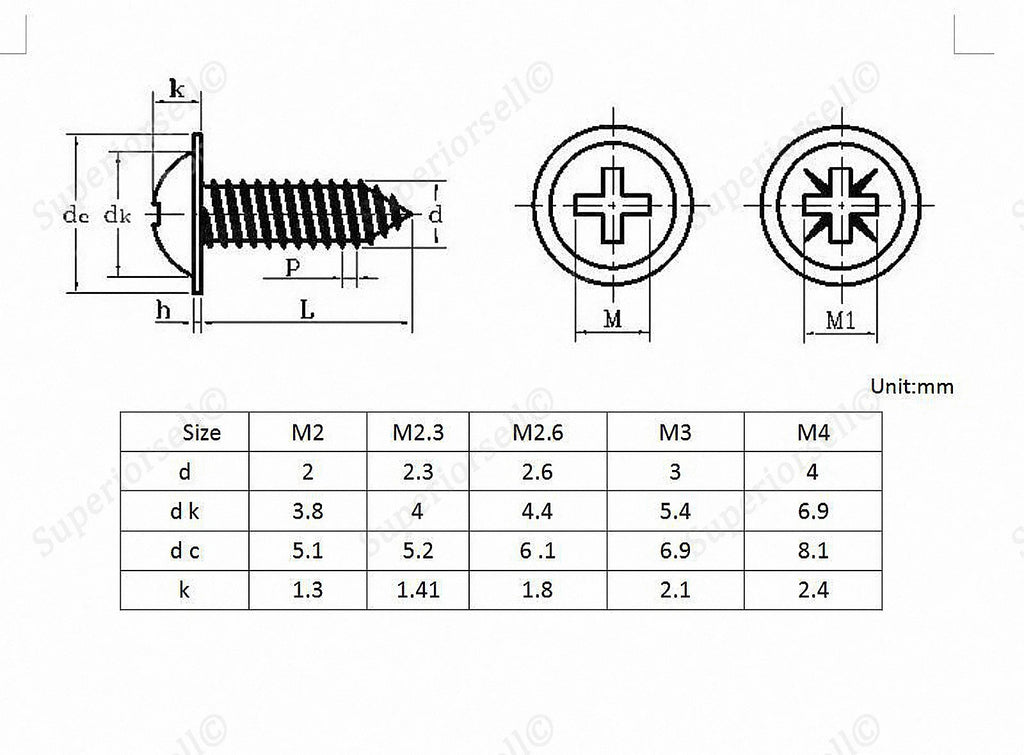

📋 Technical Specifications

Size	Thread Diameter	Typical Length Range (mm)	Head Style	Drive	Material & Finish
M1.2	1.2 mm	4–10	Modified Truss	Phillips	Steel, Black Zinc
M1.4	1.4 mm	5–12	Modified Truss	Phillips	Steel, Black Zinc
M1.7	1.7 mm	6–16	Modified Truss	Phillips	Steel, Black Zinc
M2	2.0 mm	6–20	Modified Truss	Phillips	Steel, Black Zinc
M2.3	2.3 mm	8–25	Modified Truss	Phillips	Steel, Black Zinc
M2.6	2.6 mm	8–30	Modified Truss	Phillips	Steel, Black Zinc
M3	3.0 mm	10–40	Modified Truss	Phillips	Steel, Black Zinc
M4	4.0 mm	12–50	Modified Truss	Phillips	Steel, Black Zinc

* Length options vary by selected pack. All dimensions meet DIN/ISO equivalent tolerance standards.

❓ Frequently Asked Questions

🔹 What exactly is a “modified truss” head?

It’s a low‑profile head that combines a wider bearing surface than a pan head with less height. This design spreads clamp load to prevent pull‑through in thin or soft materials while sitting flatter against the surface — especially useful where clearance is limited.

🔹 Can these screws be used in hardwood?

Yes. The self‑tapping thread works well in softwoods and hardwoods alike. For very dense hardwoods, drilling a pilot hole at approximately 80% of the screw diameter will reduce drive torque and prevent snapping.

🔹 Is the black zinc finish suitable for outdoor projects?

Black zinc provides good atmospheric corrosion resistance for indoor, covered, and mild outdoor environments. For constant exposure to rain, salt, or chemicals, consider a stainless steel fastener or supplementary coating.

🔹 Do I need a special driver bit for these?

A standard Phillips driver bit sized to match the screw head (#0, #1, or #2) works perfectly. We recommend using a bit that isn’t worn to avoid cam‑out and preserve the head recess.

🔹 Are these genuine GooBetter Fastener products?

Yes, they are GooBetter Fastener branded screws shipped in original retail packaging. Every batch is checked for thread form, hardness, and plating consistency before dispatch.
