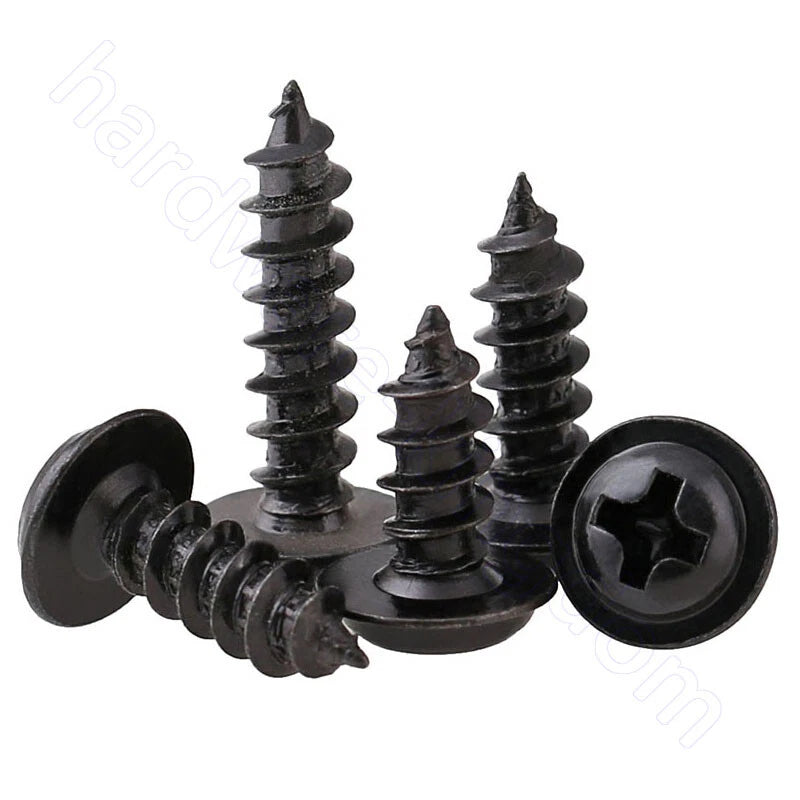

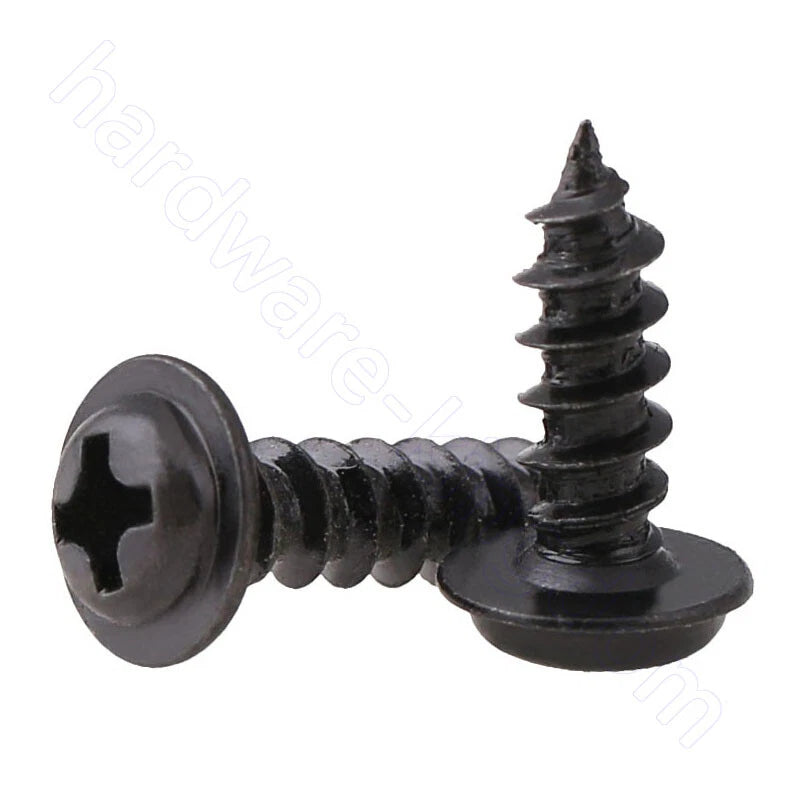

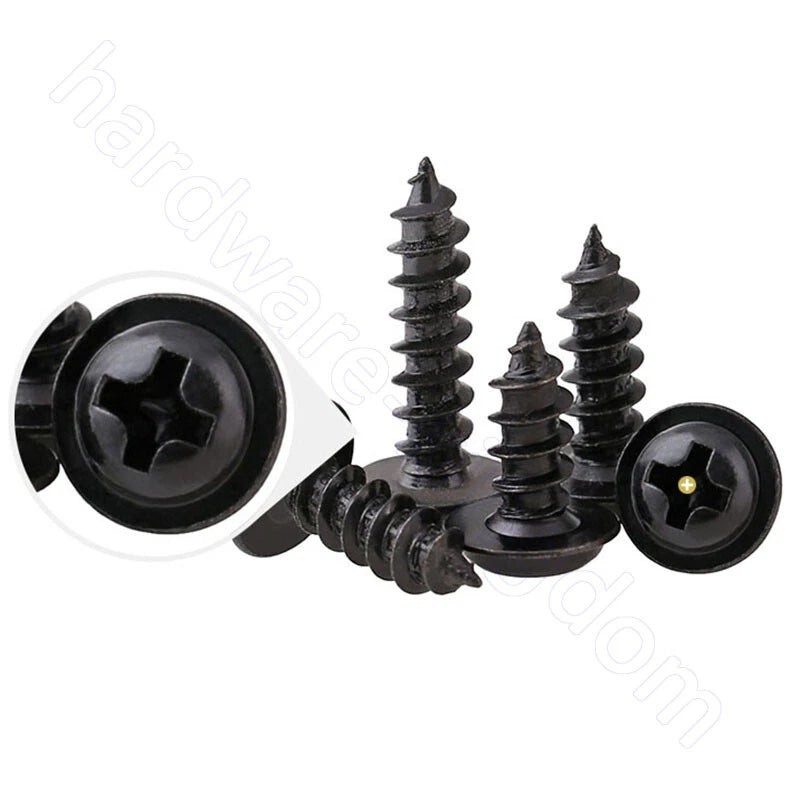

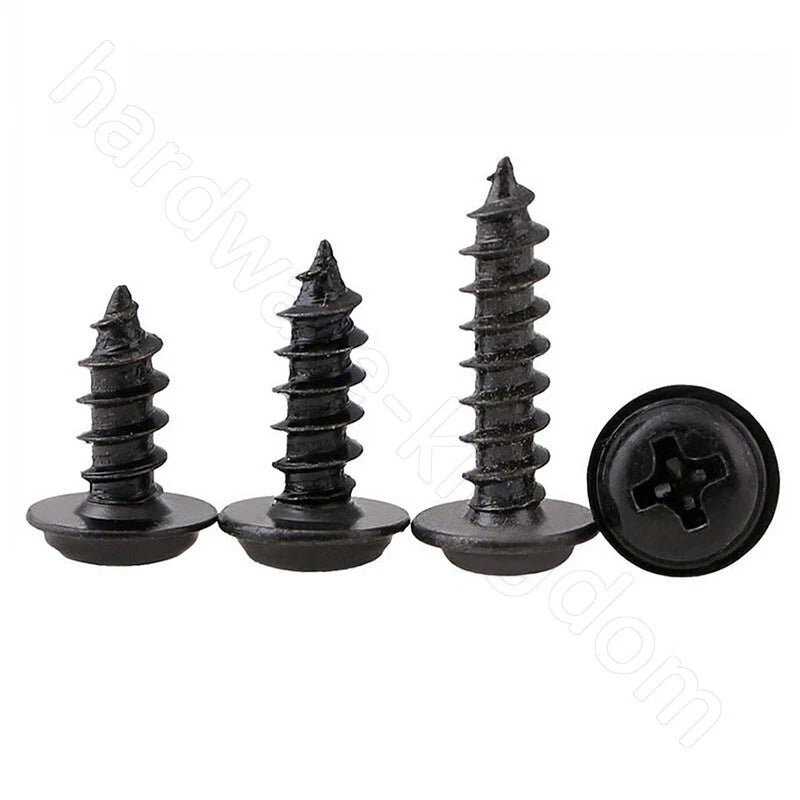

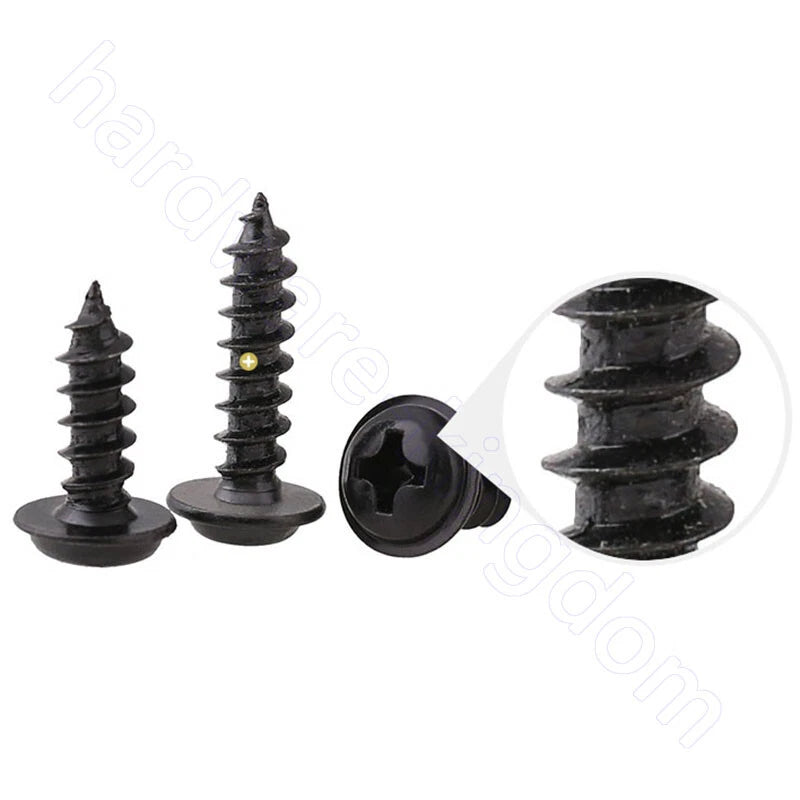

Phillips Round Head Washer Self-Tapping Screws — Black Zinc Finish for Clean, Secure Fastening
When standard pan head screws leave marks on thin panels or pull through soft sheet metal, engineers, electronics assemblers, and DIY builders need a fastener with a wider bearing surface. These Phillips round head washer self-tapping screws are designed exactly for that — the integrated washer-style head spreads clamping load across a larger footprint, reducing the risk of surface damage or pull-through on delicate workpieces.
Each pack contains carbon steel screws with a black zinc electroplating finish, available in thread diameters from M1.2 to M4 and lengths from 3mm (≈1/8") to 20mm (≈3/4"). Quantity options range from 50 to 2,000 pieces per order, making it easy to stock up for production runs or keep a variety on hand for repair work. The self-tapping point cuts its own threads in thin sheet metal without requiring a pre-tapped hole.
Typical applications include sheet metal enclosure assembly, consumer electronics chassis fastening, HVAC ductwork, small appliance manufacturing, and precision DIY projects where a low-profile head with a wide bearing surface is needed. The black zinc finish also adds a clean, uniform appearance suited to visible fastening points on finished products.
🔧 Compatibility Note: These screws are designed for use in thin sheet metal, light-gauge steel, aluminum panels, and similar materials. Thread diameter and length must match your application — please select the correct variant above. For pre-tapped holes or thicker structural materials, verify thread pitch compatibility before ordering.
✅ Key Features of These Phillips Round Head Washer Self-Tapping Screws
-
🪛Wide Washer-Style Head — The round head with integrated washer bearing surface distributes clamping force over a larger area, reducing pull-through on thin sheet metal and soft panels.
-
⚫Black Zinc Electroplating — The black zinc coating provides moderate corrosion resistance and a uniform matte-black finish, suitable for indoor electronics and appliance assembly where appearance matters.
-
🔩Self-Tapping Point — The hardened tip cuts its own threads in thin-gauge sheet metal, eliminating the need for pre-tapping and speeding up assembly in production environments.
-
📏Wide Size Range M1.2–M4 — Covers the most common small-fastener diameters used in electronics, HVAC, and light fabrication, with multiple length options per diameter for flexible application matching.
-
📦Bulk Quantity Options — Available in packs from 50 to 2,000 pieces, making these screws practical for both small repair jobs and high-volume production line stocking.
-
✚Standard Phillips Drive — Compatible with PH0, PH1, and PH2 bits depending on diameter, working with any standard screwdriver or power driver for fast, consistent installation.

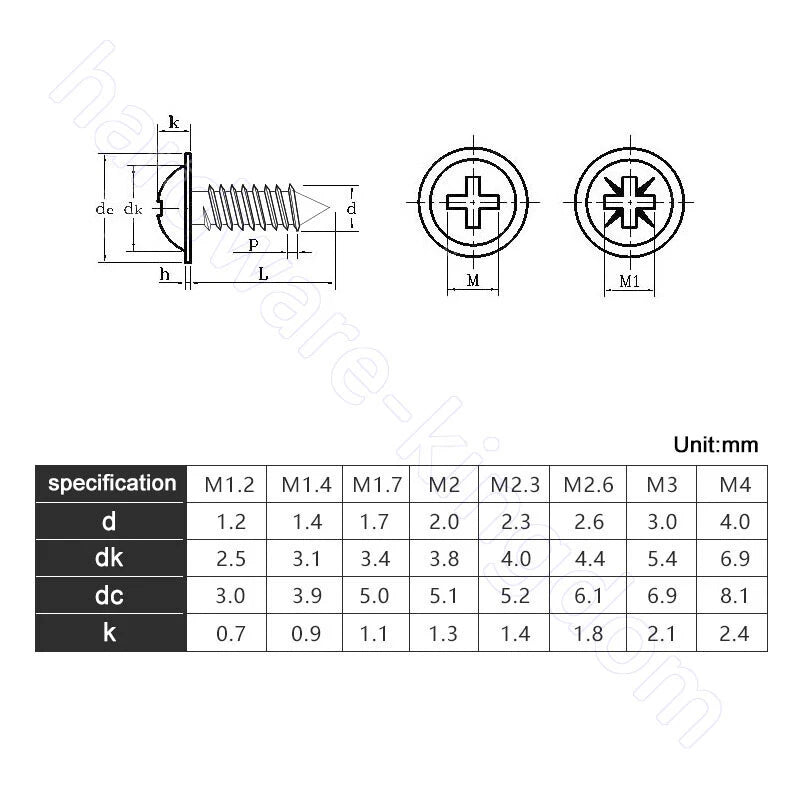

📐 Technical Specifications — Round Head Washer Self-Tapping Screws
| Drive Type |
Phillips (Cross / PH) |
| Head Style |
Round Head with Washer (Truss / Mushroom Head) |
| Point Type |
Self-Tapping (Type AB) |
| Material |
Carbon Steel |
| Surface Finish |
Black Zinc Electroplating |
| Thread Diameter |
M1.2 / M1.4 / M1.7 / M2 / M2.5 / M3 / M4 (See variant options) |
| Thread Length |
3mm (≈1/8") – 20mm (≈3/4") — See variant options |
| Quantity per Pack |
50 / 100 / 200 / 500 / 1000 / 2000 pcs — See variant options |
| Thread Standard |
Metric (ISO) |
| Corrosion Resistance |
Moderate — suitable for indoor/sheltered use |
| Recommended Driver Bit |
PH0 (M1.2–M2) / PH1 (M2–M3) / PH2 (M3–M4) — Contact us to confirm |
| Application |
Sheet metal, electronics enclosures, appliances, HVAC, DIY assembly |
⚠️ Please confirm your thread diameter and length before ordering. Self-tapping screws are not interchangeable with machine screws in pre-tapped holes. If you are unsure which size fits your application, contact us before purchasing.
❓ Frequently Asked Questions
How do I choose the right screw length?
A general rule is to choose a length that penetrates the base material by at least 2/3 of the screw's total length. For example, if fastening a 3mm panel, a screw of 6mm (≈1/4") or longer is typically recommended. For thin sheet metal under 1mm, shorter lengths such as 3mm–5mm are generally sufficient. Always check the variant options for available lengths.
How strong are black zinc self-tapping screws?
Black zinc-plated carbon steel screws generally offer good tensile strength for light to medium-duty fastening in sheet metal, electronics enclosures, and appliance assembly. For heavy structural loads or high-vibration environments, a larger diameter or a grade-rated fastener is typically recommended.
Can these screws be used outdoors or in humid environments?
Black zinc plating provides moderate corrosion resistance suitable for indoor and sheltered applications. For prolonged outdoor exposure, coastal environments, or high-humidity conditions, stainless steel self-tapping screws are generally a more durable choice. These screws are best suited for dry indoor use.
Are these compatible with standard Phillips screwdrivers and bits?
Yes. These use a standard Phillips (cross) drive compatible with PH0, PH1, or PH2 bits depending on the screw diameter. Smaller sizes such as M1.2–M2 typically use PH0 or PH1 bits, while M3–M4 generally use PH1 or PH2. Any standard manual or power screwdriver with the correct bit size will work.
Do I need to pre-drill a hole before driving these screws?
These are self-tapping screws designed to cut their own threads in thin sheet metal and similar materials. In most cases, no pre-drilling is required for thin-gauge sheet metal. For harder or thicker materials, a pilot hole is generally recommended to prevent stripping or cracking the base material.
What is the difference between a round head washer screw and a pan head screw?
A round head washer screw (also called a truss head or mushroom head screw) has a wider, lower-profile head with an integrated washer-like bearing surface. This distributes clamping force over a larger area compared to a standard pan head, making it better suited for thin or soft materials where pull-through resistance is important.
Which size should I choose for electronics or appliance assembly?
For electronics and small appliance assembly, M1.2–M2 screws are typically used for PCB covers and thin panels, while M2.5–M3 are common for chassis and enclosure fastening. M4 is generally used for heavier brackets or structural panels. Always check your component's specifications to confirm the required thread size and length.
