1. Product core introduction

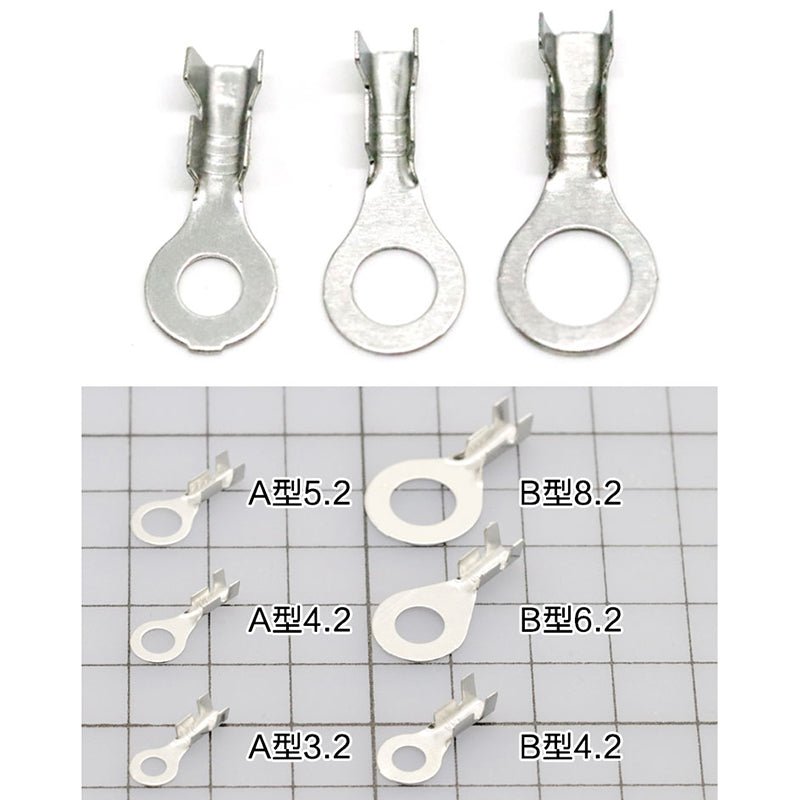

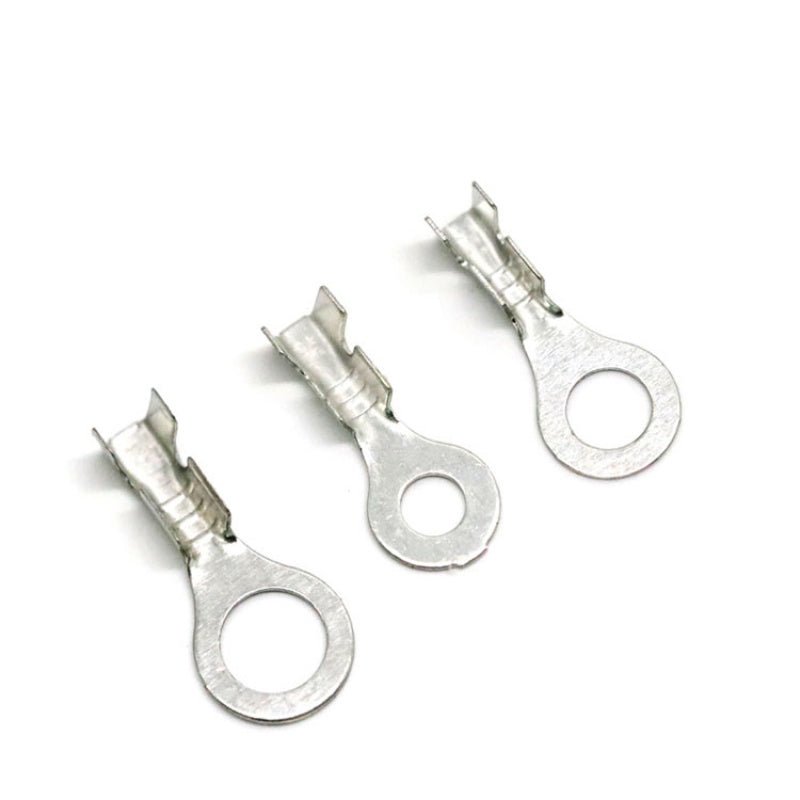

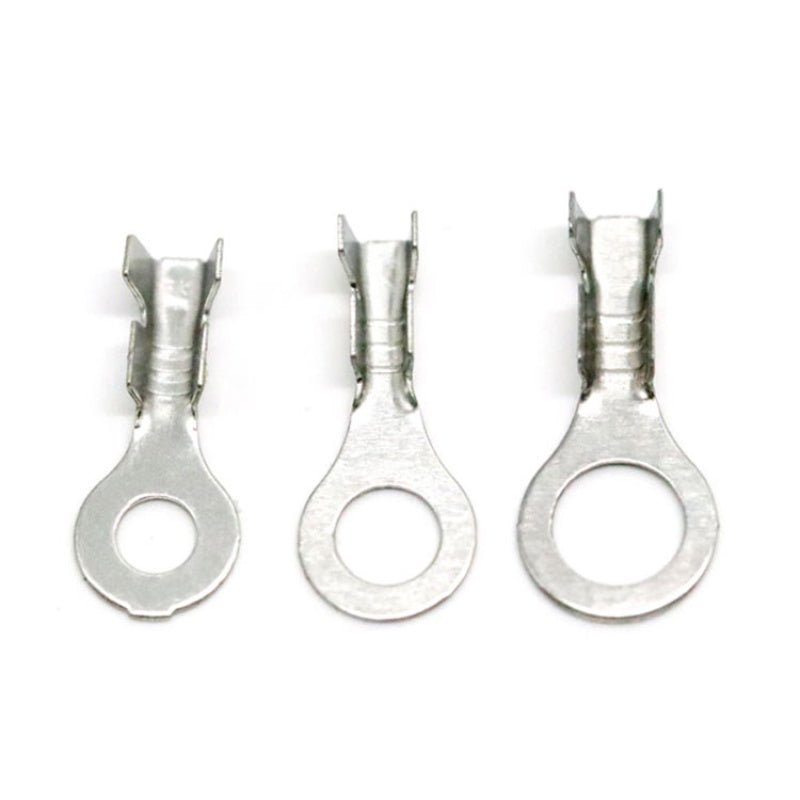

Welcome to the world of reliable electrical connectivity with HomeDIYer's Tinned Copper Tube Wire Ends Lug Terminals Cable Crimp Ring Welding Connectors. This product is the result of meticulous engineering and high-quality manufacturing, designed to meet the diverse needs of both professional electricians and passionate DIY enthusiasts. Whether you're working on a complex electrical installation, automotive wiring, or a simple electronics project at home, these connectors are your go-to solution for ensuring a stable and efficient electrical connection. Made from top-grade tinned copper, they offer a combination of conductivity, durability, and corrosion resistance that is essential for any electrical application. With our connectors, you can have peace of mind knowing that your electrical circuits will function optimally and safely.
2. The main characteristics of the product
• Premium Tinned Copper Material
Our connectors are crafted from high-quality tinned copper, which is renowned for its excellent electrical conductivity. This ensures minimal resistance in the electrical circuit, allowing for efficient power transmission. The tin coating provides enhanced corrosion resistance, protecting the copper from oxidation and other environmental factors. This is especially important in applications where the connectors may be exposed to moisture, humidity, or harsh chemicals, such as in automotive and marine electrical systems. The tinned copper material also offers good mechanical strength, ensuring that the connectors can withstand the rigors of installation and regular use without deforming or breaking.
• Versatile Crimp and Welding Options
The cable crimp ring design allows for a secure and tight connection when using a crimping tool. This provides a reliable mechanical bond between the wire and the connector, reducing the risk of loose connections and electrical failures. Additionally, the connectors are suitable for welding, giving you the flexibility to choose the connection method that best suits your project requirements. Welding can provide an even stronger and more permanent connection, especially in high-vibration or high-stress applications. Whether you prefer the convenience of crimping or the added durability of welding, our connectors have you covered.
• Precision Engineering for Perfect Fit
Each lug terminal is precision-engineered to ensure a snug and accurate fit with a wide range of wire sizes. The tube design allows for easy insertion of the wire, and the crimping or welding process further secures it in place. The connectors are manufactured to strict tolerances, ensuring consistent performance and reliability. This precision fit not only improves the electrical connection but also reduces the risk of arcing and overheating, enhancing the overall safety of your electrical system.
• Durable and Long-Lasting
The combination of high-quality materials and excellent manufacturing processes results in connectors that are built to last. The tinned copper construction resists wear and tear, while the secure crimp or welding connections maintain their integrity over time. These connectors can withstand repeated temperature changes, vibrations, and mechanical stress, making them suitable for use in demanding environments. Whether you're using them in a long-term electrical installation or a portable electronics project, you can rely on our connectors to provide years of reliable service.
3. Product use scene
• Automotive Electrical Systems
In cars, trucks, motorcycles, and other vehicles, our connectors are essential for various electrical applications. They can be used to connect wires for the battery, starter motor, alternator, lighting systems, and more. The vibration resistance and corrosion resistance of the tinned copper connectors make them ideal for the harsh conditions under the hood and throughout the vehicle. Whether you're installing a new sound system, upgrading the headlights, or repairing a faulty electrical connection, our lug terminals will ensure a reliable and safe connection.
• Home Electrical Installations
For DIY home electrical projects, such as installing new light fixtures, ceiling fans, or electrical outlets, our connectors are a great choice. They can be used to connect wires in junction boxes, extension cords, and power strips. The ease of use and reliable connection make them suitable for homeowners who want to ensure the safety and proper functioning of their electrical systems. Whether you're a novice DIYer or an experienced handyman, our connectors will simplify your electrical installations.
• Industrial and Commercial Electrical Applications
In factories, warehouses, offices, and other commercial settings, our connectors can be used for a wide range of electrical equipment and machinery. They are suitable for connecting power cables, control wires, and sensor wires in industrial control systems, motors, pumps, and HVAC systems. The durability and high conductivity of the connectors are essential for ensuring the efficient operation of these systems in demanding industrial environments.
• Electronics and Hobby Projects
DIY electronics enthusiasts and hobbyists can use our connectors for various projects, such as building robots, circuit boards, and power supplies. The precision fit and versatility of the connectors make them suitable for working with small-gauge wires commonly used in electronics. Whether you're soldering wires to a printed circuit board or creating a custom wiring harness for a DIY project, our lug terminals will help you achieve a professional and reliable connection.
4. Product use instructions
1、Wire Preparation
Before using the connector, strip the insulation from the end of the wire to the appropriate length. Use a wire stripper tool to ensure a clean and even cut, without damaging the wire strands. The stripped wire length should match the depth of the connector tube to ensure a proper fit. Twist the wire strands together to form a tight bundle, which will help improve the conductivity and mechanical strength of the connection.
2、Crimping Procedure
If you choose to use the crimping method, select a crimping tool that is suitable for the size of the connector. Insert the stripped wire into the connector tube until it reaches the bottom. Place the connector in the crimping tool and apply firm and even pressure to crimp the ring around the wire. Make sure the crimp is complete and uniform, without any gaps or loose areas. Check the connection by gently tugging on the wire to ensure it is securely held in place.
3、Welding Procedure
For welding, use a suitable soldering iron or welding equipment. Apply flux to the wire and the inside of the connector tube to promote good solder flow. Heat the connector and the wire with the soldering iron until the solder melts and flows evenly into the joint. Ensure that the solder forms a smooth and complete bond around the wire, filling any gaps. Allow the joint to cool naturally before handling or stressing the connection.
4、Installation and Connection
Once the wire is connected to the lug terminal, it can be attached to the appropriate electrical component or terminal block. Make sure the connection is tight and secure, and that the lug terminal is properly oriented and fastened. If using multiple connectors in a circuit, ensure that the connections are made in the correct sequence and polarity, following the electrical schematic or wiring diagram for your project.
5、Safety Precautions
Always wear appropriate safety gear, such as safety glasses and gloves, when working with electrical connectors and wiring. Ensure that the power is turned off and the circuit is de-energized before starting any work. Avoid touching live wires or exposed electrical connections to prevent electric shock. If you are unsure about any aspect of the installation or connection process, consult a professional electrician or refer to relevant electrical safety standards and guidelines.
• By following these guidelines, you can ensure the optimal performance and safety of our Tinned Copper Tube Wire Ends Lug Terminals Cable Crimp Ring Welding Connectors from HomeDIYer. If you have any questions or need further technical assistance, please do not hesitate to contact our customer support team.
