1. Product core introduction

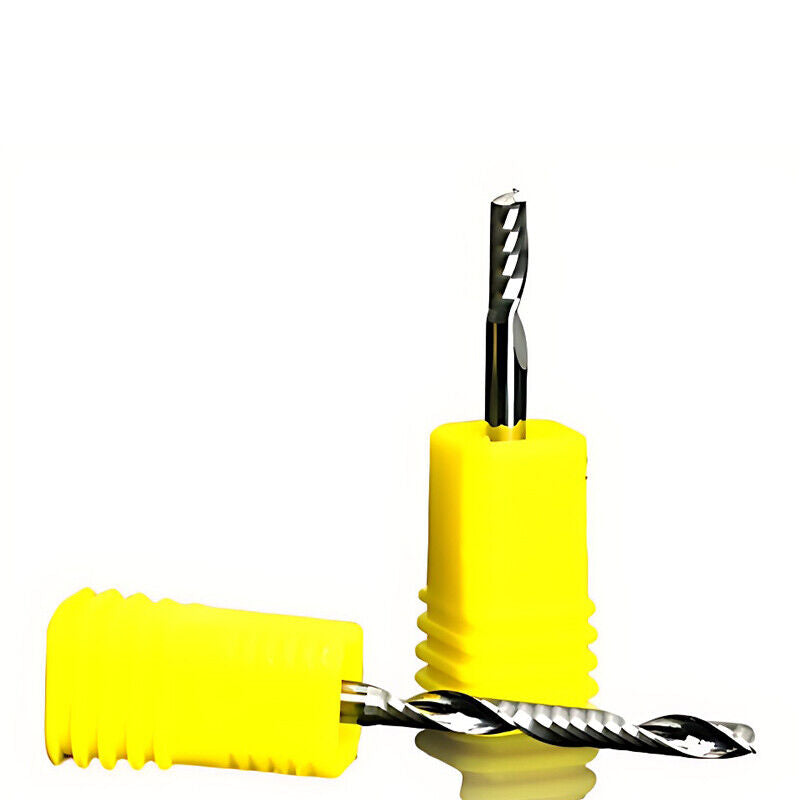

Shank Ground End Mill Cutter Milling Cutter Slot Drill Bit is a precision-engineered cutting tool that lies at the heart of various machining operations. Whether you're involved in professional manufacturing, prototyping, or engaging in DIY machining projects, this tool is designed to meet your exacting needs. It combines the functionality of an end mill cutter and a slot drill bit, allowing for a wide range of milling and drilling tasks to be accomplished with a single, reliable tool. With its high-quality construction and carefully designed features, it offers the precision and durability required to produce accurate and clean cuts in a variety of materials, including metals, plastics, and woods.
2. The main characteristics of the product
• Shank Ground Finish
The shank of the cutter is meticulously ground to achieve a precise and smooth surface. This not only ensures a snug fit into the tool holder but also enhances the overall stability during machining. The improved fit reduces vibration, which in turn leads to more accurate cuts and extends the life of both the cutter and the tool holder. The ground shank also allows for better torque transmission, enabling the cutter to handle more demanding cutting operations with ease.
• High-Quality Materials
Crafted from premium-grade materials, our end mill cutter and slot drill bit are built to last. The cutting edges are made from high-speed steel or carbide, depending on the specific model, ensuring excellent hardness and wear resistance. This allows the tool to maintain its sharpness over multiple uses, reducing the need for frequent replacement. The body of the cutter is also designed for durability, with a robust construction that can withstand the rigors of high-speed machining and heavy cutting forces.
• Precision Cutting Geometry
The cutting geometry of the tool is carefully designed to optimize chip evacuation and cutting performance. The flute design and helix angle are precisely calculated to ensure efficient removal of chips, preventing clogging and reducing heat buildup during the cutting process. This results in cleaner cuts, less material damage, and a smoother finish on the workpiece. The sharp cutting edges are able to penetrate the material smoothly, providing accurate and consistent milling and drilling operations.
• Versatile Application
This tool is highly versatile and can be used for a wide range of machining tasks. It is suitable for milling flat surfaces, creating slots of various widths and depths, and drilling holes with precision. Whether you're working on small-scale projects like creating custom jewelry or larger industrial applications such as manufacturing machine parts, our cutter can handle the job. It is compatible with a variety of CNC machines and milling setups, making it a flexible choice for different machining environments.
• Multiple Sizes and Configurations
We offer our Shank Ground End Mill Cutter Milling Cutter Slot Drill Bit in a range of sizes and configurations to meet the diverse needs of our customers. Whether you require a specific diameter for a particular project or a certain flute length for deeper cuts, we have the right tool for you. This variety allows you to select the most suitable cutter for your specific application, ensuring optimal performance and results.
3. Product use scene
• Metalworking and Machining
In the metalworking industry, our cutter is widely used for machining various metal components. It can be used to mill precise slots and grooves in metal plates for applications such as creating keyways in shafts or machining pockets in engine parts. The high-speed steel or carbide cutting edges are capable of cutting through tough metals like steel, aluminum, and titanium with ease. Whether it's for prototyping, production runs, or repair work, this tool is an essential asset in any metalworking shop.
• Plastic Fabrication
For plastic fabrication, the precision and clean cutting ability of our cutter are highly valued. It can be used to create intricate shapes and details in plastic parts, such as for the production of custom plastic enclosures or decorative plastic items. The ability to produce smooth edges and accurate cuts is crucial in plastic machining, as it reduces the need for post-processing and ensures a high-quality finish. The cutter's versatility also allows for different types of plastic materials to be machined, from soft plastics like PVC to more rigid ones like ABS.
• Woodworking and Cabinetry
In woodworking and cabinetry, this tool can be used for a variety of tasks. It can mill decorative edges on wooden panels, create slots for hinges and drawer slides, and drill holes for dowels or other fasteners. The ability to work with different wood species, from softwoods like pine to hardwoods like oak, makes it a versatile choice for woodworkers. The clean cuts and precise drilling capabilities help to achieve professional-looking results in furniture making and cabinet construction.
• DIY and Hobby Machining
DIY enthusiasts and hobbyists will also find our Shank Ground End Mill Cutter Milling Cutter Slot Drill Bit useful for their projects. Whether it's for creating custom parts for a model airplane, machining a unique piece of jewelry, or building a small wooden box with decorative details, this tool allows for precise and creative machining. The ease of use and versatility make it accessible even to those with limited machining experience, enabling them to bring their ideas to life with high-quality results.
4. Product use instructions
1、Tool Selection and Setup
Before starting a machining operation, carefully select the appropriate size and type of cutter based on the requirements of your project. Ensure that the shank of the cutter is clean and free from any debris or damage. Insert the cutter into the tool holder, making sure it is properly seated and tightened. Check the runout of the cutter using a dial indicator if possible, and adjust the tool holder if necessary to minimize runout. This will help ensure accurate and smooth cutting.
2、Machine Setup
Set up your milling machine or CNC machine according to the manufacturer's instructions. Set the appropriate spindle speed, feed rate, and cutting depth based on the material being machined and the size of the cutter. For softer materials like plastics and woods, higher spindle speeds and faster feed rates can be used, while for metals, slower speeds and more conservative feed rates are typically recommended to prevent overheating and tool wear. Make sure the workpiece is securely clamped to the machine table to prevent movement during cutting.
3、Cutting Operation
Start the machine and slowly approach the workpiece with the cutter. Engage the cutting tool at a gentle rate to avoid sudden impacts that could damage the cutter or the workpiece. During the cutting process, monitor the chip formation and the sound of the cutting operation. If the chips are becoming too long or the cutter is making unusual noises, it may be an indication of improper cutting parameters, and adjustments should be made. Keep the cutting area clear of chips by using an appropriate chip evacuation system or by pausing the operation periodically to remove the chips manually.
4、Cooling and Lubrication
To prolong the life of the cutter and improve cutting performance, use a suitable coolant or lubricant. For metal cutting, a cutting fluid is recommended to reduce heat buildup and friction. For plastic and wood machining, a light lubricant can be used to prevent the material from sticking to the cutter. Apply the coolant or lubricant in a consistent and controlled manner, either through a flood system or by using a spray bottle. Make sure the coolant does not contaminate the workpiece or the machine if it is a critical application.
Maintenance and Storage
After each use, clean the cutter thoroughly with a brush or compressed air to remove any chips, debris, or coolant residue. Inspect the cutting edges for signs of wear or damage. If the edges are dull or chipped, they can be sharpened using a suitable grinding tool or replaced if necessary. Store the cutter in a dry and organized place, preferably in a toolbox or a storage rack designed for cutting tools. Protect the cutting edges from accidental damage by using blade guards or covers.
• By following these guidelines, you can ensure the optimal performance and longevity of our Shank Ground End Mill Cutter Milling Cutter Slot Drill Bit in your machining projects. If you have any questions or need further technical assistance, please do not hesitate to contact our customer support team.
