The Complete Guide to Set Screws: Types, Sizes, and Removal Tips
Set screws are small but mighty fasteners used to secure components in place without protruding heads. From door handle set screws to allen set screws in machinery, they’re essential for both DIYers and professionals. However, choosing the wrong size or type—or dealing with a stripped screw—can turn a simple task into a headache. This guide covers everything you need to know, including how to select the right set screw and troubleshoot common issues.
1. What Are Set Screws?
Set screws are headless fasteners designed to hold parts in place by applying pressure against a surface. Key features include:
- Headless Design: Flush installation for unobstructed machinery or furniture.
- Drive Types: Allen (hex), Torx, or slotted drives for tool compatibility.
- Tip Styles: Cup point, flat point, or dog point for different grip strengths.
Common Uses:
- Securing door handles or shower fixtures.
- Locking pulleys, gears, or shafts in machinery.
- Fastening collars or couplings in automotive parts.
Pro Tip: For high-vibration environments, use dog point set screws with a detent tip to prevent loosening.
2. Types of Set Screws and Their Uses
Allen Set Screws (Hex Drive)
- Best For: Machinery, automotive, and furniture.
- Example: M3 set screws for small electronics or M6 set screws for heavy equipment.

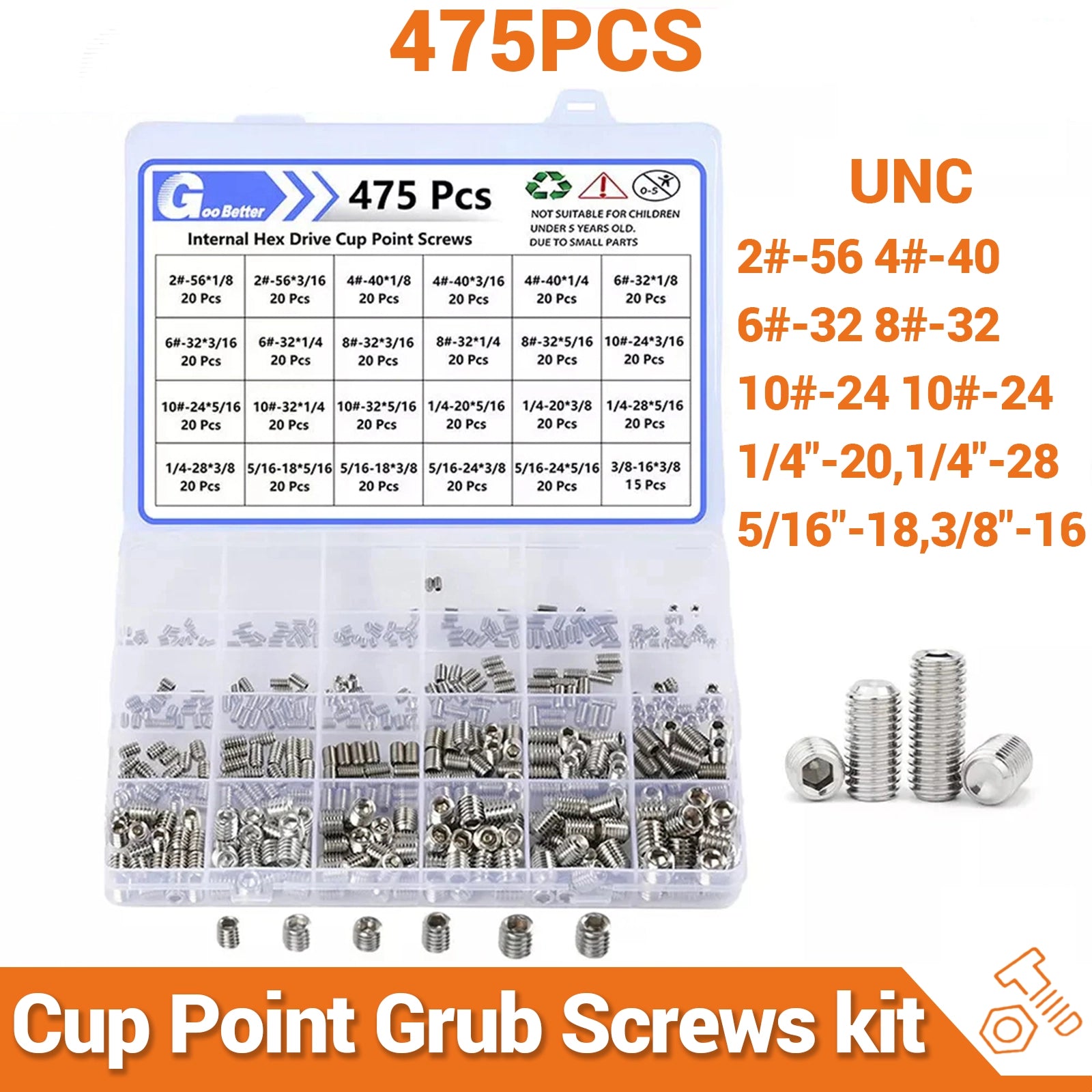

Cup Point Set Screws
- Best For: Permanent installations (e.g., shaft collars).
- Example: Creates a dimple in the shaft for a secure grip.

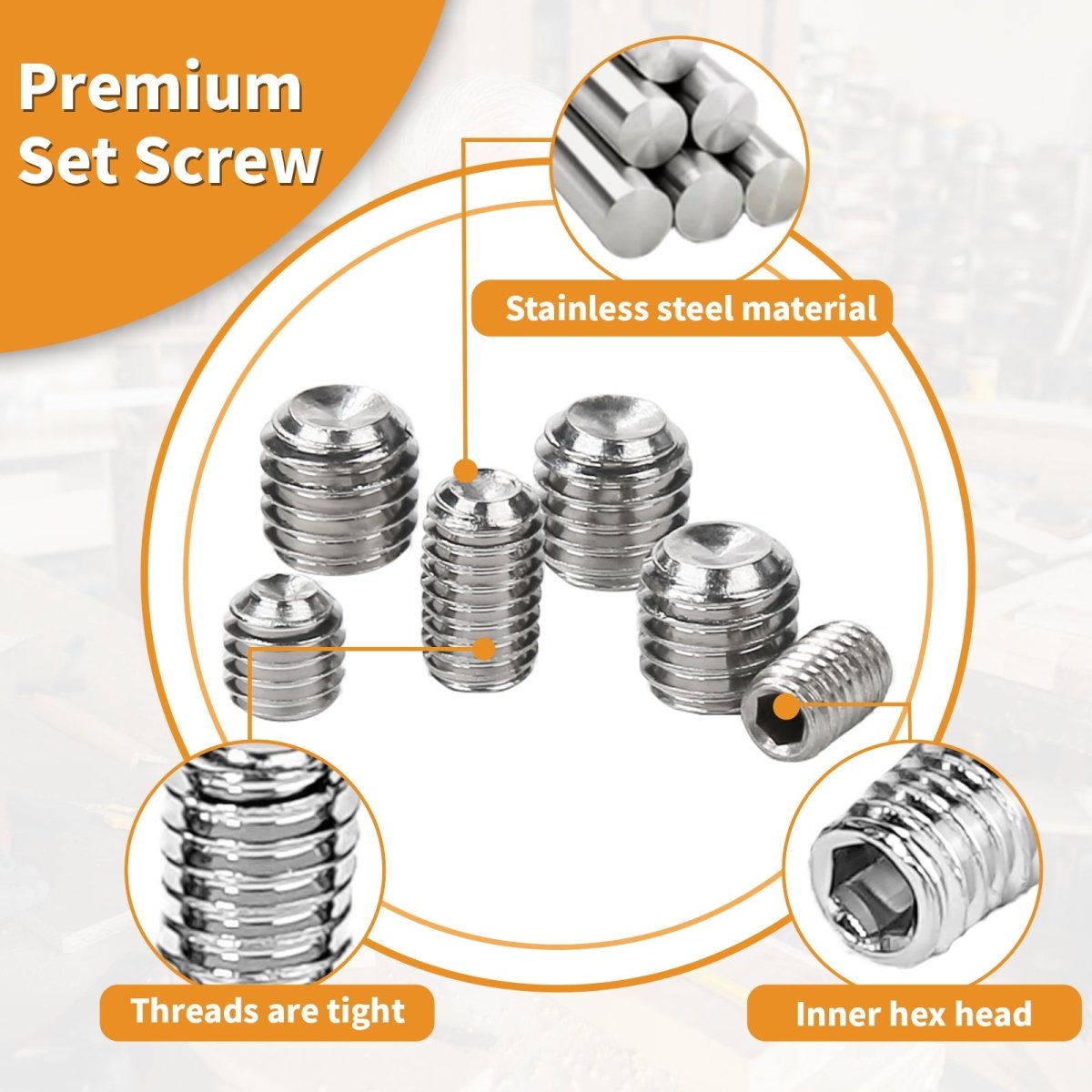

Stainless Steel Set Screws
- Best For: Outdoor or corrosive environments (e.g., marine applications).
Metric Set Screws
- Best For: International projects requiring ISO standards.
3. How to Choose the Right Set Screw
Follow these steps to avoid stripped threads or poor performance:
- Material Compatibility
- Size and Thread Pitch
- Tip Style
Quick Reference: Use a set screw size chart to match screw dimensions to your project.
4. How to Remove a Stripped Set Screw
Stripped screws are a common frustration. Here’s how to tackle them:
- Use a Screw Extractor Set
- Apply Heat
- Lubricate
Pro Tip: For delta shower handle set screws, avoid over-tightening to prevent stripping.
5. FAQs About Set Screws
Q: What’s the difference between a grub screw and a set screw?
A: They’re often used interchangeably, but grub screws typically have a blunt tip.
Q: How to find set screws near me?
A: Search for “set screws Home Depot” or shop our Set Screws Collection online.
Q: Can I reuse set screws?
A: Yes, but inspect threads for wear. Replace if damaged.
Q: What size set screw for a door handle?
A: Most door handles use #8-32 or M4 set screws.
6. Where to Buy Set Screws
At HomeDIYer, we offer:

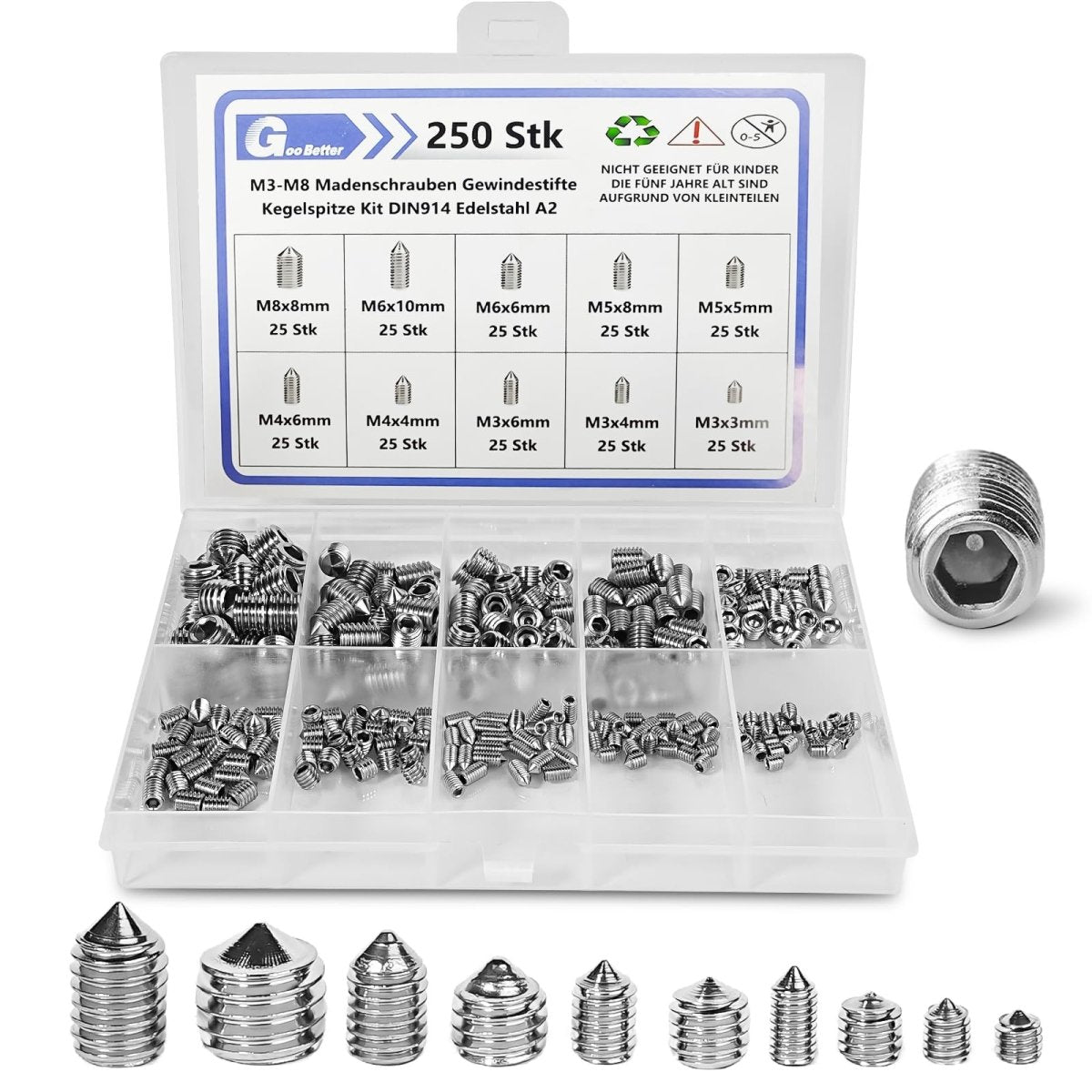

- Stainless steel set screws (indoor/outdoor use).

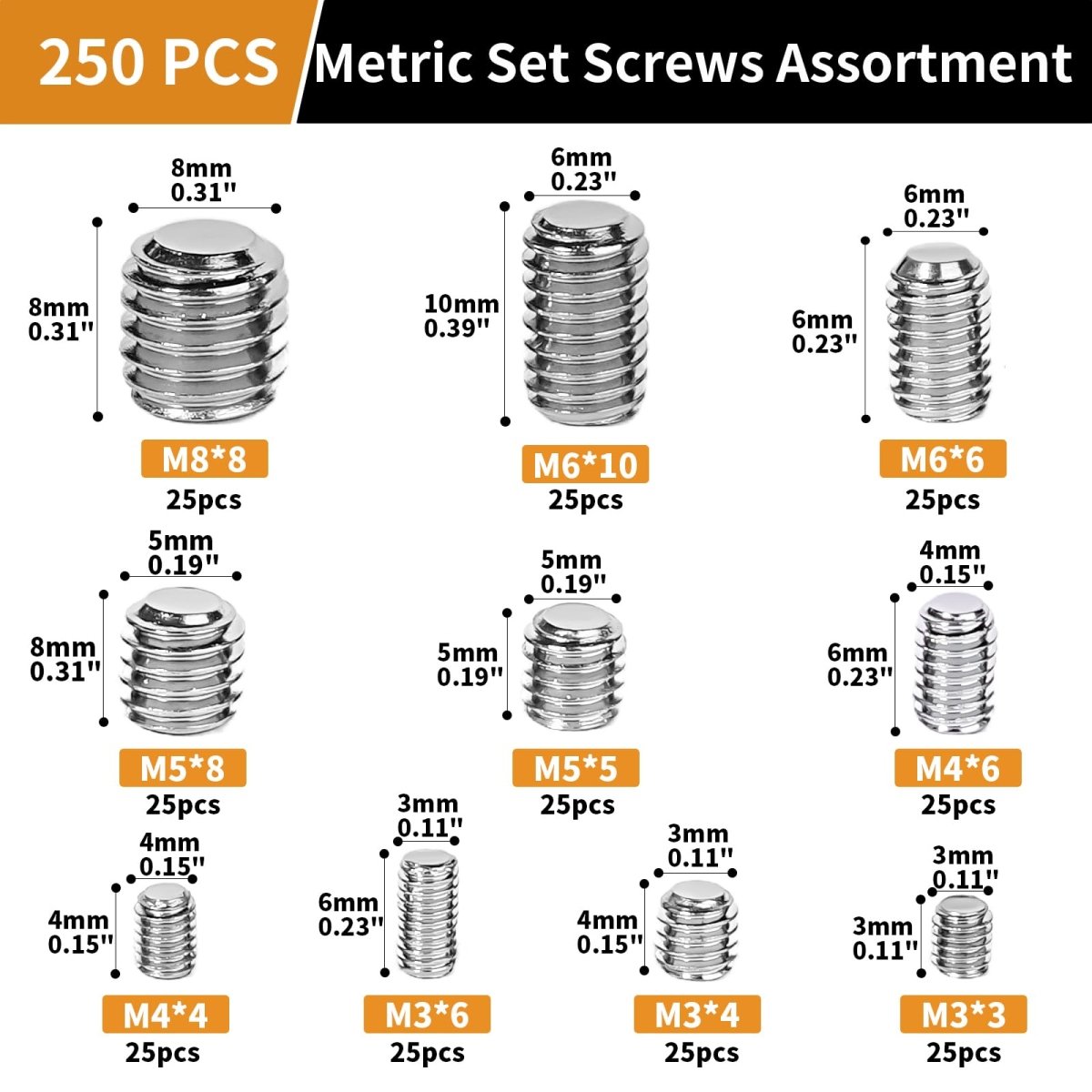

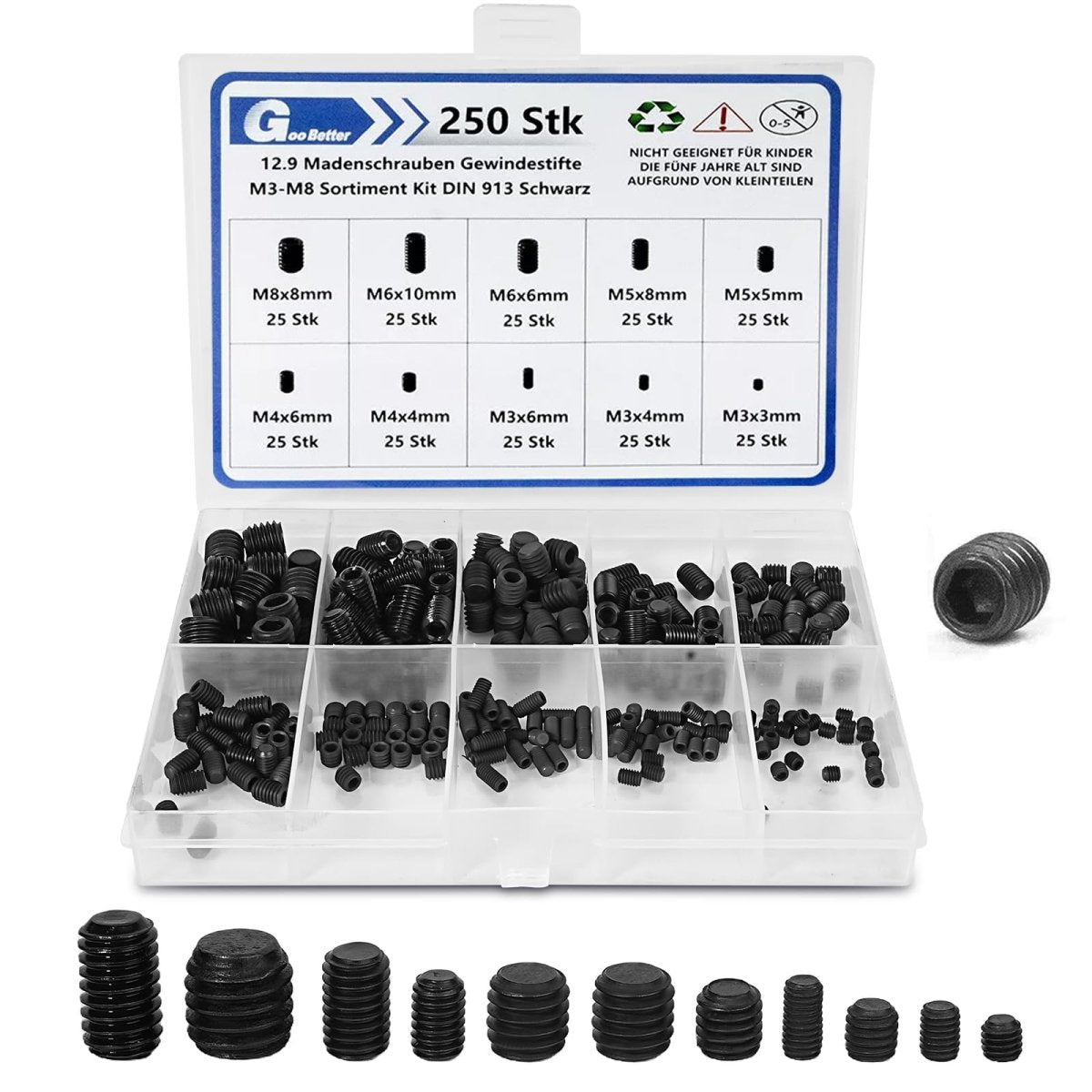

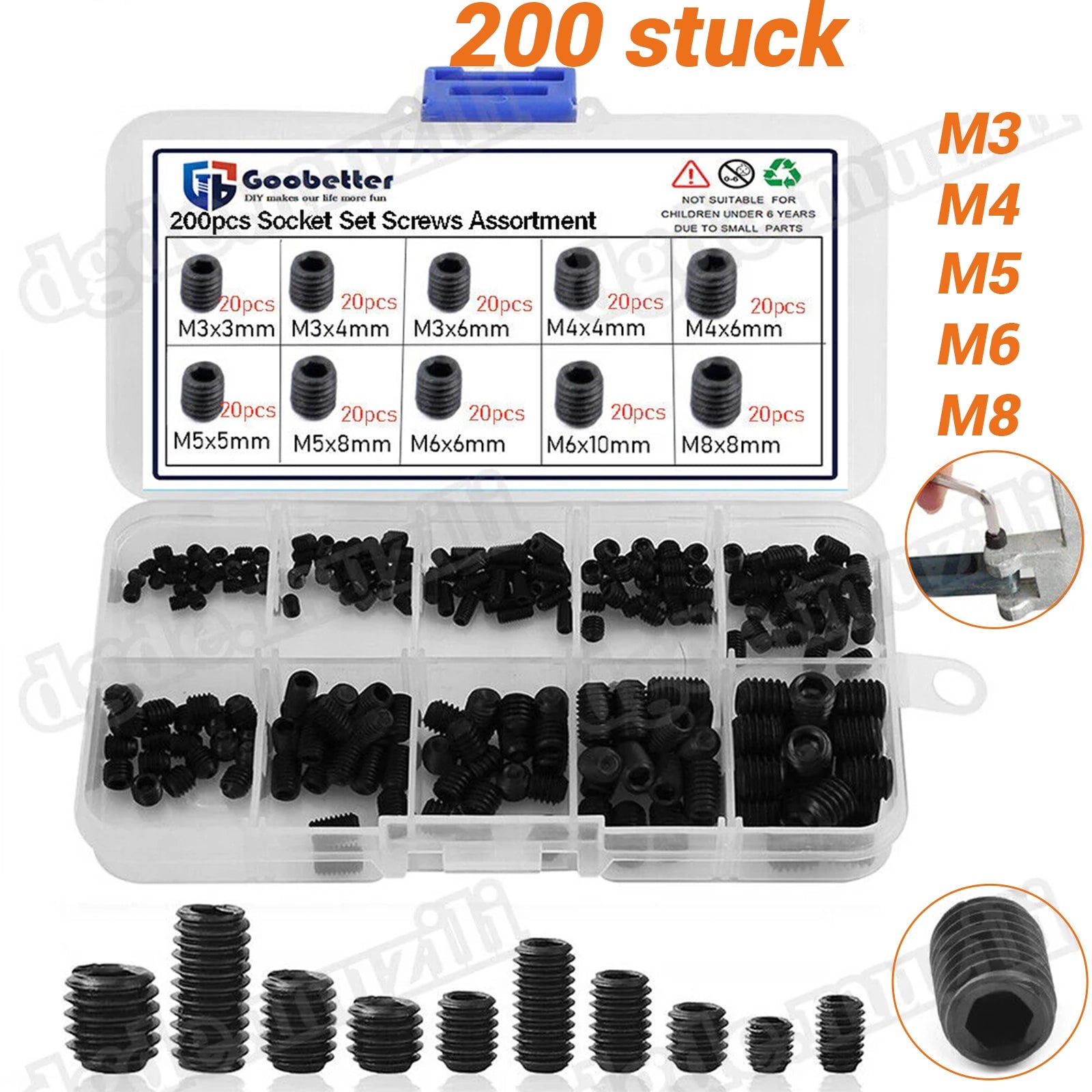

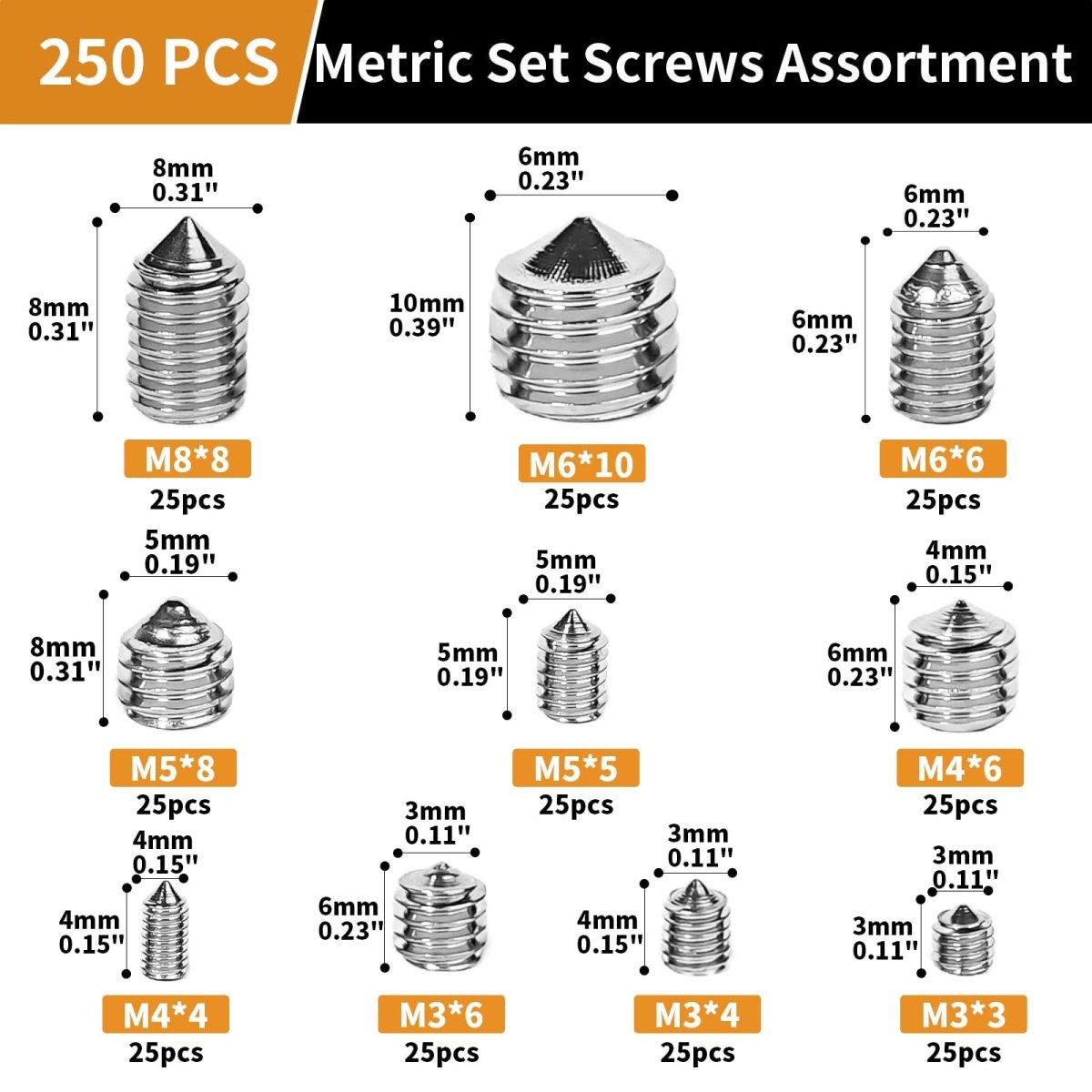

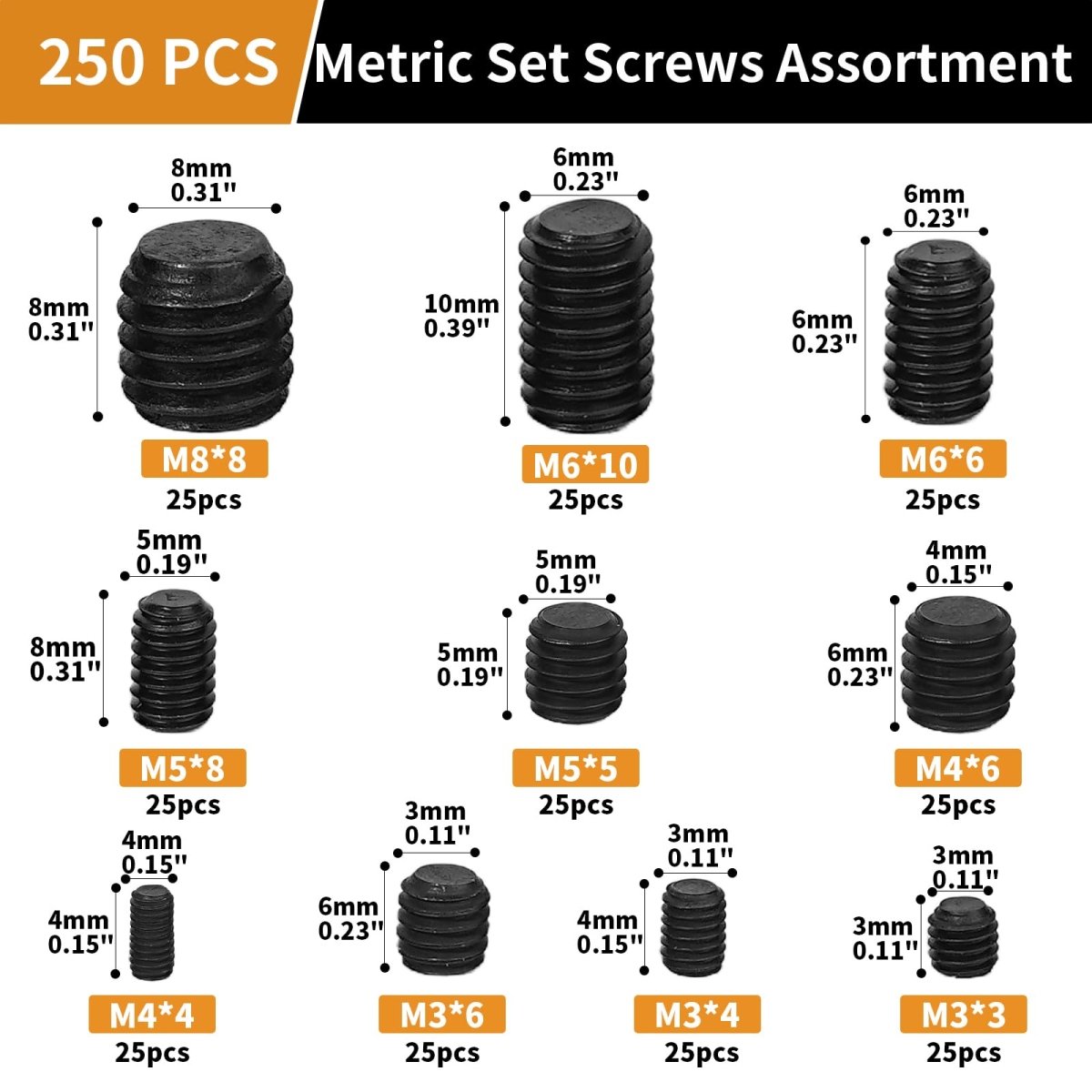

- Metric set screw assortments (M3 to M12).

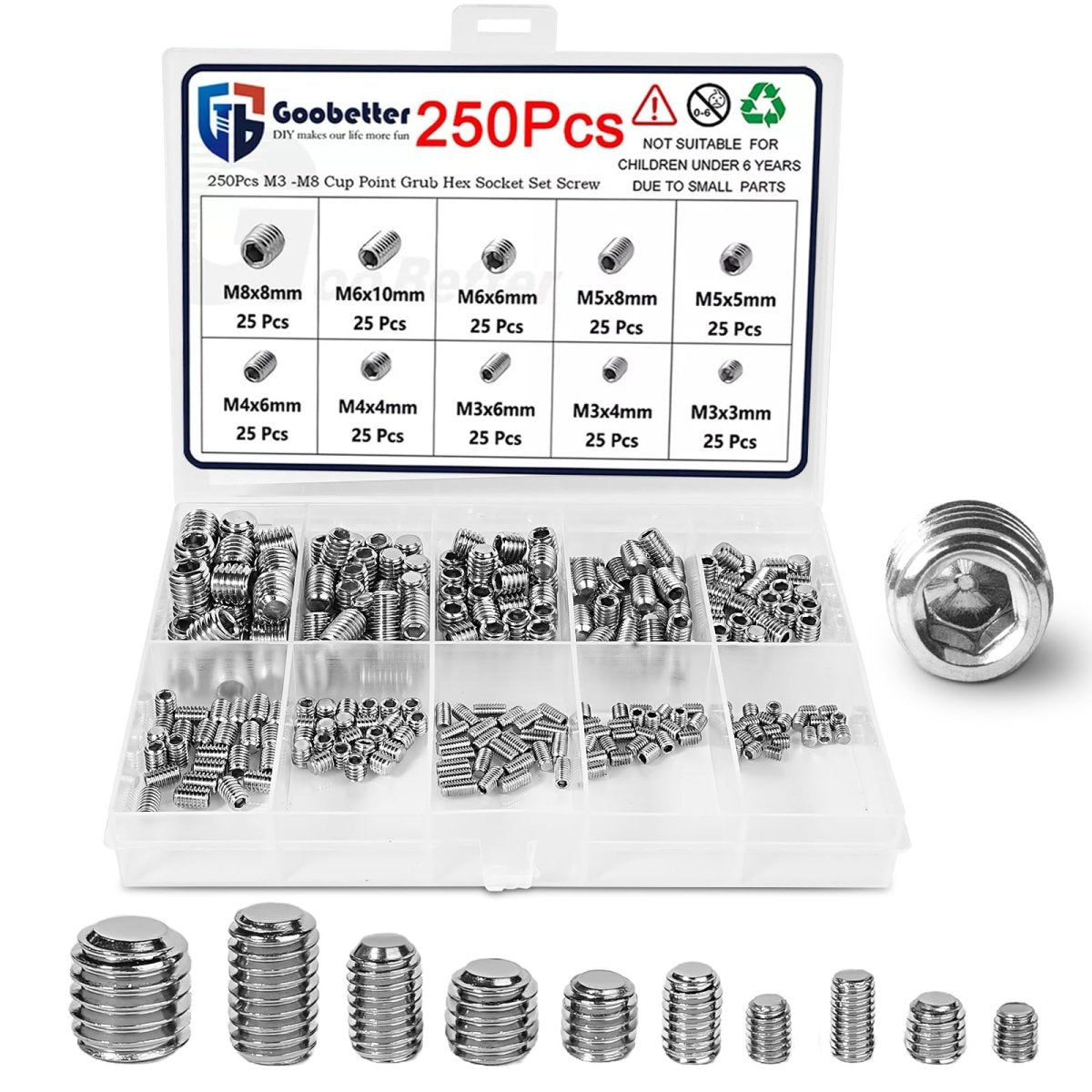

- Specialty screws like cup point or dog point set screws.
Local Retailers: Find set screws at Ace Hardware or Lowe’s for urgent needs.
Conclusion
Whether you’re fixing a door knob set screw or securing industrial machinery, choosing the right set screw—like stainless steel set screws for durability or allen set screws for precision—ensures a secure, long-lasting hold. For stubborn screws, a screw extractor set can save the day. Explore our Set Screws Collection for high-quality options and expert support.
