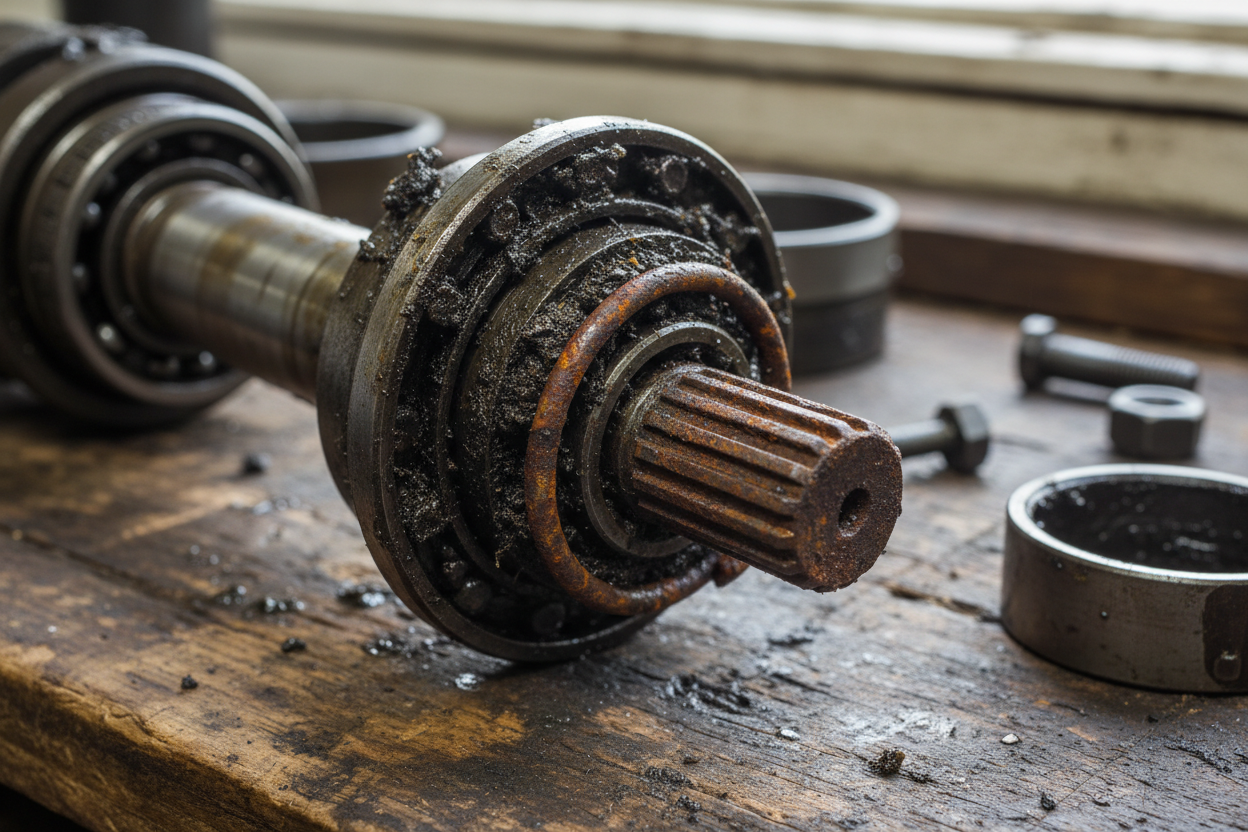

Why Learning to Remove a Circlip Matters
If you've ever found yourself staring at a circlip (also known as a snap ring or retaining ring), wondering how to tackle it without causing damage, you're not alone. These small but mighty components are crucial for securing parts onto shafts or inside housings, and they're found in everything from automotive transmissions to bicycle pedals and power tools. The challenge? They're designed to be incredibly secure, which makes removal tricky if you don't know the proper method.
As a DIY enthusiast, mastering circlip removal empowers you to tackle more complex repairs and maintenance tasks. It’s a skill that pays for itself the first time you avoid a costly mechanic's bill. In this guide, we’ll break down the process into simple, actionable steps. We’ll also help you understand the different types of circlips available, so you can confidently select the right one for reassembly or replacement.
What Exactly is a Circlip?
A circlip is a semi-flexible metal ring that fits into a groove on a shaft or in a housing. It acts as a shoulder to retain components in place, handling axial loads. There are two primary types: internal circlips (which fit into a housing bore) and external circlips (which fit onto a shaft). They can be either plain (with holes for pliers) or eared (with protruding lugs).
Knowing which type you have is the first step to successful removal. Using the wrong technique can lead to the ring snapping, flying off dangerously, or gouging the groove—all of which you want to avoid.
Tools You'll Need for the Job
Having the right tools is non-negotiable. The most common tool is circlip pliers. These come in two main configurations:
- Internal Circlip Pliers: Have tips that expand outward to compress an internal ring for removal.
- External Circlip Pliers: Have tips that contract inward to expand an external ring for removal.
Many quality pliers are convertible with interchangeable tips. Other helpful tools include a small pick or awl, safety glasses, and a container to keep the circlip from launching into oblivion. Investing in a good set of circlip tools makes the job infinitely easier.
Safety First: Protect Yourself and Your Workpiece
Always wear safety glasses. A circlip under tension can release with significant force and become a dangerous projectile. Work in a well-lit, uncluttered area. If possible, contain the circlip with a rag or your hand (while wearing gloves) as you release tension. Inspect the groove for debris that could interfere with removal or reassembly.
Step-by-Step Guide to Removing a Circlip
Step 1: Identify the Type of Circlip
Look closely. Is it sitting on a shaft (external) or inside a bore (internal)? Does it have holes for the plier tips or recognizable lugs? This determines which pliers you'll use and how you'll apply force.
Step 2: Choose and Set Up the Right Pliers
Select your circlip pliers accordingly. For external circlips, you need pliers that squeeze the tips together (closing action). For internal circlips, you need pliers that push the tips apart (opening action). Ensure the tips are securely fitted into the holes or engage firmly behind the lugs.
Step 3: Position the Tool Correctly
Insert the plier tips squarely into the circlip holes or behind the ears. The pliers should be perpendicular to the ring as much as possible. Angled force can cause the tips to slip, potentially damaging the ring or the tool.
Step 4: Apply Steady, Controlled Pressure
Squeeze the plier handles slowly and steadily. For an external circlip, you are compressing the ring to reduce its diameter so it can slide out of its groove. For an internal circlip, you are expanding the ring so it can contract and lift out. Feel for the tension release.
Step 5: Remove and Store the Circlip Safely
Once the circlip is free from the groove, gently release tension and carefully lift it away. Place it immediately in a small container or bag. If the circlip is to be reused, note its orientation and avoid distorting its shape.
Common Mistakes DIYers Make (And How to Avoid Them)
- Using the Wrong Pliers: This is the top cause of failure and frustration. Double-check the type before starting.
- Applying Excessive Force: If it's not budging, don't muscle it. Re-check tool engagement and type. A penetrating lubricant like WD-40 can help with stuck rings.
- Ignoring Wear and Tear: If a circlip is damaged or heavily worn, replace it. A compromised ring can fail in operation.
- Not Containing the Clip: The infamous "ping" sound of a lost circlip is a rite of passage, but you can skip it by working carefully.
Tips for Choosing and Installing a Replacement Circlip
Measure the shaft or bore diameter and the groove width accurately. Circlips are sized by the diameter they retain, not their own outer diameter. Always install the new clip with the sharp edge (if present) facing away from the direction of thrust. This ensures the flat side bears the load. Use your pliers in reverse to install, seating the clip firmly and fully into the groove. A slight "click" or rotation confirms it's seated.
Frequently Asked Questions (FAQ)
Can I reuse a circlip after removal?
It depends on its condition. If it's not deformed, cracked, or excessively worn and still snaps securely into its groove, reuse is possible. However, for critical applications (like automotive or high-vibration environments), replacement is strongly recommended. A new circlip is a cheap insurance policy.
What do I do if the circlip holes are stripped or broken?
For eared circlips, you can sometimes use needle-nose pliers on the lugs. For plain circlips with damaged holes, a small pick or awl can be carefully used to lever one end out of the groove. Work slowly and methodically to avoid slipping.
My circlip pliers keep slipping. What's wrong?
First, ensure the tip size matches the holes in the circlip. Tips that are too small won't grip properly. Second, apply force perpendicularly. Third, clean any oil or grease from the tips and the circlip holes for a better grip.
Where can I buy high-quality replacement circlips?
For a wide selection of internal and external circlips in various sizes and materials, check out our circlip collection. We source durable rings suitable for automotive, industrial, and general DIY use.
Conclusion: You've Got This!
Removing a circlip is a fundamental mechanical skill that unlocks a world of repair possibilities. By following these steps, using the correct tools, and prioritizing safety, you'll handle these retaining rings like a pro. Remember, the key is patience and the right technique, not brute force. Keep a variety of circlips on hand for your projects, and never let a small snap ring halt your DIY progress again. Happy fixing!
